Aaa mobile ipv6 application framework

AAA Mobile IPv6 Application Framework

draft-yegin-mip6-aaa-fwk-00.txt

Alper Yegin

IETF 61 – 12 Nov 2004


Why aaa
Why AAA?

  • Centralized service management

  • Especially useful when MN can use any one of multiple HAs

    • HAs on the same subnet

    • HAs in the same service provider domain

    • HAs across service provider domains

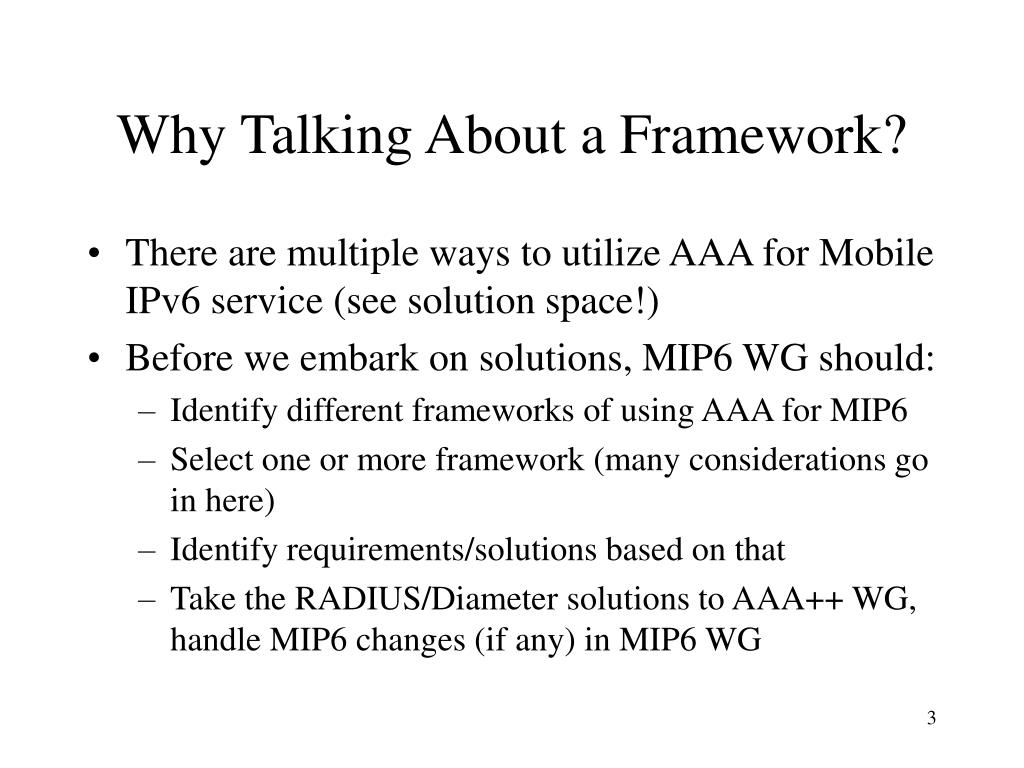

Why talking about a framework
Why Talking About a Framework?

  • There are multiple ways to utilize AAA for Mobile IPv6 service (see solution space!)

  • Before we embark on solutions, MIP6 WG should:

    • Identify different frameworks of using AAA for MIP6

    • Select one or more framework (many considerations go in here)

    • Identify requirements/solutions based on that

    • Take the RADIUS/Diameter solutions to AAA++ WG, handle MIP6 changes (if any) in MIP6 WG


Frameworks
Frameworks

  • (1) Using network access AAA to deliver MIP6 bootstrapping information to MN

    • draft-giaretta-mip6-authorization-eap-01

    • draft-le-aaa-mipv6-requirements-03

    • draft-ohnishi-mip6-aaa-problem-statement-00

  • (2) Using network access AAA to deliver MIP6 bootstrapping information to NAS

    • draft-chowdhury-mip6-bootstrap-radius-00

    • It is assumed that info will be delivered from NAS to MN via another protocol (e.g., draft-jang-dhc-haopt-00)


Frameworks1
Frameworks

  • (3) Piggybacking MIP6 signaling (BU) with network access AAA

    • draft-le-aaa-mipv6-requirements-03

  • (4) AAA of Mobile IPv6 signaling (IKE, BU)

    • MIP6 AAA is independent of network access AAA

    • Described in this I-D

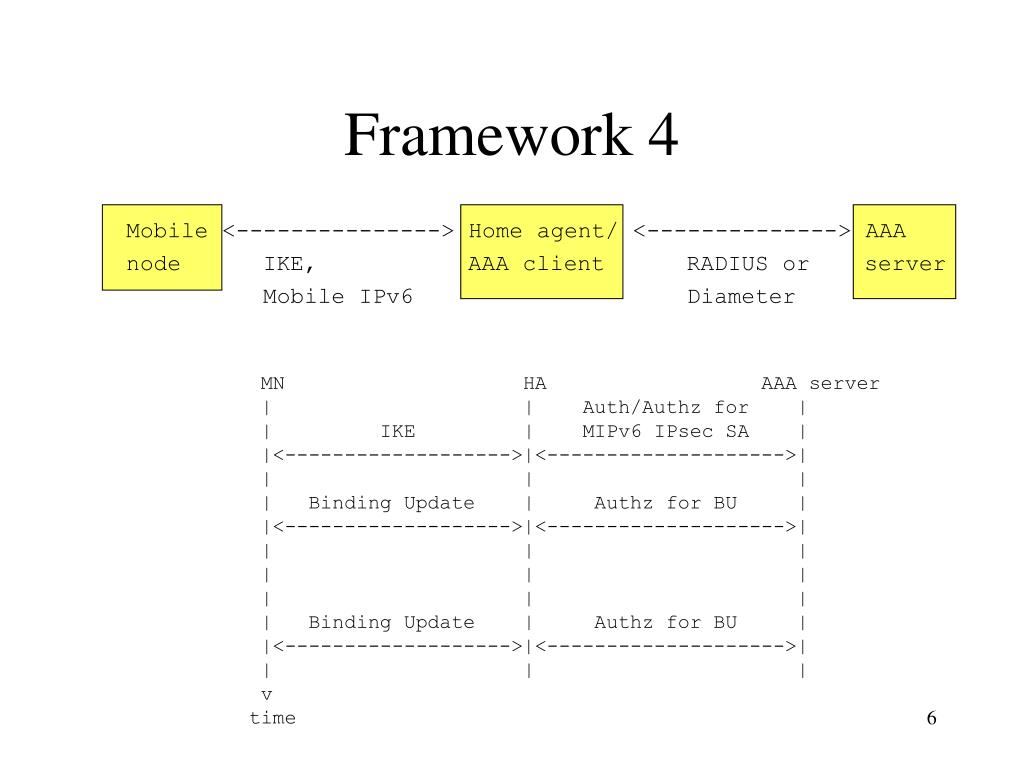

Framework 4
Framework 4

Mobile <---------------> Home agent/ <--------------> AAA

node IKE, AAA client RADIUS or server

Mobile IPv6 Diameter

MN HA AAA server

| | Auth/Authz for |

| IKE | MIPv6 IPsec SA |

|<------------------->|<-------------------->|

| | |

| Binding Update | Authz for BU |

|<------------------->|<-------------------->|

| | |

| | |

| | |

| Binding Update | Authz for BU |

|<------------------->|<-------------------->|

| | |

v

time

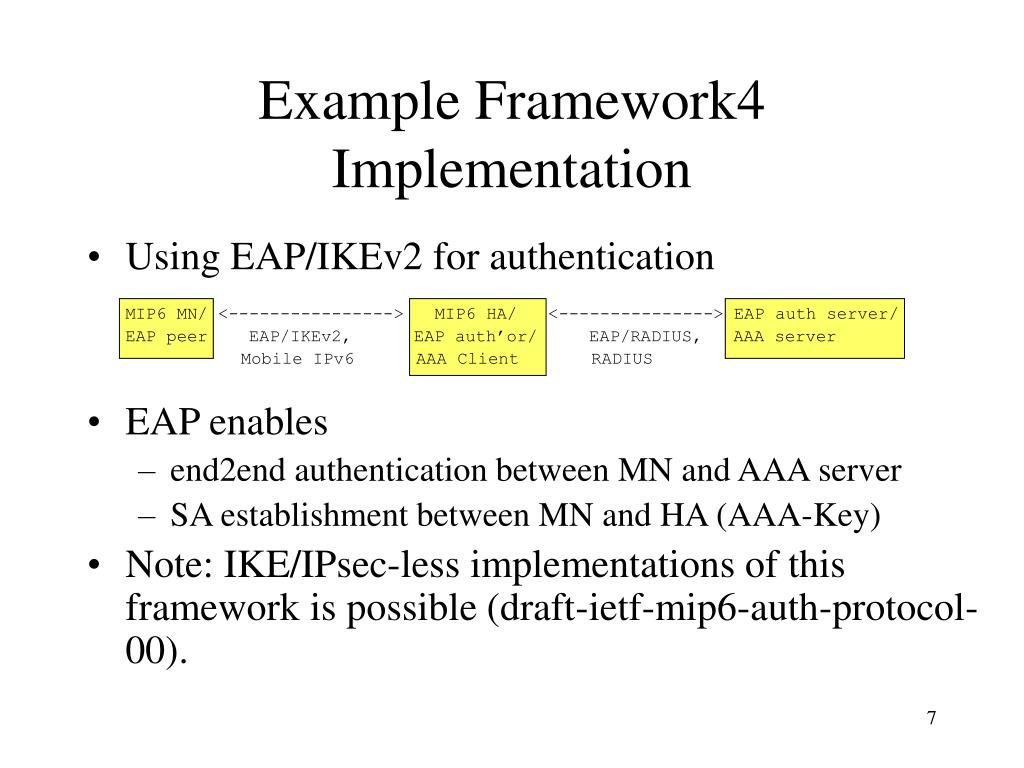

Example framework4 implementation
Example Framework4 Implementation

  • Using EAP/IKEv2 for authentication

    MIP6 MN/ <----------------> MIP6 HA/ <---------------> EAP auth server/

    EAP peer EAP/IKEv2, EAP auth’or/ EAP/RADIUS, AAA server

    Mobile IPv6 AAA Client RADIUS

  • EAP enables

    • end2end authentication between MN and AAA server

    • SA establishment between MN and HA (AAA-Key)

  • Note: IKE/IPsec-less implementations of this framework is possible (draft-ietf-mip6-auth-protocol-00).

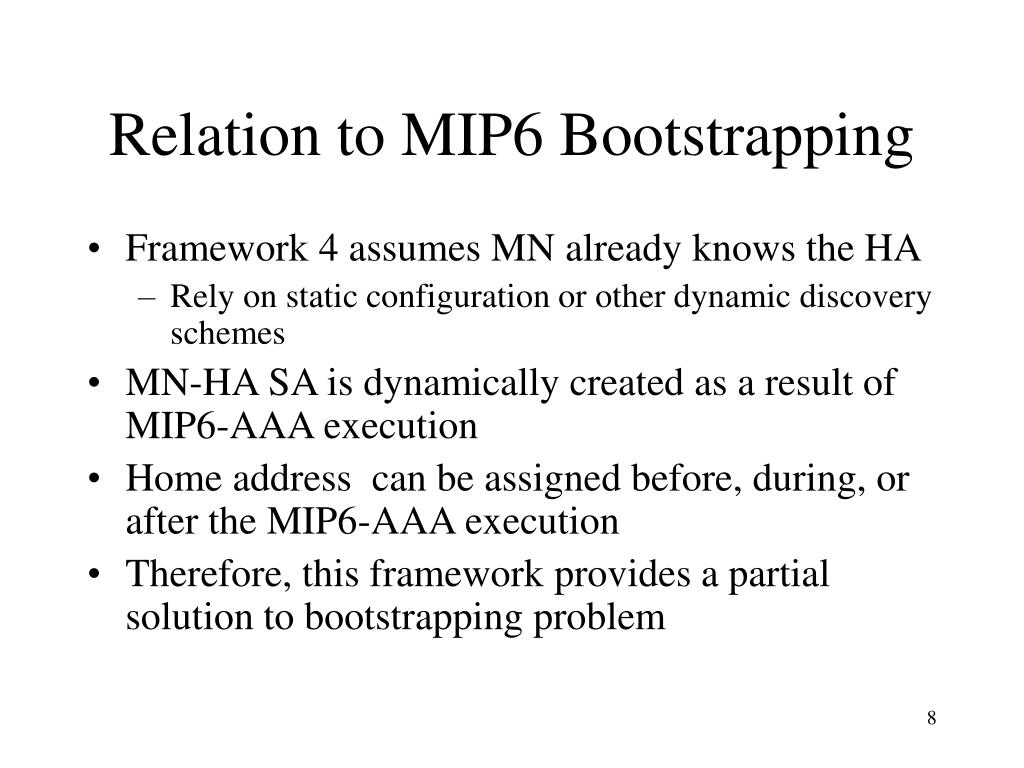

Relation to mip6 bootstrapping
Relation to MIP6 Bootstrapping

  • Framework 4 assumes MN already knows the HA

    • Rely on static configuration or other dynamic discovery schemes

  • MN-HA SA is dynamically created as a result of MIP6-AAA execution

  • Home address can be assigned before, during, or after the MIP6-AAA execution

  • Therefore, this framework provides a partial solution to bootstrapping problem


Summary
Summary

  • Identification of frameworks and detailed discussion on one (fwk4)

  • Proposal to MIP6 WG:

    • Start by framework identification (discovery)

      • Solution introductions help that

    • Select one or more (how?)

    • Identify required changes on MIP6 (if any) and AAA protocols

    • Produce requirements for AAA -- augmented or new AAA applications (interface to AAA++ WG)
