  1. LESSON 8–4 Graphing Rational Functions

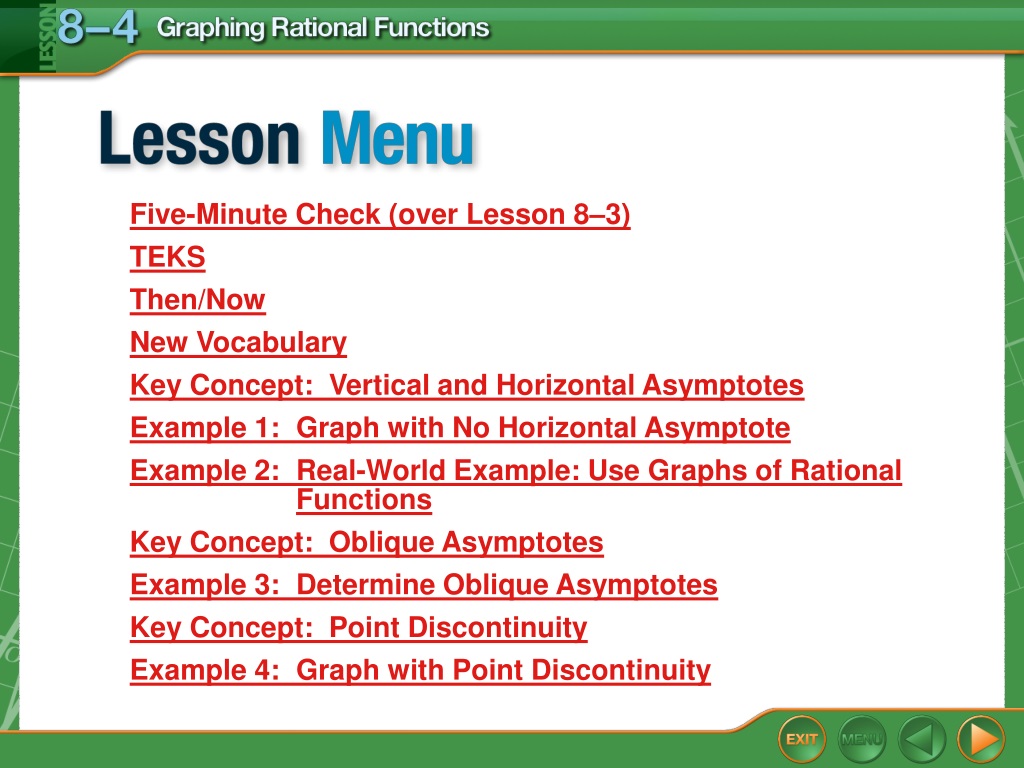

  2. Five-Minute Check (over Lesson 8–3) TEKS Then/Now New Vocabulary Key Concept: Vertical and Horizontal Asymptotes Example 1: Graph with No Horizontal Asymptote Example 2: Real-World Example: Use Graphs of Rational Functions Key Concept: Oblique Asymptotes Example 3: Determine Oblique Asymptotes Key Concept: Point Discontinuity Example 4: Graph with Point Discontinuity Lesson Menu

  3. Which is not an asymptote of the function A.x = –6 B.f(x) = 0 C.x = 2 D.f(x) = 4 5-Minute Check 1

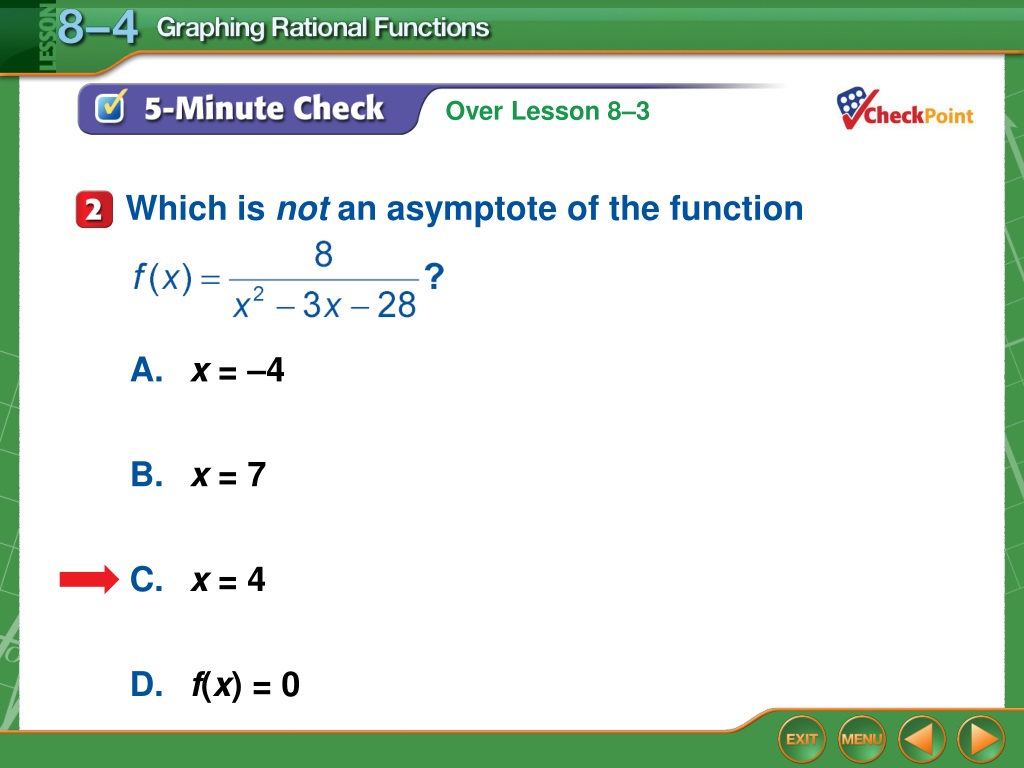

  4. Which is not an asymptote of the function A.x = –4 B.x = 7 C.x = 4 D.f(x) = 0 5-Minute Check 2

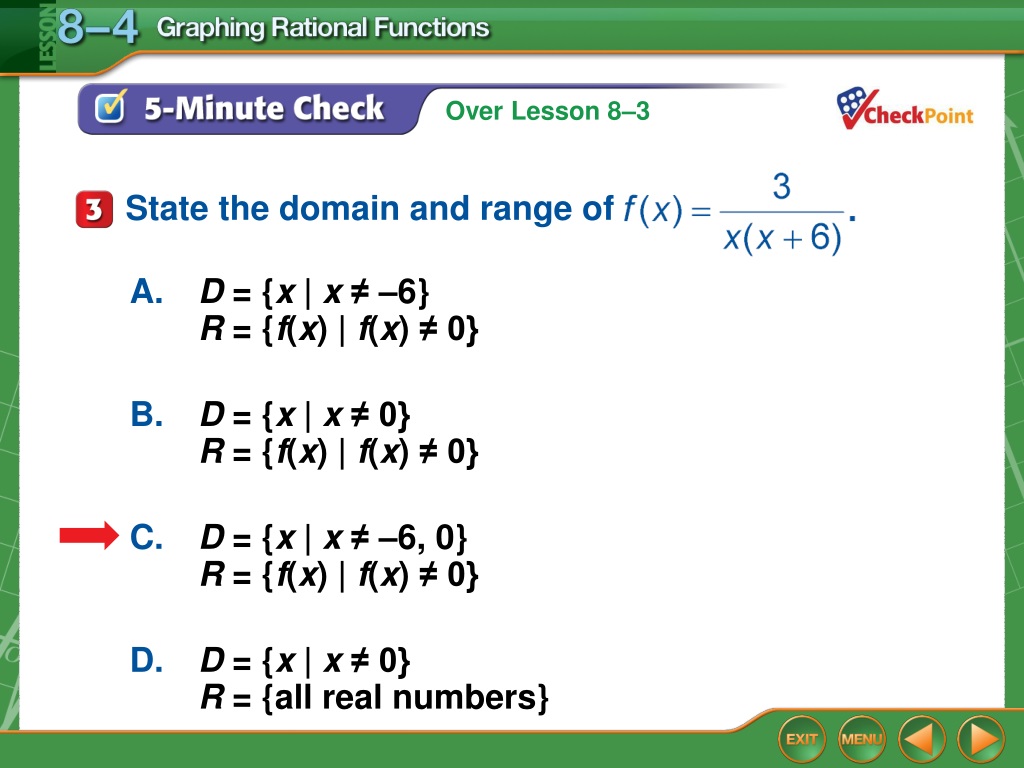

  5. State the domain and range of A.D = {x | x≠ –6}R = {f(x) | f(x) ≠ 0} B. D = {x | x≠ 0}R = {f(x) | f(x) ≠ 0} C.D = {x | x≠ –6, 0}R = {f(x) | f(x) ≠ 0} D.D = {x | x≠ 0}R = {all real numbers} 5-Minute Check 3

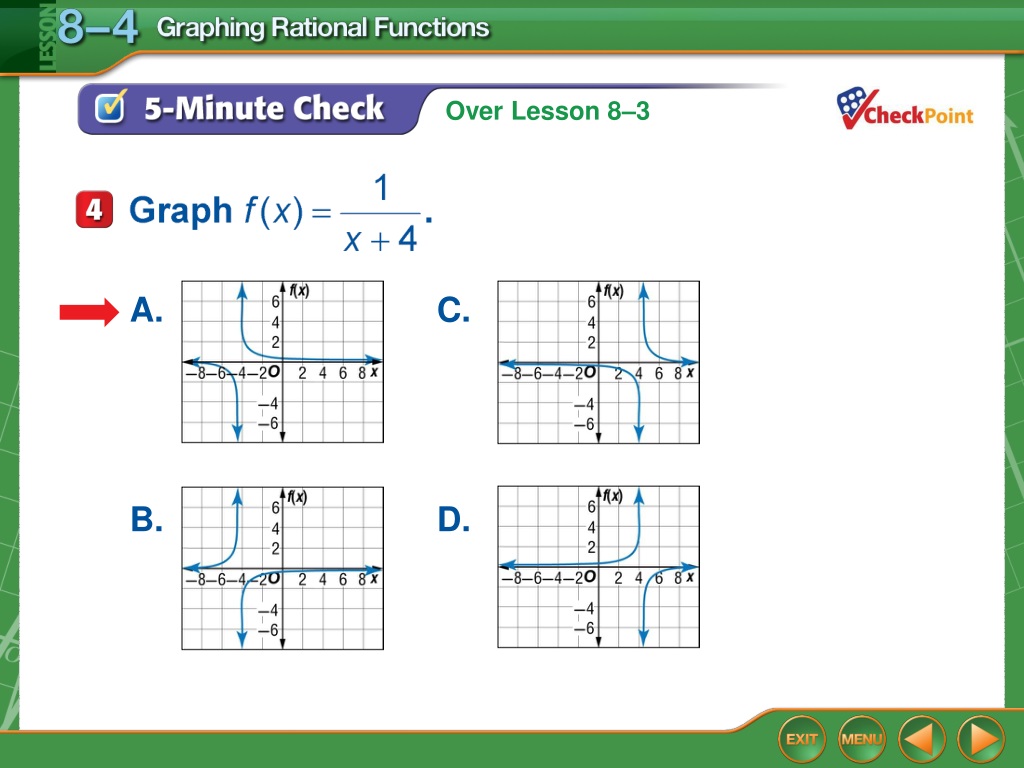

  6. A. B. C. D. 5-Minute Check 4

  7. For what value of x is undefined? A. –7 and –2 B. 7 and –2 C. –7 and 2 D. 7 and 2 5-Minute Check 5

  8. Targeted TEKS A2.6(K) Determine the asymptotic restrictions on the domain of a rational function and represent domain and range using interval notation, inequalities, and set notation. Mathematical Processes A2.1(E), A2.1(F) TEKS

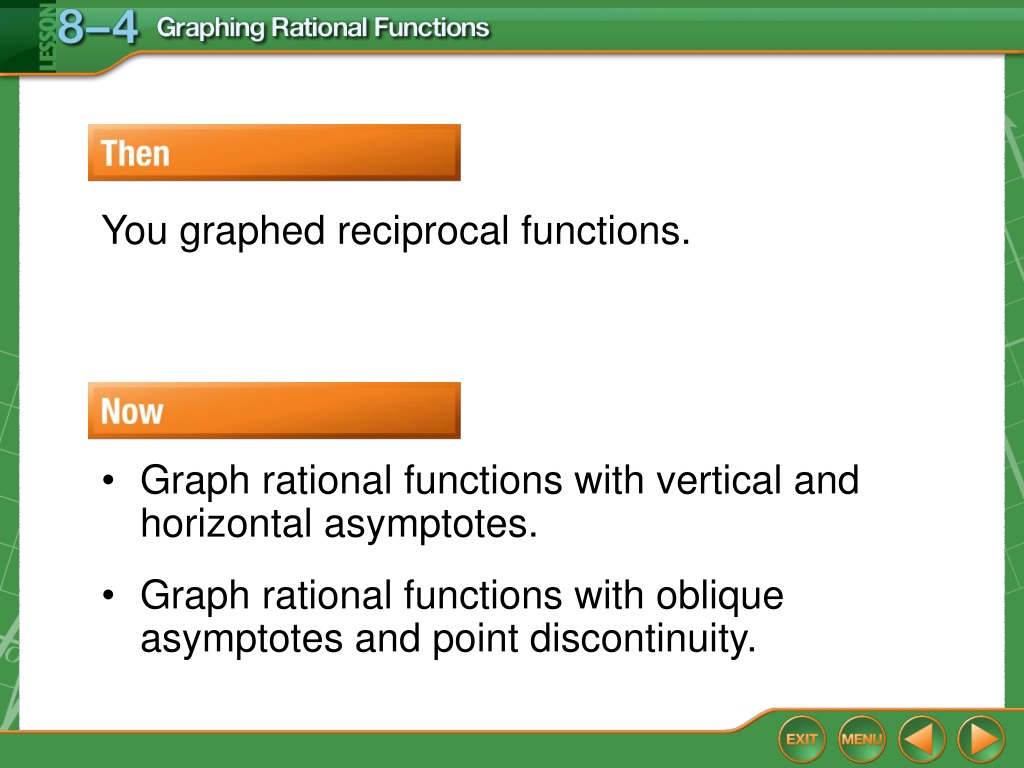

  9. You graphed reciprocal functions. • Graph rational functions with vertical and horizontal asymptotes. • Graph rational functions with oblique asymptotes and point discontinuity. Then/Now

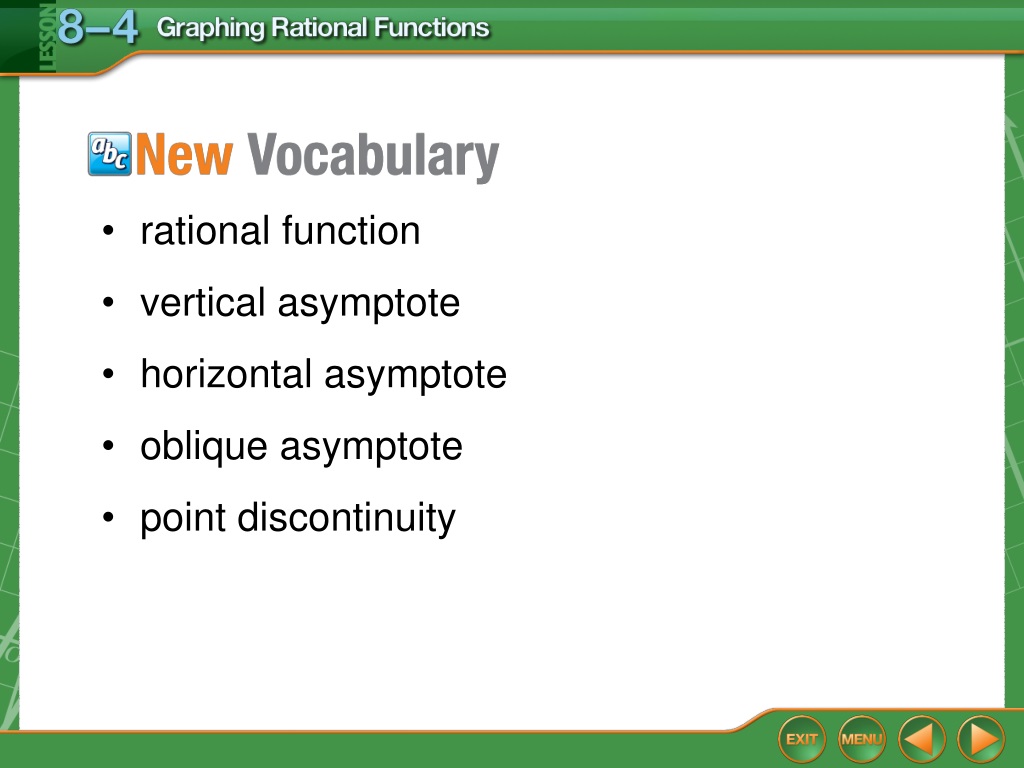

  10. rational function • vertical asymptote • horizontal asymptote • oblique asymptote • point discontinuity Vocabulary

  11. Concept

  12. Graph with No Horizontal Asymptote Step 1 Find the zeros. x3 = 0 Set a(x) = 0. x = 0 Take the cube root of each side. There is a zero at x = 0. Example 1

  13. Graph with No Horizontal Asymptote Step 2 Draw the asymptotes. Find the vertical asymptote. x + 1= 0 Set b(x) = 0. x = –1 Subtract 1 from each side. There is a vertical asymptote at x = –1. The degree of the numerator is greater than the degree of the denominator. So, there is no horizontal asymptote. Example 1

  14. Graph with No Horizontal Asymptote Step 3 Draw the graph. Use a table to find ordered pairs on the graph. Then connect the points. Example 1

  15. Graph with No Horizontal Asymptote Answer: Example 1

  16. B. • C.D. Example 1

  17. A. AVERAGE SPEED A boat traveled upstream at r1 miles per hour. During the return trip to its original starting point, the boat traveled at r2 miles per hour. The average speed for the entire trip R is given by the formula Draw the graph if r2 = 15 miles per hour. Use Graphs of Rational Functions Example 2A

  18. Original equation r2 = 15 Simplify. Use Graphs of Rational Functions The vertical asymptote is r1 = –15. Graph the vertical asymptote and function. Notice the horizontal asymptote is R = 30. Example 2A

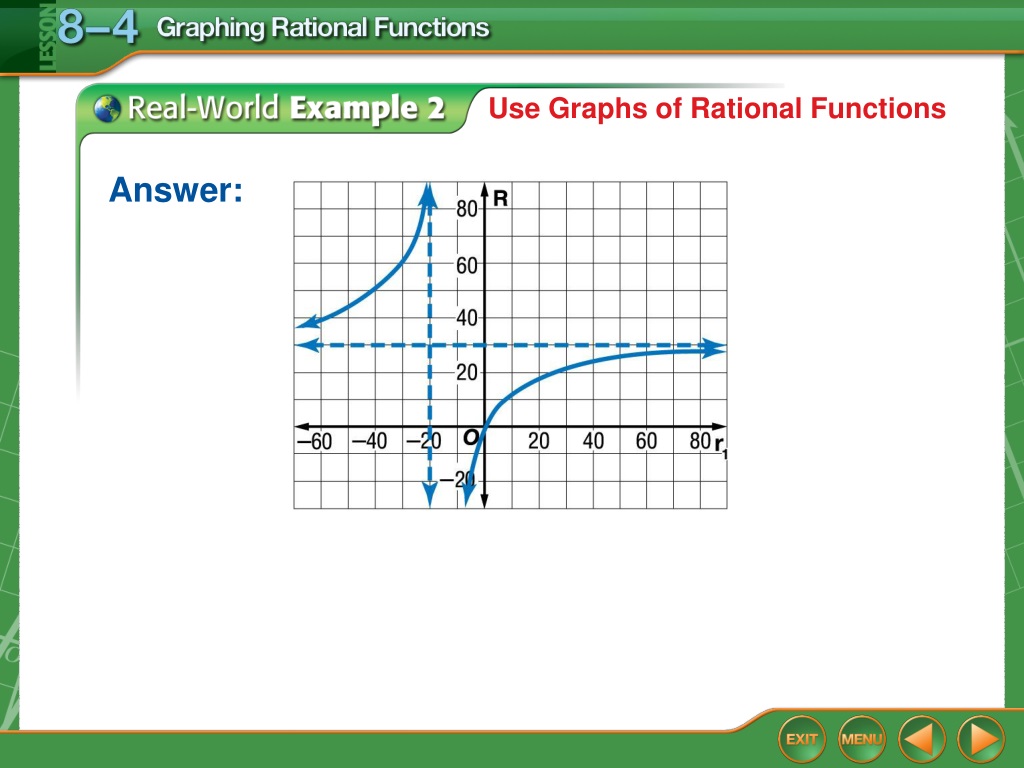

  19. Use Graphs of Rational Functions Answer: Example 2A

  20. Use Graphs of Rational Functions B. What is the R-intercept of the graph? Answer: The R-intercept is 0. Example 2B

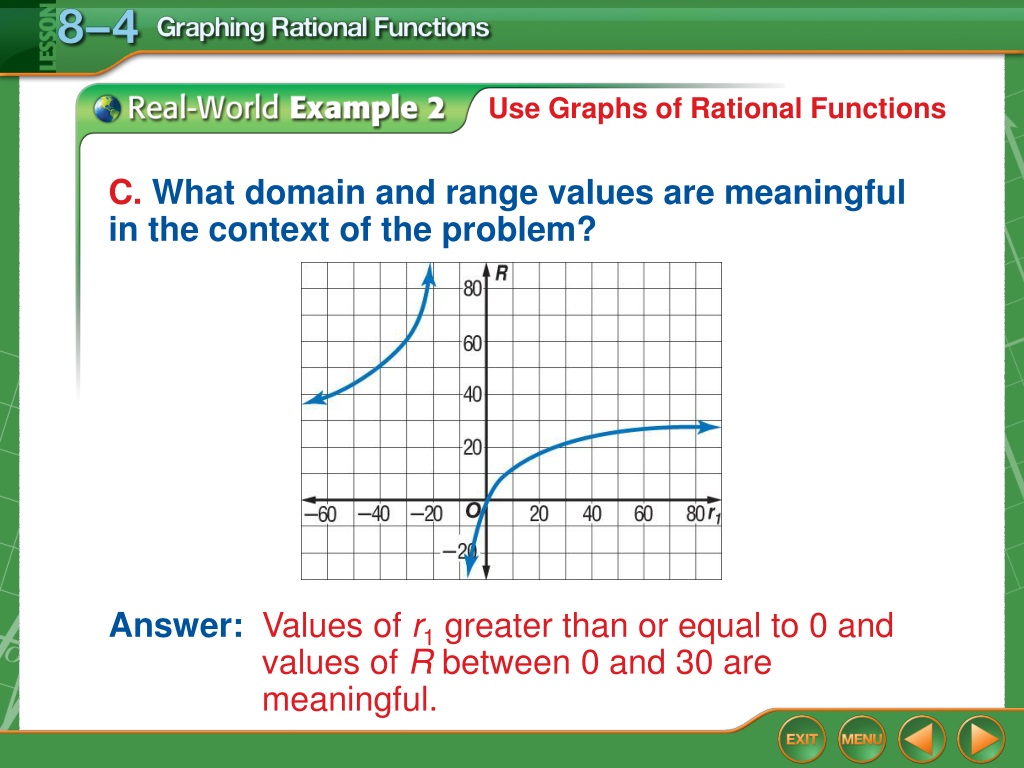

  21. Use Graphs of Rational Functions C. What domain and range values are meaningful in the context of the problem? Answer: Values of r1 greater than or equal to 0 and values of R between 0 and 30 are meaningful. Example 2C

  22. A. TRANSPORTATION A train travels at one velocity V1 for a given amount of time t1 and then another velocity V2 for a different amount of time t2. The average velocity is given by . Let t1 be the independent variable and let V be the dependent variable. Which graph is represented if V1 = 60 miles per hour, V2 = 30 miles per hour, and t2 = 1 hour? Example 2

  23. A. B. C.D. Example 2

  24. B. What is the V-intercept of the graph? A. 30 B. 1 C. –1 D. –30 Example 2

  25. C. What values of t1 and V are meaningful in the context of the problem? A. t1 is negative and V is between 30 and 60. B. t1 is positive andV is between 30 and 60. C. t1 is positive and V is is less than 60. D. t1 and V are positive. Example 2

  26. Concept

  27. Graph Determine Oblique Asymptotes Step 1 Find the zeros. x2 = 0 Set a(x) = 0. x = 0 Take the square root of each side. There is a zero at x = 0. Example 3

  28. Determine Oblique Asymptotes Step 2 Find the asymptotes. x + 1= 0 Set b(x) = 0. x = –1 Subtract 1 from each side. There is a vertical asymptote at x = –1. The degree of the numerator is greater than the degree of the denominator, so there is no horizontal asymptote. The difference between the degree of the numerator and the degree of the denominator is 1, so there is an oblique asymptote. Example 3

  29. Determine Oblique Asymptotes Divide the numerator by the denominator to determine the equation of the oblique asymptote. – 1 (–) 1 The equation of the asymptote is the quotientexcluding any remainder. Thus, the oblique asymptote is the line y = x – 1. Example 3

  30. Determine Oblique Asymptotes Step 3 Draw the asymptotes, and then use a table of values to graph the function. Answer: Example 3

  31. Graph • B. • C.D. Example 3

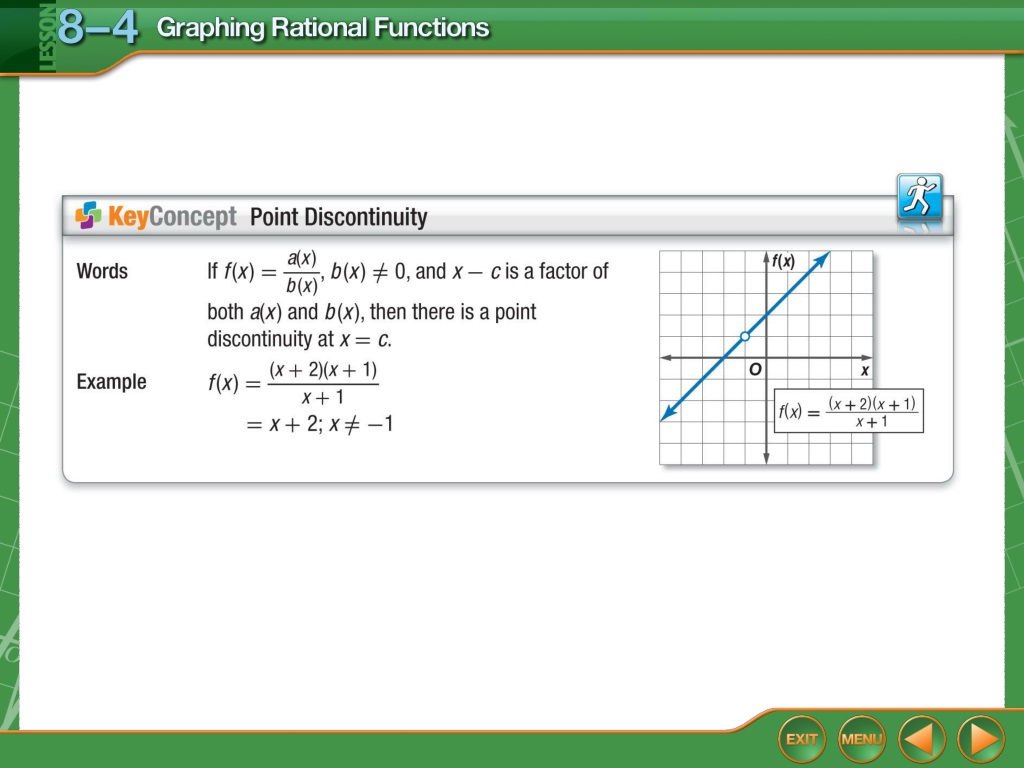

  32. Concept

  33. Graph . Notice that or x + 2. Therefore, the graph of is the graph of f(x) = x + 2 with a hole at x = 2. Graph with Point Discontinuity Example 4

  34. Graph with Point Discontinuity Answer: Example 4

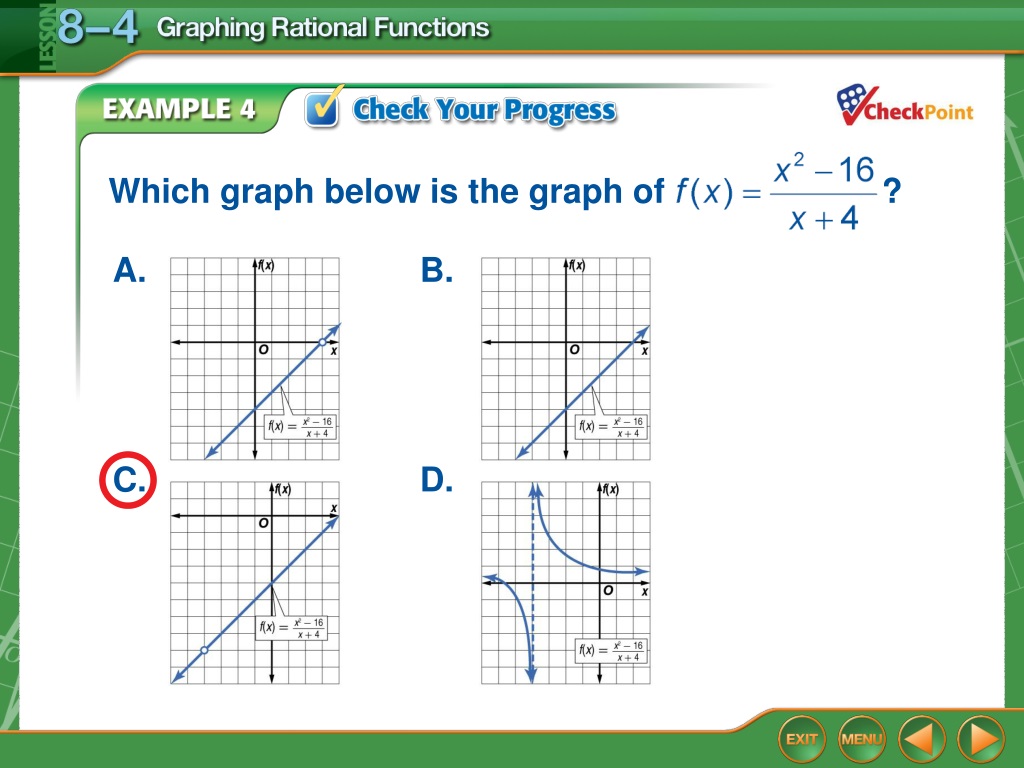

  35. Which graph below is the graph of ? A. B. C.D. Example 4

  36. LESSON 8–4 Graphing Rational Functions
