Assessment of foot posture and mobility development of a physical therapy model

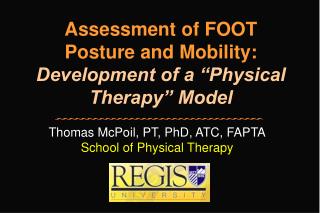

Assessment of FOOTPosture and Mobility:Development of a “Physical Therapy” Model

Thomas McPoil, PT, PhD, ATC, FAPTA

School of Physical Therapy


Assessment of foot posture and mobility development of a physical therapy model

Recognize and Thank

  • Professor Mark Cornwall

    • Northern Arizona University

  • The DPT Graduate Students who have assisted me in my research efforts


Overview of presentation

Overview of Presentation

  • Why are PT’s interested in foot posture & mobility?

  • Major requirements for clinical measurements

  • Current measurement methods

    • Foot Posture

    • Foot Mobility

  • Foot Image Platform (FIPs)

  • Foot Assessment Platform (FAPs)


Why are pt s interested in foot posture mobility

Why are PT’s interested in FOOT Posture & Mobility

  • The basic premise underlying the understanding of foot mechanics - given structural foot type will display certain functional characteristics

  • These characteristics are often associated with pathological dysfunction of the LE

  • Clinical measurement of FOOT posture & mobility are inherent components of foot type classification


Major requirements for clinical measurements

Major Requirements for Clinical Measurements

  • Must have an operational definition to guide process

    • Identifies a specific observable event & tells clinician how to measure the event

  • The measurement must be reproducible

    • Must demonstrate inter- & intra-rater reliability

      • Intraclass Correlation Coefficients (ICCs)

      • Standard Error of the Measurement (SEMs)

  • Measurements must be valid

    • They must yield “true” measurements of the event being measured


Current objective measurement methods

Current “Objective” Measurement Methods

  • Foot Posture

    • Boney Arch Index

    • Valgus Index

    • Longitudinal Arch Angle

    • Arch Height Ratio

  • Foot Mobility

    • Navicular Drop

    • NavicularDrift

  • Podiatric Model

    • Attempted to use static foot posture to predict dynamic foot movement


Current measurement methods

Current Measurement Methods

  • Foot Posture

    • Longitudinal Arch Angle

      • McPoil & Cornwall, JAPMA 2005 - walking

      • McPoil & Cornwall, JAPMA 2007 - running


Laa is

> 150o

< 130o

RSP vs. MS (r = .971; r2 = .943)

Supinated Foot Posture

Pronated Foot Posture

LAA is

  • Can be used to statically classify foot structure

  • HIGHLY predictive of dynamic foot posture during walking


Current measurement methods1

Arch Height

Ball Length

Arch Height

Ball Length

AHR=

50% of

Foot Length

Current Measurement Methods

  • Foot Posture

    • Arch Height Ratio (AHR)

      • Williams & McClay, Phys Ther, 2000

      • McPoil et al, FOOT, 2008


Arch height ratio

Arch Height

Ball Length

50% of

Foot Length

Arch Height Ratio

  • McPoil et al, FOOT, 2008

    • Norm values (n = 850)

      • Total Foot Length

        • Rt = 0.253 + 0.02

        • Lt = 0.249 + 0.02

      • Truncated Length

        • Rt = 0.345 + 0.03

        • Lt = 0.341 + 0.03


Arch height ratio1

Arch Height Ratio

  • Static AHR appears to be predictive of midstance during walking

    • Franettovich et al, JAMPA 97:115, 2007

      • Reported that the AHR obtained in static standing correlated to AHR at midstance in walking

      • r = 0.85; r2 = 0.72


Current measurement methods2

Current Measurement Methods

  • Foot Posture

    • Boney Arch Index

    • Valgus Index

    • Longitudinal Arch Angle

    • Arch Height Ratio

Major limitation with Foot

Posture categorizations is

do not account

for

Foot Mobility


Current measurement methods3

Current Measurement Methods

  • Foot Posture

    • Boney Arch Index

    • Valgus Index

    • Longitudinal Arch Angle

    • Arch Height Ratio

  • Foot Mobility

    • Navicular Drop

    • Navicular Drift


Current measurement methods4

Current Measurement Methods

  • Navicular Drop test

    • Change in naviculartuberosity height b/w resting posture & subtalarjt neutral position

      • First described Brody in 1982

      • Stated that normal was a 10 mm change; abnormal > 15 mm

      • NO data to substantiate!

    • ISSUES

      • Fair to Poor levels of inter-rater reliability

        • Result of palpating subtalarjt neutral position

      • ONLY assesses motion in sagittal plane

Subtalar Jt Neutral Position

Resting

Posture


Dynamic movement of navicular bone during walking

Dynamic Movement of Navicular Bone during Walking

  • Cornwall & McPoil, Foot & Ankle Int; 1999

    • Assessed pattern and magnitude of navicular bone movement during walking in 106 subjects

    • Reported both sagittal & medial-lateral movement

Medial-Lateral Movement

Mean = 14.7mm

Sagittal Movement


Current measurement methods5

Current Measurement Methods

Subtalar Jt Neutral Position

  • Navicular Drift

    • Described by Menz, JAPMA, 1998

    • Vinicombe et al, JAPMA, 2001

      • Assessed the reliability of both navicular drop & drift in 20 subjects

        • Inter-rater reliability

          • Navicular Drop ICCs = 0.33 to 0.76; SEMs; + 1.5 to + 3.5 mm

          • Navicular Drift ICCs = 0.31 to 0.62; SEMs; + 3.0 to + 5.0 mm

        • Concluded further research required to improve measurement techniques and reliability

Resting Posture


Current measurement methods6

Current Measurement Methods

Potential But

PROBLEMS

  • Foot Posture

    • Boney Arch Index

    • Valgus Index

    • Longitudinal Arch Angle

    • Arch Height Ratio

  • Foot Mobility

    • Navicular Drop

      • Sagittal Movement

    • Navicular Drift

      • Medial – Lateral Movement


Foot image platform fips

FOOT IMAGE PLATFORM (FIPs)

  • Developed for REEBOK Footwear Company in 2001

    • System for obtaining measurements that was inexpensive, portable, & durable

      • Foot measurements that were reproducible & reliable between multiple raters

      • Require minimal to no skin marking of bony landmarks


Foot image platform

FOOT IMAGE PLATFORM


Foot image platform1

FOOT IMAGE PLATFORM

  • 3 Digital Images Obtained for Each Foot

    • Total time required for image capture - 6 minutes

    • No skin markings required

Bottom View

Back View

WB Arch View


Foot image platform2

FOOT IMAGE PLATFORM

  • FROM THE 3 DIGITAL IMAGES, 15 different measurements were obtained in bilateral standing (50% body weight)

    • Back View – 3 measures

    • WB Arch View – 5 measures

    • Bottom View – 7 measures


Foot image platform3

FOOT IMAGE PLATFORM

  • Positive Points

    • Reliability of the 15 measurements

      • Excellent intra-rater & inter-rater reliability using inexperienced evaluators

    • Reliability of foot placement on the FIP

      • Excellent

  • Negative Points

    • Took approximately 45 to 60 minutes to analyze 8 pictures obtained for each subject

    • NOT feasible for clinical use!


Foot image platform4

FOOT IMAGE PLATFORM

  • Did convince REEBOK to capture WB & NWB medial arch image

WB Arch View

Non-WB Arch View


Sit to stand test

SIT–to–STAND TEST

Sitting

  • Determine amount of rearfoot & midfootmobility

Standing


Arch height change during sit to stand

Arch Height Change duringSit-to-Stand

  • McPoil et al: J Foot Ankle Res, 2008

    • Assessed change in arch height b/w Non-WB and WB in 275 healthy subjects

    • Reported

      • Good to high levels of intra- & inter-rater reliability

      • Validated using x-rays as a criterion measure

      • Mean difference between Non-WB and WB = 1.0 cm

    • Need to make clinically feasible!

    • Account for medial-lateral foot mobility


Foot assessment platform faps

FOOT ASSESSMENT PLATFORM( FAPs )

  • Initially developed in 2004

    • An attempt to create a more clinically applicable device based on the FIPs measurements


Foot assessment platform

FOOT ASSESSMENT PLATFORM

  • Measurements of FootMobility

    • McPoil et al, J Foot Ankle Research 2:6, 2009

  • Difference in arch height at 50% foot length between Non-WB vs WB

  • Difference in midfoot width at 50% foot length between Non-WB vs WB

  • Foot Mobility Magnitude


Foot assessment platform1

FOOT ASSESSMENT PLATFORM

  • Difference in dorsal arch height between NonWB vs WB

    • The WB height of the dorsal aspect of the arch minus the WB dorsal arch height

      • Dorsal height measured at 50% of the length of the foot


Foot assessment platform2

FOOT ASSESSMENT PLATFORM

  • Difference in midfoot width between NonWB vs WB

    • The width of the midfoot is measured at 50% of the length of the foot


Foot assessment platform3

Diff Arch Ht2 + Diff MF Width2

FMM =

FOOT ASSESSMENT PLATFORM

  • Foot Mobility Magnitude (FMM)

Diff in Arch Ht / NonWB - WB

Diff in MF Width / NonWB - WB

FMM


Faps distributions n 690 feet

FAPs DISTRIBUTIONS (n = 690 feet)

Diff Midfoot Width

Foot Mob Mag

Diff in Arch Hgt


Faps data

FAPs Data

  • ICCs

    • Intra-rater = .97 to .99; Inter-rater = .83 to .99

  • SEMs

    • Intra-rater = 0.03 to 0.09 cm; Inter-rater = 0.04 to 0.13 cm


Us army baylor nau

US Army Baylor – NAU

  • Assessed 1,000 individuals using FAPs

    • 566 Males

    • 434 Females

  • Utilized 4 entry-level PT students as raters

  • After 1 hour of training & 1 hour of practice

    • Inter-rater ICCs = .78 to .99

    • SEMs = 0.03 to 0.20 cm


Clinical applications of faps measurements

Clinical Applications of FAPs Measurements

  • 32 yo male with Bilateral Calcaneal Fractures

    • LT was non-displaced

    • RT displaced & required ORIF

Courtesy of Stephanie Albin, PT, TOSH, Salt Lake City, Utah


Clinical applications of faps measurements1

Clinical Applications of FAPs Measurements

  • 32 yo male with Bilateral Calcaneal Fractures

    • LT was non-displaced

    • RT displaced & required ORIF

Courtesy of Stephanie Albin, PT, TOSH, Salt Lake City, Utah


Clinical applications of faps measurements2

Clinical Applications of FAPs Measurements

  • Vicenzino, Collins, Cleland, McPoil: BJSM, 2008

    • Development of clinical prediction rule to identify patients with PFPS who will benefit from foot orthoses

    • One of the four predictor variables

      • Diff Midfoot Width > 11 mm

        • Remaining Predictors

          • Age over 25 years

          • Height less than 165 cm

          • Worst pain less than 53.3 mm on a 100 mm VAS


Clinical applications of faps measurements3

Clinical Applications of FAPs Measurements

  • McPoil, Warren, Vicenzino, Cornwall, JAPMA, in press

    • Assessed 43 individuals with a history of unilateral or bilateral PFPS and 86 controls

      • Nested-case control design

    • PFPS 4 times more likely to have a larger than normal difference between NWB & WB arch height compared with the controls.

    • Mean values for difference in arch height and the foot mobility magnitude were also statistically significant between the patient and control groups.


Future directions

FUTURE DIRECTIONS

  • Have developed a large normative database!

  • Need for clinical trials to determine if measurements can be predictive of LE or Foot pathology

  • Further assessment on usefulness of measurements for determining which patient/client would benefit from foot orthoses


Assessment of foot posture and mobility development of a physical therapy model

Thank You!


The podiatric model

The PODIATRIC Model

  • The most common method used by PT’s for the examination & management of the foot & ankle

    • First described by Podiatrists Merton Root, Bill Orien, & John Weed in the late 60’s

    • Provided a criteria for classifying a “NORMAL” foot posture

    • Defined “ABNORMAL” foot structure

      • Forefoot & Rearfoot deformities

    • Provided method for fabricating foot orthoses


The podiatric model s theorized pattern of rearfoot motion during walking

The Podiatric Model’s Theorized Pattern of Rearfoot Motion During Walking


The podiatric model1

The Podiatric Model

  • Normal & Abnormal Foot Types:

ABNORMAL

NORMAL


The podiatric model2

The Podiatric Model

  • Orthotic Intervention:


The podiatric model3

The Podiatric Model

  • Current evidence to support use

    • Little, if any evidence

      • Legitimacy of using subtalar joint neutral position as the KEY alignment criteria is questionable

        • Wright, et al, JBJS, 1964

        • McPoil & Cornwall; Foot & Ankle, 1994

        • McPoil & Cornwall; JOSPT, 1996

        • Cornwall & McPoil: JAPMA, 2000

    • Unable to predict dynamic foot function based on measurements

      • Hamill, et al, ClinBiomech 1989

      • McPoil & Cornwall, JOSPT 1997

      • Cornwall & McPoil, FOOT, 2004

      • Cornwall, et al, AJPM, 2004

  • Poor inter-rater reliability of the measurements

    • Elveru, et al. Phys Ther 1988

    • Van Gheluwe, et al: JAPMA 2002

  • Thus multiple clinicians cannot compare findings


  • Login
