  1. Raster GIS

  2. Introduction

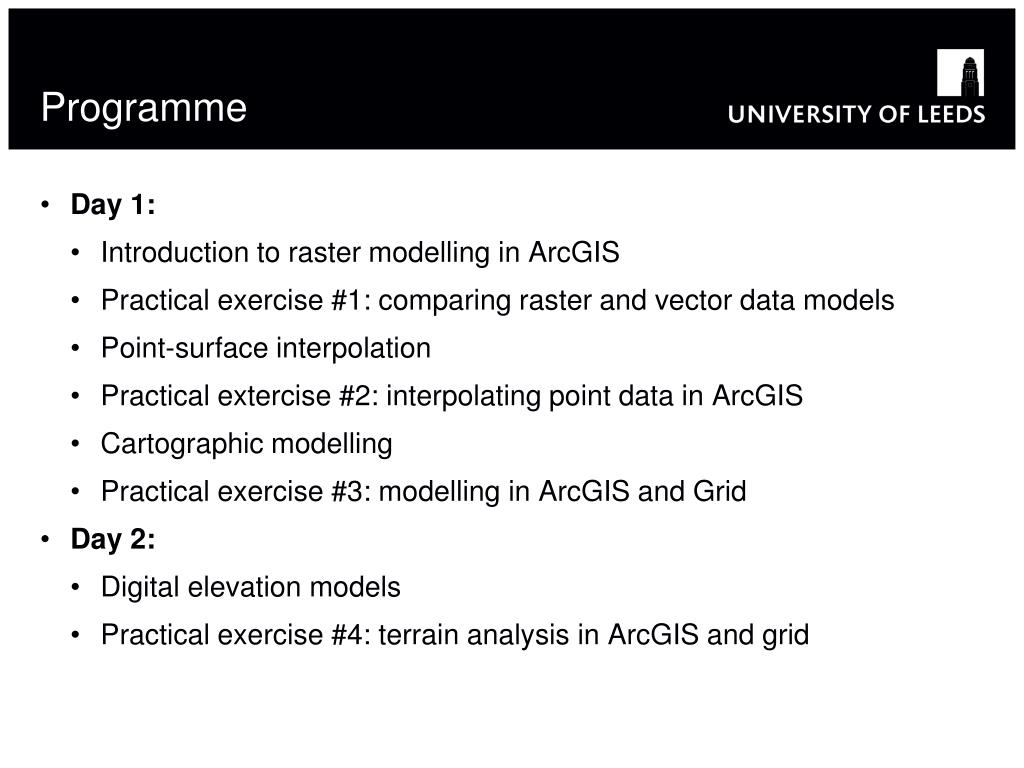

  3. Programme • Day 1: • Introduction to raster modelling in ArcGIS • Practical exercise #1: comparing raster and vector data models • Point-surface interpolation • Practical extercise #2: interpolating point data in ArcGIS • Cartographic modelling • Practical exercise #3: modelling in ArcGIS and Grid • Day 2: • Digital elevation models • Practical exercise #4: terrain analysis in ArcGIS and grid

  4. Safety, etc. • Fire alarm and exits • Toilets • Tea and coffee • Lunch

  5. Day 1: Introduction to raster • Prior experience with raster and vector data models? • Basics of raster model • Grids and cells, rows and columns • Points, lines, areas, surfaces and images • Binary, categorical and continuous data types • Resolution and orientation (generalisation) • Topology • Typical data sources • Vector to raster conversion • Satellite and aerial imagery • DEMs by direct measurement • Point-surface interpolation

  6. Prior experience? • Vector GIS in ArcGIS and MapInfo? • Familiarity with basic GIS concepts • Familiarity with ArcGIS and ArcMap interface • Raster GIS? • ArcGIS, ArcView, MapInfo Vertical Mapper, Idrisi, GRASS, etc. • Image processing software (e.g. ERDAS Imagine, PCI, etc.) • Microsoft Excel (or any other spreadsheet software) • Digital photography and image management/editing software

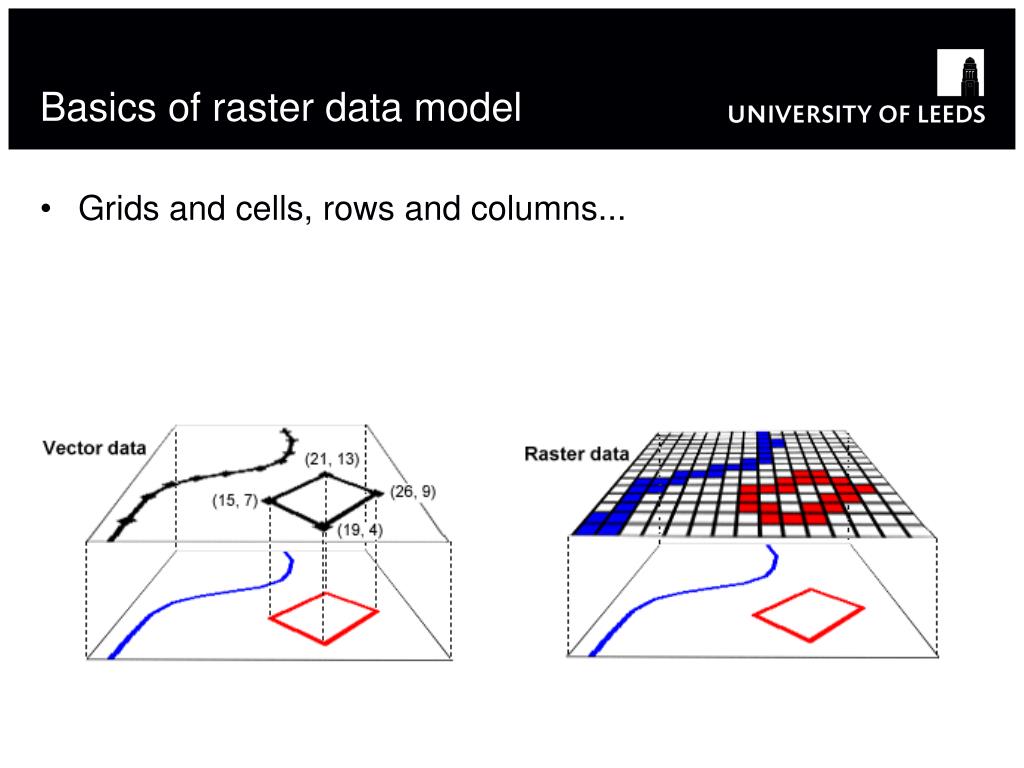

  7. Basics of raster data model • Grids and cells, rows and columns...

  8. Basics of raster data model • Feature types: • Points, lines and areas

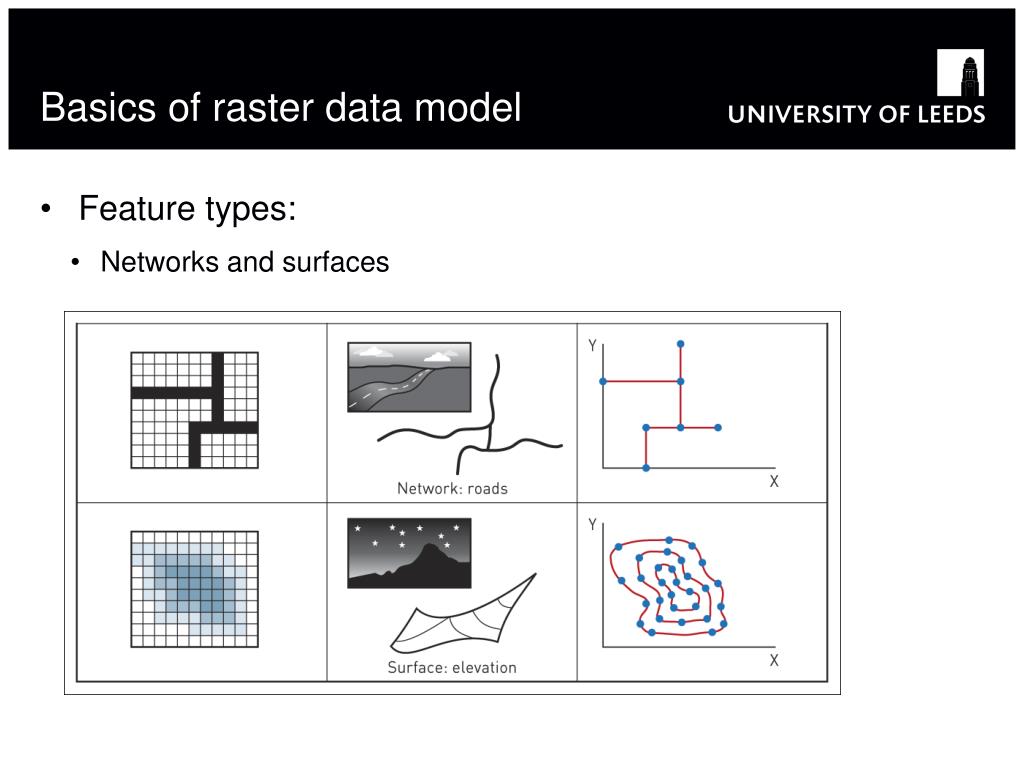

  9. Basics of raster data model • Feature types: • Networks and surfaces

  10. Basics of raster data model • Feature types: • Images

  11. Basics of raster data model • Data types: • Continuous (a), categorical (b), image (c)

  12. Basics of raster data model • Data types: • Binary (demonstration of raster file structures)

  13. Basics of raster data model • Resolution and orientation (generalisation)

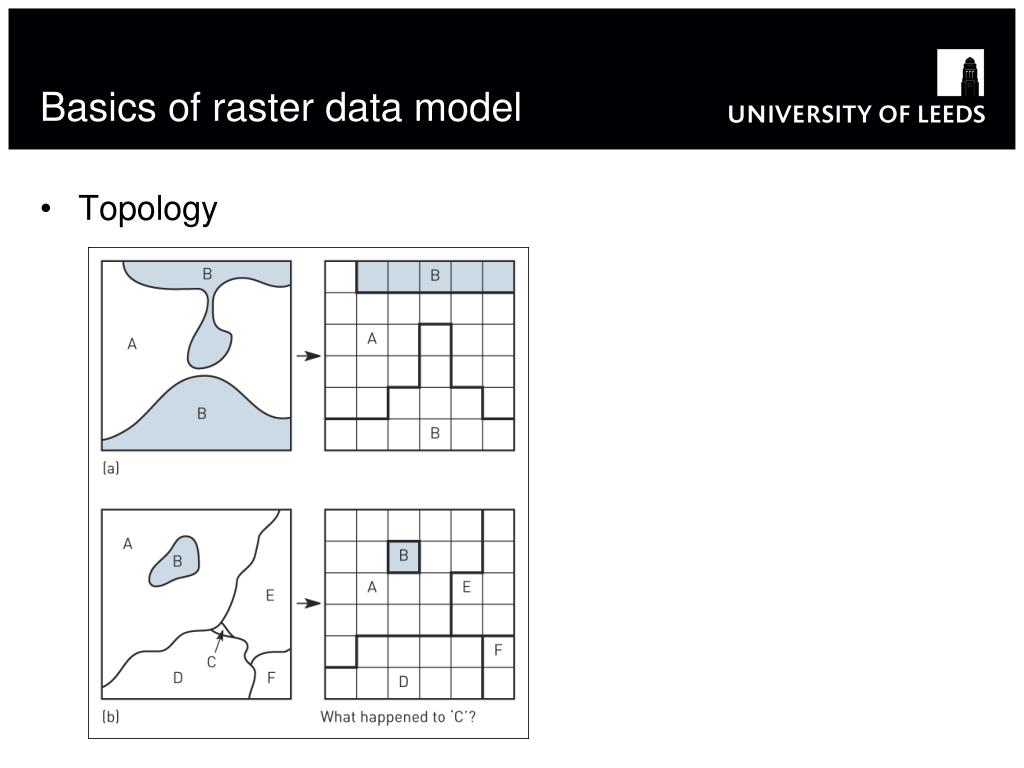

  14. Basics of raster data model • Topology

  15. Data sources • Vector to raster conversion

  16. Data sources • Vector to raster conversion – topological mismatch

  17. Data sources • Satellite and aerial imagery

  18. Data sources • DEMs (Digital Elevation Models) by direct measurement

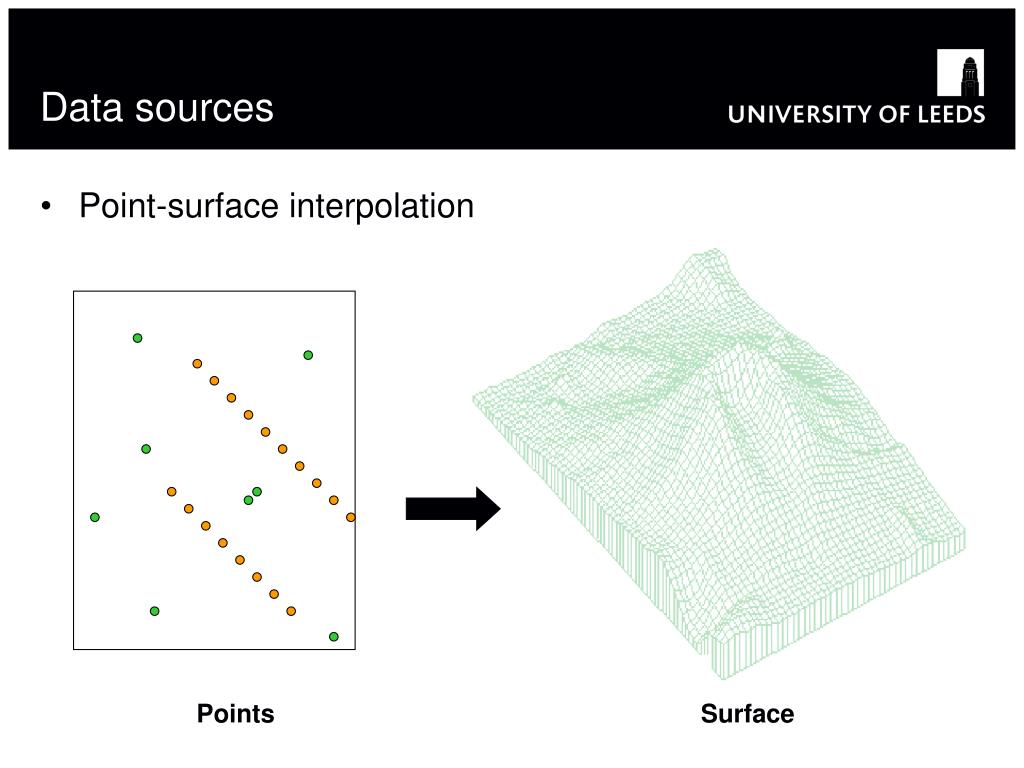

  19. Data sources • Point-surface interpolation Points Surface

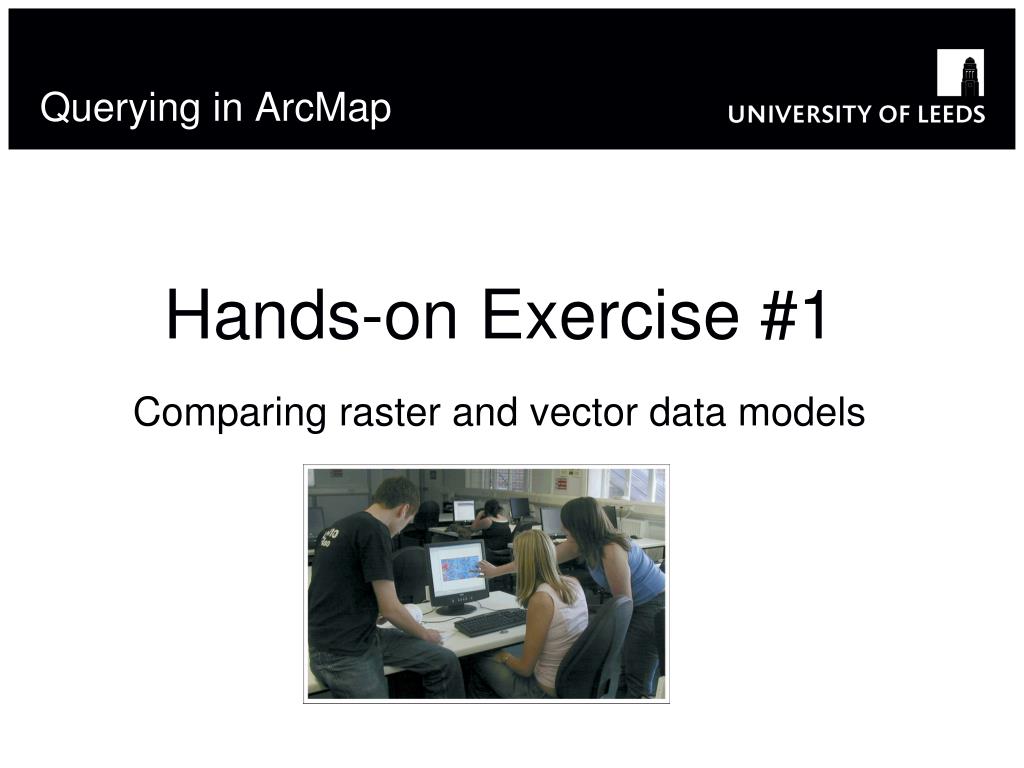

  20. Querying in ArcMap • Hands-on Exercise #1 • Comparing raster and vector data models
