Joytech product presentation 02 11 04

Joytech Product Presentation 02-11-04

Version 1.1


Joytech product presentation 02 11 04

PSTwo Specification

Color - Charcoal Black

Product Code - SCPH-70011 CB

Release Date - November 1st, 2004

Dimensions Approximately 230 mm (W) x28 mm (H) x152 mm (D)

*internal volume about 23% of the current model

Weight Approximately 900g

*weight about 45% of the current model

Power requirements DC 8.5V

Compatible format PlayStation and PlayStation 2 format CD-ROM

DVD-ROM, Audio CD, DVD-R, DVD-RW, DVD+R and DVD+RW discs.

Interfaces Controller Port x 2

MEMORY CARD slot x 2

USB connector x 2

NETWORK connector 100BASE-TX/10BASE-T

LINE modem connector: RJ-11C

DC IN 8.5V connector

AV MULTI OUT

DIGITAL OUT OPTICAL

Accessories Included:

Analog Controller DUALSHOCK

AV Cable

AC Adaptor


Joytech product presentation 02 11 04

PSTwo Packaging


Joytech product presentation 02 11 04

8.0inch TFT Monitor


Joytech product presentation 02 11 04

8.0inch TFT Monitor

More about the product …..

High Definition Digital 8.0 inch VGA TFT Colour Screen provides ultra pin sharp picture quality and true

RGB colour definition.

SRS 3D Surround Sound dramatically improves audio quality by providing stereo sound with a rich spatial effect.

Integrated twin modular Stereo Speakers use Dynamic “Mylar” Cones to deliver full rich sound.

PAL50/60/ NTSC auto switching function

Integrated Audio/ Video Input terminal allows connection of an external AV source to the Monitor.

2 Stereo Headphone Outputs for private multi player gaming.

Multi Digital OSD menu allow you to adjust your Monitor settings to match your input signal and surroundings.


Joytech product presentation 02 11 04

8.0inch TFT Monitor

General Specification

·Power source:DC in 8.5V via external AC adapter

·Electronic power consumption:Approx. 10W

·External size:230mm(w) x152mm(d) x30mm(h)

·Drive system:TFT Panel (active matrix)

·Audio effects: SRS audio signal processor

·Audio speakers:Diameter 20mm, 3.5ohm, 5watts

·Input terminals:RS232 AV Interface, 8.5 DC in

·Output terminal: 2 Headphones terminal (0.25W x2)

·Weight:Approx. 500g


Joytech product presentation 02 11 04

8.0inch TFT Monitor

TFT Panel Specification

  • Diagonal picture size:8.0 inches (203mm)

  • ·Effective viewing area:162.2 mm * 121.7 mm

  • ·Native Pixel Format:           640*480 RGB vertical stripe

  • ·Screen manufacture: Sharp Electronics Inc

  • ·Brightness                      380cd/m² Typical

  • ·Contrast Ratio                  250:1

  • ·Viewing Angle                   65° up, 55° down, left & right  65°

  • ·Horizontal Frequency          31.5kHz

  • ·Vertical Frequency             60Hz

  • ·Available Resolutions         640 * 480

  • ·Display colour depth            262.144 colours

  • ·Signal Inputs Analog            VGA

  • ·OSD Controls Digital


Joytech product presentation 02 11 04

In Car Adapter


Joytech product presentation 02 11 04

In Car Adapter

More about the product …..

Designed exclusively for the new PStwo console and the JOYTECH 8inch TFT Monitor.

Powers both Console and Monitor simultaneously.

Sits under front passenger seat to avoid physical interference.

Stabilizing circuitry prevents voltage surges or drops.


Joytech product presentation 02 11 04

MultiPlayer Adapter 2


Joytech product presentation 02 11 04

MultiPlayer Adapter 2

More about the product …..

The original MultiPlayer Adapter 2 with universal connection system to fit both PStwo and PS2.


Joytech product presentation 02 11 04

Mini Analog Controller


Joytech product presentation 02 11 04

Mini Analog Controller

More about the product …..

Standard Analog Controller features built into a travel size controller body

Perfect travel companion for the PStwo and Monitor

Suitable for all ages group


Joytech product presentation 02 11 04

Mini DVD Controller


Joytech product presentation 02 11 04

Mini DVD Controller

More about the product …..

Re-introduction of the PS2 Mini Remote controller for use with the Travel Pack or other bespoke retailer packs.

Supplied with IR receiver so that it will work with PS2 SCPH - 39000 series

Limited button array


Joytech product presentation 02 11 04

Slim line DVD Controller


Joytech product presentation 02 11 04

Slim line DVD Controller

More about the product …..

Alternative remote controller design for use with the Travel Pack or other bespoke retailer packs.

Supplied with IR receiver so that it will work with PS2 SCPH - 39000 series

Full function button array


Joytech product presentation 02 11 04

Soft Carry Case


Joytech product presentation 02 11 04

Soft Carry Case

More about the product …..

Designed to hold PStwo, TFT Monitor, Controller, Games, Cables, In Car Adapter

To be used within a Travel Pack bundle

Strong and durable fabric construction


Joytech product presentation 02 11 04

Hard Carry Case


Joytech product presentation 02 11 04

Hard Carry Case

More about the product …..

Designed to hold PStwo, TFT Monitor, Controller, Games, Cables, In Car Adapter

To be used within a Travel Pack bundle

Strong and durable ABS construction


Joytech product presentation 02 11 04

TV Tuner

UNDER CONSTRUCTION


Joytech product presentation 02 11 04

Dock & Rock Station

UNDER CONSTRUCTION


Joytech product presentation 02 11 04

Digital AV Cable


Joytech product presentation 02 11 04

Digital AV Cable

More about the product …..

Ultimate setup cable pack for your Pstwo

Allows you to connect your PStwo to and video and audio receiver via either:

SCART, Composite video, Stereo audio, S-Video or Digital Optical


Joytech product presentation 02 11 04

Console and DVD Stand


Joytech product presentation 02 11 04

Console and DVD Stand

More about the product …..

Vertically holds the new PStwo or PS2 console

Holds up to 12 DVD / Game carry cases

Holder for 1 Memory Card


Joytech product presentation 02 11 04

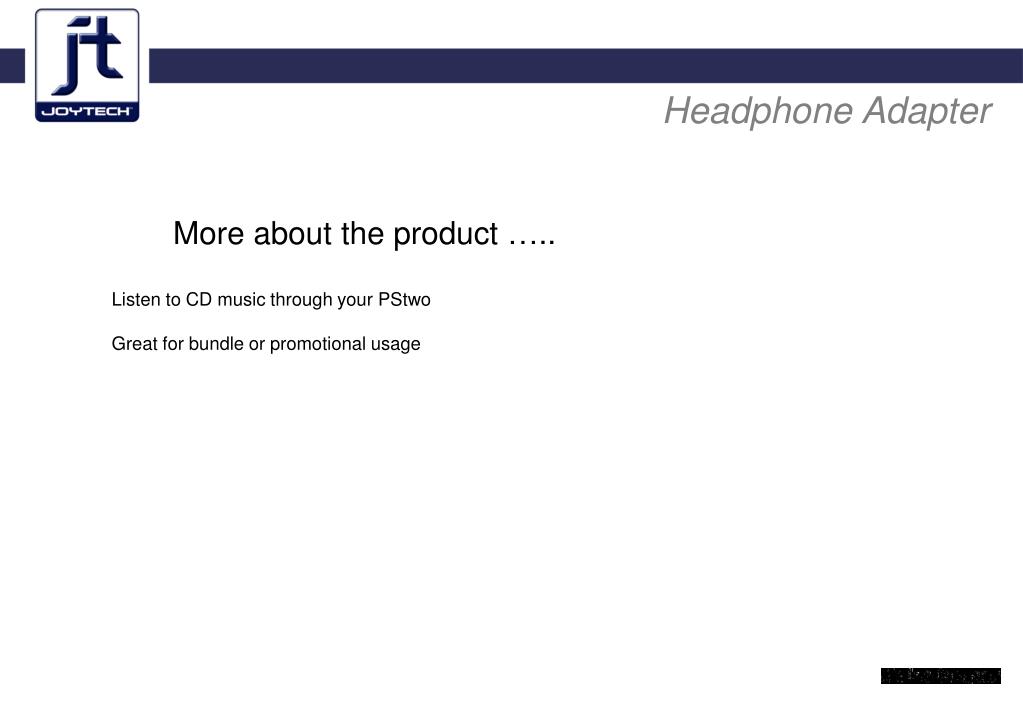

Headphone Adapter


Joytech product presentation 02 11 04

Headphone Adapter

More about the product …..

Listen to CD music through your PStwo

Great for bundle or promotional usage


Joytech product presentation 02 11 04

Sony PSP


Joytech product presentation 02 11 04

PSP Specification

Colour: Black

Release date: Spring 2005 (Europe)

Dimensions: 170mmx74mmx23mm

Weight: 260g

Power requirements: DC 5.0V

Media: UMD (Universal Media Disc) 1.8GB capacity (dual-layered disc) 16:9-format widescreen TFT LCD (480x272 pixels, 24-bit full color) MPEG4 AVC decoder ATRAC3 plus, AAC, MP3 for audio

Wireless LAN (802.11b) IrDA (Infrared Data Association) USB 2.0 Memory Stick PRO Duo AV in/out Lithium ion battery


Joytech product presentation 02 11 04

PSP


Joytech product presentation 02 11 04

PSP Pack and Value Pack


Joytech product presentation 02 11 04

PSP Range

Travel Pack

Essential Pack

Keyboard

In Car Adapter

Stereo Docking Station ‘Dock n Rock’

Screen Cleaner

Headrest Mounting Bracket


Joytech product presentation 02 11 04

PSP Keyboard


Joytech product presentation 02 11 04

PSP Stereo Docking Station


Joytech product presentation 02 11 04

Nintendo DS


Joytech product presentation 02 11 04

DS Specification

Colour: Silver and Black

Release Date: Spring 2005 (Europe)

Top Screen:A backlit, 3-inch, semitransparent reflective TFT color LCD with 256 x 192 pixel resolution

capable of displaying 260,000 colors Displays: 2 - 256x192 resolution3D CapabilitiesTouch Screen: Same specs as top screen, but with a transparent analog touch screen

Wireless Communication: IEEE802.11 protocol - 30 to 100 feet range

Controls: Touch screen, embedded microphone for voice recognition, A/B/X/Y buttons,

D pad, L/R shoulder buttons, Start and Select buttons

Input/Output: Ports for both Nintendo DS Game Cards and GBA Packs, terminals for stereo

headphones and microphone

Other features: Embedded PictoChat software that allows up to 16 users to chat at once;

embedded real-time clock; date, time and alarm; touch-screen calibration

Sound: Stereo speakers providing virtual surround sound, depending on the software

Battery: Lithium ion battery delivering six to 10 hours of play on a four-hour charge,

depending on use; power-saving sleep mode; AC adapter


Joytech product presentation 02 11 04

DS Range

Travel Pack

Essential Pack

In Car Adapter

Stereo Docking Station ‘Dock n Rock’

Screen Cleaner
