Presentation Transcript

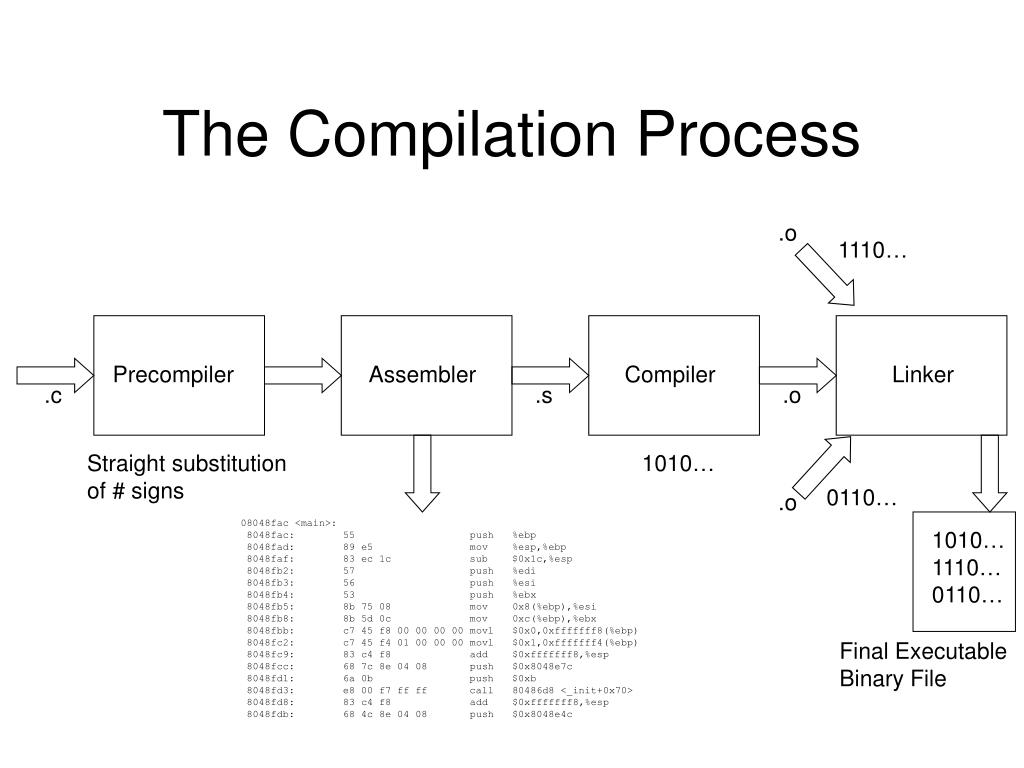

The compilation process l.jpg
The Compilation Process

.o

1110…

Precompiler

Assembler

Compiler

Linker

.c

.s

.o

Straight substitution

of # signs

1010…

0110…

.o

08048fac <main>:

8048fac: 55 push %ebp

8048fad: 89 e5 mov %esp,%ebp

8048faf: 83 ec 1c sub $0x1c,%esp

8048fb2: 57 push %edi

8048fb3: 56 push %esi

8048fb4: 53 push %ebx

8048fb5: 8b 75 08 mov 0x8(%ebp),%esi

8048fb8: 8b 5d 0c mov 0xc(%ebp),%ebx

8048fbb: c7 45 f8 00 00 00 00 movl $0x0,0xfffffff8(%ebp)

8048fc2: c7 45 f4 01 00 00 00 movl $0x1,0xfffffff4(%ebp)

8048fc9: 83 c4 f8 add $0xfffffff8,%esp

8048fcc: 68 7c 8e 04 08 push $0x8048e7c

8048fd1: 6a 0b push $0xb

8048fd3: e8 00 f7 ff ff call 80486d8 <_init+0x70>

8048fd8: 83 c4 f8 add $0xfffffff8,%esp

8048fdb: 68 4c 8e 04 08 push $0x8048e4c

1010…

1110…

0110…

Final Executable

Binary File


Making code more modular l.jpg
Making Code More Modular

Precompile info

#include <stdlib.h>

#include <stdio.h>

#define MAX_WORD_LEN 30

void print_menu (void);

int insert (char **array, int *numwords, char *buf);

int print_to_file (char **array, int numwords, char *file);

int

main (int argc, char *argv[])

{

...

}

void

print_menu (void)

{

...

}

int

insert (char **array, int *numwords, char *buf)

{

...

}

Create a header file for each

Prototypes

Main Function

Leave in main .c file

Place each in its own .c file

Additional

Functions


Making code more modular3 l.jpg
Making Code More Modular

labx.c

print.h

#include <stdlib.h>

#include <stdio.h>

#include “print.h”

#include “insert.h”

#define MAX_WORD_LEN 30

int

main (int argc, char *argv[])

{

...

}

void print_menu (void);

int print_to_file (char **array, int numwords, char *file);

insert.h

void

print_menu (void)

{

...

}

int print_to_file (char **array, int numwords, char *file);

{

...

}

int insert (char **array, int *numwords, char *buf);

print.c

insert.c

int

insert (char **array, int *numwords, char *buf)

{

...

}


Putting the modules together l.jpg
Putting the Modules Together

labx.c

labx.o

print.c

print.o

LINKER

insert.o

insert.c

a.out


Confused enter makefiles l.jpg
Confused??? Enter Makefiles

  • Located in the directory of your code

  • Must be named Makefile

  • Syntax:

    • Comments:#Put anything here

    • Macros:CC = gccCFLAGS = -Wall –O –pedantic –o LabX.exe

    • FILES = labx.c print.c insert.c

      ---------------------------------------------$(CC) $(CFLAGS) $(FILES)

      Translates to

      gcc –Wall –O2 –pedantic –o LabX.exe labx.c print.c insert.c


Syntax con t l.jpg
Syntax con’t.

  • Statements:

    {name}: {dependency1 dependency2 …}

    <tab> {command1}

    <tab> {command2}

    <tab> …

  • all: is the default statement (run when just ‘make’ is typed at the command line)

  • cleanup: cleans up when there is an error

  • make <name>

    will explicitly run the statement name
