Presentation Transcript

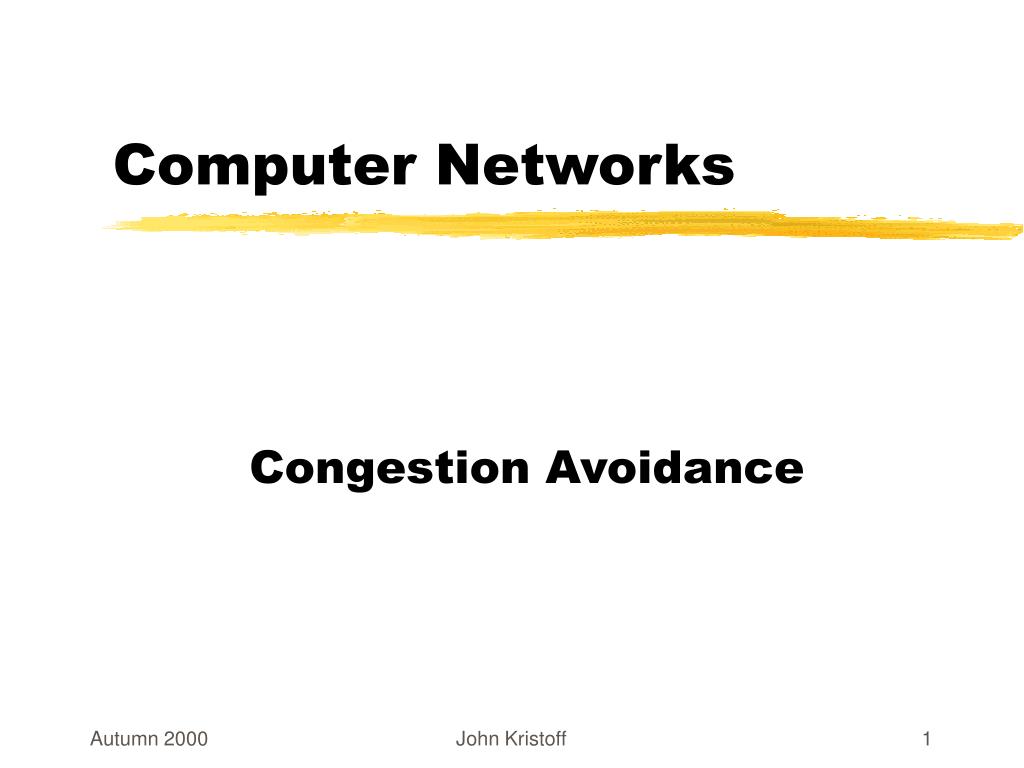

Computer networks l.jpg
Computer Networks

Congestion Avoidance


Recall l.jpg
Recall

TCP Sliding Window Operation


Important terms l.jpg
Important Terms

  • Maximum Segment Size (MSS)

  • Window

  • Retransmission

  • Timer

  • Delayed ACK

  • Duplicate ACK


Congestion window l.jpg
Congestion Window

  • Sender based flow control

  • Sender uses min(cwnd,advertised window)

    • Tranmission window

  • Detect network condition and adjust

  • Use timers, ACKs and network feedback


Retransmitting segments l.jpg
Retransmitting Segments

  • TCP starts timer after sending a segment

  • If ACK returns, reset timer

  • If no ACK, retransmit and increase timer (2x) after resetting


Round trip time rtt l.jpg
Round Trip Time (RTT)

  • TCP measures RTT and uses RTT to calculate timer values

  • If ACKs returning quickly, timer values are kept low

  • Retransmit quickly when throughput is high

  • Allow time for ACK to return when throughput is low


Slow start l.jpg
Slow Start

  • Initialize cwnd to 1 MSS

  • Increase cwnd by 1 MSS for every ACK

  • Not very slow!


Congestion avoidance l.jpg
Congestion Avoidance

  • When packet loss occurs, TCP must slow its flow of traffic

  • When retranmission timer expires, save value of transmission window * ½ (ssthresh)

  • If congestion occurred due to a timeout, set cwnd to 1 segment

  • When data is ACK'd, increase cwnd via slow start up to ssthresh

  • Thereafter increase cwnd by 1/cwnd for each ACK



Fast retransmit l.jpg
Fast Retransmit

  • If > 2 duplicate ACKs are received, a segment was probably lost

  • Sender assumes enough time has elapsed for out of order segments to have arrived and assembled

  • Retransmit segment without waiting for a retransmission timer to expire

  • Enter Fast Recovery


Fast recovery l.jpg
Fast Recovery

  • Sender has to assume data is still flowing due to the reception of duplicate ACKs

  • Loss was probably a rare or temporary event

  • Do not go into slow start, just go into congestion avoidance mode


Other mechanisms l.jpg
Other mechanisms

  • Selective Acknowledgements (SACK)

  • TCP Pacing

    • Packeteer

  • RED

  • ECN

  • Network pricing
