Physiotherapy adjuncts l.jpg

PHYSIOTHERAPY ADJUNCTS

Billie Hurst

Part-Time Lecturer

QMUC


Content l.jpg
Content

  • Oxygen therapy

  • Humidification

  • Non Invasive ventilation - BIPAP/CPAP

  • Bronchoscopy


Oxygen therapy l.jpg
Oxygen therapy

For over 200 years oxygen therapy has often been used and sometimes misused (Hough 2001)


Oxygen therapy4 l.jpg
Oxygen Therapy

  • Should be prescribed

  • Acute and chronic respiratory conditions

  • Personnel should be trained in its use

  • Protocols


Oxygen therapy indications l.jpg
Oxygen therapy - Indications

  • Hypoxaemia (PaO2<8KPA, O2sats<90%)

  • Acute or chronic respiratory condition

  • Pre and post suction

  • Routinely post operatively

  • Optimise oxygen delivery


Oxygen therapy limitations l.jpg
Oxygen therapy - limitations

  • Giving oxygen does not guarantee it’s arrival at the mitochondria

  • Oxygen does not improve ventilation directly

    (Hough 2001)


Oxygen therapy complications cautions l.jpg
Oxygen therapy – complications/cautions

  • Respiratory depression if hypoxic drive

  • Pulmonary oxygen toxicity

  • Tracheobronchitis

  • Absorption atelectasis

  • Fire

  • Variable delivery


Oxygen therapy monitoring l.jpg
Oxygen Therapy - Monitoring

  • Oxygen saturations continuous/intermittent

  • Arterial blood gases

  • Observation


Oxygen therapy delivery l.jpg
Oxygen Therapy - Delivery

  • Piped oxygen

  • Portable oxygen

  • Compressors/concentrators


Oxygen therapy delivery devices l.jpg
Oxygen therapy – delivery devices

  • Low Flow masks (variable performance)

  • High flow masks (fixed flow)/venturi

  • Nasal cannulae

  • Mask and reservoir bag

  • Tracheal mask/t-piece

  • Tracheal speaking valves

  • Mechanical ventilator


Oxygen therapy low flow masks l.jpg
Oxygen Therapy - low flow masks

  • Commonly used

  • Variable performance


Oxygen therapy high flow masks l.jpg
Oxygen therapy – high flow masks

  • Guaranteed percentage of oxygen

  • Venturi system

  • More expensive

  • Up to 60%


Nasal cannulae l.jpg
Nasal cannulae

  • 1l/min 24% oxygen

  • 2l/min 28% oxygen

  • 3l/min 32% oxygen

  • 4l/min 36% oxygen


Oxygen therapy bag and mask l.jpg
Oxygen therapy – bag and mask

  • High concentrations of oxygen

  • Mask and reservoir bag

  • 55-90%


Oxygen therapy tracheostomy l.jpg
Oxygen Therapy tracheostomy

  • T-piece

  • Mask

  • Swedish nose

  • Speaking valve

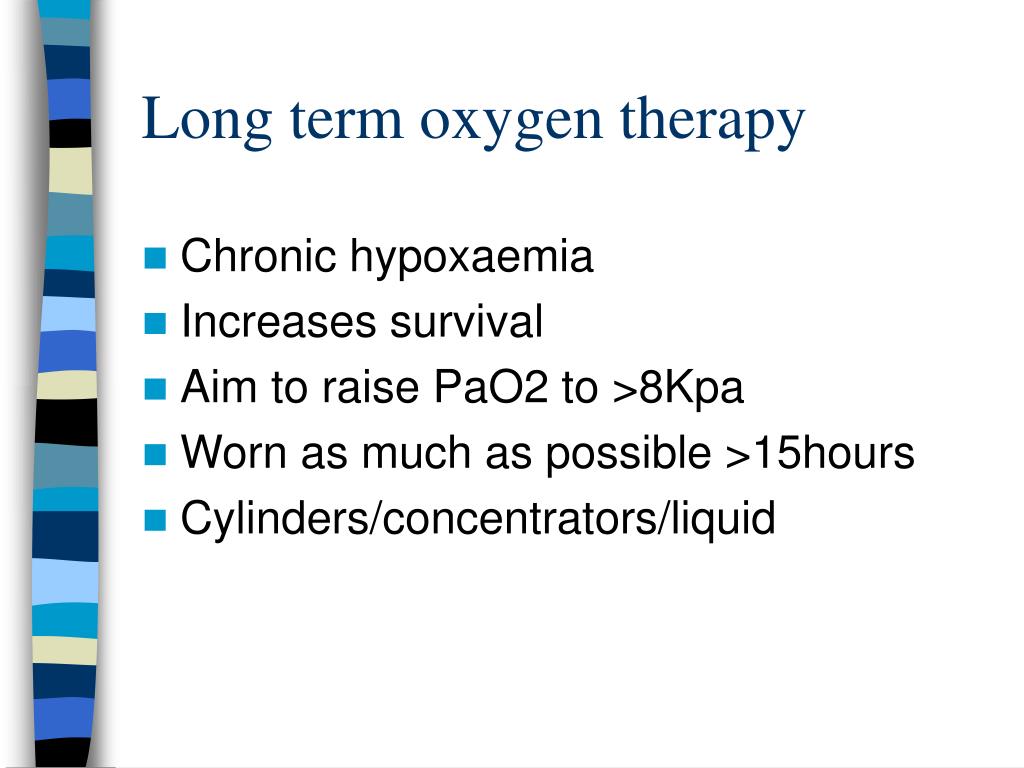

Long term oxygen therapy l.jpg
Long term oxygen therapy

  • Chronic hypoxaemia

  • Increases survival

  • Aim to raise PaO2 to >8Kpa

  • Worn as much as possible >15hours

  • Cylinders/concentrators/liquid


Oxygen therapy implications l.jpg
Oxygen Therapy - Implications

  • Assessment

  • Limitations to physiotherapy techniques


Humidification l.jpg
Humidification

  • Mucocillary escalator

  • Adequate hydration is vital

  • Bacterial contamination!!!


Humidification indications l.jpg
Humidification - indications

  • URT bypassed

  • Thick retained secretions

  • High flow oxygen/non-invasive mechanical aids


Humidification cautions l.jpg
Humidification - Cautions

  • Hyper-reactive airways - bronchospasm

  • Infection

  • Burns


Humidification types l.jpg
Humidification - Types

  • Nebulisers Large/Small/Ultrasonic

  • Steam

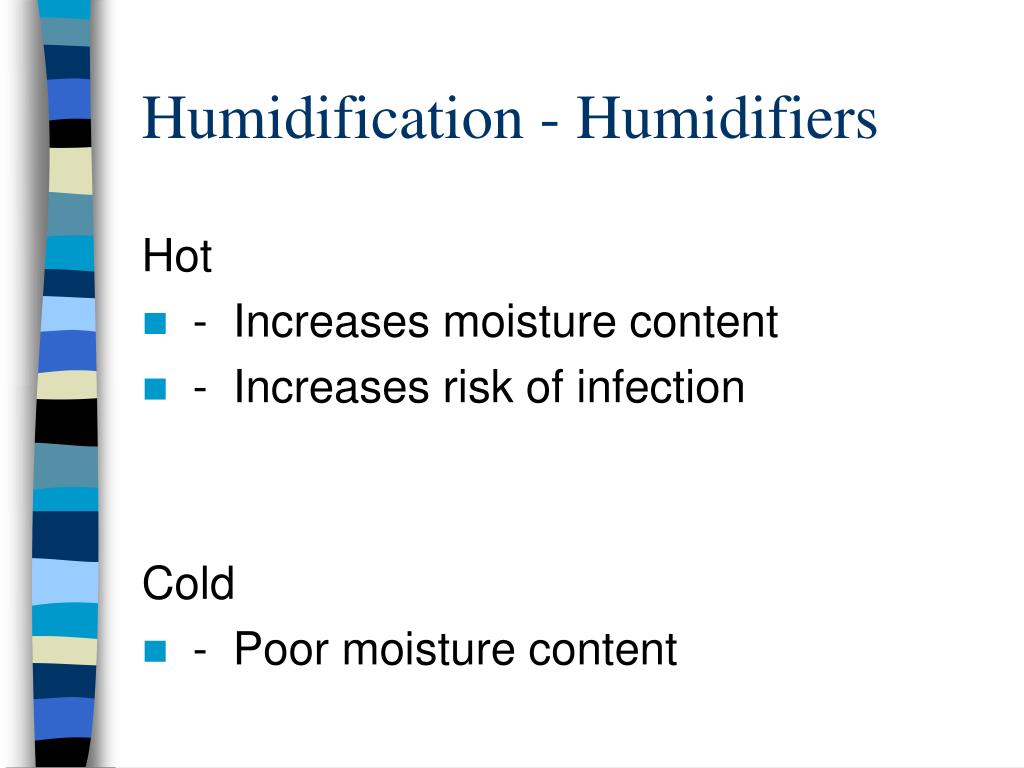

Humidification humidifiers l.jpg
Humidification - Humidifiers

Hot

  • - Increases moisture content

  • - Increases risk of infection

    Cold

  • - Poor moisture content


Humidification hme l.jpg
Humidification - HME

  • Heat moisture exchangers

  • Hygroscopic

  • Hydrophobic

  • Swedish nose

  • Tracheostomy bibs


Non invasive ventilation l.jpg
Non-invasive ventilation

  • BiPAP

  • CPAP

  • IPPB


Contraindications cautions to non invasive ventilation l.jpg
Contraindications/Cautions to non- invasive ventilation

  • Undrained pneumothorax,surgical emphysema

  • Unstable Cardiovascular system

  • Frank haemoptysis

  • Facial fractures

  • Vomiting

  • Raised ICP

  • Active TB

  • Lung abcess

  • Recent GI surgery

  • Pneumonectomy/lobectomy with poor stump


Continuous positive airway pressure l.jpg
Continuous Positive Airway Pressure

  • Constant flow of gas through inspiration and expiration

  • Invasive/non-invasive

  • Endotracheal/tacheostomy/mask

  • Improve oxygenation not ventilation


Cpap indications l.jpg
CPAP - indications

  • Type I respiratory failure

  • Volume loss

  • Sleep apnoea

  • Pulmonary oedema

  • Flail segment

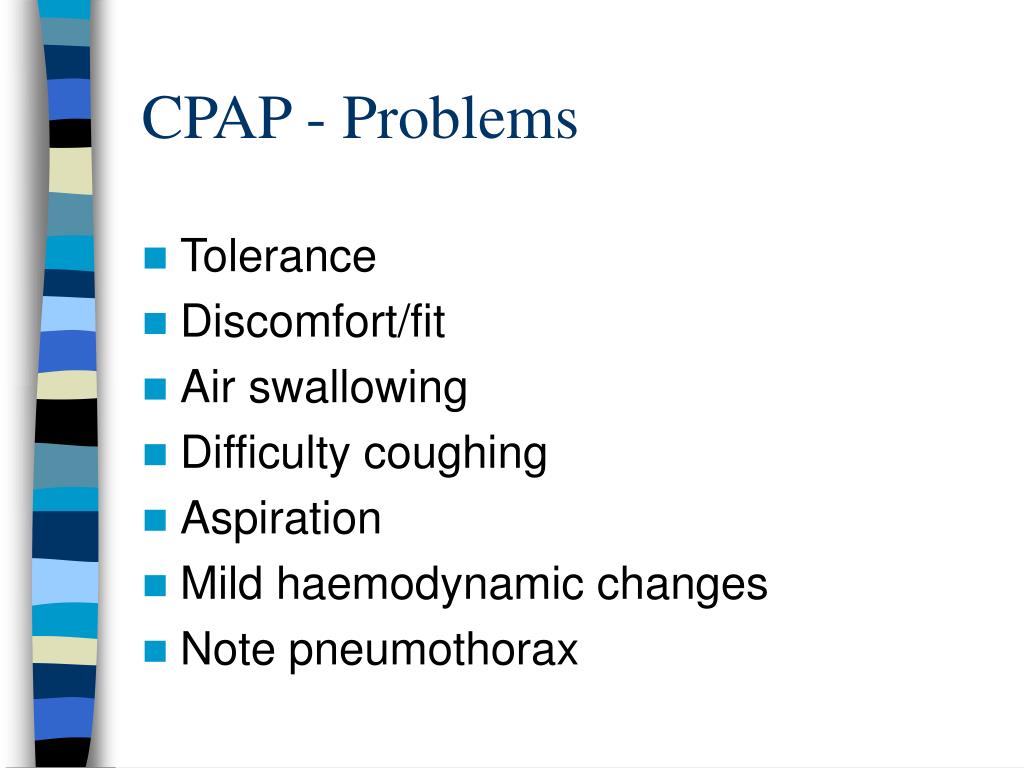

Cpap problems l.jpg
CPAP - Problems

  • Tolerance

  • Discomfort/fit

  • Air swallowing

  • Difficulty coughing

  • Aspiration

  • Mild haemodynamic changes

  • Note pneumothorax


Bilevel positive airway pressure l.jpg
Bilevel positive airway pressure

  • BiPAP

  • Invasive/Non-invasive ventilation

  • Endotracheal tube/tracheostomy/mask

  • Constant pressure with independent inspiratory pressure and expiratory pressure


Bipap indications l.jpg
BiPAP - Indications

  • Respiratory type II failure

  • Weaning


Bipap problems l.jpg
BiPAP - Problems

  • Tolerance

  • Discomfort/mask fit

  • Air swallowing

  • Mild haemodynamic changes

  • Expectoration


Niv implications for treatment l.jpg
NIV – Implications for treatment

YES

  • Positioning

  • Manual techniques

  • Thoracic expansion exercises

  • ACBT?

    NO

  • Mobilisation

  • Incentive spirometry


Bronchoscopy l.jpg
Bronchoscopy

  • Fiberoptic bronchoscope

  • Diagnostic

  • Therapeutic

  • Bronchial lavage
