Presentation Transcript


Mentor graphics simulation tools for asic design l.jpg

Mentor Graphics Simulation Tools for ASIC Design

Victor P. Nelson


Asic design flow l.jpg

ASIC Design Flow

Simulation

Behavioral

Model

VHDL/Verilog

Verify

Behavior

Synthesis

DFT/BIST

& ATPG

Gate-Level

Netlist

Verify

Function

Full-custom IC

Test vectors

Transistor-Level

Netlist

Verify Function

& Timing

Standard Cell IC

& FPGA/CPLD

DRC & LVS

Verification

Physical

Layout

Map/Place/Route

Verify Function

& Timing

IC Mask Data

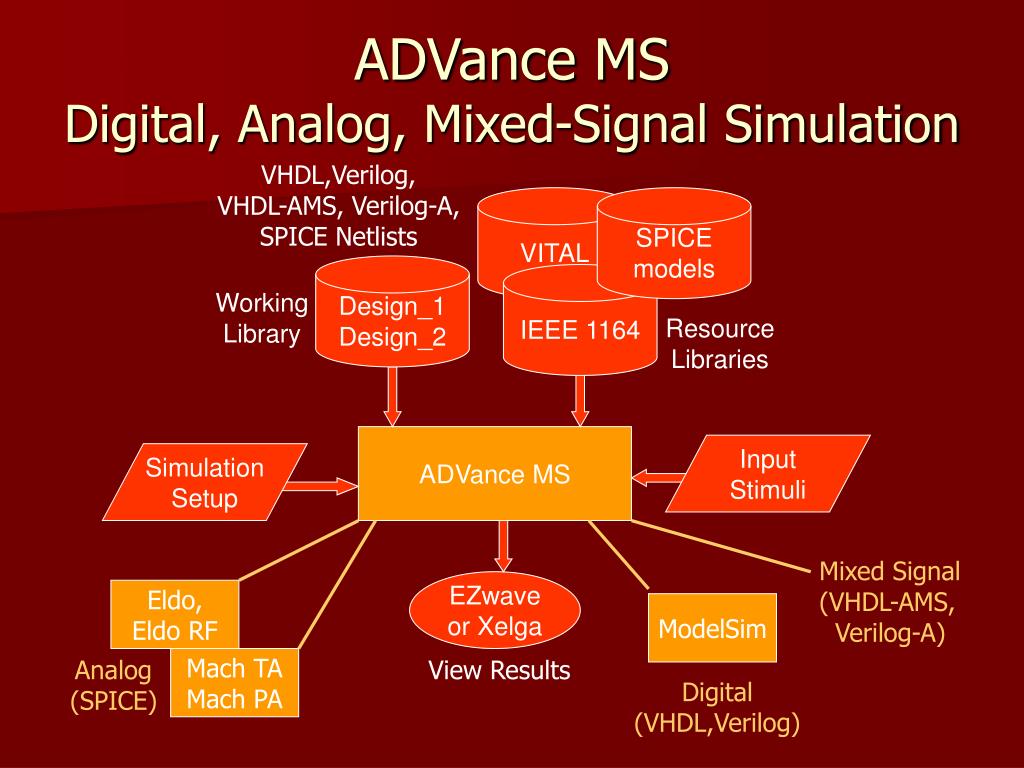

Advance ms digital analog mixed signal simulation l.jpg

ADVance MSDigital, Analog, Mixed-Signal Simulation

VHDL,Verilog,

VHDL-AMS, Verilog-A,

SPICE Netlists

VITAL

SPICE

models

Design_1

Design_2

IEEE 1164

Working

Library

Resource

Libraries

ADVance MS

Input

Stimuli

Simulation

Setup

Mixed Signal

(VHDL-AMS,

Verilog-A)

EZwave

or Xelga

Eldo,

Eldo RF

ModelSim

Analog

(SPICE)

Mach TA

Mach PA

View Results

Digital

(VHDL,Verilog)


Mentor graphics legacy simulators l.jpg

Mentor Graphics Legacy Simulators

  • Originally designed for PCB design

    • Quicksim II : digital, gate-level simulation

      • Invoke : quicksim

      • ASIC Design Kit : adk_quicksim

      • Xilinx FPGA : pld_quicksim, Altera : max2_quicksim

    • Quicksim Pro : mixed schematic & HDL

      • Uses both Quicksim II and Modelsim EE

      • Invoke: qspro

    • Accusim : analog simulation (SPICE)

      • Invoke : adk_accusim


Basic simulation environment l.jpg

Basic simulation environment

  • -Behavioral description,

  • -Circuit structure/netlist,

  • -Timing information, etc.

Behavior/

  • -Digital values,

  • -Analog voltages/

  • currents,

  • -Waveforms

-Generic,

-Technology-

specific

  • Results listings, graphical waveforms,

  • Reports of measurements, result checks,

  • constraint violations, etc.


Mentor graphics asic design kit adk l.jpg

Mentor Graphics ASIC Design Kit (ADK)

  • ASIC technology files & standard cell libraries

    • AMI: ami12, ami05 (1.2, 0.5 μm)

    • TSMC: tsmc035, tsmc025, tsmc018 (0.35, 0.25, 0.18 μm)

  • IC flow & DFT tool support files:

    • Simulation

      • VHDL/Verilog/Mixed-Signal models(Modelsim/ADVance MS)

      • Analog (SPICE) models(Eldo/Accusim)

      • Post-layout verification (Mach TA)

      • Digital schematic (Quicksim II, Quicksim Pro)(exc. tsmc025,tsmc018)

    • Synthesis library of std. cells (LeonardoSpectrum)

    • Design for test & ATPG (DFT Advisor, Flextest/Fastscan)

    • Schematic capture (Design Architect-IC)

    • IC physical design (standard cell & custom)

      • Floorplan, place & route (IC Station)

      • Design rule check, layout vs schematic, parameter extraction (Calibre)


Hdls in digital system design l.jpg

HDLs in Digital System Design

  • Model and document digital systems

    • Hierarchical models

      • System, RTL (Register Transfer Level), gates

    • Different levels of abstraction

      • Behavior, structure

  • Verify circuit/system design via simulation

    • Modelsim EE (VHDL, Verilog, System C)

    • ADVance MS (above + VHDL-AMS, Verilog-A)

  • Synthesize circuits from HDL models

    • Leonardo (Synopsis)


Slide8 l.jpg

-- count4.vhd 4-bit parallel-load synchronous counter

LIBRARY ieee;

USE ieee.std_logic_1164.all; USE ieee.numeric_std.all;

ENTITY count4 IS

PORT (clock,clear,enable,load_count : IN STD_LOGIC;

D: IN unsigned(3 downto 0);

Q: OUT unsigned(3 downto 0));

END count4;

ARCHITECTURE rtl OF count4 IS

SIGNAL int : unsigned(3 downto 0);

BEGIN

PROCESS(clear, clock, enable)

BEGIN

IF (clear = '1') THEN

int <= "0000";

ELSIF (clock'EVENT AND clock='1') THEN

IF (enable = '1') THEN

IF (load_count = '1') THEN

int <= D;

ELSE

int <= int + "01";

END IF;

END IF;

END IF;

END PROCESS;

Q <= int;

END rtl;

Typical VHDL

behavioral model


Test stimulus modelsim do file count4 rtl do l.jpg

Test stimulus:Modelsim “do” file: count4_rtl.do

add wave /clock /clear /enable /load_count /D /Q

add list /clock /clear /enable /load_count /D /Q

force /clock 0 0, 1 10 -repeat 20

force /clear 0 0, 1 5, 0 10

force /enable 0 0, 1 25

force /load_count 0 0, 1 20, 0 35, 1 330, 0 350

force /D 10#5 0, 10#9 300

run 400


Testbench count4 bench vhd l.jpg

Testbench: count4_bench.vhd

LIBRARY ieee; USE ieee.std_logic_1164.all; USE ieee.numeric_std.all;

ENTITY count4_bench is end count4_bench;

ARCHITECTURE test of count4_bench is

component count4

PORT (clock,clear,enable,load_count : IN STD_LOGIC;

D: IN unsigned(3 downto 0);

Q: OUT unsigned(3 downto 0));

end component;

for all: count4 use entity work.count4(behavior);

signal clk : STD_LOGIC := '0';

signal clr, en, ld: STD_LOGIC;

signal din, qout: unsigned(3 downto 0);

begin

C4: count4 port map(clk,clr,en,ld,din,qout);

clk <= not clk after 10 ns;

P1: process

begin

din <= "0101"; clr <= '1'; en <= '1'; ld <= '1';

wait for 10 ns;

clr <= '0';

wait for 20 ns;

ld <= '0';

wait for 200 ns;

end process;

end;

Alternative

to “do” file

Could check results &

“assert” error messages


Count4 simulation waveform l.jpg

Count4 – Simulation waveform

Clear

Counting

Parallel

Load

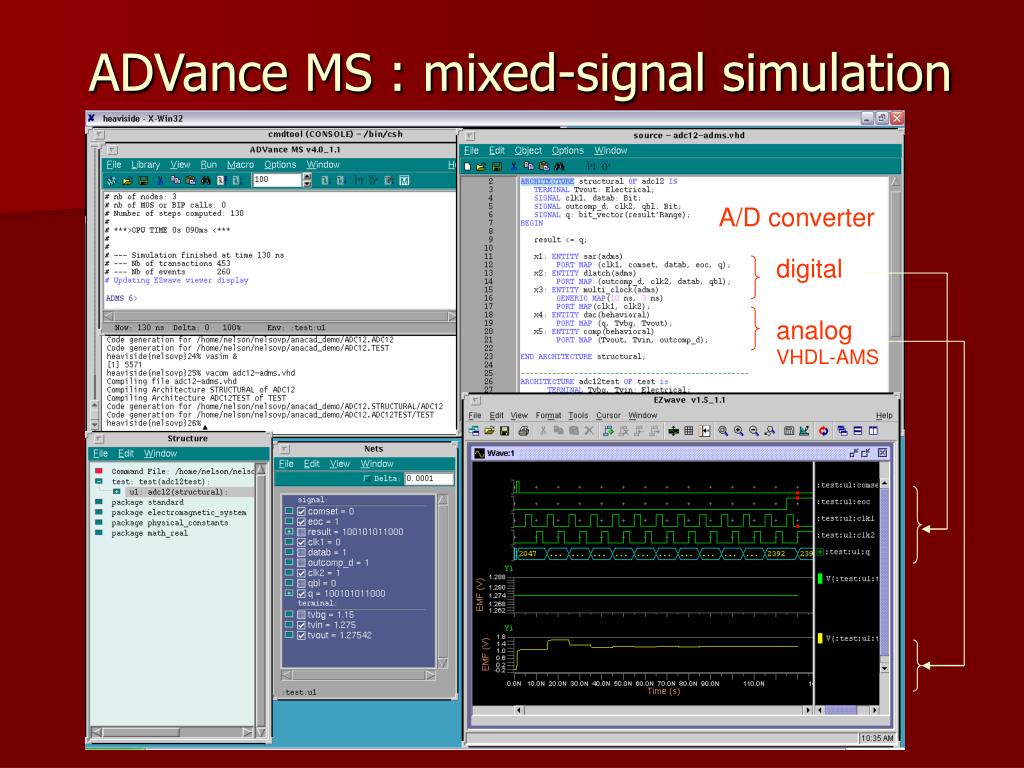

Advance ms mixed signal simulation l.jpg

ADVance MS : mixed-signal simulation

A/D converter

digital

analog

VHDL-AMS


Vhdl ams models l.jpg

VHDL-AMS models

D/A converter

Comparator


Advance ms mixed verilog spice l.jpg

ADVance MS: mixed Verilog-SPICE

Verilog top

(test bench)

SPICE

subcircuit


Leonardo synthesis procedure l.jpg

Leonardo synthesis procedure

  • Invoke leonardo

  • Select & load a technology library (ASIC or FPGA)

    • ASIC > ADK > TSMC 0.35 micron

  • Read input VHDL/Verilog file(s): count4.vhd

  • Enter any constraints (clock freq, delays, etc.)

  • Optimize for area/delay/effort level

  • Write output file(s)

    • count4_0.vhd - VHDL netlist (for simulation)

    • count4.v - Verilog netlist (for IC layout)

    • count4.sdf - Standard delay format file (for timing)

    • count4.edf - EDIF netlist (for Xilinx/Altera FPGA)


Slide16 l.jpg

Leonardo-synthesized netlist count4_0.vhd

library IEEE; use IEEE.STD_LOGIC_1164.all;

library adk; use adk.adk_components.all; -- ADDED BY VPN

entity count4 is

port (

clock : IN std_logic ; clear : IN std_logic ; enable : IN std_logic ; load_count : IN std_logic ;

D : IN std_logic_vector (3 DOWNTO 0) ; Q : OUT std_logic_vector (3 DOWNTO 0)) ;

end count4 ;

architecturenetlistof count4 is

signal Q_3_EXMPLR, Q_2_EXMPLR, Q_1_EXMPLR, Q_0_EXMPLR, nx8, nx14, nx22,

nx28, nx48, nx54, nx62, nx126, nx136, nx146, nx156, nx169, nx181,

nx183, nx185, nx187, nx189: std_logic ;

begin

Q(3) <= Q_3_EXMPLR ; Q(2) <= Q_2_EXMPLR ; Q(1) <= Q_1_EXMPLR ; Q(0) <= Q_0_EXMPLR ;

Q_0_EXMPLR_EXMPLR : dffr port map ( Q=>Q_0_EXMPLR, QB=>OPEN, D=>nx126, CLK=>clock, R=>clear);

ix127 : mux21_ni port map ( Y=>nx126, A0=>Q_0_EXMPLR, A1=>nx8, S0=>enable );

ix9 : oai21 port map ( Y=>nx8, A0=>load_count, A1=>Q_0_EXMPLR, B0=>nx169 );

ix170 : nand02 port map ( Y=>nx169, A0=>D(0), A1=>load_count);

Q_1_EXMPLR_EXMPLR : dffr port map ( Q=>Q_1_EXMPLR, QB=>OPEN, D=>nx136, CLK=>clock, R=>clear);

ix137 : mux21_ni port map ( Y=>nx136, A0=>Q_1_EXMPLR, A1=>nx28, S0=> enable);

ix29 : ao22 port map ( Y=>nx28, A0=>D(1), A1=>load_count, B0=>nx14, B1=> nx22);

ix15 : or02 port map ( Y=>nx14, A0=>Q_0_EXMPLR, A1=>Q_1_EXMPLR);

ix23 : aoi21 port map ( Y=>nx22, A0=>Q_1_EXMPLR, A1=>Q_0_EXMPLR, B0=> load_count);

Q_2_EXMPLR_EXMPLR : dffr port map ( Q=>Q_2_EXMPLR, QB=>OPEN, D=>nx146, CLK=>clock, R=>clear);

ix147 : mux21_ni port map ( Y=>nx146, A0=>Q_2_EXMPLR, A1=>nx48, S0=> enable);

ix49 : oai21 port map ( Y=>nx48, A0=>nx181, A1=>nx183, B0=>nx189);

ix182 : aoi21 port map ( Y=>nx181, A0=>Q_1_EXMPLR, A1=>Q_0_EXMPLR, B0=> Q_2_EXMPLR);

ix184 : nand02 port map ( Y=>nx183, A0=>nx185, A1=>nx187);

ix186 : inv01 port map ( Y=>nx185, A=>load_count);

ix188 : nand03 port map ( Y=>nx187, A0=>Q_2_EXMPLR, A1=>Q_1_EXMPLR, A2=> Q_0_EXMPLR);

ix190 : nand02 port map ( Y=>nx189, A0=>D(2), A1=>load_count);

Q_3_EXMPLR_EXMPLR : dffr port map ( Q=>Q_3_EXMPLR, QB=>OPEN, D=>nx156, CLK=>clock, R=>clear);

ix157 : mux21_ni port map ( Y=>nx156, A0=>Q_3_EXMPLR, A1=>nx62, S0=> enable);

ix63 : mux21_ni port map ( Y=>nx62, A0=>nx54, A1=>D(3), S0=>load_count);

ix55 : xnor2 port map ( Y=>nx54, A0=>Q_3_EXMPLR, A1=>nx187);

end netlist ;


Post synthesis simulation leonardo generated netlist l.jpg

Post-synthesis simulation(Leonardo-generated netlist)

  • Verify synthesized netlist matches behavioral model

  • Create simulation primitives library for std cells:

    >vlib adk

    >vcom $ADK/technology/adk.vhd

    >vcom $ADK/technology/adk_comp.vhd

  • Insert library/package declaration into netlist

    library adk;

    use adk.adk_components.all;

  • Simulate in Modelsim, using “do file” or test bench from original behavioral simulation

    • results should match

models of all

ADK std cells


Preparation for layout l.jpg

Preparation for Layout

  • Convert Verilog netlist to Mentor Graphics “EDDM” schematic/netlist format

    • Invoke Design Architect-IC (adk_daic)

    • On menu bar, select File > Import Verilog

      • Netlist file: count4.v (the Verilog netlist)

      • Output directory: count4(for the EDDM netlist)

      • Mapping file $ADK/technology/adk_map.vmp

  • Open the schematic for viewing

    • Click Schematic in DA-IC palette

    • Select schematic in directory named above (see next slide)

    • Click Update LVS in the schematic palette to create a netlist to be used later by “Calibre”

  • Create design viewpoints for ICstation tools

    • adk_dve count4 –t tsmc035 (V.P’s: layout, lvs, sdl, tsmc035)

  • Can also draw gate/transistor schematics directly in DA-IC using components from the ADK library


Count4 schematic from leonardo generated netlist l.jpg

“count4” schematic (from Leonardo-generated netlist)


Simulating the schematic model l.jpg

Simulating the schematic model

  • Quicksim II(legacy – “Falcon Framework”)

    • EDDM netlist models

      • create in Design Architect/Design Architect-IC

      • component models

    • Stimulus in “do file”, similar to Modelsim

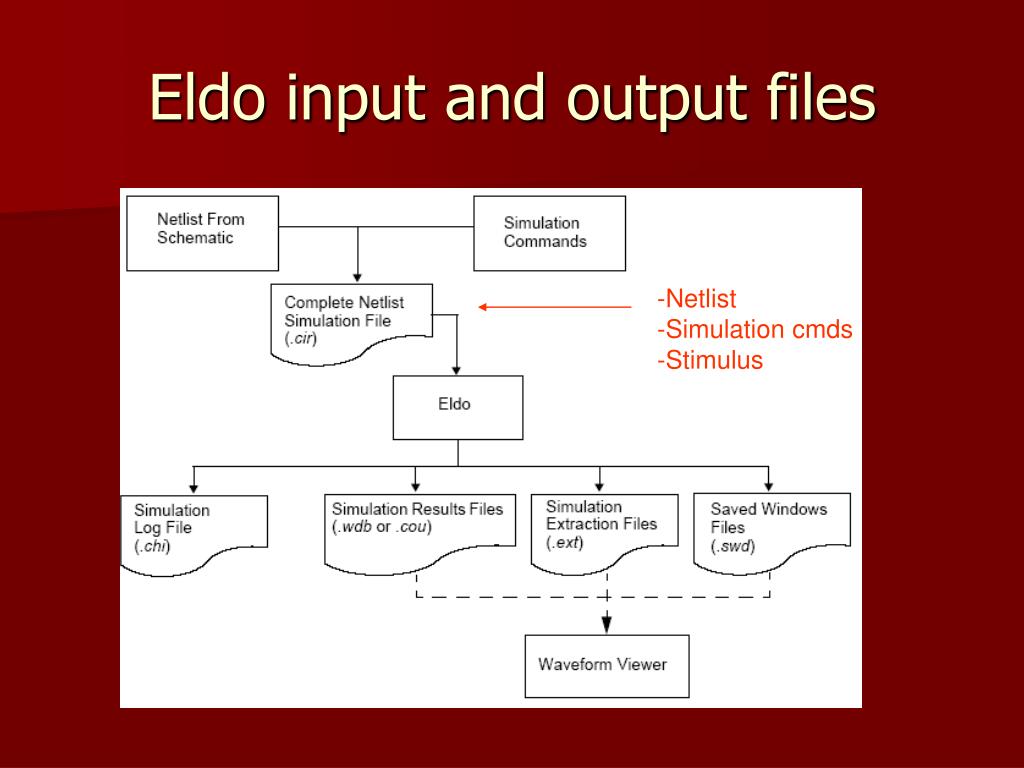

  • Eldo – analog/SPICE simulator

    • Accusim – legacy analog/SPICE simulator

  • Export VHDL/Verilog netlist for HDL simulator


Mentor graphics falcon framework tools l.jpg

Mentor Graphics “Falcon” Framework Tools


Preparation for using quicksim ii create netlist design viewpoints l.jpg

Preparation for using Quicksim IICreate netlist & design viewpoints

  • “Design viewpoint” provides downstream tools with tool-specific information

    • primitives, properties, parameters

    • technology-specific simulation models

  • Create viewpoints one time for each schematic

    adk_dve design –technology tsmc035

    • design = schematic netlist component name

    • tsmc035 = ASIC technology to be used

  • ASIC technologies available in ADK:

    tsmc018**, tsmc025**, tsmc035, ami05, ami12

    (** no Quicksim models)


Design viewpoints for component bob l.jpg

Design viewpoints for component “bob”

Logic symbol

ICgraph

Layout viewpoint

Layout vs.

schematic

check viewpoint

Accusim

viewpoint

Schematic

Back annotation

file for layout

parameter

extraction

Schematic-driven

layout viewpoint

(ICgraph)

Transistor-level

Quicksim II

viewpoint

Mentor Graphics “Design Manager”


Quicksim ii operation l.jpg

Quicksim II operation

  • Invoke Quicksim II: adk_quicksim bob/tsmc035

    • “bob” = design component

    • “tsmc035” = quicksim viewpoint

  • Quicksim II “kernel” has three modes:

    • Unit (default): all components have 1 unit of delay

    • Delay: delays specified as “triplets”

      • (min-delay typ-delay max-delay)

      • from technology files

    • Constraint: same as Delay, but with detection of glitches, contraint violations, etc.


Quicksim ii multi valued simulation l.jpg

Quicksim II multi-valued simulation

  • Each signal has a “state” and a drive “strength”

Example: 1s = strongly driven to 1

1r = resistively pulled up to 1


Example force file for circuit bob similar to modelsim ee l.jpg

Example “force file” for circuit “bob”(similar to Modelsim EE)

force a 0 0

force a 1 25

force a 0 55

force r 1 0

force r 0 7

force r 1 12

set clock period 20

force c 0 0 -repeat

force c 1 10 -repeat

Value

State

Clock definition


Quicksim ii simulation of bob l.jpg

Quicksim II simulation of “bob”


Eldo simulation from da ic l.jpg

Eldo simulation from DA-IC

  • Run simulations from within DA-IC

    • Eldo, ADVance MS, Mach TA

  • DA-IC invokes a “netlister” to create a circuit model from the schematic

    • SPICE model for Eldo & Mach TA

  • Eldo analyses, forces, probes, etc. same as SPICE

  • View results in EZwave or Xelga


Eldo input and output files l.jpg

Eldo input and output files

-Netlist

-Simulation cmds

-Stimulus


Slide30 l.jpg

SPICE “circuit” file generated by DA-IC

SPICE netlist for modulo7 counter

From ADK

library

Force values (created interactively)


Eldo simulation of modulo7 counter transient analysis l.jpg

Eldo simulation of modulo7 counter(transient analysis)


Post layout simulation with machta l.jpg

Post-layout simulation with MachTA

  • MachTA is an accelerated Spice simulator

    • Digital & mixed-signal circuits

    • Analyze timing effects pre- and post-layout

      • SPICE netlists with parasitic R/C

    • Execute test vector file to verify functionality

  • Algorithms support large designs

    • Partition design, simulate only partitions with changes

    • Combine time-driven & event-driven operation

    • Solves linearized models using a proprietary high-performance, graph-theory based, matrix solution algorithm


Mach ta flow diagram l.jpg

Mach TA flow diagram

SPICE

netlist

$ADK/technology/mta/tsmc035


Post layout simulation with mach ta netlist extracted by calibre pex l.jpg

Post-layout simulation with Mach TA(netlist extracted by Calibre PEX)

  • Prepare netlist (remove subcircuits for Mach TA)

    • Extracted netlist = count4.pex.netlist

    • Command: $ADK/bin/mta_prep count4

    • Creates SPICE file: count4.sp

  • Invoke Mach TA:

    ana- command file to initialize Anacad SW

    mta –ezw –t $ADK/technology/mta/tsmc035 count4.sp

  • Mach PA (mpa) does current & power analysis


Mach ta main window l.jpg

Mach TA main window


Mach ta simulation commands l.jpg

Mach TA simulation commands


Sample mach ta dofile transient analysis l.jpg

Sample Mach TA “dofile”(transient analysis)

Signals to observe in EZwave

plot v(clk) v(q[2]) v(q[1]) v(q[0])

measure rising TRIG v(clk) VAL=2.5v RISE=1 TARG v(q[0]) VAL=2.5v

l load

l reset

h count

l clk

run 5 ns

h reset

h clk

run 5 ns

l clk

run 5 ns

h clk

run 5 ns

Measure time from rising edge of clk (TRIGger)

to 1st rising edge of q[0] (TARGet) - voltages

Drive signals low/high (Lsim format)

Simulate for 5 ns

Command to execute: dofile file.do


Ezwave waveform viewer results for previous dofile l.jpg

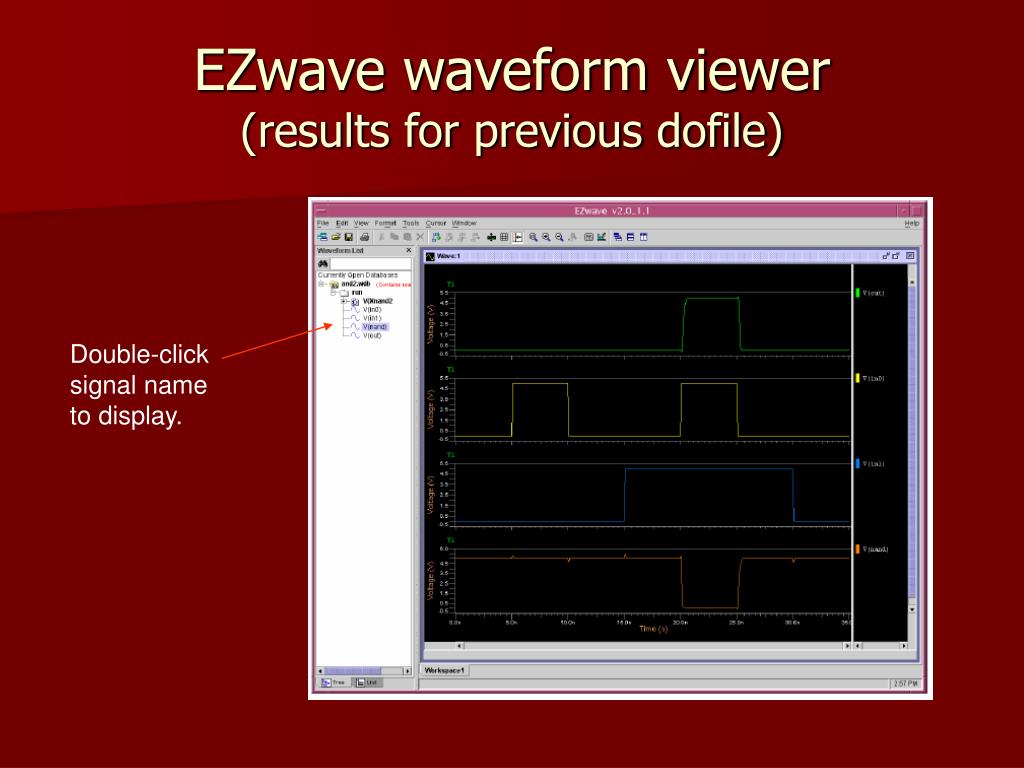

EZwave waveform viewer(results for previous dofile)

Double-click

signal name

to display.


Alternative mach ta dofile same result as previous example l.jpg

Alternative Mach TA “dofile”(same result as previous example)

plot v(clk) v(q[2]) v(q[1]) v(q[0])

measure rising TRIG v(clk) VAL=2.5v RISE=1 TARG v(q[0]) VAL=2.5v

vpulse Vclk clk 0 pulse(0 3.3 10n .05n .05n 10n 20n)

l load

l reset

h count

run 5 ns

h reset

run 200 ns

v-levels delay rise fall width period

Nodes to which

source connected

Periodic pulses

Voltage source name


Mach ta test vector file l.jpg

Mach TA – test vector file

  • Verify design functionality/behavior

    • apply test vectors

    • capture outputs

    • compare outputs to expected result

    • vectors/outputs from behavioral simulation

  • Command to execute a test vector file:

    run –tvend tvfile.tv

test vector file (next slide)


Test vector file format l.jpg

Test vector file format

# Test vector file for modulo7 counter

CODEFILE

UNITS ps

RISE_TIME 50

FALL_TIME 50

INPUTS clk,reset,load,count,i[2],i[1],i[0];

OUTPUTS q[2] (to=max),q[1] (to=max),q[0] (to=max);

CODING(ROM)

RADIX <11113>3;

@0 <01105>X;

@2000 <00105>0;

@7000 <01105>0;

@10000 <11105>5;

@20000 <01015>5;

@30000 <11015>6;

@40000 <01015>6;

@50000 <11015>0;

@60000 <01015>0;

…..

END

signal order within vectors

Header

Vector format

Sample 5 fs before next vector

Vectors: @time <input_vector>expected_output

Test vectors derived from behavioral simulation results


Slide42 l.jpg

Behavioral simulation listing

Corresponding Mach TA test vector file


Alternate test vector file clock generated separately by voltage source l.jpg

Alternate test vector file(clock generated separately by voltage source)

vpulse vclk clk 0

pulse(0 3.3 10n .5n .5n 10n 20n)

Can mix other simulation

commands with test vector

application.


Mach ta structure schematic viewer l.jpg

Mach TA structure & schematic viewer


Summary l.jpg

Summary

  • Simulation at each stage of ASIC design

    • behavioral model

    • synthesized netlist

    • pre-layout schematic/netlist

    • post-layout netlist

  • ADVance MS combines 3 technologies to cover the above

    • digital (VHDL, Verilog)

    • analog/mixed-signal (VHDL-AMS, Verilog-A)

    • transistor level (Eldo, Mach TA)

  • ASIC Design Kit (ADK) supports all tools in the design flow, including simulation


  • Login
