Defense logistics management system dlms introductory training

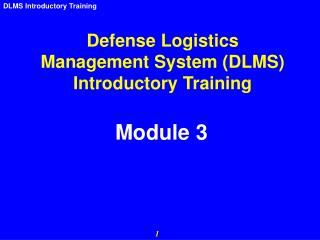

Defense Logistics Management System (DLMS)Introductory Training

Module 3


Course Structure

  • Module 1 - Introduction to the DLMS

  • Module 2 – Electronic Data Interchange (EDI) Basics

  • Module 3 - DLMS Implementation Strategy

  • Module 4 - ASC X12 EDI Definitions and Concepts

  • Module 5 - DLMS EDI

  • Module 5F - DLMS Financial

  • Module 5M – DLSS/DLMS Mapping

  • Module 6 – XML & Emerging Technologies

Module 3 / Course Structure


Module structure
Module Structure

Module 3 –DLMS Implementation Strategy

  • DLMS Migration Program Management Plan

  • DoD Corporate Services

  • Operating Concept

  • Configuration Management

  • Lessons Learned

Module 3 / Course Structure


Module 3 objectives
Module 3 Objectives

Students will gain basic understanding of:

  • The purpose and contents of the DLMS Migration Program Management Plan (PMP)

  • What corporate services are available to support implementation

  • The DLMS operating concept including critical translation and conversion processes

  • The essential elements of Component planning for DLMS implementation

  • How DLMS process changes are managed

  • Lessons learned during previous DLMS implementations

Module 3 / Objectives


Dlms migration program management plan pmp
DLMS Migration Program Management Plan (PMP)

Module 3 / DLMS Program Management Plan


Dlms migration pmp is largely about cutting the elephant into manageable pieces

DLMS Migration PMP is Largely About – “Cutting the Elephant Into Manageable Pieces”

  • Phased Migration: Build your strategy and schedule for

  • Evolution, not Revolution

    • By System

    • By Function

    • By Transaction Priority Grouping

    • By DLSS Transaction Family

    • By Individual Transaction

    • Include Process Reengineering

Module 3 / DLMS Program Management Plan


Table of Contents

DLMS Migration Acceleration Program Management Plan (PMP)

Introduction

Program Benefits

Successful Migrations

10 Steps to Success

Cost Estimates

DLSS (MILS) to DLMS Implementation

Program Background

Program Responsibilities

Core Team

Program Implementation Strategy

Program Requirements

Nomination Information

Criteria for Nominated Projects

Business Transformation Agency Review Process

Jump Start Milestones

Monthly Status Reports

Metrics

Funding Process

MIPR Submission

PDC Submission

Related Background Information

Risk Assessment

DLMS Master Test Plan

Program Correspondence

Policy Directives and Related Documentation

PMP Appendices

Appendix A through H

Defense Logistics Management System

(DLMS) Migration Acceleration

Program Management Plan (PMP)

Version 3.0

Revised: May 11, 2008

Module 3 / DLMS Program Management Plan


Ten steps to success
Ten Steps to Success

  • Jump Start Project Management Plan (PMP) (pg5)

  • http://www.dla.mil/j-6/dlmso/Programs/DLMS/jumpstart.asp

  • Assemble Team of functional and technical experts on the system to be migrated

  • Initiate early contact with DAASC/other trading partners (e.g., DFAS, MOCAS, WAWF); DAASC POC is Clarissa Elmore, (937) 656-3770 DSN 986-3770, email [email protected]

    • Develop a Performance Based Agreement (PBA) with trading partners and Authority To Operate (ATO)

    • Acquire DAASC DLSS to DLMS X12 data maps for the transactions to be migrated

    • Establish communications mechanisms with DAASC and determine what addressing will be used with DAAS

Module 3 / DLMS Program Management Plan


Ten steps to success con t
Ten Steps to Success (con’t)

  • Schedule DLMS training with DLMSO and acquire training

    • Training courses can be requested by contacting DLMSO

    • Ellen Hilert 703-767-0676, DSN 427-0676, [email protected]

  • Select, acquire or develop an EDI or XML translator/parser

  • Develop phased migration plan/schedule

  • Pick a simple transaction first and do one at a time, reusing as much as possible for the next transaction

  • Use EDI or XML translation software and DAASC logical data maps to map/parse data for incoming/outgoing DLMS transactions to or from legacy database or flat files

Module 3 / DLMS Program Management Plan


Ten steps to success con t1
Ten Steps to Success (con’t)

  • Establish table driven DLSS or DLMS on/off switching mechanism to establish positive control, allow for phasing and fail safe fall back

  • Test, Test, Test

    • Establish loop back testing arrangement with DAASC. System sends DLMS to DAASC & DAASC returns same document in DLSS format and/or vice versa for validation/verification.

    • Conduct unit code testing on each transaction (test all conditions)

    • Schedule and conduct integration testing with DAASC & Trading Partners as feasible

  • Schedule live cut over in increments, implementing few transactions at a time coordinating closely with DAASC

Module 3 / DLMS Program Management Plan


Legacy System Migration to DLMS

Step #5, Phase I - Modify System to receive and send DLMS

IMPACT ON TYPICAL SYSTEM - No Change to Database, applications logic, internal system messages; only the entry & exit programs must be modified.

System transaction entry and exit program(s)

System

Application n1

System

Application n2

DLMS

Incoming

transaction

Database

Or

Flat Files

Database

DLMS

Outgoing

transaction

System

Application n3

System

Application nn

DLMS Trans

No Change

System transaction entry and exit program(s)

Module 3 / DLMS Program Management Plan


Legacy System Migration to DLMS

Step #5, Phase II – Teach System to use new DLMS data

IMPACT ON TYPICAL SYSTEM - Changes may be needed to database, application logic, and internal system messages

System transaction entry and exit program(s)

System

Application n1

System

Application n2

Incoming

transaction

Database

Or

Flat Files

Database

Outgoing

transaction

DLMS Trans

System

Application n3

System

Application nn

Potential

Change

System transaction entry and exit program(s)

Module 3 / DLMS Program Management Plan


Step #6. Pick a simple transaction first and do one at a time, reusing as

much as possible for the next transaction.

  • Transactions within a DLSS family:

  • Same first two characters of the Document Identifier Code (DIC)

  • Data content nearly identical -- lots of reusability

Module 3 / DLMS Program Management Plan


Step #8. Establish table driven DLSS or DLMS on/off switching mechanism to establish positive control, allow for phasing and fail-safe fall backDLSS/DLMS Switching Table (used for DSS)

Module 3 / DLMS Program Management Plan


Logistics data resource management system logdrms

Logistics Data Resource Management System switching mechanism to establish positive control, allow for phasing and fail-safe fall back(LOGDRMS)

Module 3 / Corporate Services


Logistics data resource management system logdrms before
Logistics Data Resource Management System (LOGDRMS) - Before

  • Individual localized implementations

  • Service Unique Solutions

  • Undisciplined, changing requirements

  • Manpower Intensive

  • Non Standard Processes

  • Non Standard Definitions

  • Multiple Contexts

  • Multiple Syntaxes

  • Limited Communication

  • Sneaker-Net and Swivel-Chair inputs

  • Questionable Content

DOD Services(e.g., USA, USAF, USN, USMC, Federal)

Application Developers(e.g., SAP, Oracle)

Application & Interface Builders(e.g., IGC, IDE)

Content Administrators(e.g., DLMSO, DTEB, DDCOI, Services)

Data Analysts(e.g., DORRA, LOGSA)

System Architects

(e.g., DSS, Asset Visibility, EBS)


Logistics data resource management system logdrms current
Logistics Data Resource Management System (LOGDRMS) - Current

  • LOGDRMS Consists Of:

    • DLMS Data Element Dictionary/Directory

    • Directory of DLMS Supplements

    • Dictionary/Directory of DLMS Qualifiers [Reference (Code) Tables]

  • Summary of Contents:

    • 67 ANSI X12 Formatted DLMS Supplements

    • 213 ANSI X12 Data Elements

    • 865 DoD Enterprise Level (Core) Logistics Data Elements

    • 1900 DLMS Data Elements (Business Data Elements)

    • 197 DLMS Qualifiers (Reference (code) Tables)

    • Assorted Conversion Guides (Unit of Issue/Packing/Transportation)

DOD Services(e.g., USA, USAF, USN, USMC, Federal)

Application Developers(e.g., SAP, Oracle)

Application & Interface Builders(e.g., IGC, IDE)

Data Analysts(e.g., DORRA, LOGSA)

System Architects

(e.g., DSS, Asset Visibility, EBS)

Content Administrators(e.g., DLMSO, DTEB, DDCOI, Services)


Dod corporate services

DoD Corporate Services Current

Module 3 / Corporate Services


Dod corporate services1
DoD Corporate Services Current

  • Fully operational EB infrastructure

    • Includes flexible and robust communications

    • Supports a transitional DLSS/DLMS environment

  • An efficient and effective organizational structure

    • DoD corporate sponsorship

    • Capable of overseeing implementation of commercial EDI

    • Sustains the DLMS infrastructure

Module 3 / Corporate Services


  • DLMSO Support to DLMS Implementers Current

    • Functional and technical consultation

    • Providing X12 implementation conventions and XML schemas

    • Arranging trading partner meetings/teleconferences

    • Testing assistance as required

    • Facilitate coordination with DAASC & trading partners

    • Modification & configuration management of DLMS

      • Business Rules

      • Transaction formats

      • Metadata

    • DLMSO Web site support

    • Providing DLMS Training materials and classes

Module 3 / Corporate Services


DLMSO Training Support Current

DLMSO offers a two day DLMS training class. The class is composed of 9 modules containing 455 training slides used in conjunction with a number of class exercises and hand outs. Training covers how to implement DLMS, 10 steps to a successful implementation, available resources and lessons learned.

Since March 2007, DLMSO has trained approximately 300 DoD Component personnel:

Navy R-Supply Norfolk, VA March 27-28, 2007

Air Force ILS-S/SBSS Maxell-Gunter AFB, AL April 24-25, 2007

Army LOGSA & LAISO Huntsville, AL June 13-14, 2007

DAASC Dayton, OH July 24-25, 2007

Marine Corps MAISTER Albany, GA November 14-15, 2007

Navy ERP Annapolis, MD February 26 2008

DFAS Columbus, OH June 11-12, 2008

Air Force ECSS Dayton, OH July 17-18, 2008

The following DLMS training is in the planning phase:

GSA Washington, DC April 28, 2009

GCSS-Army Petersburg, VA May 12-13, 2009

AF-ECSS (refresh) Dayton, OH TBD


DLMSO Support to DLMS Implementations Current

  • DLMSO Management POCs:

    • Mr. DC Pipp (703) 767-0670/DSN 427-0670 [email protected]

    • Major David Walker (703) 767-2611/DSN 427-2611 [email protected]

  • DLMSO Functional Support POCs:

    • Ms. Ellen Hilert (703) 767-0676/DSN 427-0676 [email protected]

    • Ms. Mary Jane Johnson (703) 767-0677/DSN 427-0677 [email protected]

    • Mr. Bob Hammond (703) 767-767-2117/DSN 427-2117 [email protected]

    • Ms. Heidi Daverede (703) 767-5111/DSN 427-5111 [email protected]

  • DLMSO Technical Transaction Support POCs:

    • Mr. Tommy Lyons (703) 767-1481/DSN 427-1481 [email protected]

    • Mr. Nat Obey (703) 767-2558/ DSN 427-2558 [email protected]

    • Mr. Dale Yeakel (703) 767-8632/DSN 427-8632 [email protected]

    • Mr. Larry Tanner (614) 310-6059 [email protected]

  • DLMSO Technical Metadata Support POCs:

    • Ms. Marva White (703) 767-6296/DSN 427-6296 [email protected]

    • Mr. Joe Pipan (703) 767-0753/DSN 427-0753 [email protected]

Module 3 / Corporate Services


DAASC Support to DLMS Implementations Current

  • DAASC technical consultation and support for:

    • Set-up of new accounts, telecom protocols, and data protection schemes.

    • Logical data mappings between DLSS, DLMS, and XML

    • Coordination of integration testing with System PMO and trading partners

  • Control and maintenance of customer profiles and routing tables.

  • Coordination of integration testing with Service PM and trading partners.

  • Evaluation of test results and assistance with problem resolution.

  • Help Desk support for establishment of new trading partner connectivity, transaction tracking, trouble-shooting, and file recovery/resubmission.

Module 3 / Corporate Services


DAASC Support to DLMS Implementation Current

  • DAASC DLMS eBusiness Program Management POCs:

    • Clarissa Elmore (937) 656-3770/DSN 986-3770 [email protected]

    • Jennifer Taulbee (937) 656-3400/DSN 986-3400 [email protected]

  • Functional Support POCs/DAASC Logistics Division:

    • Army/GSA: Pam Meredith (937) 656-3709/DSN 986-3709 [email protected]

    • Air Force/DLA: Mark Minch (937) 656-3741/DSN 986-3741 [email protected]

    • Navy/Coast Guard/USMC: Joanne Norman (937) 656-3742/DSN 986-3742 [email protected]

  • DAASC Mapping Support POCs:

    • Doug Mummert (937) 431-8000 [email protected]

    • Bill Strickler (937) 431-8000 [email protected]

  • DAASC eBusiness Group (account set-up):

    • Jordan Henderson (937)656-3804/DSN 986-3804 [email protected]

    • Andy Rohrer (937) 656-3805/DSN 986-3805 [email protected]

Module 3 / Corporate Services


Dlms operating concept

DLMS Operating Concept Current

Module 3 / Operating Concept


Dlms operating concept1
DLMS Operating Concept Current

  • To avoid the trauma and expense of "turn-key" implementations, an incremental migration to DLMS is in progress

  • DoD will operate in a mixed DLSS / DLMS environment for an undetermined period

  • During the transition period, logistics systems will undergo modernization and process reengineering changes

Module 3 / Operating Concept


Transition to dlms
Transition to DLMS Current

  • DLSS/DLMS conversion tables have been developed that allow conversion of data from DLSS to DLMS (ASC X12/XML) and vice-versa

    • These conversion tables enable logistics business to be conducted in both environments

  • DAAS will also translate between DLMS and:

    • Multiple versions of ASC X12 standards

    • Other emerging standards when adopted as DoD standards

    • Component User Defined File (UDF) formats (by exception)

Module 3 / Operating Concept


Dlms operating concept2

DLMS Operating Concept Current

Conversion Operations

Module 3 / Operating Concept


Conversion operations

Conversion Operations Current

DAASC develops and performs configuration management of conversion maps

DAASC uses a commercial “any-to-any” mapping software package that supports a robust conversion

Components may use “at will” the format they possess – DLSS or DLMS – to initiate a transaction

Module 3 / Operating Concept


Conversion operations1
Conversion Operations Current

  • DAASC incorporates and maintains a profile of organizations and specifies whether they are operating in DLSS and/or DLMS

  • DLSS data elements are retained in the DLMS to support conversion

  • DLMS enhanced data may not be supported in legacy/transitioning systems - coordination with DLMSO required

Module 3 / Operating Concept


Conversion policy
Conversion Policy Current

  • DoD Supply Chain Material Management Regulation (DoD 4140.1-R) states DAASC will be used for conversion services (see guidance beginning on page 162, Paragraphs C8.6.1.1.7, 8, 9, and 10).

  • The guidance to the Components to use DAASC is in Paragraphs C8.6.1.2.2.1 and C8.6.1.2.2.2. This guidance states all transactions are to be sent through DAASC and use the DAASC DLSS and DLMS standards conversion support capabilities.

Module 3 / Operating Concept


Dlms operating concept3

DLMS Operating Concept Current

Translation Processing

Module 3 / Operating Concept


Translation processing

Translation Processing Current

In the old DLSS environment, data is exchanged in a series of more than 450 fixed-length, 80-position record transactions

To generate these transactions, Component logistics systems:

Extract data from the appropriate module

Format the record

Pass it through DAAS

The recipient then edits and formats it into the receiving application system

Module 3 / Operating Concept


Translation processing continued

Translation Processing … Currentcontinued

The EDI translator converts data to the DLMS format and sends it to DAAS

The translator also performs a number of other functions, including maintaining:

Telecommunications data

Archiving messages

Processing errors

Module 3 / Operating Concept


The following general rules apply

The following general rules apply: Current

Transaction generation programs edit data to ensure it adheres to DLMS policy and data element standards, as well as ASC X12 syntax rules

Translators group one or more of the same transaction sets into a single EDI group and envelope

Initiating systems archive sent messages for no less than 90 days to ensure communication failures do not lead to loss of transmitted data

Initiators create additional copies for recipients not identified in the transaction as an addressee or not previously specified in DAAS instructions

Module 3 / Operating Concept


Transaction routing

Transaction Routing Current

DAAS is the central hub for routing most DLMS transmissions; copies transactions and routes them to recipients according to DLMS procedures. Specialized routing is by agreement.

Components and participating civil agencies can establish their primary routing link to the BTA GEX sites, which in turn forwards transactions to the DAAS GEX for logistics processing.

Conversely, the DAAS GEX will forward acceptance report transactions to the BTA GEX which supports the mapping into the Wide Area Workflow – Receipt and Acceptance (WAWF-RA) processing system.

Module 3 / Operating Concept


Transaction routing continued

Transaction Routing Current … continued

Systems may connect directly or via commercial VANs

Civil

Agencies

DoD

Agencies

GEX

LOTS

DAAS

BTA

Commercial

VANs

Connection

to other DoD

corporate

databases

DAAS can connect to commercial logistics trading partners either directly or through

the trading partners’ Value Added Networks (VANs).

Commercial

organizations

participating

in DoD logistics

Module 3 / Operating Concept


Transaction routing continued1

Transaction Routing … Currentcontinued

  • Archive transactions

  • Open messages and conduct standard or recipient-specific edits

  • Copy transactions in the DAAS Logistics On- Line Tracking System (LOTS) and route them to other DoD databases

Central hub function includes capability to:

Module 3 / Operating Concept


Transaction routing continued2

Transaction Routing Current … continued

Central hub capabilities … continued

Group transactions that are bound for the same destination

Forward newly grouped envelopes to recipients and archive outbound messages

Forward messages outside the DoD telecommunications network to civil agencies, commercial Value-Added Networks (VANs), and trading partners

Module 3 / Operating Concept


Lessons learned
Lessons Learned Current

  • Incorporate into your design an On/Off switch (table) for all outbound transactions down to the 3 character DIC – DAASC controls your inbound

    • Allows control over when and what is migrated

    • Allows transactions to be reversed if problems occur

  • Start work on the Performance Based Agreement (PBA) and Authority to Operated (ATO) immediately

  • Plan to exchange all transactions with all trading partners exclusively via DAASC (100%)

  • Begin discussions with DAASC pertaining to intentions, transmission protocol, design, and interface testing

  • Do NOT try to migrate too many transactions at one time!

Module 3 / Lessons Learned


Lessons learned con t
Lessons Learned (con’t) Current

  • Request DAASC’s DLSS to DLMS translation maps

  • Scrutinize every piece of data within your DLSS transactions to ensure it is accommodated within the respective DS and DAASC map (may need to request change - PDC)

  • Design to incorporate DLMS processing into your actual application functionality to enable future expansion & data capabilities

  • Determine which new capabilities you want to incorporate into your applications

  • Design and develop your system and conduct thorough and extensive unit, system and interface testing with DAASC

Module 3 / Lessons Learned


Lessons learned con t1
Lessons Learned (con’t) Current

  • Do NOT rely solely upon documentation for data formats and validate the data in your MILS transactions

  • Large samples are best

    • They expose more transaction scenarios

    • Allow for a fuller view of possible data combinations that your system produces

Module 3 / Lessons Learned


Module 3 quiz
Module 3 Quiz Current

  • Question 1: Which of the following is not one of the 10 steps to a successful DLMS implementation?

    • Assemble team e) Establish early relationship with DAASC

    • Schedule training f) Acquire translator/parser

    • Develop phased plan g) Cross fingers

    • Test, test, test h) DLSS/DLMS on/off switching table

  • Question 2:PRC processes proposed changes that might impact DLMS procedures and DLMS supplements to the federal Implementation Conventions. However, coordination outside the PRC membership is required when changes impact a broader area to include:

    • Federal or DOD policy d) All of the above

    • ASC X12 standards e) None of the above

    • Federal ICs

  • Question 3:Under the DLMS operating concept, DAASC can support data translation,

  • which of the following is not supported?

    • a) Component User Defined File (UDF) formats

    • b) English to Spanish

    • c) Multiple versions of the ASC X12 standards

Module 3 / Quiz



ad
