Sparse kernel machines

Sparse Kernel Machines


Introduction

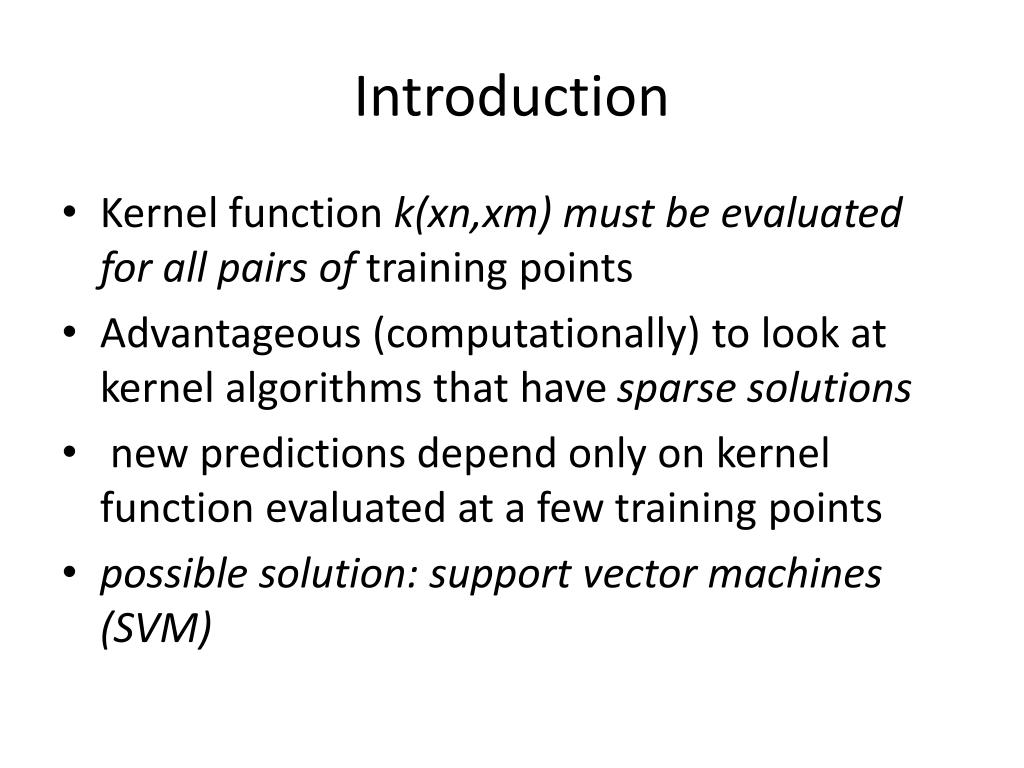

Introduction

  • Kernel function k(xn,xm) must be evaluated for all pairs of training points

  • Advantageous (computationally) to look at kernel algorithms that have sparse solutions

  • new predictions depend only on kernel function evaluated at a few training points

  • possible solution: support vector machines (SVM)


Maximum margin classifiers 1

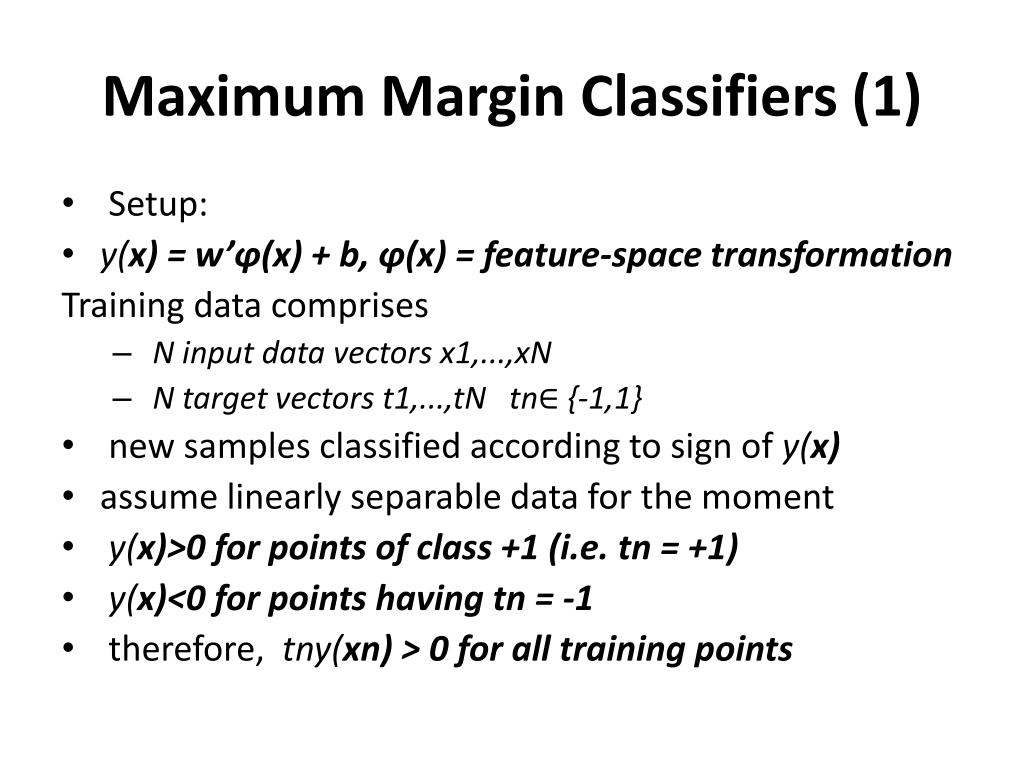

Maximum Margin Classifiers (1)

  • Setup:

  • y(x) = w’φ(x) + b, φ(x) = feature-space transformation

    Training data comprises

    • N input data vectors x1,...,xN

    • N target vectors t1,...,tNtn∈{-1,1}

  • new samples classified according to sign of y(x)

  • assume linearly separable data for the moment

  • y(x)>0 for points of class +1 (i.e. tn = +1)

  • y(x)<0 for points having tn = -1

  • therefore,tny(xn) > 0 for all training points


Maximum margin classifiers 2

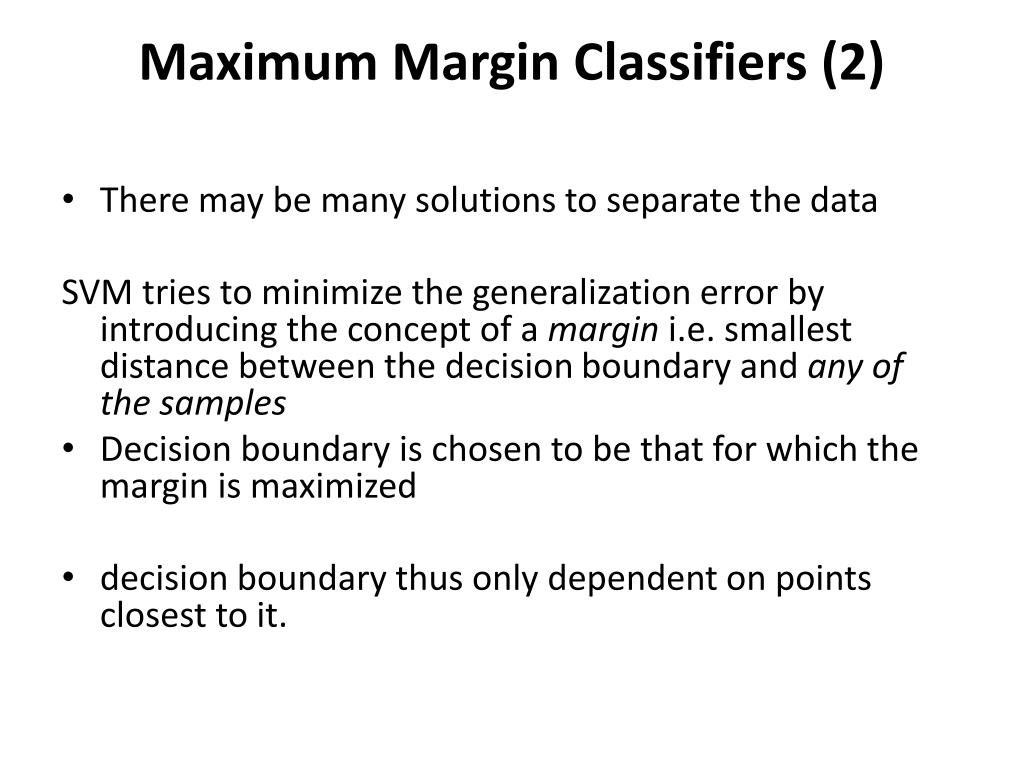

Maximum Margin Classifiers (2)

  • There may be many solutions to separate the data

    SVM tries to minimize the generalization error by introducing the concept of a margin i.e. smallest distance between the decision boundary and any of the samples

  • Decision boundary is chosen to be that for which the margin is maximized

  • decision boundary thus only dependent on points closest to it.


Maximum margin classifiers 3

Maximum Margin Classifiers (3)


Sparse kernel machines

  • If we consider only points that are correctly classified, then we have

    tny(xn) > 0 for all n

  • The distance of xn to the decision surface is then

  • tny(xn)

  • w = tn(wTφ(xn) + b)

  • w

  • ● Optimize w and b to maximize this distance => solve

  • (7.2)

  • (7.3)

  • ● Quite hard to solve => need to get around it


Maximum margin classifiers 4

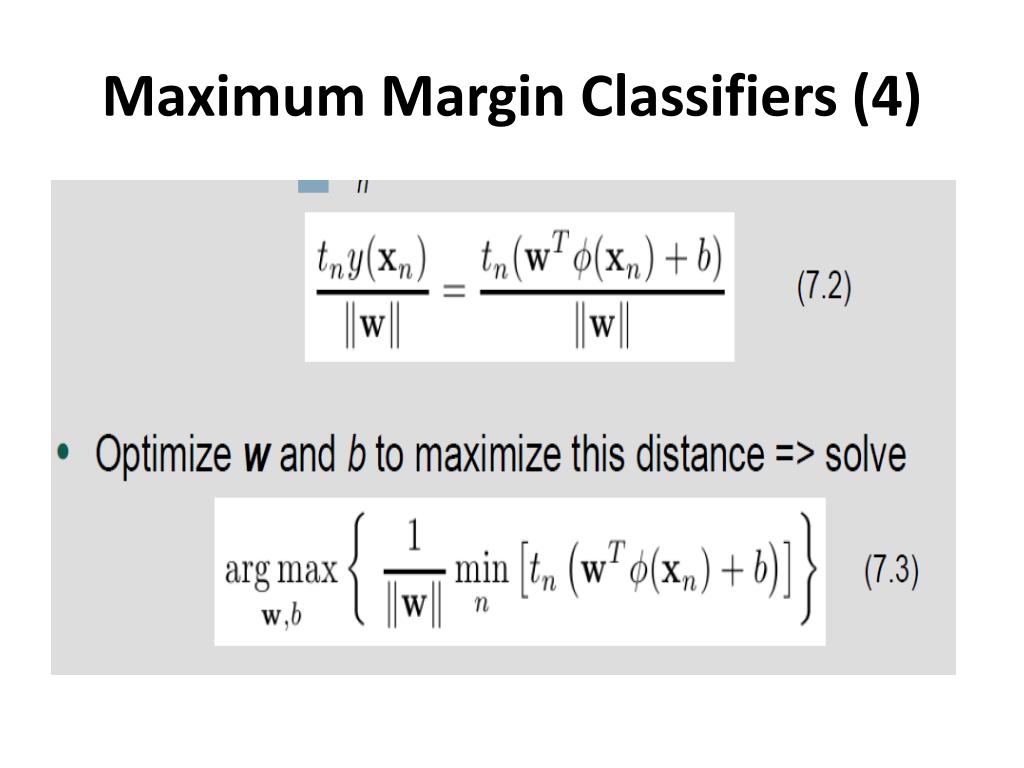

Maximum Margin Classifiers (4)


7 1 1 overlapping class distributions

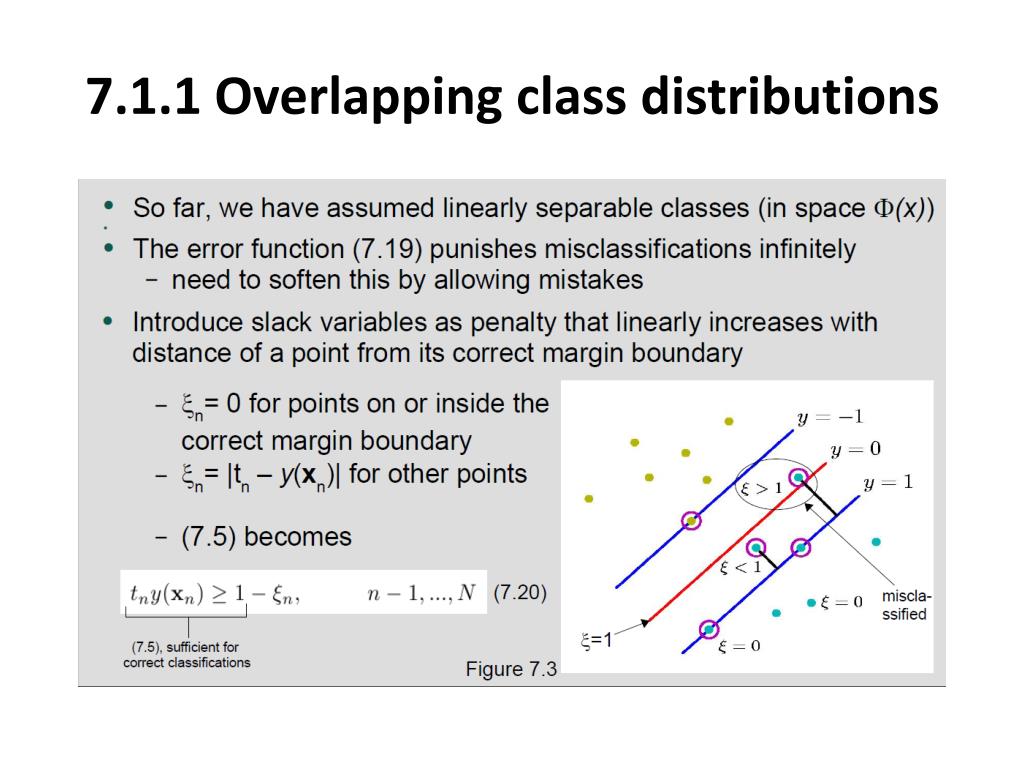

7.1.1 Overlapping class distributions


Sparse kernel machines

  • An alternative, equivalent formulation of the support vector machine, known as the ν-SVM


Sparse kernel machines

the parameter ν, which replaces C, can beinterpreted as both an upper bound on the fraction of margin errors (points for whichξn > 0 and hence which lie on the wrong side of the margin boundary and which mayor may not be misclassified) and a lower bound on the fraction of support vectors.


7 1 2 relation to logistic regression

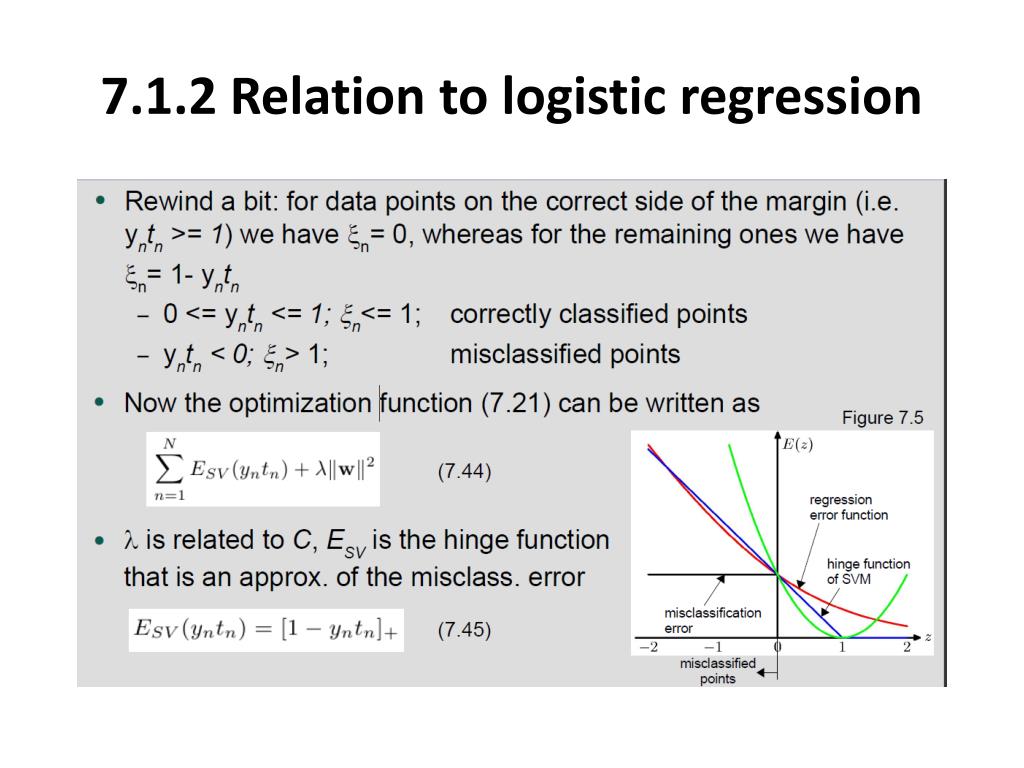

7.1.2 Relation to logistic regression


7 1 3 multi class svm

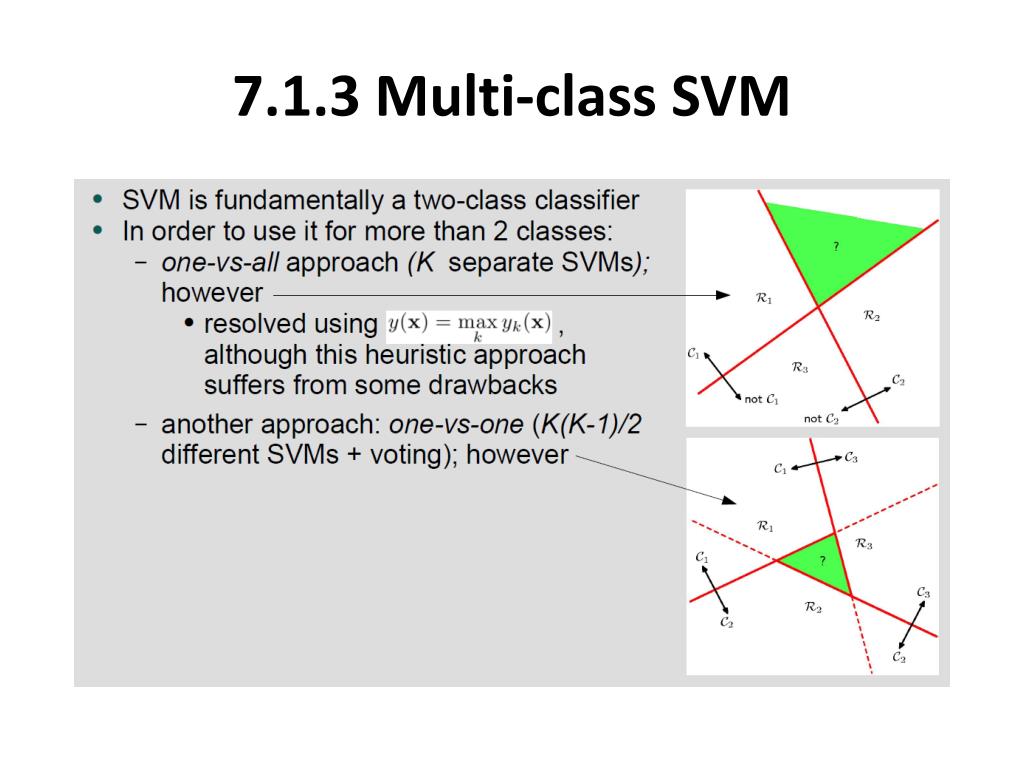

7.1.3 Multi-class SVM


7 1 4 svms for regression

7.1.4 SVMs for regression


7 1 4 svms for regression1

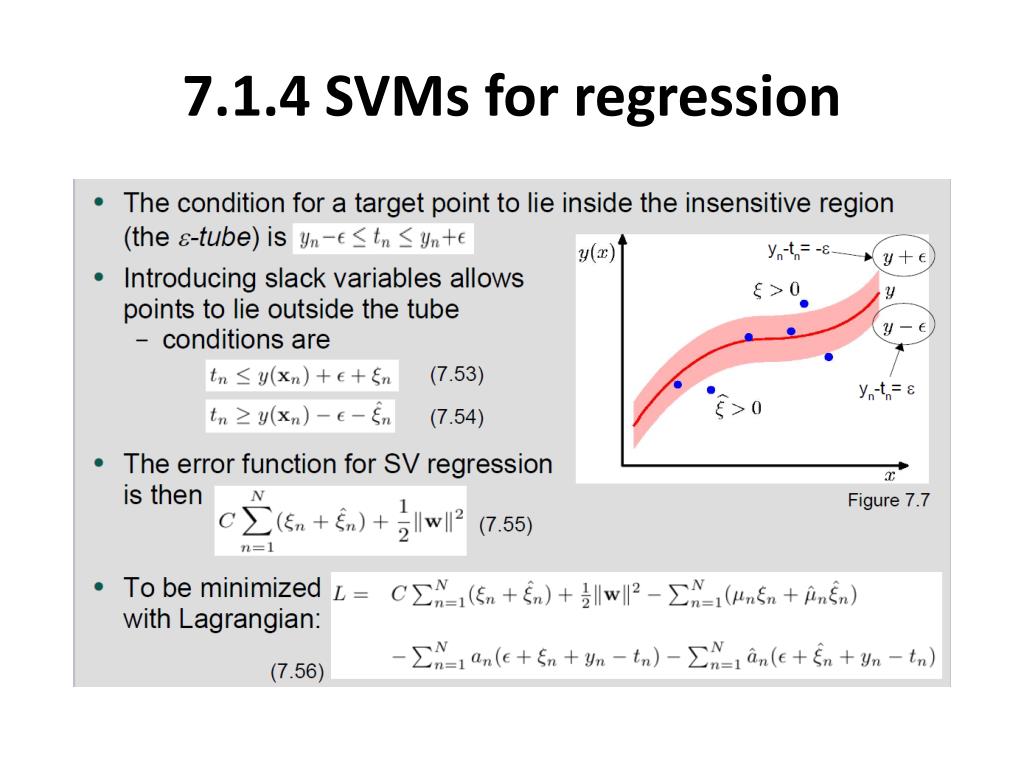

7.1.4 SVMs for regression


7 1 4 svms for regression2

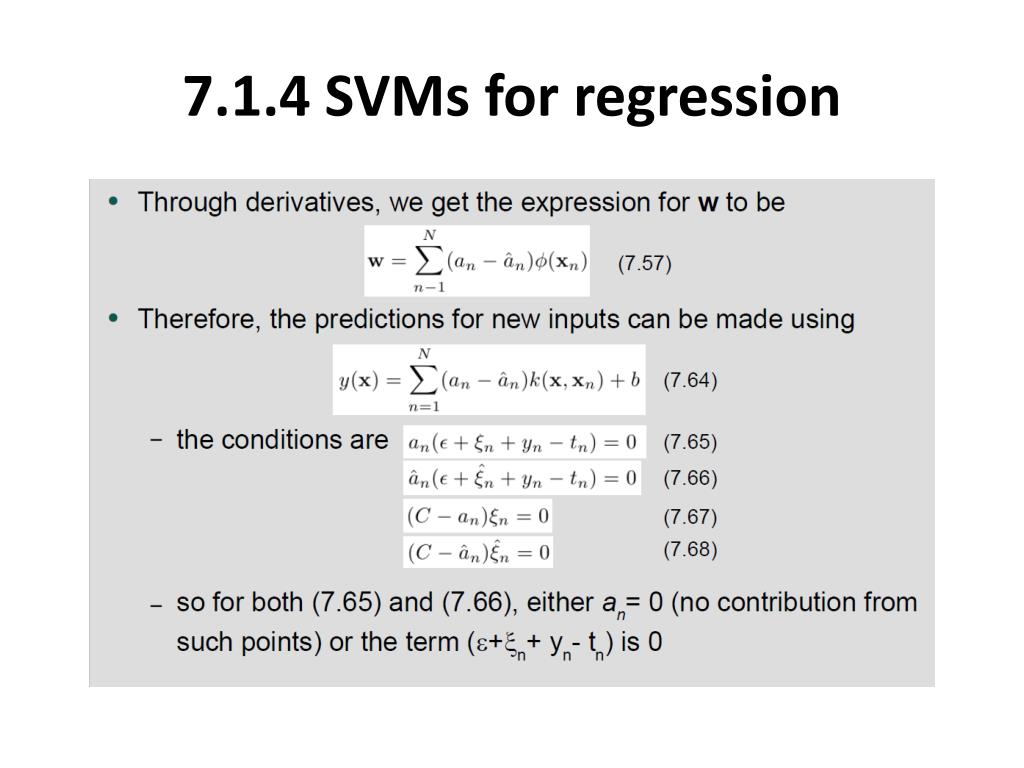

7.1.4 SVMs for regression


7 1 4 svms for regression3

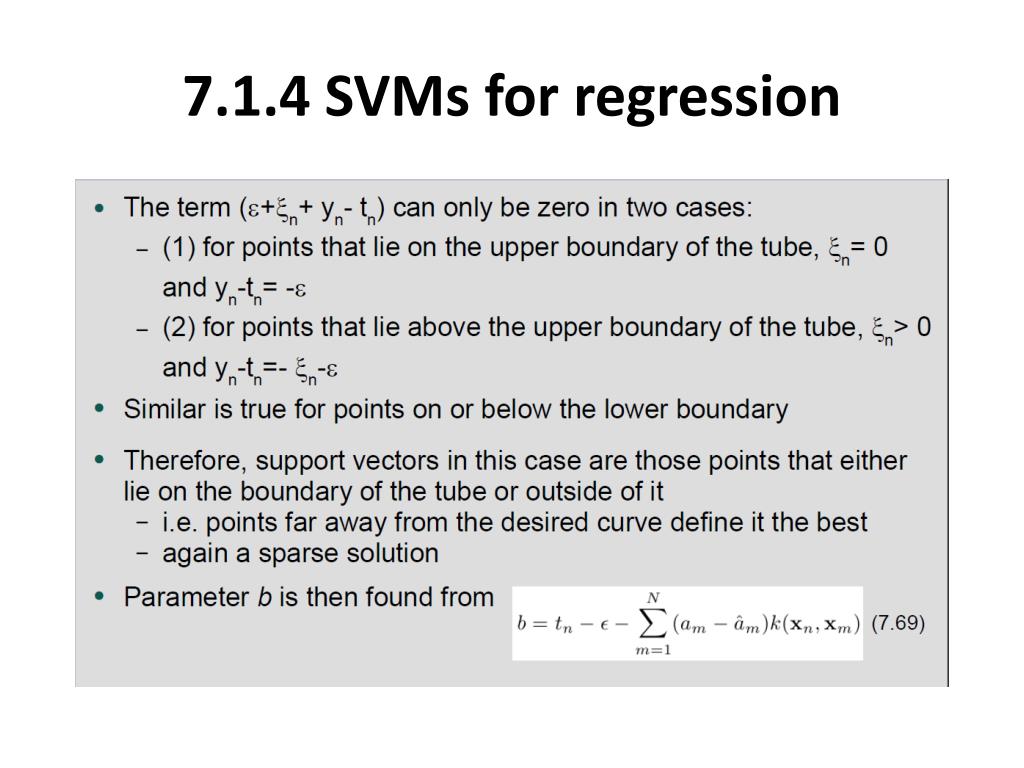

7.1.4 SVMs for regression


7 1 4 svms for regression 7 1 5 computational learning theory

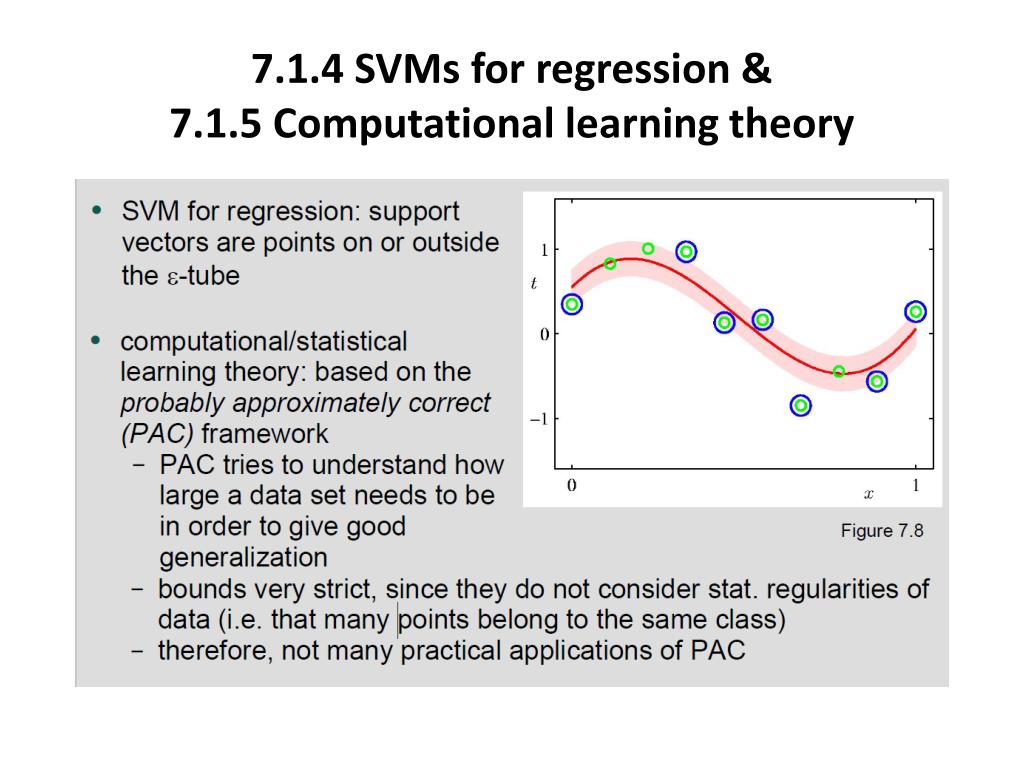

7.1.4 SVMs for regression &7.1.5 Computational learning theory


Relevance vector machines 1

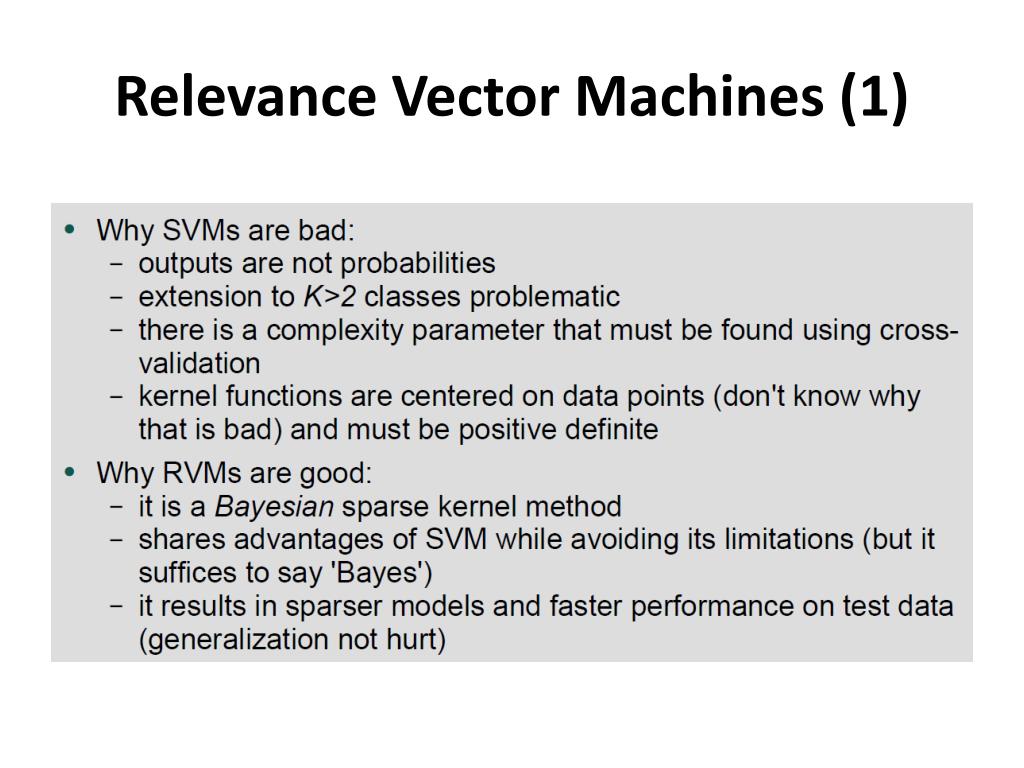

Relevance Vector Machines (1)


Relevance vector machines 2 7 2 1 rvm for regression

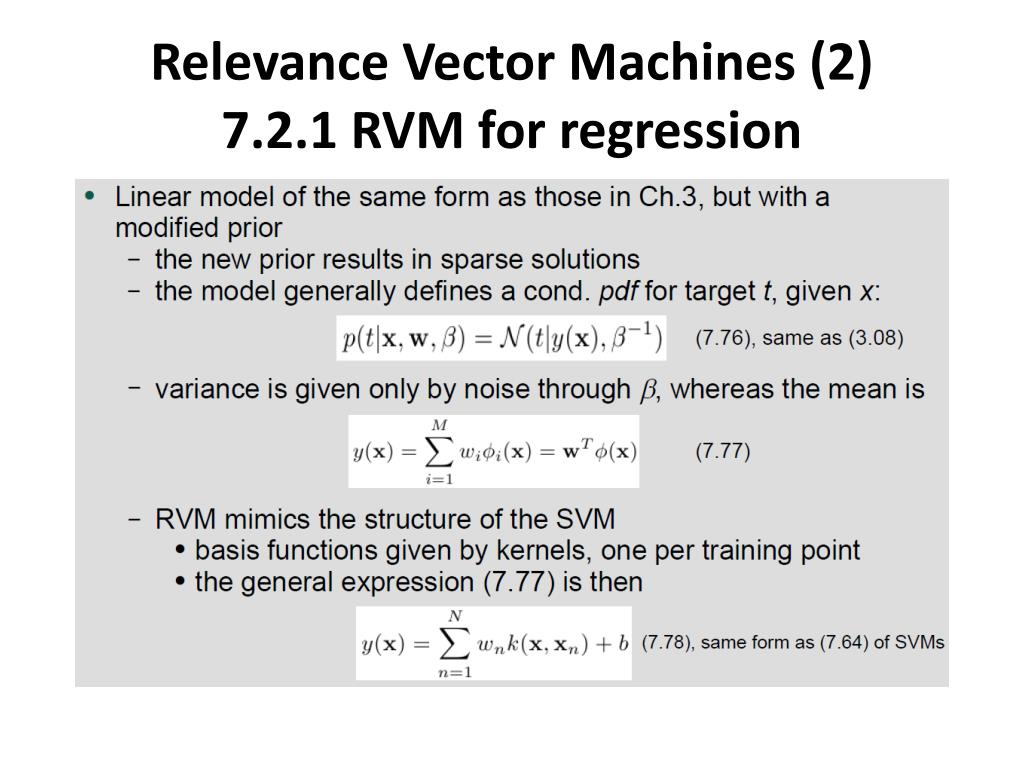

Relevance Vector Machines (2)7.2.1 RVM for regression


Relevance vector machines 3 7 2 1 rvm for regression

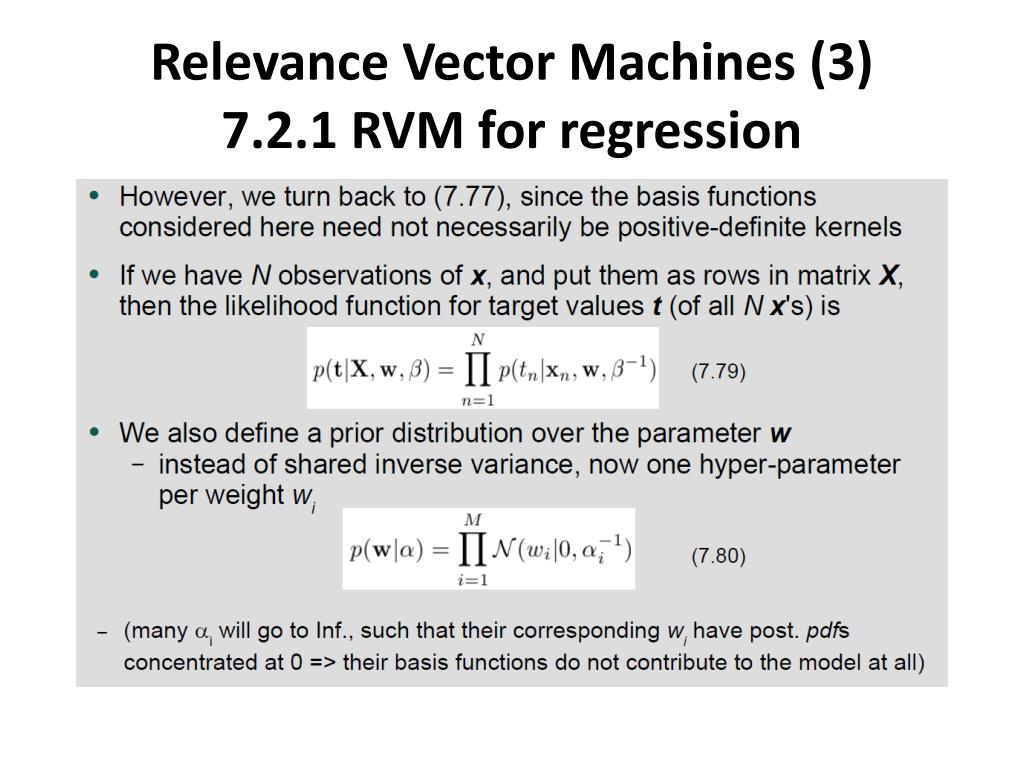

Relevance Vector Machines (3)7.2.1 RVM for regression


Relevance vector machines 4 7 2 1 rvm for regression

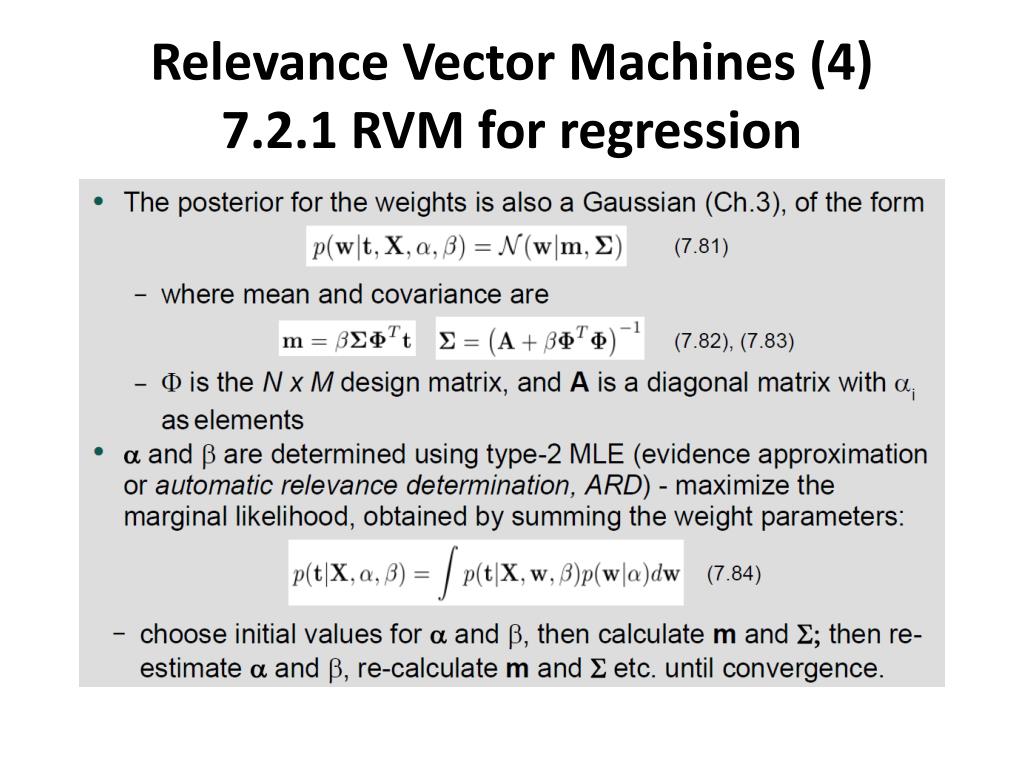

Relevance Vector Machines (4)7.2.1 RVM for regression


Relevance vector machines 5 7 2 1 rvm for regression

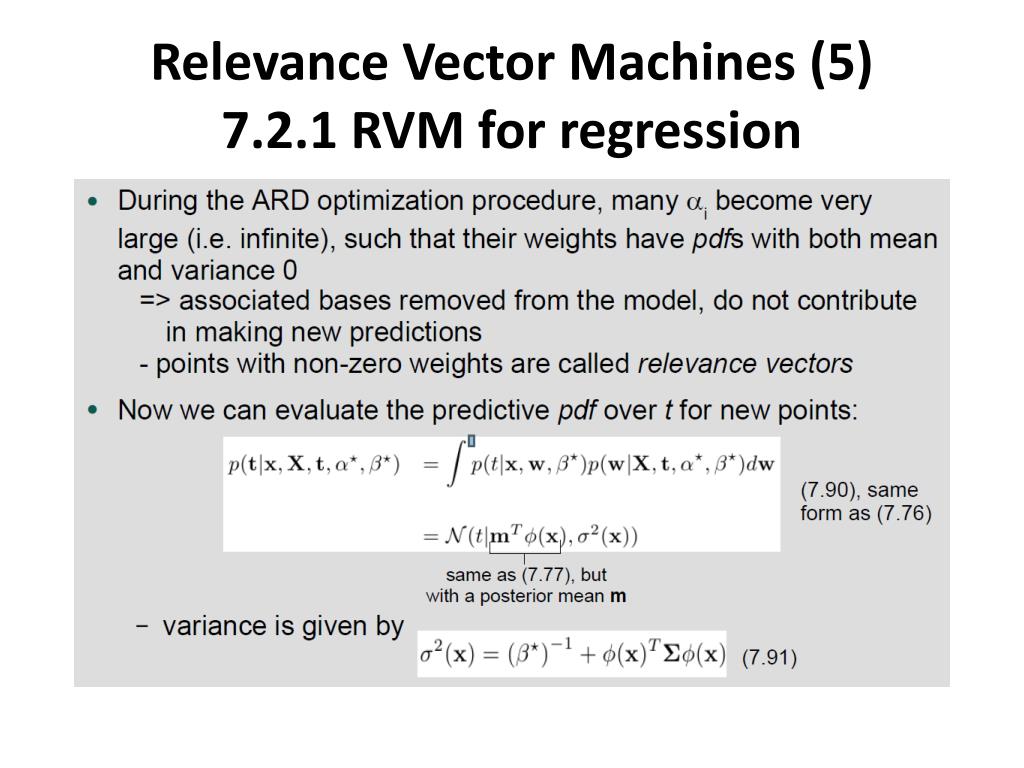

Relevance Vector Machines (5)7.2.1 RVM for regression


Relevance vector machines 6 7 2 1 rvm for regression

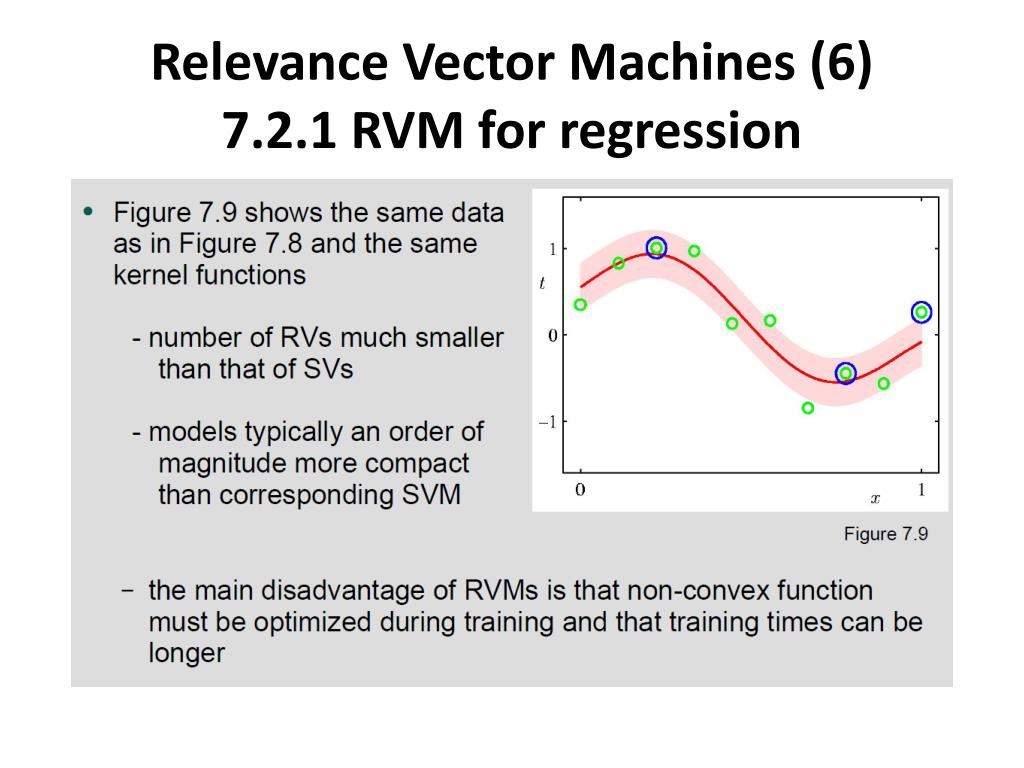

Relevance Vector Machines (6)7.2.1 RVM for regression


Relevance vector machines 8 7 2 2 analysis of sparsity

Relevance Vector Machines (8)7.2.2 Analysis of sparsity


Relevance vector machines 9 7 2 3 rvm for classification

Relevance Vector Machines (9)7.2.3 RVM for classification


Relevance vector machines 10 7 2 3 rvm for classification

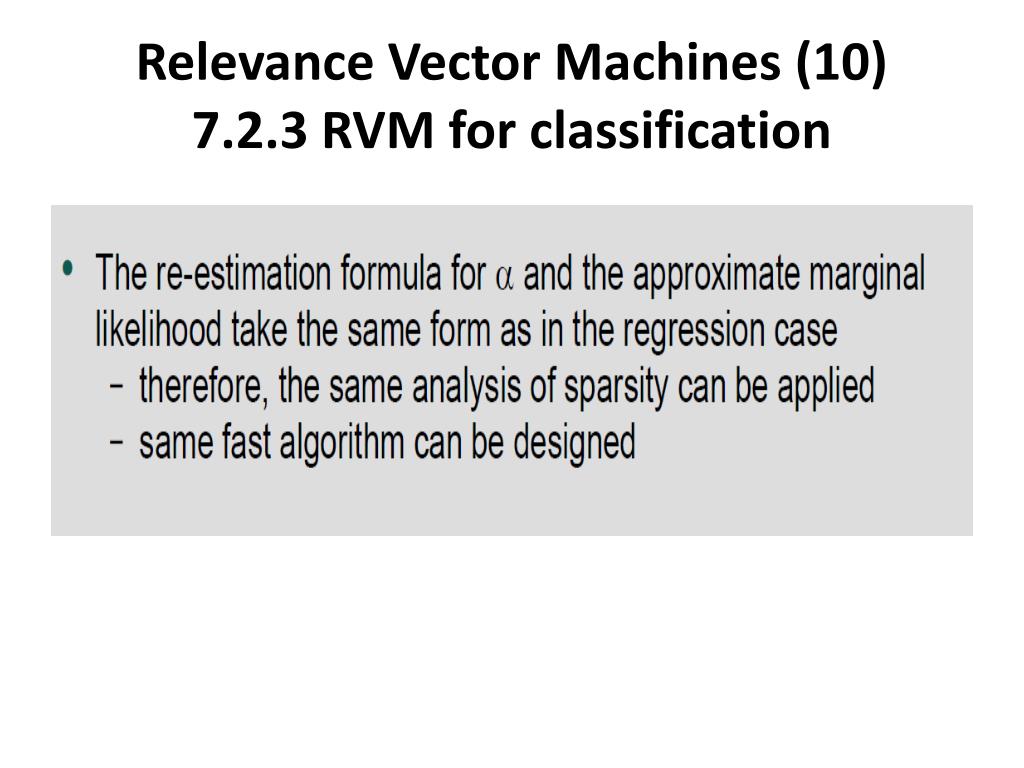

Relevance Vector Machines (10)7.2.3 RVM for classification


Relevance vector machines 11 7 2 3 rvm for classification

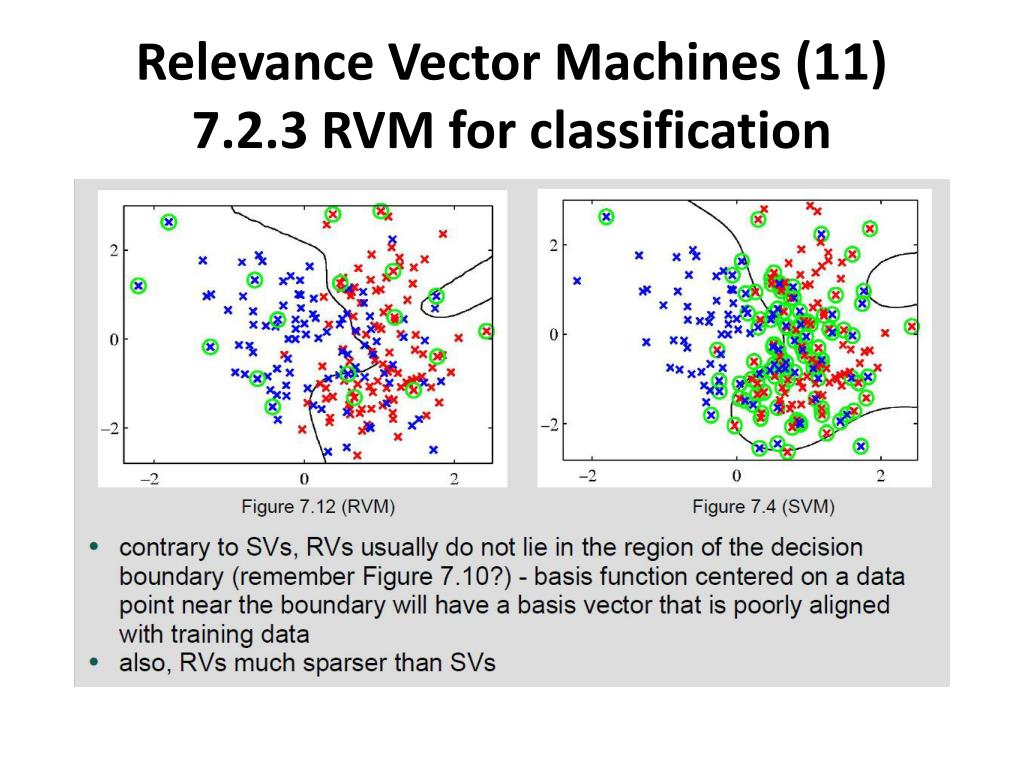

Relevance Vector Machines (11)7.2.3 RVM for classification


Relevance vector machines 12 7 2 3 rvm for classification

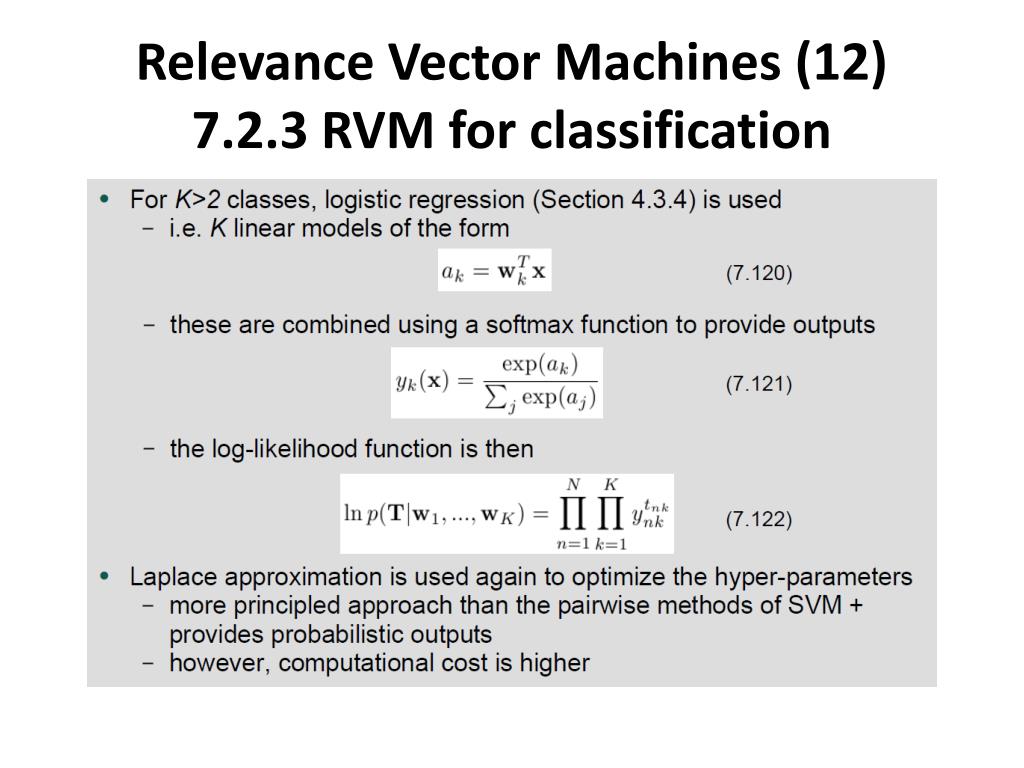

Relevance Vector Machines (12)7.2.3 RVM for classification
