Itec4621 network security

ITEC4621 Network Security

Dr. Supakorn Kungpisdan

[email protected]


Supakorn kungpisdan

ITEC4621 Network Security

Supakorn Kungpisdan

  • Education

    • PhD (Computer Science and Software Engineering), Monash University, Australia

    • M.Eng. (Computer Engineering), KMUTT

  • Specializations

    • Information and Network Security, Electronic Commerce, Formal Methods, Computer Networking

  • Experiences

    • Director, Master of Science in Network Engineering, MUT

    • External Research Advisor, Network Security Research Group, Monash University, Australia

  • http://www.mut.ac.th/~supakorn/

  • http://www.msit.mut.ac.th/


Course descriptions

ITEC4621 Network Security

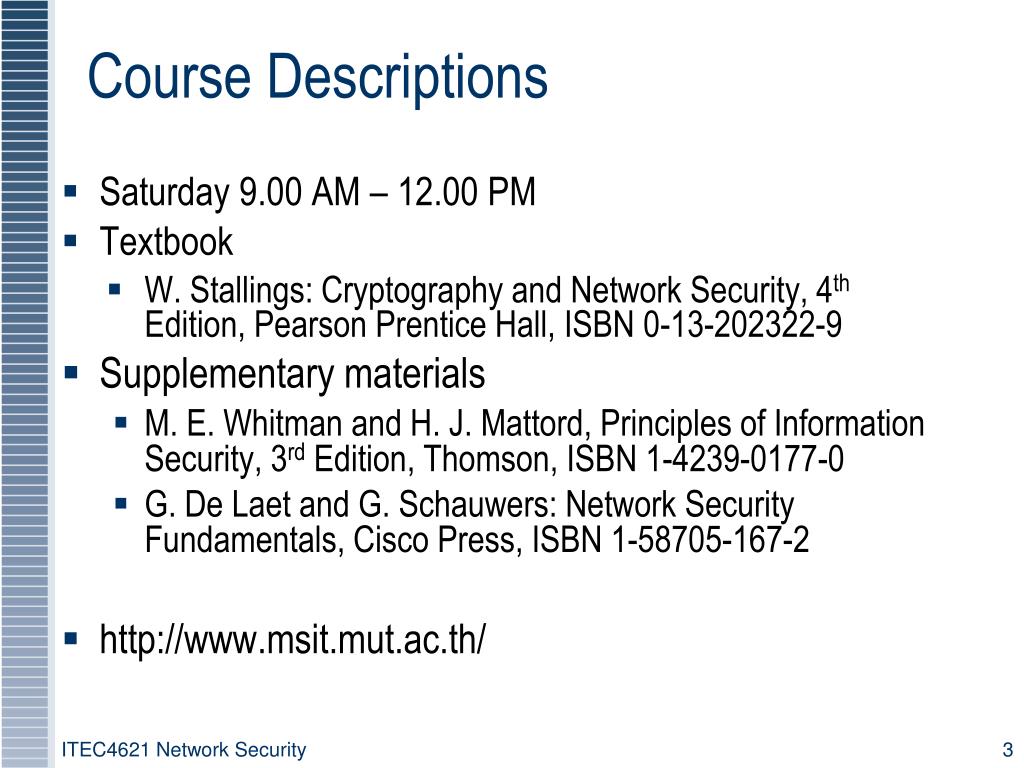

Course Descriptions

  • Saturday 9.00 AM – 12.00 PM

  • Textbook

    • W. Stallings: Cryptography and Network Security, 4th Edition, Pearson Prentice Hall, ISBN 0-13-202322-9

  • Supplementary materials

    • M. E. Whitman and H. J. Mattord, Principles of Information Security, 3rd Edition, Thomson, ISBN 1-4239-0177-0

    • G. De Laet and G. Schauwers: Network Security Fundamentals, Cisco Press, ISBN 1-58705-167-2

  • http://www.msit.mut.ac.th/


  • Evaluation criteria

    ITEC4621 Network Security

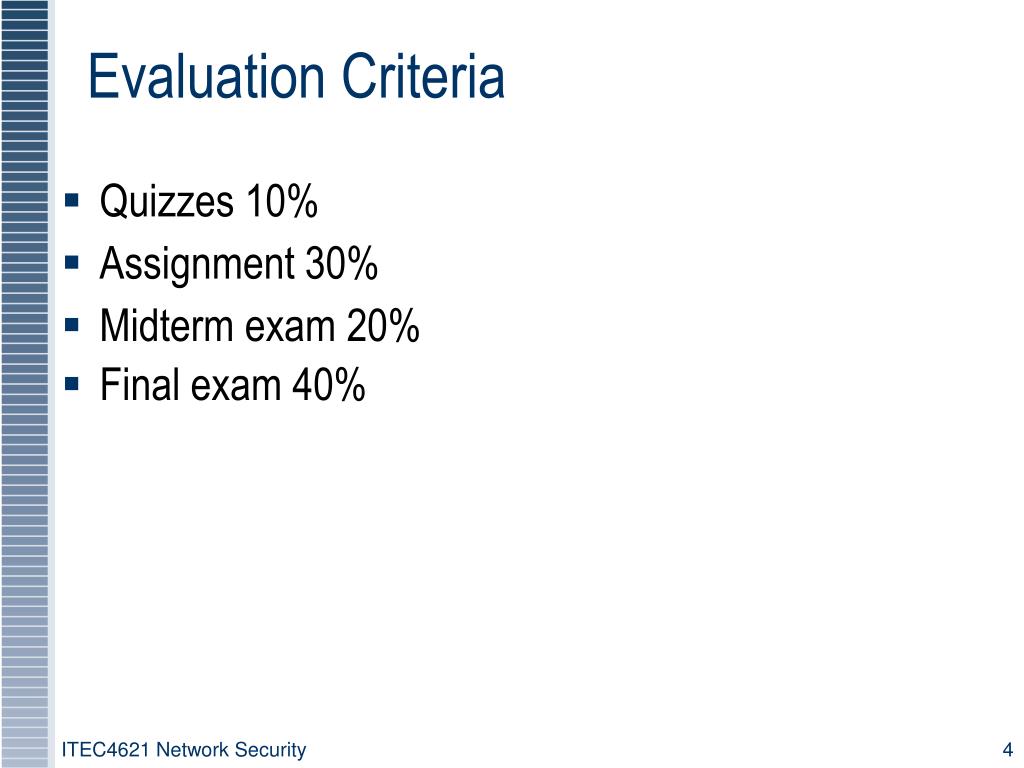

    Evaluation Criteria

    • Quizzes 10%

    • Assignment 30%

    • Midterm exam 20%

    • Final exam 40%


    Course outlines

    ITEC4621 Network Security

    Course Outlines

    • Network Security Overview

    • Information Security

      • Symmetric Cryptography, Public-key Cryptography, Hash Functions and MAC

    • Network Security

      • IP Security, Web Security, Email Security, Firewalls, Intrusion Detection Systems


    Lecture 01 network security overview

    Lecture 01 Network Security Overview

    Dr. Supakorn Kungpisdam

    [email protected]


    What is security

    ITEC4621 Network Security

    What is Security?

    “The quality or state of being secure—to be free from danger”

    A successful organization should have multiple layers of security in place:

    Information Security

    Systems Security

    Network Security

    Security Management

    Physical security


    Security trends

    ITEC4621 Network Security

    Security Trends


    C i a triangle

    ITEC4621 Network Security

    C.I.A Triangle

    • Confidentiality

      • Ensure that the message is accessible only by authorized parties

    • Integrity

      • Ensure that the message is not altered during the transmission

    • Availability

      • Ensure that the information on the system is available for authorized parties at appropriate times without interference or obstruction


    Vulnerabilities threats and attacks

    ITEC4621 Network Security

    Vulnerabilities, Threats, and Attacks

    • Vulnerability

      • A weakness in the security system

      • E.g. a program flaw, poor security configuration, bad password policy

    • Threat

      • A set of circumstances or people that potentially causes loss or harm to a system

    • Attack

      • An action or series of actions to harm a system


    Relationships among different security components

    ITEC4621 Network Security

    Relationships among Different Security Components


    Relationship of threats and vulnerabilities

    ITEC4621 Network Security

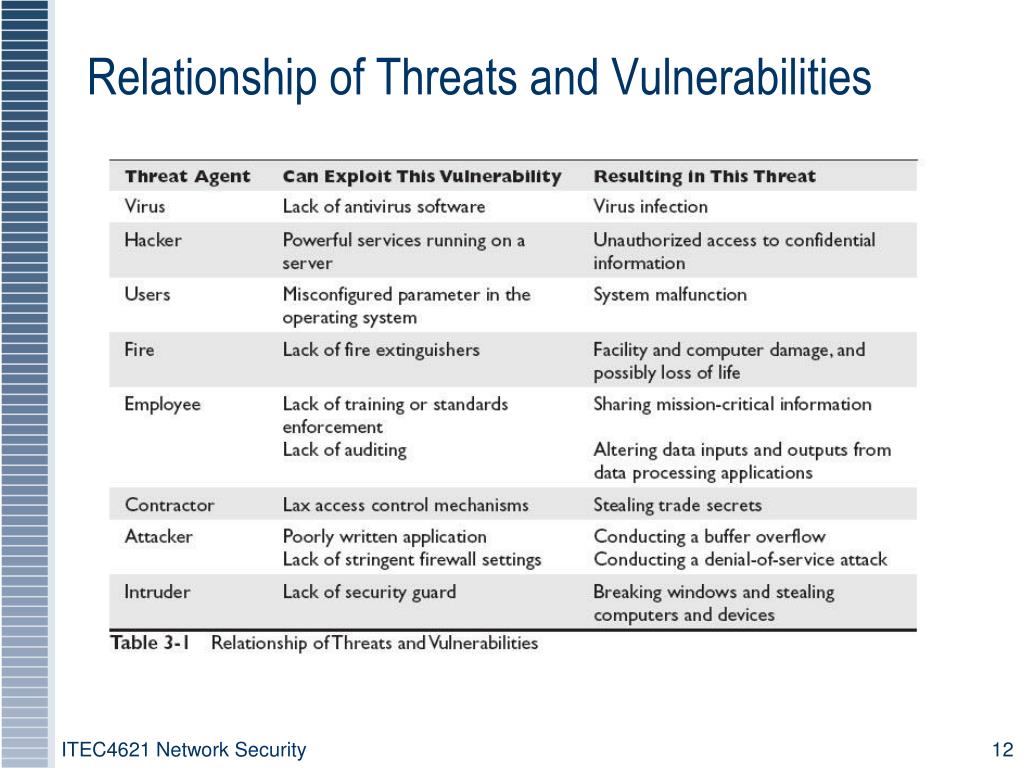

    Relationship of Threats and Vulnerabilities

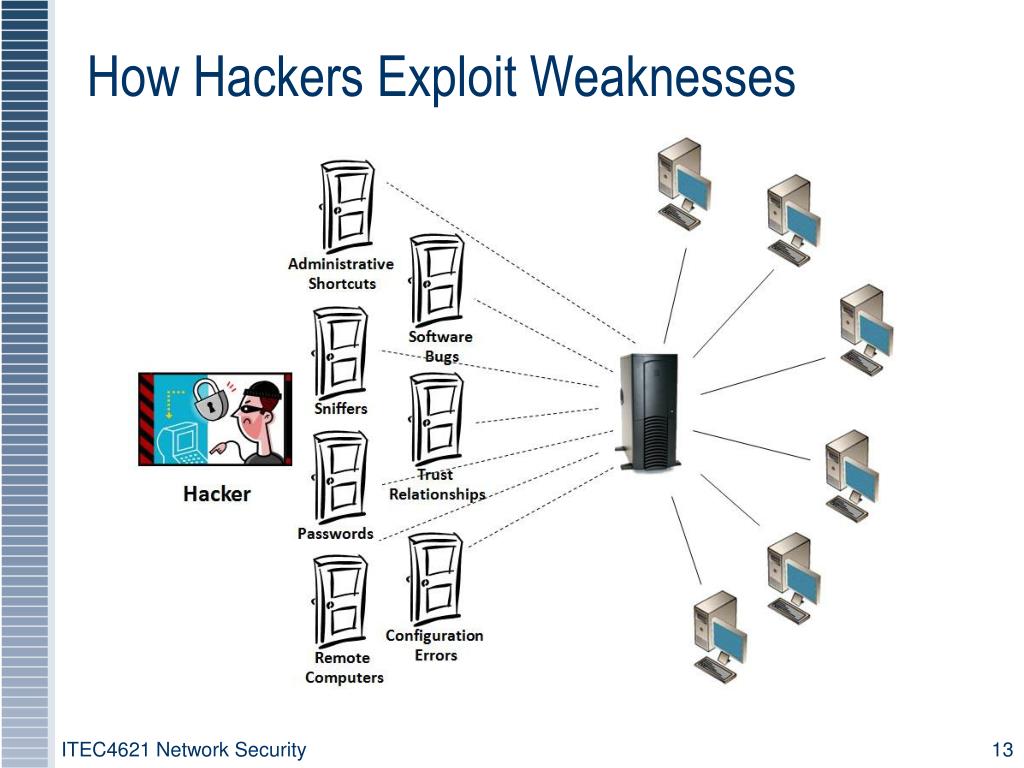

    How hackers exploit weaknesses

    ITEC4621 Network Security

    How Hackers Exploit Weaknesses


    Types of attacks

    ITEC4621 Network Security

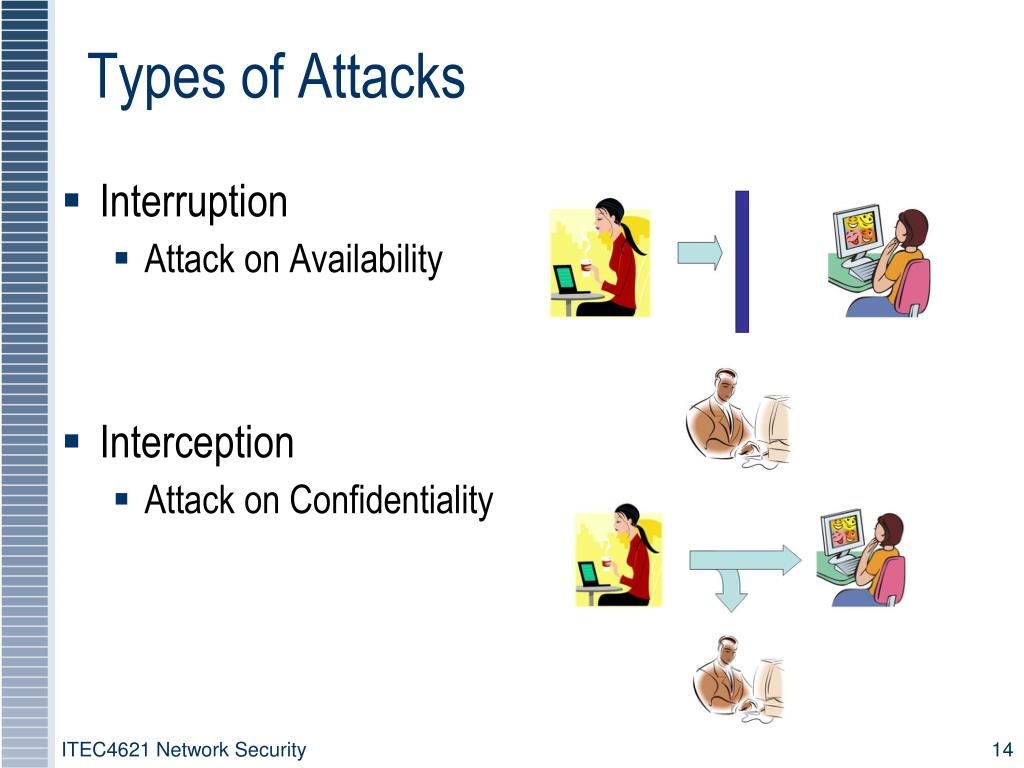

    Types of Attacks

    • Interruption

      • Attack on Availability

    • Interception

      • Attack on Confidentiality


    Types of attacks cont

    ITEC4621 Network Security

    Types of Attacks (cont.)

    • Modification

      • Attack on Integrity

      • Tampering a resource

    • Fabrication

      • Attack on Authenticity

      • Impersonation, masquerading


    Passive vs active attacks

    ITEC4621 Network Security

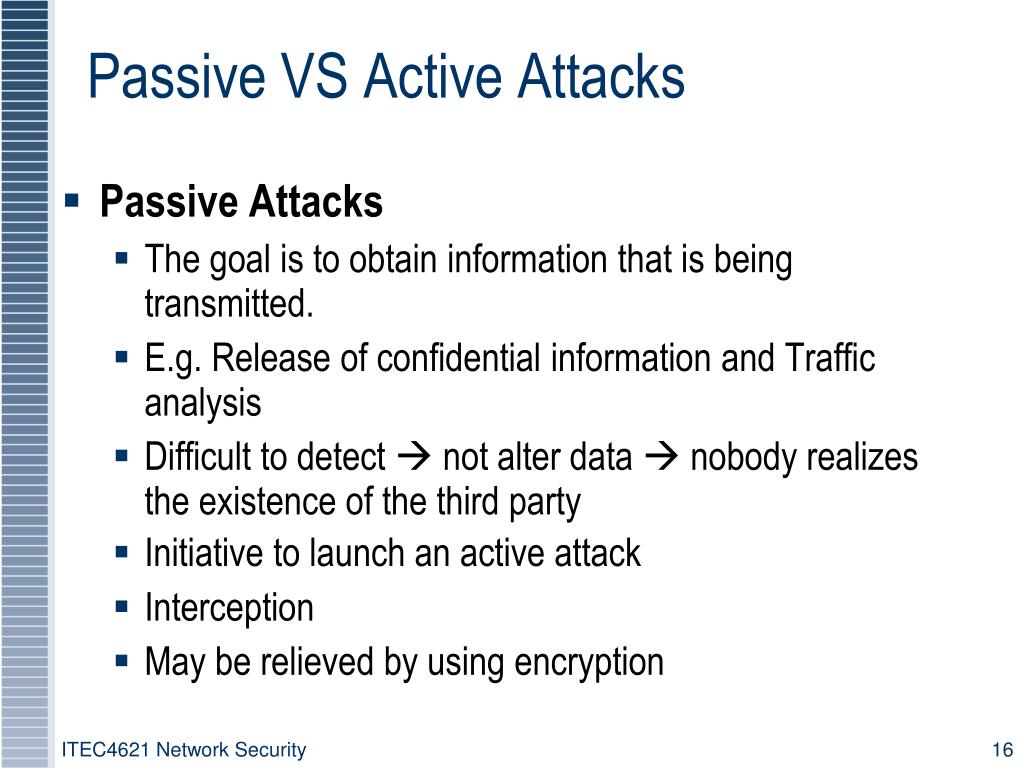

    Passive VS Active Attacks

    • Passive Attacks

      • The goal is to obtain information that is being transmitted.

      • E.g. Release of confidential information and Traffic analysis

      • Difficult to detect  not alter data  nobody realizes the existence of the third party

      • Initiative to launch an active attack

      • Interception

      • May be relieved by using encryption


    Passive vs active attacks cont

    ITEC4621 Network Security

    Passive VS Active Attacks (cont.)

    • Active Attacks

      • Involve modification of the data stream or creation of a false stream

      • E.g. Masquerade, replay, message modification, denial of services

      • Potentially detected by security mechanisms

      • Interruption, Modification, Fabrication


    Direct vs indirect attacks

    ITEC4621 Network Security

    Direct VS Indirect Attacks

    Computer can be subject of an attack and/or the object of an attack

    When the subject of an attack, computer is used as an active tool to conduct attack  indirect attack

    When the object of an attack, computer is the entity being attacked  direct attack


    Direct vs indirect attacks cont

    ITEC4621 Network Security

    Direct VS Indirect Attacks (cont.)


    Hackers

    ITEC4621 Network Security

    Hackers

    • White Hat Hackers

    • Grey Hat Hackers

    • Script Kiddies

    • Hacktivists

    • Crackers or Black Hat Hackers


    Hackers steps

    ITEC4621 Network Security

    Hackers’ Steps

    • Gather information

      • Telephone conversation, password crackers

    • Gain initial system access

      • Often limited access and rights

    • Increase privileges and expand access

      • Try to get root privilege

    • Carry out purpose of the attack

      • Steal or destroy information

    • Install backdoors

      • Build entrance for the next visit

    • Cover tracks and exit

      • Remove all traces. Usually modifying log files


    Malicious codes

    ITEC4621 Network Security

    Malicious Codes

    • Viruses

      • A destructive program code that attaches itself to a host and copies itself and spreads to other hosts

      • Viruses replicates and remains undetected until being activated.

    • Worms

      • Unlike viruses, worms is independent of other programs or files. No trigger is needed.

    • Trojans

      • Externally harmless program but contains malicious code

    • Spyware

      • Software installed on a target machine sending information back to an owning server


    Security at each layer

    ITEC4621 Network Security

    Security at Each Layer


    Security at each layer cont

    ITEC4621 Network Security

    Security at Each Layer (cont.)

    • Firewall combats a range of attacks including some DoS attacks

    • Proxy protects the application layer. It combats against unauthorized access and packet spoofing

    • NAT hides LAN addresses and topology

    • STP cabling helps against network eavesdropping and signal interference

    • NIDS sensor monitors traffic at the network layer for known attack signatures

    • IPSec is configured for VPN connections. It protects against masquerading, data manipulation, and unauthorized access

    • Web server is configured against unauthorized access

    • Mail server with antivirus protects against viruses and DoS attacks


    A model for network security

    ITEC4621 Network Security

    A Model for Network Security


    A model for network access security

    ITEC4621 Network Security

    A Model for Network Access Security


    Security controls

    ITEC4621 Network Security

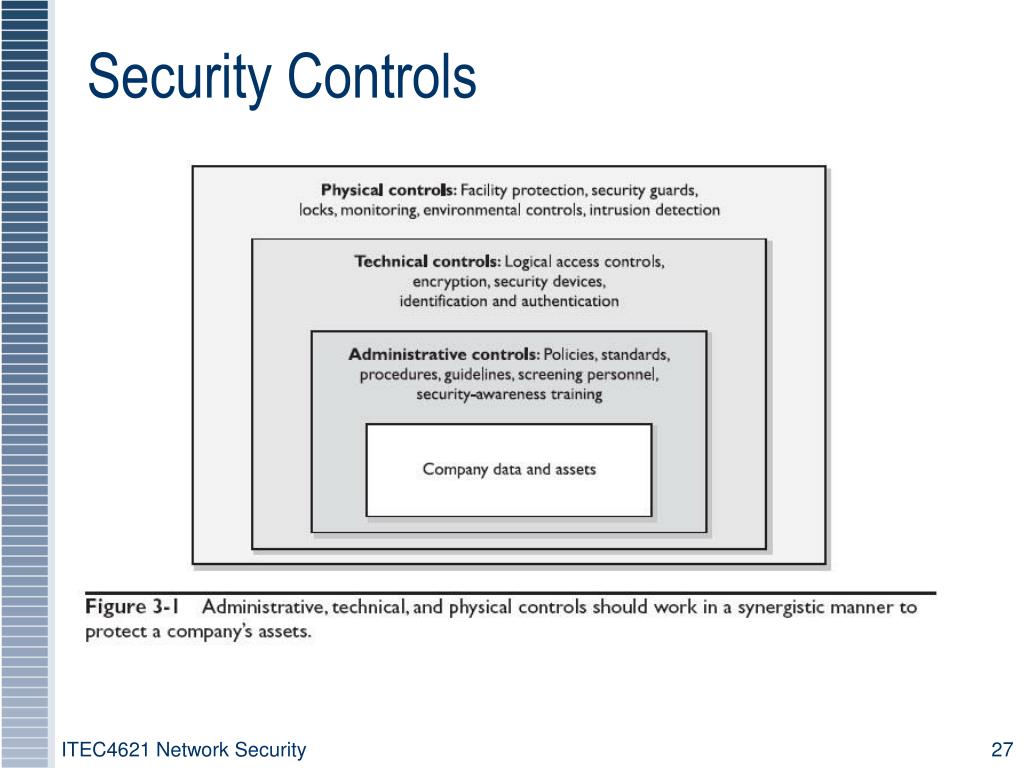

    Security Controls


    Itec4621 network security

    ITEC4621 Network Security


    Itec4621 network security

    ITEC4621 Network Security

    NSTISSC Security Model


    Balancing information security and access

    ITEC4621 Network Security

    Balancing Information Security and Access

    Impossible to obtain perfect security—it is a process, not a goal

    Security should be considered balance between protection and availability

    To achieve balance, level of security must allow reasonable access, yet protect against threats

    Give an example of a completely secure information system !!!


    Itec4621 network security

    ITEC4621 Network Security


    Approaches to information security implementation bottom up approach

    ITEC4621 Network Security

    Approaches to Information Security Implementation: Bottom-Up Approach

    Grassroots effort: systems administrators attempt to improve security of their systems

    Key advantage: technical expertise of individual administrators

    Seldom works, as it lacks a number of critical features:

    Participant support

    Organizational staying power


    Approaches to information security implementation top down approach

    ITEC4621 Network Security

    Approaches to Information Security Implementation: Top-Down Approach

    Initiated by upper management

    Issue policy, procedures, and processes

    Dictate goals and expected outcomes of project

    Determine accountability for each required action

    The most successful also involve formal development strategy referred to as systems development life cycle


    Itec4621 network security

    ITEC4621 Network Security


    Information security is it an art or a science

    ITEC4621 Network Security

    Information Security: Is it an Art or a Science?

    Implementation of information security often described as combination of art and science

    “Security artesan” idea: based on the way individuals perceive systems technologists since computers became commonplace


    Security as art

    ITEC4621 Network Security

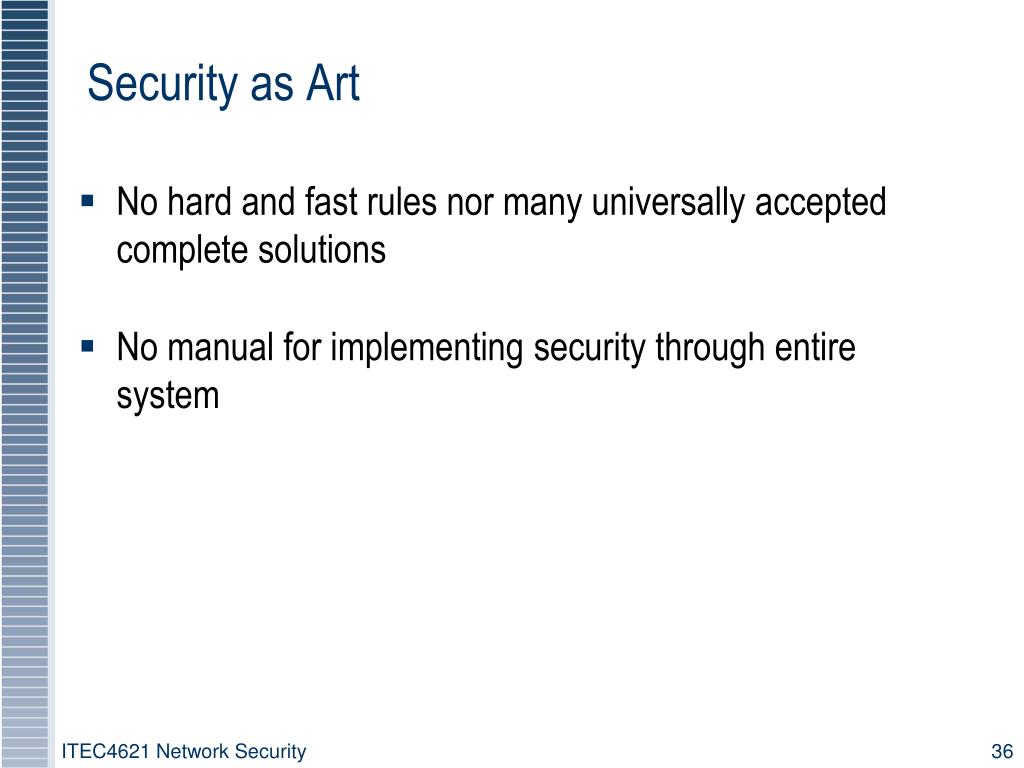

    Security as Art

    No hard and fast rules nor many universally accepted complete solutions

    No manual for implementing security through entire system


    Security as science

    ITEC4621 Network Security

    Security as Science

    Dealing with technology designed to operate at high levels of performance

    Specific conditions cause virtually all actions that occur in computer systems

    Nearly every fault, security hole, and systems malfunction are a result of interaction of specific hardware and software

    If developers had sufficient time, they could resolve and eliminate faults


    Security as a social science

    ITEC4621 Network Security

    Security as a Social Science

    Social science examines the behavior of individuals interacting with systems

    Security begins and ends with the people that interact with the system

    Security administrators can greatly reduce levels of risk caused by end users, and create more acceptable and supportable security profiles


    Questions

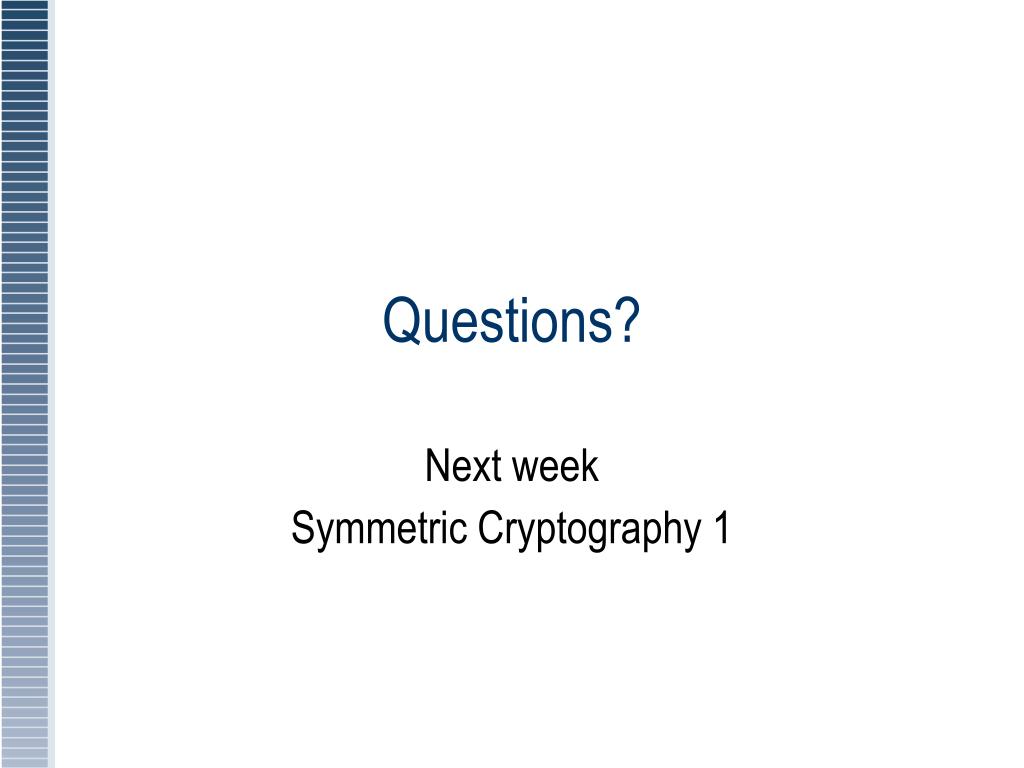

    Questions?

    Next week

    Symmetric Cryptography 1
