SOA

Visão Geral das Funcionalidades de Descoberta e Roteamento de Serviços em WCF 4



Demos
DEMOS

Demo : Creating a Calculator Service

Demo : Service Routing

Demo : Add-hoc Service Discovery

Demo : Managed Service Discovery

Comunidade Rumos – Webcasts http://comunidade.rumos.pt/webcasts.rumos

Source Code: MSDN (WCF) Samples

http://msdn.microsoft.com/en-us/library/dd483346.aspx


Why soa
Why SOA?

  • Challenges in Building Business Applications

  • Objectives of Service-Oriented Architecture

  • What Is a Service?

  • The Pillars of SOA

  • Services Communicate Through Edges


Challenges in Building Business Applications

We are living in a distributed world

ü

Business is agile

ü

Efficient integration and interoperability are essential

ü

Costs must be reduced

ü

Systems have to be scalable, secure, and reliable

ü


Objectives of Service-Oriented Architecture

SOA is an architectural style designed for building distributed systems

ü

Agility

Productivity

Reuse

Reduce Cost


What Is a Service?

A service exposes functionality by accepting data (requests) and sometimes returning data (responses)


The Pillars of SOA

The following properties define a service-oriented architecture:

ü

Services handle data, not objects

ü

Services are autonomous

ü

Services have explicit boundaries

ü

Services expose contract and policy

ü

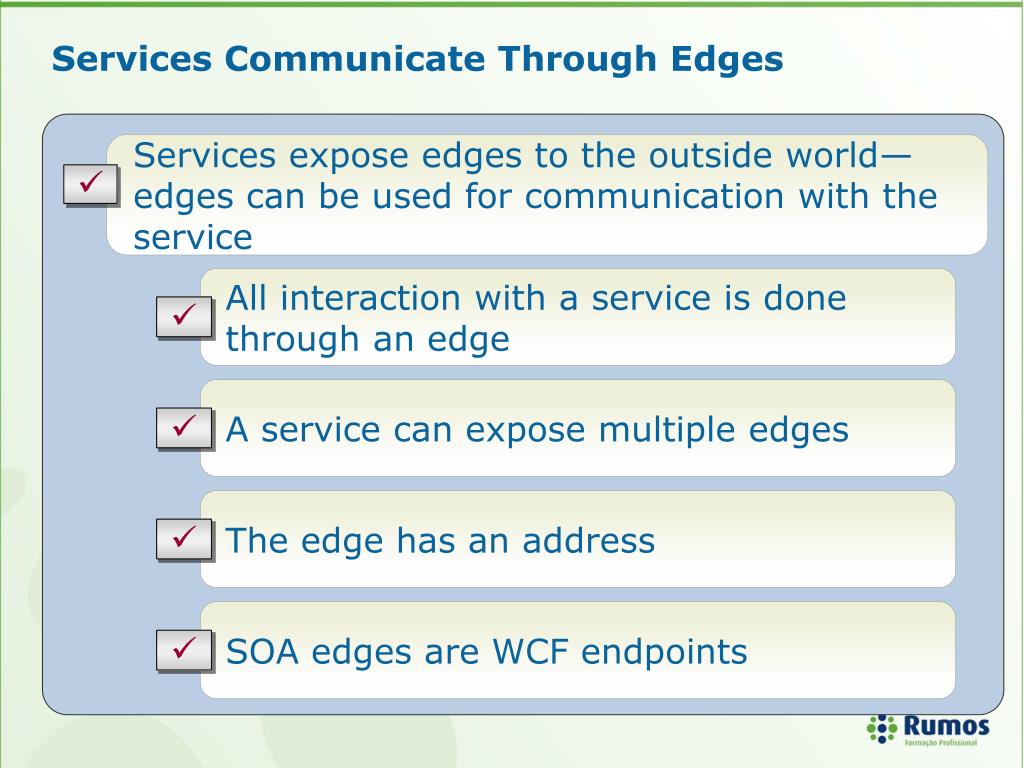

Services Communicate Through Edges

Services expose edges to the outside world—edges can be used for communication with the service

ü

All interaction with a service is done through an edge

ü

A service can expose multiple edges

ü

The edge has an address

ü

SOA edges are WCF endpoints

ü


Demo creating a calculator service
Demo Creating a Calculator Service

  • The Service

    • ServiceHost Class

    • Endpoint ABC (address binding contract)

    • Metadata behaviour

    • Endpoint behaviour

  • The Client

    • Proxy Pattern


Routing
Routing

  • The Benefits of Routing

  • Introduction to the WCF Routing Service

  • Configuring Routing Using Message Filters

  • Configuring Routing Endpoints and Filters

  • Using Custom Filter Types and Content-Based Routing

  • Using Routers for Protocol Bridging

  • Using Routers to Mask Service Unavailability

  • Using Routers for Multicast Messaging


The Benefits of Routing

The broker design pattern provides agility and reliability to distributed systems, and enables:

ü

Content-based load balancing

ü

Automatically use of fallback services

ü

Protocol bridging

ü

Masking of versioning issues

ü


Introduction to the WCF Routing Service

The Routing Service is part of WCF 4, and is implemented in the System.ServiceModel.Routing.RoutingService class

ü

Hosted like any other service

ü

Supports all messaging patterns

ü

Determines the target service by evaluating each incoming message against a set of message filters

ü

Implements the ISimplexDatagramRouter, ISimplexSessionRouter,  IRequestReplyRouter, and IDuplexSessionRouter contracts

ü


Configuring Routing Using Message Filters

Message filters are specified in code or in the Routing configuration section

ü

Message filters are grouped into filter tables

ü

The routing configuration contains filter types and a collection of mappings between a message filter and a target endpoint

ü

The RoutingBehavior defines the filter table to use

ü


Configuring Routing Endpoints and Filters

<routing>

<filters>

  <filtername="MatchAllFilter"filterType="MatchAll"/>

</filters>

<filterTables>

  <filterTablename="MyFilterTable">

  <addfilterName="MatchAllFilter"endpointName="Service"/>

  </filterTable>

 </filterTables>

</routing>

<behaviors>

<serviceBehaviors>

  <behaviorname="UseRouting">

  <routingfilterTableName="MyFilterTable" />

  </behavior>

</serviceBehaviors>

</behaviors>

<client>

<endpointname="Service“ address="..."binding="...“contract="..."/>

</client>


Using Custom Filter Types and Content-Based Routing

WCF supports a wide range of filter types

ü

You can use XPath filters to inspect the content of the incoming messages

ü

You can define custom filters (rules) that target messages according to their content

ü

You can create custom filter types for advanced routing scenarios

ü


Using Routers for Protocol Bridging

The client-to-router and router-to-service bindings do not have to match

ü

You can bridge incompatible protocols using a Routing Service as the middle-man

ü

The client-to-router and router-to-service messaging patterns must match

ü


Using Routers to Mask Service Unavailability

You can configure the router service to route a message to a backup service if the target service fails; this masks service unavailability and improves reliability

ü

<routing><filters>

<filtername="MatchAllFilter"filterType="MatchAll"/>

</filters>

<filterTables>

<filterTablename="MyFilterTable">

  <addfilterName="MatchAllFilter"

endpointName="CalcService"

backupList="AlternateCalc"/>

</filterTable>

</filterTables>

<backupLists>

<backupList>

  <addendpointName="AlternateCalc"/>

</backupList>

</backupLists></routing>


Using Routers for Multicast Messaging

The Routing Service supports multicast, enabling publish/subscribe and distribution-style messaging

ü

If the incoming message matches multiple filters, it will be delivered to each of the target endpoints

ü

Multicast only works for one-way or duplex messaging; it does not work for request-response messaging

ü


Wcf discovery
WCF Discovery

  • Introduction to WCF Discovery

  • Ad-Hoc Discovery Architecture

  • The Process of Ad-Hoc Discovery

  • Configuring Ad-Hoc Discovery

  • Issuing Probe and Resolve Messages

  • Discovery Proxy Architecture

  • The Process of the Discovery Proxy

  • Discovering Services Using a Discovery Proxy

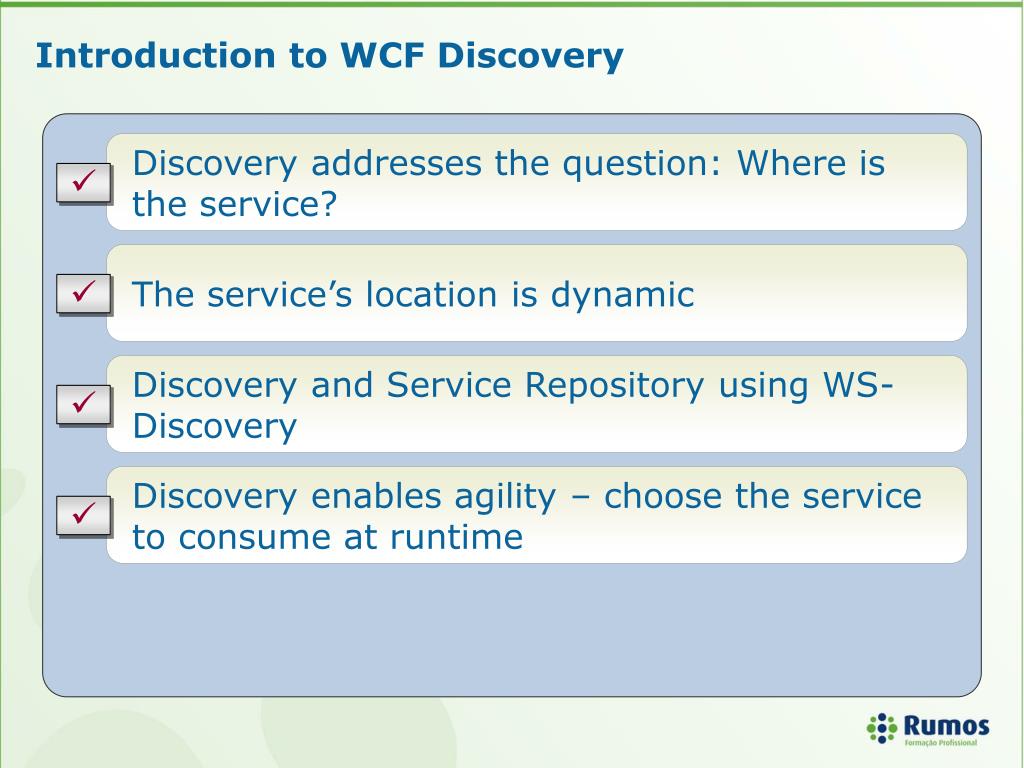

Introduction to WCF Discovery

Discovery addresses the question: Where is the service?

ü

The service’s location is dynamic

ü

Discovery and Service Repository using WS-Discovery

ü

Discovery enables agility – choose the service to consume at runtime

ü


Ad-Hoc Discovery Architecture

WCF 4 introduces WS-Discovery support that consists of two message categories:

ü

Announcements (Hello/Bye messages)

ü

Discovery (Probe/Resolve messages)

ü


The Process of Ad-Hoc Discovery

Service is up

Hello

Where is the service?

Probe

CLIENT

Resolve

Bye

Service is down

Discovery

Announcement

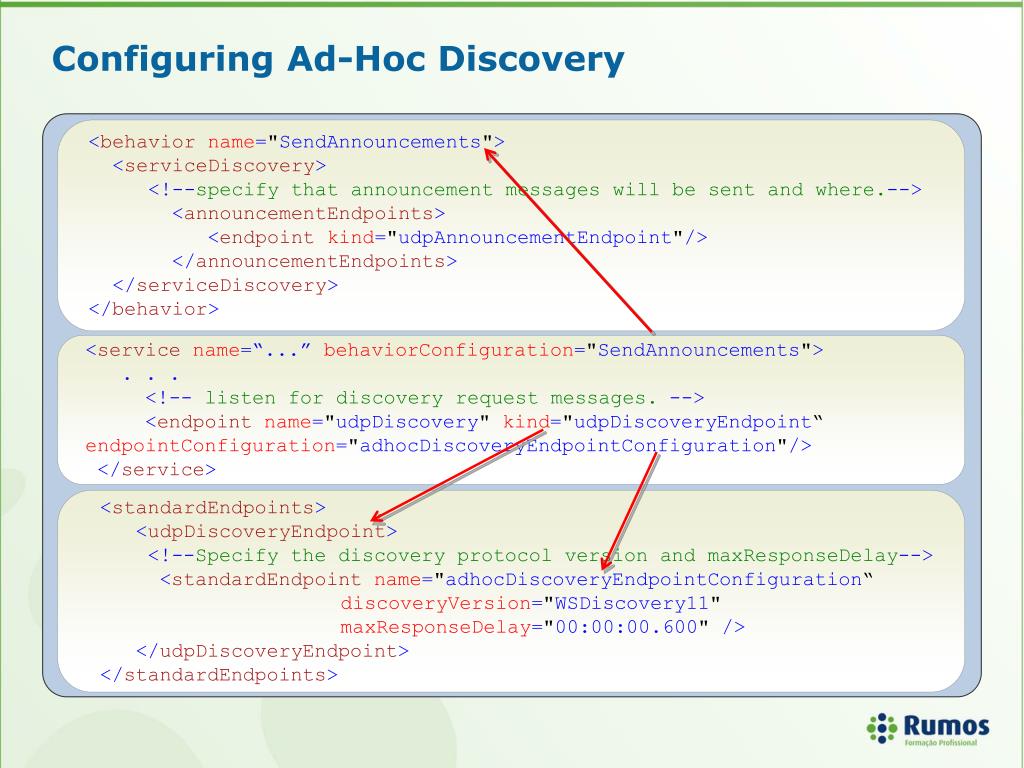

Configuring Ad-Hoc Discovery

<behaviorname="SendAnnouncements">

  <serviceDiscovery>

     <!--specify that announcement messages will be sent and where.-->

       <announcementEndpoints>

         <endpointkind="udpAnnouncementEndpoint"/>

       </announcementEndpoints>

  </serviceDiscovery>

</behavior>

<service name=“...” behaviorConfiguration="SendAnnouncements">

. . .

<!-- listen for discovery request messages. -->

    <endpointname="udpDiscovery"kind="udpDiscoveryEndpoint“ endpointConfiguration="adhocDiscoveryEndpointConfiguration"/>

 </service>

 <standardEndpoints>

    <udpDiscoveryEndpoint>

    <!--Specify the discovery protocol version and maxResponseDelay-->

     <standardEndpointname="adhocDiscoveryEndpointConfiguration“discoveryVersion="WSDiscovery11"maxResponseDelay="00:00:00.600" />

  </udpDiscoveryEndpoint>

 </standardEndpoints>


Issuing Probe and Resolve Messages

The DynamicEndpoint class is used by the client to issue probe messages

ü

Dynamic endpoints can be defined in code and in the XML configuration file

ü

The FindCriteria class enables granular discovery

ü

// Discover endpoints when the client is opened.

// The contract is used as the FindCriteria.

// UdpDiscoveryEndpoint is used to send Probe message.

DynamicEndpoint dynamicEndpoint = newDynamicEndpoint(

        ContractDescription.GetContract(

typeof(ICalculatorService)),newWSHttpBinding());


Demo add hoc service discovery
DemoAdd-hoc Service Discovery

  • The Service

    • behaviourConfiguration for serviceDiscovery

      • announcementEndpoints for announcements

    • Enpoint with kind=“udpDiscoveryEndpoint” for discovery

    • CalcendpointBehaviorConfiguration behaviour for scope criteria

  • The Client

    • Endpoint with kind=“dynamicEndpoint” and dynamicEndpointConfiguration for find scope criteria


Discovery Proxy Architecture

The discovery proxy enables discovery support outside the enterprise:

ü

Listens for announcements and caches endpoint information internally

ü

Forwards “Probe” and “Resolve” messages

ü

Can function as a router

ü


The Process of the Discovery Proxy

Service is up

Hello

Where is the service?

PROXY

CLIENT

Probe

Resolve

Bye

Service is down

Subnet

Discovery

Announcement

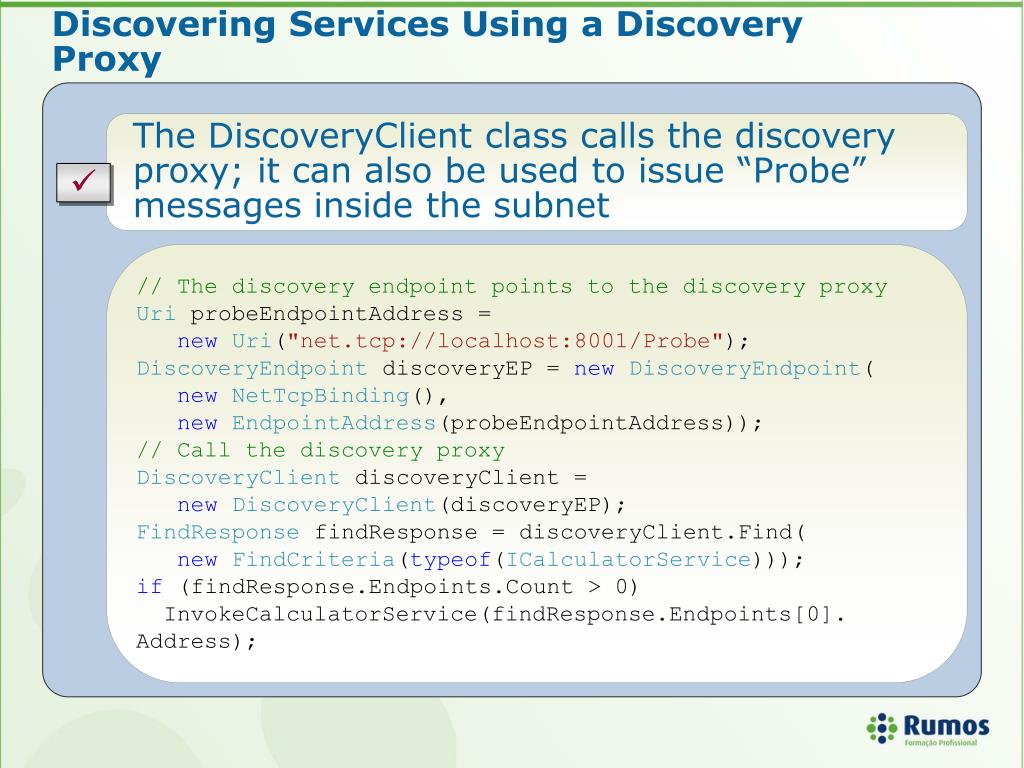

Discovering Services Using a Discovery Proxy

The DiscoveryClient class calls the discovery proxy; it can also be used to issue “Probe” messages inside the subnet

ü

// The discovery endpoint points to the discovery proxy

Uri probeEndpointAddress = new Uri("net.tcp://localhost:8001/Probe");

DiscoveryEndpoint discoveryEP = newDiscoveryEndpoint(new NetTcpBinding(), newEndpointAddress(probeEndpointAddress));

// Call the discovery proxy

DiscoveryClient discoveryClient =

newDiscoveryClient(discoveryEP);

FindResponse findResponse = discoveryClient.Find( newFindCriteria(typeof(ICalculatorService)));

if (findResponse.Endpoints.Count > 0)

  InvokeCalculatorService(findResponse.Endpoints[0].Address);


Using Routers for Multicast Messaging

The Routing Service supports multicast, enabling publish/subscribe and distribution-style messaging

ü

If the incoming message matches multiple filters, it will be delivered to each of the target endpoints

ü

Multicast only works for one-way or duplex messaging; it does not work for request-response messaging

ü


Demo 2 2 managed service discovery
Demo 2.2Managed Service Discovery

  • The Discovery Proxy Abstract Class

  • The Service

    • Announces it’s presence in the proxy’s anouncement endpoint

  • The Client

    • Endpoint with kind=“dynamicEndpoint”

      • And dynamicEndpointConfiguration for

        • find scope criteria

        • set it’s discovery address endpoint to the proxy’s probe address
