Fir tap filter optimization ce222 final project spring 2003

FIR Tap Filter OptimizationCE222 Final ProjectSpring 2003

Soleste Hilberg

Nicole Starr


Fir tap filter finite impulse response filter

FIR Tap FilterFinite Impulse Response Filter

  • FIR filters are one of the two primary types of digital filters used in Digital Signal Processing (DSP) applications

  • To implement the filter:

    • 1. Put the input sample into the delay line

    • 2. Multiply each sample in delay line by

      corresponding coefficient & accumulate result

    • 3. Shift the delay line by one sample to make room

      for the next input sample


Fir tap filter

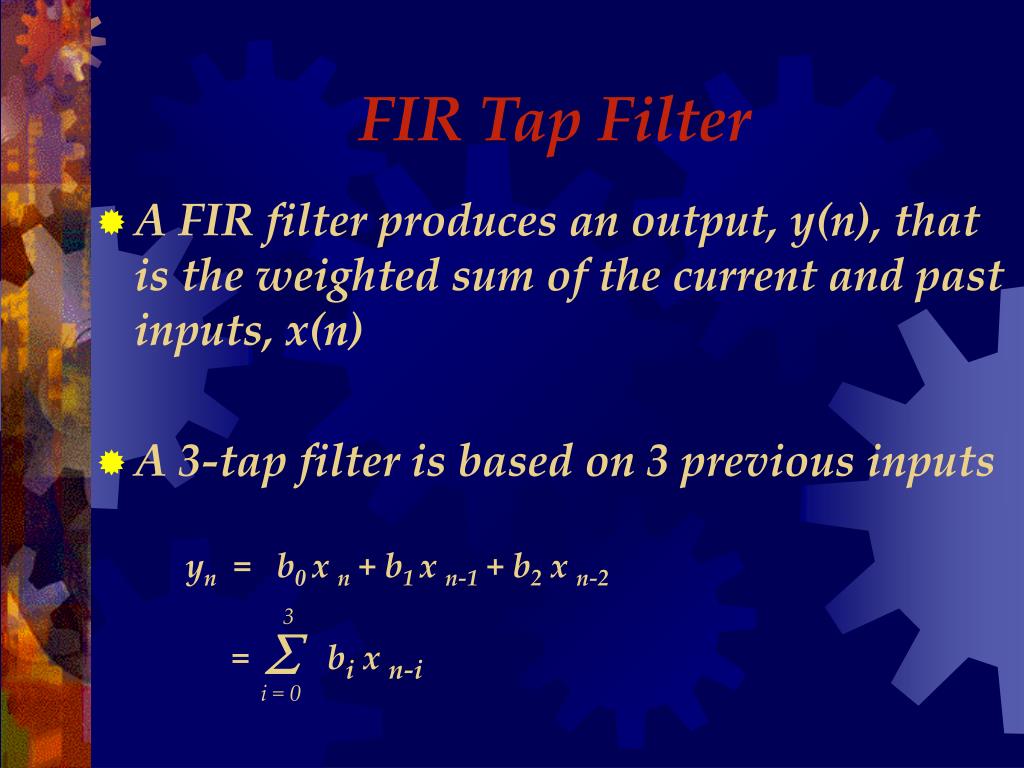

FIR Tap Filter

  • A FIR filter produces an output, y(n), that is the weighted sum of the current and past inputs, x(n)

  • A 3-tap filter is based on 3 previous inputs

    yn = b0 x n + b1 x n-1 + b2 x n-2

    =  bi x n-i

3

i = 0


Fir tap filter1

FIR Tap Filter

Input: Sample [23:0]

Output: Result [47:0]

Clock frequency: 20 MHz

48

24

Sample Result

Input_valid output_ready

rst

clk


Fir tap filter2

FIR Tap Filter

Executes processes in the following order:

  • (Load)Load input data to rin

  • (Calc1)Multiply rin with coefficient c0, store to acc

  • (Calc2)Multiply rs0 with coefficient c1, add to acc, store in acc

  • (Calc3)Multiply rs1 with coefficient c2, add to acc, store in acc

  • (Shift)Store acc in result, move rs0 to rs1, move rin to rs0


Testbench input output

INPUT OUTPUT

000001 000000702a78

000002 0000016054f0

000003 000002a054af

000004 000003e0546e

000005 00000520542d

000006 0000066053ec

000007 000007a053ab

000008 000008e0536a

000009 00000a205329

00000a 00000b6052e8

INPUT OUTPUT

000009 00000bbffdb7

000008 00000b1fa886

000007 000009dfa8c7

000006 0000089fa908

000005 0000075fa949

000004 0000061fa98a

000003 000004dfa9cb

000002 0000039faa0c

000001 0000025faa4d

000000 0000011faa8e

Testbench Input / Output


First attempt 5 cycle latency 3 calculation states

First Attempt: 5 cycle latency3 calculation states

calc1

Input_valid = 0

load

Input_valid = 1

wait

output_ready = 0

calc2

shift

output_ready = 0

calc3


Results 5 cycle latency

Results: 5 cycle latency

Verilog Simulation Results:

Testbench simulation complete

Required time to complete: 10250

Number of inputs processed: 20

Cycles to complete: 102.5

Time-to-input ratio: 5.125


Second attempt 3 cycle latency condense 3 calculation states into 1 state

Second Attempt: 3 cycle latencyCondense 3 calculation states into 1 state

load

Input_valid = 0

load

Input_valid = 1

wait

output_ready = 0

calc1

output_ready = 0

shift


Results 3 cycle latency

Results: 3 cycle latency

Verilog Simulation Results:

Testbench simulation complete

Required time to complete: 6450

Number of inputs processed: 20

Cycles to complete: 64.5

Time-to-input ratio: 3.225


Third attempt 2 stage pipeline

Third Attempt: 2 stage pipeline

Stage 1: Shift registers, load new input value

Stage 2: Calculate results

time

1 2 3 4 5 6

1

2

3

4

5

STAGE 1

STAGE 2

STAGE 1

STAGE 2

Instruction

STAGE 1

STAGE 2

STAGE 1

STAGE 2

STAGE 1

STAGE 2


Results 2 stage pipeline

Results: 2 stage pipeline

Verilog Simulation Results:

Testbench simulation complete

Required time to complete: 2150

Number of inputs processed: 20

Cycles to complete: 21.5

Time-to-input ratio: 1.075


Speedup pipeline over state machine

Speedup:Pipeline over State Machine

  • 3 stage state machine:

    • 37% faster than 5 stage state machine

  • 2 stage pipeline machine:

    • 67% faster than 3 stage state machine

    • 79% faster than 5 stage state machine


Results comparison area

5 state machine

Combinational area: 63983.300781

Noncombinational area: 13199.155273

Total cell area: 77182.453125

2 stage pipeline

Combinational area: 19166.716797

Noncombinational area: 4071.513672

Total cell area: 23238.230469

Results Comparison: Area


Results comparison timing

5 state machine

data required time

9.77

data arrival time -9.77

slack (MET)

0.00

2 stage pipeline

data required time

9.00

data arrival time

-9.00

slack (MET)

0.84

Results Comparison: Timing


Fir tap filter optimization ce222 final project spring 2003

Thank You!
