  1. Active Front Wheel Steering System (AFS) Chapter 2

  2. Conventional Steering System • Rack and pinion system • Constant steering ratio • Fully mechanical system

  3. AFS • Wheel steer angle = superposition of steering wheel • angle and AFS actuator • Variable steering ratio • Combination of mechanical and electrical systems

  4. Vehicle Handling Model (without side wind force)

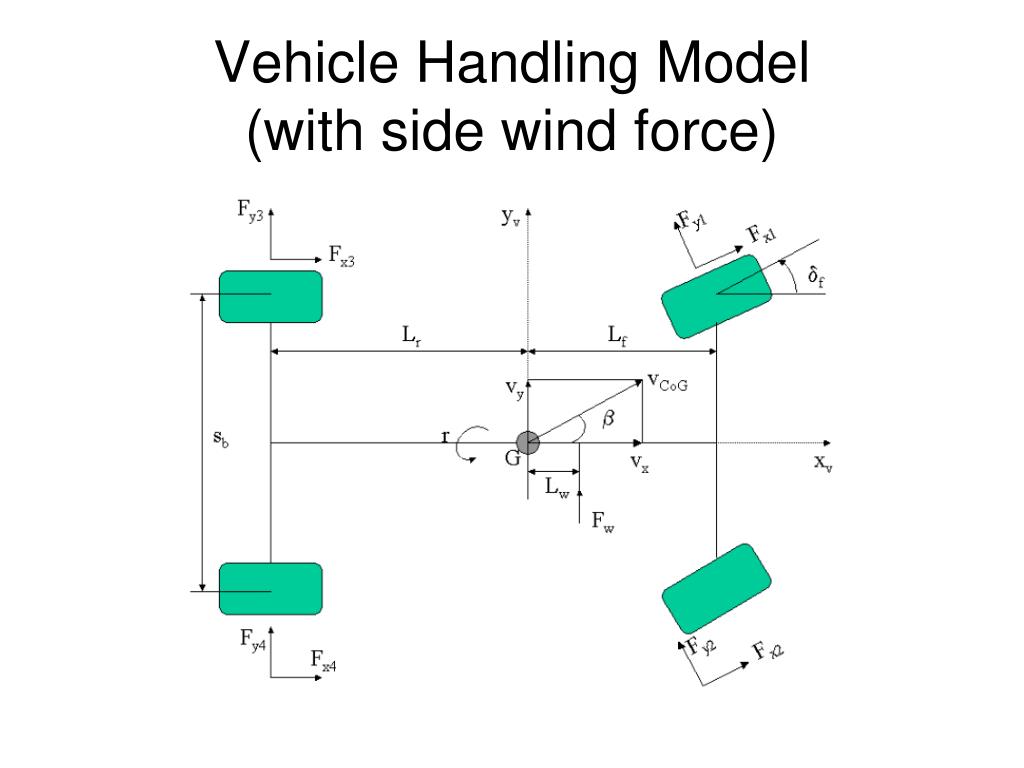

  5. Vehicle Handling Model (with side wind force)

  6. Assumptions in modeling and control AFS • S Fx = 0 (No braking or throttle inputs) • Fyf = Cf af • Fyr = Cr ar Where Cf = cornering stiffness of front tires Cr = cornering stiffness of rear tires a = wheel side slip angle

  7. Controller Structure of AFS

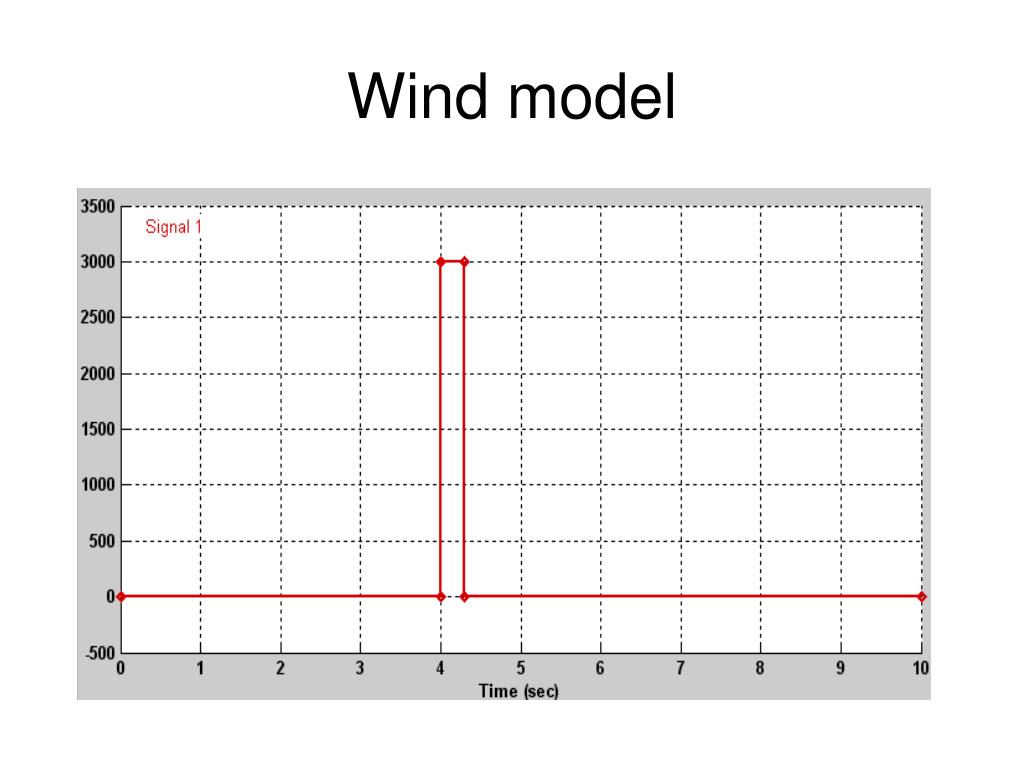

  8. Wind model

  9. Performance Comparison of AFS and non-AFS vehicles

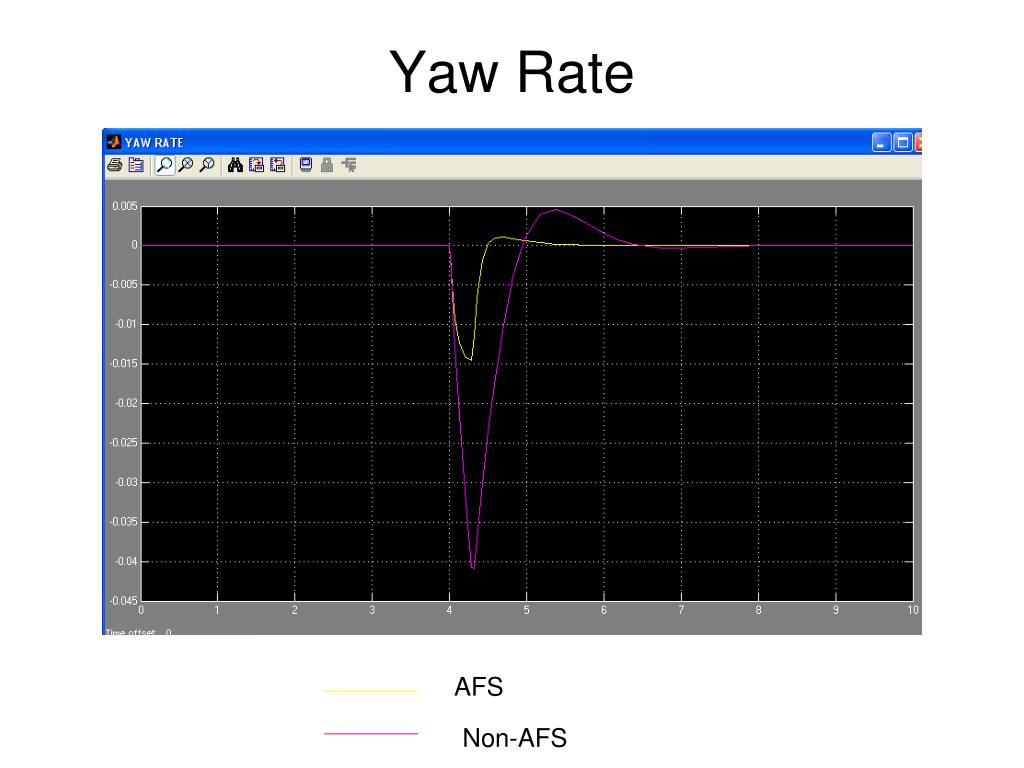

  10. Yaw Rate AFS Non-AFS

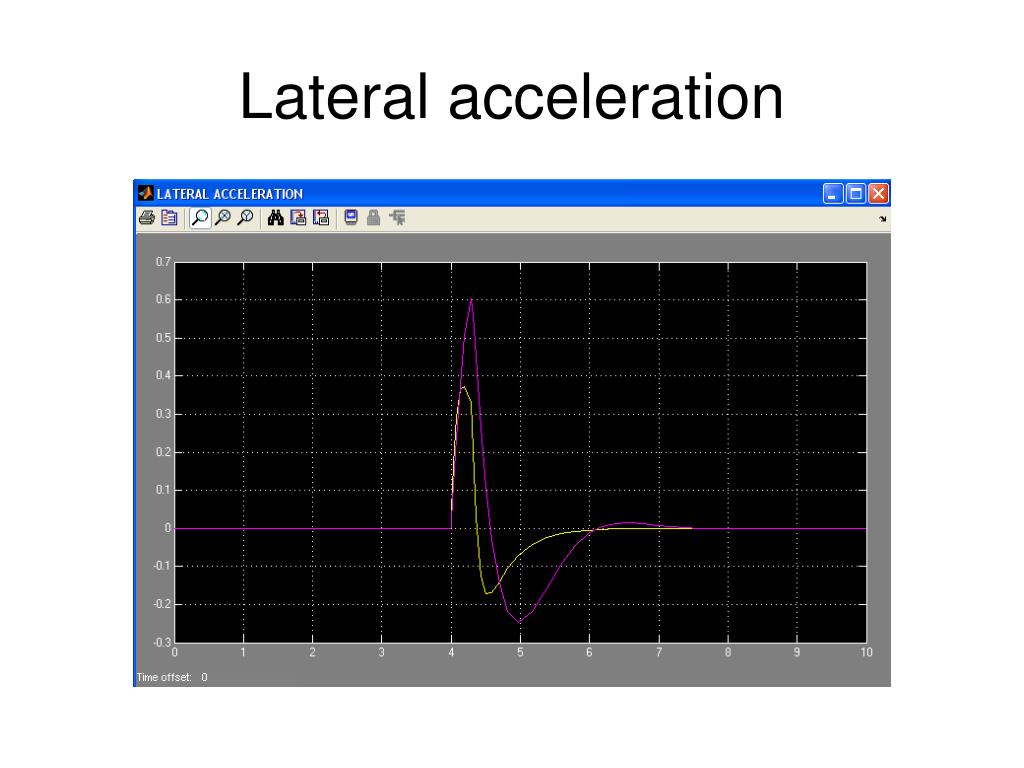

  11. Lateral acceleration

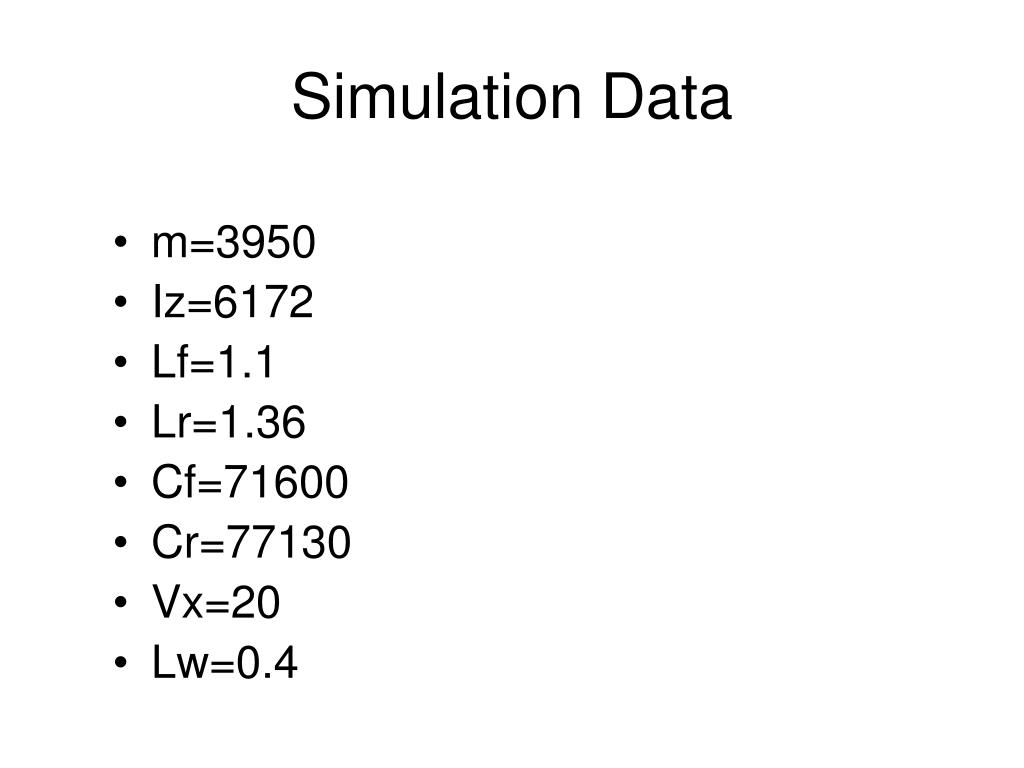

  12. Simulation Data • m=3950 • Iz=6172 • Lf=1.1 • Lr=1.36 • Cf=71600 • Cr=77130 • Vx=20 • Lw=0.4
