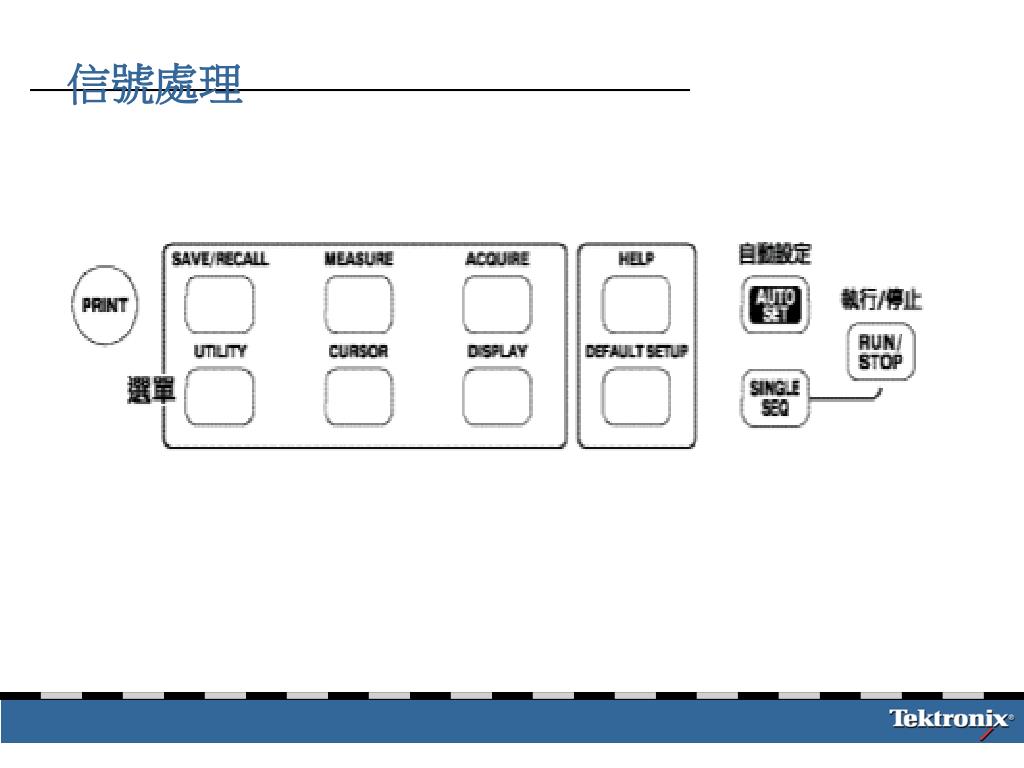

  1. 信號處理

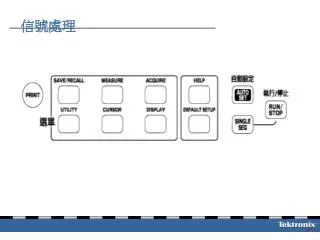

  2. 信號處理-SAVE/RECALL 1-10

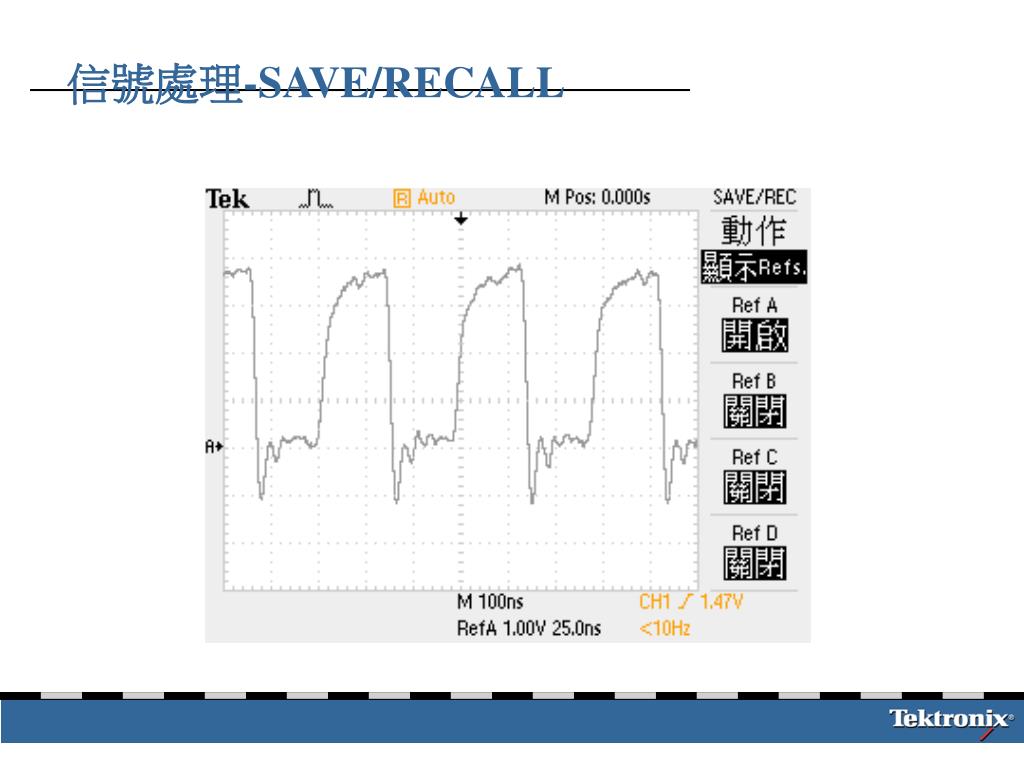

  3. 2CH: A,B 4CH:A,B,C,D 信號處理-SAVE/RECALL

  4. 信號處理-SAVE/RECALL

  5. 信號處理-SAVE/RECALL

  6. 信號處理-SAVE/RECALL

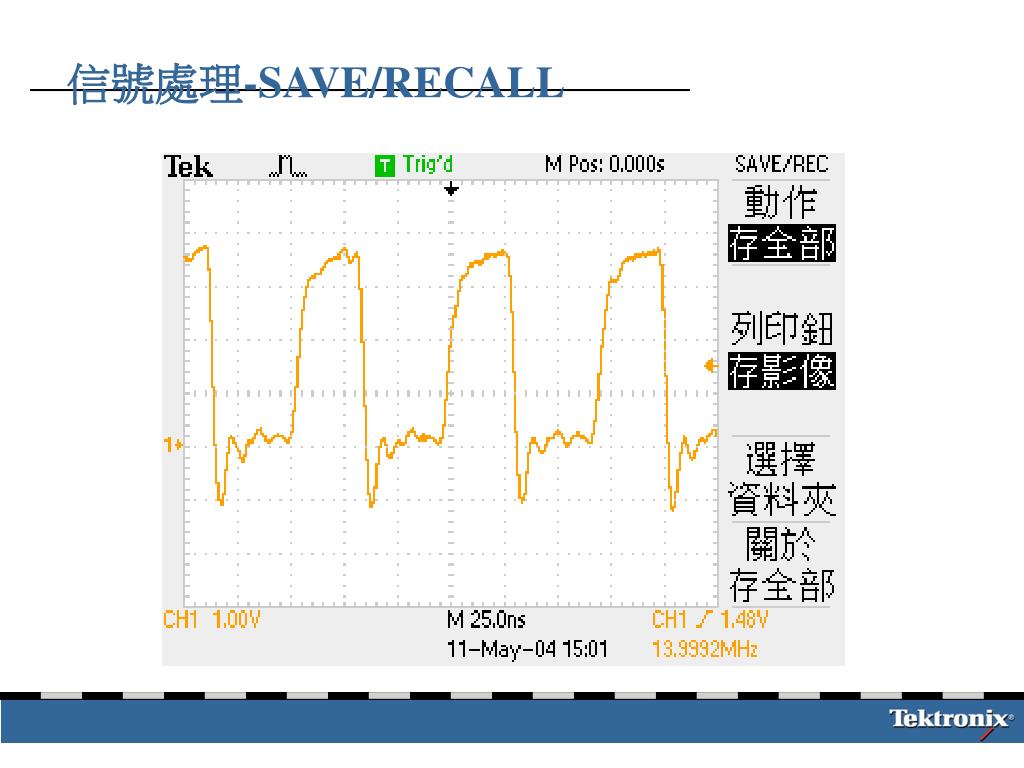

  7. 信號處理-SAVE/RECALL-BMP

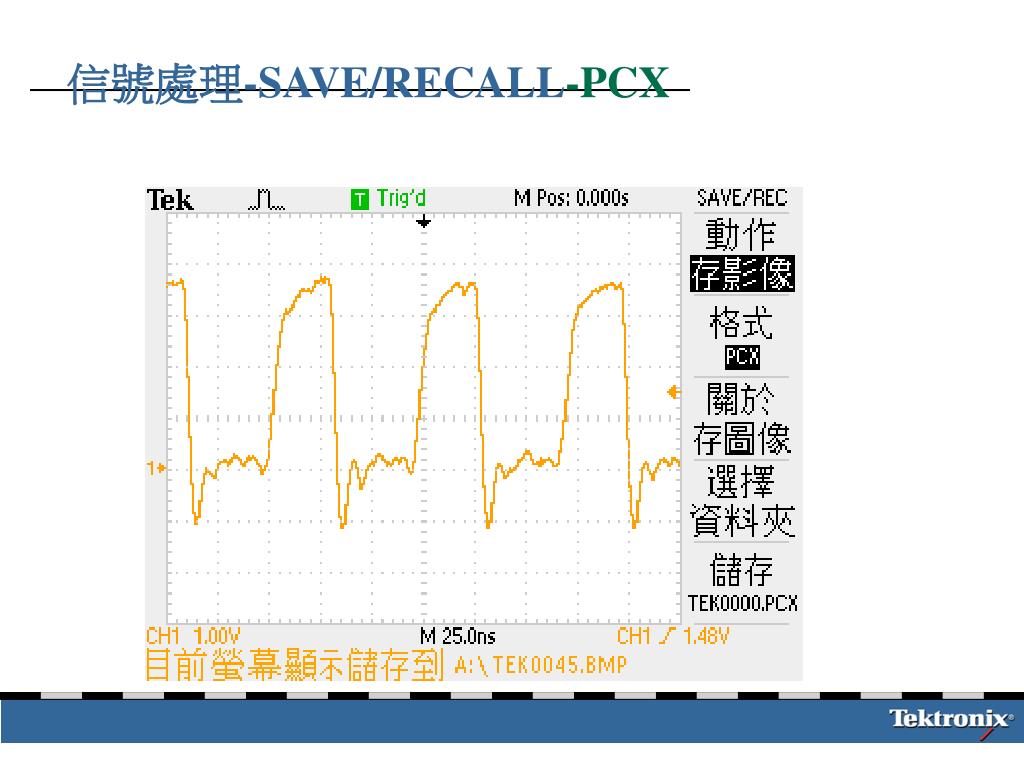

  8. 信號處理-SAVE/RECALL-PCX

  9. 信號處理-SAVE/RECALL-TIFF

  10. 信號處理-SAVE/RECALL-RLE

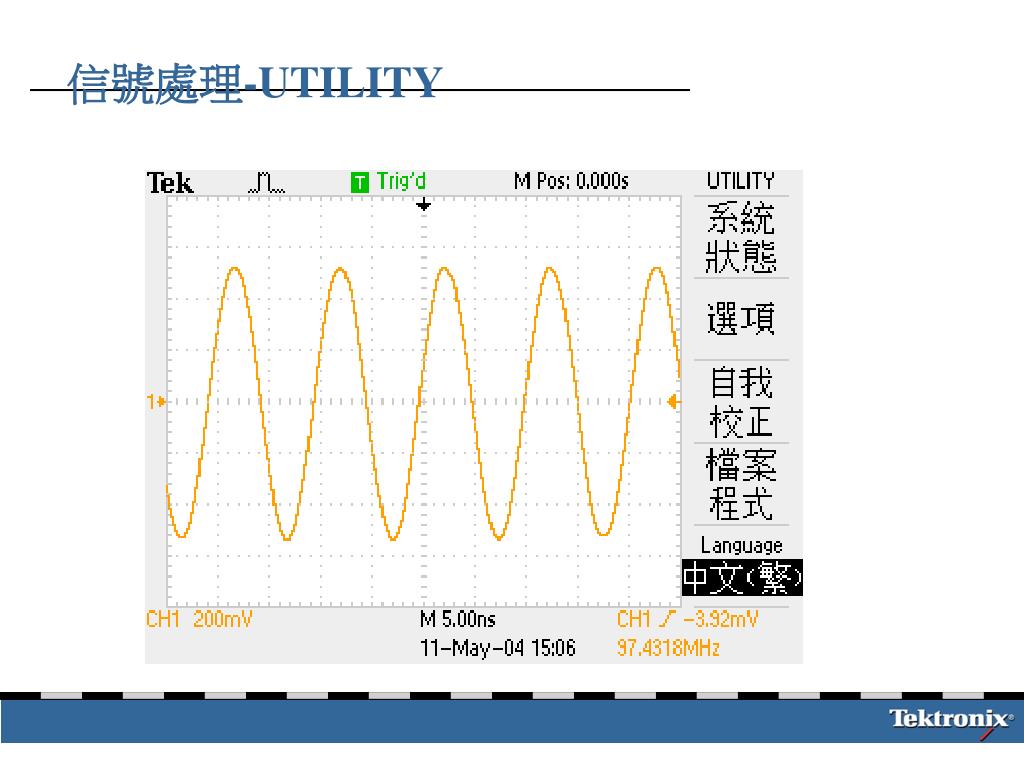

  11. 信號處理-UTILITY

  12. 信號處理-UTILITY-系統狀態

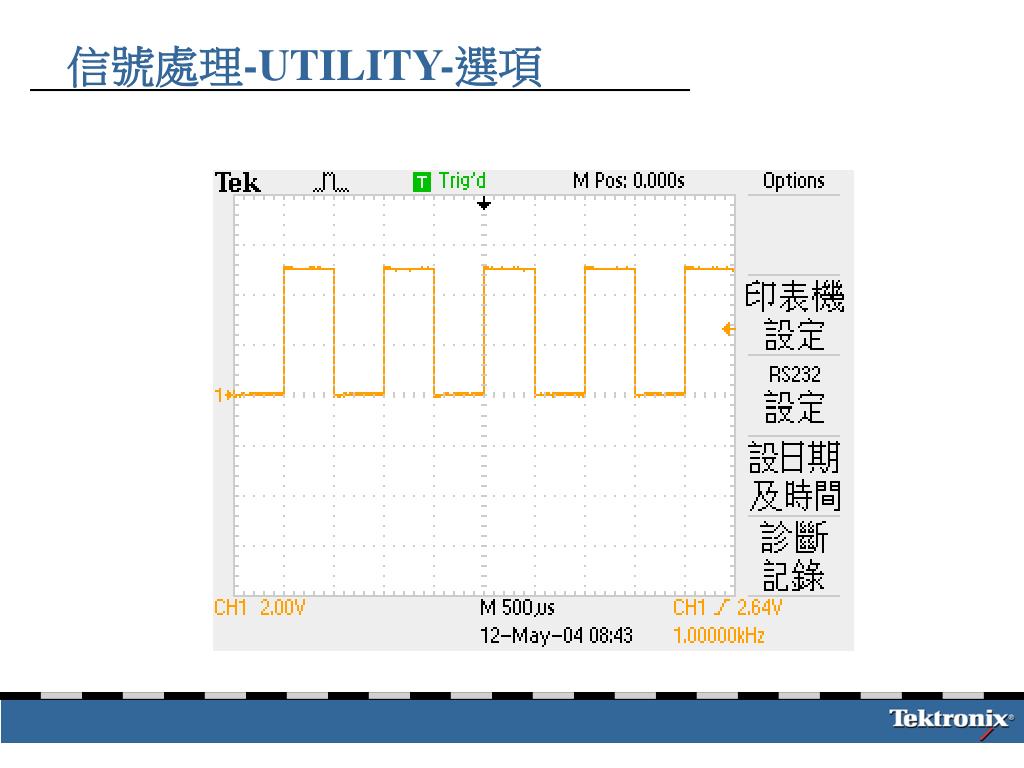

  13. 信號處理-UTILITY-選項

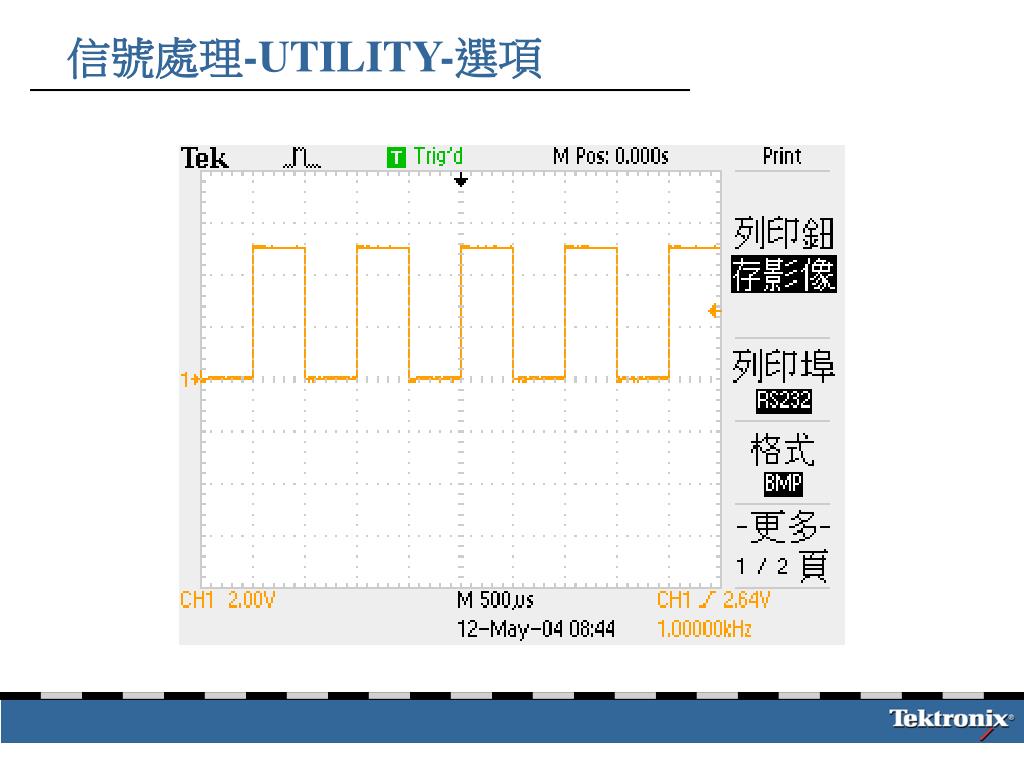

  14. 信號處理-UTILITY-選項

  15. 信號處理-UTILITY-選項

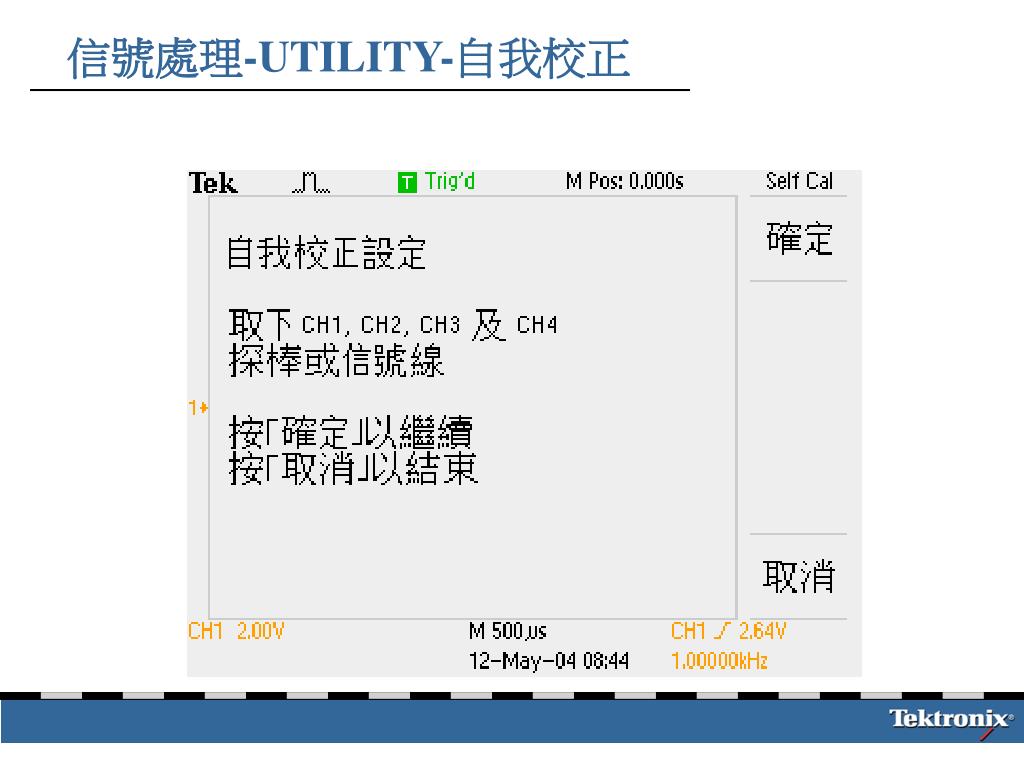

  16. 信號處理-UTILITY-自我校正

  17. 信號處理-UTILITY-檔案程式

  18. 信號處理-UTILITY-語言

  19. 信號處理-MEASURE

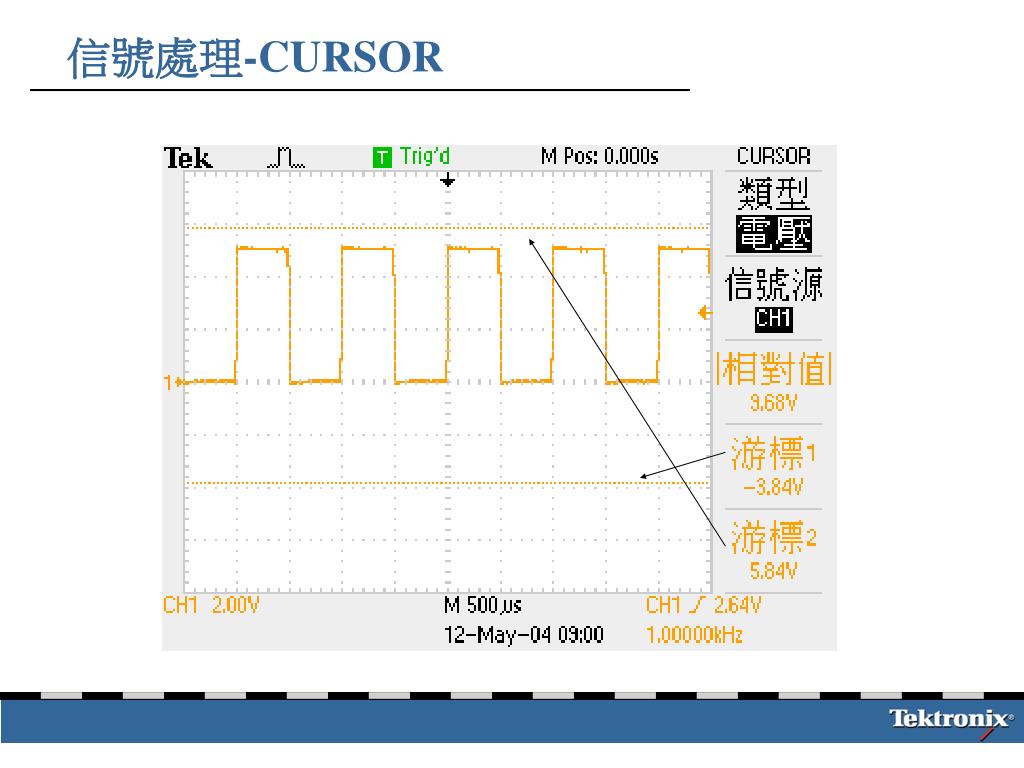

  20. 信號處理-CURSOR

  21. 信號處理-CURSOR

  22. 信號處理-ACQUIRE

  23. 信號處理-ACQUIRE-取樣

  24. 信號處理-ACQUIRE-取樣

  25. 信號處理-ACQUIRE-峰值檢測

  26. 信號處理-ACQUIRE-峰值檢測

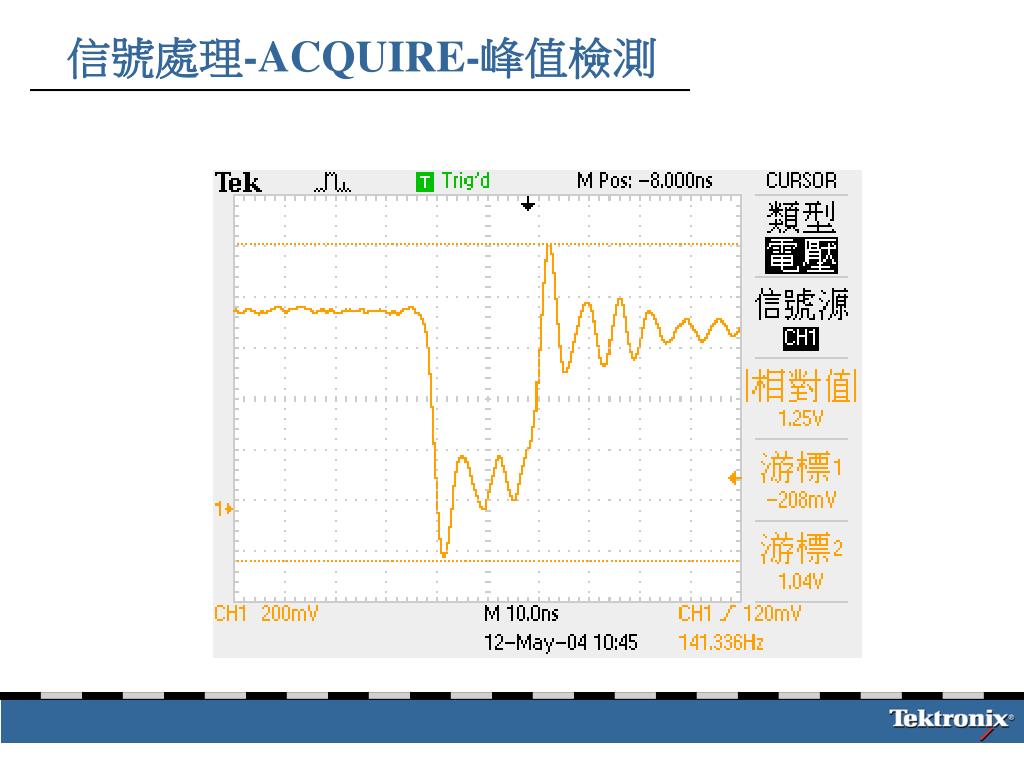

  27. 信號處理-ACQUIRE-峰值檢測

  28. 信號處理-ACQUIRE-峰值檢測

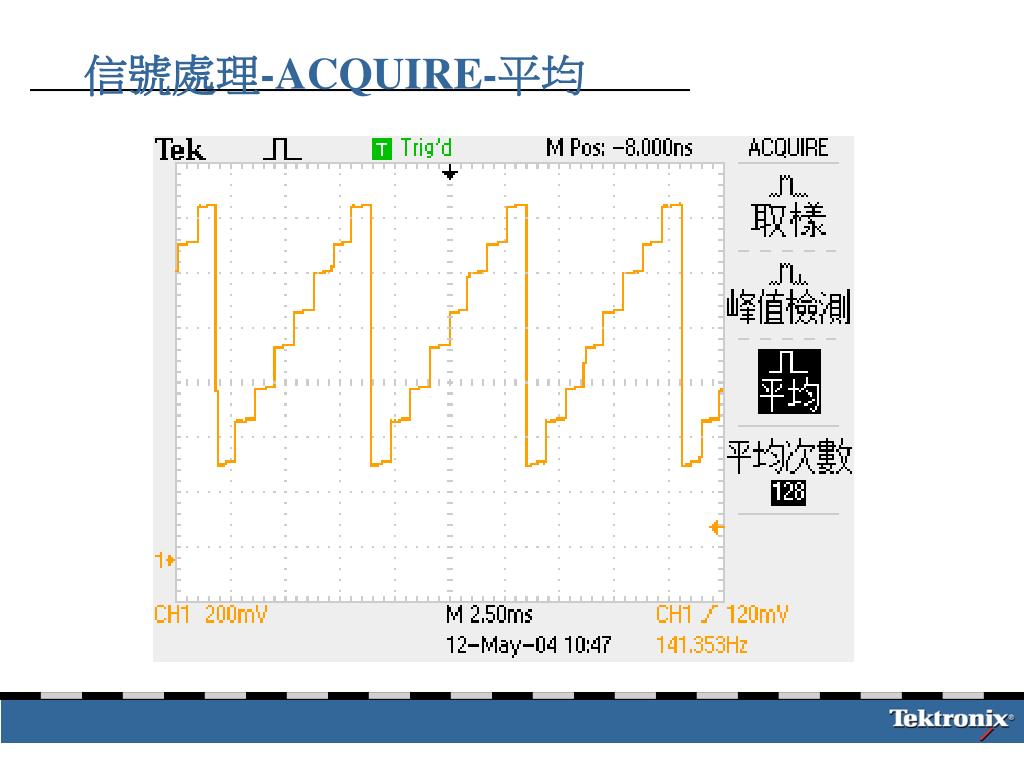

  29. 信號處理-ACQUIRE-平均

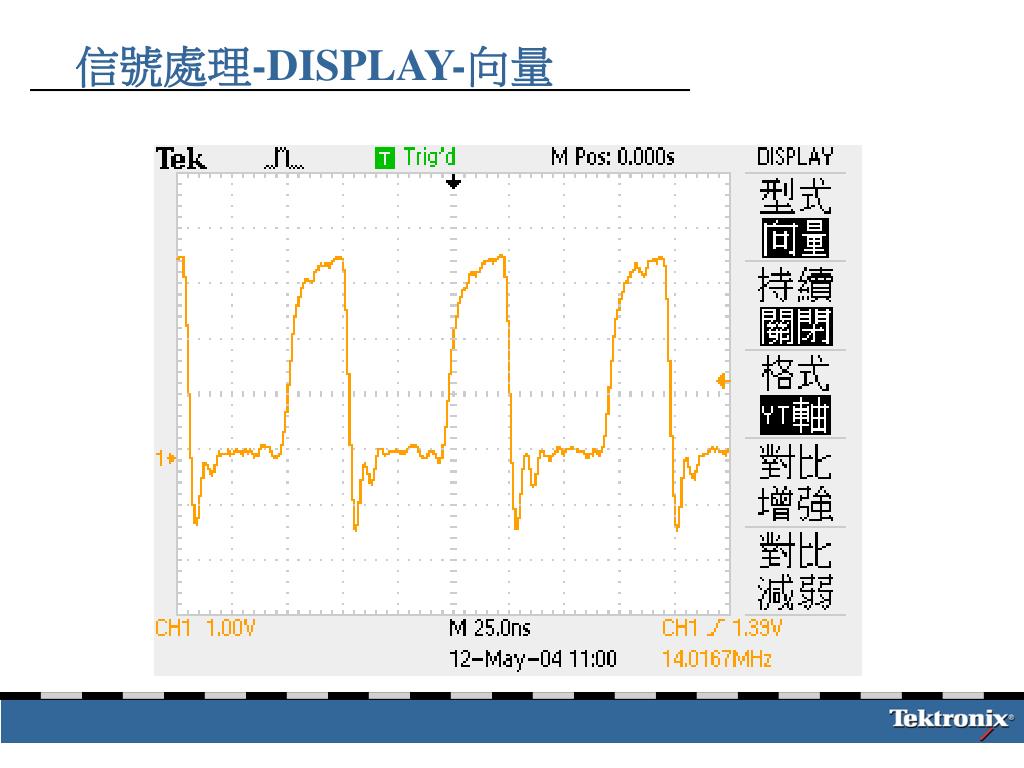

  30. 信號處理-DISPLAY-向量

  31. 信號處理-DISPLAY-點

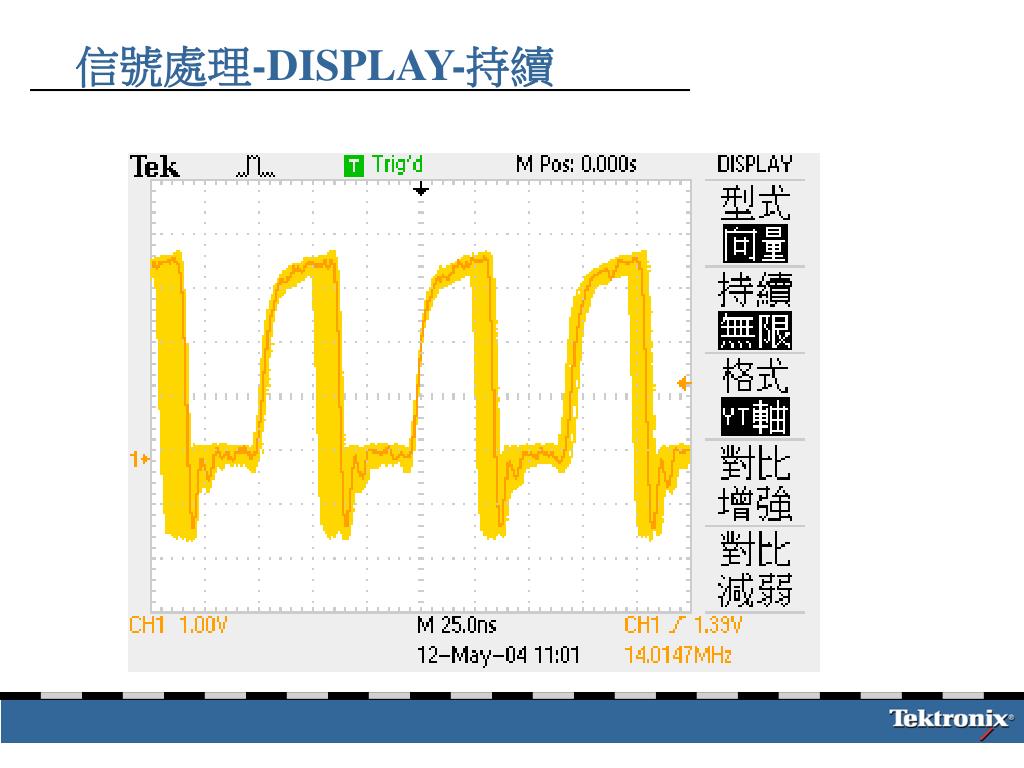

  32. 信號處理-DISPLAY-持續

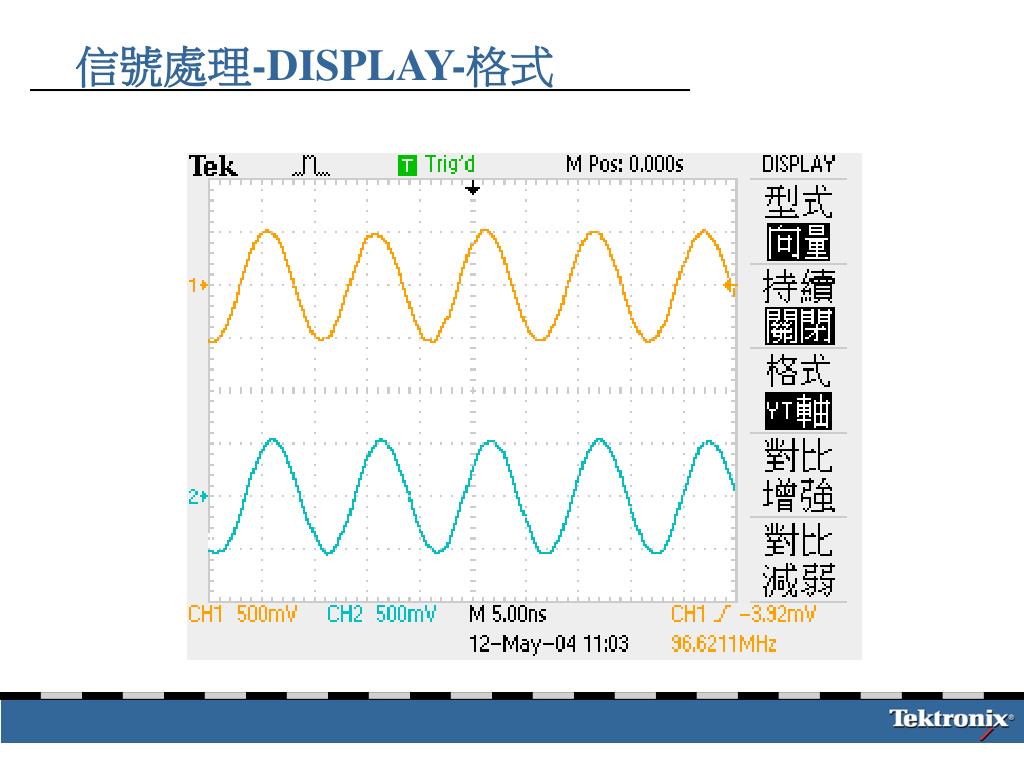

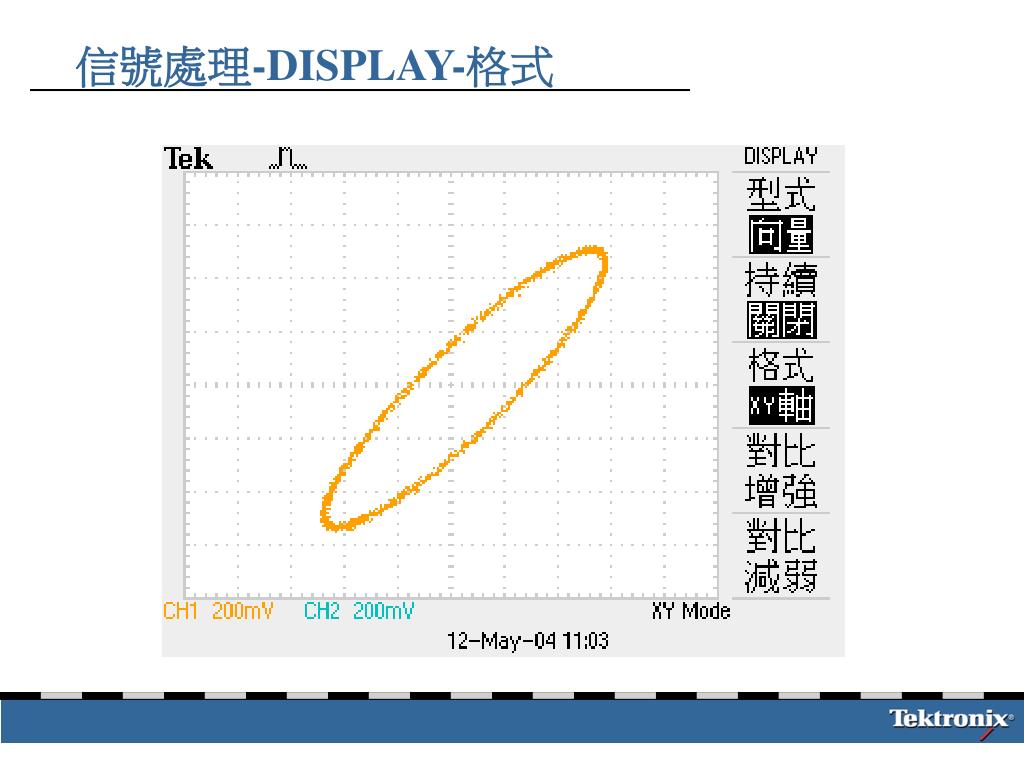

  33. 信號處理-DISPLAY-格式

  34. 信號處理-DISPLAY-格式

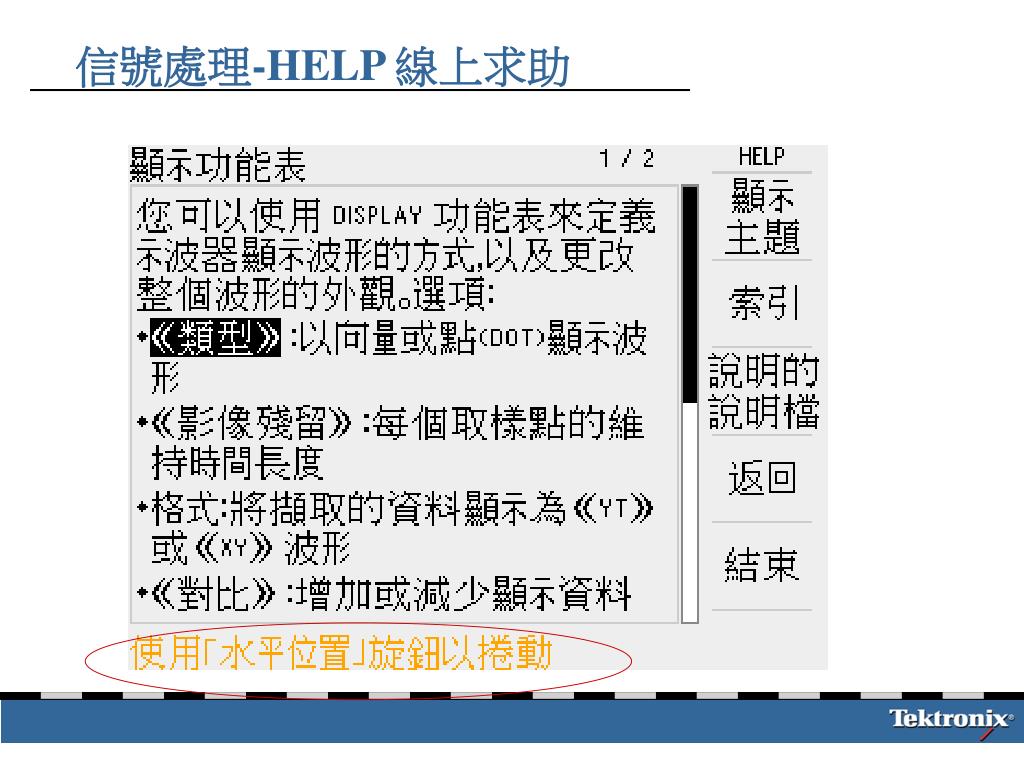

  35. 信號處理-HELP 線上求助

  36. 信號處理-DEFAULT SETUP

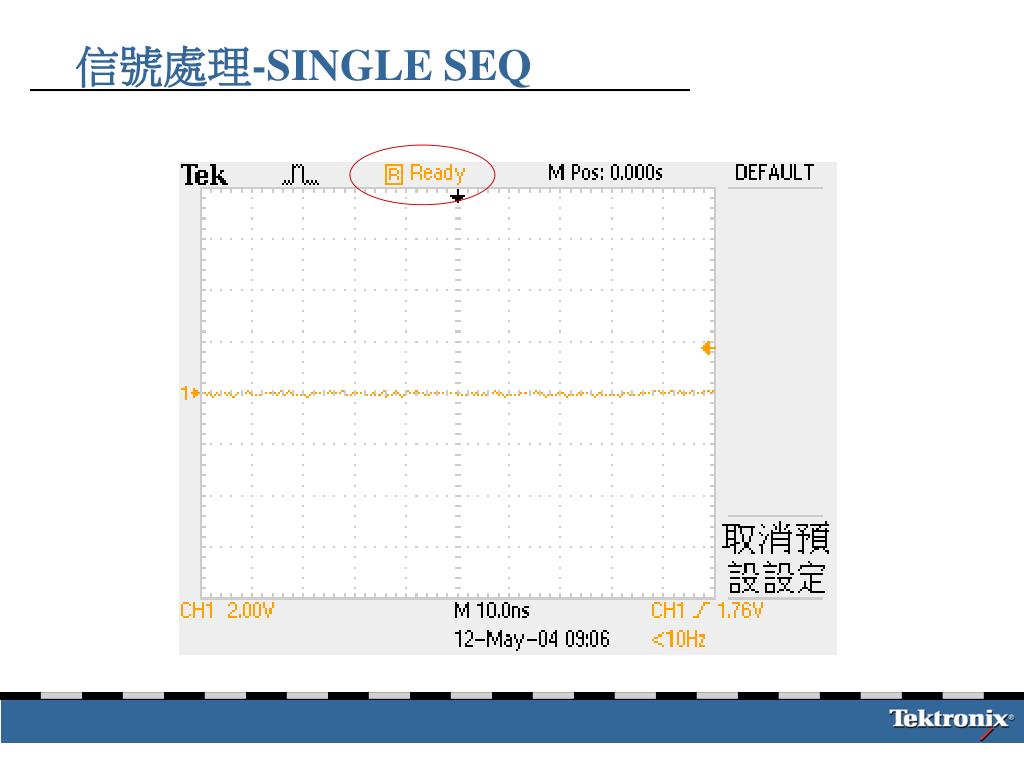

  37. 信號處理-SINGLE SEQ

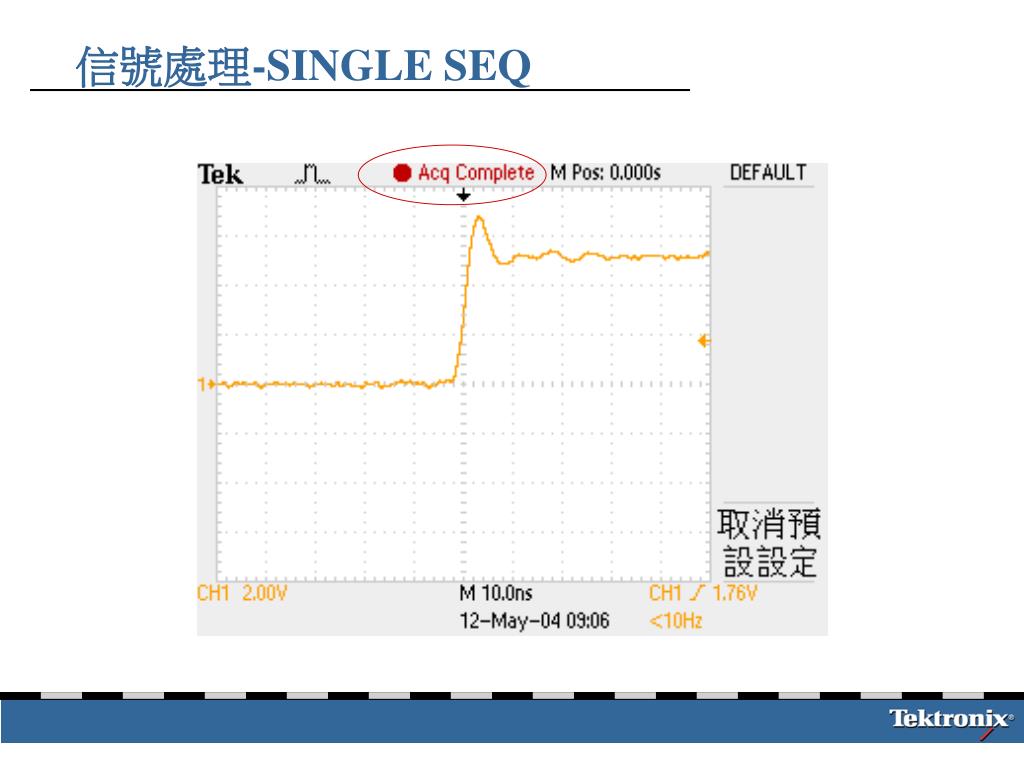

  38. 信號處理-SINGLE SEQ

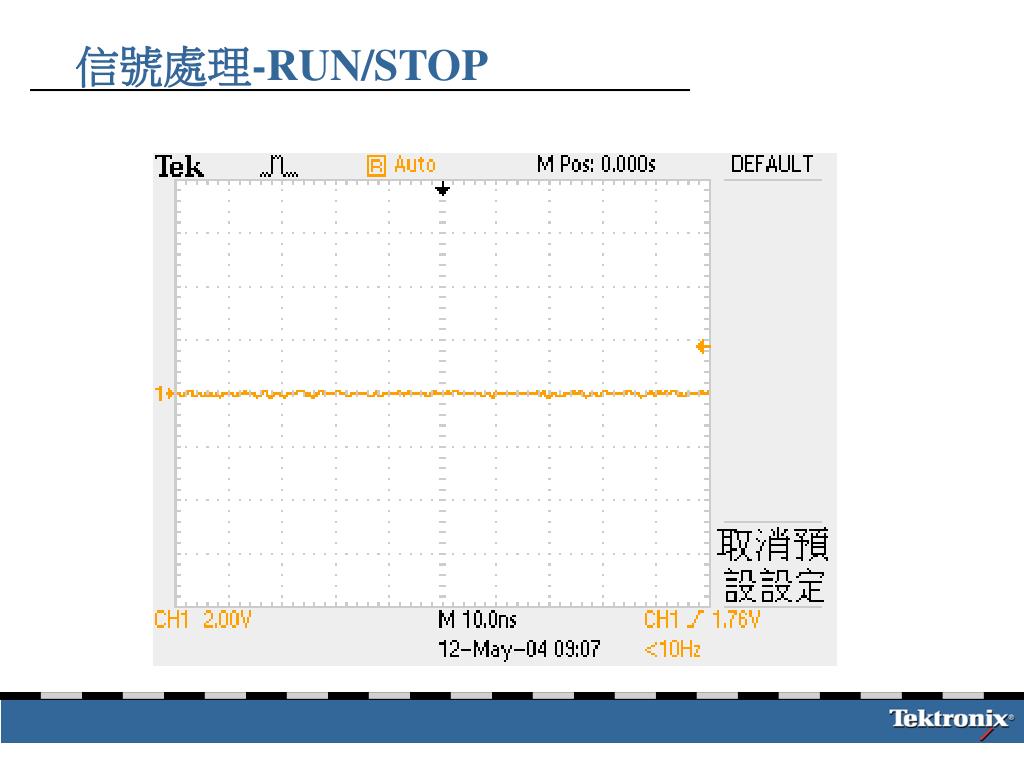

  39. 信號處理-RUN/STOP

  40. 信號處理-RUN/STOP

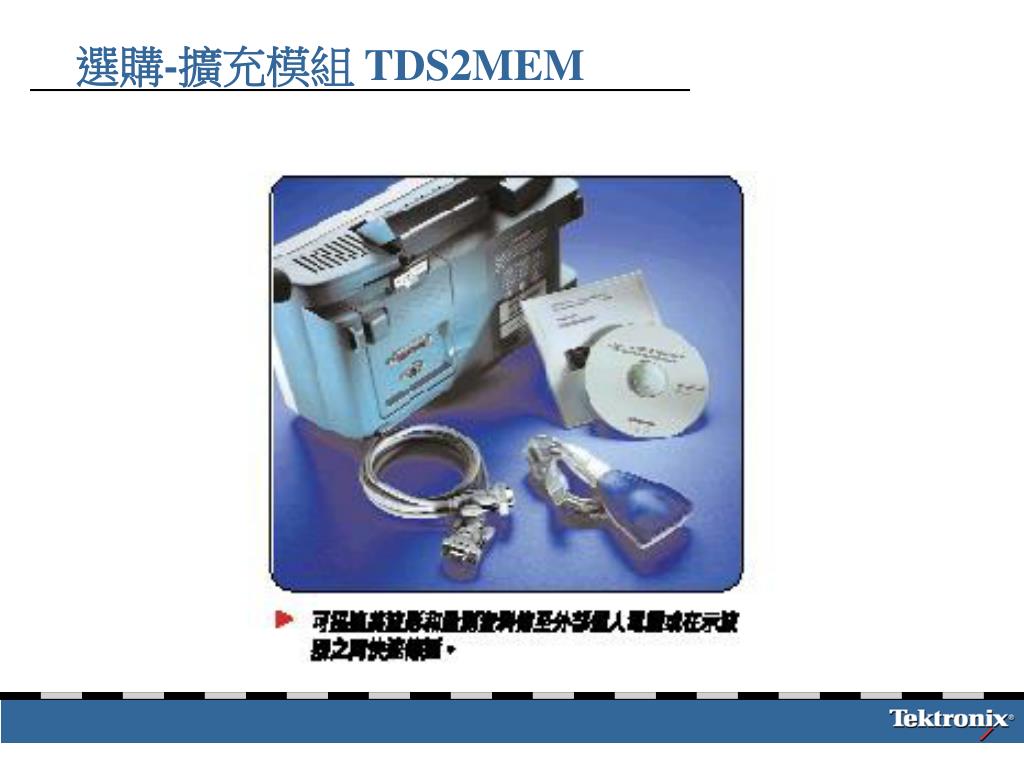

  41. 選購-擴充模組 TDS2MEM

  42. 選購-擴充模組 TDS2MEM

  43. 選購-擴充模組 TDS2CMAX

  44. TDS2CMAX TDS2MEM I/O Interface GPIB  RS232   Centronics-type Printer Port   CompactFlash  Bundled Items (Included Standard) OpenChoice PC Comm SW (TDSPCS1)   RS232 Cable   CF Memory Card  CF to USB Memory Card Reader  選購-擴充模組TDS2CMAX/TDS2MEM

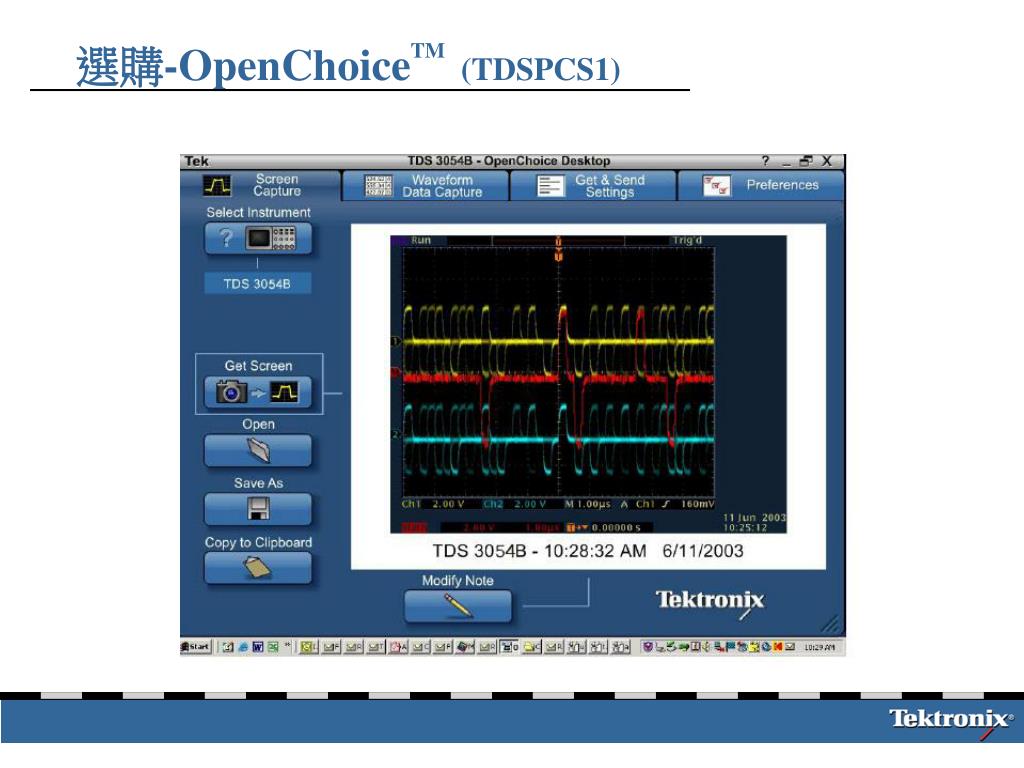

  45. 選購-OpenChoiceTM (TDSPCS1)

  46. 選購-OpenChoiceTM (TDSPCS1)

  47. 選購-擴充模組-安裝/移除

  48. 關於維修中心及校正實驗室 • 校正實驗室負責人:巫金龍協理 TEL:02-27571550 • 維修品聯絡人:徐佩郁小姐 TEL:02-27571570 • 收送件時間:星期一,三,四 台北地區 • 星期二 桃園 • 星期二,五 新竹

  49. 基礎 示波器 實驗課程 Present by Jennifer Hsiao

  50. 課程大綱 - Part 1 • 實驗一. 10:1 / 1:1 探棒之正確使用 • 實驗二.即時取樣 VS 等時取樣 • 實驗三.如何消除雜訊所造成示波器誤觸發 • 實驗四.如何正確量測亂數訊號 • 實驗五.如何正確使用外部觸發量測 • 實驗六.探棒接地線對量測之影響 • 實驗六.探棒接地線對量測之影響
