1 / 10

m = h/c l becomes m = h/ v l

If light can have a dual nature why not matter???. Electrons don’t move at the speed of light (although in certain cases they can be close), so rearrange the equation for the mass of the photon to solve for the momentum of the electrons using “v” as the velocity of the electron. l = h/mv.

jnoto
Download Presentation

m = h/c l becomes m = h/ v l

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

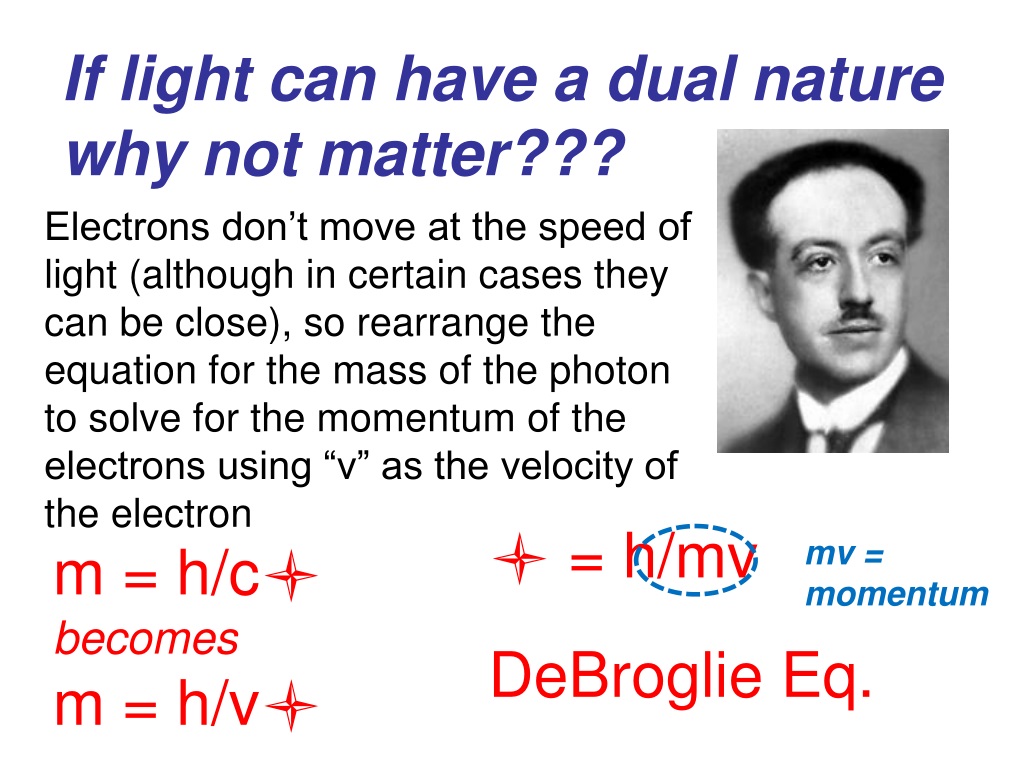

  1. If light can have a dual nature why not matter??? Electrons don’t move at the speed of light (although in certain cases they can be close), so rearrange the equation for the mass of the photon to solve for the momentum of the electrons using “v” as the velocity of the electron l = h/mv mv = momentum m = h/cl becomes m = h/vl DeBroglie Eq.

  2. What would the wavelength of a baseball be (142 grams) thrown at a speed of 100 miles per hour (44.4 m/s) 1.1 x 10-34 m Not a significant size compared to the space it exists in! What would the wavelength of an electron be (9.11 x 10-28 grams) whizzing about it’s orbit in the Bohr model traveling at a speed of 2.0 million meters per second? 3.6 x 10-10 m A significant size compared to the space it exists in!

  3. Light waves passing through a single slit

  4. Interference pattern Light waves passing through a double slit

  5. Electrons Interference pattern

  6. Randomly closing a slit…forcing the electrons to go through one slit or the other No interference pattern

  7. You get an interference pattern when you allow it to choose which slit to through…you don’t when you make it go through one slit or the other!!! Implication: The electron goes through both slits at the same time! Very much unlike a particle…acting as a wave. (smeared out…less discrete)

  8. Fits Fits Doesn’t Fit Only certain wavelengths work! Only certain frequencies work! Only certain energies work! Therefore; energy levels exist!

  9. Schrödinger: The Wave Equation psi, the wave function↓ (locations) (many solutions) ĤY = EY One Look → ↑energy of electron mathematical operator ↑ Heisenberg: The Uncertainty Principle (The observer affects the observed) can’t know both well Future location of electron position Depends on velocity Dx • Dmv ≥ h/4p Born: Electrons are probability waves (“Waves of Chance”)

  10. Y2 → describes the probability of finding the electrons in the locations described by Y High probability region in space where the electron is likely to be found…. orbitals (pictured as boundary surface diagrams)
