  1. Basics of Authoring TuTalk Dialogues Pamela Jordan University of Pittsburgh Learning Research and Development Center

  2. Agenda • Overview of authoring • Basic authoring (GUI & sc) • Authoring multi-part responses (GUI & sc) • Next steps for projects

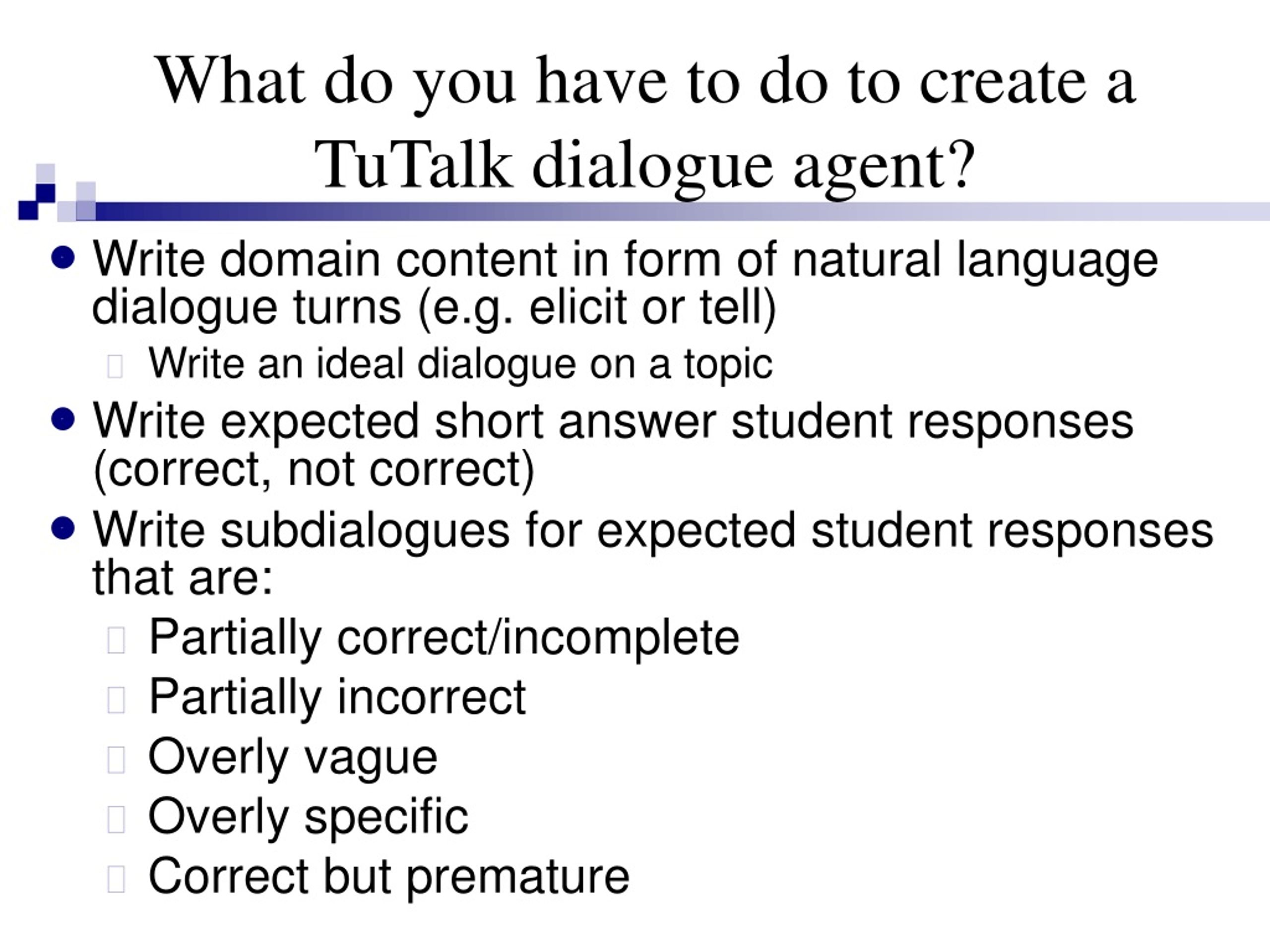

  3. What do you have to do to create a TuTalk dialogue agent? • Write domain content in form of natural language dialogue turns (e.g. elicit or tell) • Write an ideal dialogue on a topic • Write expected short answer student responses (correct, not correct) • Write subdialogues for expected student responses that are: • Partially correct/incomplete • Partially incorrect • Overly vague • Overly specific • Correct but premature

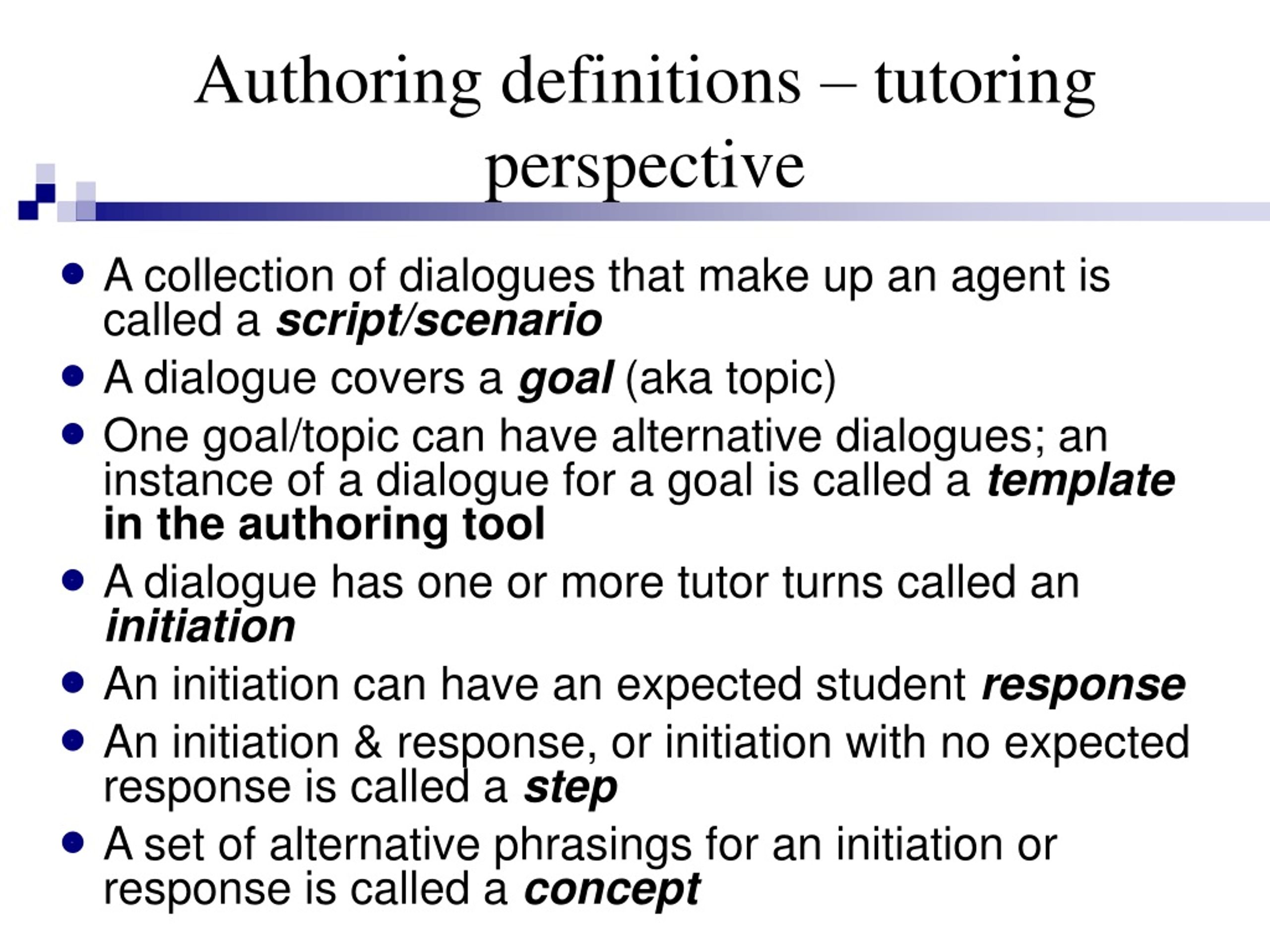

  4. Authoring definitions – tutoring perspective • A collection of dialogues that make up an agent is called ascript/scenario • A dialogue covers a goal (aka topic) • One goal/topic can have alternative dialogues; an instance of a dialogue for a goal is called a template in the authoring tool • A dialogue has one or more tutor turns called an initiation • An initiation can have an expected student response • An initiation & response, or initiation with no expected response is called a step • A set of alternative phrasings for an initiation or response is called a concept

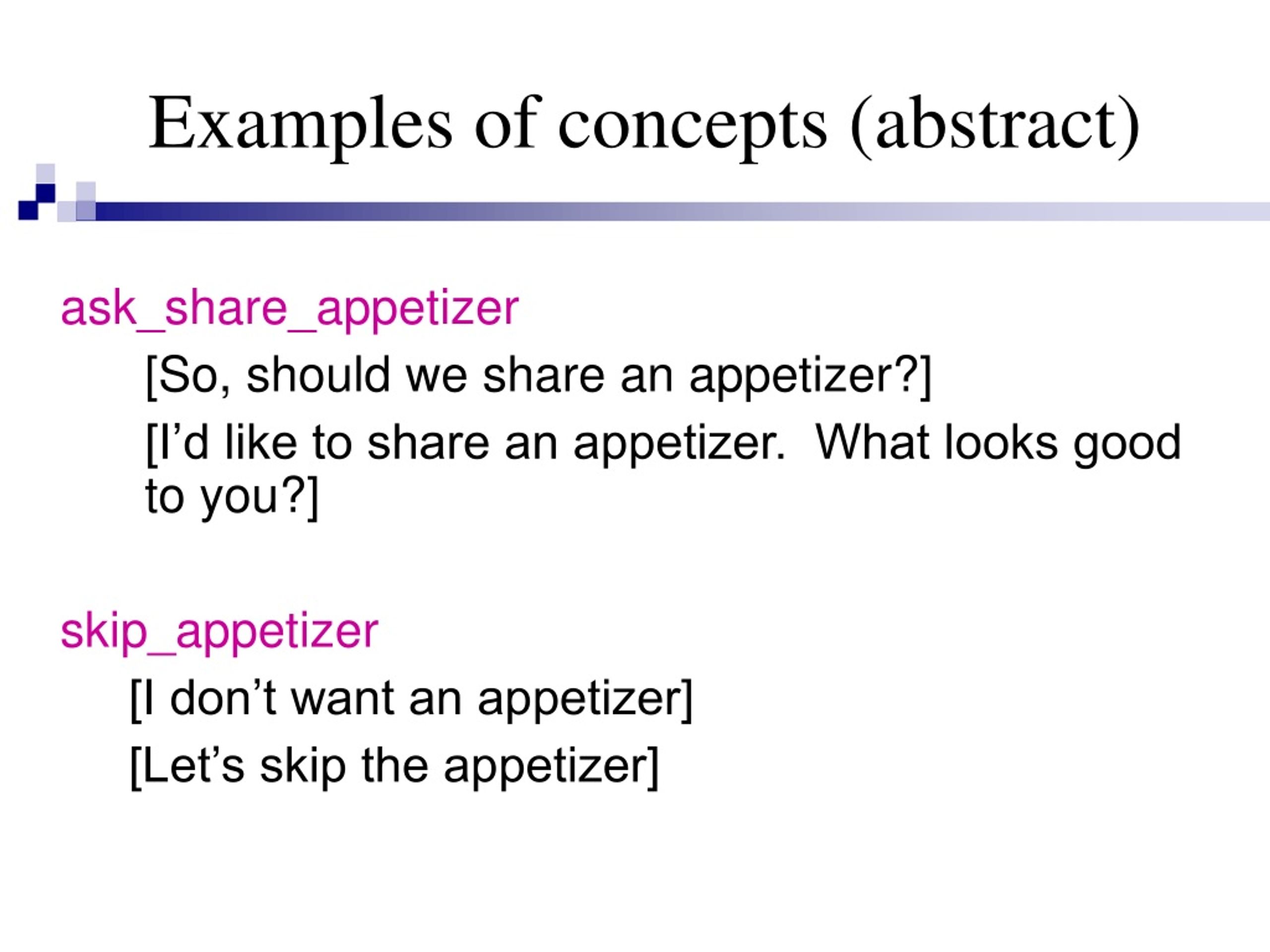

  5. Examples of concepts (abstract) ask_share_appetizer [So, should we share an appetizer?] [I’d like to share an appetizer. What looks good to you?] skip_appetizer [I don’t want an appetizer] [Let’s skip the appetizer]

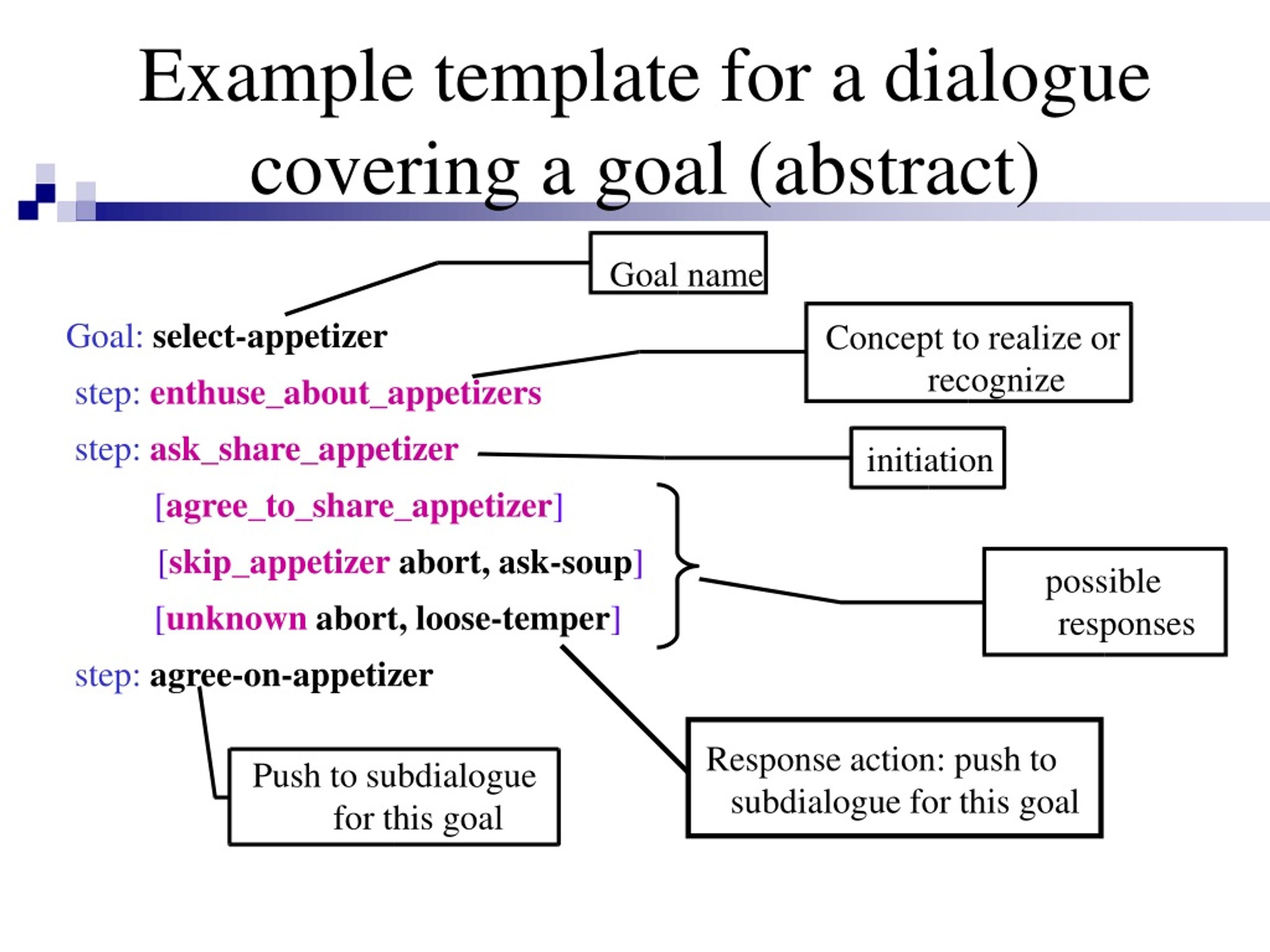

  6. Example template for a dialogue covering a goal (abstract) Goal name Goal: select-appetizer step:enthuse_about_appetizers step:ask_share_appetizer [agree_to_share_appetizer] [skip_appetizerabort, ask-soup] [unknownabort, loose-temper] step:agree-on-appetizer Concept to realize or recognize initiation possible responses Response action: push to subdialogue for this goal Push to subdialogue for this goal

  7. Agenda • Overview of authoring • Basic authoring (GUI & sc) • Authoring multi-part responses (GUI & sc) • Next steps for projects

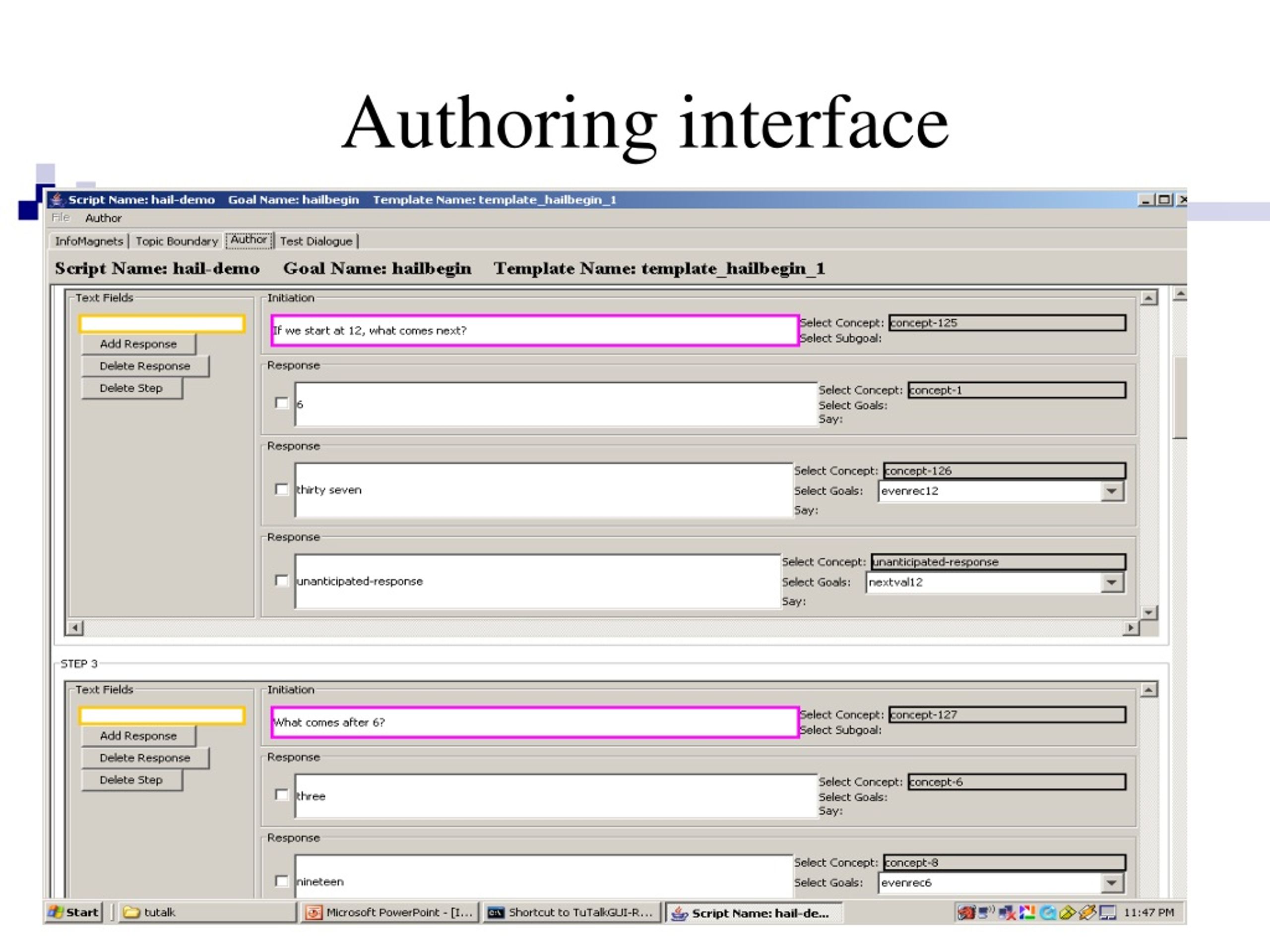

  8. Authoring interface

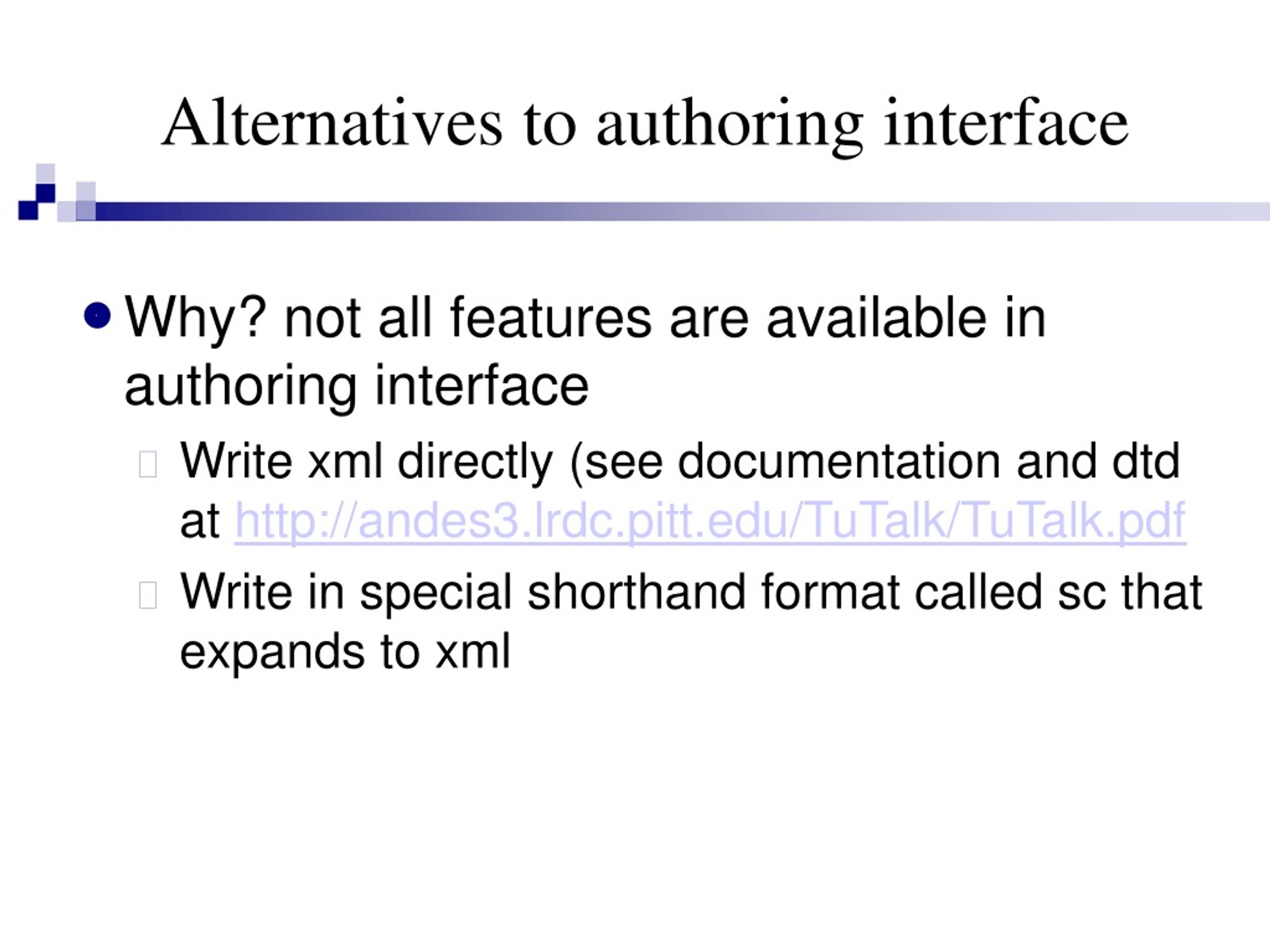

  9. Alternatives to authoring interface • Why? not all features are available in authoring interface • Write xml directly (see documentation and dtd at http://andes3.lrdc.pitt.edu/TuTalk/TuTalk.pdf • Write in special shorthand format called sc that expands to xml

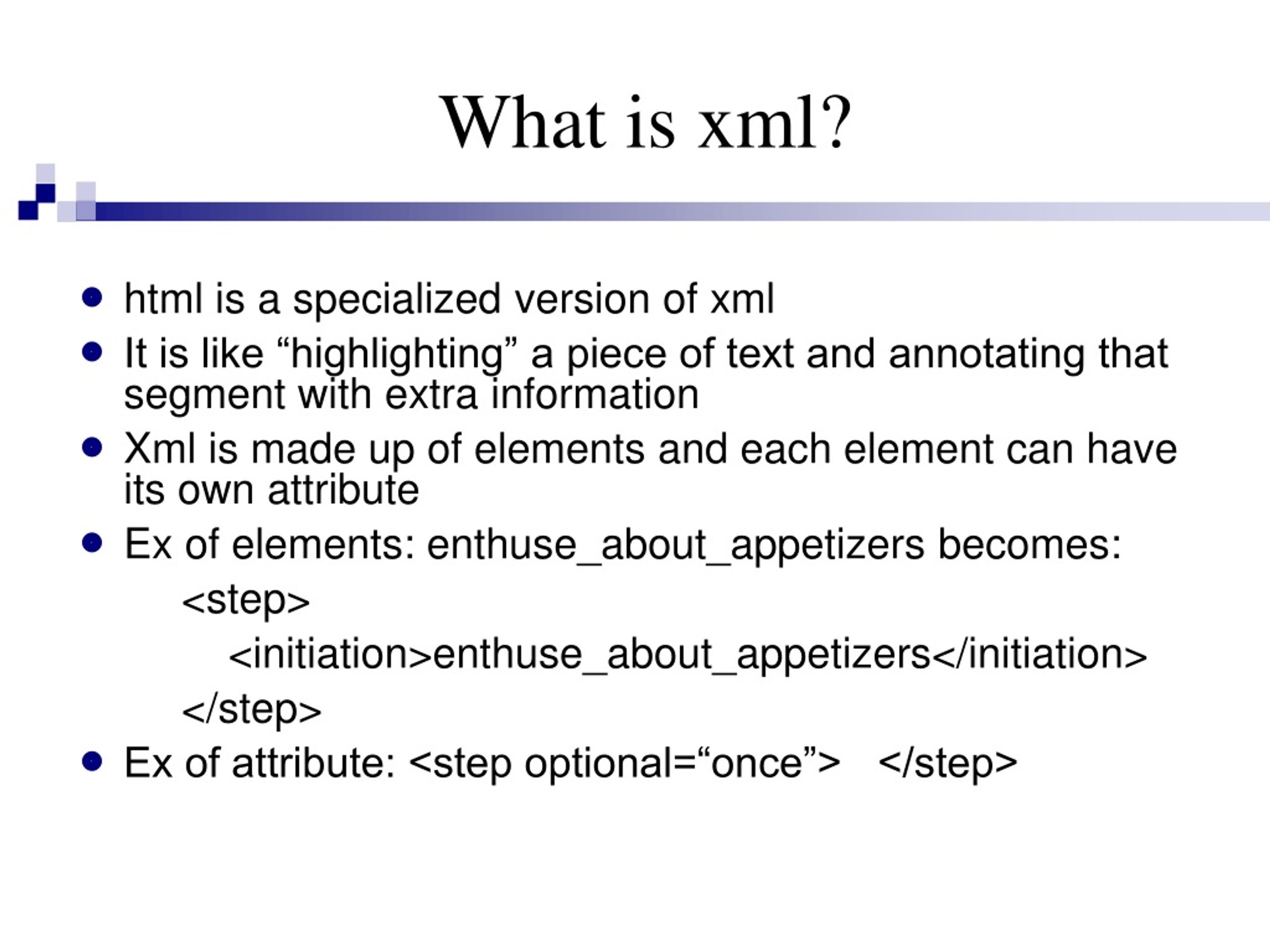

  10. What is xml? • html is a specialized version of xml • It is like “highlighting” a piece of text and annotating that segment with extra information • Xml is made up of elements and each element can have its own attribute • Ex of elements: enthuse_about_appetizers becomes: <step> <initiation>enthuse_about_appetizers</initiation> </step> • Ex of attribute: <step optional=“once”> </step>

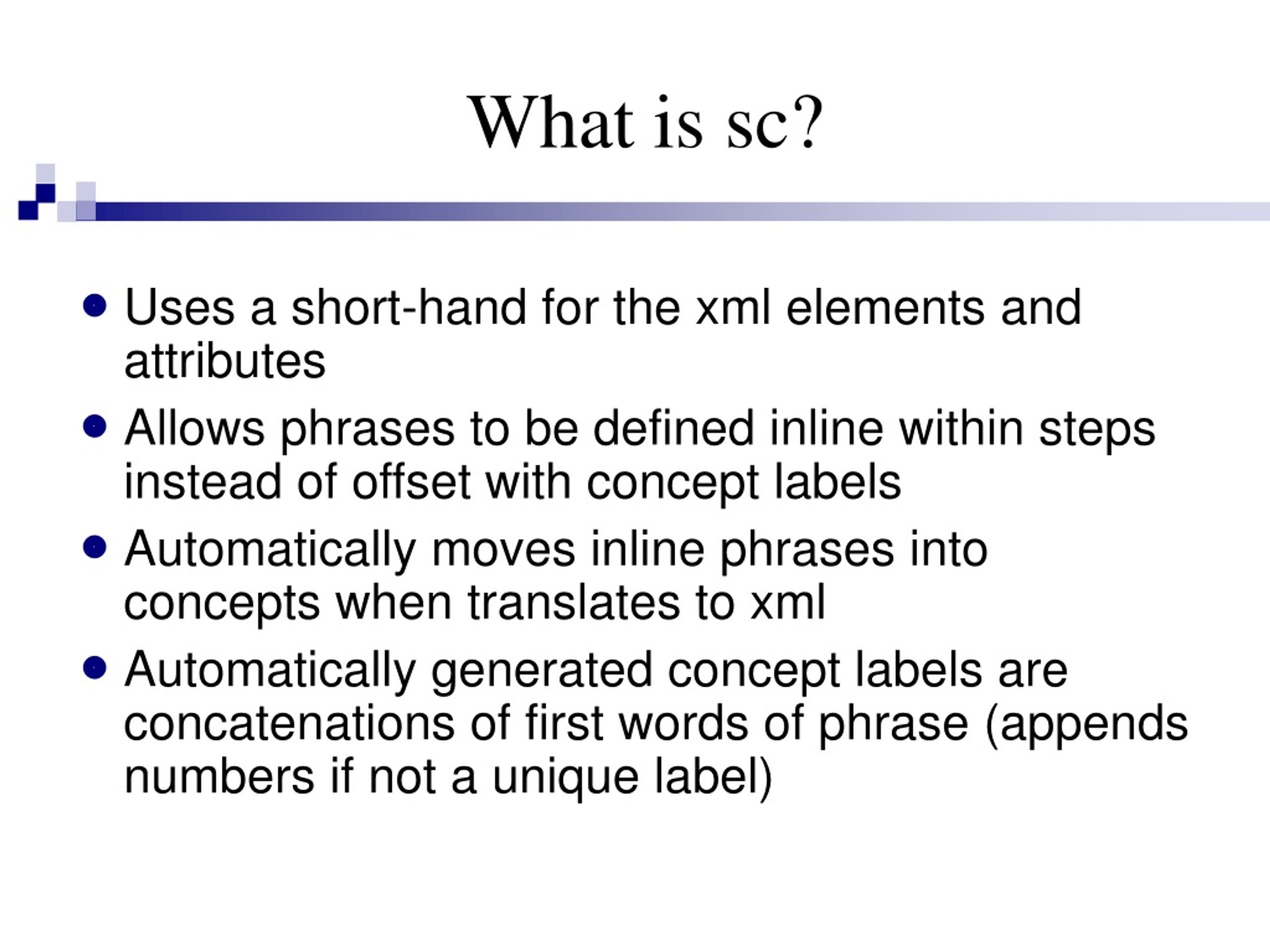

  11. What is sc? • Uses a short-hand for the xml elements and attributes • Allows phrases to be defined inline within steps instead of offset with concept labels • Automatically moves inline phrases into concepts when translates to xml • Automatically generated concept labels are concatenations of first words of phrase (appends numbers if not a unique label)

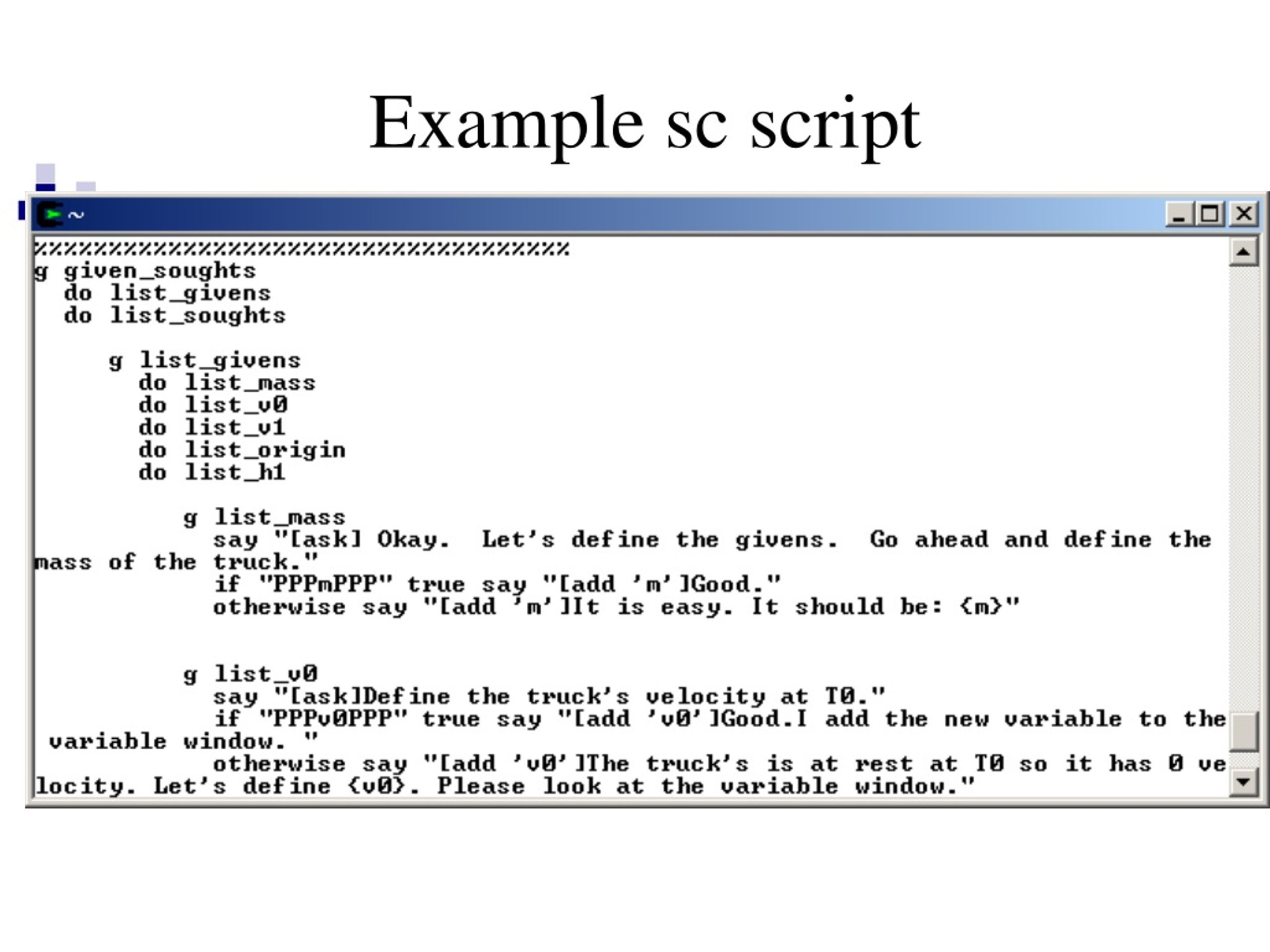

  12. Example sc script

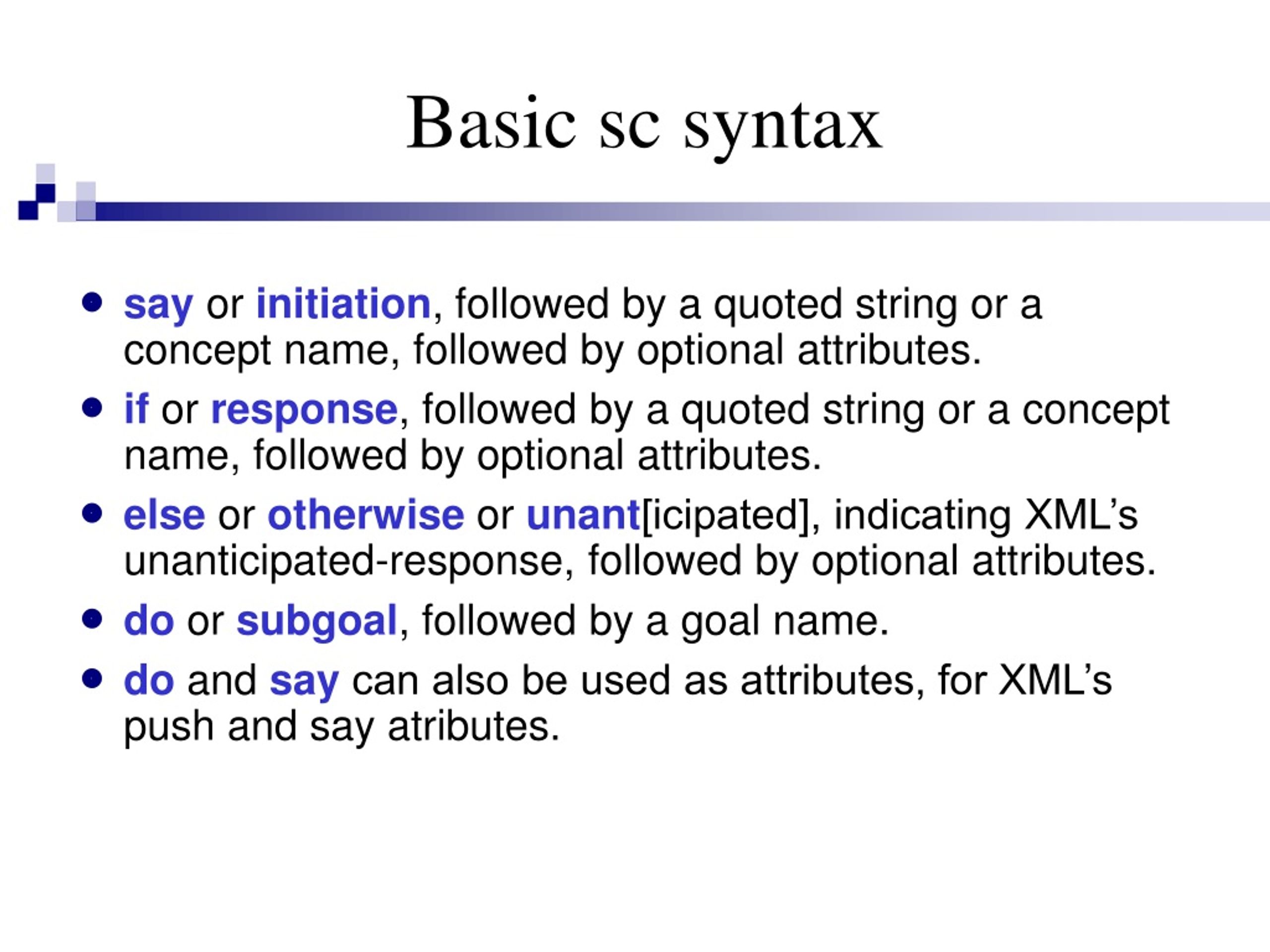

  13. Basic sc syntax • sayor initiation, followed by a quoted string or a concept name, followed by optional attributes. • if or response, followed by a quoted string or a concept name, followed by optional attributes. • else or otherwise or unant[icipated], indicating XML’s unanticipated-response, followed by optional attributes. • do or subgoal, followed by a goal name. • do and say can also be used as attributes, for XML’s push and say atributes.

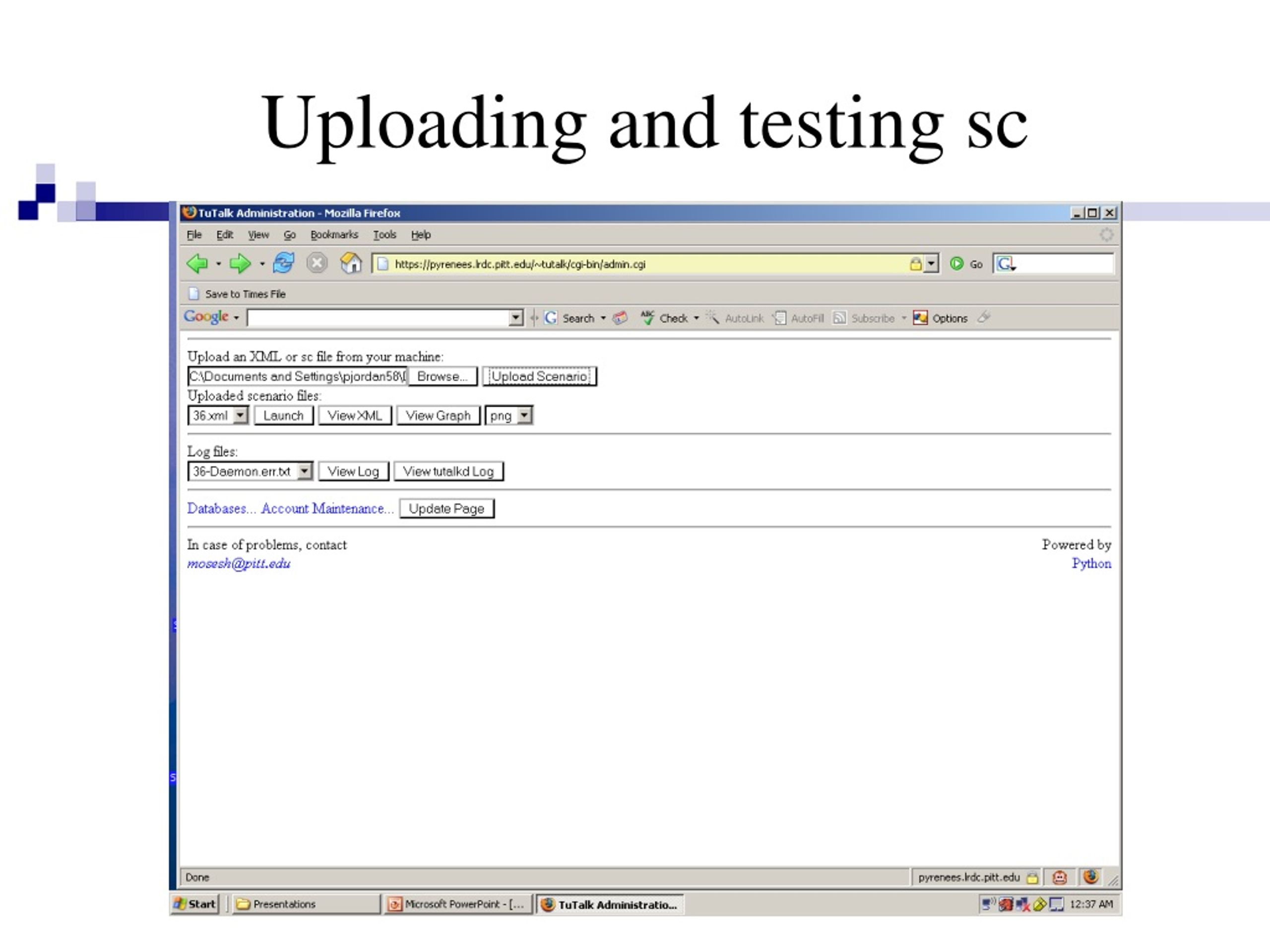

  14. Uploading and testing sc

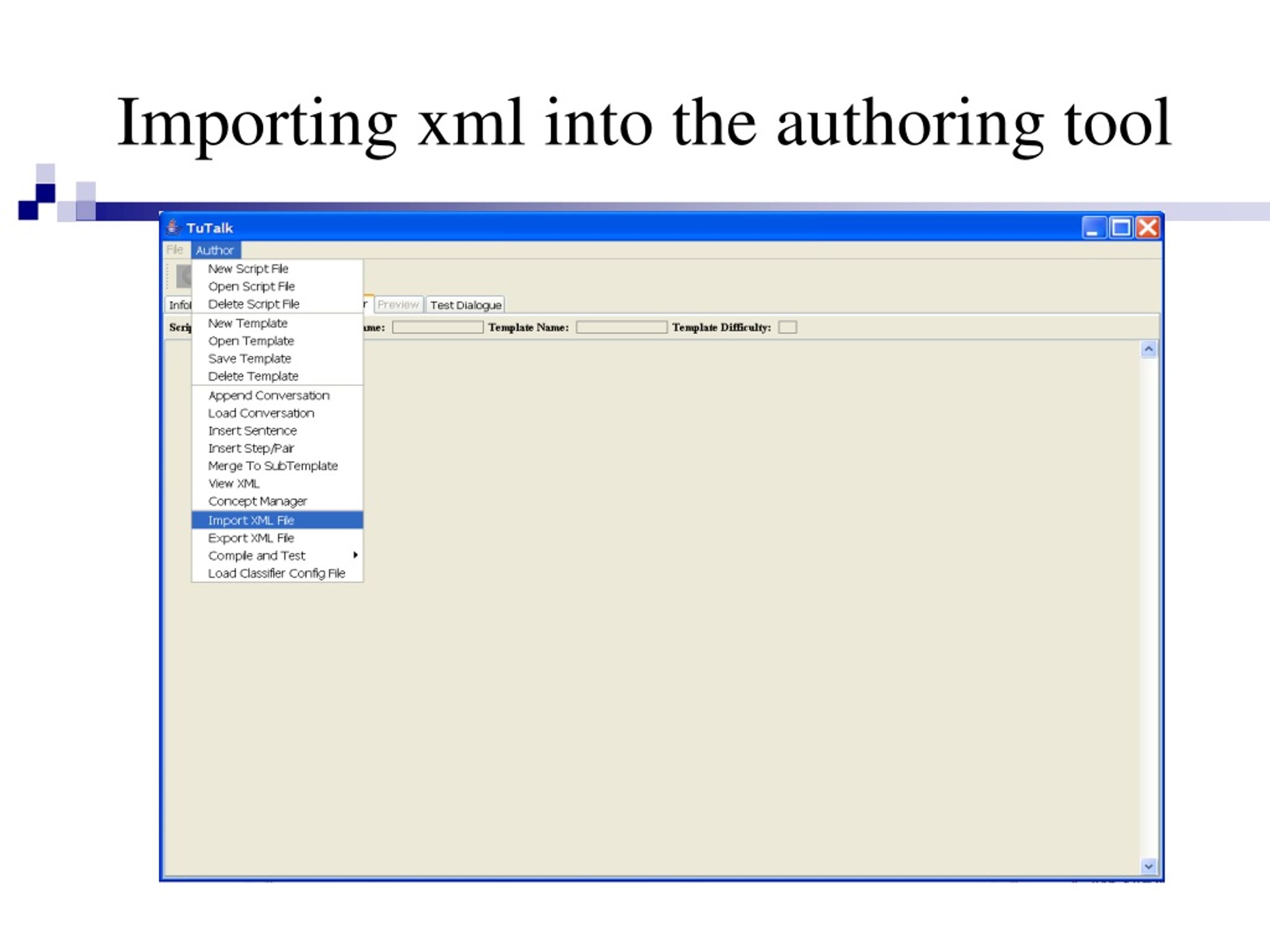

  15. Importing xml into the authoring tool

  16. Demo

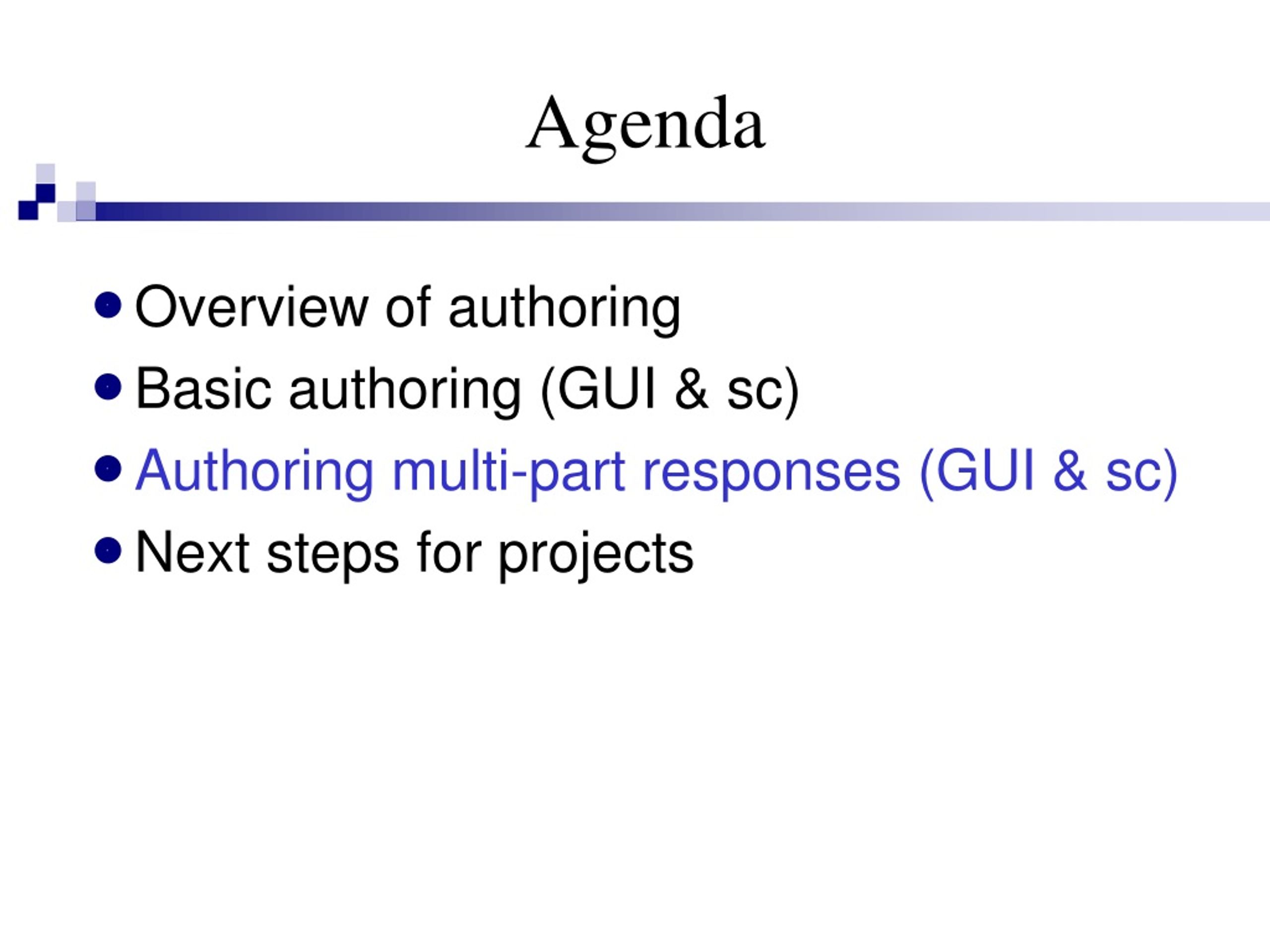

  17. Agenda • Overview of authoring • Basic authoring (GUI & sc) • Authoring multi-part responses (GUI & sc) • Next steps for projects

  18. Multi-part responses • Gives student credit for partial responses and seeks just what is missing: • Example: T; What are the forces on a set of keys on top of a table? S: gravity T: Almost. There is another force. The keys aren’t moving so the net force must be zero. What force balances out the force due to gravity? S: normal force

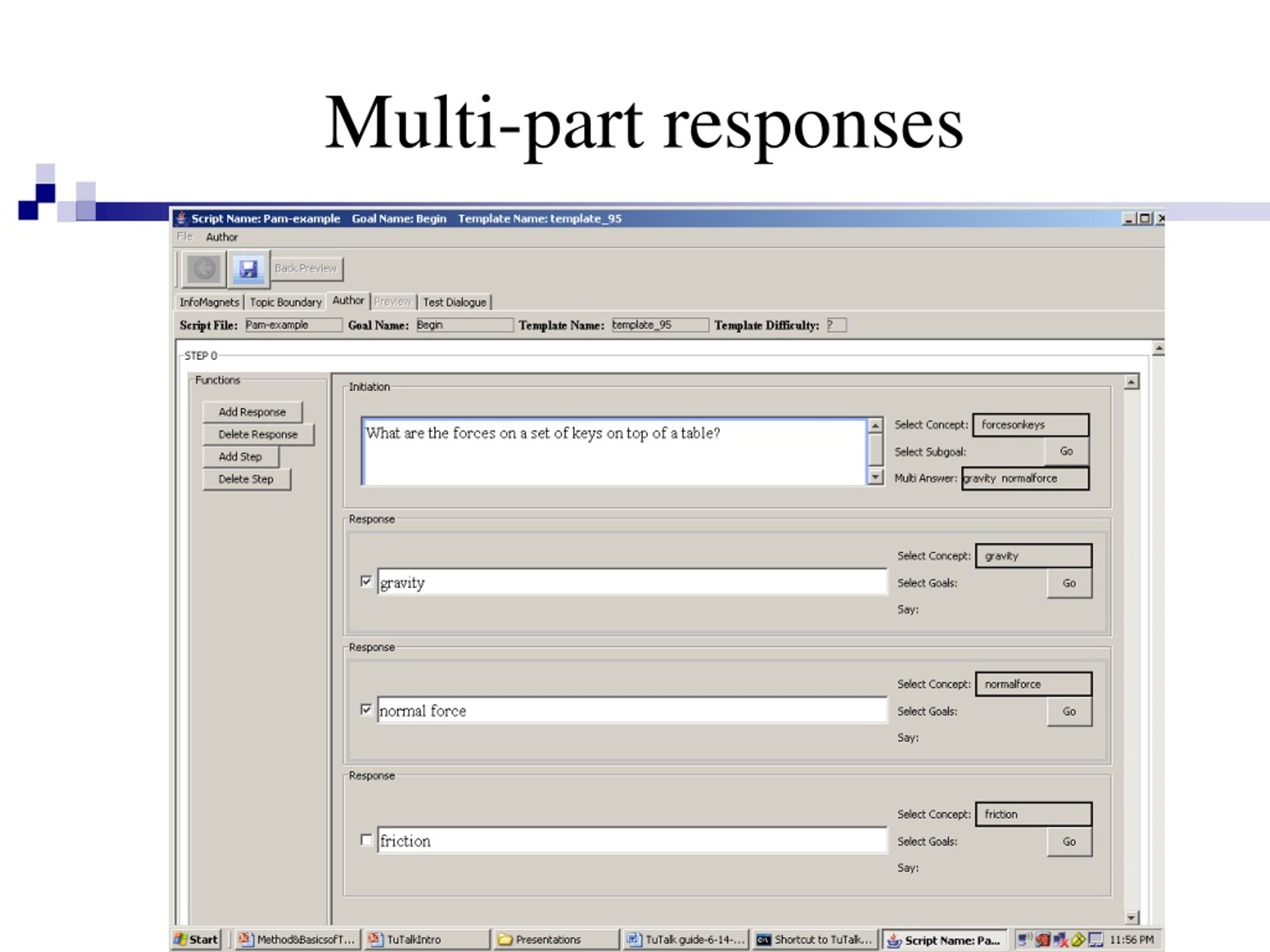

  19. Multi-part responses

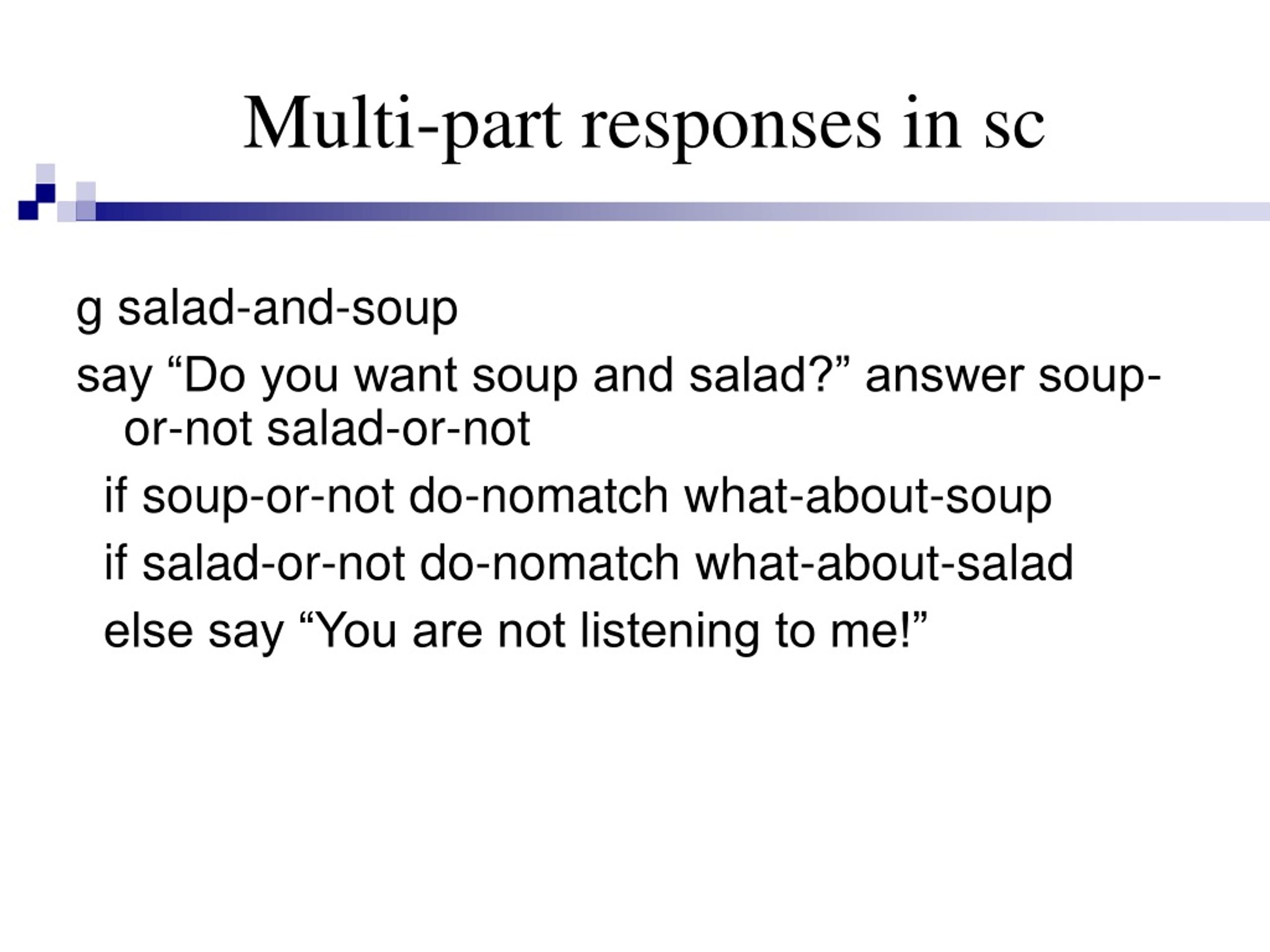

  20. Multi-part responses in sc g salad-and-soup say “Do you want soup and salad?” answer soup-or-not salad-or-not if soup-or-not do-nomatch what-about-soup if salad-or-not do-nomatch what-about-salad else say “You are not listening to me!”

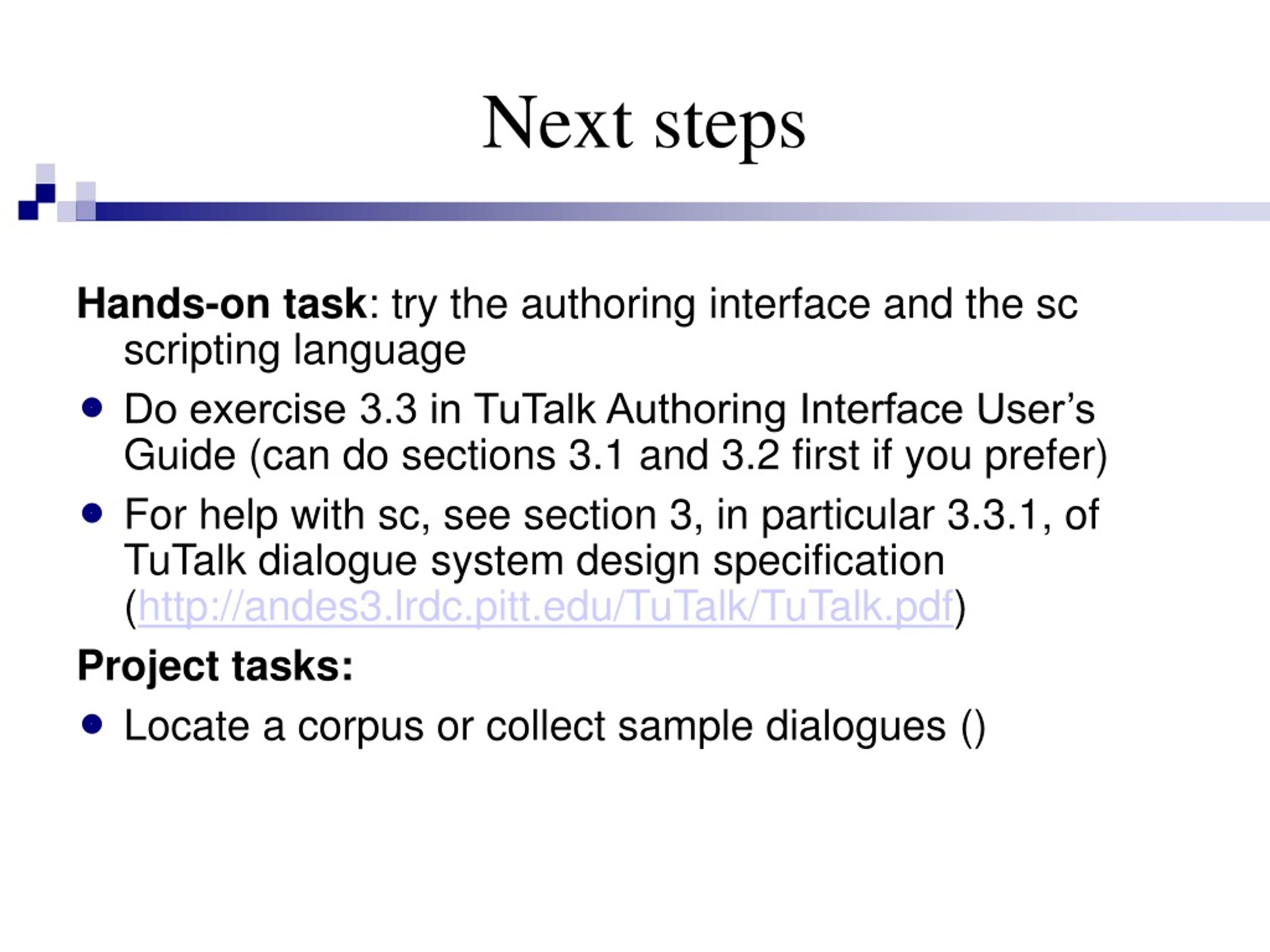

  21. Next steps Hands-on task: try the authoring interface and the sc scripting language • Do exercise 3.3 in TuTalk Authoring Interface User’s Guide (can do sections 3.1 and 3.2 first if you prefer) • For help with sc, see section 3, in particular 3.3.1, of TuTalk dialogue system design specification (http://andes3.lrdc.pitt.edu/TuTalk/TuTalk.pdf) Project tasks: • Locate a corpus or collect sample dialogues ()
