  1. The Earth System Curator Metadata Infrastructure for Climate Modeling Rocky Dunlap Georgia Tech

  2. What is the Earth System Curator? • The goal of Curator is to link climate datasets with a detailed description of the model that ran to produce the dataset • Use cases for climate model metadata • Provenance (history of what happened) • Archival and search (for models and datasets) • Model inter-comparison • Compatibility checking • Generation of coupler components

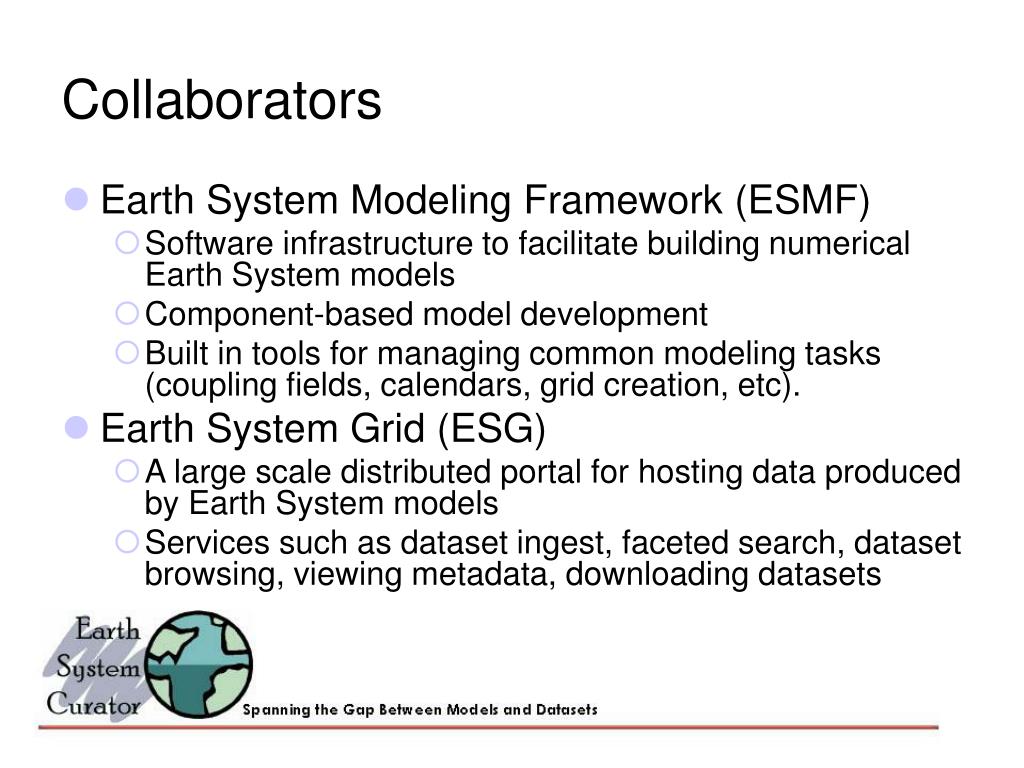

  3. Collaborators • Earth System Modeling Framework (ESMF) • Software infrastructure to facilitate building numerical Earth System models • Component-based model development • Built in tools for managing common modeling tasks (coupling fields, calendars, grid creation, etc). • Earth System Grid (ESG) • A large scale distributed portal for hosting data produced by Earth System models • Services such as dataset ingest, faceted search, dataset browsing, viewing metadata, downloading datasets

  4. Getting Model Metadata into ESG • ESMF modeling components are “self-describing” • Metadata is exported from an ESMF component in XML format • The XML is ingested into ESG and exposed to the data portal • Users discover components and datasets via the portal

  5. Metadata Lifecycle

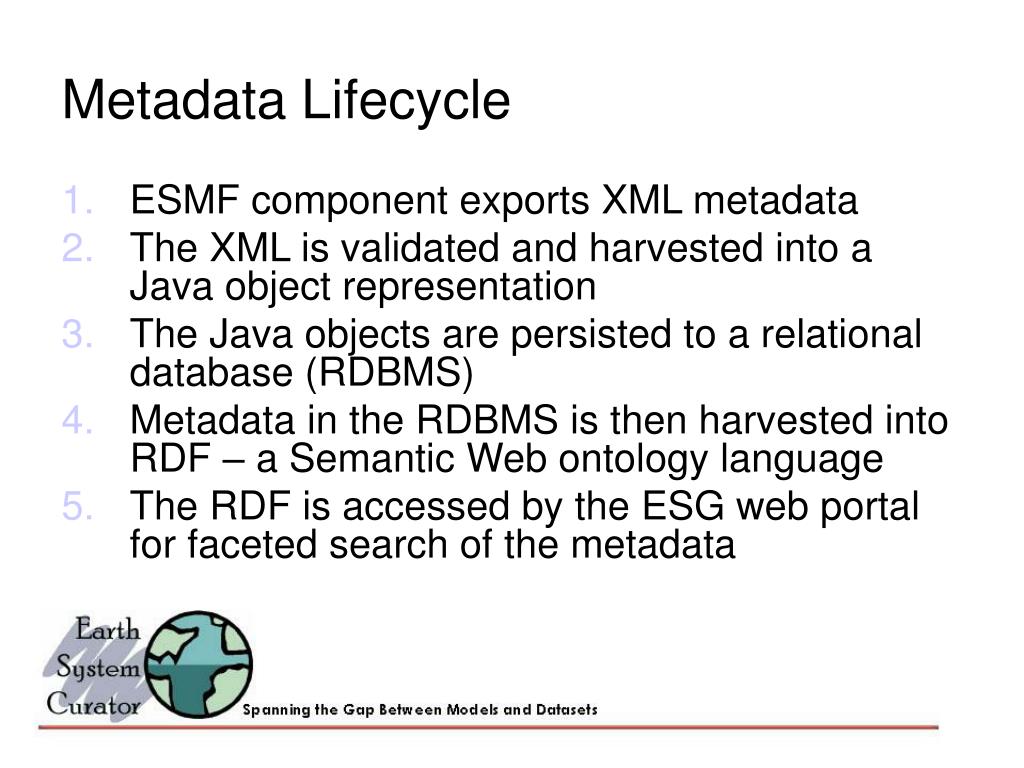

  6. Metadata Lifecycle • ESMF component exports XML metadata • The XML is validated and harvested into a Java object representation • The Java objects are persisted to a relational database (RDBMS) • Metadata in the RDBMS is then harvested into RDF – a Semantic Web ontology language • The RDF is accessed by the ESG web portal for faceted search of the metadata

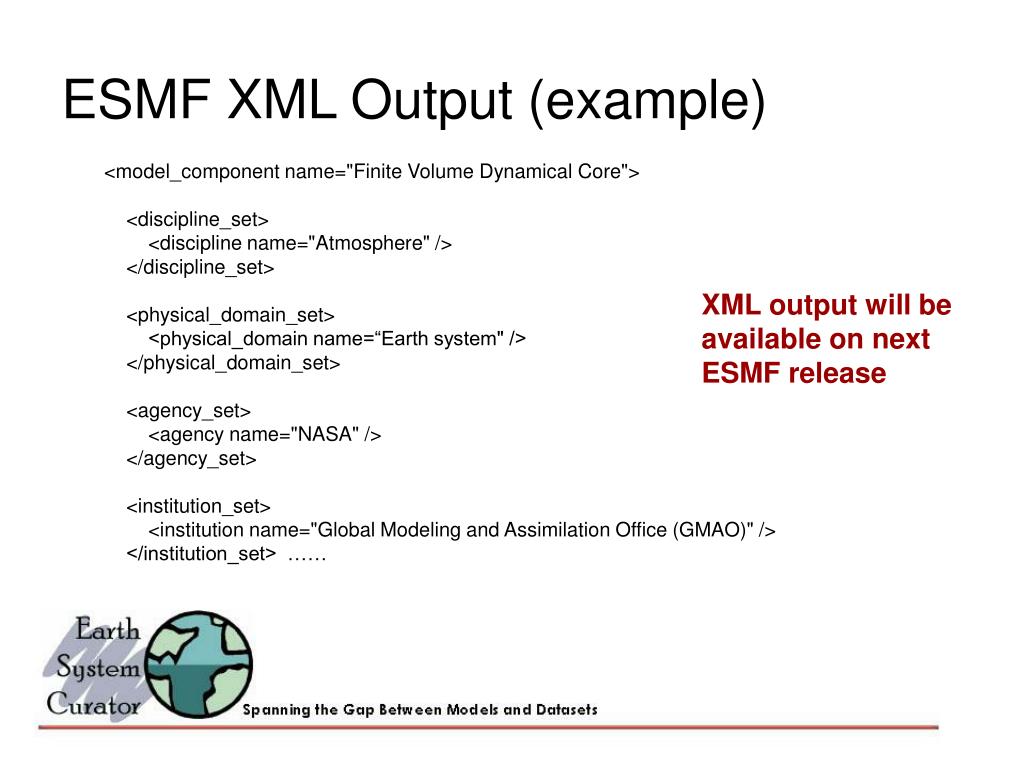

  7. ESMF XML Output (example) <model_component name="Finite Volume Dynamical Core"> <discipline_set> <discipline name="Atmosphere" /> </discipline_set> <physical_domain_set> <physical_domain name=“Earth system" /> </physical_domain_set> <agency_set> <agency name="NASA" /> </agency_set> <institution_set> <institution name="Global Modeling and Assimilation Office (GMAO)" /> </institution_set> …… XML output will be available on next ESMF release

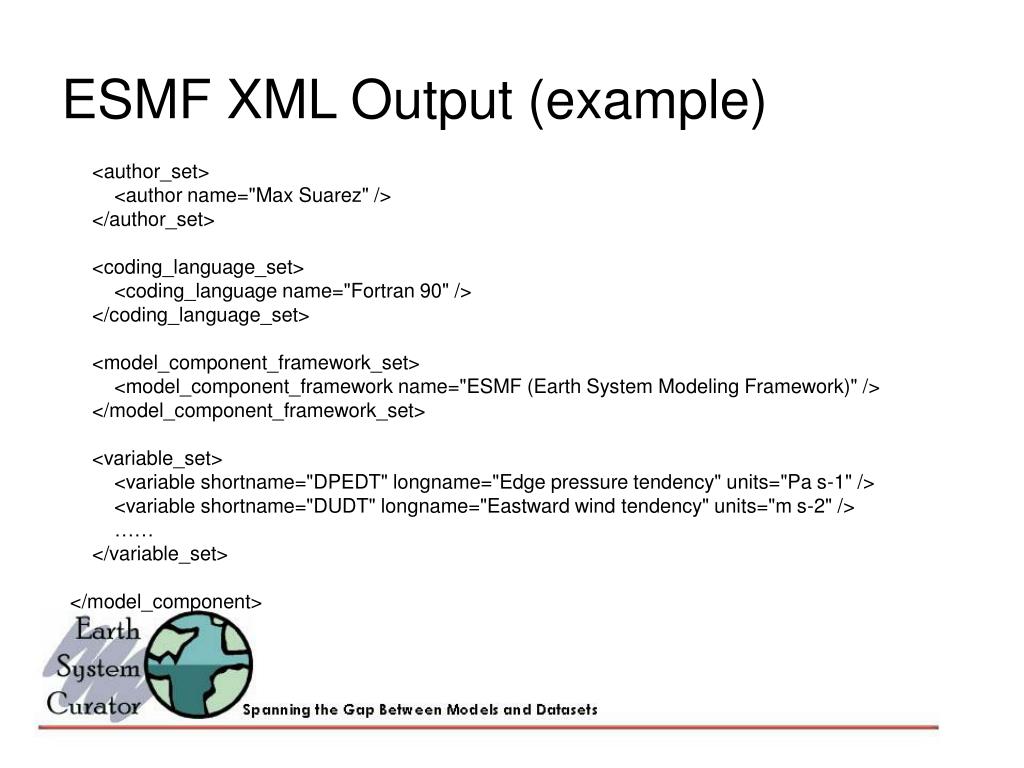

  8. ESMF XML Output (example) <author_set> <author name="Max Suarez" /> </author_set> <coding_language_set> <coding_language name="Fortran 90" /> </coding_language_set> <model_component_framework_set> <model_component_framework name="ESMF (Earth System Modeling Framework)" /> </model_component_framework_set> <variable_set> <variable shortname="DPEDT" longname="Edge pressure tendency" units="Pa s-1" /> <variable shortname="DUDT" longname="Eastward wind tendency" units="m s-2" /> …… </variable_set> </model_component>

  9. Faceted search Harvested component ESG Prototype Data Portal

  10. ESG Prototype Data Portal

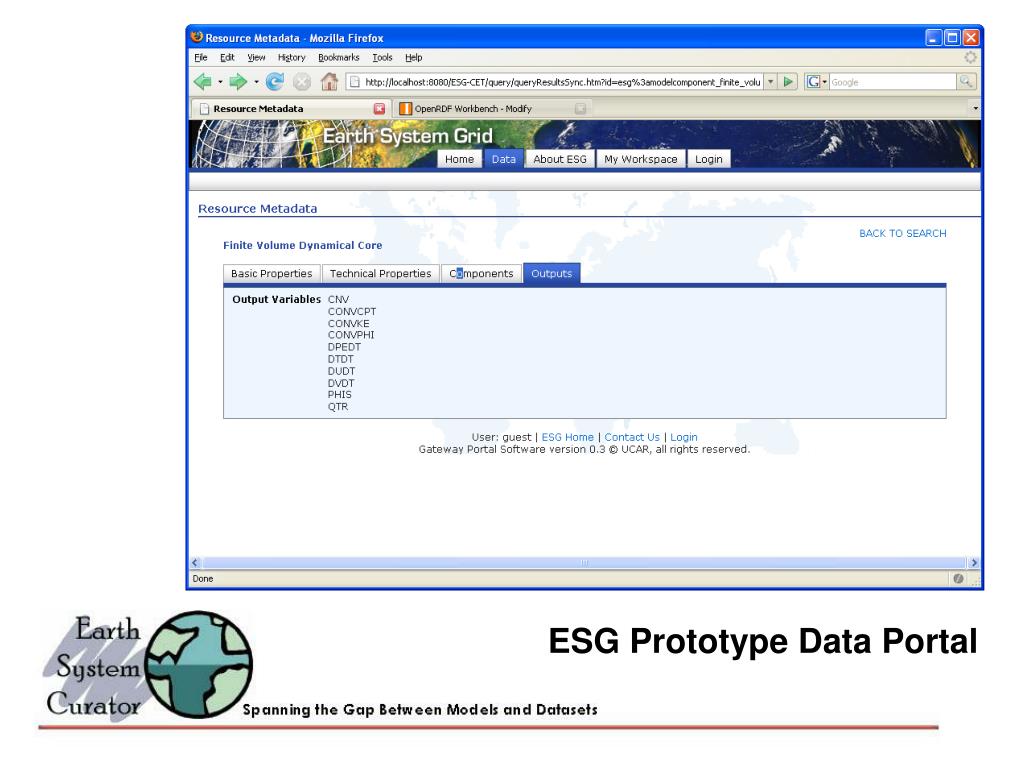

  11. ESG Prototype Data Portal

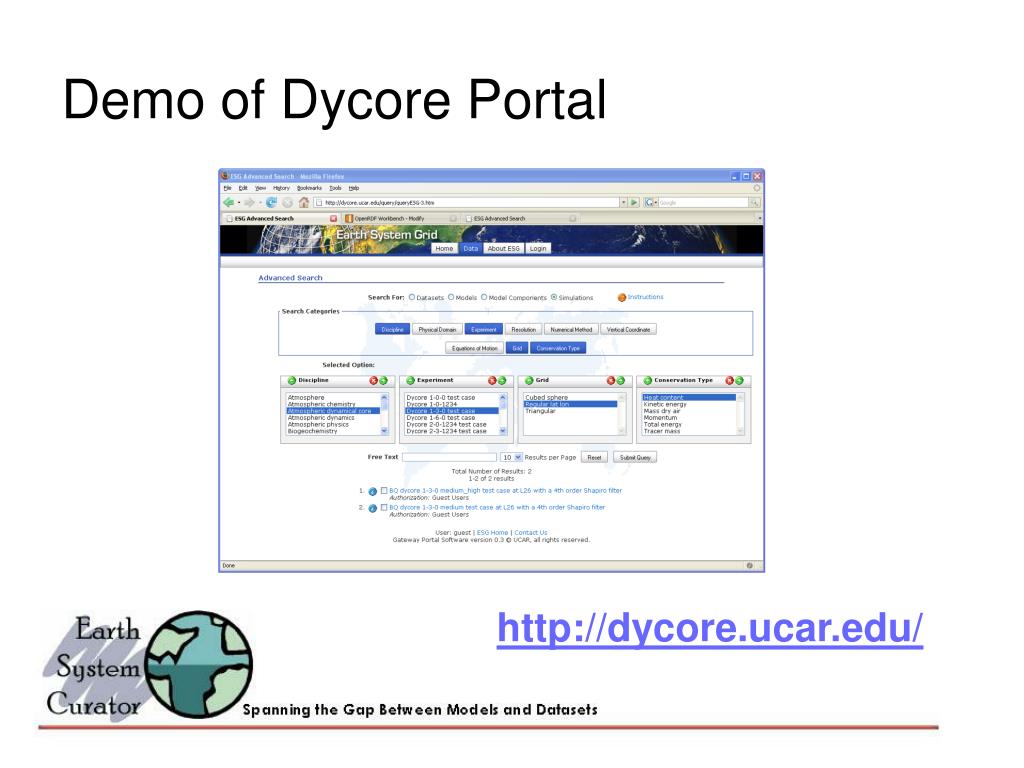

  12. Demo of Dycore Portal http://dycore.ucar.edu/

  13. Technical Challenges Along the Way • Web-based systems often deal with a lot of data formats. This requires lots of translations. • XML  Java objects  relational database  RDF • Collaborative ontology development is challenging. There is a need for both governance structures and tools. • This will continue to affect all areas of e-science

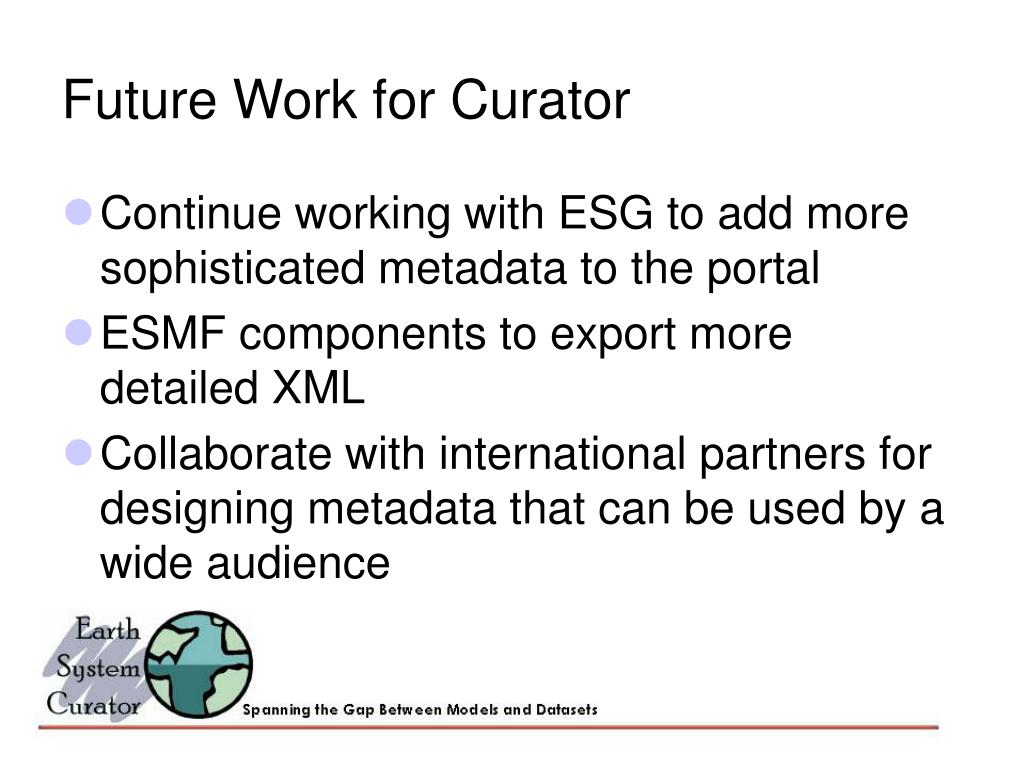

  14. Future Work for Curator • Continue working with ESG to add more sophisticated metadata to the portal • ESMF components to export more detailed XML • Collaborate with international partners for designing metadata that can be used by a wide audience
