Presentation Transcript


Slide1 l.jpg

Haley, N., J. Boreman, and M. Bain. 1996. Juvenile Sturgeon Habitat Use in the Hudson River. Pp. 1-18 in Final Reports of the Tibor T. Polgar FellowshipProgram. Hudson River Foundation, NewYork.Misho BorissovDr. Lin’s Seminar 475For Monday of April


Background continued l.jpg

Background (continued)

  • Oligohaline – intermediate freshwater/saltwater zone

  • Mesohaline – saltwater region


Historical background l.jpg

Historical Background

  • Atlantic Sturgeon

    • Acipenser oxyrinchus

  • Short-nose Sturgeon

    • Acipenser brevirostrum

  • Hudson River

    • History of the Hudson River


  • Experimental background l.jpg

    Experimental Background

    • Tappan Zee Bridge

      To Staatsburg, New York

    • Four Strata used

      • Wide Estuary

      • Highland Gorge

      • Wide River

      • Narrow River


    Additional background l.jpg

    Additional Background

    • Wide Estuary

      • Widest Section of the estuary. Channel of uniform depth

    • Highlands Gorge

      • Narrowest and Deepest section of the estuary.

    • Wide River

      • Widest, freshwater portion of the estuary.

    • Narrow River

      • Region consists of a straight, featureless channel. Channel and river width are nearly equal with very narrow subtidal banks along the shoreline.


    Experimental background continued l.jpg

    Experimental Background(continued)

    • Nets placed @ each stratum

      • Three small nets in hopes of capturing juvenile sturgeon

  • Juvenile terms

    • Atlantic sturgeon

      • Less than 1200 mm

  • Short-nose sturgeon

    • Less than 510 mm


  • Results gathered l.jpg

    Results gathered

    • 57 Juvenile Sturgeon caught

      • 36 wild Atlantic sturgeon

      • 12 Short-nose juvenile sturgeon

      • 09 Stocked Atlantic sturgeon


    Results continued l.jpg

    Results(continued)

    • Total Length (mm) Weight (g)

    • Range Range

  • Short nose404-584 300-1200

  • Atlantic 272-1245 80-4940

  • Stocked 306-659 120-2030


  • Sturgeon distribution l.jpg

    Sturgeon Distribution

    • Distribution amongst the four strata

      • Atlantic sturgeon - Distributed along all four strata

      • Short-nose sturgeon- distributed along all four strata.

      • Stocked sturgeon – found only in the Wide River and the Narrow River strata


    Graph 1 for result 1 l.jpg

    Graph 1 for result # 1


    Graph 2 for result 1 l.jpg

    Graph 2 for Result # 1


    Other experiments within this result l.jpg

    Other experiments within this result

    • Wild Atlantic sturgeon with a length of less than 600 mm was used.

      • Scientists did because of the wide range of distribution between sturgeon

        • They compared the distribution of an Atlantic Sturgeon less than 600 mm with the distribution of the Short-nose and Stocked sturgeon.


    Graph 1 for result 2 l.jpg

    Graph 1 for Result # 2


    Salinity l.jpg

    Salinity

    • Saltiness measured with YSI model 5500 Salinity meter.

      • Short-nose Sturgeon

        • Found mostly in freshwater

    • Atlantic Sturgeon

      • Found mostly in salt water

  • Stocked Sturgeon

    • Found in three zones

      • Found in salty, sweet, and intermediate zones


  • Salinity graph l.jpg

    Salinity Graph


    Salinity graph 2 l.jpg

    Salinity Graph # 2

    • Wild Atlantic Sturgeon

    • Different salinity and

    • temperature measure-

    • ments in HG to see if

    • seasonally-variable

    • characteristics are a factor

    • in surgeon distribution

    • and occurrence

    By following the red line

    At each strata, one would

    Notice that salinity levels

    Stayed nearly constant

    Throughout the summer


    Salinity conclusion all three exhibited different distributions in terms of the salinity level l.jpg

    Salinity conclusion – All three exhibited different distributions in terms of the salinity level.

    • Distribution according to saltiness

      • Short-nose Sturgeon

        • As reported, short-nose sturgeons were found primarily in the freshwater region

      • Atlantic Sturgeon

        • These were found primarily in the saltwater region

      • Stocked Sturgeon

        • These were found in the intermediate zones


    Silt sand gravel l.jpg

    Silt, Sand, & Gravel

    • Silt

      • Rock and Soil

  • Sand

  • Gravel

    • Stone and Sand


  • Silt sand gravel19 l.jpg

    Silt, Sand, & Gravel

    SUBSTRATE% of Effort SNS ASSS

    silt80.4 11 34 9

    sand17.4 1 2 0

    gravel2.3 0 0 0

    significance 1.03 4.612.20


    Depth and temperature l.jpg

    Depth and Temperature

    • Temperature and Depth Measurement

      • Measured with YSI Model 5500 Temperature meter and depth

    Depth Temp. (July)Temp (Aug)

    Short-nose17.324.227.5

    Atlantic22.82726.6

    Stocked16.6(around)2626.9


    Frequency of occurrence l.jpg

    Frequency of Occurrence

    • Sampled Depths to see in which range the sturgeon would appear.

      • Different depths were taken into consideration as well as which sturgeon was caught in that respective depth

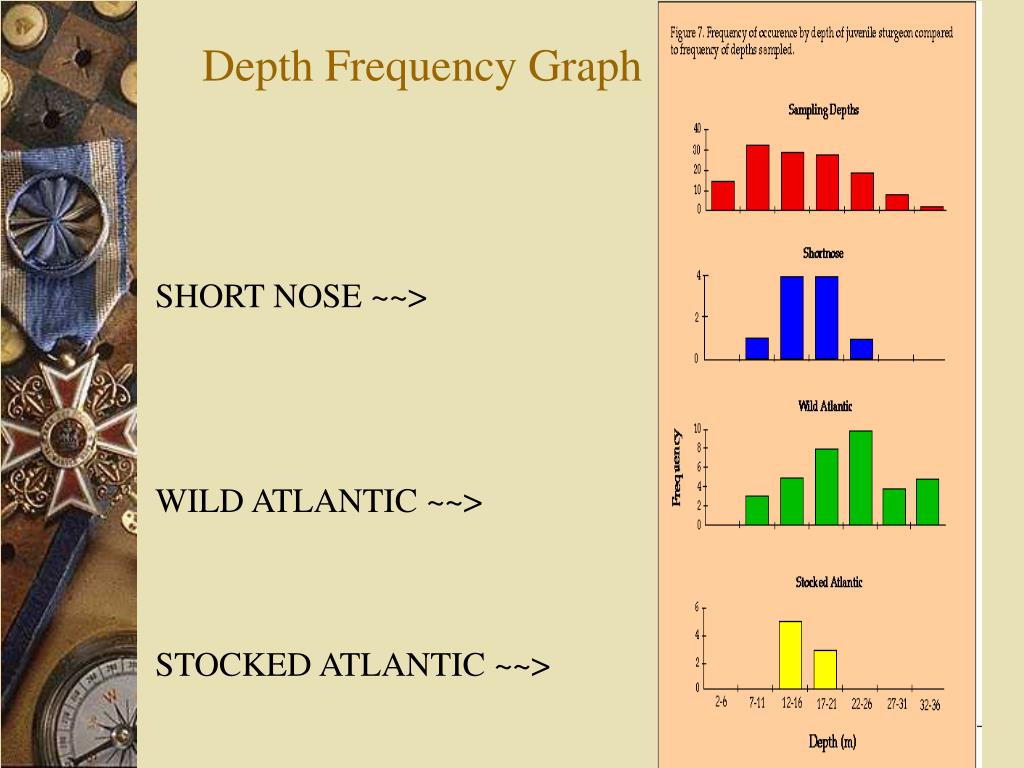

    Depth frequency graph l.jpg

    Depth Frequency Graph

    SHORT NOSE ~~>

    WILD ATLANTIC ~~>

    STOCKED ATLANTIC ~~>


    Finale l.jpg

    Finale

    • The Wild Atlantic Sturgeon were primarily in the Highlands Gorge stratum (deep salty region)

    • The Short nose Sturgeon were primarily found in the Narrow River stratum (freshwater zone)

    • In saltier regions, AS outnumber SNS by 10:1, while in freshwater regions, that ratio is reversed, thus concluding that freshwater/saltwater boundary may serve as an ecological barrier between these two species.
