PRODUCTION OF SILICON CARBIDE NANOWIRES BY INDUCTION HEATING

Kendra L. Wallis

June 2006


Overview

  • Introduction

  • SiC and Chemical Kinetics

  • Induction Heating

  • Testing and Use of Equipment

  • Reaction Kinetics of SiC Nanowires

  • Elimination of Excess Reactants

  • Conclusions

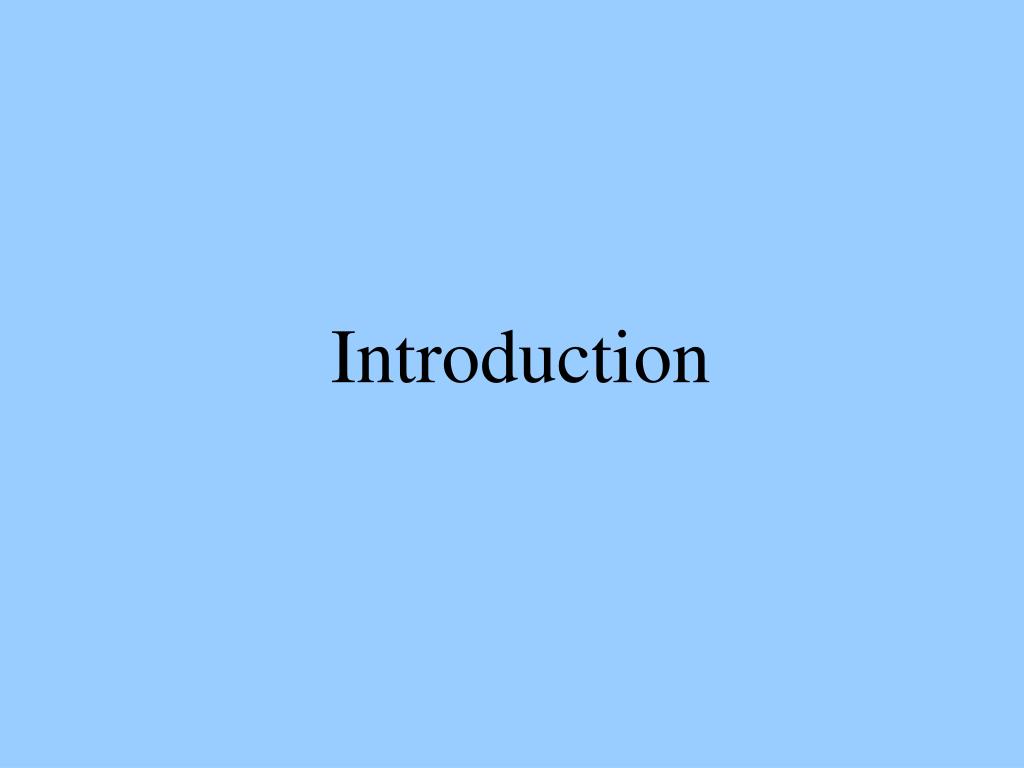

Introduction


Nano-structure Research

  • Hot topic today—nanostructured materials research

  • Improved physical properties

  • Flexibility of designing materials from nanoblocks

  • Nanocomposites—combination of 2 or more phases, 1 or more is nano-size

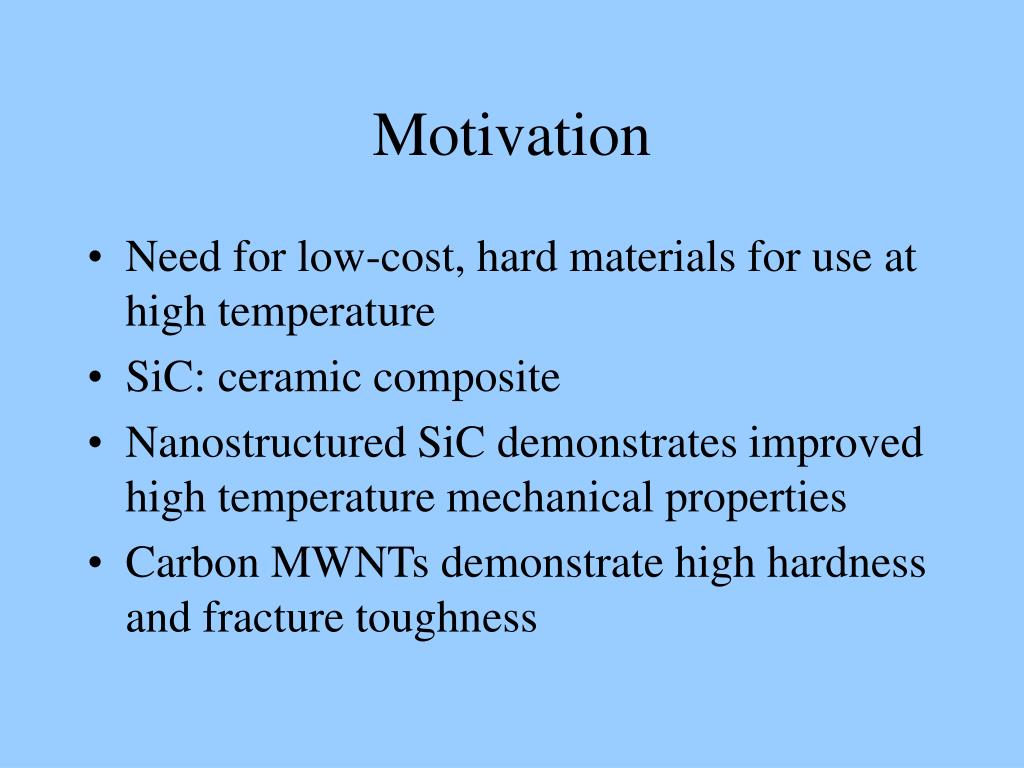

Motivation

  • Need for low-cost, hard materials for use at high temperature

  • SiC: ceramic composite

  • Nanostructured SiC demonstrates improved high temperature mechanical properties

  • Carbon MWNTs demonstrate high hardness and fracture toughness

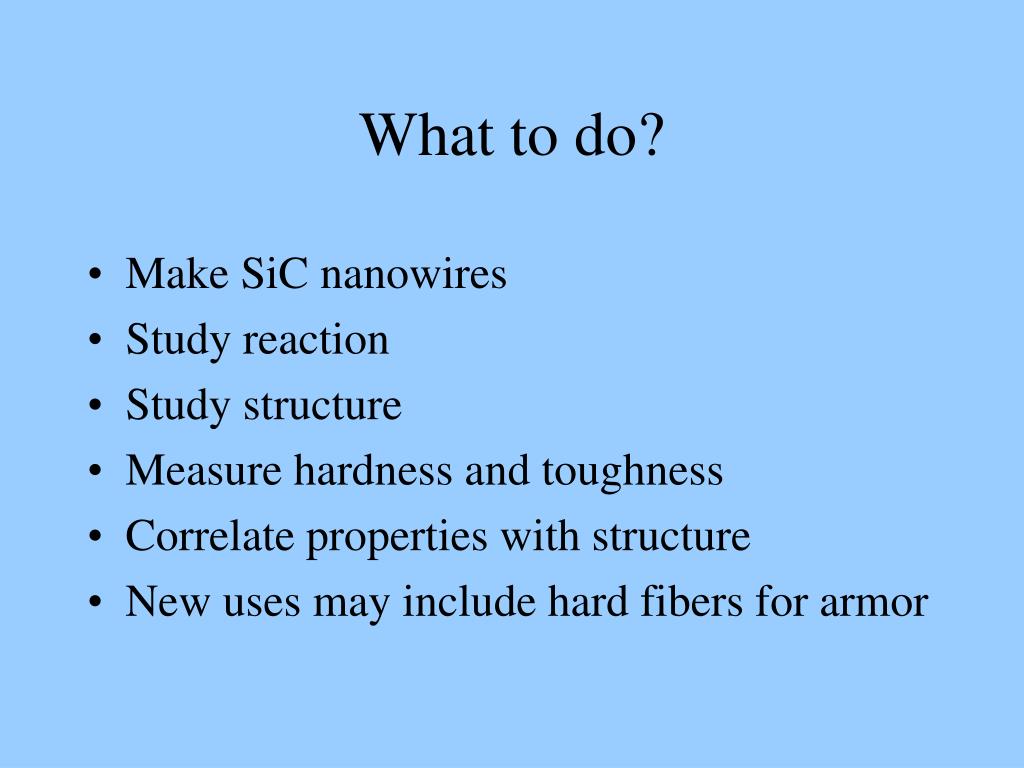

What to do?

  • Make SiC nanowires

  • Study reaction

  • Study structure

  • Measure hardness and toughness

  • Correlate properties with structure

  • New uses may include hard fibers for armor


SiC and Chemical Kinetics

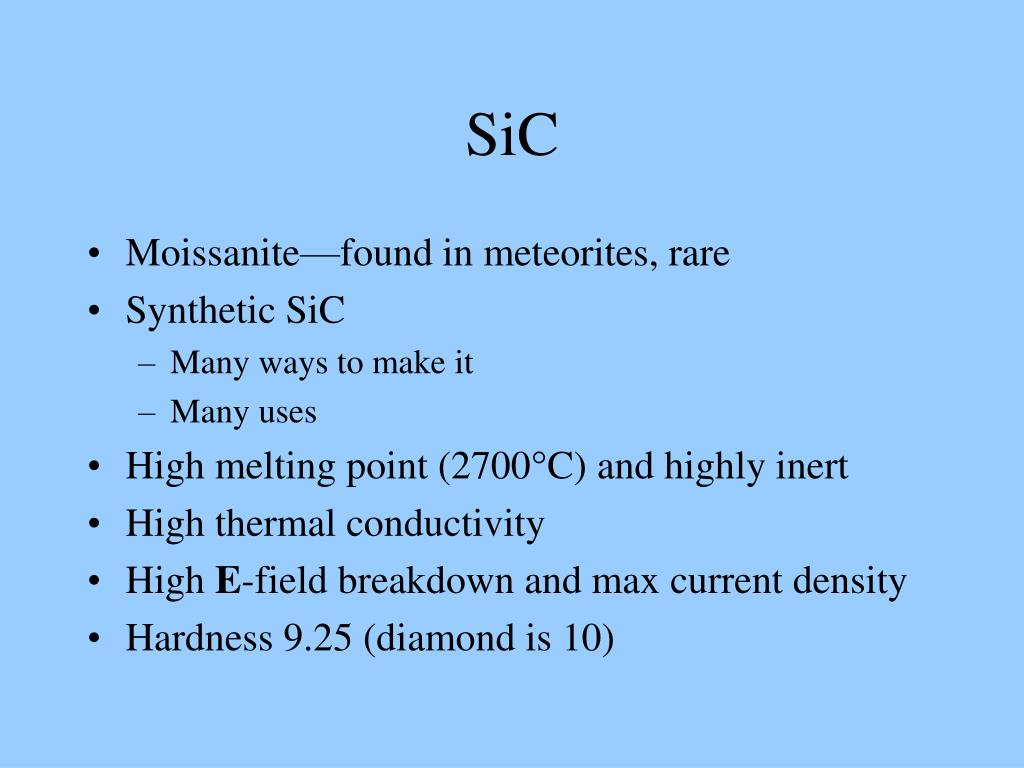

SiC

  • Moissanite—found in meteorites, rare

  • Synthetic SiC

    • Many ways to make it

    • Many uses

  • High melting point (2700°C) and highly inert

  • High thermal conductivity

  • High E-field breakdown and max current density

  • Hardness 9.25 (diamond is 10)


Reaction Kinetics in Solids

  • Product forms between reactants

  • One reactant passes through product barrier phase

  • Product layer grows, diffusion takes longer

  • Reaction at interface

    • Diffusion controlled

    • Nucleation controlled

Si

SiC

CNT

Si diffuses through SiC product barrier phase


Reaction Rate

  • Chemical reaction

  • Rate of increase of product

  • Measure reaction rate for several temperatures

  • Fit to theoretical model to find reaction mechanism


General Rate Law

 = fractional remains of reactant; k = rate constant

Summary of ModelsExpected Values of n


Activation Energy

  • Energy required to initiate process

  • Arrhenius equation

    Rate constant k at temperature T

    R = universal gas constant

    E = activation energy

    A = constant

  • Plot ln k vs. 1/T to find E

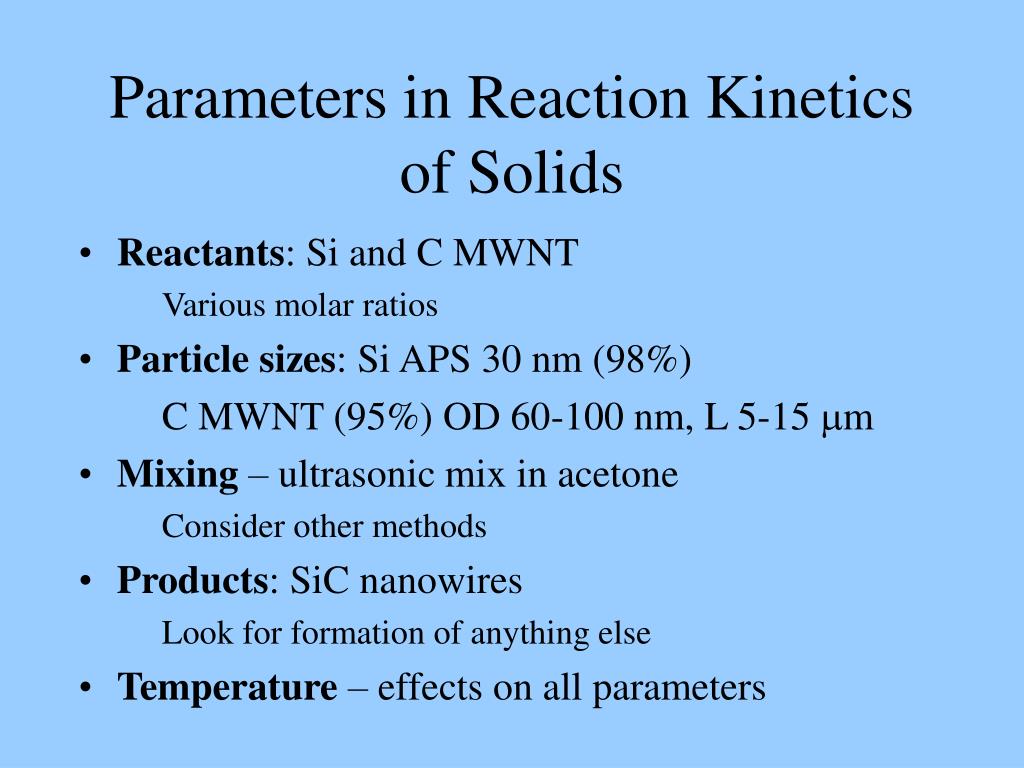

Parameters in Reaction Kinetics of Solids

  • Reactants: Si and C MWNT

    Various molar ratios

  • Particle sizes: Si APS 30 nm (98%)

    C MWNT (95%) OD 60-100 nm, L 5-15 m

  • Mixing – ultrasonic mix in acetone

    Consider other methods

  • Products: SiC nanowires

    Look for formation of anything else

  • Temperature – effects on all parameters


Nano-particle Reactants

  • Particle size affects:

    • Reaction rate

    • Physical properties

    • Mechanical properties

  • Decrease particle size—increases surface area, which may explain enhanced hardness

  • Create product with small grain size


Carbon MWNT

  • One-dimensional system

  • Carbon (1s22s22p2) has 4 valence electrons

  • In 2-D, sp2 hybridization forms graphite

  • Nanotubes exhibit sp2 hybridization – but cylindrical not planar

  • Graphene sheet of 6-member C rings in honeycomb lattice

  • Multiple concentric cylindrical shells with common axis

  • Each shell is cylindrical graphene sheet, d = 1 to 10 nm


Induction Heating

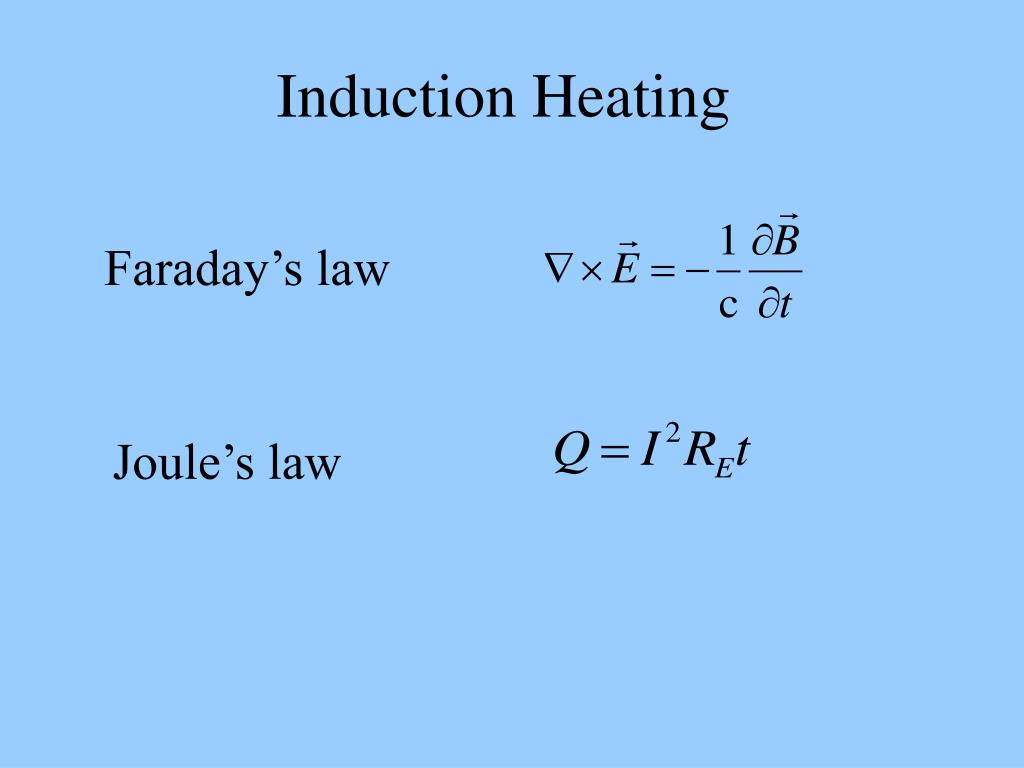

Induction Heating

Faraday’s law

Joule’s law

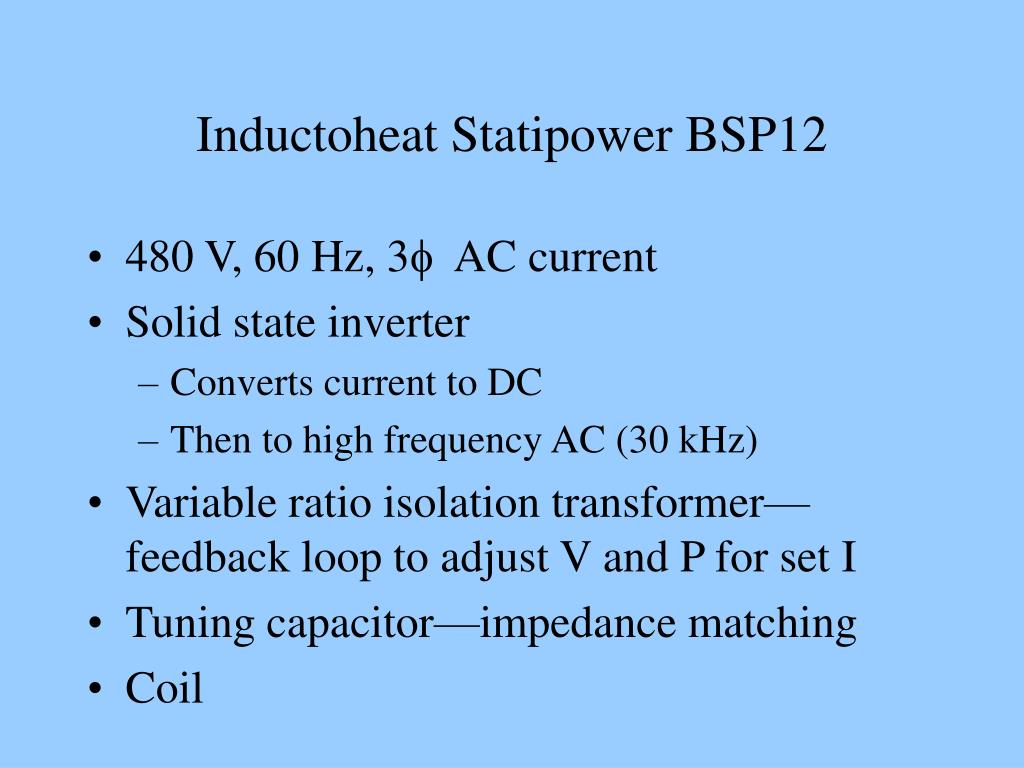

Inductoheat Statipower BSP12

  • 480 V, 60 Hz, 3f AC current

  • Solid state inverter

    • Converts current to DC

    • Then to high frequency AC (30 kHz)

  • Variable ratio isolation transformer—feedback loop to adjust V and P for set I

  • Tuning capacitor—impedance matching

  • Coil

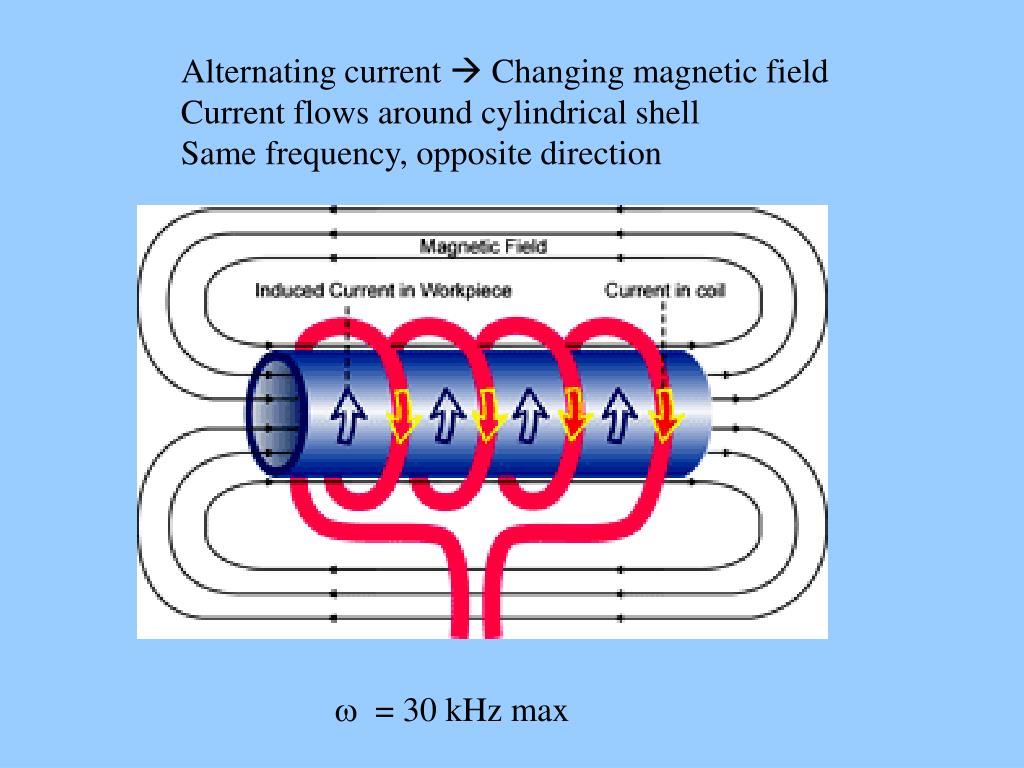

Induction Furnace

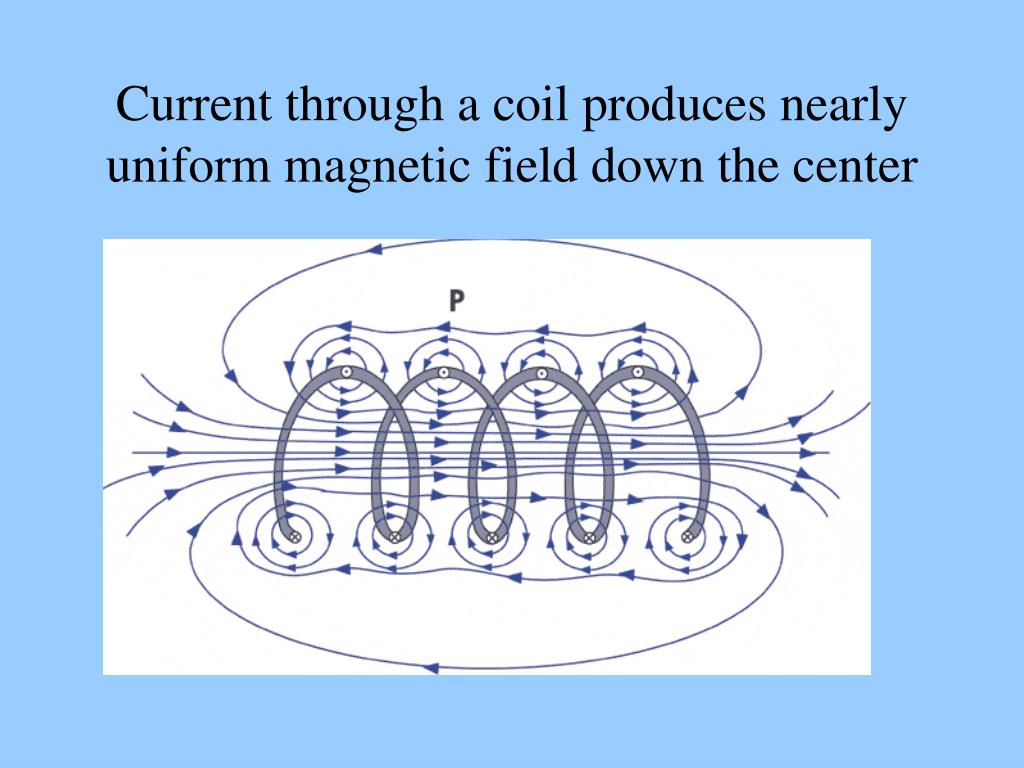

Current through a coil produces nearly uniform magnetic field down the center


Alternating current  Changing magnetic field Current flows around cylindrical shellSame frequency, opposite direction

 = 30 kHz max


End View of Cylindrical Shell

  • R = inner radius

  • d = wall thickness

  •  = skin depth

  • d0 = screening depth

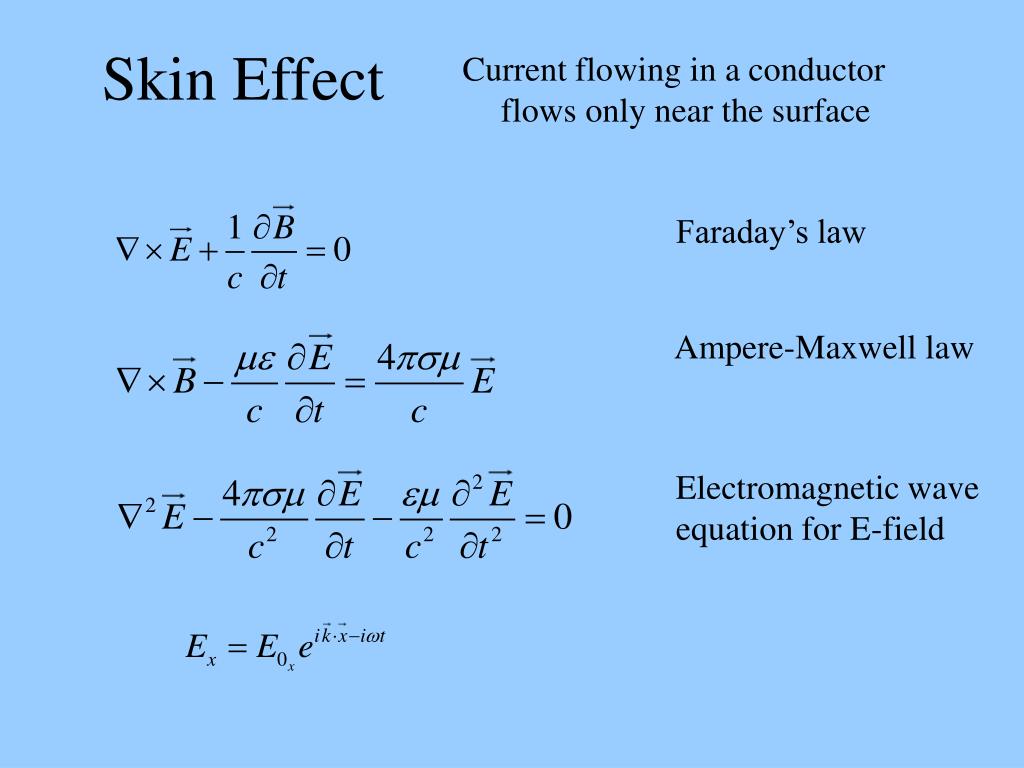

Skin Effect

Faraday’s law

Current flowing in a conductor flows only near the surface

Ampere-Maxwell law

Electromagnetic wave equation for E-field


Complex wave number k

Substitute solution into wave equation


For a good conductor

Plane wave includes periodicity in time and space plus damping term in space

attenuation factor


Skin depth

For a wave traveling in the z-direction:

e-folding distance

skin depth

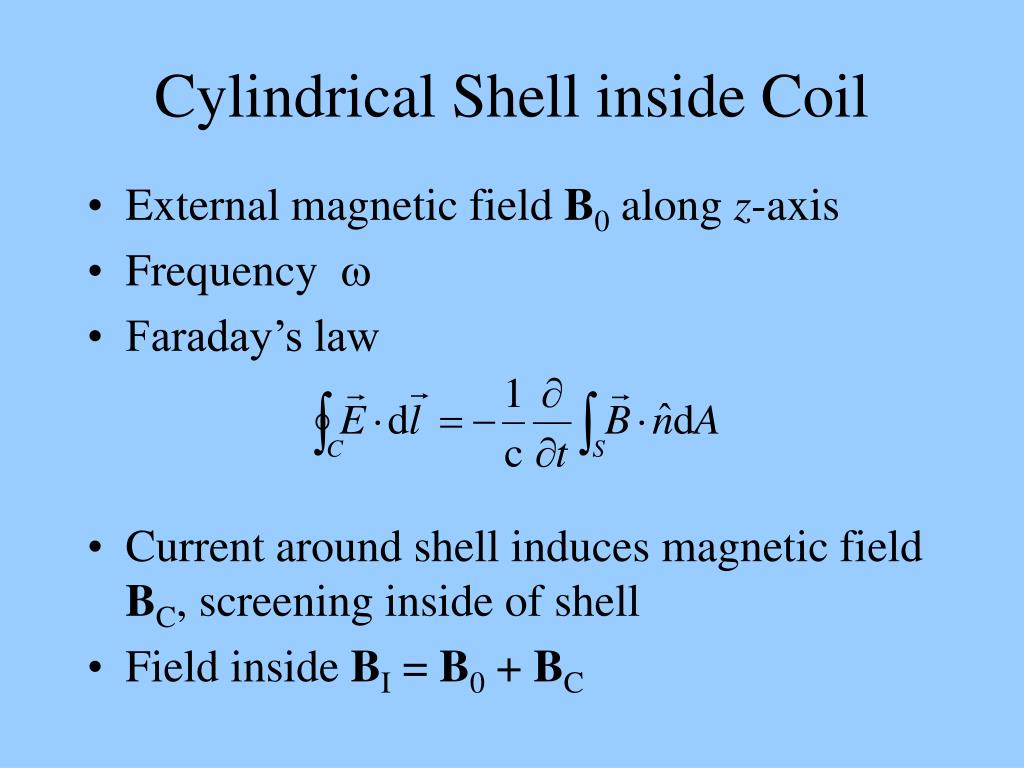

Cylindrical Shell inside Coil

  • External magnetic field B0 along z-axis

  • Frequency 

  • Faraday’s law

  • Current around shell induces magnetic field BC, screening inside of shell

  • Field inside BI = B0 + BC


Screening Depth

  • Derived by Fahy, et al.1

  • Screening factor – ratio of field at inner wall to applied field

  • Induced current falls off toward center as function of wall thickness

  • Interior screened when d > d0 where

1Fahy S., Kittel, C., Louie, S., Am. J. Phys. 56 (11) 1998 989


Screening of external field Bout by cylindrical shell, radius R, wall thickness d in units of 2 / R, where  is skin depth

d = d0 Bin = 0.7 Bout

d =2 d0 Bin < ½ Bout


Heat Generated by Resistive Losses

Joule’s law

Current density

Current flows around shell,  area element dr dz

Total current

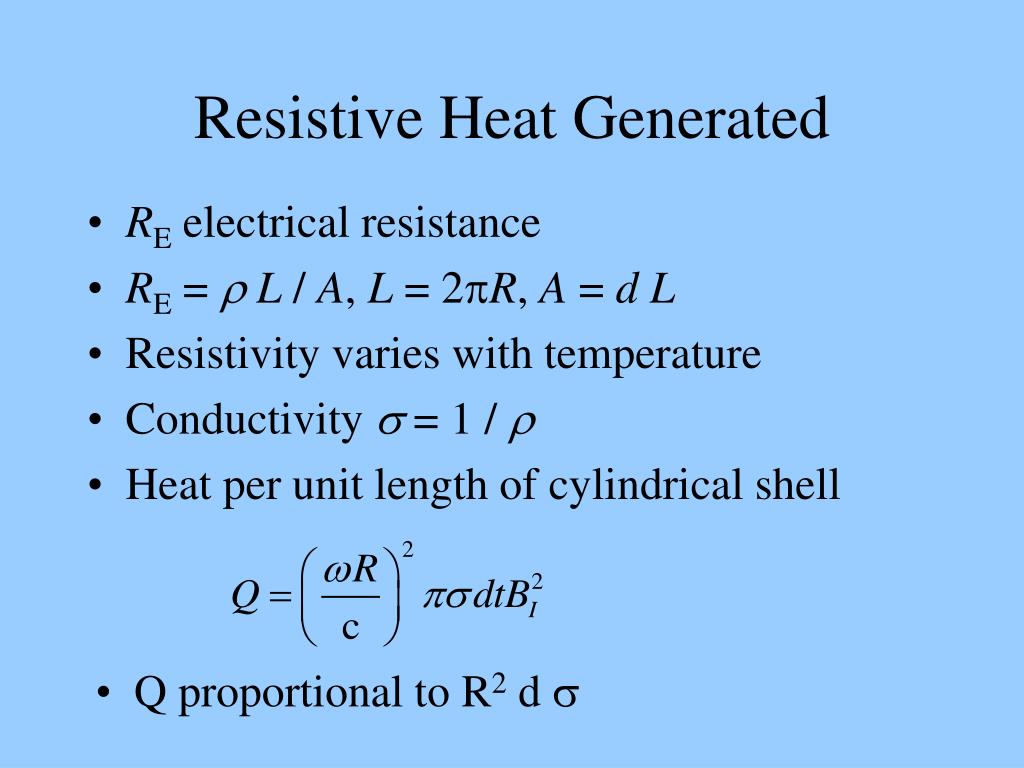

Resistive Heat Generated

  • RE electrical resistance

  • RE =  L / A, L = 2R, A = d L

  • Resistivity varies with temperature

  • Conductivity  = 1 / 

  • Heat per unit length of cylindrical shell

  • Q proportional to R2 d 


Testing andUse of Equipment


Testing and Use of Equipment

  • Induction furnace

    • 25 kW maximum power

    • 30 kHz frequency

  • Repeatable and consistent heating pattern

  • Heats quickly—measure accurate reaction time

  • Safe and efficient

  • Non-polluting, environmentally friendly

  • Non-conducting material not affected


Graphite Crucible at 1400C

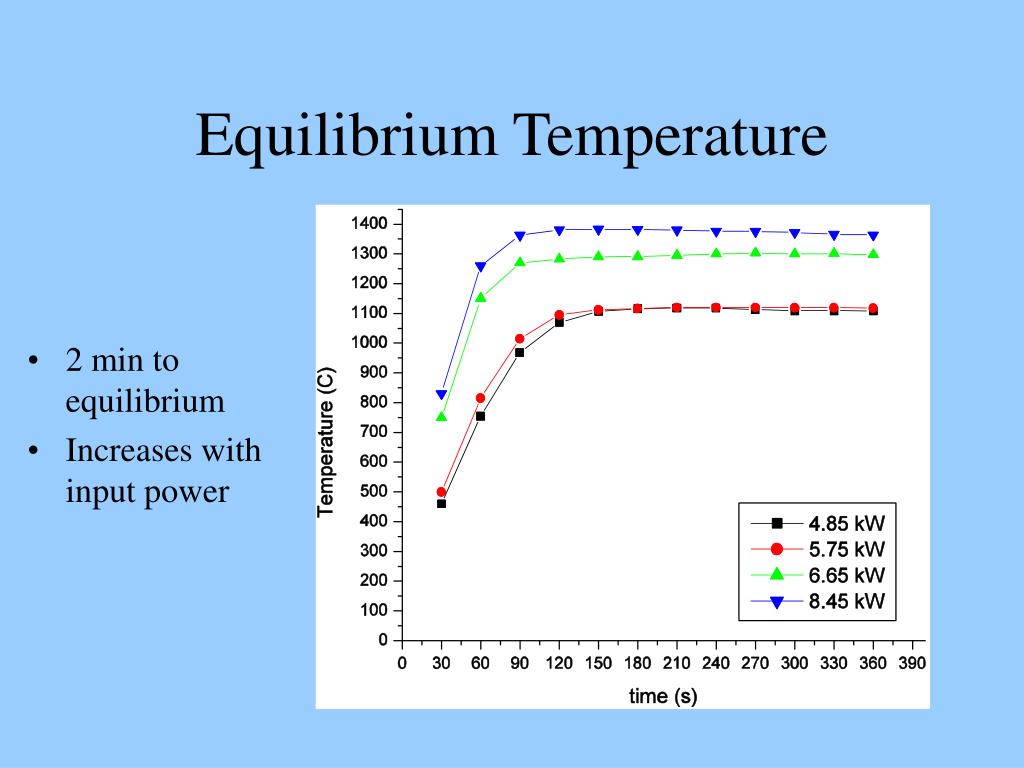

Equilibrium Temperature

  • 2 min to equilibrium

  • Increases with input power

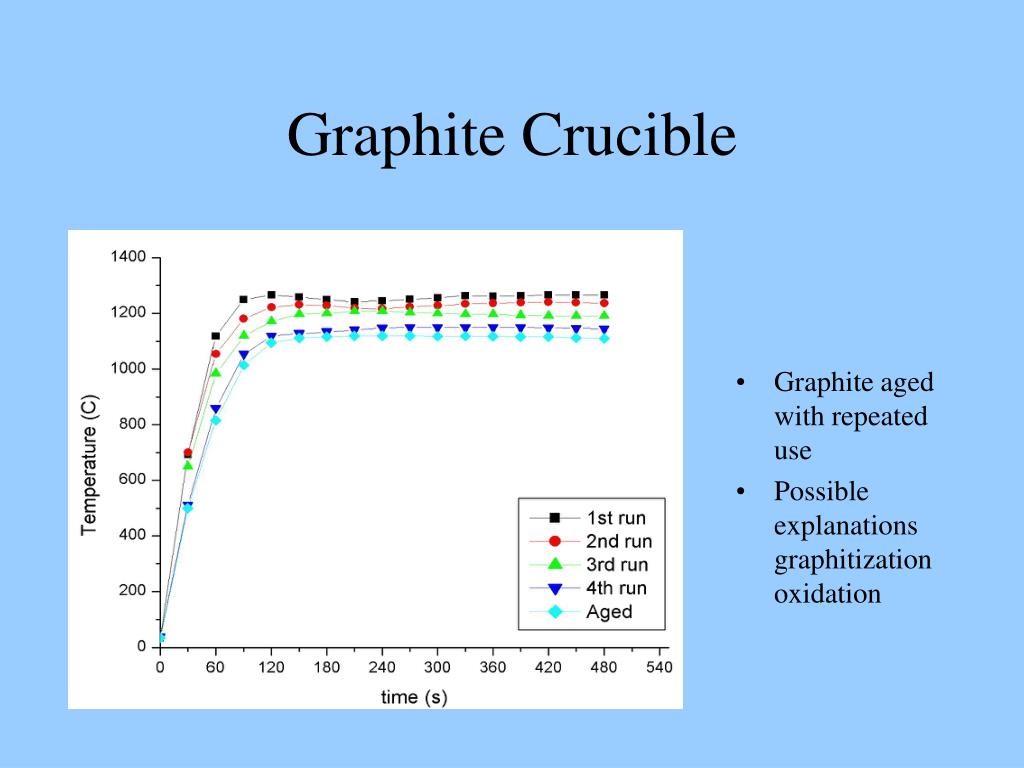

Graphite Crucible

  • Graphite aged with repeated use

  • Possible explanations graphitization oxidation


Atmosphere

  • Heated in nitrogen

  • Change in equilibrium temperature reduced-not eliminated

  • Rate of heating reduced

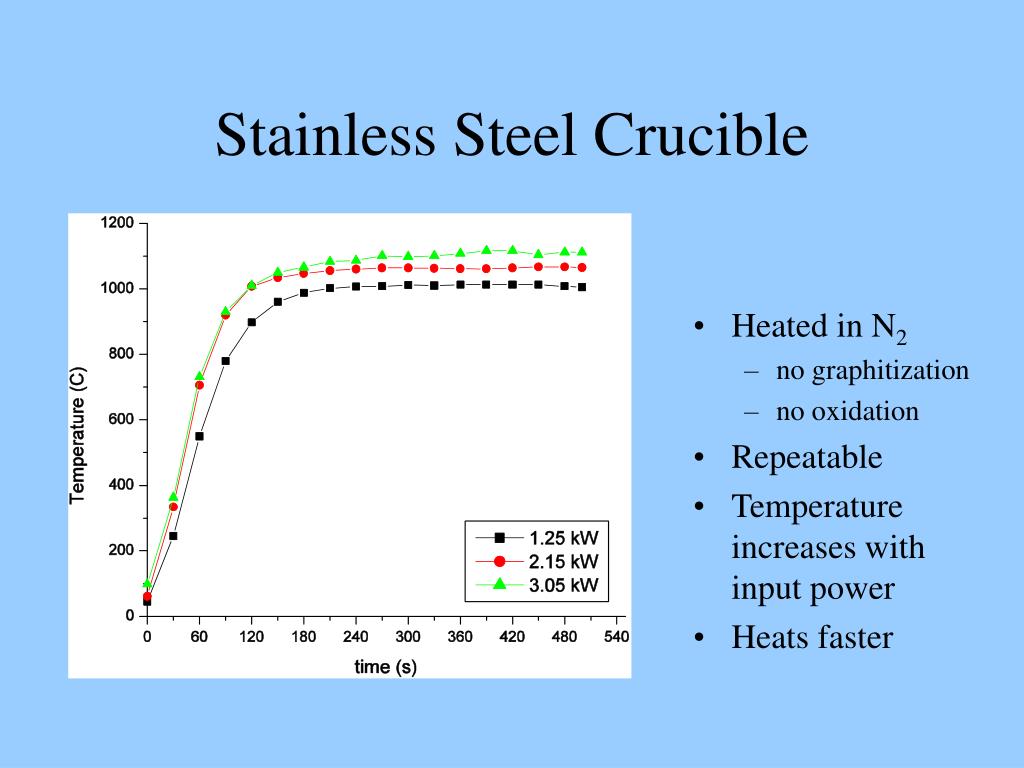

Stainless Steel Crucible

  • Heated in N2

    • no graphitization

    • no oxidation

  • Repeatable

  • Temperature increases with input power

  • Heats faster

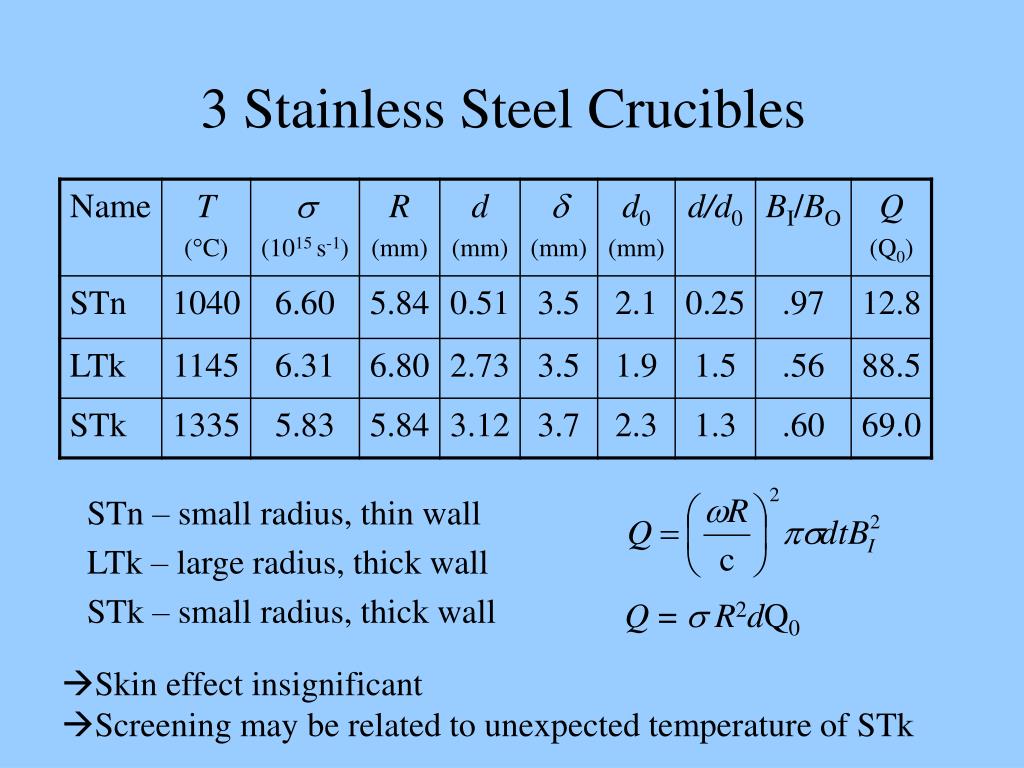

3 Stainless Steel Crucibles

STn – small radius, thin wall

LTk – large radius, thick wall

STk – small radius, thick wall

Q = R2dQ0

  • Skin effect insignificant

  • Screening may be related to unexpected temperature of STk


Reaction Kineticsof SiC Nanowires


Reaction Kinetics

  • Requires knowledge of quantity of product and/or quantity of reactant remaining as function of time

  • Determine mass concentration of SiC product to remaining Si + SiC

  • Correlation between XRD peak intensity and mass concentration determined experimentally by Pantea and confirmed here


y = 0.36x2 + 0.64x


Reaction TimeFast heating and cooling reduce error

uncertainty (20s)

uncertainty (10s)

Reaction time


Reaction Rate

  • General Rate Law

  • Find rate constant k and parameter n for different temperatures

  • Calculate SiC concentration  from measured XRD peak intensities

  • Measure sintering time


Concentration v TimeFit to General Reaction Rate Law= 1 – exp [ - (kt)n]


k and n

  • k = 7.6 x 10-6+/- 5 x 10-6

  • n = 0.46 +/- 0.05

  • Refer to Table of Rate Laws

    • Suggests diffusion-controlled 1-dimensional growth with decelerating nucleation rate

  • Data at more temperatures will give better understanding of reaction mechanism


Elimination of Excess Reactants

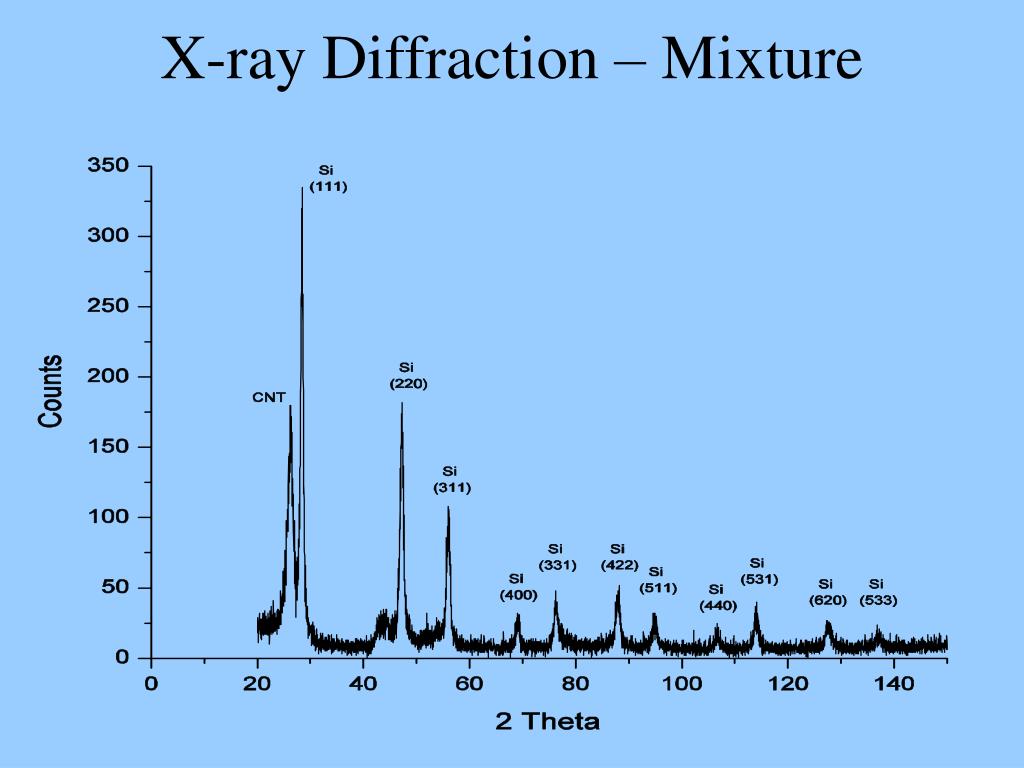

X-ray Diffraction – Mixture


XRD Characteristic Peaks

Identity 2 

  • C MWNT26.28

  • Si (111)28.44

  • SiC (111)35.74

  • Si (220)47.35

  • SiC (220)60.02

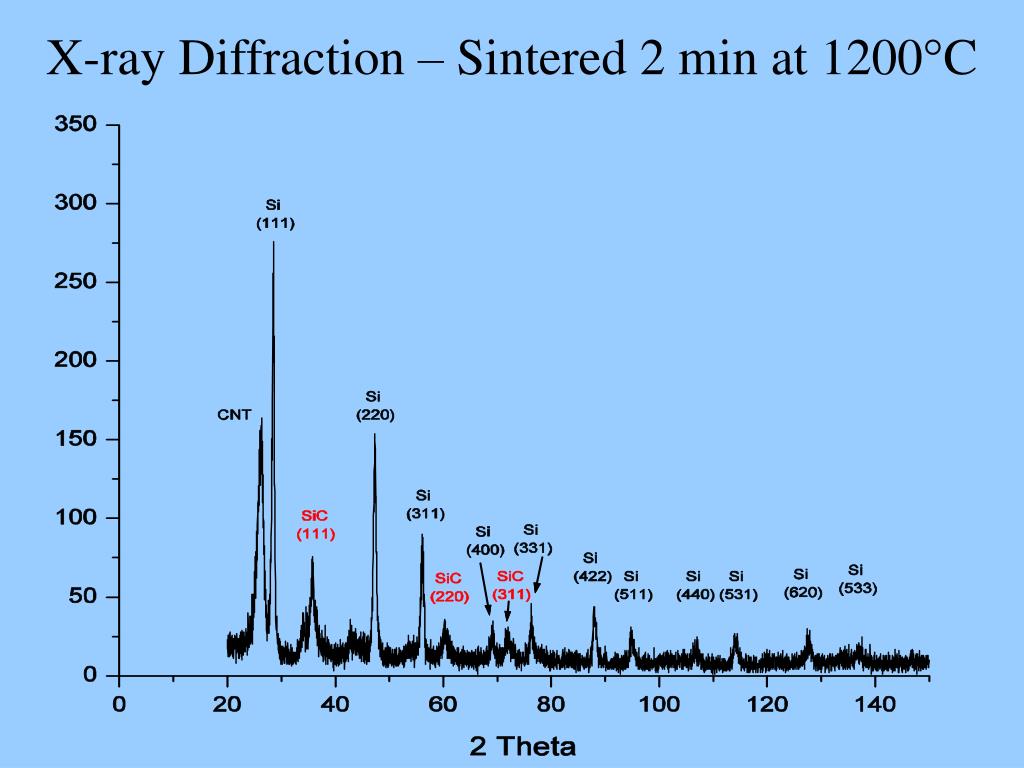

X-ray Diffraction – Sintered 2 min at 1200°C


X-ray Diffraction – Burned 2 hr at 700°C


X-ray Diffraction – Washed in KOH


Conclusions


Conclusions

  • Induction heating—safe and efficient method of producing nanostructured SiC

  • Oxygen-free environment preferred

  • Material and geometry of crucible should be considered

  • Reaction rate constant at 1040 °C suggests diffusion-controlled 1-dimensional growth with decelerating nucleation rate

  • Burning in air, washing with KOH—safe and efficient method of purification


Future Work

  • Activation energy—explain reaction mechanism

  • Nanostructure of SiC nanowires

    • X-ray (grain size and strain)

    • Raman (grain size and strain)

    • TEM (nanowires)

  • Mechanical properties

  • Correlation between mechanical properties and structure

  • SiC nanograss
