Network guide to networks 5 th edition

Network+ Guide to Networks5th Edition

Network Operating Systems


Objectives

Objectives

  • Describe characteristics common to all NOSs (network operating systems)

  • Compare and evaluate NOSs to select the right one for your Network

  • Define the requirements for and features of the Windows Server 2008 NOS

  • Define the requirements for and features of UNIX and Linux NOSs

  • Create users and groups and assign file permissions on systems running Windows Server 2008 and UNIX

Network+ Guide to Networks, 5th Edition


Characteristics of network operating systems

Characteristics of Network Operating Systems

  • Based on client/server architecture

  • NOS manages resource sharing

  • NOS provides many other functions

    • Some built in

    • Some configured at installation

      • Default, customizable settings

  • NOS components vary by NOS version and type

Network+ Guide to Networks, 5th Edition


Network operating systems and servers

Network Operating Systems and Servers

  • Networks use servers exceeding minimum hardware

  • Determining optimal server hardware

    • Questions

      • What kinds of applications will run on the server?

      • How many clients will connect to the server?

      • How much storage space will each user need?

      • How much downtime, if any, is acceptable?

      • What can the organization afford?

Network+ Guide to Networks, 5th Edition


Network operating systems and servers cont d

Network Operating Systems and Servers (cont’d.)

  • Determining optimal server hardware (cont’d.)

    • Applications influence:

      • Type of application

      • Resources used

      • Processing burden

    • Vendor reputation requirements

      • High quality, dependability, excellent technical support

  • Reliable server

    • Spend as much as necessary

      • Component failure: widespread effects

Network+ Guide to Networks, 5th Edition


Client support

Client Support

  • Important NOS function

    • Allows efficient communication, resource sharing

  • NOS client support tasks

    • Creating and managing client accounts

    • Enabling clients to connect to the network

    • Allowing clients to share resources

    • Managing clients’ access to shared resources

    • Facilitating communication between clients

Network+ Guide to Networks, 5th Edition


Client server communication

Client/Server Communication

  • Logon process

  • Redirector

    • Intercepts requests, determines where to handle

  • File access protocol

    • Windows XP client communication with Windows Server 2008

      • CIFS (Common Internet File System)

      • Older protocol SMB (Server Message Block)

    • Broad support allows every client type to authenticate, access resources

Network+ Guide to Networks, 5th Edition


Client server communication cont d

Figure 9-1 A client connecting to an NOS

Client/Server Communication (cont’d.)

Network+ Guide to Networks, 5th Edition


Client server communication cont d1

Client/Server Communication (cont’d.)

  • Middleware

    • Translates requests, responses between client, server

  • 3-tier architecture

    • Client/server environment incorporating middleware

Network+ Guide to Networks, 5th Edition


Client server communication cont d2

Figure 9-2 Middleware between clients and a server

Client/Server Communication (cont’d.)

Network+ Guide to Networks, 5th Edition


Users and groups

Users and Groups

  • After NOS client authentication

    • Client gains access to NOS services, resources

  • Administrator account

    • Most privileged user account

    • Unlimited rights to server, domain resources, objects

    • Created by default

    • Root on UNIX or Linux systems

Network+ Guide to Networks, 5th Edition


Users and groups cont d

Users and Groups (cont’d.)

  • User names

    • NOS grants each network user access to files and other shared resources

  • Groups

    • Basis for resource and account management

    • Assists in resource sharing and security control

      • Example: network administrator for public elementary school

Network+ Guide to Networks, 5th Edition


Users and groups cont d1

Table 9-1 Providing security through groups

Users and Groups (cont’d.)

Network+ Guide to Networks, 5th Edition


Users and groups cont d2

Users and Groups (cont’d.)

  • Nesting or hierarchical group arrangement

    • Simplifies management

    • Group arrangement

      • Affects permissions granted to each group’s members

  • Inherited permissions

    • Passed down from parent group to child group

  • After user, group restrictions applied

    • Client allowed to share network resources

Network+ Guide to Networks, 5th Edition


Identifying and organizing network elements

Identifying and Organizing Network Elements

  • Modern NOSs

    • Similar patterns for organizing information

      • Users, printers, servers, data files, and applications

  • Directory

    • List organizing resources

      • Associates resources with characteristics

    • Example: file system directory

Network+ Guide to Networks, 5th Edition


Ldap lightweight directory access protocol

LDAP (Lightweight Directory Access Protocol)

  • Used to access information stored in directory

  • Object

    • Thing or person associated with network

  • Attributes

    • Properties associated with object

  • Schema

    • Set of definitions

    • Kinds of objects and object-related information contained in directory

Network+ Guide to Networks, 5th Edition


Ldap cont d

LDAP (cont’d.)

  • Schema (cont’d.):

    • Two types of definitions:

      • Classes (object classes): identifies object type specified in directory

      • Attributes: stores information about object

Network+ Guide to Networks, 5th Edition


Network guide to networks 5 th edition

Figure 9-3 Schema elements associated

with a User account object

Network+ Guide to Networks, 5th Edition


Ldap cont d1

LDAP (cont’d.)

  • Containers (OUs or organizational units)

    • Logically defined receptacles

      • Assemble similar objects

    • Account

      • User record containing all properties

  • LDAP standard

    • Directories and contents form trees

    • Tree

      • Logical representation of multiple, hierarchical levels within directory

      • Root, branches, leafs

Network+ Guide to Networks, 5th Edition


Identifying and organizing network elements cont d

Figure 9-4 A directory tree

Identifying and Organizing Network Elements (cont’d.)

Network+ Guide to Networks, 5th Edition


Ldap cont d2

LDAP (cont’d.)

  • Before installing NOS

    • Plan directory tree

      • Consider current, future needs

  • Book example

    • New manufacturing firm: Circuits Now

Network+ Guide to Networks, 5th Edition


Identifying and organizing network elements cont d1

Figure 9-5 Two possible directory trees for the same organization

Identifying and Organizing Network Elements (cont’d.)

Network+ Guide to Networks, 5th Edition


Sharing applications

Sharing Applications

  • Shared applications

    • Often installed on file server

      • Specifically designed to run applications

  • Application licensing types

    • Per user licensing

    • Per seat licensing

    • Site license

Network+ Guide to Networks, 5th Edition


Sharing applications cont d

Sharing Applications (cont’d.)

  • Installing application on server

    • Purchase appropriate type and number of licenses

    • Verify server resources

    • Install application

    • Make application available

    • Provide users access to application

  • NOS responsible for arbitrating file access

  • Problem with shared file access

    • Multiple users simultaneously accessing same data files, same program files

Network+ Guide to Networks, 5th Edition


Sharing printers

Sharing Printers

  • Increases resource management efficiency; reduces costs

  • Print server

    • Manages print services

  • Printer attaches to print server

    • Directly

    • To convenient network location

  • All NOSs perform common tasks in managing printers

Network+ Guide to Networks, 5th Edition


Sharing printers cont d

Figure 9-6 Shared printers on a network

Sharing Printers (cont’d.)

Network+ Guide to Networks, 5th Edition


Sharing printers cont d1

Sharing Printers (cont’d.)

  • To create new printer

    • Install printer driver

      • Provides printer availability to users

    • Ensure appropriate printer queue user rights

  • Networked printers

    • Appear as icons in Printers folder

  • Client redirector

    • Determines where print request should transmitted

      • Network, workstation

Network+ Guide to Networks, 5th Edition


Managing system resources

Managing System Resources

  • Limited server system resources

    • Required by multiple users

  • Modern NOSs capabilities

    • Maximize server memory, processor, bus, and hard drive use

      • Accommodates more client requests faster

      • Improves overall network performance

Network+ Guide to Networks, 5th Edition


Memory

Memory

  • Virtual memory can boost total memory available

  • Physical memory: RAM chips

    • Physical memory required by server varies

      • Task dependent

  • Virtual memory: stored on hard drive

    • Page file (paging file, swap file)

      • Managed by operating system

    • Paging

      • Moving blocks (pages) from RAM into virtual memory

Network+ Guide to Networks, 5th Edition


Memory cont d

Memory (cont’d.)

  • Virtual memory advantages

    • Easily expands memory available to server applications

    • Engaged by default

  • Virtual memory disadvantage

    • Slows operations

      • Hard drive access versus physical memory access

Network+ Guide to Networks, 5th Edition


Multitasking cont d

Multitasking (cont’d.)

  • Execution of multiple tasks at one time

    • All operating system perform

  • Does not mean performing more than one operation simultaneously

  • Preemptive multitasking (time sharing: UNIX)

    • Happens quickly

    • Appearance of tasks occurring simultaneously

Network+ Guide to Networks, 5th Edition


Multiprocessing cont d

Multiprocessing (cont’d.)

  • Process

    • Routine of sequential instructions that runs until goal is achieved

  • Thread

    • Self-contained; well-defined task within process

    • Main thread

      • All processes have one

  • One processor systems

    • One thread handled at any time

Network+ Guide to Networks, 5th Edition


Multiprocessing cont d1

Multiprocessing (cont’d.)

  • Support use of multiple processors to handle multiple threads

  • Technique to improve response time

  • Splits tasks among more than one processor

    • Expedites single instruction completion

Network+ Guide to Networks, 5th Edition


Multiprocessing cont d2

Multiprocessing (cont’d.)

  • Symmetric multiprocessing

    • Splits all operations equally among two or more processors

  • Asymmetric multiprocessing

    • Assigns each subtask to specific processor

  • Multiprocessing advantage to servers with high processor usage

    • Numerous tasks simultaneously

Network+ Guide to Networks, 5th Edition


Windows server 2008

Windows Server 2008

  • Released February 2008

  • Enhancement of Windows Server 2003

  • GUI (graphical user interface)

    • Pictorial representation of computer function

    • NOS GIUs

      • Enable administrator to manage files, users, groups, security, and printers

  • Enhanced security, reliability, remote client support, and performance

  • New server management features

Network+ Guide to Networks, 5th Edition


Windows server 2008 cont d

Windows Server 2008 (cont’d.)

  • Editions

    • Standard Edition

    • Web Edition

    • Enterprise Edition

    • Datacenter Edition

  • Popular NOS

    • Address most network administrator’s needs well

    • Well-established vendor

    • Device; program compatibility

    • Larger market offers technical support

Network+ Guide to Networks, 5th Edition


Windows server 2008 cont d1

Windows Server 2008 (cont’d.)

  • General benefits

    • Offers several general benefits

    • Offers simple user interfaces

  • Disadvantage

    • Past criticism for performance, security

Network+ Guide to Networks, 5th Edition


Hardware requirements

Hardware Requirements

  • Server components

    • Processing power, memory, and hard drive space

  • Windows Server Catalog

    • Windows Server 2008 compatible computer components

    • Available online

    • Consult it prior to hardware purchases

Network+ Guide to Networks, 5th Edition


Hardware requirements cont d

Table 9-2 Minimum hardware requirements for Windows Server 2008, Standard Edition

Hardware Requirements (cont’d.)

Network+ Guide to Networks, 5th Edition


Memory model

Memory Model

  • Addressing schemes

    • 32-bit addressing scheme

    • 64-bit addressing scheme

  • Assigns each application (process)

    • Own 32-bit memory area

      • Logical subdivision memory available to server

  • Important Windows Server 2008 feature

    • Install more server physical memory

  • Uses virtual memory

Network+ Guide to Networks, 5th Edition


Network guide to networks 5 th edition

Figure 9-7 The Windows Server 2008 Performance Options Advanced tab

Network+ Guide to Networks, 5th Edition


Ntfs new technology file system

NTFS (New Technology File System)

  • File system

    • Methods of organizing, managing, and accessing files

      • Through logical structures, software routines

  • NTFS (New Technology File System)

    • Installed by default

  • Disk data distribution

    • Disks divided into allocation units (clusters)

    • Allocation units combine to form partition

      • Logically separate hard disk storage area

Network+ Guide to Networks, 5th Edition


Ntfs cont d

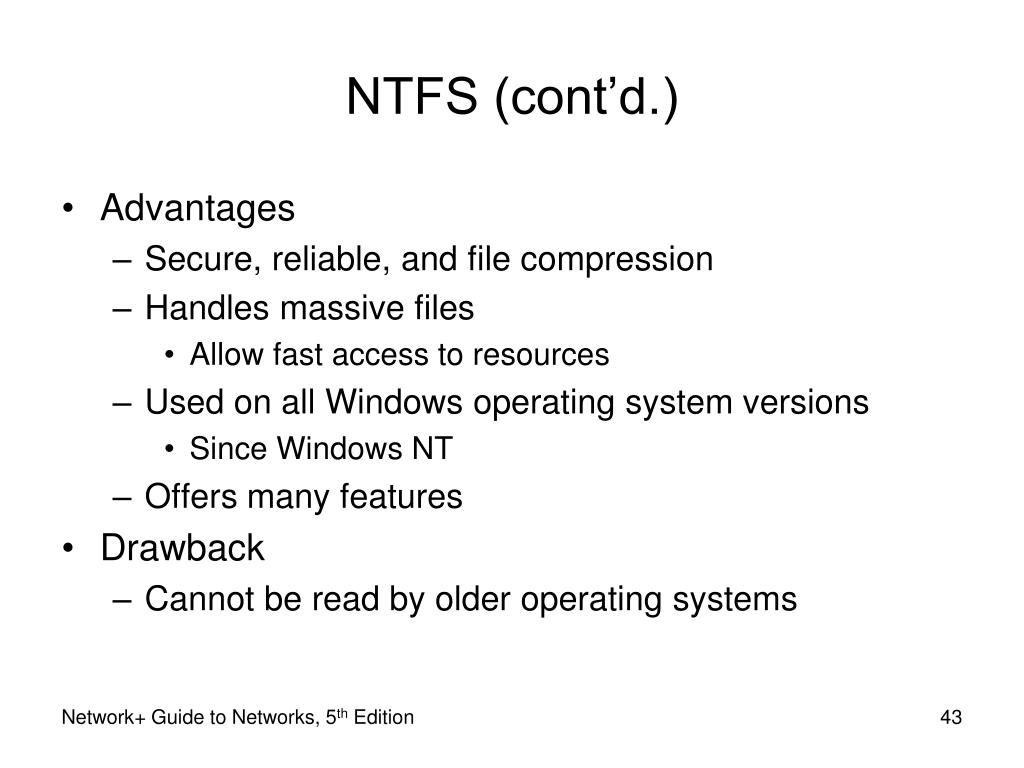

NTFS (cont’d.)

  • Advantages

    • Secure, reliable, and file compression

    • Handles massive files

      • Allow fast access to resources

    • Used on all Windows operating system versions

      • Since Windows NT

    • Offers many features

  • Drawback

    • Cannot be read by older operating systems

Network+ Guide to Networks, 5th Edition


Active directory

Active Directory

  • Directory service

  • Originally designed for Windows 2000 Server

    • Enhanced with Windows Server 2008

  • Windows Server 2008 network

    • Workgroup model

    • Domain model

Network+ Guide to Networks, 5th Edition


Workgroups

Workgroups

  • Peer-to-peer network

  • Decentralized management

    • Each computer has own database

      • User accounts, security privileges

    • Significantly more administration effort

  • Practical for small networks

    • Few users

    • Simple to design, implement

Network+ Guide to Networks, 5th Edition


Domains

Domains

  • Group of users, servers, and other resources

    • Share centralized account and security information database

  • Client/server network

  • Active directory

    • Contains domain databases

    • Easier to organize and manage resources and security

Network+ Guide to Networks, 5th Edition


Domains cont d

Domains (cont’d.)

Figure 9-8 Multiple domains in one organization

Network+ Guide to Networks, 5th Edition


Domains cont d1

Domains (cont’d.)

  • Domain not confined by geographical boundaries

  • Domain controllers

    • Contains directory containing information about objects in domain

  • Member servers

    • Do not store directory information

  • Replication

    • Process of copying directory data to multiple domain controllers

Network+ Guide to Networks, 5th Edition


Domains cont d2

Figure 9-9 Domain model on a Windows Server 2008 network

Domains (cont’d.)

Network+ Guide to Networks, 5th Edition


Ous organizational units

OUs (Organizational Units)

  • Hold multiple objects having similar characteristics

    • Can be nested

  • Provides allows simpler, more flexible administration

Network+ Guide to Networks, 5th Edition


Trees and forests

Trees and Forests

  • Directory structure above domains

    • Large organizations use multiple domains

  • Domain tree

    • Organizes multiple domains hierarchically

  • Root domain

    • Active Directory tree base

  • Child domains

    • Branch off from root domain

      • Separate groups of objects with same policies

Network+ Guide to Networks, 5th Edition


Trees and forests cont d

Trees and Forests (cont’d.)

  • Forest

    • A collection of one or more domain trees

    • Share common schema

  • Domains within a forest can communicate

  • Domains within same tree

    • Share common Active Directory database

Network+ Guide to Networks, 5th Edition


Trees and forests cont d1

Figure 9-10 A tree with multiple domains and OUs

Trees and Forests (cont’d.)

Network+ Guide to Networks, 5th Edition


Trust relationships

Trust Relationships

  • Relationship between two domains

    • One domain allows another domain to authenticate its users

  • Active Directory supports two trust relationship types

    • Two-way transitive trusts

    • Explicit one-way trusts

Network+ Guide to Networks, 5th Edition


Trust relationships cont d

Figure 9-11 Two-way trusts between domains in a tree

Trust Relationships (cont’d.)

Network+ Guide to Networks, 5th Edition


Trust relationships cont d1

Figure 9-12 Explicit one-way trust between domains in different trees

Trust Relationships (cont’d.)

Network+ Guide to Networks, 5th Edition


Naming conventions

Naming Conventions

  • Active Directory naming (addressing) conventions

    • Based on LDAP naming

  • Internet namespace

    • Complete hierarchical names database

      • Used to map IP addresses to hosts’ names

  • Active Directory namespace

    • Collection of object names, associated places in Windows Server 2003, Server 2008 network

  • Two namespaces are compatible

Network+ Guide to Networks, 5th Edition


Naming conventions cont d

Naming Conventions (cont’d.)

  • Windows Server 2008 network object

    • Three different names

      • DN (distinguished name): DC (domain component) and CN (common name)

      • RDN (relative distinguished name)

      • UPN (user principal name)

  • GUID (globally unique identifier)

    • 128-bit number

      • Ensures no two objects have duplicate names

Network+ Guide to Networks, 5th Edition


Naming conventions cont d1

Figure 9-13 Distinguished name and relative distinguished name

Naming Conventions (cont’d.)

Network+ Guide to Networks, 5th Edition


Server management

Server Management

  • Setting up and managing server

    • Choose role

      • Reflects server’s primary purpose

    • Conduct server management task

      • Server Manager: GUI tool

      • Many functions available

      • Use Server Manager window

Network+ Guide to Networks, 5th Edition


Server management cont d

Figure 9-14 Windows Server 2008 Server Manager

Server Management (cont’d.)

Network+ Guide to Networks, 5th Edition


Server management cont d1

Figure 9-15 Server Manager’s Reliability and Performance window

Server Management (cont’d.)

Network+ Guide to Networks, 5th Edition


Unix and linux

UNIX and Linux

  • Popular NOSs

    • Provide resource sharing

    • Older

      • UNIX develop in 1969

      • UNIX preceded, led to TCP/IP protocol suite development

    • Most Internet servers run UNIX

      • Efficient and flexible

  • Some difficulty to master UNIX

    • Not controlled, distributed by single manufacturer

    • Some version nonproprietary and freely distributed

Network+ Guide to Networks, 5th Edition


A brief history of unix

A Brief History of UNIX

  • Late 1960s: UNIX operating system

  • 1970s

    • Antitrust laws and AT&T

    • Anyone could purchase the source code

    • New versions of UNIX appeared

      • System V, BSD

  • 1980s

    • Rights changes hands, now owned by Novell

  • Open Group owns UNIX trademark

Network+ Guide to Networks, 5th Edition


Varieties of unix

Varieties of UNIX

  • Many varieties (flavors, distributions)

    • Share several features

  • UNIX operating system

    • Divided into two main categories

      • Proprietary

      • Open source

Network+ Guide to Networks, 5th Edition


Proprietary unix

Proprietary UNIX

  • Source code unavailable

  • Available only by purchasing licensed copy from Novell

  • Vendors

    • Apple Computer: Mac OS X Server

    • Sun Microsystems: Solaris

    • IBM: AIX

Network+ Guide to Networks, 5th Edition


Proprietary unix cont d

Proprietary UNIX (cont’d.)

  • Proprietary UNIX system advantages

    • Accountability and support

    • Optimization of hardware and software

    • Predictability and compatibility

  • Proprietary UNIX system drawback

    • No source code access

      • No customization

Network+ Guide to Networks, 5th Edition


Open source unix

Open Source UNIX

  • Customizable

  • Not owned by any one company

    • No licensing fees

  • Open source software (freely distributable software)

    • UNIX GNU, BSD, and Linux

      • Variety of implementations

      • Run on wider range of systems

  • Key difference from proprietary implementations

    • Software license

Network+ Guide to Networks, 5th Edition


Two flavors of unix

Two Flavors of UNIX

  • Solaris

    • Sun Microsystems

    • Runs on SPARC-based servers

    • All commercially supported operating system benefits

    • Use: Runs intensive applications

      • Examples: large, multiterabyte databases, weather prediction systems, and large economic modeling applications

  • Linux follows standard UNIX conventions

    • Highly stable, free

    • Developed by Linus Torvalds (1991)

Network+ Guide to Networks, 5th Edition


Two flavors of unix cont d

Two Flavors of UNIX (cont’d.)

  • All UNIX and Linux versions

    • Offer host of features

      • TCP/IP protocol suite

      • Applications to support networking infrastructure

      • Support non-IP protocols

      • Programs necessary for routing, firewall protection, DNS services, DHCP services

      • Operates over many different network topologies, physical media

      • Efficiently and securely handle growth, change, stability

      • Source code used, thoroughly debugged

Network+ Guide to Networks, 5th Edition


Hardware requirements1

Hardware Requirements

  • Similar to Windows Server 2003, Server 2008

    • Key differences

      • UNIX, Linux operating system can act as workstation or server operating system

      • GUI (graphical user interface) remains optional

  • No single “right” server configuration exists

Network+ Guide to Networks, 5th Edition


Solaris hardware requirements

Table 9-3 Minimum hardware recommendations for Solaris 10

Solaris Hardware Requirements

  • Computers containing Sun SPARC processors or Intel-based processors

Network+ Guide to Networks, 5th Edition


Linux hardware requirements

Table 9-4 Minimum hardware recommendations for a Linux server

Linux Hardware Requirements

  • Linux servers adhere to certain minimum requirements

Network+ Guide to Networks, 5th Edition


Unix multiprocessing

UNIX Multiprocessing

  • UNIX and Linux

    • Support processes and threads

    • Allocate separate resources (memory space) to each process

      • When created

      • Manage access to resources

      • Advantage: prevents one program from disrupting system

    • Support symmetric multiprocessing

    • Different versions support different number of processors

Network+ Guide to Networks, 5th Edition


The unix memory model

The UNIX Memory Model

  • Use physical, virtual memory efficiently

  • Allocate memory area for each application

    • Share memory between programs when possible

  • Use 32-bit addressing scheme

    • Programs access 4 GB memory

  • Most systems also run on CPUs employing 64-bit addresses

    • 18 exabytes (264 bytes) memory

  • Virtual memory

    • Disk partition or file

Network+ Guide to Networks, 5th Edition


The unix kernel

The UNIX Kernel

  • Kernel

    • Core of all UNIX and Linux systems

  • Kernel module

    • File containing instructions for performing specific task

      • Reading data from and writing data to hard drive

Network+ Guide to Networks, 5th Edition


Unix system file and directory structure

UNIX System File and Directory Structure

  • Hierarchical file system

    • Disk directories may contain files, other directories

  • /boot directory: kernel, system initialization files

  • /sbin directory: applications, services

  • /var directory: variable data

  • /home directory: created for new users

Network+ Guide to Networks, 5th Edition


Unix system file and directory structure cont d

Figure 9-16 UNIX file system hierarchy

UNIX System File and Directory Structure (cont’d.)

Network+ Guide to Networks, 5th Edition


Unix file systems

UNIX File Systems

  • Two broad categories

    • Disk file systems

    • Network file systems

Network+ Guide to Networks, 5th Edition


Disk file systems

Disk File Systems

  • Organizing, managing, accessing files

    • Through logical structures, software routines

  • Linux native file system type

    • ext3: “third extended” file system

  • Solaris native file system

    • UFS (UNIX file system)

Network+ Guide to Networks, 5th Edition


Network file systems

Network File Systems

  • Analogous to Windows shares

    • Attach shared file systems (drives)

      • From Windows, other UNIX servers

    • Share files with users on other computers

  • UNIX and Linux popular remote file system type

    • Sun Microsystems’ NFS (Network File System)

  • Open source application implementing Windows SMB, CIFS file system protocols

    • Samba

Network+ Guide to Networks, 5th Edition


A unix and linux command sampler

A UNIX and Linux Command Sampler

  • Many system administrators prefer command line

  • GUI executes commands

    • Responds to mouse clicks

  • Command interpreter (shell)

    • Accepts keyboard commands and runs them

  • Man pages (manual pages)

    • Full documentation of UNIX commands

    • Nine sections

    • apropos command

      • Helps find possible man page entries

Network+ Guide to Networks, 5th Edition


A unix and linux command sampler cont d

A UNIX and Linux Command Sampler (cont’d.)

  • Commands function like sentences

  • Rules guide UNIX command use

  • Significant UNIX and Windows command-line interface difference

    • Character separating directories

      • Windows separator character: ( \ )

      • UNIX separator character: ( / )

Network+ Guide to Networks, 5th Edition


Network guide to networks 5 th edition

Table 9-5 Commonly used UNIX commands

Network+ Guide to Networks, 5th Edition


A unix and linux command sampler cont d1

A UNIX and Linux Command Sampler (cont’d.)

  • Most frequently used UNIX command

    • ls

    • Provides file information

      • Stores in file inode (information node)

    • ls –l command

      • Access permissions field

      • Files type designations

  • Pipe

    • Direct one command output to input of another command

    • Unix: vertical bar ( | )

Network+ Guide to Networks, 5th Edition


Network guide to networks 5 th edition

Figure 9-17 Example of output from ls -l

Network+ Guide to Networks, 5th Edition


Network guide to networks 5 th edition

Figure 9-18 Anatomy of ls –l output

Network+ Guide to Networks, 5th Edition


Summary

Summary

  • Characteristics common to all NOS

    • Systems and servers, client support, identifying and organizing network elements, sharing applications and printers, managing system resources

  • Windows Server 2008 network structure

  • Unix and Linux concepts and features

Network+ Guide to Networks, 5th Edition


  • Login
