  1. MAG (UAC,SSL) Update Westcon 5 daagse13 Februari 2012 Dennis de Leest Security Systems Engineer

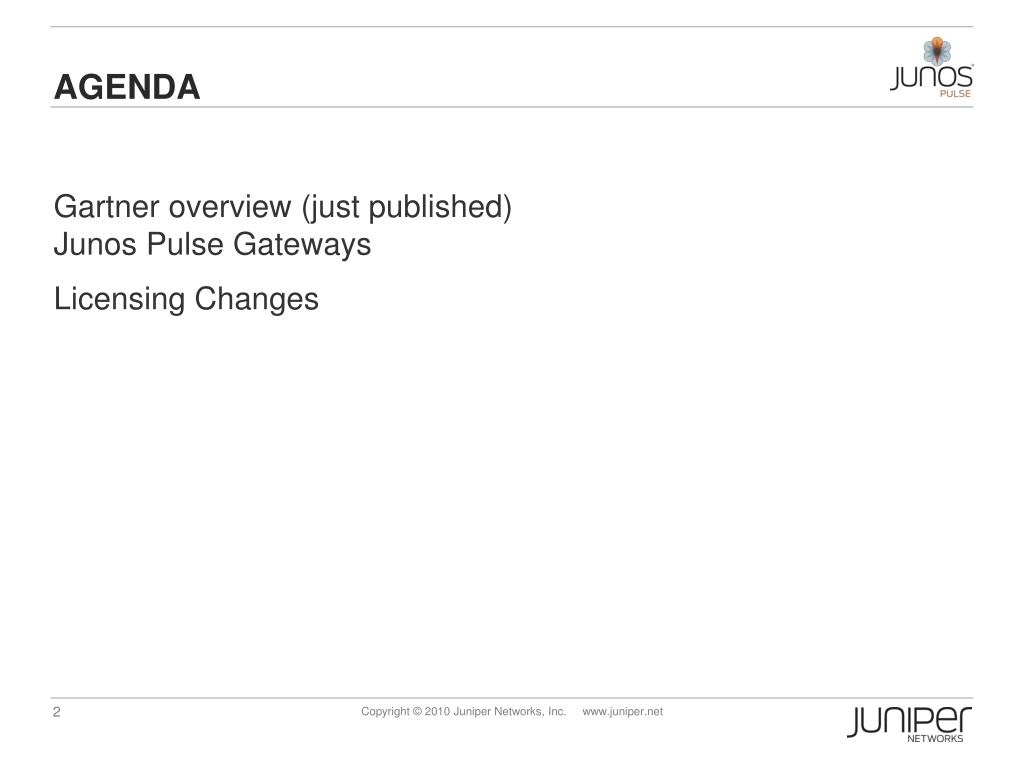

  2. Agenda • Gartner overview (just published)Junos Pulse Gateways • Licensing Changes

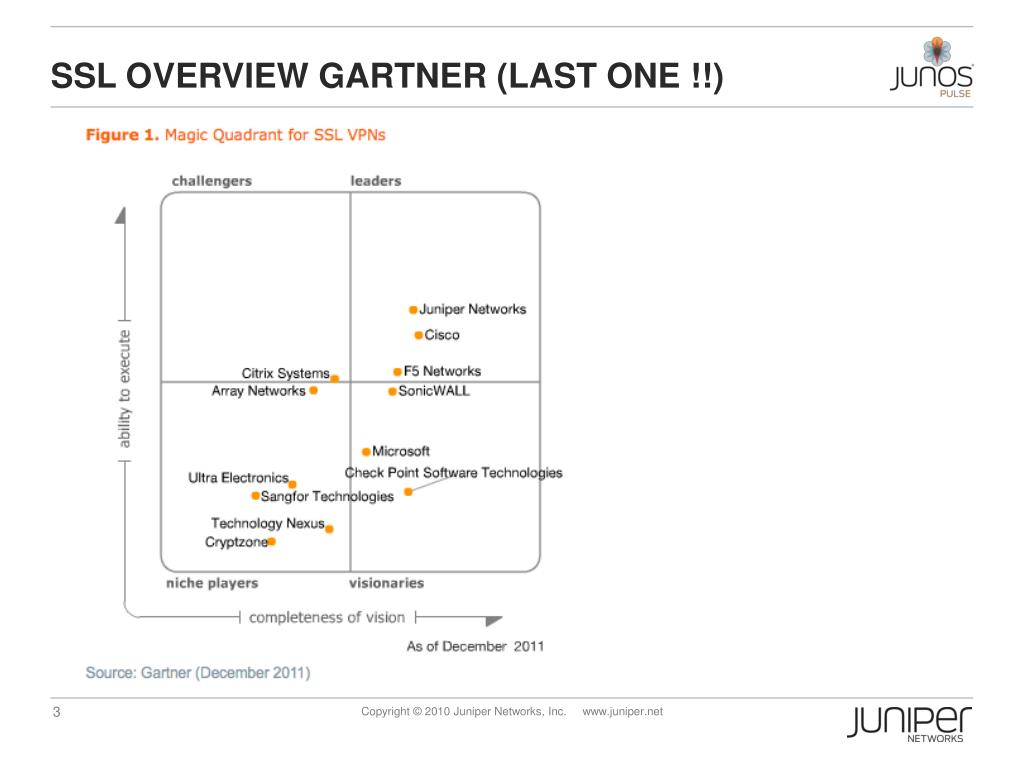

  3. SSL overview Gartner (last one !!)

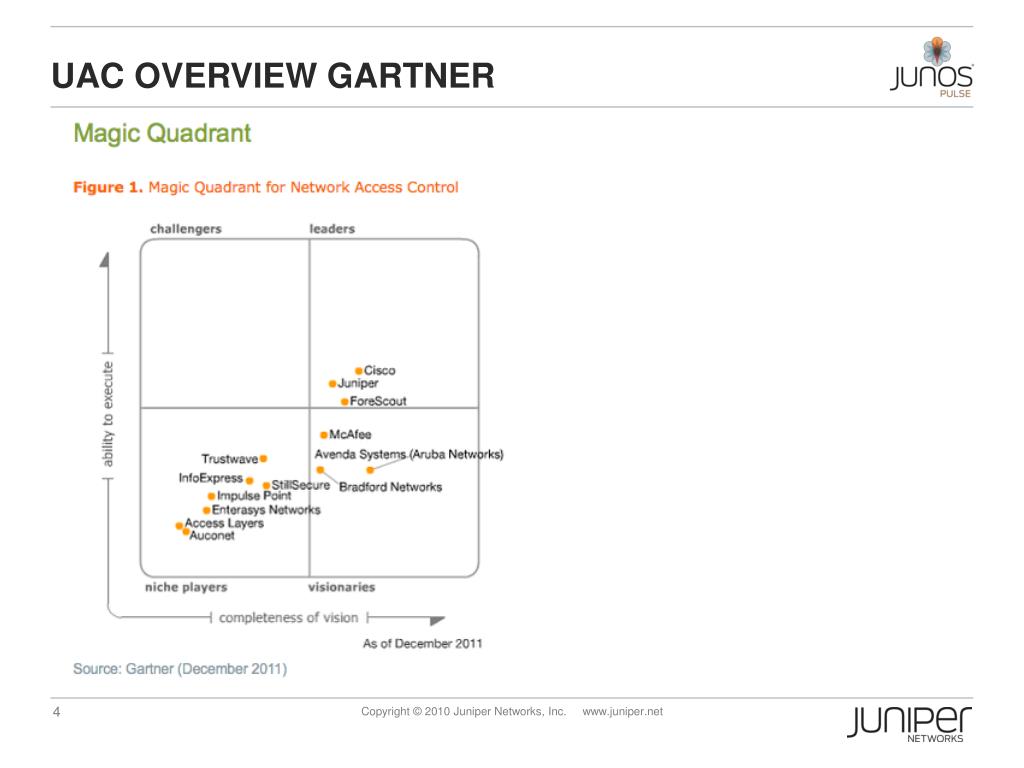

  4. UAC overview Gartner

  5. Junos Pulse Gateways

  6. Junos Pulse Gateways • Introduction • Hardware • Fixed Configuration • Chassis • Application Blades • Chassis Management Card • Software • Junos • JWeb • Application Blade Software • Pricing

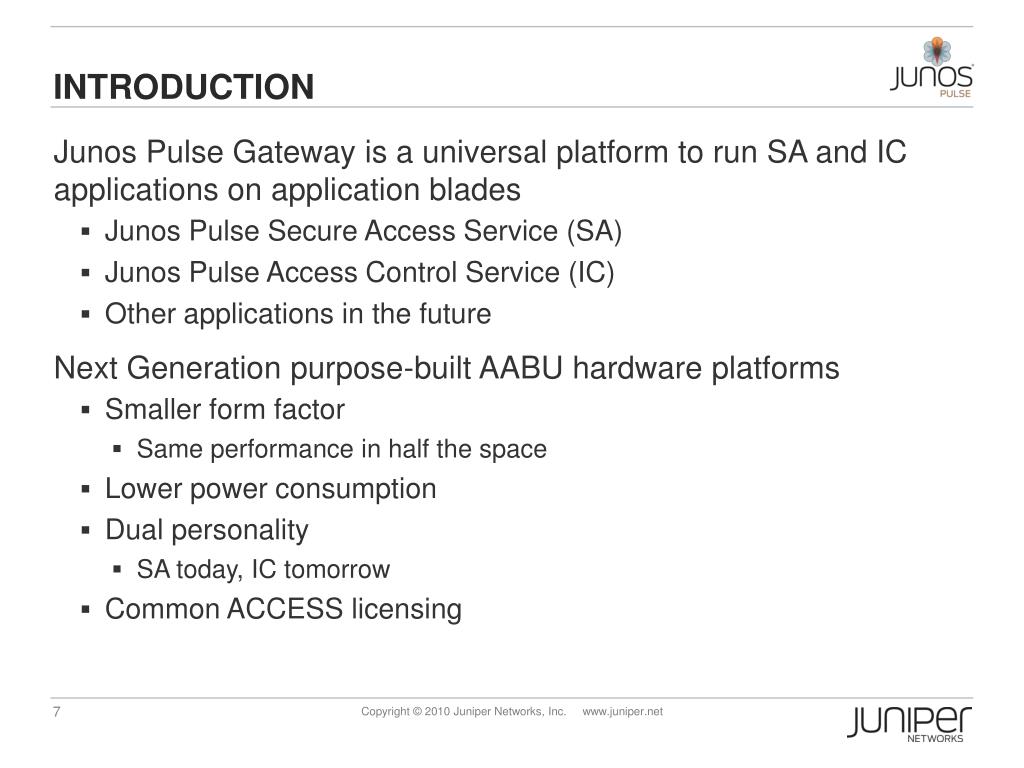

  7. Introduction • Junos Pulse Gateway is a universal platform to run SA and IC applications on application blades • Junos Pulse Secure Access Service (SA) • Junos Pulse Access Control Service (IC) • Other applications in the future • Next Generation purpose-built AABU hardware platforms • Smaller form factor • Same performance in half the space • Lower power consumption • Dual personality • SA today, IC tomorrow • Common ACCESS licensing

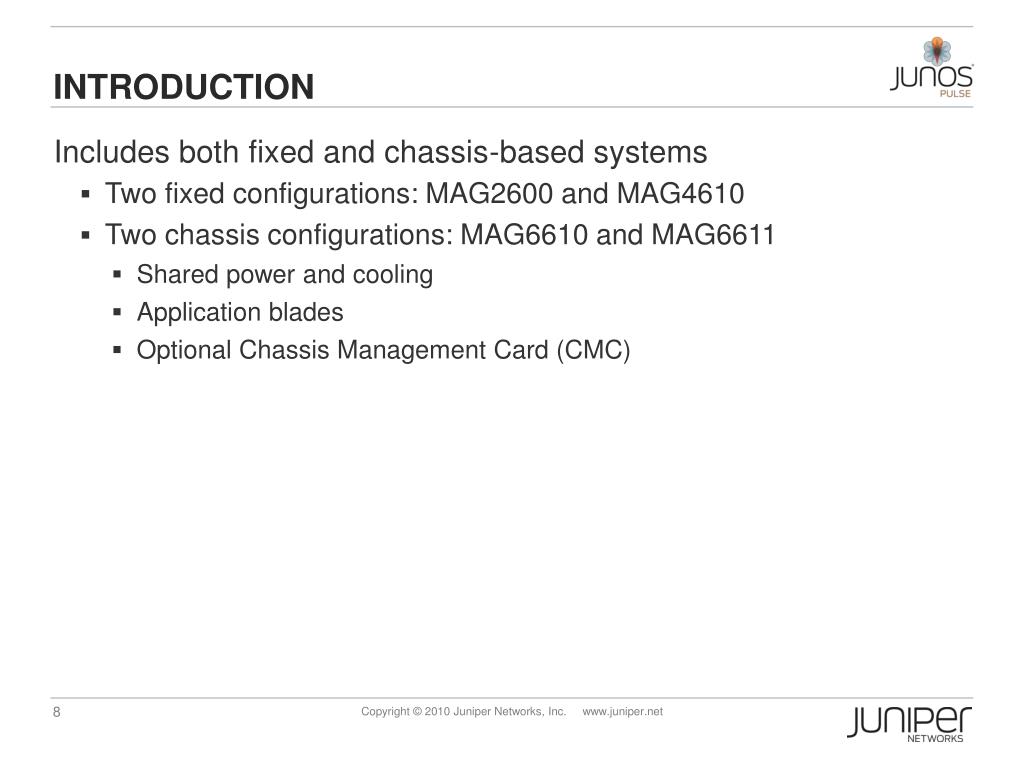

  8. Introduction • Includes both fixed and chassis-based systems • Two fixed configurations: MAG2600 and MAG4610 • Two chassis configurations: MAG6610 and MAG6611 • Shared power and cooling • Application blades • Optional Chassis Management Card (CMC)

  9. MAG2600

  10. MAG2600 • Fixed configuration appliance designed to be: • Equivalent to SA700/SA2500 • New Enterprise Guest Access appliance • Currently Shipping • Capacities • SA: 100 Concurrent Users • EGA: 200 Concurrent Users • Physical • 4” x 7”, < 20W power consumption • Single MAG-SM060 Blade embedded • SKUs • MAG2600: SA or EGA appliance • MAG-PS260: spare/replacement external “brick” power supply • Prepare for SA700 EOL • Due to parts shortages, the SA700 will be EOL’d soon (likely March 1st)

  11. MAG4610

  12. MAG4610 • Fixed configuration appliance equivalent to: • SA4500 • IC4500 • Capacities • SA: 1000 Concurrent Users • IC: 5000 Concurrent Users • Physical • 1U, ½-width chassis can be deployed side-by-side in 1 RU • Single MAG-SM160 Blade embedded • SKUs: • MAG4610: SA/IC, 2 node-cluster allowed • MAG-RK1U2 = Rack Kit, 1RU x 2 units

  13. MAG6610

  14. MAG6610 • Chassis-based appliance, which depending upon the application blade(s) installed is designed to supplement: • SA4500/SA6500 • IC4500/IC6500 • Capacities • Dependent upon application blades installed • Physical • 1U modular chassis • Up to two application blades • One chassis management card (optional) • One power supply (AC or DC) • One or two hard drives per application blade • Two fan trays per application blade

  15. MAG6610 SKUs • Chassis • MAG6610: Bare System Chassis with AC PS • Application Blades • Max of 2 per chassis • MAG-SM160: SA/IC application blade (4500 equiv, 1K/5K users) • MAG-SM360: SA/IC application blade (6500 equiv, 10K/15K users) • Management • MAG-CM060: Chassis Management Card (optional) • Power Supplies • One Required, One Max per chassis • MAG-PS661: 250W AC Power Supply • MAG-PS663: 560W DC Power Supply • Hard Drive Spares • MAG-HD060: Spare HD for SM160 and SM360

  16. MAG6610 Application Blade Configuration One blade here another blade here Slot 1 CMC slot Slot 2 Chassis mgmt card fits in front slot

  17. MAG6611

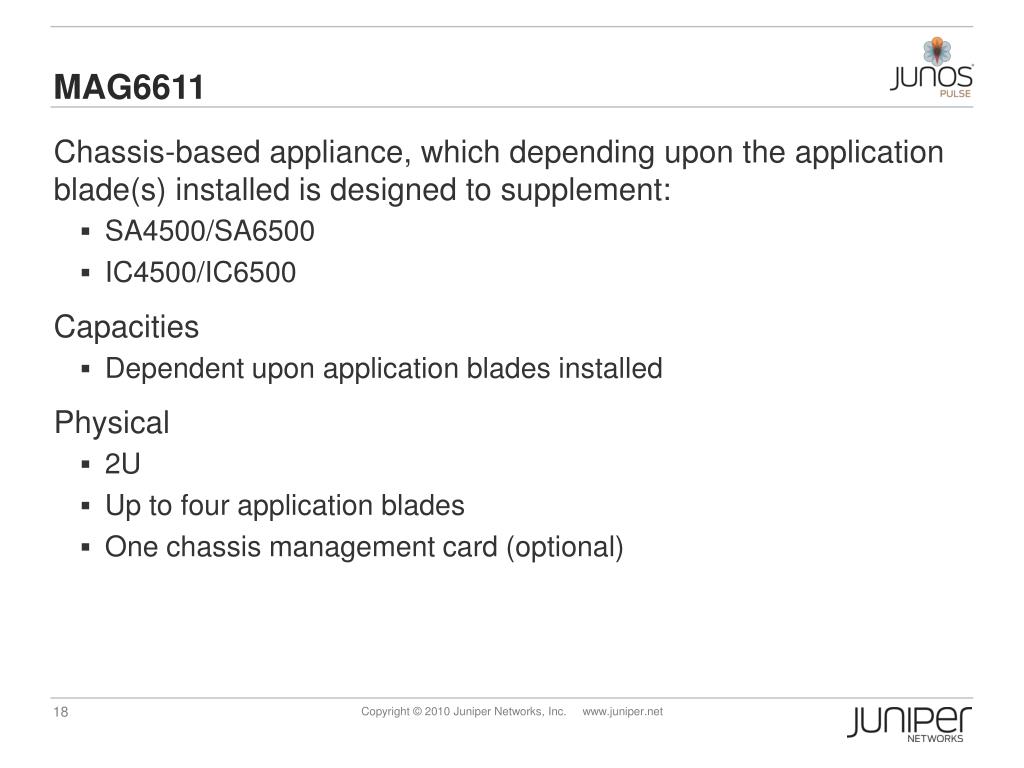

  18. MAG6611 • Chassis-based appliance, which depending upon the application blade(s) installed is designed to supplement: • SA4500/SA6500 • IC4500/IC6500 • Capacities • Dependent upon application blades installed • Physical • 2U • Up to four application blades • One chassis management card (optional)

  19. MAG6611 SKUs • Chassis • MAG6611: Bare System Chassis with AC PS • Application Blades • Max of 4 per chassis • MAG-SM160: SA/IC application blade (4500 equiv, 1K/5K users) • MAG-SM360: SA/IC application blade (6500 equiv, 10K/15K users) • Management • MAG-CM060: Chassis Management Card (optional) • Power Supplies • Max of 2 per chassis, 1 Required per chassis • MAG-PS662: 560W AC Power Supply • MAG-PS663: 560W DC Power Supply • Hard Drive Spares • MAG-HD060: Spare HD for SM160 and SM360

  20. MAG6611 Application Blade Configuration CMC slot Slot 1 Slot 2 Slot 3

  21. MAG6611 Rear View • Power supplies, fans, and hard drives are attached in the rear of the chassis • All components are hot-plug CAPABLE, but there is no software support for that function • Application blades should be powered off before replacement • In order to power on/off individual application blades, a CMC is required

  22. Application Blades • Port Configuration • 1 Serial Port • 3 Ethernet Ports • Management (active only when SA) • Internal • External • Hard Drive Configuration • The SM160 includes one hard drive • The SM360 includes an onboard RAID controller and multiple hard drives • Additional hardware • SM360 includes Cavium CN1620 on-board • Trusted Platform Module (TPM) chip • Not used at this time, reserved for future use

  23. CMC slot Slot 1 Slot 2 Chassis Management and Single Sign-On • Chassis Management Card (CMC) is a daughter card that attaches to one of the application blades • Occupies an even-numbered slot • CMC runs Junos v11.1 and provides • Chassis monitoring of “environmentals” such as power and cooling • Chassis control of application blades

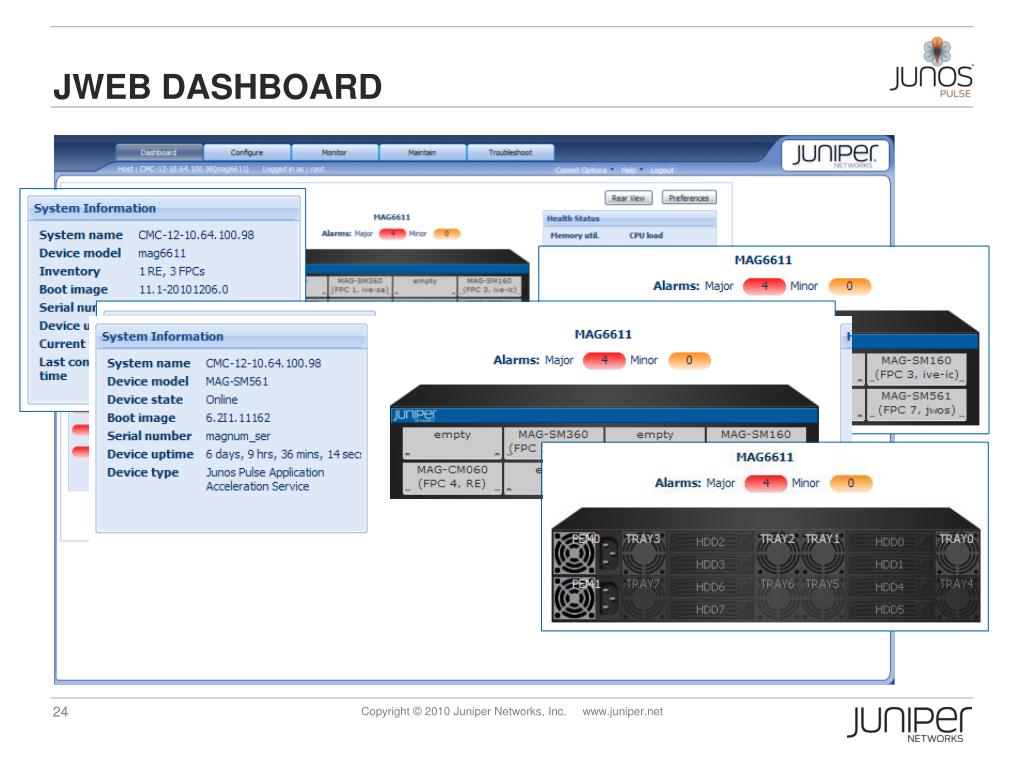

  24. Jweb Dashboard

  25. Hardware Pricing Comparison

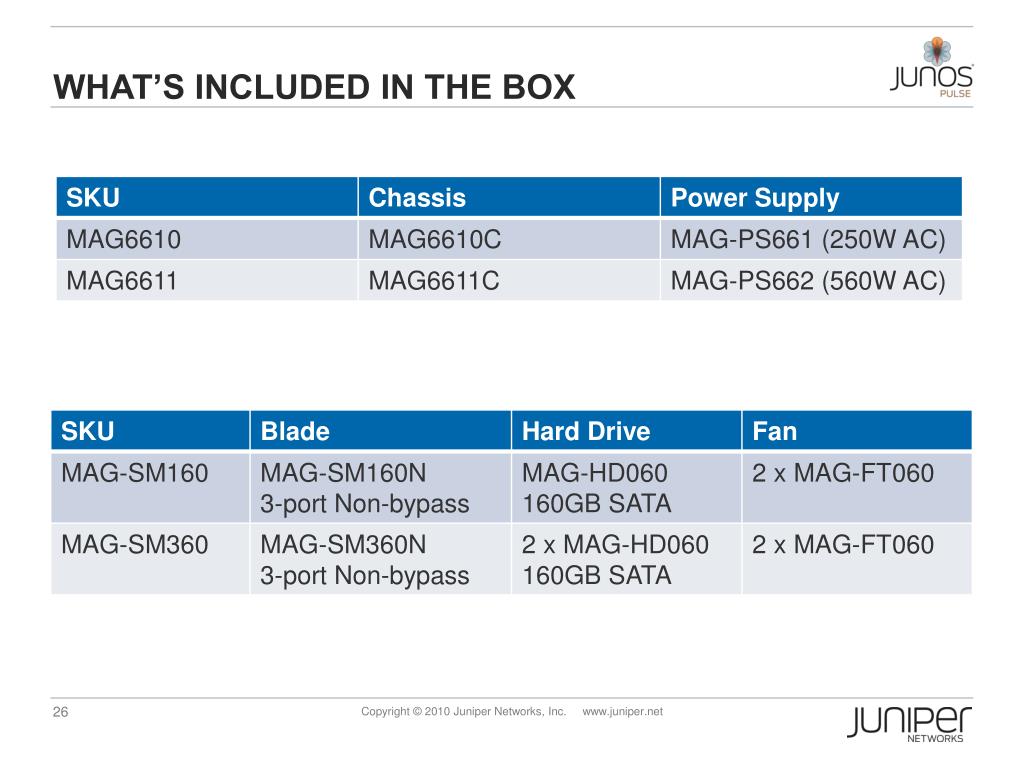

  26. What’s Included in the Box

  27. Licensing changes

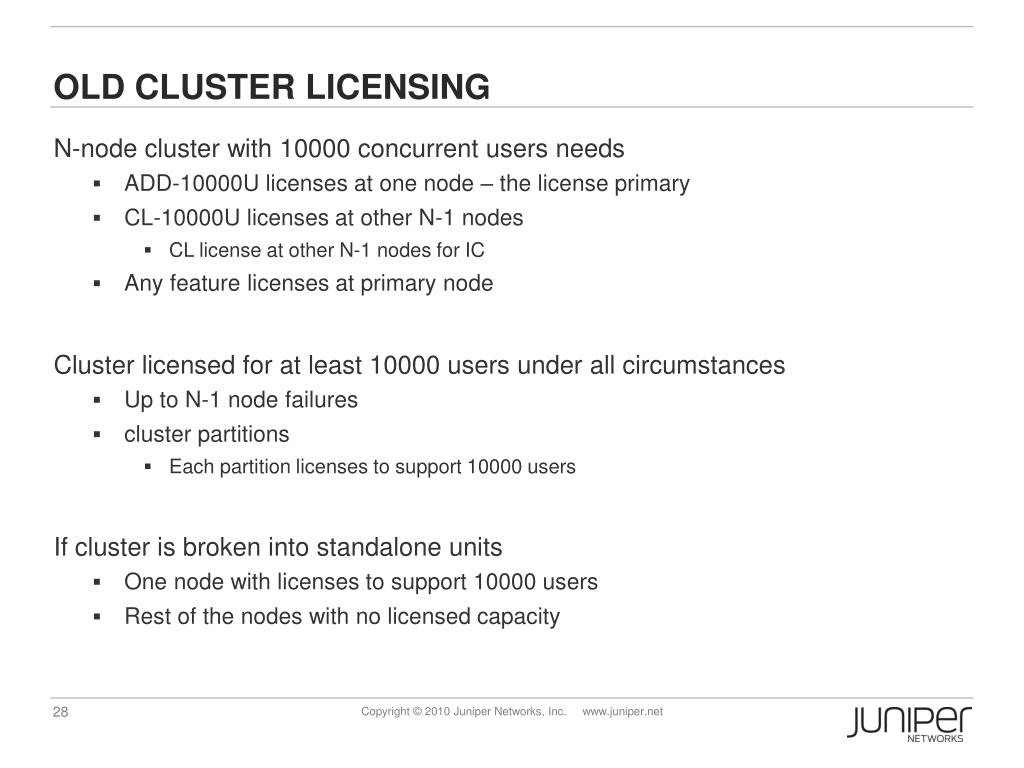

  28. OLD CLUSTER LICENSING N-node cluster with 10000 concurrent users needs ADD-10000U licenses at one node – the license primary CL-10000U licenses at other N-1 nodes CL license at other N-1 nodes for IC Any feature licenses at primary node Cluster licensed for at least 10000 users under all circumstances Up to N-1 node failures cluster partitions Each partition licenses to support 10000 users If cluster is broken into standalone units One node with licenses to support 10000 users Rest of the nodes with no licensed capacity

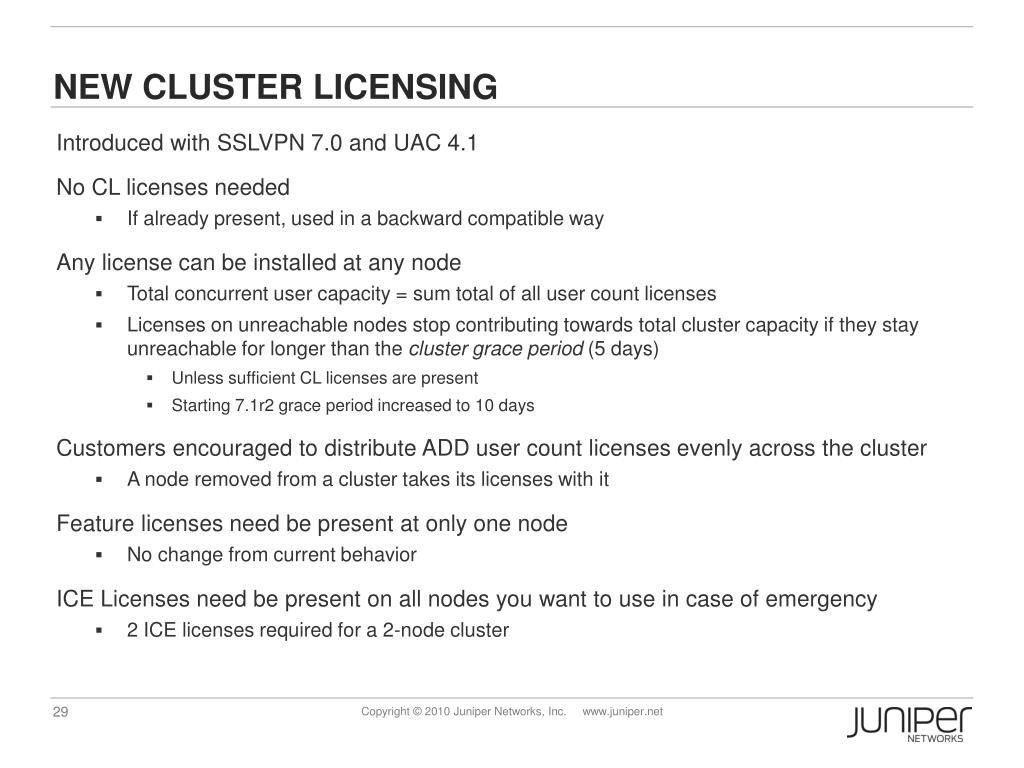

  29. NEW CLUSTER LICENSING Introduced with SSLVPN 7.0 and UAC 4.1 No CL licenses needed If already present, used in a backward compatible way Any license can be installed at any node Total concurrent user capacity = sum total of all user count licenses Licenses on unreachable nodes stop contributing towards total cluster capacity if they stay unreachable for longer than the cluster grace period (5 days) Unless sufficient CL licenses are present Starting 7.1r2 grace period increased to 10 days Customers encouraged to distribute ADD user count licenses evenly across the cluster A node removed from a cluster takes its licenses with it Feature licenses need be present at only one node No change from current behavior ICE Licenses need be present on all nodes you want to use in case of emergency 2 ICE licenses required for a 2-node cluster

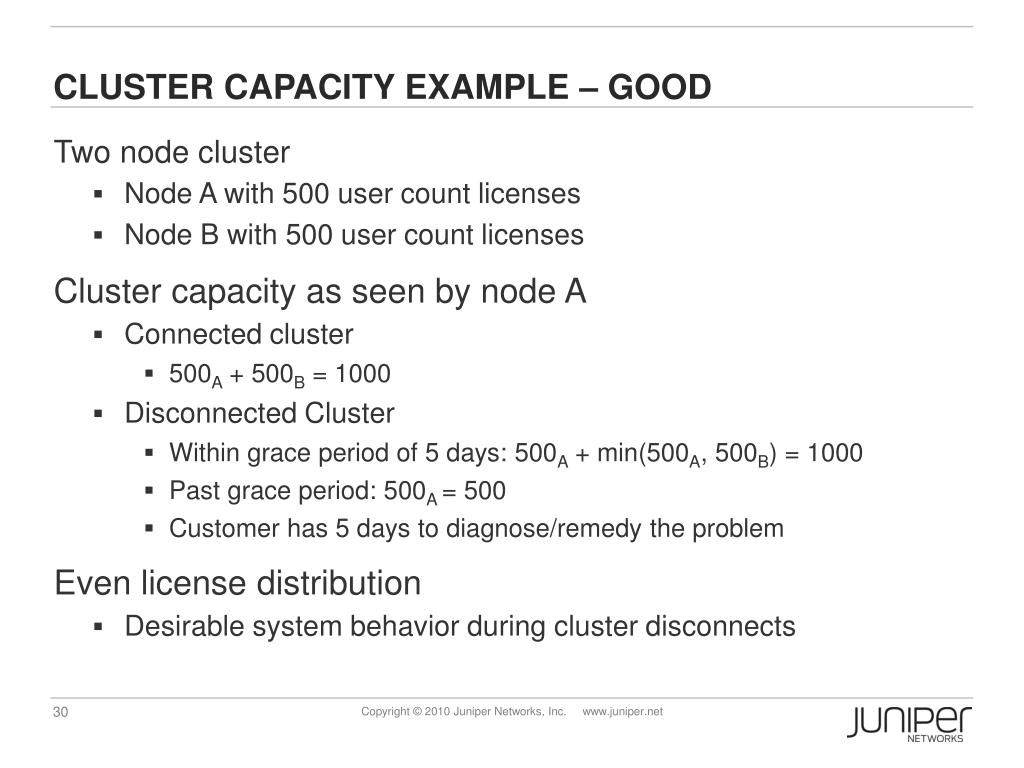

  30. CLUSTER CAPACITY EXAMPLE – GOOD Two node cluster Node A with 500 user count licenses Node B with 500 user count licenses Cluster capacity as seen by node A Connected cluster 500A + 500B = 1000 Disconnected Cluster Within grace period of 5 days: 500A + min(500A, 500B) = 1000 Past grace period: 500A = 500 Customer has 5 days to diagnose/remedy the problem Even license distribution Desirable system behavior during cluster disconnects

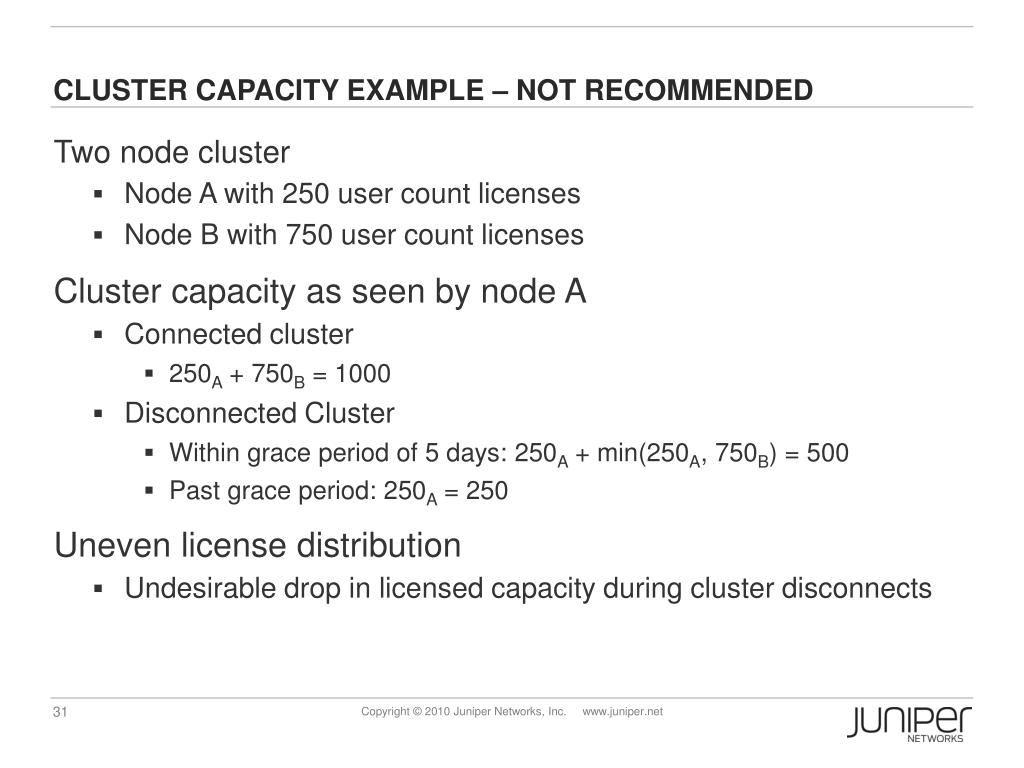

  31. CLUSTER CAPACITY EXAMPLE – NOT RECOMMENDED Two node cluster Node A with 250 user count licenses Node B with 750 user count licenses Cluster capacity as seen by node A Connected cluster 250A + 750B = 1000 Disconnected Cluster Within grace period of 5 days: 250A + min(250A, 750B) = 500 Past grace period: 250A = 250 Uneven license distribution Undesirable drop in licensed capacity during cluster disconnects

  32. SSLVPN Licensing Review (also for UAC) SA2000/4000/6000 Old cluster licensing SAx000-ADD-xxU and –CL still valid. New cluster licensing SAx000-ADD-xxU on both nodes starting software 7.0. Remark: 7.1 is last release to be supported on SAx000 SA2500/4500/6500 Old cluster licensing SAx500-ADD-xxU and -CL still valid. New cluster licensing SAx500-ADD-xxU on both nodes starting software 7.0. MAG Requires ACCESS-X600 licenses. Licenses have dual personality, SA/IC depending on MAG deployment. Licensing based on new cluster licensing, no –CL licenses available. Minimale software release voor MAG is 7.1 voor SSL en 4.1 voor UAC.

  33. Do you love VMWARE, we do to ! • Offline verderpraten over: • License server ? (grotereomgevingen) • Virtueleeditie van SSL ?
