  1. Strukt, Build Changes and Backend Support Jonathan Custance James Green John Thomson Stuart Simms OnAppLtd.

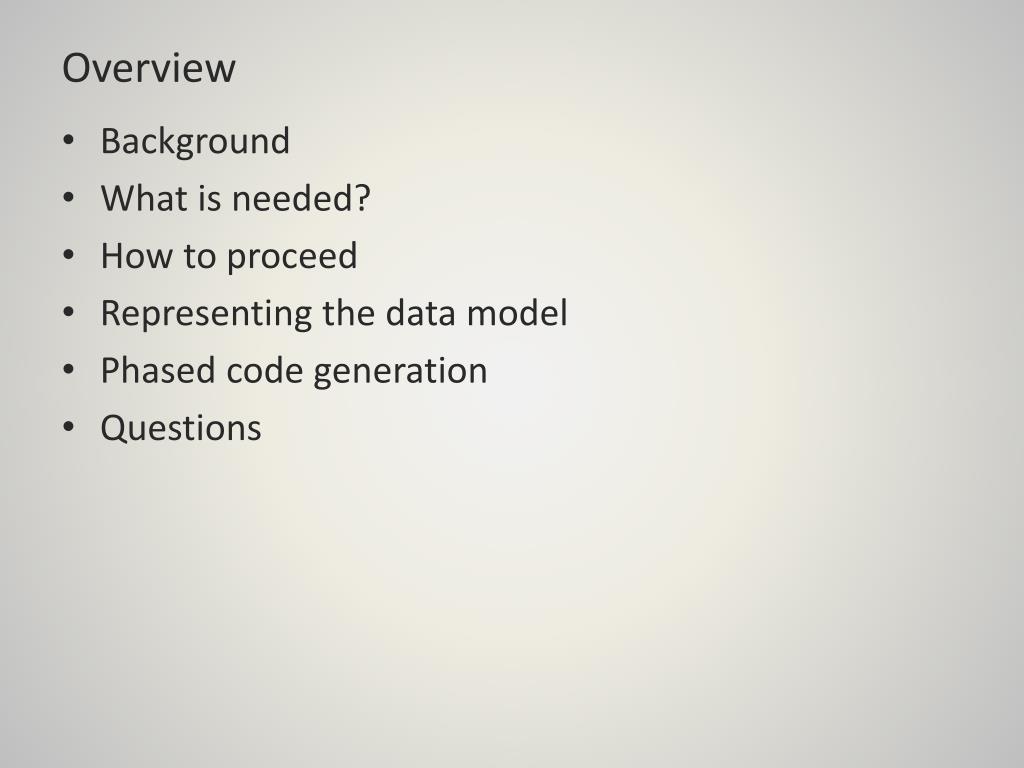

  2. Overview • Background • What is needed? • How to proceed • Representing the data model • Phased code generation • Questions

  3. Background • OnApp provide ‘cloud’ control software • OnApp customers have thousands of ‘clouds’ geographically spread • OnApp will offer customers ‘federation’ of ‘cloud’ resource • OnApp engagement with CO led to a joint proposal for industrial use for ‘federation’ • Proposal includes architecture/tool changes, as well as governance.

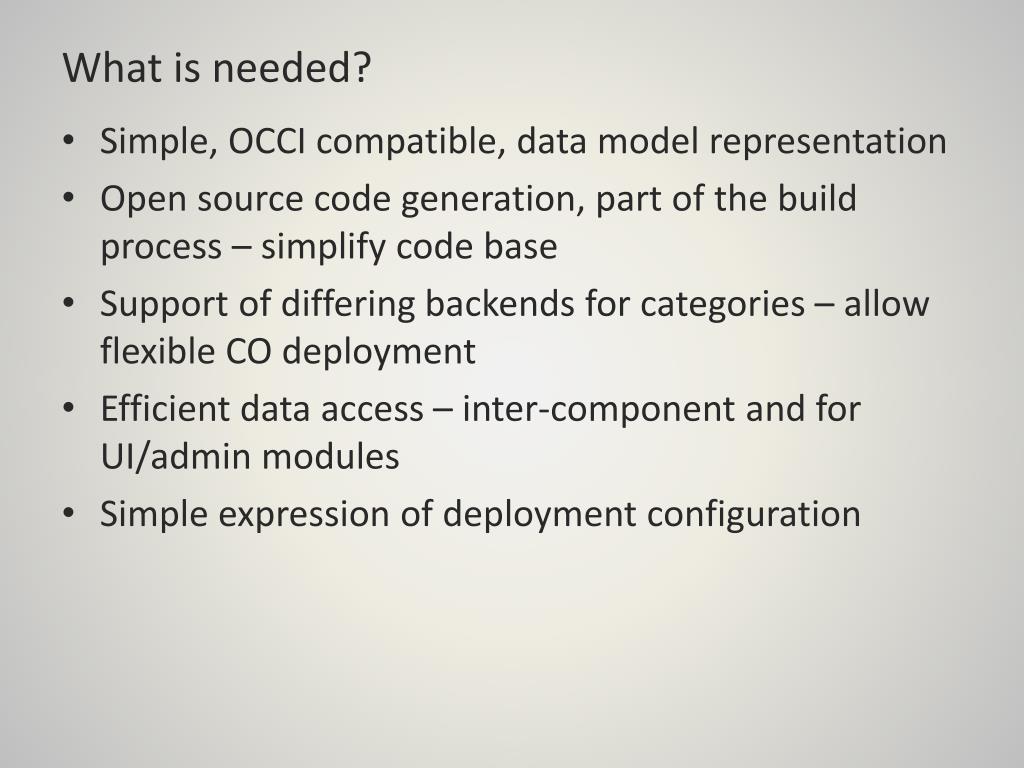

  4. What is needed? • Simple, OCCI compatible, data model representation • Open source code generation, part of the build process – simplify code base • Support of differing backends for categories – allow flexible CO deployment • Efficient data access – inter-component and for UI/admin modules • Simple expression of deployment configuration

  5. How to proceed • Provide open build system, extensible by all for any CO deployment • Data model agreed, specified and version controlled • Phased development plan agreed, leading to replacement code generation tool • Each development phase reviewed and tested prior to merge, check CO behaviour unchanged • Phasing hooks in with governance changes and move to GitHub

  6. Representing the data model #1 • Category data model is an XML version of OCCI - supports kinds, links, mixins& actions • Flexible attribute definition covering: • Types, incl. enums and default values • Units, validation and indexation • Collection – allow an attribute to specify relationships with other categories • Backend help to allow category to specify common links and mixins

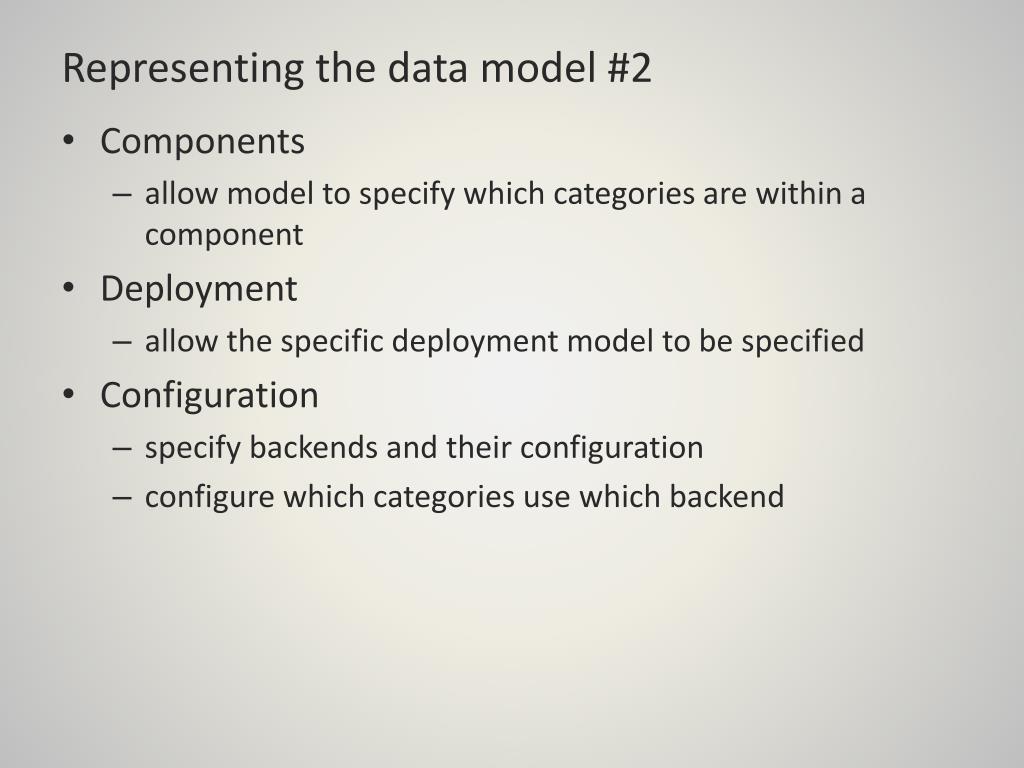

  7. Representing the data model #2 • Components • allow model to specify which categories are within a component • Deployment • allow the specific deployment model to be specified • Configuration • specify backends and their configuration • configure which categories use which backend

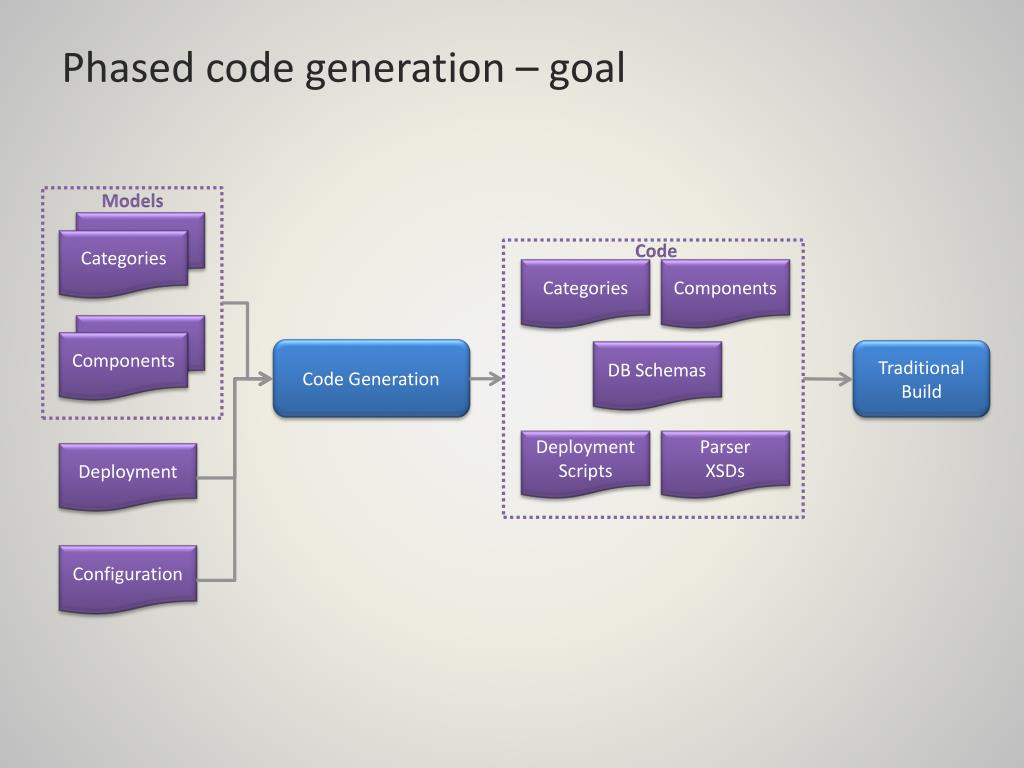

  8. Phased code generation – goal Models Models Categories Code Categories Components Models Components Code Generation Traditional Build DB Schemas Deployment Scripts Parser XSDs Deployment Configuration

  9. Phased code generation – current state • Data model and tools within source tree • Auto-generated files removed • Ready for migration to GitHub • autogen build process updated to: • Try it out – pull master today • New dependency – Python 2.7 Models Models Models Category .c files Category .h files Category Model XMLs Code Generation Strukt Traditional Build

  10. Phased code generation – next steps #1 • Updated category generation • Auto-generate Actions API from model (not from component) • Split code around CRUDL API to allow different backends • Backend Integration code generation • Schema/migration data generation for Backend System REST Server OCCI Server Component Actions API CRUDL API Backend Integration Category Backend System e.g. SQL

  11. Phased code generation – next steps #2 • Component generation • Simple components entirely generated • Simplifies code for components with business logic • Deployment script generation • Create deployment scripts for chosen deployment model • Ensure category access optimised • Supports: Compact (single process), Small, Large & Scalable

  12. Questions?
