Whitsome ark

a project by

the

Whitsome Village Hall Association

to

provide a community facility

for

Whitsome Village

Whitsome Ark


Whitsome ark1

to replace a war-time barrack block transported and rebuilt as the village hall in 1952

Whitsome Ark


Whitsome ark2

apart from providing suitable accommodation, the new building had to incorporate sustainable materials and systems to ensure low running and maintenance costs so future ‘managers’ would not be saddled with high expenditure

Whitsome Ark


Whitsome ark3

  • at the design stage, the three main ‘sustainability’ components for energy conservation were:

  • Ground Sourced Energy

  • Solar Heating

  • Building Insulation

Whitsome Ark


Whitsome ark4

Ground Sourced Energy

of the two methods of extraction – ‘slinkies’ (pipes buried about 1.5 metres down) and boreholes – the likely greater consistency of the latter made them the obvious choice

Whitsome Ark


Whitsome ark5

Solar Heating

although not a source as ‘available’ as energy from the ground, nevertheless it was felt to be a valuable – and cheaper – addition to the system

Whitsome Ark


Whitsome ark6

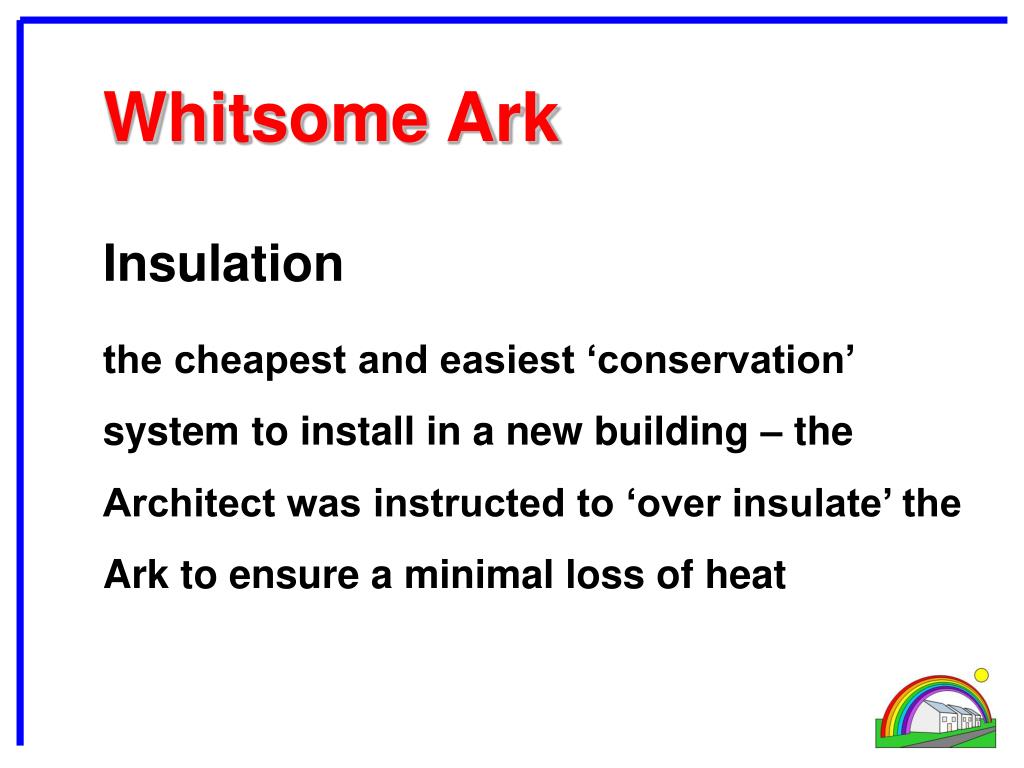

Insulation

the cheapest and easiest ‘conservation’ system to install in a new building – the Architect was instructed to ‘over insulate’ the Ark to ensure a minimal loss of heat

Whitsome Ark


Whitsome ark7

The Heating System

this comprised two sources of ‘renewable’ energy and a standby fossil fuel boiler, all combined in an integrated system to make best use of energy

Whitsome Ark


Whitsome ark8

The Heating System

at the heart of the scheme is a hot water reservoir or ‘buffer store’ which acts as both the collector and distributer of the heat requirement . . .

Whitsome Ark


Whitsome ark9

domestic hot water cylinder wholly contained within the buffer

DHW

Whitsome Ark

buffer

buffer cylinder of 800 litre capacity and highly insulated


Whitsome ark10

The Heating System

the roof mounted solar panels provide heat to a coil in the bottom of the buffer when there is sufficient energy from the sun . . .

Whitsome Ark


Whitsome ark11

solar panels

DHW

Whitsome Ark

buffer

glycol circulating in a closed system


Whitsome ark12

The Heating System

the three bore holes provide warmed brine to the ground source heat pump which, in turn, directly heats the water in the buffer

Whitsome Ark


Whitsome ark13

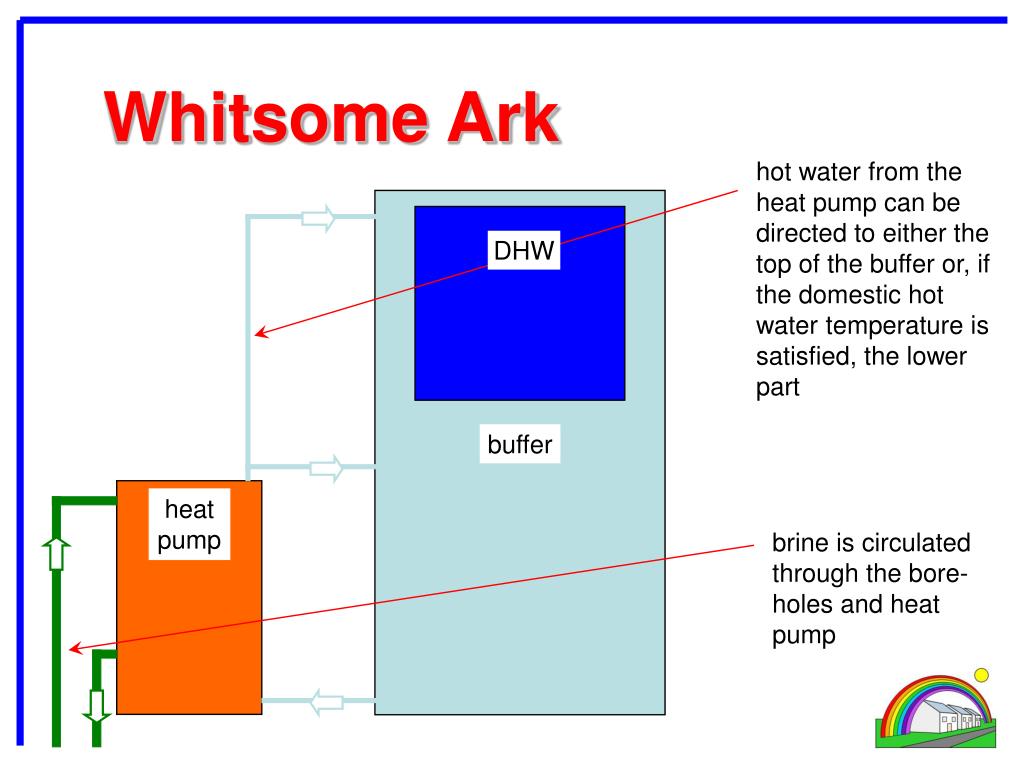

hot water from the heat pump can be directed to either the top of the buffer or, if the domestic hot water temperature is satisfied, the lower part

DHW

Whitsome Ark

buffer

heat

pump

brine is circulated through the bore-holes and heat pump


Whitsome ark14

The Heating System – extra

when the buffer temperature is satisfied, the hot solar panel glycol is routed to a heat exchanger and warms the brine returning to the ground . . .

Whitsome Ark


Whitsome ark15

Solar Panels

DHW

brine/glycol heat exchanger

Whitsome Ark

buffer


Whitsome ark16

The Distribution System

as the building temperature falls, demand is made for hot water to circulate under the floor . . .

Whitsome Ark


Whitsome ark17

DHW

draw-off for underfloor heating

Whitsome Ark

buffer

cold return from underfloor heating


Whitsome ark18

The Equipment Room

a fairly small room was set aside to house all the heating equipment . .

Whitsome Ark


Whitsome ark19

system expansion tank

Heating System

equipment room

solar panel controls

brine header/expansion tank

buffer

Whitsome Ark

heat pump

standby oil boiler


Whitsome ark20

Heat Retention

without the considerable amount of insulation built into the Ark, all the investment in ‘green’ heating would be wasted . . .

Whitsome Ark


Whitsome ark21

Whitsome Ark


Whitsome ark22

And More

the oil boiler serves the dual role of being available if the ‘green’ systems cannot cope and be the sole provider of heat when grid electricity is lost as it can operate from a small standby generator

Whitsome Ark


Whitsome ark23

The Funding – circa £48,000

the oil boiler and insulation were part of the main contractor’s overall price but all other equipment was paid for by grants from the Energy Savings Trust (SCHRI), Scottish Borders Council, Viridor (Landfill Community Fund) and BCCF Environmental

Whitsome Ark


Whitsome ark24

The Future

the Ark has Planning Consent to install 10kW of photovoltaic cells on the roof and is seeking grant funding

a planning application has been made to erect an anemometer mast

Whitsome Ark


Whitsome ark25

Finale

While we hope these simplified sketches provide an indication of the installations at the Ark, if you’d like to visit, all the details are on our web site: www.WhitsomeArk.org.uk
