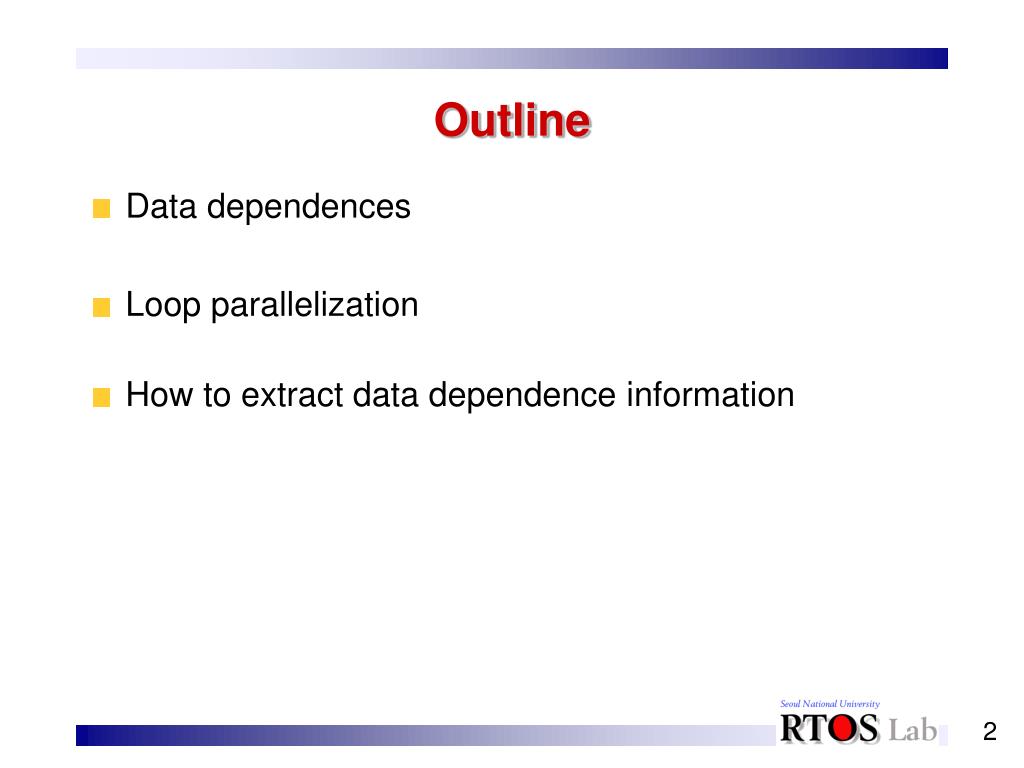

2. Outline • Data dependences • Loop parallelization • How to extract data dependence information

3. Loop Parallelization Goal • DoAll loops • Loops whose iterations can execute in parallel • Example For (i = 0; i < n; i++) A[i] = B[i] + C[i] • Statically assign each iteration to a processor

4. Data Dependence of Scalars • Data Dependences • True dependence: write  read • Anti dependence: read  write • Output dependence: write  write • Data dependence exists from a dynamic instance i to i’ iff • either i or i’ is a write operation • i and i’ refer to the same variable • i executes before i’

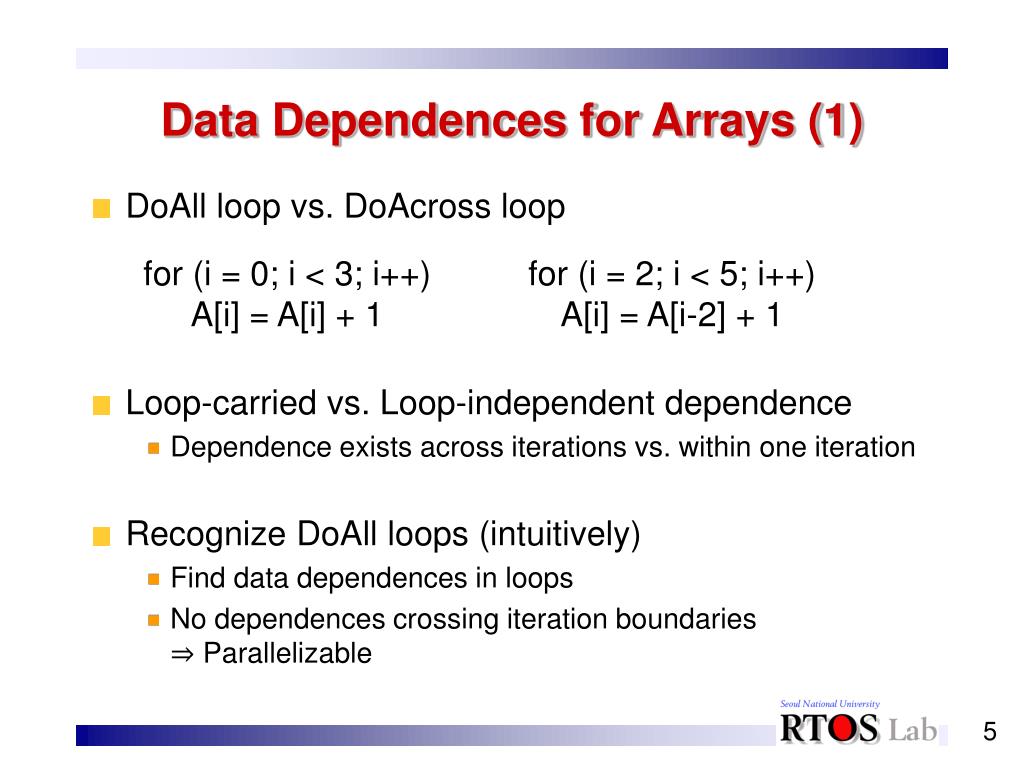

5. Data Dependences for Arrays (1) • DoAll loop vs. DoAcross loop • Loop-carried vs. Loop-independent dependence • Dependence exists across iterations vs. within one iteration • Recognize DoAll loops (intuitively) • Find data dependences in loops • No dependences crossing iteration boundaries⇒ Parallelizable for (i = 0; i < 3; i++)A[i] = A[i] + 1 for (i = 2; i < 5; i++)A[i] = A[i-2] + 1

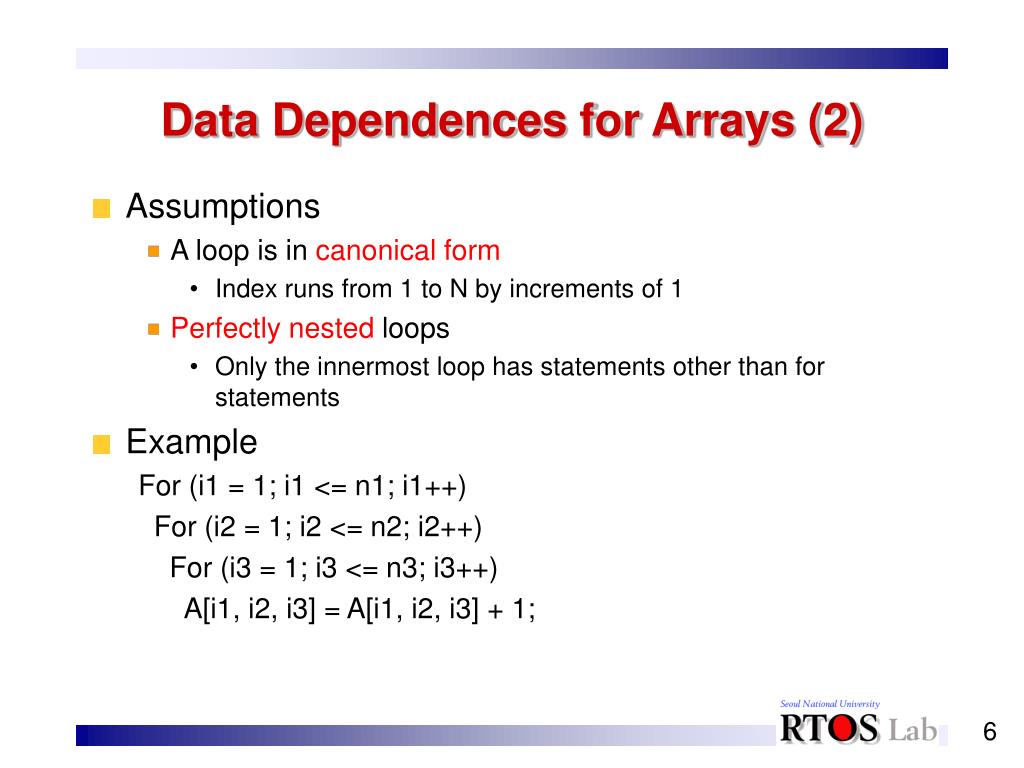

6. Data Dependences for Arrays (2) • Assumptions • A loop is in canonical form • Index runs from 1 to N by increments of 1 • Perfectly nested loops • Only the innermost loop has statements other than for statements • Example For (i1 = 1; i1 <= n1; i1++) For (i2 = 1; i2 <= n2; i2++) For (i3 = 1; i3 <= n3; i3++) A[i1, i2, i3] = A[i1, i2, i3] + 1;

7. Iteration Space (1) • Iteration is represented as coordinates in iteration space • n-dimensional discrete space for n-deep loops • Iteration space diagrams show dependences between all iterations of a loop • Vs. Dependence graph shows all dependences between two statements in a loop • Example Iteration Space Traversal FOR (i = 0; i < 5; i++) FOR (j = 0; j < 7; j++) A[i, j] = A[i-1, j-1] + 1 i j

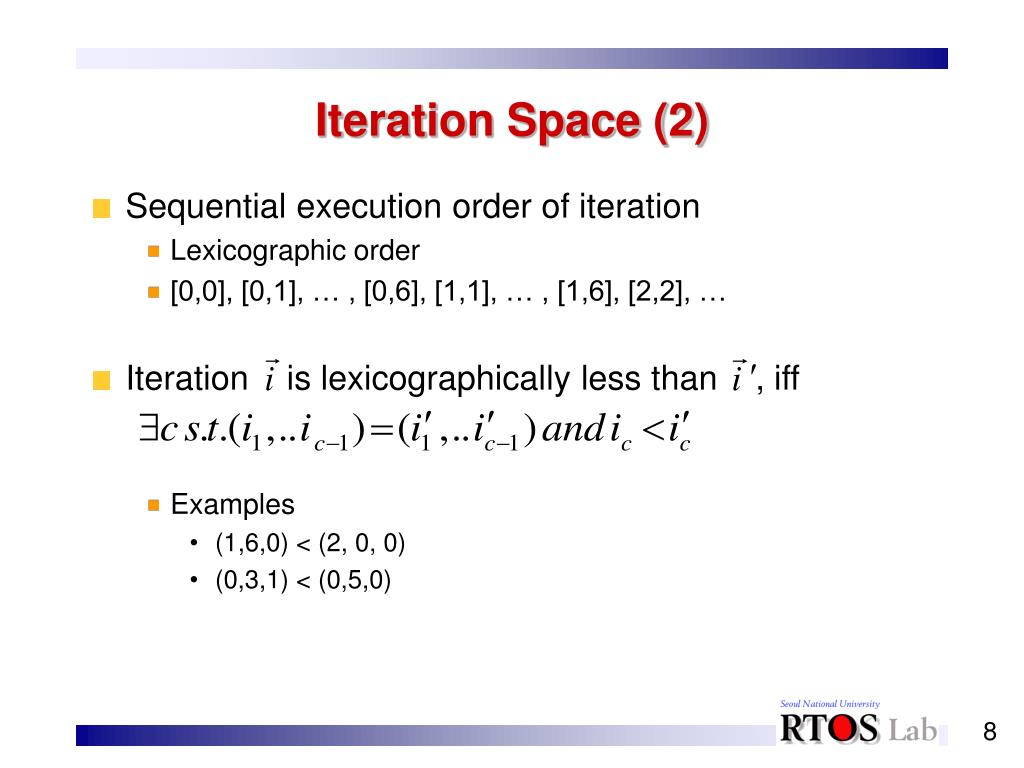

8. Iteration Space (2) • Sequential execution order of iteration • Lexicographic order • [0,0], [0,1], … , [0,6], [1,1], … , [1,6], [2,2], … • Iteration is lexicographically less than , iff • Examples • (1,6,0) < (2, 0, 0) • (0,3,1) < (0,5,0)

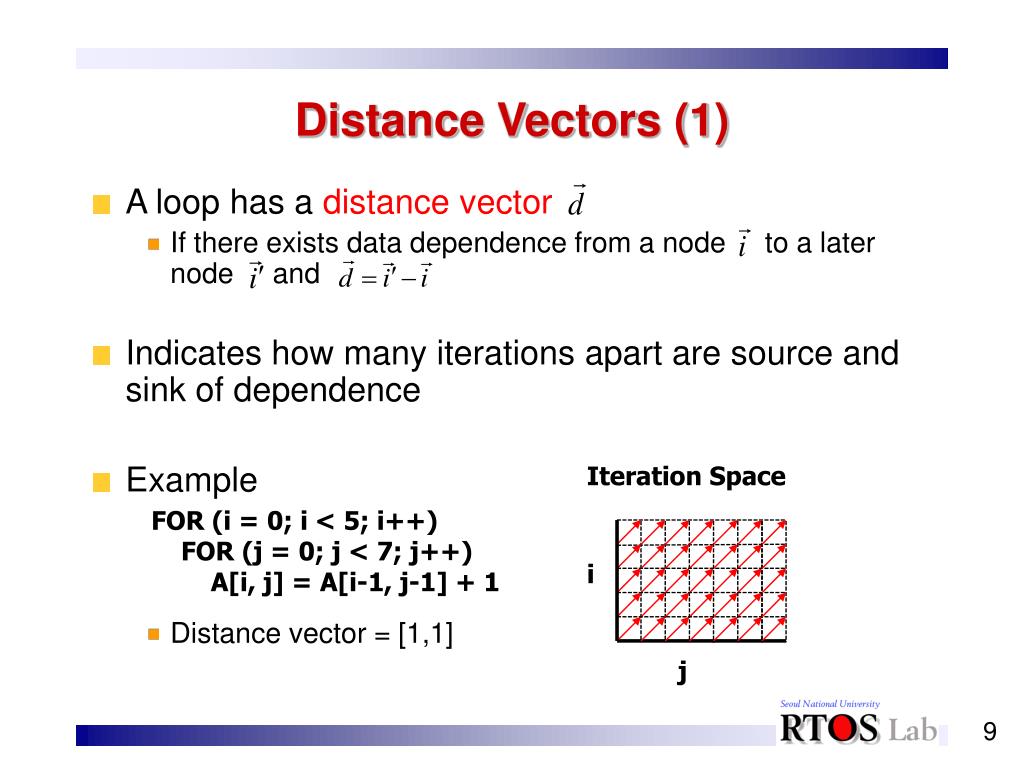

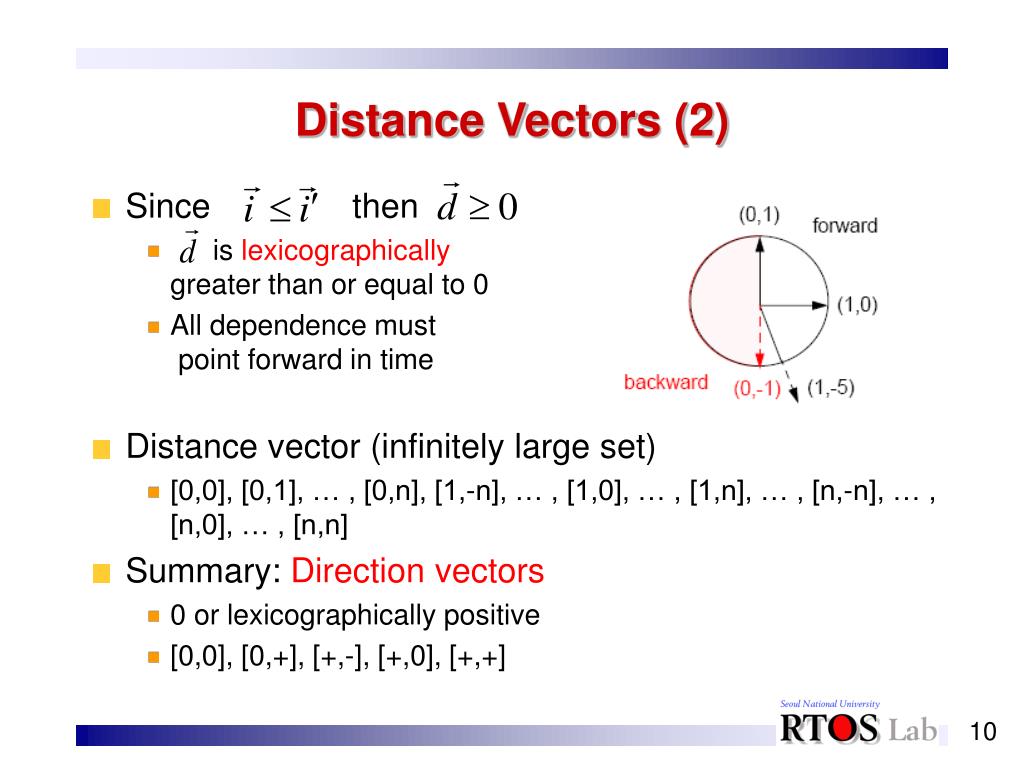

9. Distance Vectors (1) • A loop has a distance vector • If there exists data dependence from a node to a later node and • Indicates how many iterations apart are source and sink of dependence • Example • Distance vector = [1,1] Iteration Space FOR (i = 0; i < 5; i++) FOR (j = 0; j < 7; j++) A[i, j] = A[i-1, j-1] + 1 i j

10. Distance Vectors (2) • Since then • is lexicographicallygreater than or equal to 0 • All dependence must point forward in time • Distance vector (infinitely large set) • [0,0], [0,1], … , [0,n], [1,-n], … , [1,0], … , [1,n], … , [n,-n], … , [n,0], … , [n,n] • Summary: Direction vectors • 0 or lexicographically positive • [0,0], [0,+], [+,-], [+,0], [+,+]

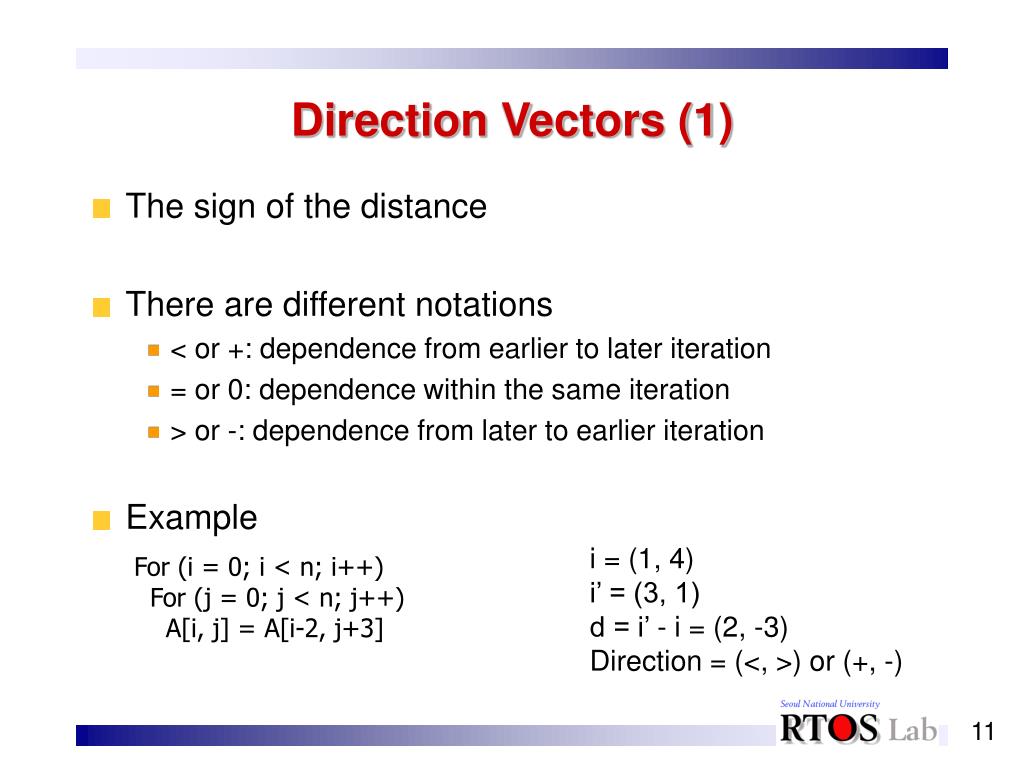

11. Direction Vectors (1) • The sign of the distance • There are different notations • < or +: dependence from earlier to later iteration • = or 0: dependence within the same iteration • > or -: dependence from later to earlier iteration • Example • i = (1, 4) • i’ = (3, 1) • d = i’ - i = (2, -3) • Direction = (<, >) or (+, -) For (i = 0; i < n; i++) For (j = 0; j < n; j++) A[i, j] = A[i-2, j+3]

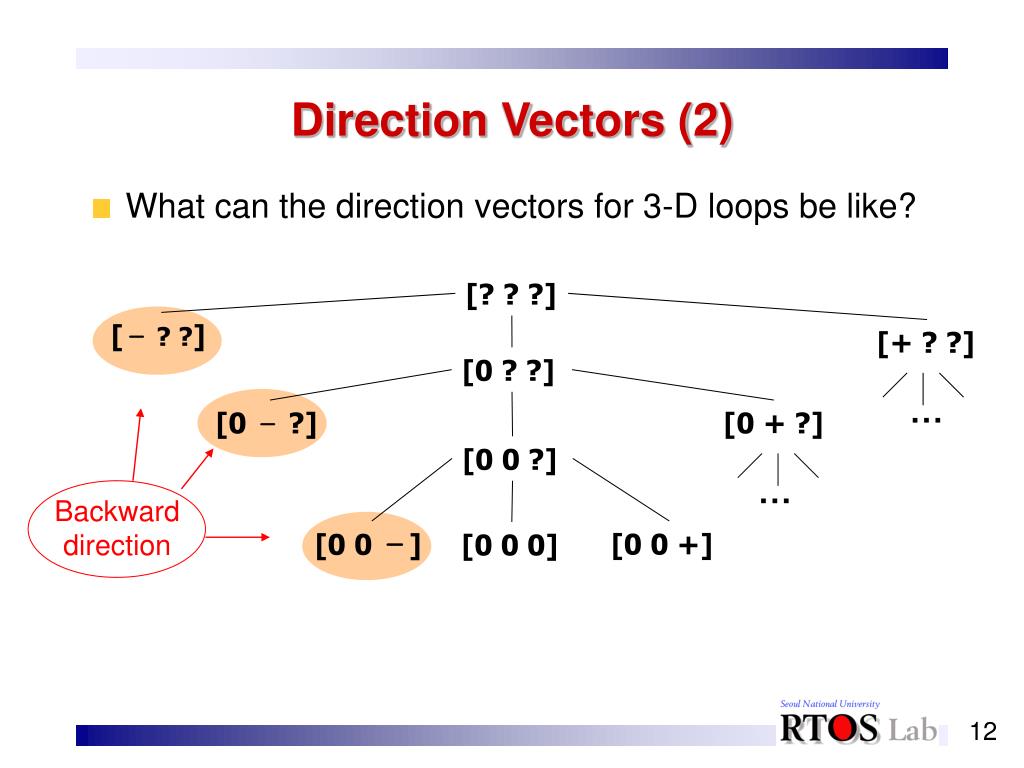

12. Direction Vectors (2) • What can the direction vectors for 3-D loops be like? [? ? ?] [－ ? ?] [+ ? ?] [0 ? ?] … [0 － ?] [0 + ?] [0 0 ?] … Backward direction [0 0 －] [0 0 +] [0 0 0]

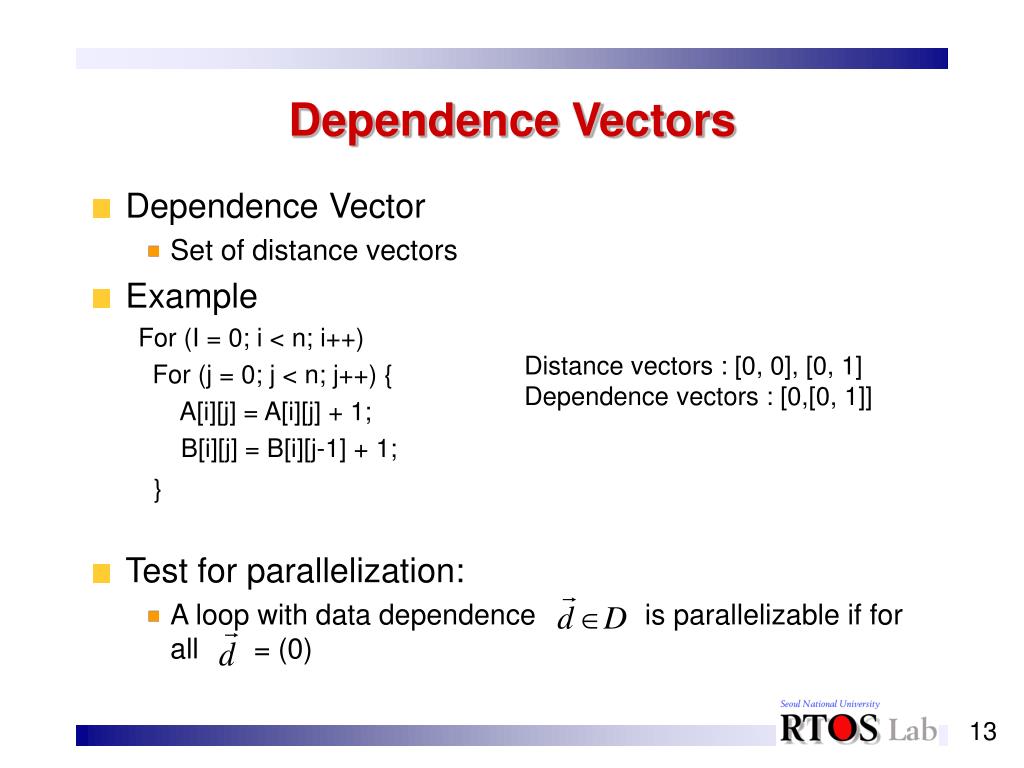

13. Dependence Vectors • Dependence Vector • Set of distance vectors • Example For (I = 0; i < n; i++) For (j = 0; j < n; j++) { A[i][j] = A[i][j] + 1; B[i][j] = B[i][j-1] + 1; } • Test for parallelization: • A loop with data dependence is parallelizable if for all = (0) Distance vectors : [0, 0], [0, 1] Dependence vectors : [0,[0, 1]]

14. n-Dimensional Loops FOR (i = 0; i < n; i++) FOR (j = 0; j < n; j++) A[i, j] = A[i, j-1] + 1 FOR (i = 0; i < n; i++) FOR (j = 0; j < n; j++) A[i, j] = A[i-1, j] + 1 FOR (i = 0; i < n; i++) FOR (j = 0; j < n; j++) A[i, j] = A[i-1, j-1] + 1 Loop i is parallelizable i j Loop j is parallelizable i j Loop j is parallelizable i j

15. Test for Parallelization • is loop-carried at level iif di is the first non-zero element ⇒ does not affect the parallelizability of inner loop • Ex) (0,0,2,0,1, …) : level 3 dependence • The i th loop of an n-dimensional loop is parallelizable if there does not exist any level i dependences • The i th loop of an n-dimensional loop is parallelizable for all dependences , either • (d1, … ,di-1) > 0 (= lexicographically forward) • (d1, … ,di) = 0

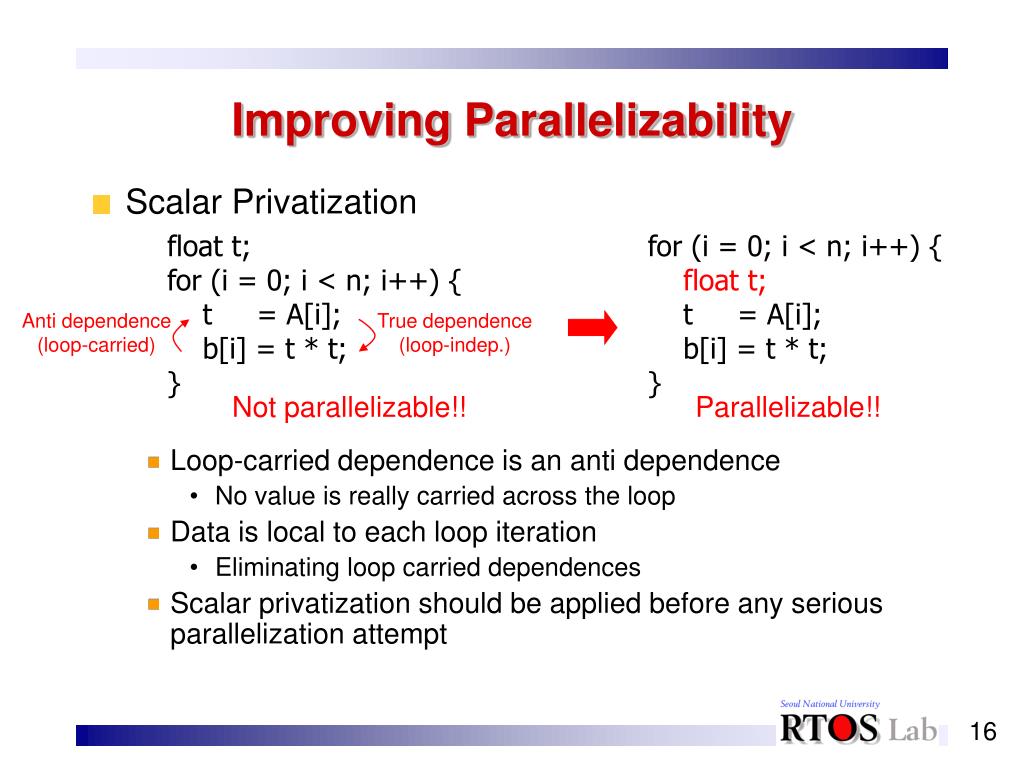

16. Improving Parallelizability • Scalar Privatization • Loop-carried dependence is an anti dependence • No value is really carried across the loop • Data is local to each loop iteration • Eliminating loop carried dependences • Scalar privatization should be applied before any serious parallelization attempt float t; for (i = 0; i < n; i++) { t = A[i]; b[i] = t * t; } for (i = 0; i < n; i++) { float t; t = A[i]; b[i] = t * t; } Anti dependence (loop-carried) True dependence (loop-indep.) Not parallelizable!! Parallelizable!!

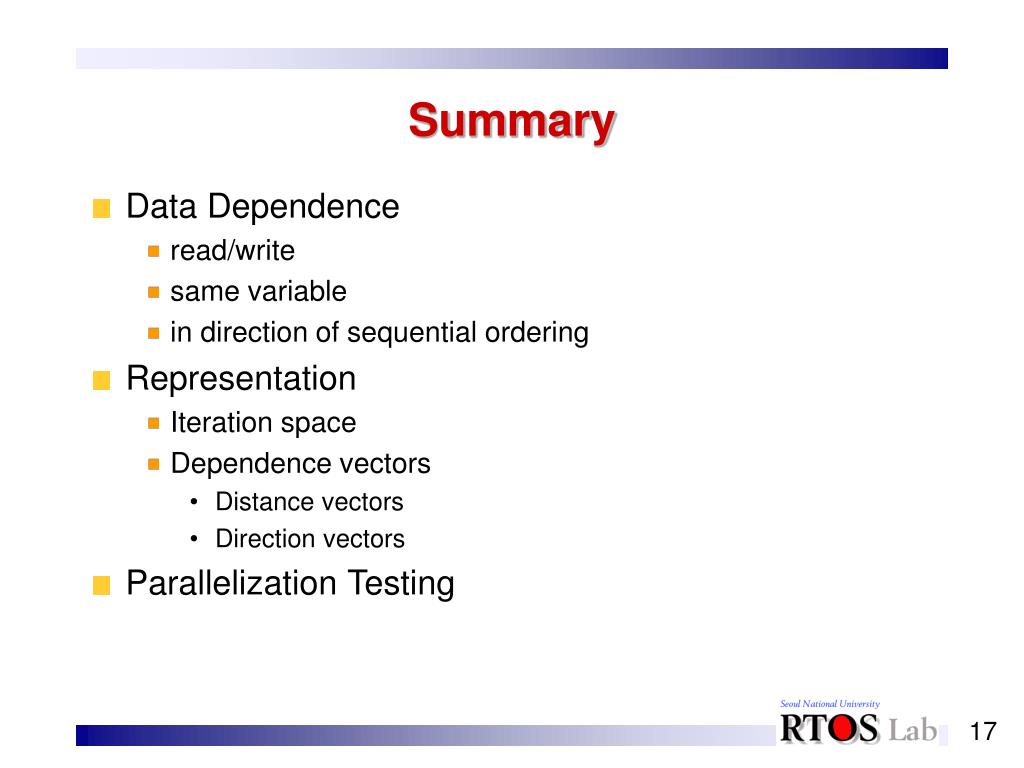

17. Summary • Data Dependence • read/write • same variable • in direction of sequential ordering • Representation • Iteration space • Dependence vectors • Distance vectors • Direction vectors • Parallelization Testing
