  1. Steering Behaviors • What are Steering Behaviors • means of locomotion for autonomous agentsand robots. • largely independent • can be combined • improvisational and reactive

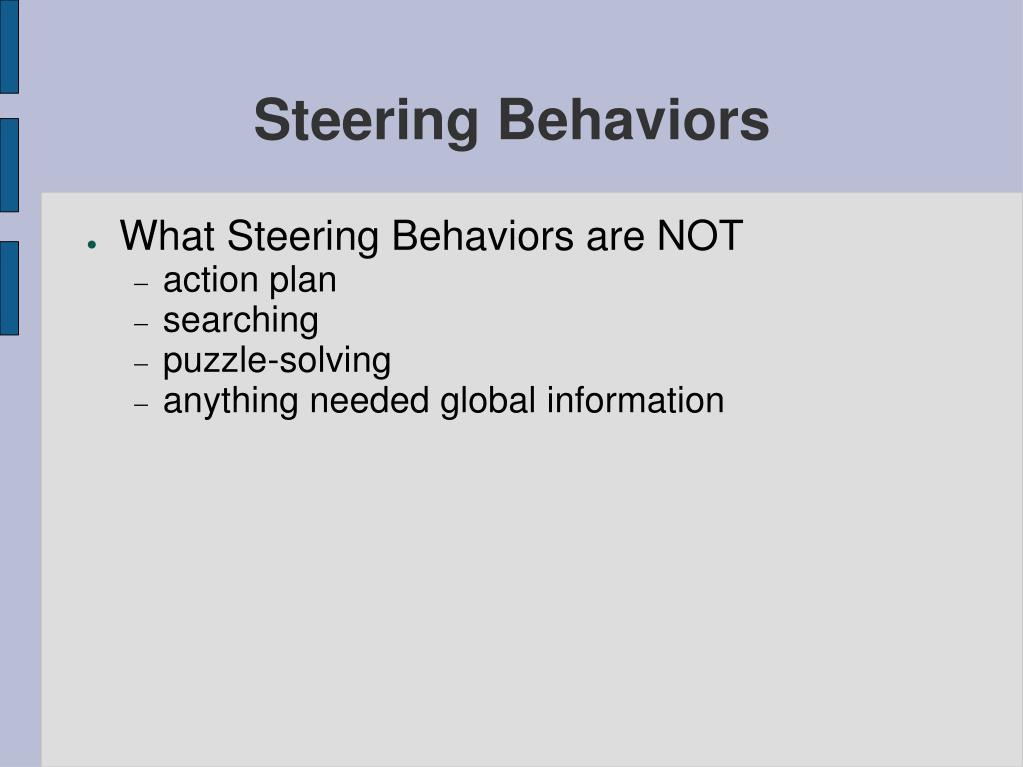

  2. Steering Behaviors • What Steering Behaviors are NOT • action plan • searching • puzzle-solving • anything needed global information

  3. primarily based on: Steering Behaviors For Autonomous Characters by: Craig Reynolds Presented by: Kevin M. Kelly Steering Behaviors

  4. Steering Behaviors

  5. Flocking • Designed for Computer Animation (Reynolds '87)

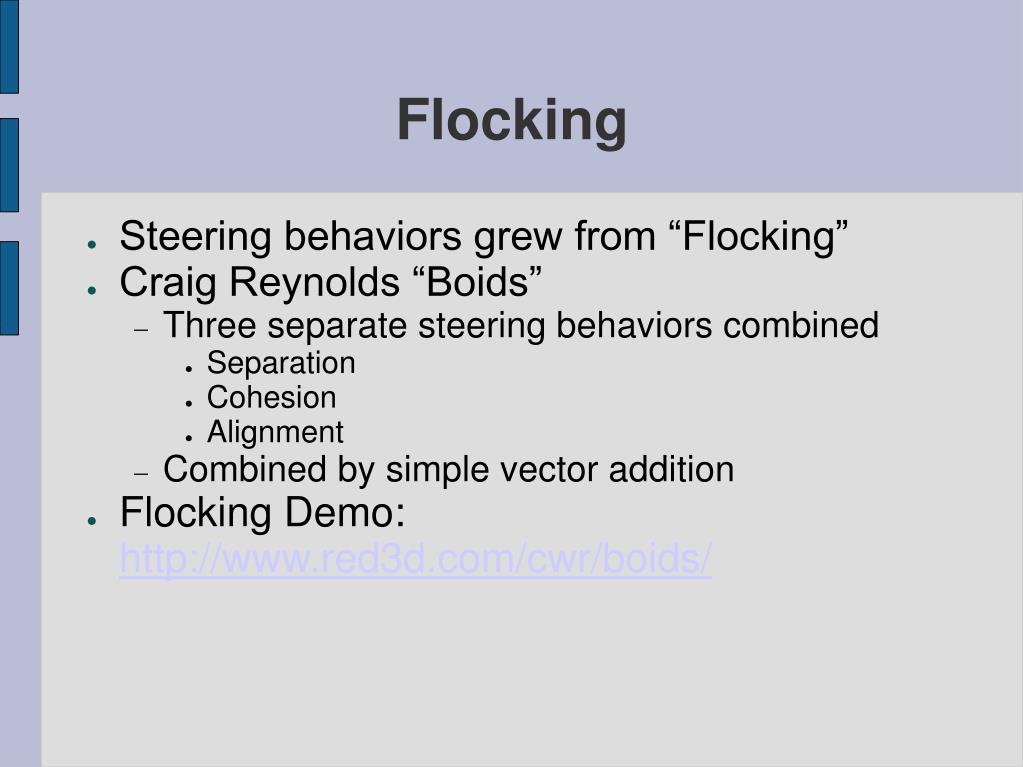

  6. Flocking • Steering behaviors grew from “Flocking” • Craig Reynolds “Boids” • Three separate steering behaviors combined • Separation • Cohesion • Alignment • Combined by simple vector addition • Flocking Demo: http://www.red3d.com/cwr/boids/

  7. Current Uses • Now used for many purposes • Computer animation in movies • Video games • Simulations • Robotics

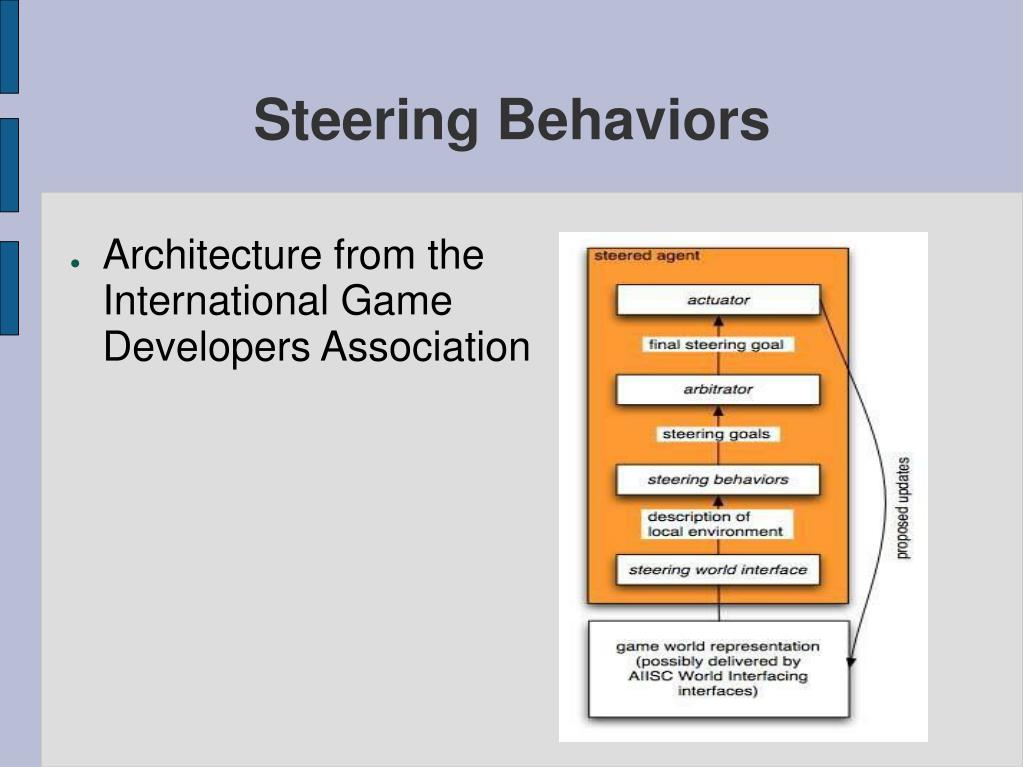

  8. Steering Behaviors • Architecture from theInternational GameDevelopers Association

  9. Parts of the Steering Architecture • Steering World Interface • provides information about the world • Steering Behaviors • the behaviors themselves – each output independent steering goals • Arbitrator • combine the steering goals (this is very difficult) • Actuator • Actual movement code – specific to the application

  10. Arbitrator • The arbitrator is the most difficult part of using steering behaviors • Flocking used the simplest form of arbitrator • simple combination • Other types of arbitration • Prioritized (much like Brooks's actuated control) • Heuristic • application dependent • Reverse • select best one of each • Round Robin • each gets a turn

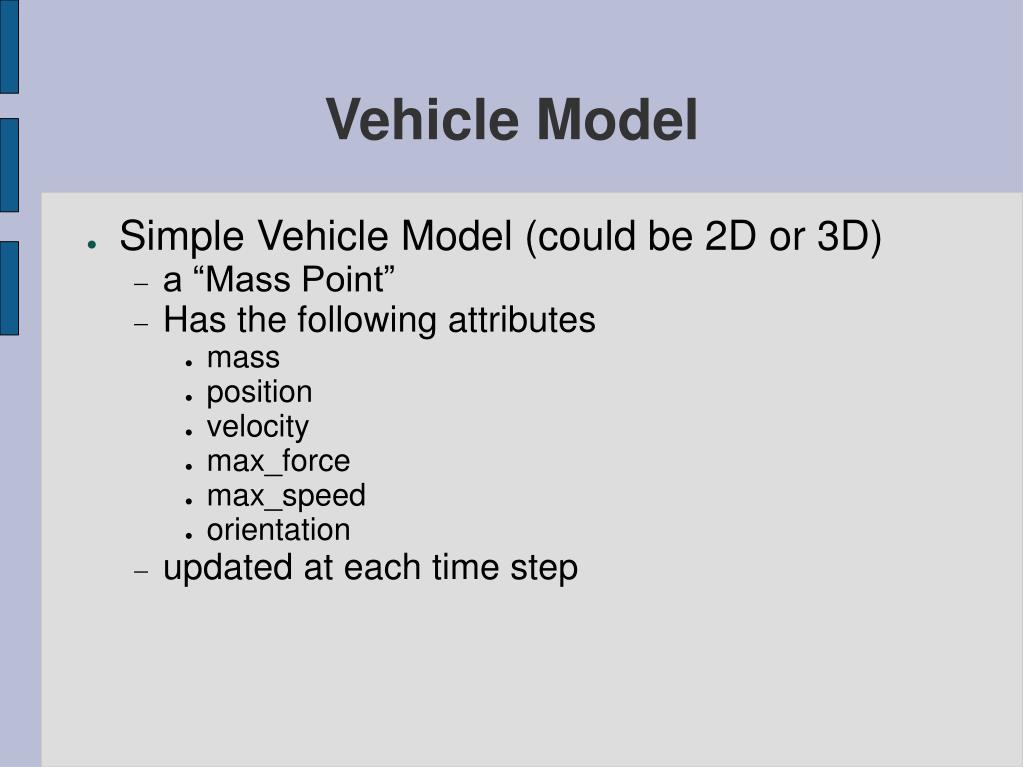

  11. Vehicle Model • Simple Vehicle Model (could be 2D or 3D) • a “Mass Point” • Has the following attributes • mass • position • velocity • max_force • max_speed • orientation • updated at each time step

  12. Vehicle Model • Steering behaviors give a force or acceleration vector • Could extrapolate to more complex vehicles

  13. Examples (single behavior) • Seek • Flee • Evasion • Pursuit • Wander • Arrival • Obstacle Avoidance • Containment • Wall Following • Path Following

  14. Seek and Flee • http://www.red3d.com/cwr/steer/SeekFlee.html

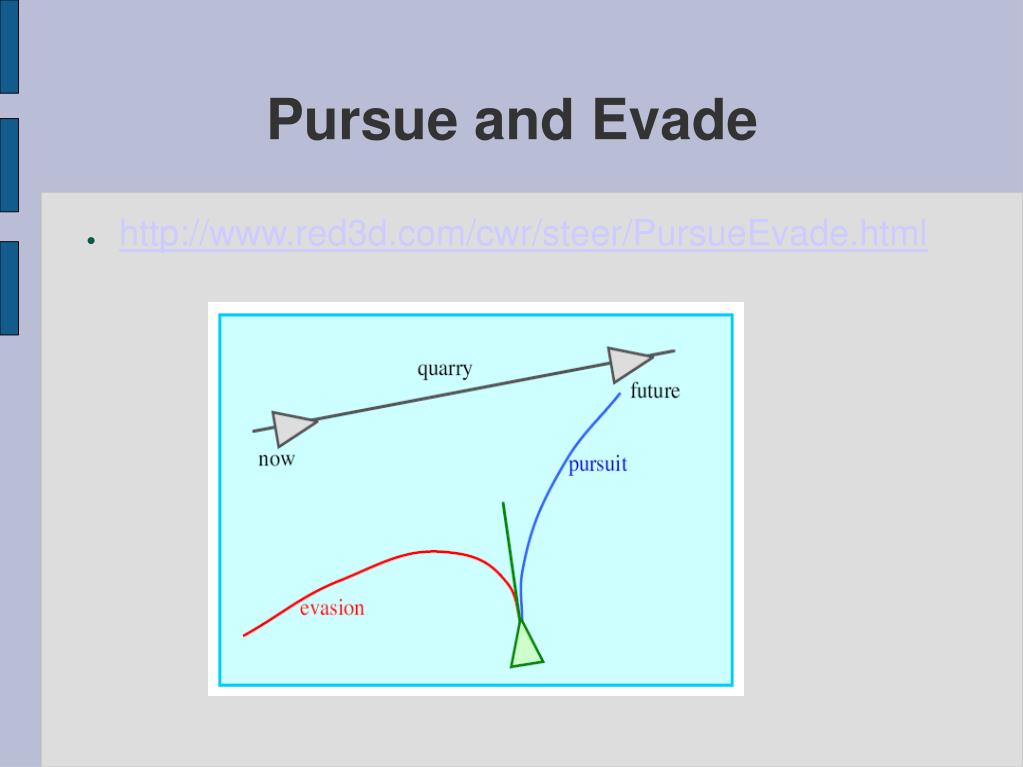

  15. Pursue and Evade • http://www.red3d.com/cwr/steer/PursueEvade.html

  16. Wander • http://www.red3d.com/cwr/steer/Wander.html

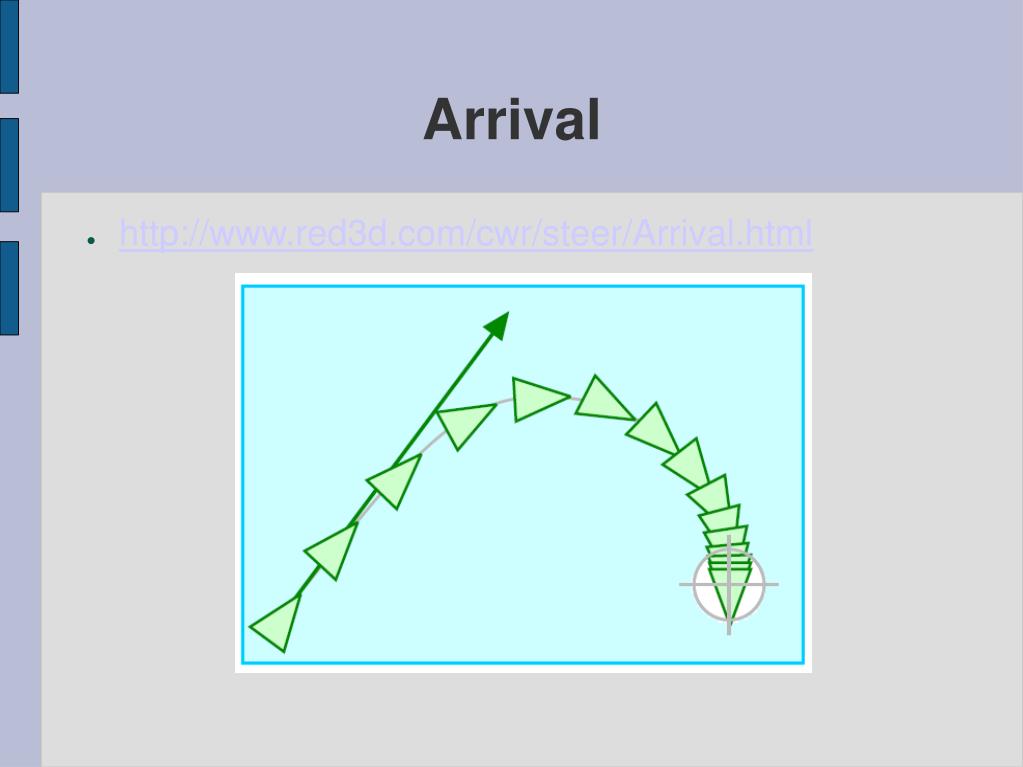

  17. Arrival • http://www.red3d.com/cwr/steer/Arrival.html

  18. Obstacle Avoidance • http://www.red3d.com/cwr/steer/Obstacle.html

  19. Containment and Wall Following • http://www.red3d.com/cwr/steer/Containment.html • http://www.red3d.com/cwr/steer/Wall.html

  20. Path Following • http://www.red3d.com/cwr/steer/PathFollow.html

  21. Examples (combined behaviors) • Crowd Path Following • Leader Following • Unaligned collision avoidance • Queuing • Flocking

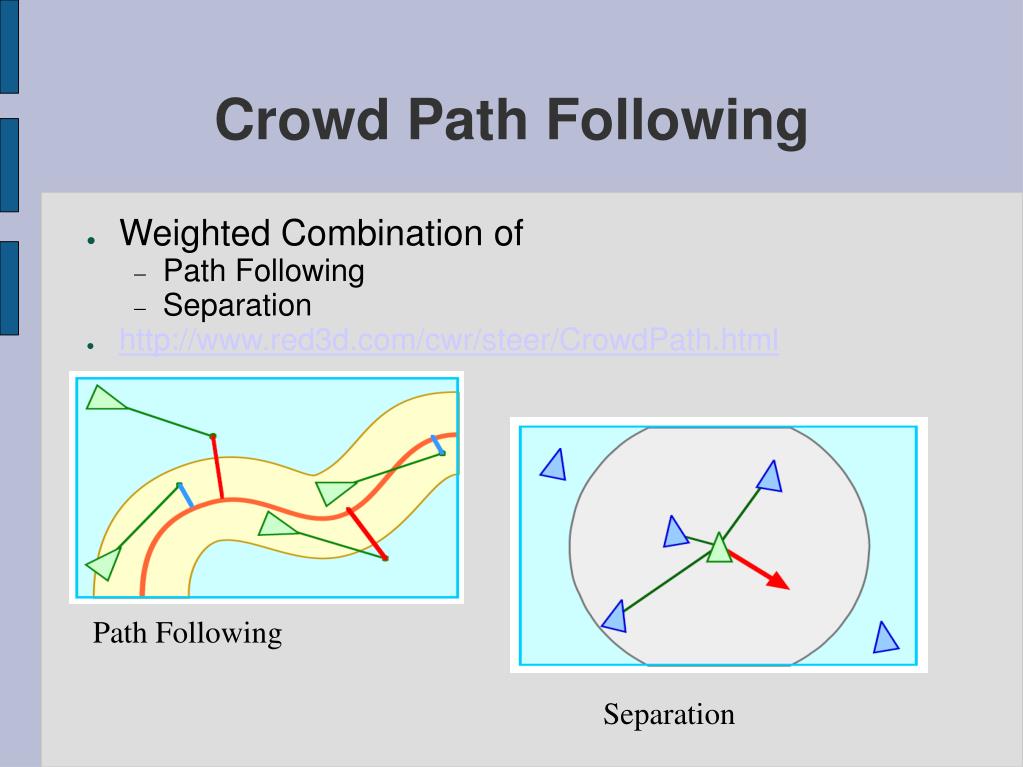

  22. Crowd Path Following • Weighted Combination of • Path Following • Separation • http://www.red3d.com/cwr/steer/CrowdPath.html Path Following Separation

  23. Leader Following • Combination of • Separation • Arrival (point slightly behind the leader) • http://www.red3d.com/cwr/steer/LeaderFollow.html Arrival Separation

  24. Unaligned Collision Avoidance • Combination of • Containment • Unaligned Collision Avoidance • http://www.red3d.com/cwr/steer/Unaligned.html Containment Unaligned Collision Avoidance

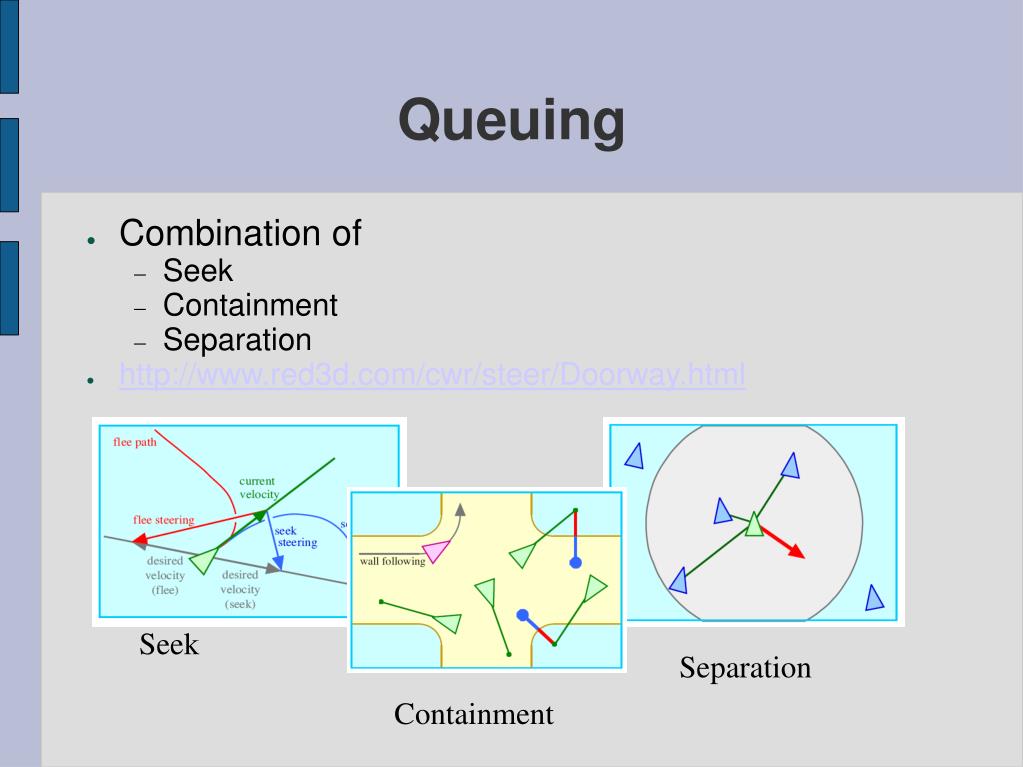

  25. Queuing • Combination of • Seek • Containment • Separation • http://www.red3d.com/cwr/steer/Doorway.html Seek Separation Containment

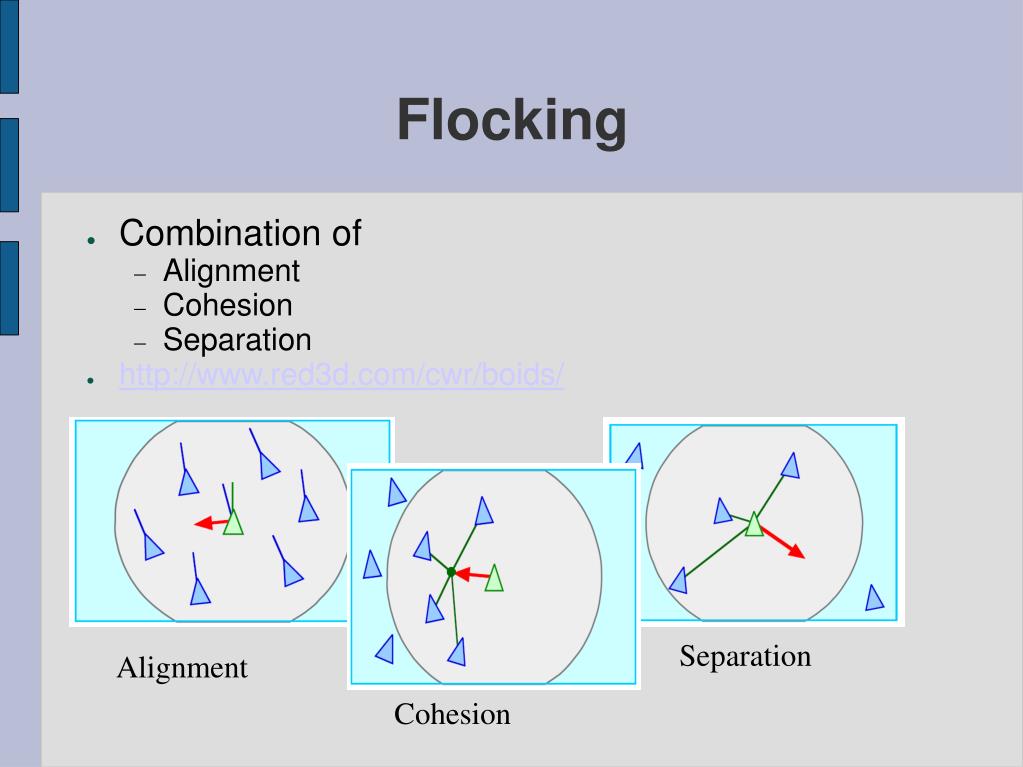

  26. Flocking • Combination of • Alignment • Cohesion • Separation • http://www.red3d.com/cwr/boids/ Separation Alignment Cohesion

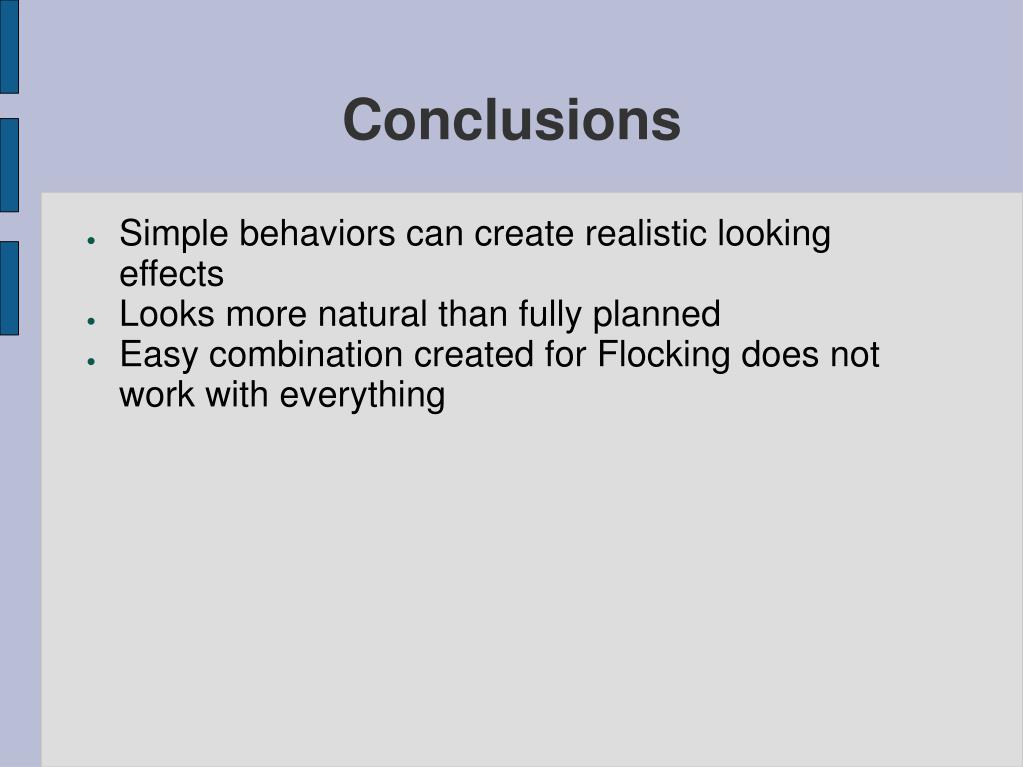

  27. Conclusions • Simple behaviors can create realistic looking effects • Looks more natural than fully planned • Easy combination created for Flocking does not work with everything
