Awips continuous technology refresh ctr awips software ctr

AWIPS Continuous Technology Refresh (CTR)AWIPS Software CTR

AWIPS TO11-SnapUp ReadMe

Dec 09, 2009


Awips to11 snapup readme

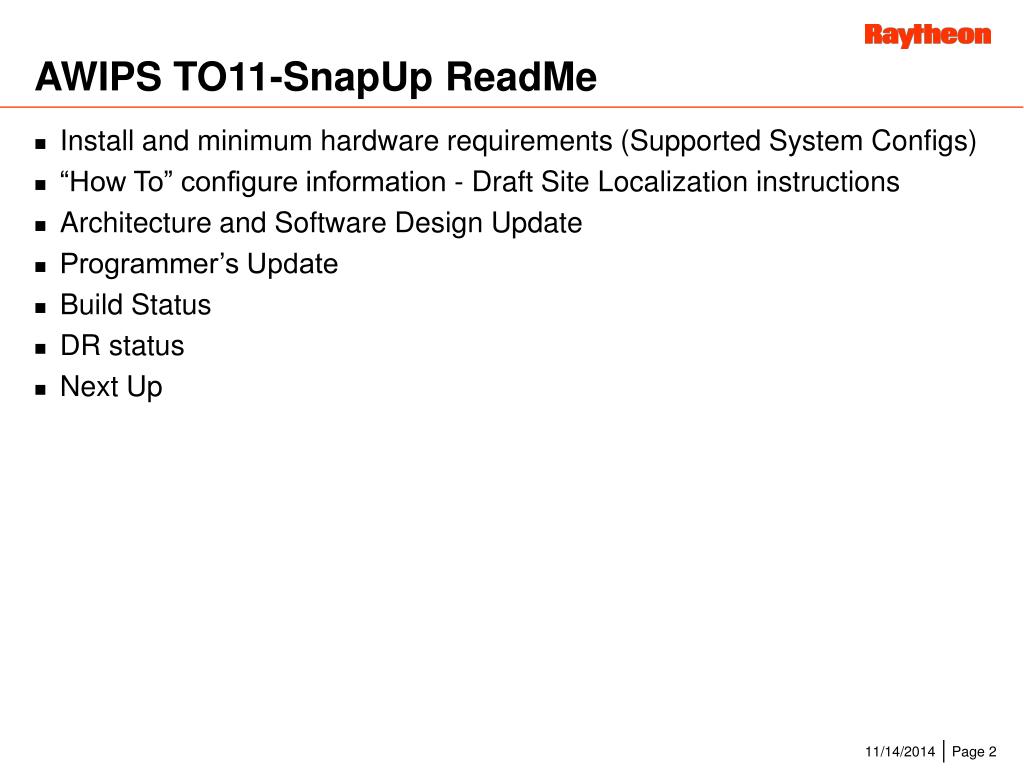

AWIPS TO11-SnapUp ReadMe

  • Install and minimum hardware requirements (Supported System Configs)

  • “How To” configure information - Draft Site Localization instructions

  • Architecture and Software Design Update

  • Programmer’s Update

  • Build Status

  • DR status

  • Next Up


Awips installers standalone workstation simplest complete awips environment limited dataflow

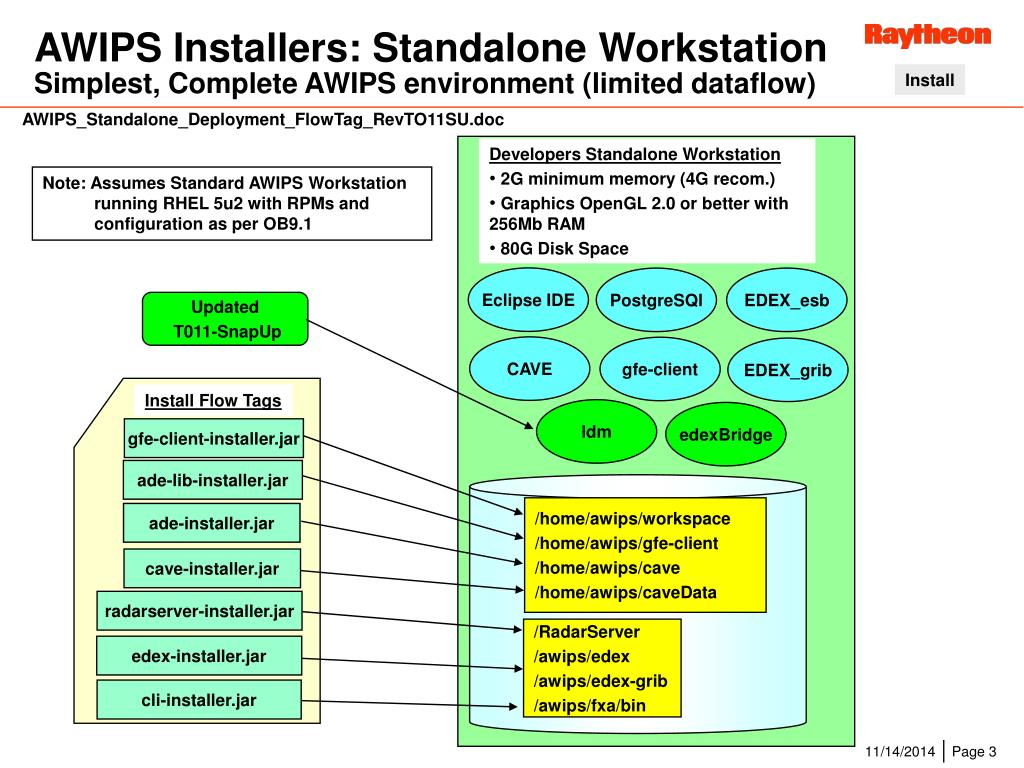

AWIPS Installers: Standalone Workstation Simplest, Complete AWIPS environment (limited dataflow)

Install

AWIPS_Standalone_Deployment_FlowTag_RevTO11SU.doc

  • Developers Standalone Workstation

  • 2G minimum memory (4G recom.)

  • Graphics OpenGL 2.0 or better with 256Mb RAM

  • 80G Disk Space

Note: Assumes Standard AWIPS Workstation running RHEL 5u2 with RPMs and configuration as per OB9.1

Eclipse IDE

PostgreSQl

EDEX_esb

Updated

T011-SnapUp

CAVE

gfe-client

EDEX_grib

Install Flow Tags

ldm

edexBridge

gfe-client-installer.jar

ade-lib-installer.jar

/home/awips/workspace

/home/awips/gfe-client

/home/awips/cave

/home/awips/caveData

ade-installer.jar

cave-installer.jar

radarserver-installer.jar

/RadarServer

/awips/edex

/awips/edex-grib

/awips/fxa/bin

edex-installer.jar

cli-installer.jar


Awips installers servers minimum to support continuous wfo data flow

AWIPS Installers: Servers Minimum to support continuous WFO data flow

Install

AWIPS_Standalone_Deployment_FlowTag_RevTO11SU.doc

AWIPS_Cluster_Deployment_FlowTag_RevTO11SU.doc

TO11SU_Install.pdf

  • Server (AWIPS PX equivalent)

  • 4G minimum memory (4G recom.)

  • 200G Disk Space

Note: Assumes Standard AWIPS Server running RHEL 5u2 with RPMs and configuration as per OB9.1

PostgreSQl

EDEX_esb

EDEX_grib

RadarServer

ldm

edexBridge

Updated

T011-SnapUp

Disk Partitions

Install Flow Tags

radarserver-installer.jar

/RadarServer

/awips/edex

/awips/edex-grib

/awips/fxa/bin

edex-installer.jar

cli-installer.jar


T011 snapup how to configure updated draft site localization documentation

T011-SnapUp How To Configure UpdatedDraft Site Localization Documentation

How To Configure

  • Instructions on how to localize AWIPS II

  • Document included on Resources Disk:

    • “AWIPS II Localization, 09 December 2009”, AWIPS2-localization-v7.doc

      • Added a section on how to run multiple GFE sites in EDEX

      • Added a section and example on localization of the GFEeditor configuration

      • Updated section on decision aid applications


Awips ii reference architecture based on plug in extensible services

AWIPS-II: Reference ArchitectureBased on Plug In extensible services

Architecture / SW

Design Update

AWIPS-II Reference Architecture

Enterprise Service Bus (ESB)

<<Visualization Framework >>

CAVE

<<Service Framework >>

EDEX

Core Generic Services

Headless

CAVE

Plug In

Pattern

VIZ Plugins

Meta

Data

VIZ Scipts

Data

Core Libraries

Data Types

Custom Displays

Libraries

Libraries

Scripts

Scripts


Awips services and plug ins esb soa plug in adaptable to11 snapup set

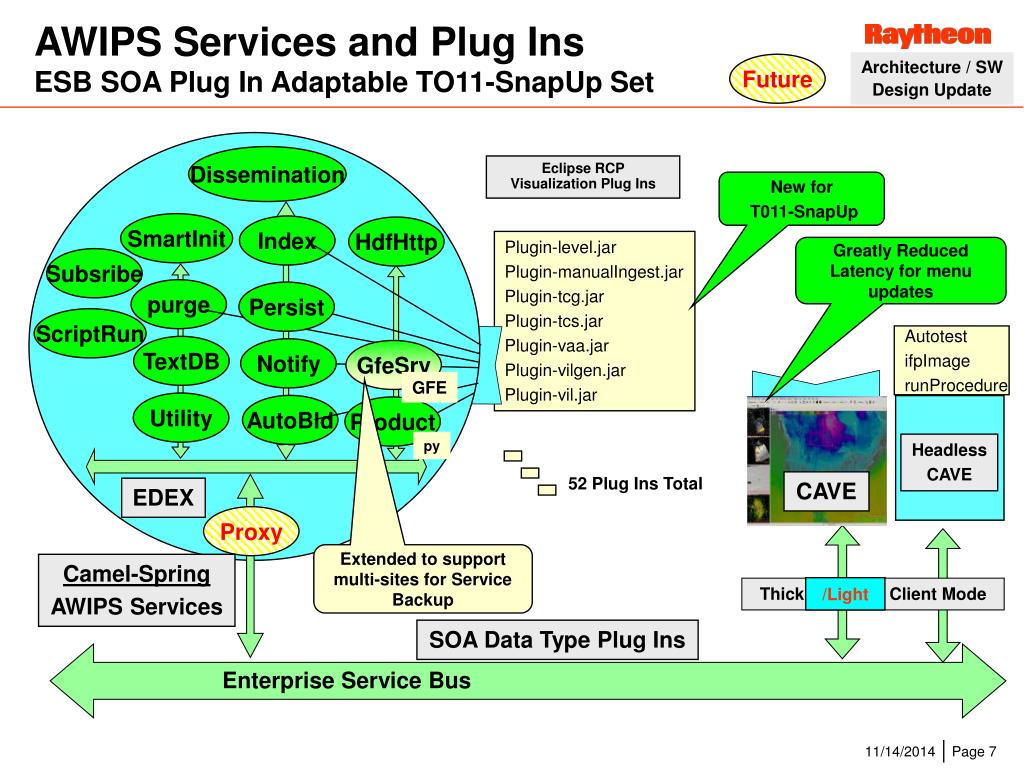

AWIPS Services and Plug InsESB SOA Plug In Adaptable TO11-SnapUp Set

Architecture / SW

Design Update

Future

Dissemination

Eclipse RCP Visualization Plug Ins

New for

T011-SnapUp

SmartInit

Index

HdfHttp

Plugin-level.jar

Plugin-manualIngest.jar

Plugin-tcg.jar

Plugin-tcs.jar

Plugin-vaa.jar

Plugin-vilgen.jar

Plugin-vil.jar

Greatly Reduced Latency for menu updates

Subsribe

purge

Persist

ScriptRun

Autotest

ifpImage

runProcedure

TextDB

Notify

GfeSrv

GFE

Utility

AutoBld

Product

py

Headless

CAVE

52 Plug Ins Total

CAVE

EDEX

Proxy

Extended to support multi-sites for Service Backup

Camel-Spring

AWIPS Services

/Light

Thick /Light Client Mode

SOA Data Type Plug Ins

Enterprise Service Bus


Add derived level capability exposed level cube transformations to python scripts

Add derived level capabilityExposed Level Cube Transformations to Python Scripts

Architecture / SW

Design Update

Derived Parameter Python Script

With Level Transform Added

Green Dot and Name if parameter or derived script exists

LevelMappingFile.xml

(includes level alias)

Surface: SFC, FH, MSL …

<Python Module> gridSlice.so

(AWIPS-1 grid slicing code generalized

Into a Python module)

level table

level_master table


Extended derived parameter capability grid pointdata types satellite and radar

Extended derived parameter capabilityGrid, Pointdata Types, Satellite, and Radar

Architecture / SW

Design Update

  • Derived parameter pattern has been extended to work with all data types through a “plug in” data adapter

  • The “derived parameter scripts” are shared across all data types through multiple execute methods

  • Changes in the script are automatically picked up by CAVE without having to restart CAVE

  • The “derived parameter scripts” are connected into the “Plot Design Files” to allow calculated fields to be displayed

PlotResource

DataCubeContainer

getData (…)

PlotModelGenerator

derivedParamScripts

*.py

Plot Design Files

stdObsDesign.svg

derivedParamScripts

*.py

Plot Design Files

stdObsDesign.svg

derivedParamScripts

*.py

Plot Design Files

stdObsDesign.svg

IDataCubeAdapter

Adapter

Implementations

In Plugins


Ingest deployment detail ldm message interface radar server ldad design

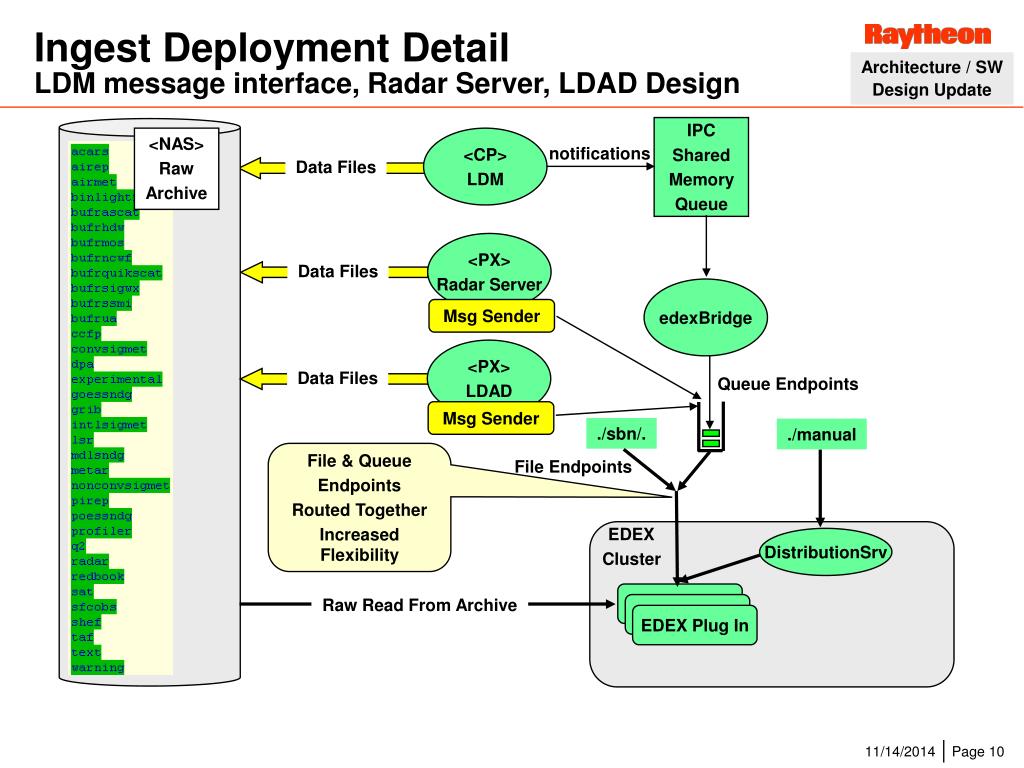

Ingest Deployment Detail LDM message interface, Radar Server, LDAD Design

Architecture / SW

Design Update

IPC

Shared

Memory

Queue

<NAS>

Raw

Archive

<CP>

LDM

notifications

Data Files

<PX>

Radar Server

Data Files

edexBridge

Msg Sender

<PX>

LDAD

Data Files

Queue Endpoints

Msg Sender

./sbn/.

./manual

File & Queue

Endpoints

Routed Together

Increased Flexibility

File Endpoints

EDEX

Cluster

DistributionSrv

EDEX Plug In

Raw Read From Archive

EDEX Plug In

EDEX Plug In


Update to ade edex cave

Update to ADE / EDEX / CAVE

Programmers

Update

  • ADE no major change since D6

  • LDM with EDEX_BRIDGE now used for ingest


Awips soa datatype plug ins

AWIPS SOA Datatype Plug Ins

Build Status


Awips soa datatype plug ins continued

AWIPS SOA Datatype Plug Ins (Continued)

Build Status


Awips soa datatype plug ins continued1

AWIPS SOA Datatype Plug Ins (Continued)

Build Status


T011 d6 awips radar l3 products decoded and renderable from cave

T011-D6 AWIPS RadarL3 products decoded and renderable from CAVE

Build Status


T011 d6 awips radar continued l3 products decoded and renderable from cave

T011-D6 AWIPS Radar – ContinuedL3 products decoded and renderable from CAVE

Build Status


T011 d6 awips radar continued l3 products decoded and renderable from cave1

T011-D6 AWIPS Radar – ContinuedL3 products decoded and renderable from CAVE

Build Status


Awips 1 rehosting

AWIPS-1 Rehosting

Build Status


Awips to11 snapup

AWIPS TO11 SnapUp

Build Status

  • Added LDM with edexBridge and flow tags

  • MHS outbound interfaces to GFE, AvnFPS, and TextWS Attachments

  • New EDEX installers

  • Added Objective Analysis for observations to Volume Browser along with numerous updates

  • Created “c/C++” interface to AWIPS-II for legacy applications and LDM

    • Support for FSI, asyncScheduler, HWR

  • Additional Obs CAVE renderings

    • Local Storm Reports, SIGMETs,

  • BinLightning Decoder refactored to allow binary removal

  • Refactored Topo: now 315M from 1.8G

  • Added configurable mouse button through CAVE preferences

  • Updated to Camel 2.0 and added auto CAVE reconnect

  • Updated to GeoTools 2.5.8


Awips to11 snapup continued

AWIPS TO11 SnapUp Continued

Build Status

  • CAVE command line option to run only as TextWS

    • New general CAVE capability to run specific component on startup

  • Made performance improvements to the GFE text formatters

  • Added RAOB Objective analysis to the Volume Browser

  • Added Volcanic Ash decoder and CAVE rendering

  • Added the data level framework and derived parameter capability

    • General capability to transform levels

  • Updated SCAN, SAFESEAS, and SNOW

  • Updated AvnFPS

  • GFE DRs, contouring

  • Many CAVE DRs completed…


Deliverables checklist update

Deliverables Checklist Update

Build Status

  • See Separate Spreadsheet “TO11 Deliverables Checklist v31.xls” included on RESOURCES disk


Drs open and closed

DRsOpen and Closed

  • Open DRs Against SnapUp Delivery

    • See document: AWIPS SnapUp Open Tickets.pdf *

  • DRs Closed during SnapUp – ready for NWS verification

    • See document: AWIPS SnapUp Completed Tickets.pdf *

  • 269 DRs Resolved Since Delivery 6 and Included in SnapUp

    • 189 TTRs Resolved

    • 188 FBSO DRs Resolved

    • 3 Special Handling DRs Resolved (3136, 3223, 3320)

* Note: Document provided on Resources Disk. DR descriptions and test procedures are included in the daily DR report


Next up

Next Up

  • Additional DR update to be provided 8 January

    • Focus on FBSO DRs

    • Delivery to NWSHQ and NWSTD for January FIT test
