Presentation Transcript


Sample spotting techniques

Sample spotting techniques

  • Dried droplet

  • Crushed crystal

  • Thin layer

  • Sandwich


Dried droplet

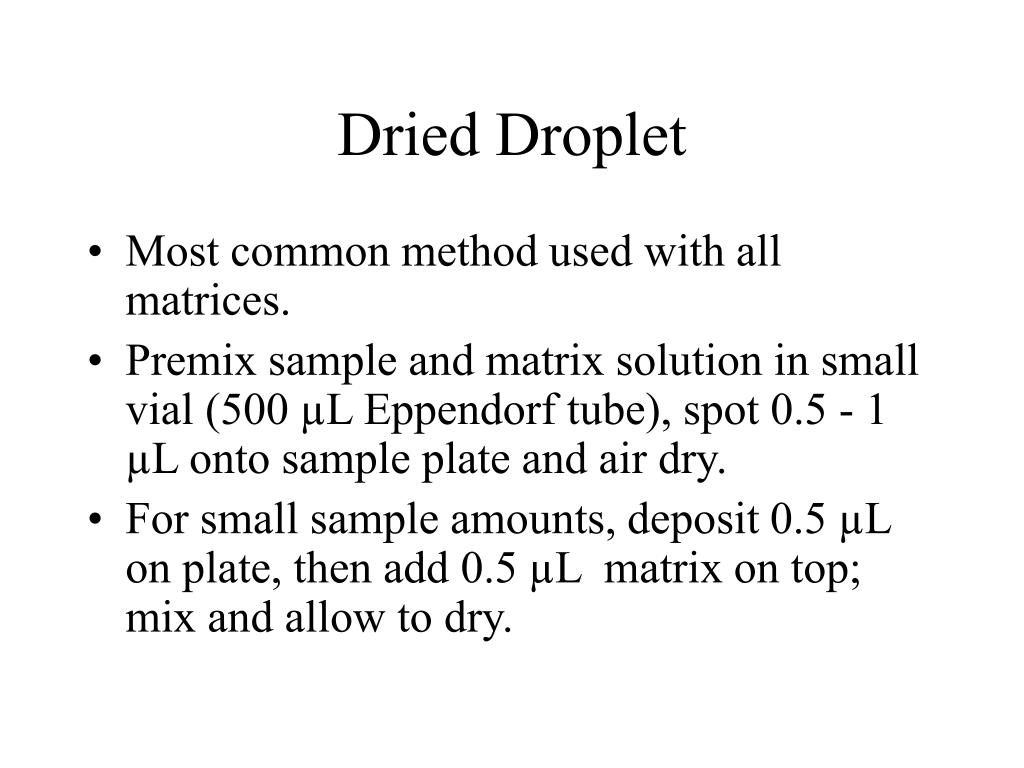

Dried Droplet

  • Most common method used with all matrices.

  • Premix sample and matrix solution in small vial (500 µL Eppendorf tube), spot 0.5 - 1 µL onto sample plate and air dry.

  • For small sample amounts, deposit 0.5 µL on plate, then add 0.5 µL matrix on top; mix and allow to dry.


Crushed crystal method

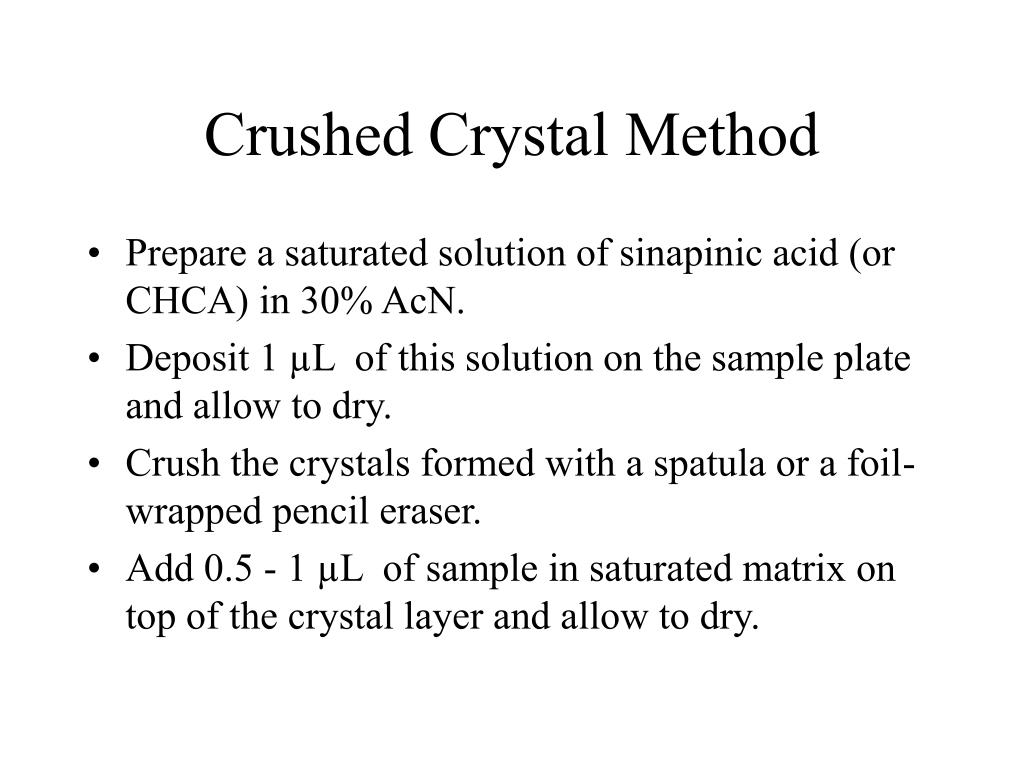

Crushed Crystal Method

  • Prepare a saturated solution of sinapinic acid (or CHCA) in 30% AcN.

  • Deposit 1 µL of this solution on the sample plate and allow to dry.

  • Crush the crystals formed with a spatula or a foil-wrapped pencil eraser.

  • Add 0.5 - 1 µL of sample in saturated matrix on top of the crystal layer and allow to dry.


Thin layer

Thin Layer

  • Use 10 mg/mL CHCA in acetone. Apply 0.5 µL to plate and dry.

  • Place 0.5 µL sample in 0.1% TFA on top of the matrix layer and allow to dry.

  • If sample is not acidified, 0.5 µL 0.1% TFA can be added to the plate, then the sample.


Sandwich method

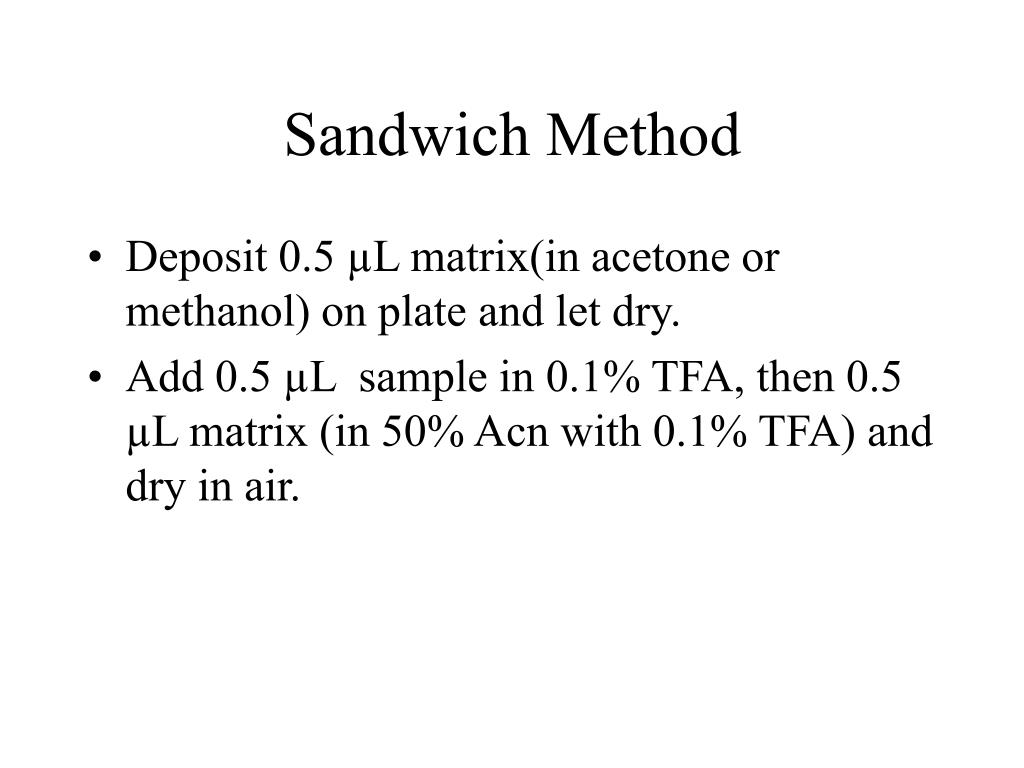

Sandwich Method

  • Deposit 0.5 µL matrix(in acetone or methanol) on plate and let dry.

  • Add 0.5 µL sample in 0.1% TFA, then 0.5 µL matrix (in 50% Acn with 0.1% TFA) and dry in air.


Ideal sample concentrations

Ideal Sample Concentrations

  • Peptides and proteins: 0.1 to 10 µM

  • Oligonucleotides: 10 to 100 µM

  • Polymers: 100 µM
