NEW CONDENSING TANKLESS. ATI-240H ATI-340H ATI-540H. 160,000 btu/h 180,000 btu/h 199,000 btu/h. ATO-240H ATO-340H ATO-540H. AT-240H. 160,000 btu /h 6.6 GPM Max EF: 0.95 316L SS Secondary Direct Vent (In room Combustion) Ultra Low NOx Remote Built-in (indoor only)

Download Presentation

NEW CONDENSING TANKLESS

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


New condensing tankless

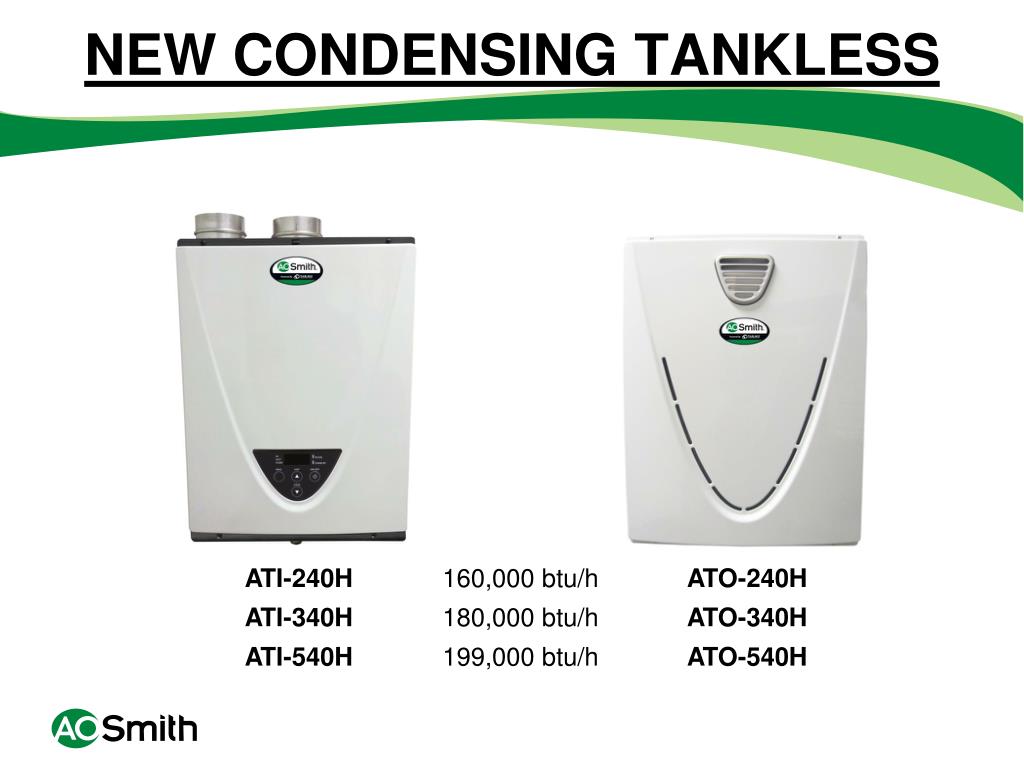

NEW CONDENSING TANKLESS

ATI-240H

ATI-340H

ATI-540H

160,000 btu/h

180,000 btu/h

199,000 btu/h

ATO-240H

ATO-340H

ATO-540H


New condensing tankless

AT-240H

  • 160,000 btu/h

  • 6.6 GPM Max

  • EF: 0.95

  • 316L SS Secondary

  • Direct Vent (In room Combustion)

  • Ultra Low NOx

  • Remote Built-in (indoor only)

  • Outdoor comes with remote

  • 3” Sch. 40 PVC vent up to 70 ft.

  • 4” Sch. 40 PVC vent up to 100 ft.

  • 100-140 degree (5 degree intervals)


240 flow chart

240 Flow Chart


240 pressure loss

240 Pressure Loss


New condensing tankless

AT-340H

  • 180,000 btu/h

  • 8.0 GPM Max

  • 316L SS Secondary

  • EF: 0.95

  • Direct Vent/(In room Combustion)

  • Ultra Low NOx

  • Remote Built-in (indoor only)

  • Outdoor comes with remote

  • 3” Sch. 40 PVC vent up to 70 ft.

  • 4” Sch. 40 PVC vent up to 100 ft.

  • 100-140 degrees (5 degree intervals)

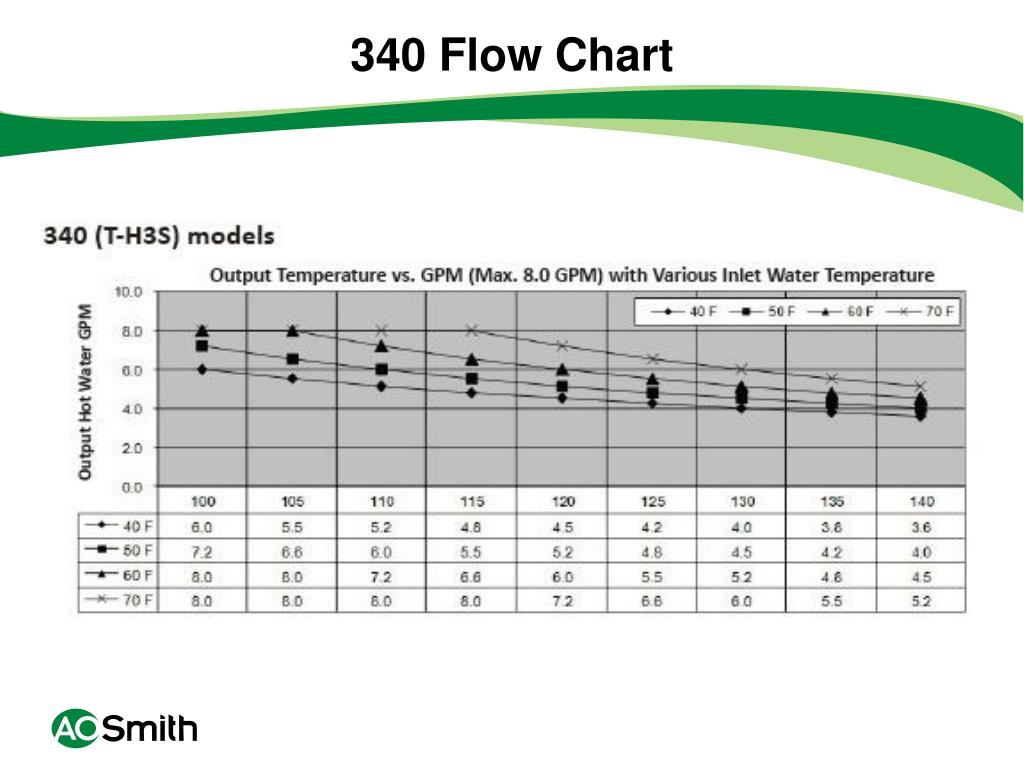

340 flow chart

340 Flow Chart


340 pressure loss

340 Pressure Loss


New condensing tankless

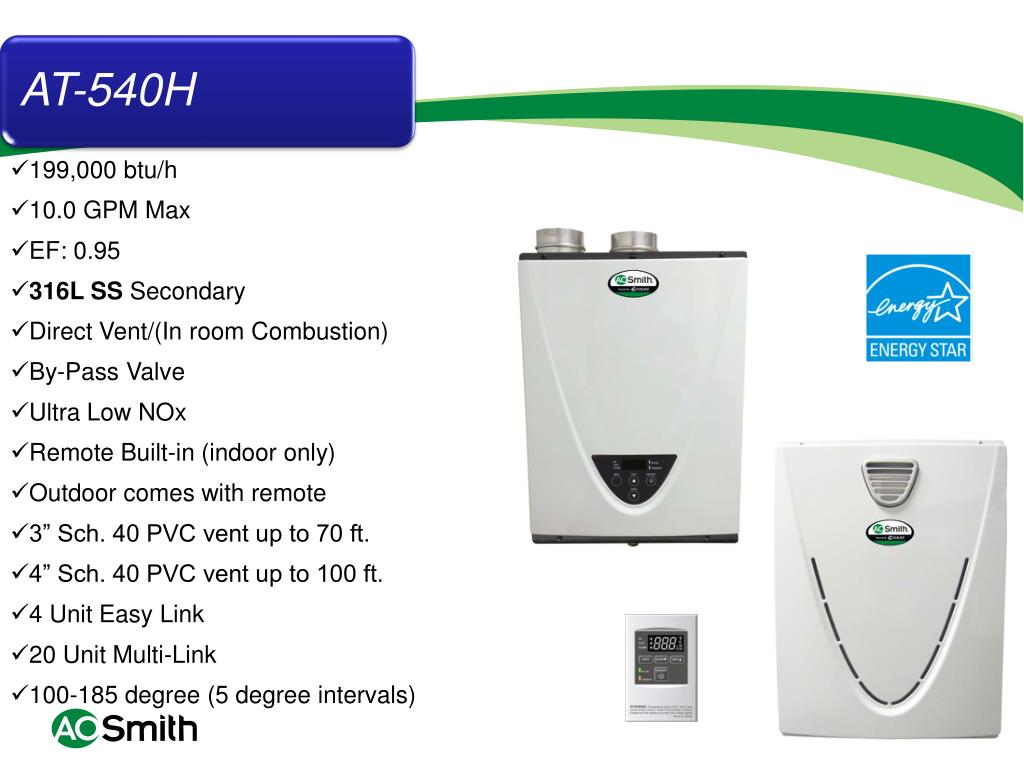

AT-540H

  • 199,000 btu/h

  • 10.0 GPM Max

  • EF: 0.95

  • 316L SS Secondary

  • Direct Vent/(In room Combustion)

  • By-Pass Valve

  • Ultra Low NOx

  • Remote Built-in (indoor only)

  • Outdoor comes with remote

  • 3” Sch. 40 PVC vent up to 70 ft.

  • 4” Sch. 40 PVC vent up to 100 ft.

  • 4 Unit Easy Link

  • 20 Unit Multi-Link

  • 100-185 degree (5 degree intervals)


540 flow chart

540 Flow Chart


540 pressure loss

540 Pressure Loss


Flow capacities

Flow Capacities


Easy link 540 only

Easy Link 540 Only


Easy link with 520 710

Easy Link with 520/710


Easy link 540 only1

Easy Link 540 Only


New condensing tankless

  • Will work with and replace current 520/710 multi unit applications. DO NEED NEW MULTI CONTROLLER TO WORK PROPERLY

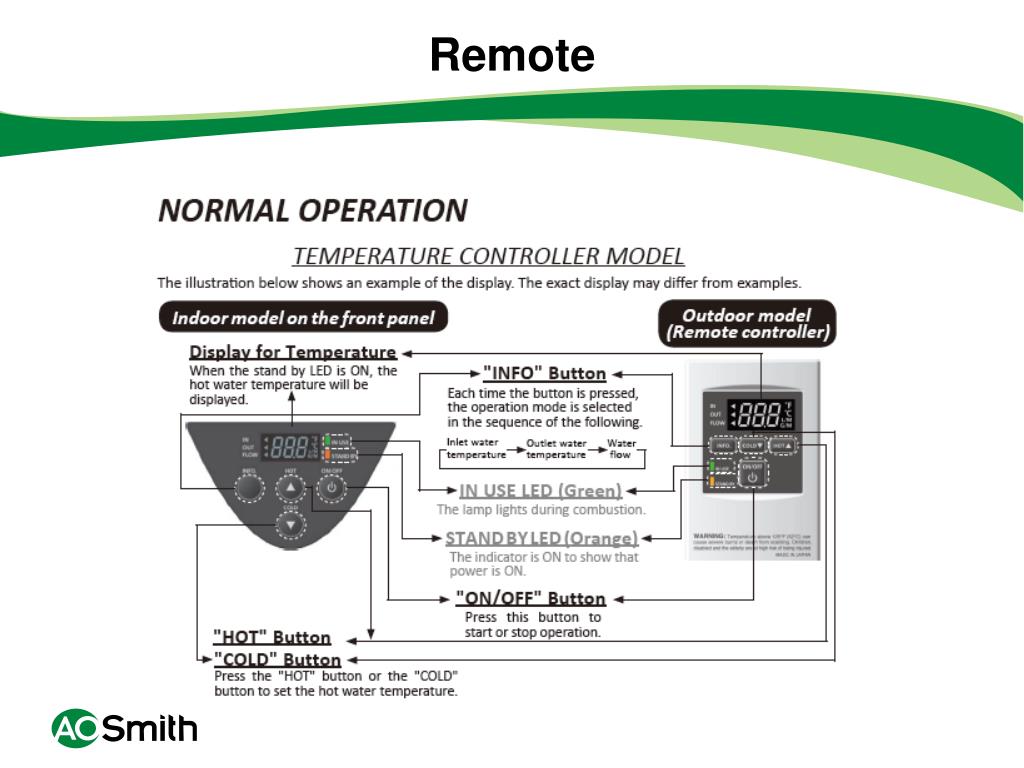

Remote

Remote


Remote fails

Remote Fails

  • Back up source to relay error code information, if remote fails

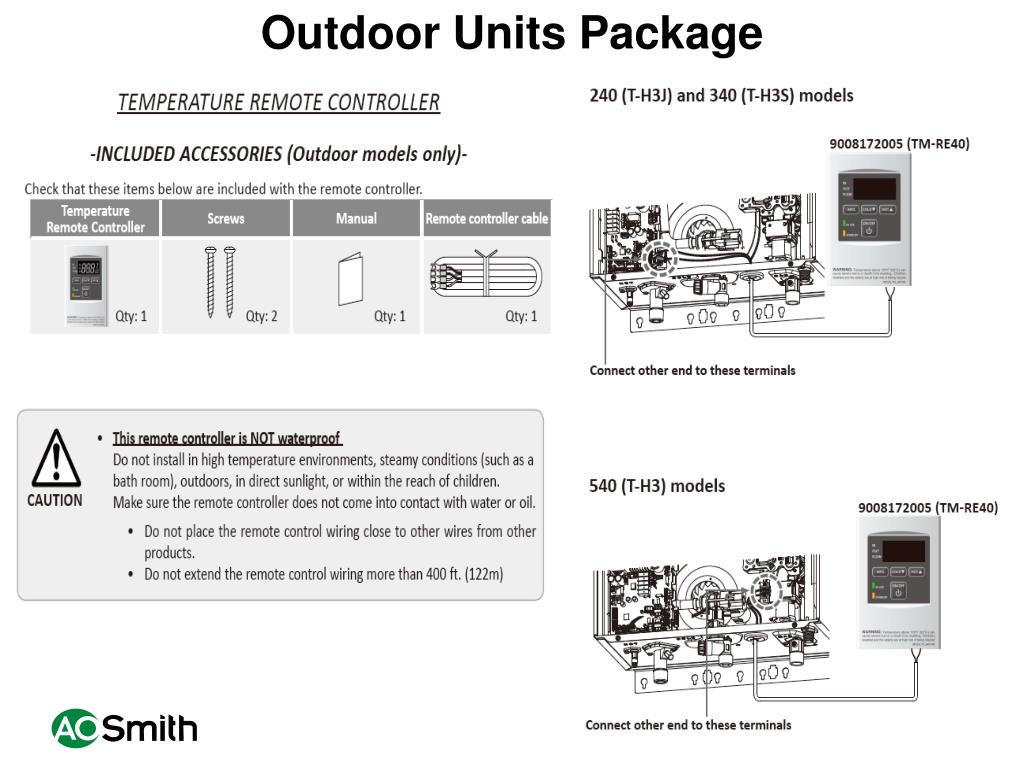

Outdoor units package

Outdoor Units Package


Venting

Venting


High altitude

High Altitude

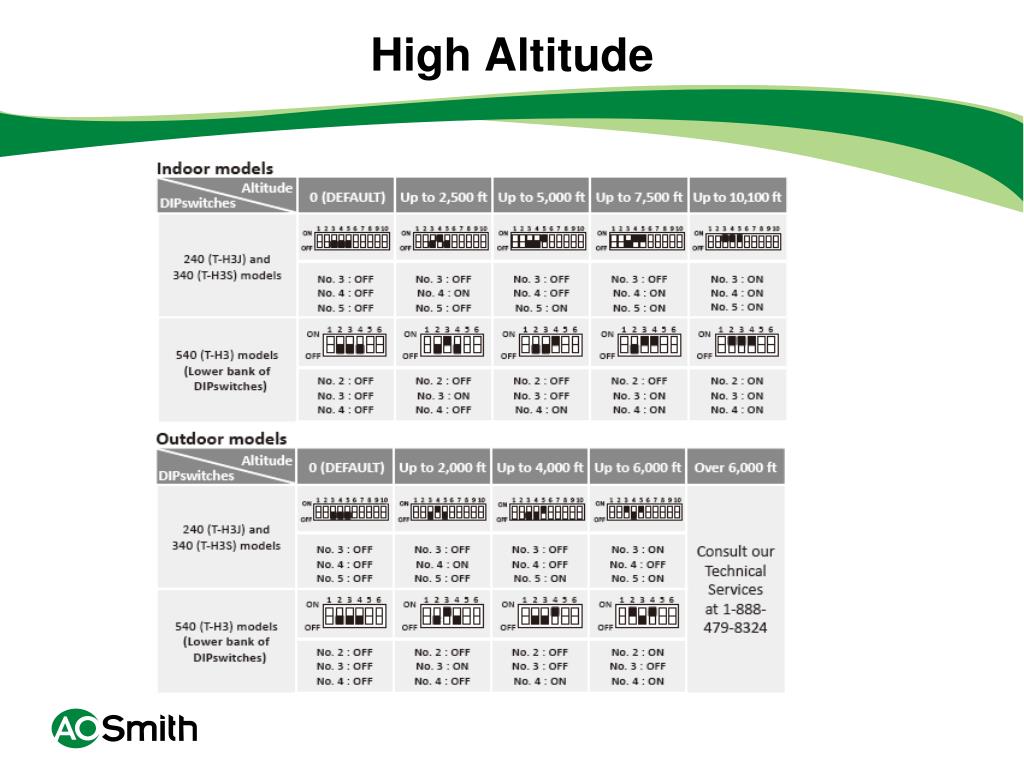

High altitude1

High Altitude

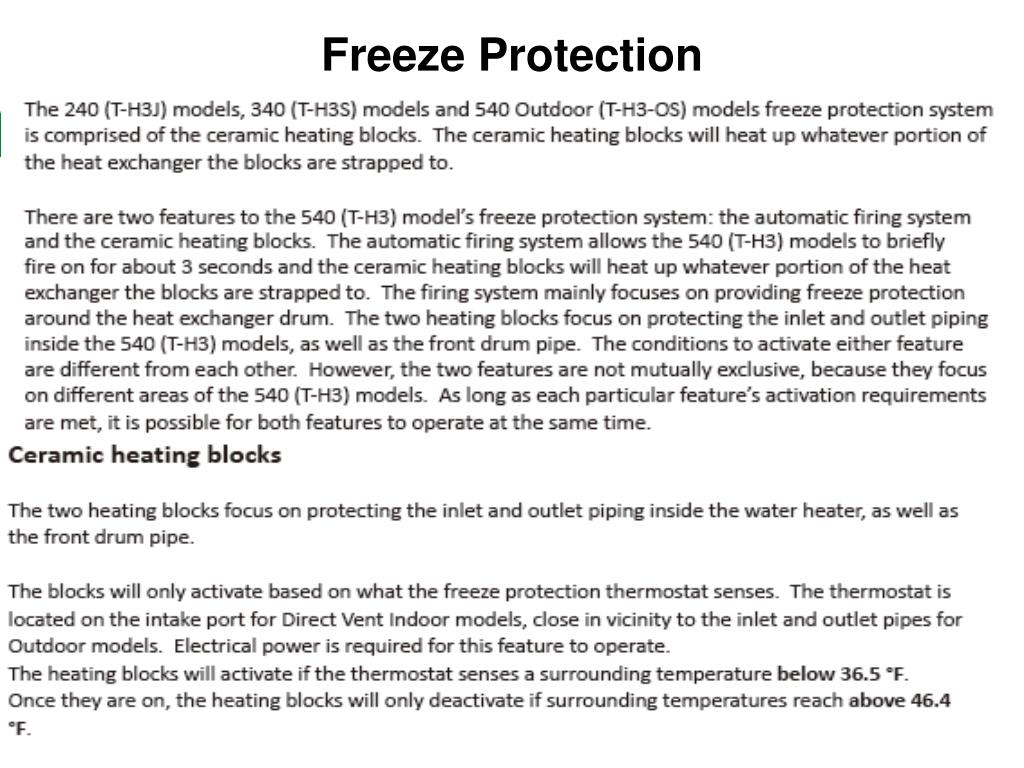

Freeze protection

Freeze Protection

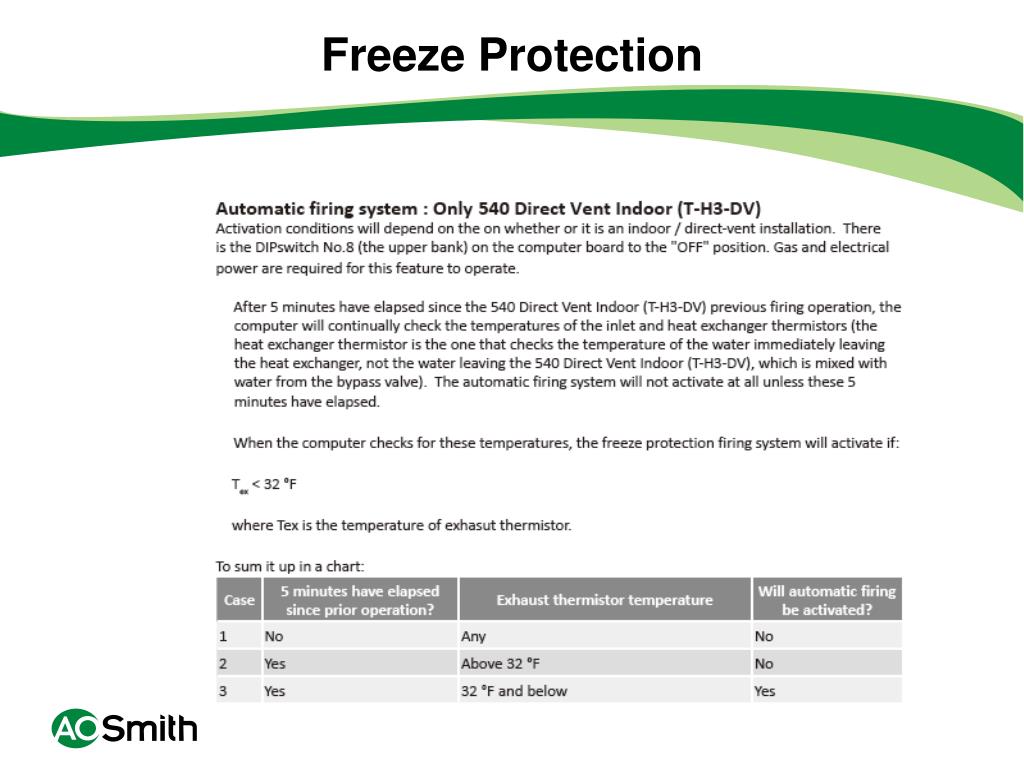

Freeze protection1

Freeze Protection

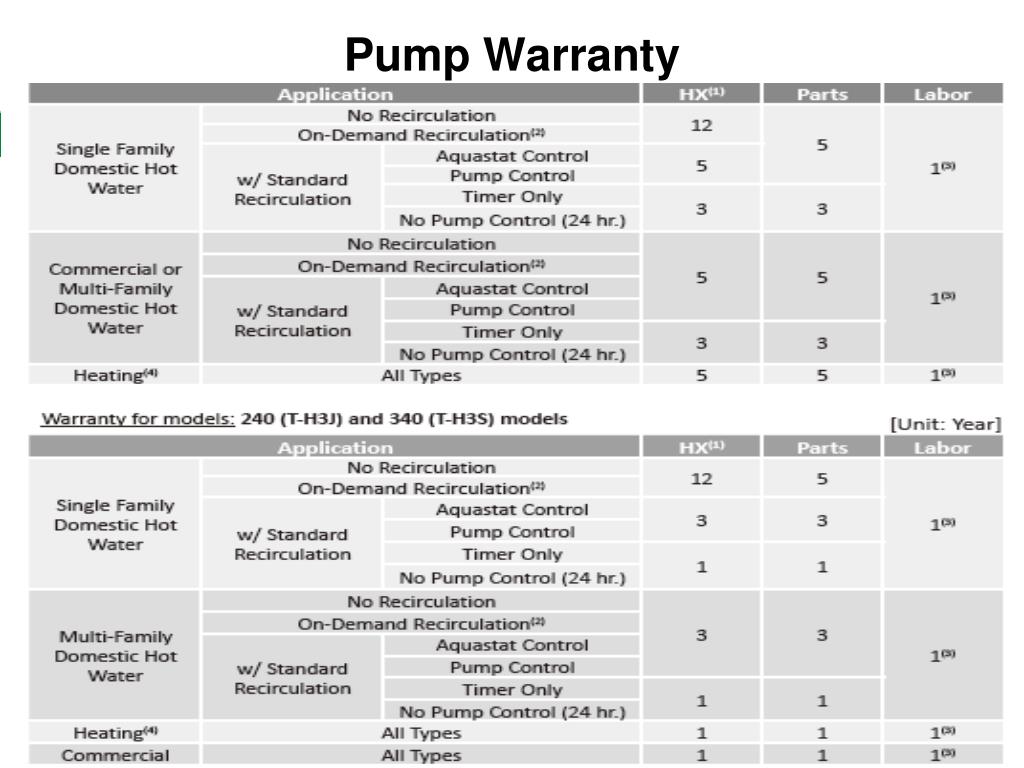

Pump warranty

Pump Warranty
