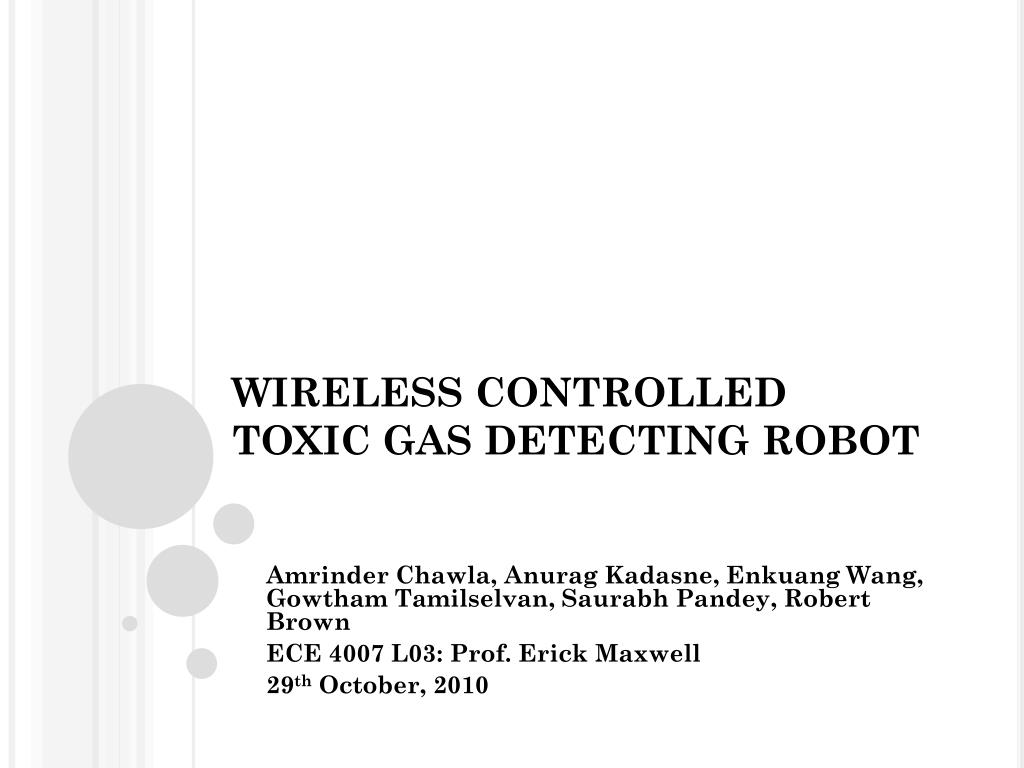

  1. WIRELESS CONTROLLED TOXIC GAS DETECTING ROBOT AmrinderChawla, AnuragKadasne, Enkuang Wang, GowthamTamilselvan, SaurabhPandey, Robert Brown ECE 4007 L03: Prof. Erick Maxwell 29th October, 2010

  2. Agenda • Project Overview • Design Objectives • Challenges • Timeline • Future Work

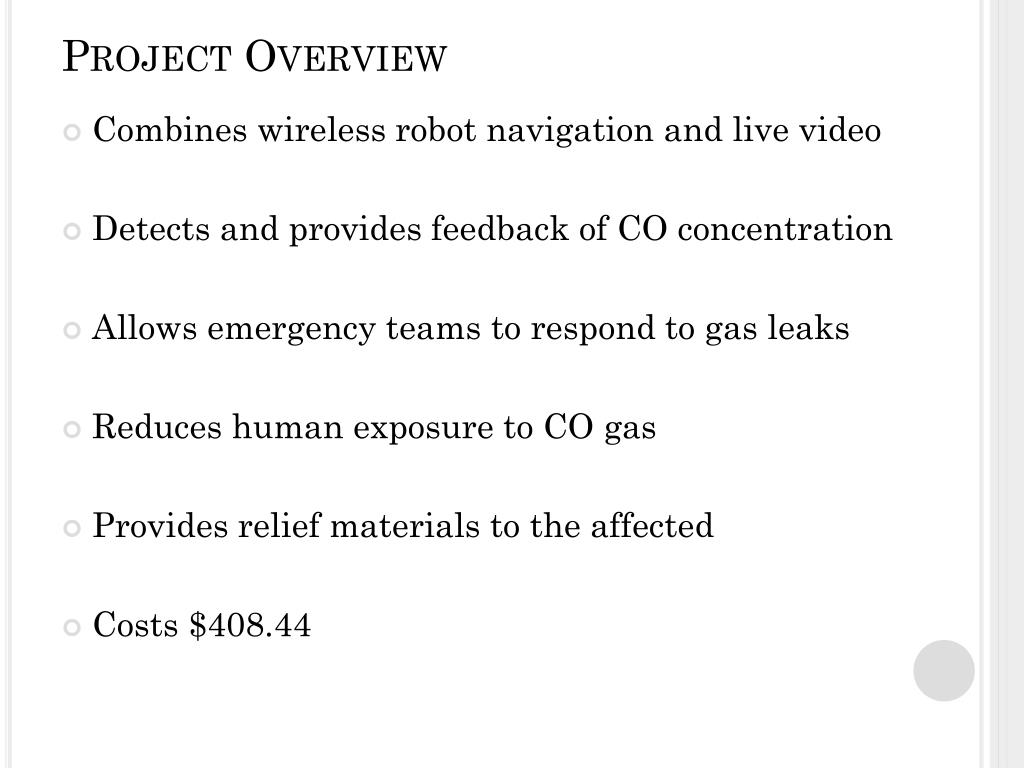

  3. Project Overview • Combines wireless robot navigation and live video • Detects and provides feedback of CO concentration • Allows emergency teams to respond to gas leaks • Reduces human exposure to CO gas • Provides relief materials to the affected • Costs $408.44

  4. Design Objectives • Remote controlled robot • CO sensor interfaced with microcontroller • Webcam connectivity with eBox • Safety Kit for emergency

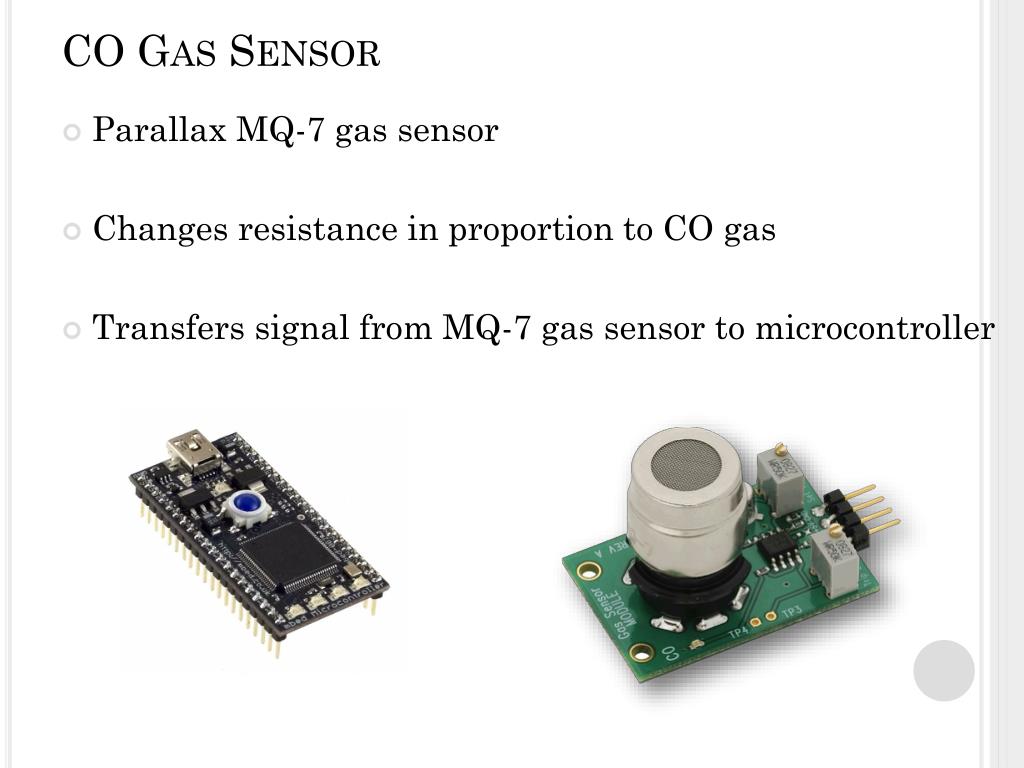

  5. CO Gas Sensor • Parallax MQ-7 gas sensor • Changes resistance in proportion to CO gas • Transfers signal from MQ-7 gas sensor to microcontroller

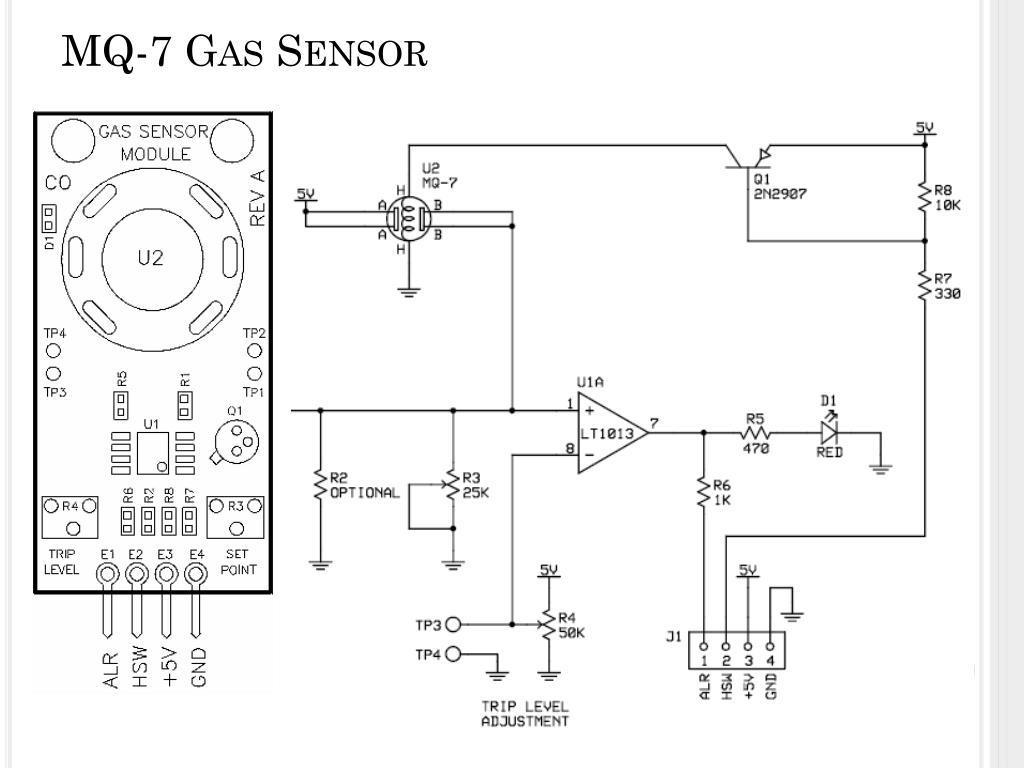

  6. MQ-7 Gas Sensor V

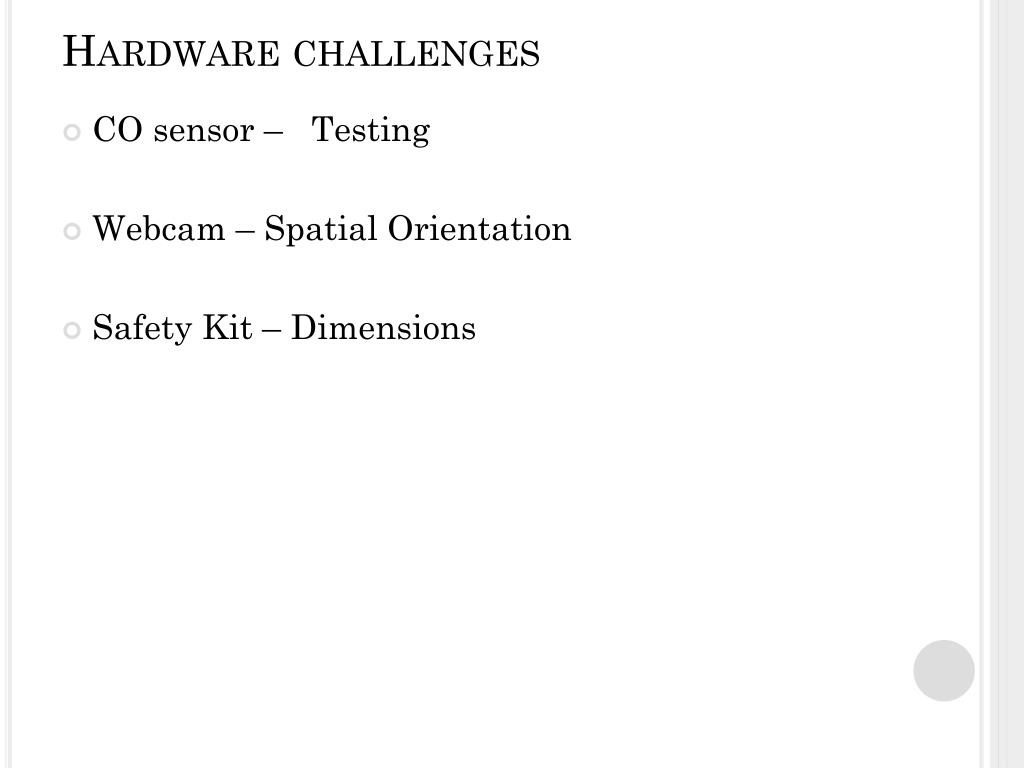

  7. Hardware challenges • CO sensor – Testing • Webcam – Spatial Orientation • Safety Kit – Dimensions

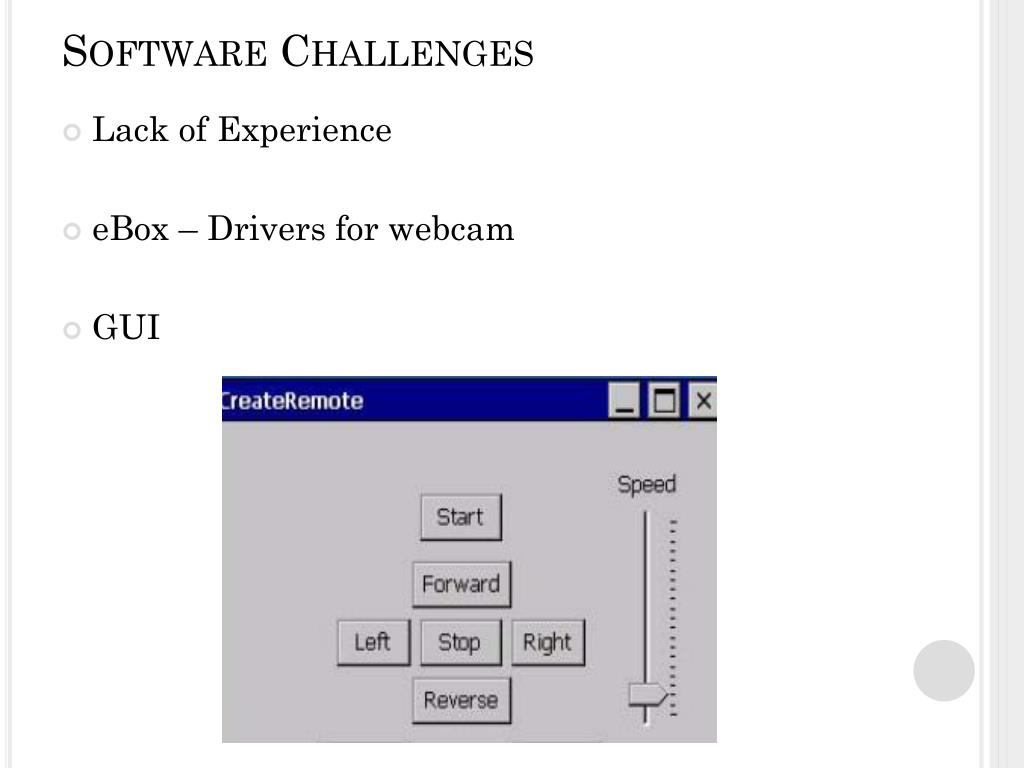

  8. Software Challenges • Lack of Experience • eBox – Drivers for webcam • GUI

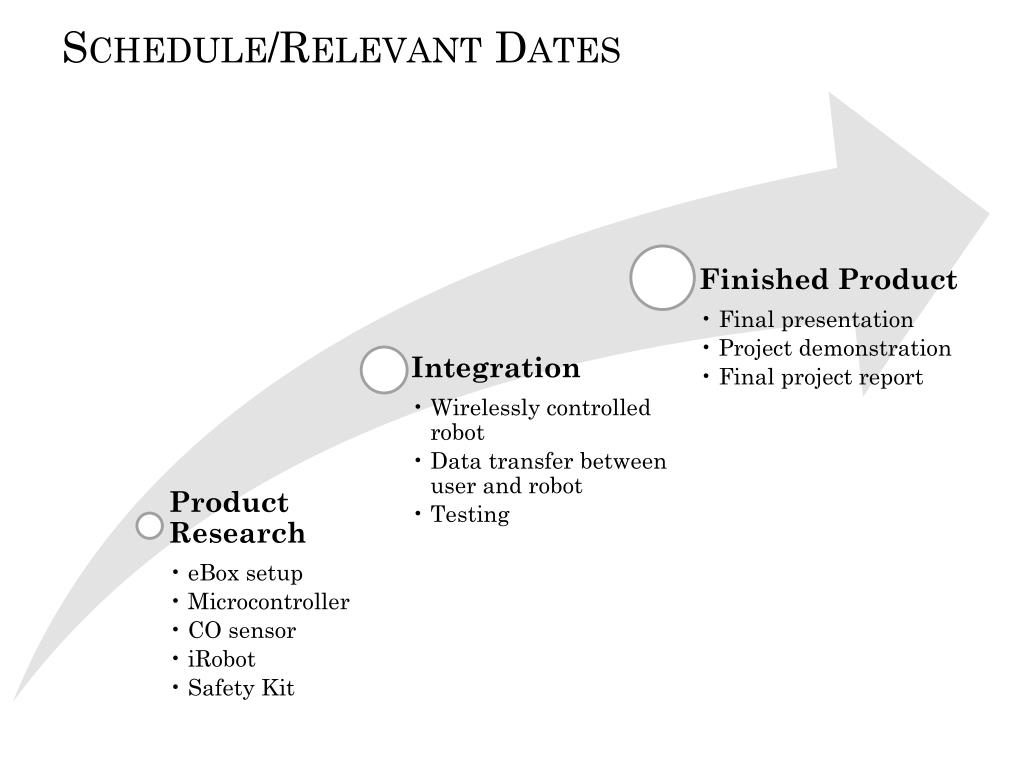

  9. Schedule/Relevant Dates

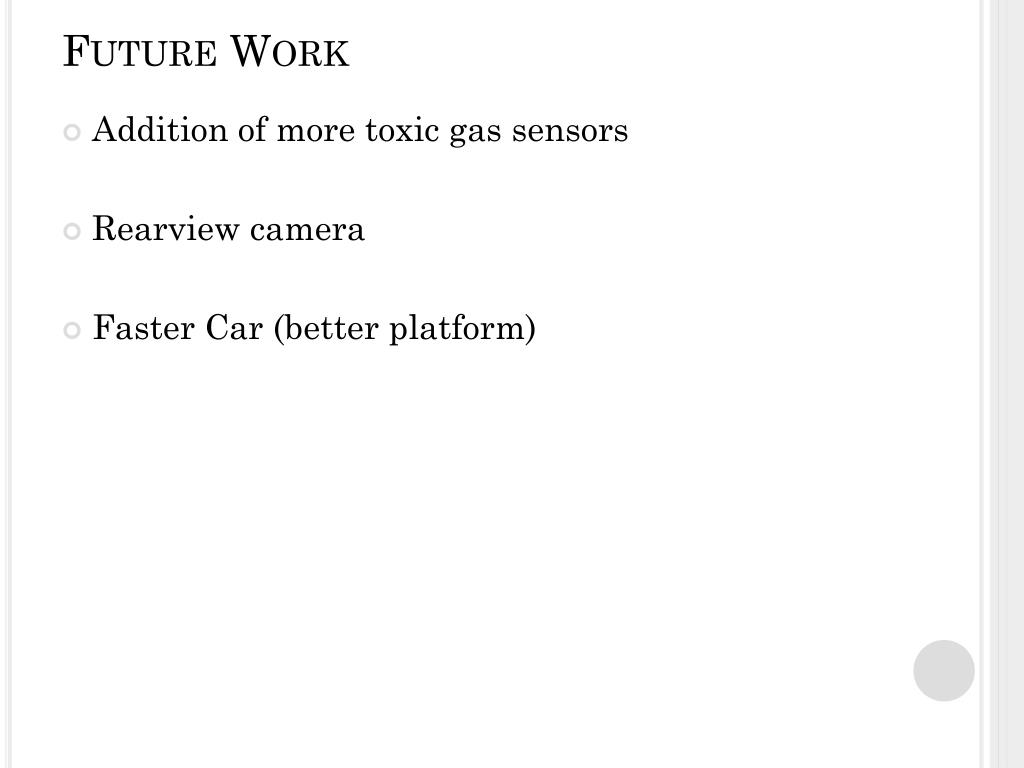

  10. Future Work • Addition of more toxic gas sensors • Rearview camera • Faster Car (better platform)
