  1. Introduction to Amino Acids of Medical Importance

  2. Amino acids What are Amino Acids Amino Acids are the building blocks of proteins ONLY 20 amino acids (out of 300 in nature) are present in human body (that are coded for by DNA)

  3. What is an Amino Acid • Amino acid is an organic acid which contains both an acidic carboxyl group (-COOH) and a basic amino group (-NH2). • In most natural amino acids, the amino group is attached to the a-carbon atom i.e. the carbon atom adjacent to the carboxyl group So, they are called a amino acids General formula of amino acids in humans COOH I a carbon NH2– C - H I R

  4. At physiological pH (approximately pH 7.4), in free amino acids: Carboxyl group is dissociated to (-COO-) & amino group is positively charged (-NH3+) This Carbon is called α-carbon There are 20 common amino acids that make up almost all proteins. Each has a carboxyl group & an amino group bonded to the same carbon atom. Each has a different side chain, or R group.

  5. Classification of amino acids • polar & non polar (according to the side chain properties) • Essential & non essential (according to being synthesized or not ) • Glucogenic, ketogenic & both (according to metabolic fate)

  6. Classification of amino acids according to side chains properties • At physiological pH (approximately pH 7.4), in free amino acids: Carboxyl group is dissociated to (-COO-) & amino group is positively charged (-NH3+) • In proteins almost all of these carboxyl & amino groups are combined in peptide bond Carboxyl & amino groups of peptide bond do not share in chemical reactions of amino acids EXCEPT for hydrogen bonding So, it is the nature of the side chains that determines the role of an amino acid in a protein. Accordingly, amino acids are classified according to properties of their side chains i.e. whether they are polar or nonpolar

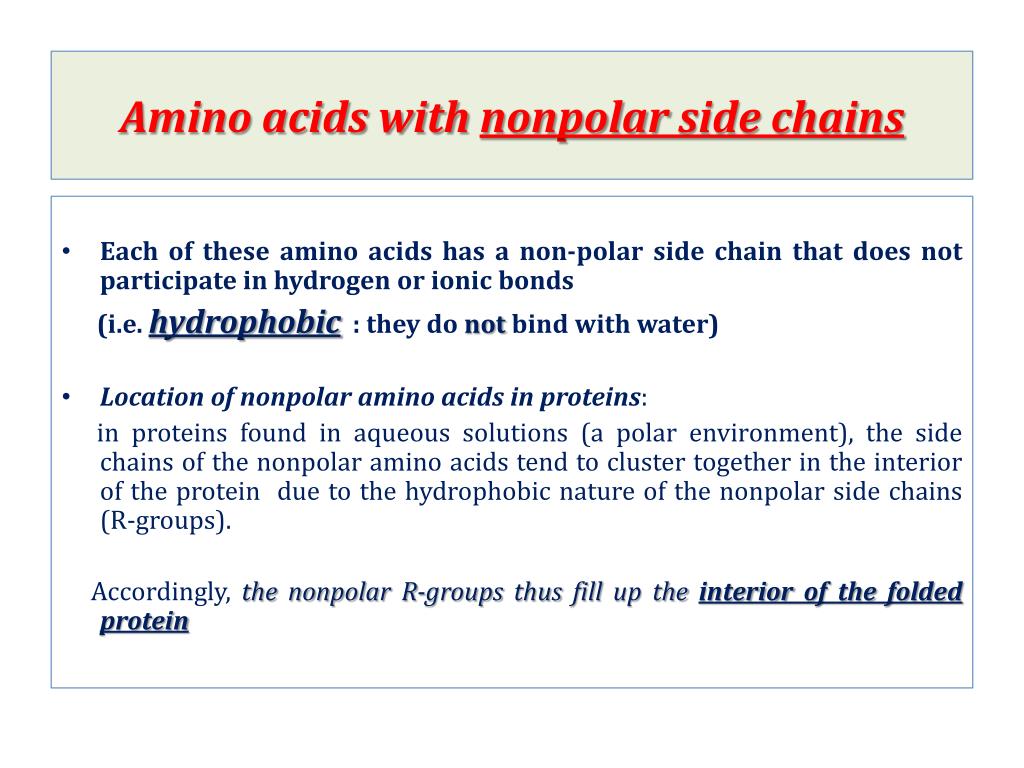

  7. Amino acids with nonpolar side chains • Each of these amino acids has a non-polar side chain that does not participate in hydrogen or ionic bonds (i.e. hydrophobic : they do not bind with water) • Location of nonpolar amino acids in proteins: in proteins found in aqueous solutions (a polar environment), the side chains of the nonpolar amino acids tend to cluster together in the interior of the protein due to the hydrophobic nature of the nonpolar side chains (R-groups). Accordingly, the nonpolar R-groups thus fill up the interior of the folded protein

  8. These side chains are nonpolar & tend to cluster together within proteins stabilizing protein structure via hydrophobic interactions

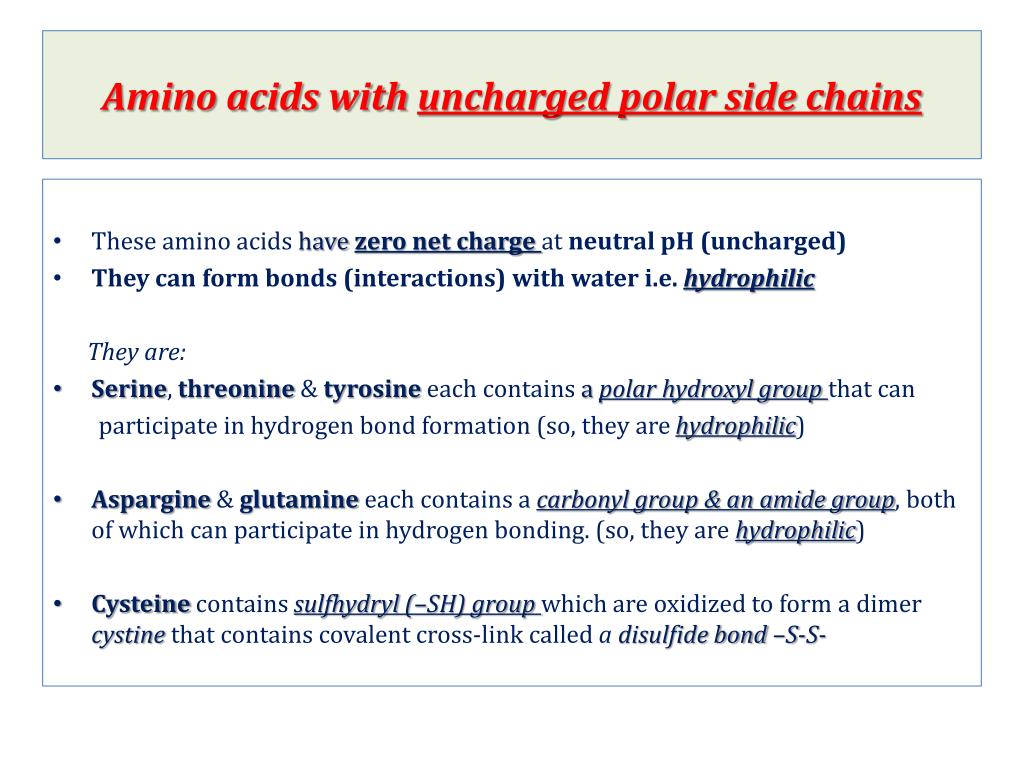

  9. Amino acids with uncharged polar side chains • These amino acids have zero net charge at neutral pH (uncharged) • They can form bonds (interactions) with water i.e. hydrophilic They are: • Serine, threonine& tyrosineeach contains a polar hydroxyl group that can participate in hydrogen bond formation (so, they are hydrophilic) • Aspargine& glutamineeach contains a carbonyl group & an amide group, both of which can participate in hydrogen bonding. (so, they are hydrophilic) • Cysteinecontains sulfhydryl (–SH) group which are oxidized to form a dimercystinethat contains covalent cross-link called a disulfide bond –S-S-

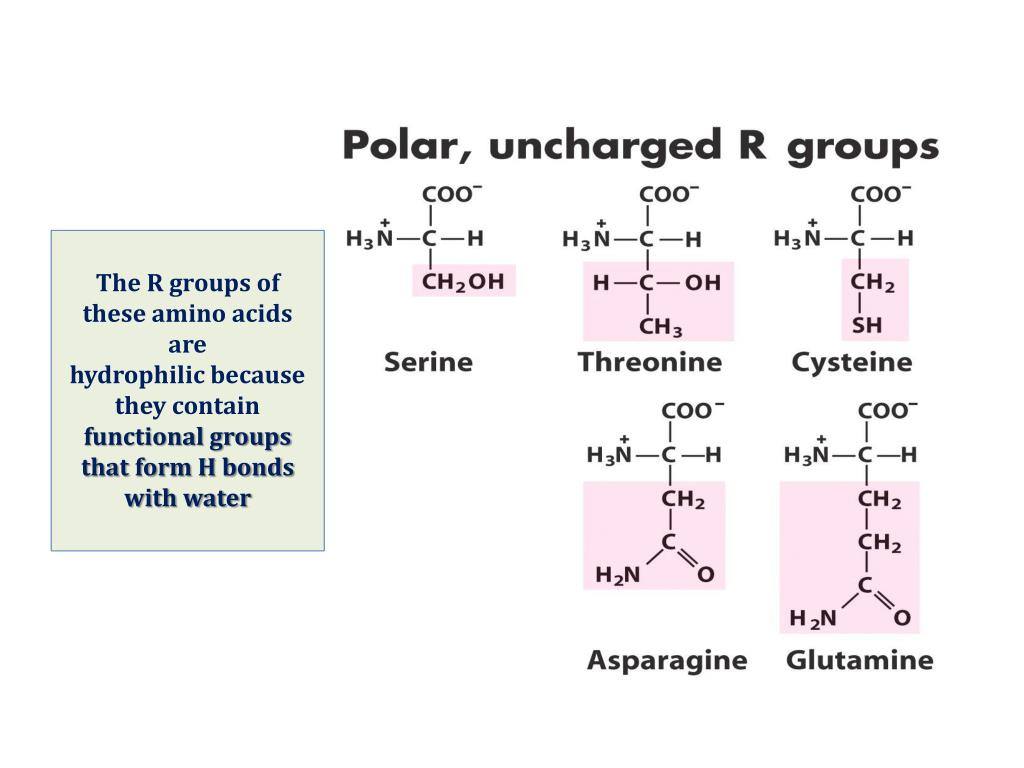

  10. The R groups of these amino acids are hydrophilic because they contain functional groups that form H bonds with water

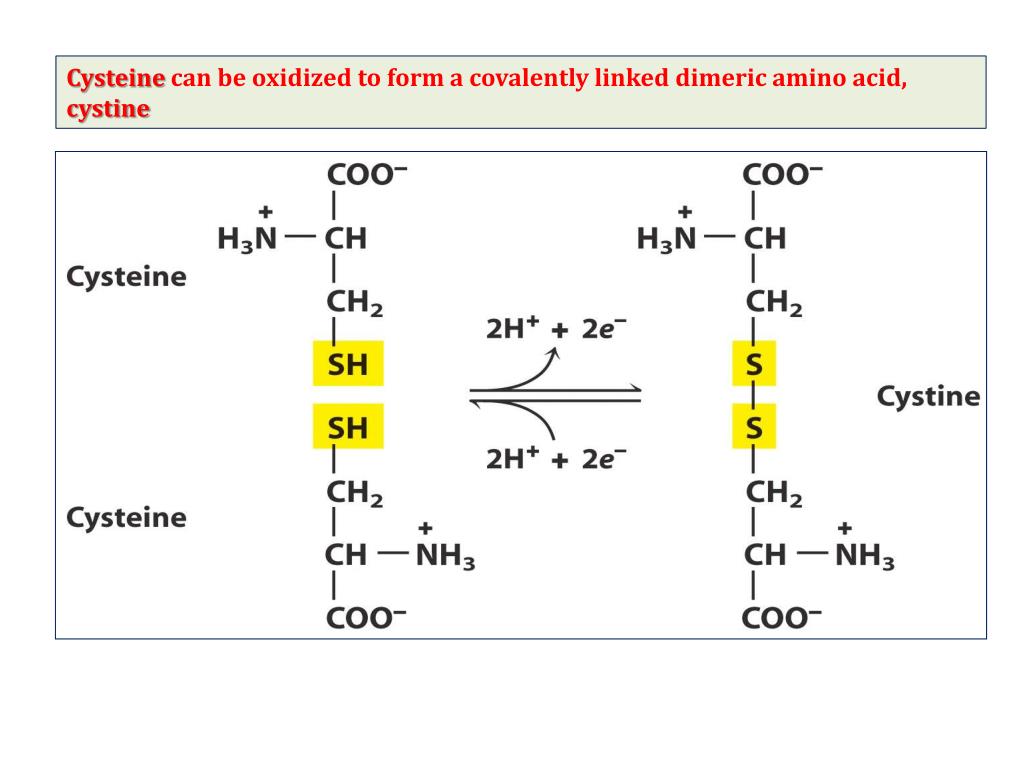

  11. Cysteine can be oxidized to form a covalently linked dimeric amino acid, cystine

  12. Amino acids with negatively charged side chains • Amino acids aspartic acid& glutamic acid have carboxyl groups (COOH) side chains • At physiological pH, (-COOH) side chains of these amino acids are negatively charged ( –COO-). So, they are called acidic amino acids. & are hydrophilic (polar) i.e. can form interaction (bond) with water.

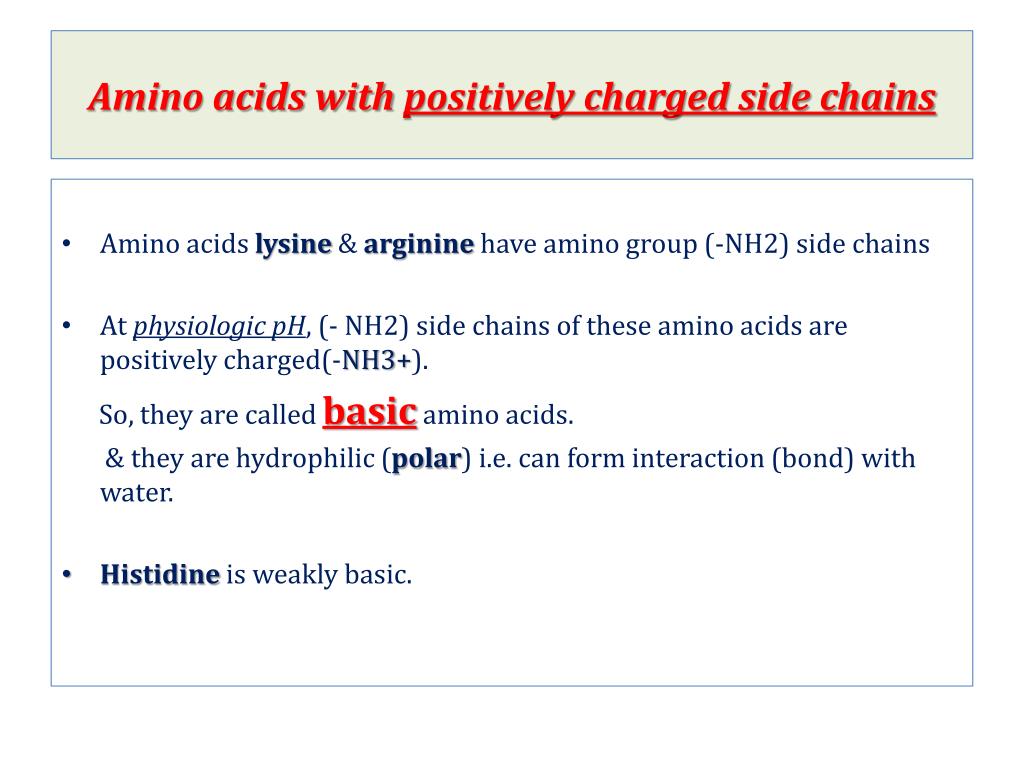

  13. Amino acids with positively charged side chains • Amino acids lysine& argininehave amino group (-NH2) side chains • At physiologic pH, (- NH2) side chains of these amino acids are positively charged(-NH3+). So, they are called basic amino acids. & they are hydrophilic (polar) i.e. can form interaction (bond) with water. • Histidineis weakly basic.

  14. Essential amino acids These are amino acids that can NOTbe synthesized in the human body. So, they MUSTbe supplied in diet. They are: Methionine Threonine Valine Isoleucine Phenylalanine Tryptophan Leucine Lysine Arginine& histidineare semi-essential amino acids (synthesized in the body in insufficient amounts)

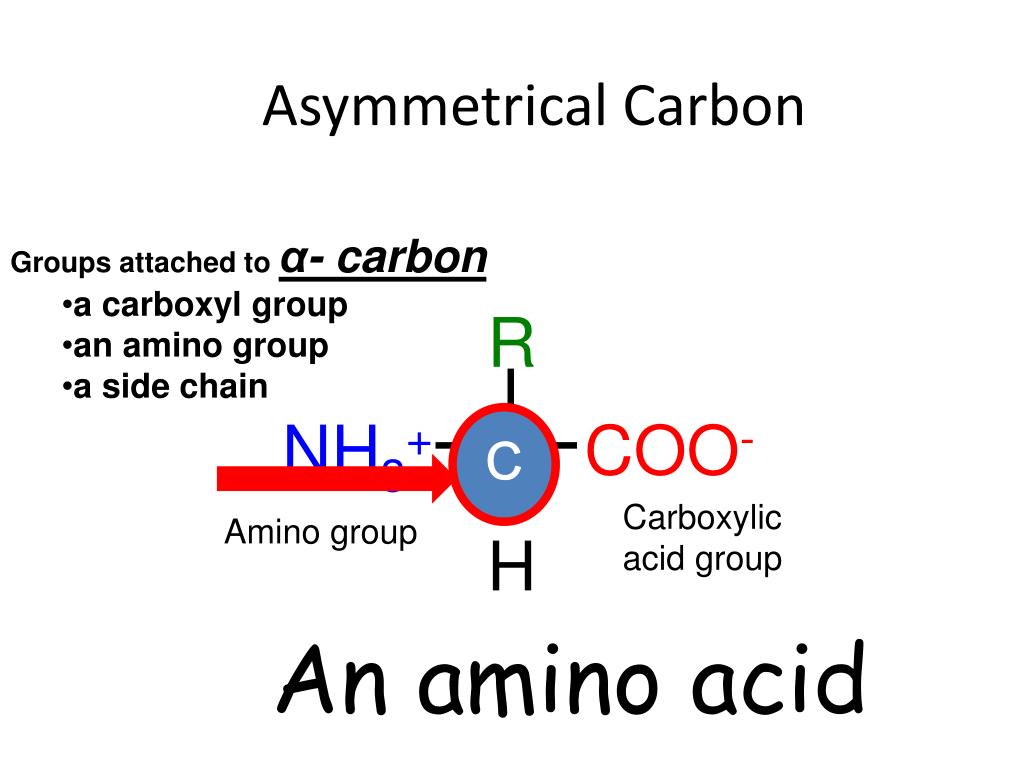

  15. R NH3+ C COO- H Asymmetrical Carbon • Groups attached to α- carbon • a carboxyl group • an amino group • a side chain C Carboxylic acid group Amino group An amino acid

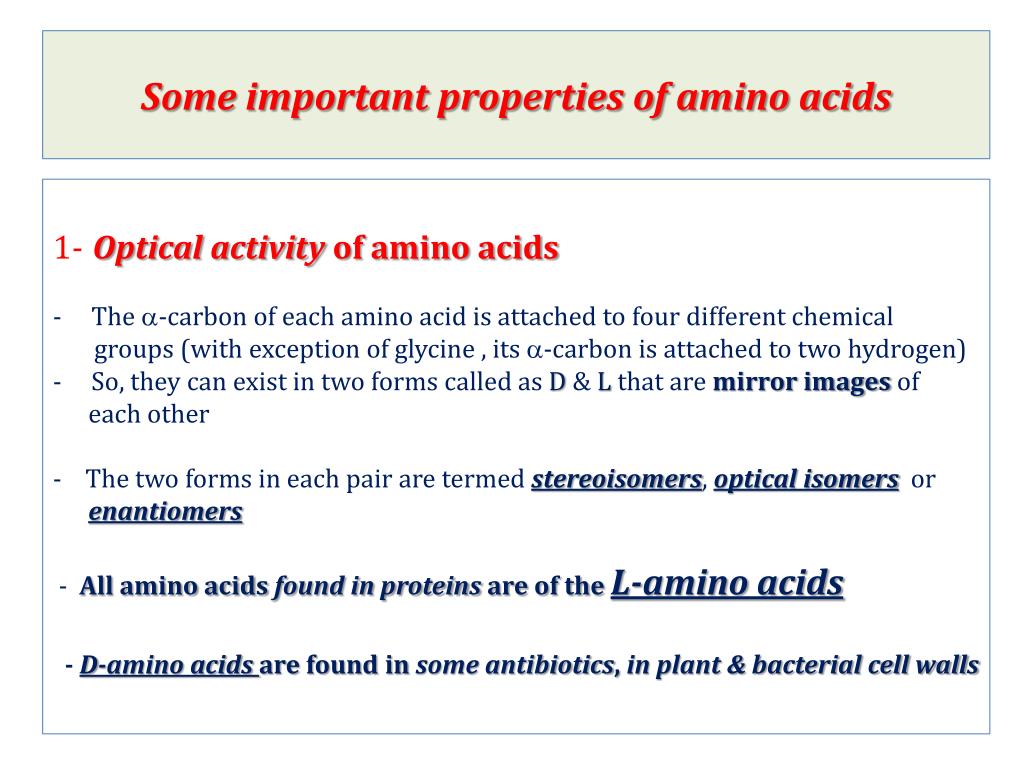

  16. Some important properties of amino acids 1-Optical activity of amino acids • The a-carbon of each amino acid is attached to four different chemical groups (with exception of glycine , its a-carbon is attached to two hydrogen) • So, they can exist in two forms called as D & L that are mirror images of each other - The two forms in each pair are termed stereoisomers, optical isomersor enantiomers - All amino acids found in proteins are of the L-amino acids - D-amino acids are found in some antibiotics, in plant & bacterial cell walls

  17. D- & L- amino acids

  18. Rotate plane polarized light to • give levorotatory & dextrorotatory forms

  19. Some important properties of amino acids (cont.) Some Important Properties of Amino Acids (cont.) 2-The isoelectric point • At certain pH, an amino acid form Zwitterion(dipolar ions) i.e. an ion carrying bothnegative & positive charge & hence, is electrically neutral. • So, it will notmigrate to cathode or anode • The pH at which a zwitterionis formed is called isoelectric point. Each amino acid has its own isoelectric point - At which, it carries zero net charge (+ve = -ve) & will not migrate to anode or cathode - Above which, amino acids will carry a negative charge - Below which, it will carry a positive charge .

  20. Introduction to Proteins of Medical Importance

  21. Importanceof Proteins 1- Proteins form the building units of all body cells 2-Almost all enzymesare protein in nature 3- Many hormonesare protein in nature as insulin and thyroxine 4- Certain biological compounds necessary for maintenance of life as hemoglobin, myoglobinetc are protein substances 5- Immnuoglobulins (antibodies) present in body are protein in nature 6- Osmotic pressure of plasma proteins is necessary for exchange of fluids between the blood and interstitial fluid

  22. Structure of protein Proteins have four levels of structure

  23. Hierarchical nature of protein structure Primary structure (Amino acid sequence) ↓ Secondary structure(α-helix, β-sheet) ↓ Tertiary structure(Three-dimensional structure formed by assembly of secondary structures) ↓ Quaternary structure(Structure formed by more than one polypeptide chains)

  24. Primary structure Definition: is the sequence of amino acids in a protein. Importance: for studying genetic diseases (that results from proteins of abnormal amino acid sequence i.e. abnormal primary structure) Peptide bonds: In proteins, amino acids are joined covalently by peptide bonds to form a polypeptide chain Peptide bonds: 1- formed by a linkage between a-carboxyl group of one amino acid and the a-amino group of adjacent amino acid 2- They are broken by enzymatic hydrolysis 3- They are notlost by denaturation Polypeptide chain: is a chain formed from joining of amino acids by peptide bonds leaving two free ends : the amino terminal or N-terminal (with free amino group) and a carboxyl terminal , C-terminal (with a free carboxyl group) . The sequence of a polypeptide chain starts from the amino terminal

  25. Polymers of amino acids R1 R2 NH3+ COOー COOー NH3+ + + C C H H A carboxylic acid condenses with an amino group with the release of a water H2O H2O R1 R2 R3 C C CO CO C CO NH3+ NH NH Peptide bond Peptide bond H H H D F T A A S K G N S G Peptide bond is a covalent bond that is not broken by condition that denature proteins as heating or high concentrations of urea.

  26. Polypeptide Chain

  27. Secondary structure Definition: is the arrangement of adjacent amino acids that are located near to each other in the linear sequence (polypeptide) Examples of these arrangements: a helix, b-sheet a-helix: - A spiral structure - Each turn of a-helix contains 3-4 amino acids - Helix is stabilized by hydrogen bonds. - b-sheet Composed of segments of fully extended polypeptide chains joined with hydrogen bonding perpendicular to polypeptide backbone

  28. Secondary structure (cont.) Motifs(supersecondary structure): - Combining secondary structural elements (a-helix, b-sheets & nonrepetitive sequences) - Combining of motifs will form adomainwhich is: the functional and three dimensional structural unit of a polypeptide So, the secondary structure is formed of combining of a-helix, b-sheetto form a motif Motifs combine to form a domain

  29. Crosssover connection Reverse turn/loop β α β loop β hairpin α α β barrels

  30. Tertiary structure Definition: Refers to folding of domains and the final arrangement of domains in a polypeptide Polypeptide chains more than 200 amino acids in length generally consists at least two domains Tertiary structure is stabilized by: 1- Disulfide bonds: between –SH groups of two cysteine amino acids 2- Hydrophobic interactions: between amino acids with nonpolar side chains 3- Hydrogen bonds 4- Ionic interactions: between COO- of aspartate or glutamate with –NH3+ of lysine

  31. Bonds stabilizing tertiary structure

  32. A protein structure with primary, secondary & tertiary levels of structure Primary structure (amino acid sequence ) Secondary structure (coiling) Tertiary structure (folding)

  33. Quaternary structure Definition: The arrangements of more than one polypeptide subunit in a protein is called quaternary structure of protein Monomericproteins: Proteins consists of only one polypeptide chain (subunit) (as for example myoglobin) Polymericproteins (dimeric, trimeric or tetrameric, etc): Proteins contain more than one polypeptide chain (subunits) (as for example hemoglobinwhich is tetrameric) • Subunits are held together by noncovalent interactions (as hydrogen, ionic bonds) • Subunits may work cooperatively with each other (as in hemoglobin) or work independently of each other.

  34. Some important properties of proteins 1-Solubility of proteins in water: • Mostproteins are soluble in water and insoluble in nonpolar fat solvents. • Scleroproteins are insoluble in water. 2- Amphoteric properties of proteins: • Proteins contain free carboxyl and amino groups at the ends of the peptide chains. This makes proteins react with acids and alkalies (i.e. amphoteric) • Each protein has its own isoelectric point which is the pH at which it carries equal positive and negative charge.(neutral) On the acid side of the isoelectric point (lower pH), proteins carries positive charge while on the alkaline side (higher pH) they carry negative charge.

  35. Some important properties of proteins 3- Denaturation of proteins: is the destruction of the secondary and tertiary structures of protein molecule without loss of the primary structure (peptide bonds). Effects of denaturation of proteins: 1-Loss of biological activities of proteins 2- Permanent disorder (irreversible) in common cases (reversible in rare cases). Denaturation can be produced by: 1-Physical agents as heat, ultaviolet rays, X rays… etc 2-Chemical agents: as strong acids, alkalies, heavy metals N.B. Protreolytic enzymes (e.g. enzymes of digestion) hydrolyse the polypeptide chain (destruct peptide bond leading to loss of the primary .level of protein structure). This is different from denaturation.

  36. Classification of proteins 1-Simple proteins on hydrolysis, simple proteins yield amino acids only. 2-Conjugated proteins On hydrolysis they yield amino acids & a non protein part (prosthetic group) 3-Derived proteins They are decomposition products of proteins

  37. Simple proteins (examples) On hydrolysis, simple proteins yield amino acids only. Albumin & globulins - available in milk and egg (of high nutritional value) - In blood they are two of the plasma proteins. Histones - a basic protein as it is rich in histidine. - available with nucleic acids in chromosomes and in the globin part of hemoglobin. Scleroproteins They are the most resistant proteins. They form the protective and supportive proteins of the body include: 1-Collagenin tendons, cartilage, bones and connective tissue. 2- Elastin in elastic fibers in lung and big arteries 3- Reticulinin reticular connective tissues of liver, spleen and kidney 4- Keratininhair, nails and skin

  38. Conjugated proteins (examples) These proteins on hydrolysis give amino acids and non protein parts called the prosthetic groups Phosphoproteins Proteins that are combinedwith phosphoric acid Example: caseinogen of milk Glycoprotein They consists of proteins + mucopolysaccharides (carbohydrates) They occur in mucous secretions, cartilage, bone & connective tissues. Examples: Cholndroitinsulphate, Mucoitinsulphate & heparin Chromoproteins As hemoglobin in blood and myoglobin of muscles Hemoglobin & myoglobin are composed of protein part (globin) & non protein part (heme). Lipoproteins Lipoproteins are conjugated proteins containing proteins & lipids. Plasma lipoproteins transport lipids in blood. Nucleoproteins They are composed of basic proteins as histonesand nucleic acid (DNA of chromosomes).
