HSC development in Taiwan

Shiang-Yu Wang (王祥宇)

Institute of Astronomy and Astrophysics Academia Sinica


Background

Background

  • Instrumentation capability is one of the major research topic in ASIAA

  • Development of WIRCAM in CFHT successfully finished in 2005

  • Long term relationship with Japan

  • Promote collaborations in Asian region

  • Discussion with Subaru began in 2006


Hyper suprimecam

Hyper SuprimeCam

HSC fits IAA’s interests both in the science and technical sides


Our role in hsc

Our Role in HSC

  • Mechanical Shutter

  • Filter exchanger

  • CCD emulator?

  • Optical and Mechanical components?

  • Tight space and weight limits of the HSC makes it challenging


    Specifications for shutter

    Specifications for shutter

    • Time Repeatability : 1%

    • Time Accuracy : 0.01 s

    • Shortest exposure time : 1s

    • Maximum Speed : 800 mm/s

    • Operation Temperature : -10 to 10C

    • Weight ~25Kg

    • 15mm thickness at shutter body and 120mm diameter of the drums


    Major activities in iaa

    Major activities in IAA

    • Extract system design and specifications form Subaru last June

    • HSC team formed in IAA

    • ARL to be the major contractor for the two systems

    • Fabric material purchased for strength test

    • Regular meeting with ARL


    Aeronautical research lab arl

    Aeronautical Research Lab. (ARL)

    • Government funded Military research laboratory

      • Major jet fighter development center in Taiwan

    • Long term collaboration on the SMA project with good partner spirit.

    • Main contractor carrying out the ALMA EA FEIC.


    Shutter design

    Shutter design


    Hsc development in taiwan

    COVER

    SCREEN

    FRAME

    DRUM


    Hsc development in taiwan

    SHAFT

    SUPPORT

    MOTOR

    COUPLING


    Shutter design concept

    ENCODER

    SHIELD

    SUPPORT

    ADAPTER

    SHUTTER DESIGN CONCEPT


    Hsc development in taiwan

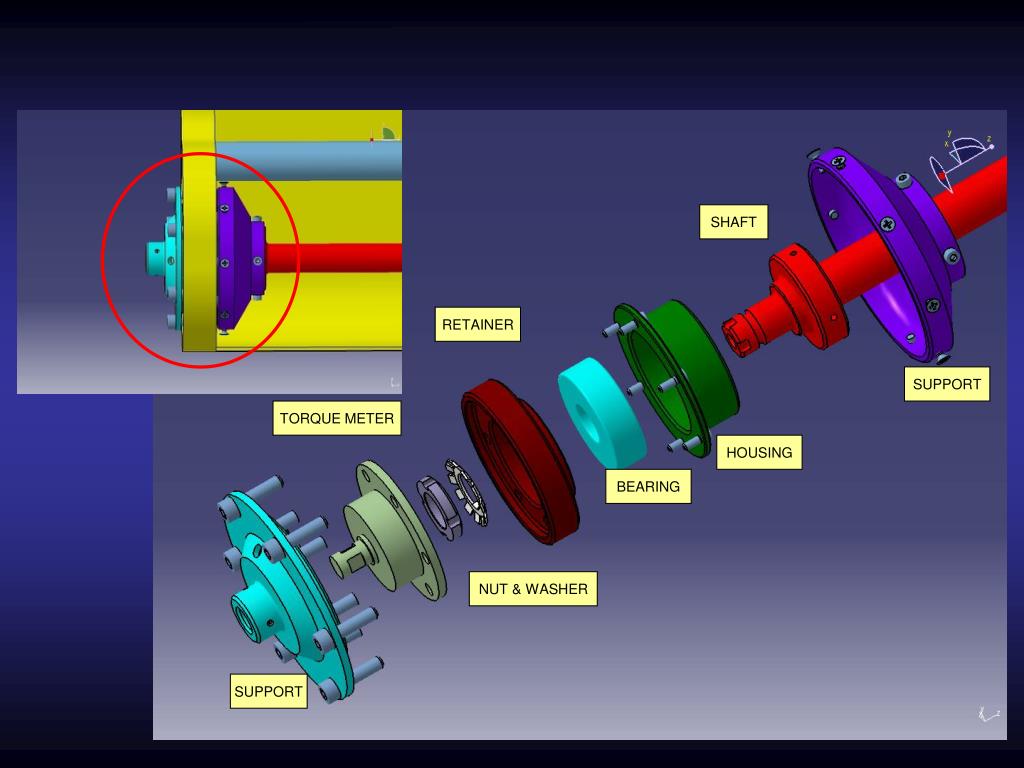

    SHAFT

    RETAINER

    SUPPORT

    TORQUE METER

    HOUSING

    BEARING

    NUT & WASHER

    SUPPORT


    Hsc development in taiwan

    IDLE ROLLER

    CAM FOLLOWER

    FRAME

    RETAINER

    SNAP RING


    Shutter weight estimation

    Shutter weight estimation


    Projected milestones

    Projected Milestones

    • Shutter components ready in March

    • Prototype of shutter system to be finished in May.

    • Detailed interface defined in May.

    • System fabrication starts in late 2008.

    • Ready for delivery in early 2010.
