Presentation Transcript

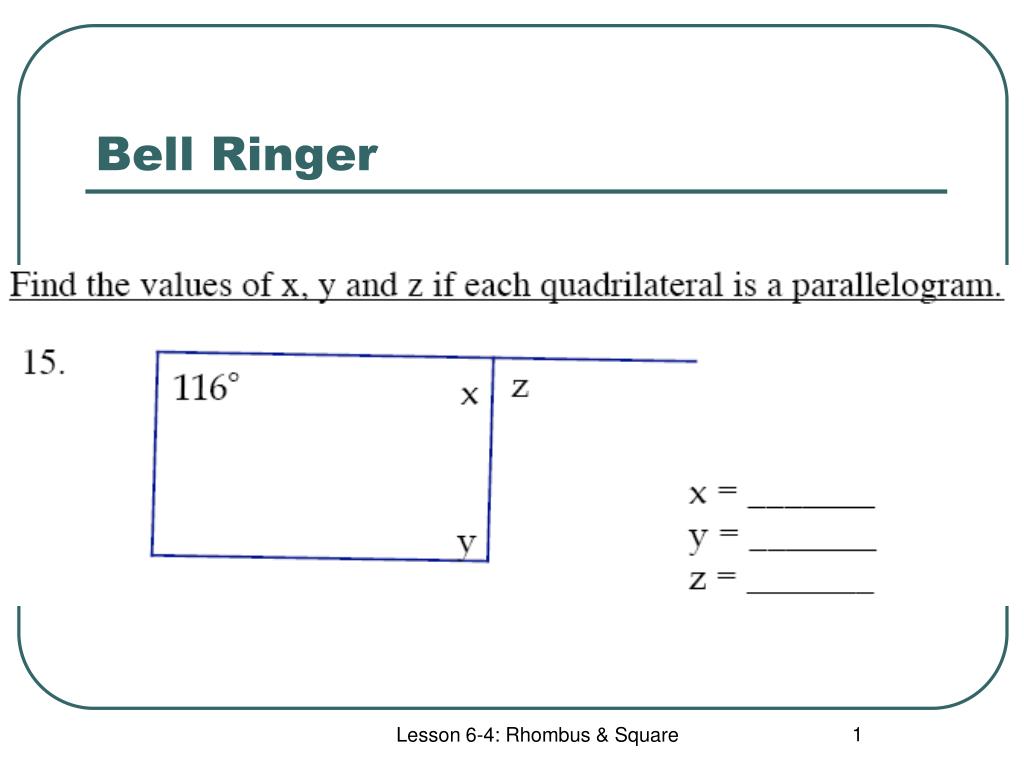

Bell ringer

Bell Ringer

Lesson 6-4: Rhombus & Square

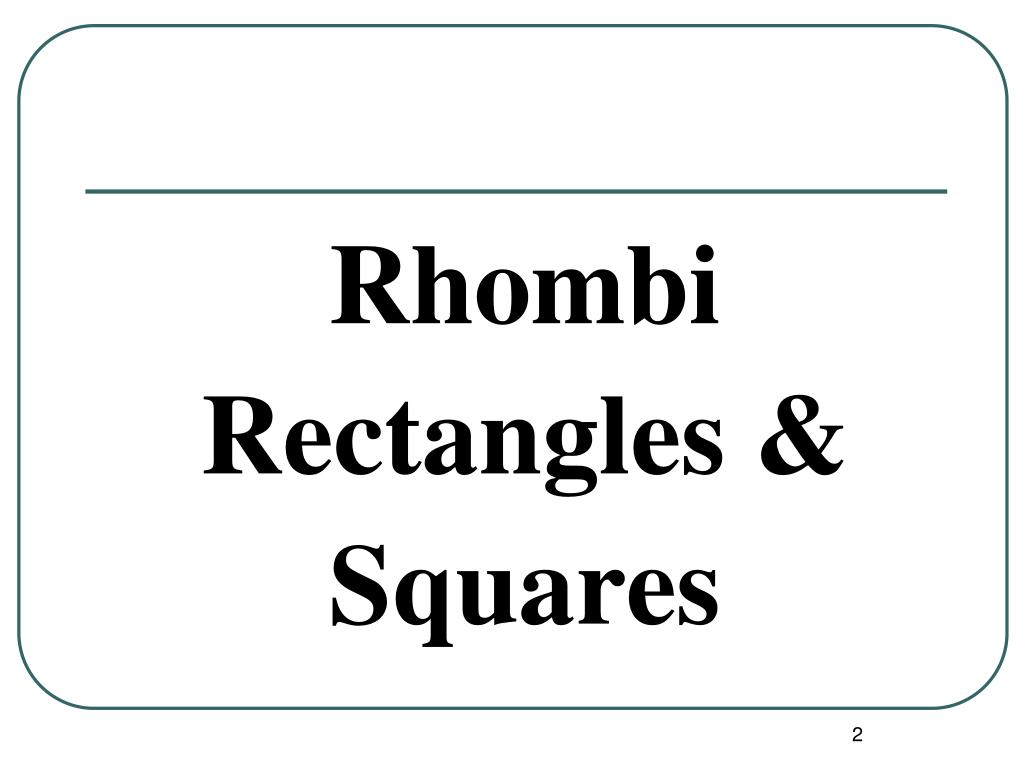

Rhombi rectangles squares

Rhombi

Rectangles &

Squares

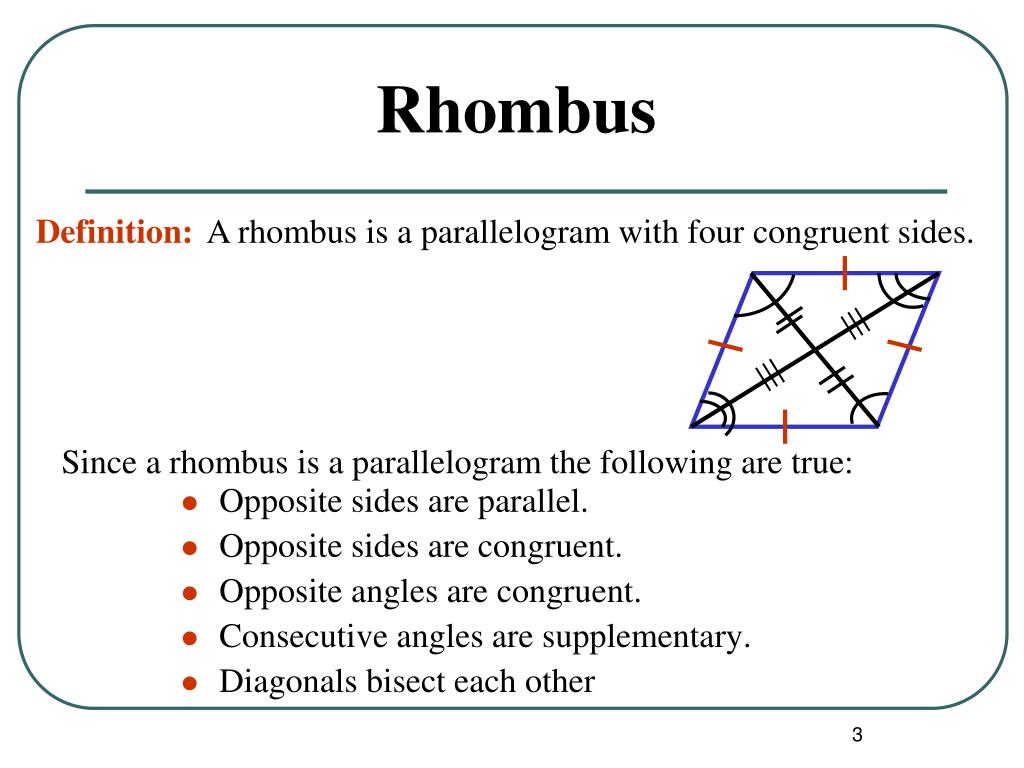

Rhombus

Rhombus

Definition:

A rhombus is a parallelogram with four congruent sides.

  • Opposite sides are parallel.

  • Opposite sides are congruent.

  • Opposite angles are congruent.

  • Consecutive angles are supplementary.

  • Diagonals bisect each other

Since a rhombus is a parallelogram the following are true:

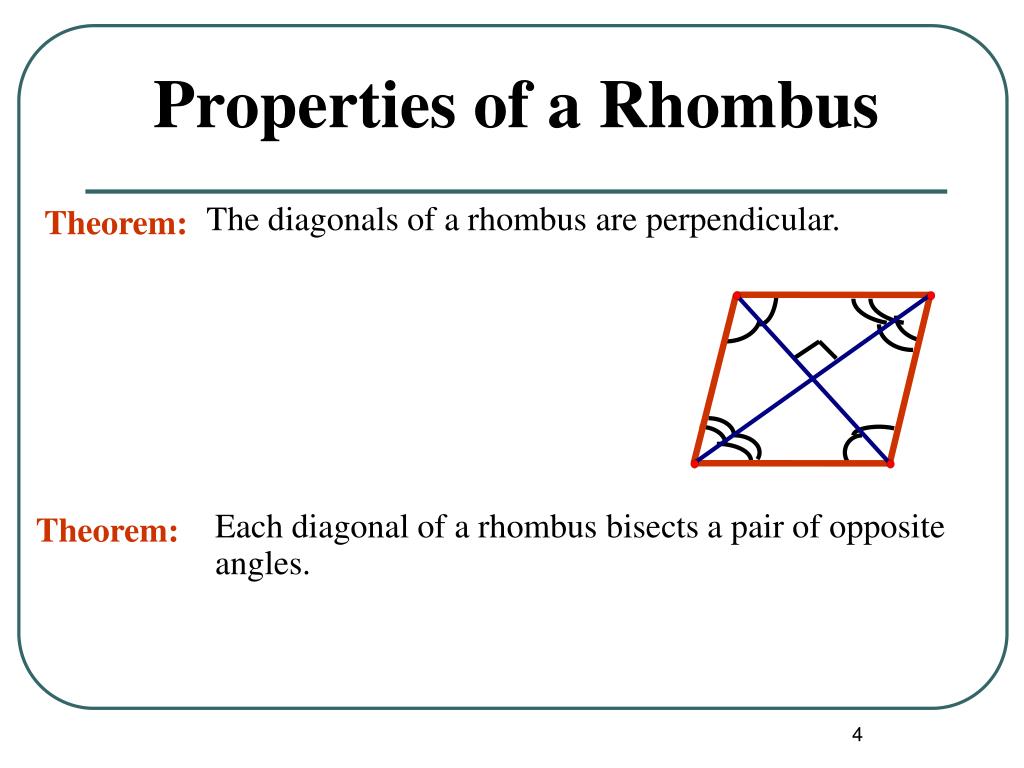

Properties of a rhombus

Properties of a Rhombus

Theorem:

The diagonals of a rhombus are perpendicular.

Theorem:

Each diagonal of a rhombus bisects a pair of opposite angles.

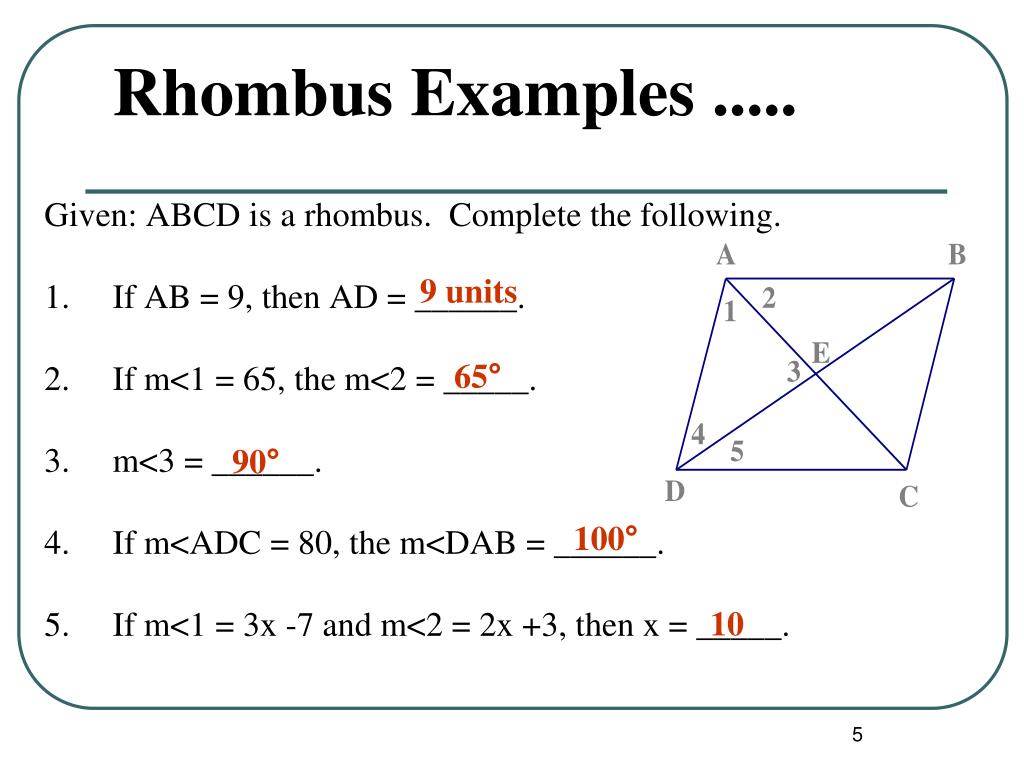

Rhombus examples

Rhombus Examples .....

Given: ABCD is a rhombus. Complete the following.

  • If AB = 9, then AD = ______.

  • If m<1 = 65, the m<2 = _____.

  • m<3 = ______.

  • If m<ADC = 80, the m<DAB = ______.

  • If m<1 = 3x -7 and m<2 = 2x +3, then x = _____.

9 units

65°

90°

100°

10

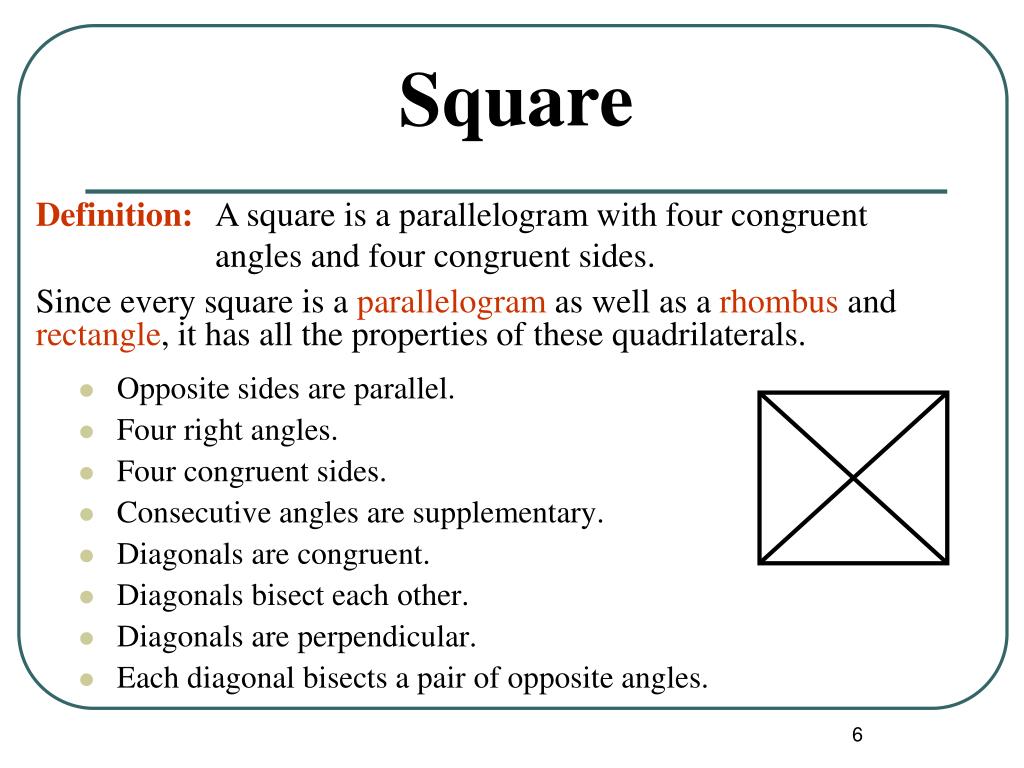

Square

Square

Definition:

A square is a parallelogram with four congruent angles and four congruent sides.

  • Opposite sides are parallel.

  • Four right angles.

  • Four congruent sides.

  • Consecutive angles are supplementary.

  • Diagonals are congruent.

  • Diagonals bisect each other.

  • Diagonals are perpendicular.

  • Each diagonal bisects a pair of opposite angles.

Since every square is a parallelogram as well as a rhombus and rectangle, it has all the properties of these quadrilaterals.


Squares examples

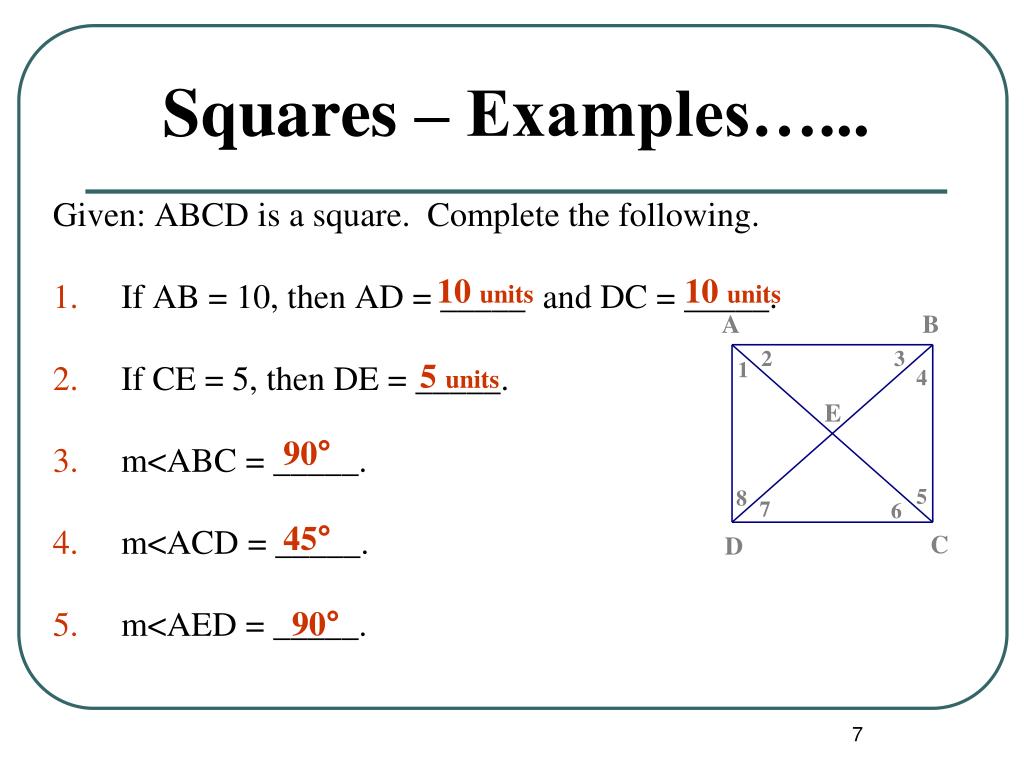

Squares – Examples…...

Given: ABCD is a square. Complete the following.

  • If AB = 10, then AD = _____ and DC = _____.

  • If CE = 5, then DE = _____.

  • m<ABC = _____.

  • m<ACD = _____.

  • m<AED = _____.

10 units

10 units

5 units

90°

45°

90°

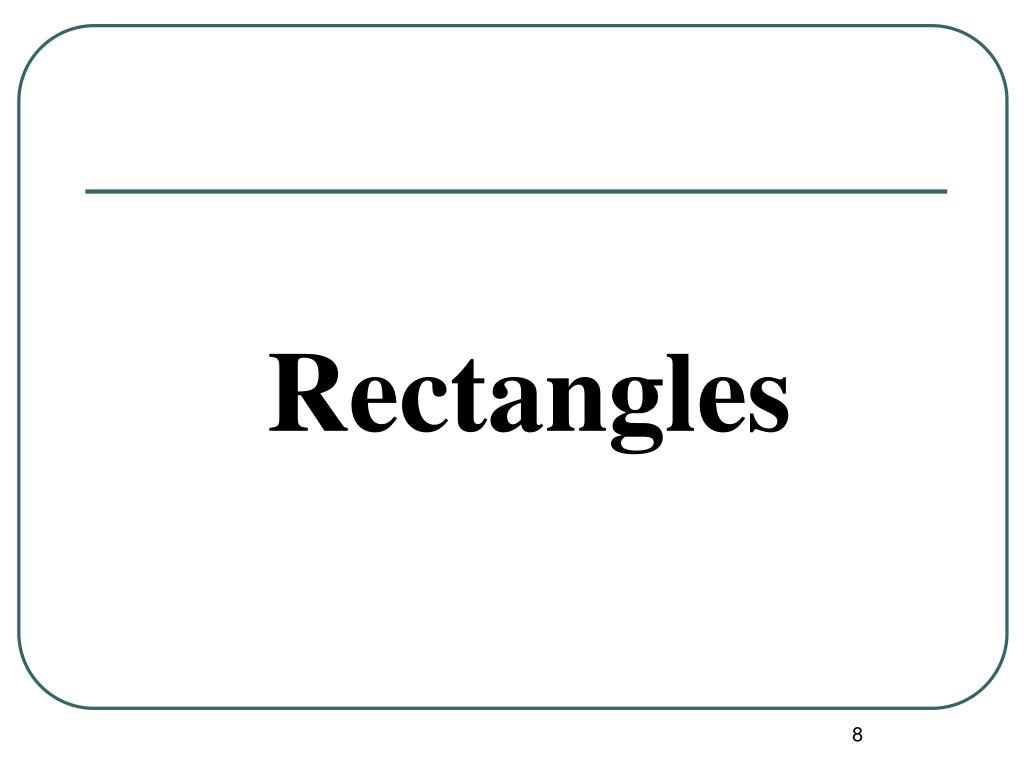

Rectangles

Rectangles

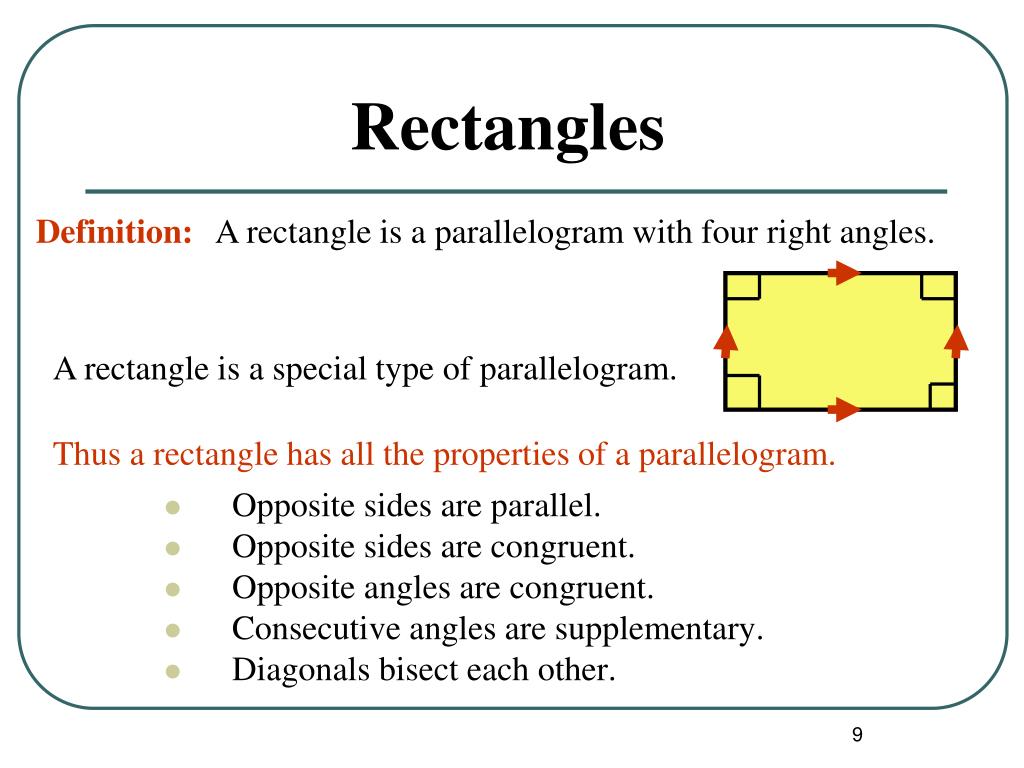

Rectangles1

Rectangles

Definition:

A rectangle is a parallelogram with four right angles.

  • Opposite sides are parallel.

  • Opposite sides are congruent.

  • Opposite angles are congruent.

  • Consecutive angles are supplementary.

  • Diagonals bisect each other.

A rectangle is a special type of parallelogram.

Thus a rectangle has all the properties of a parallelogram.

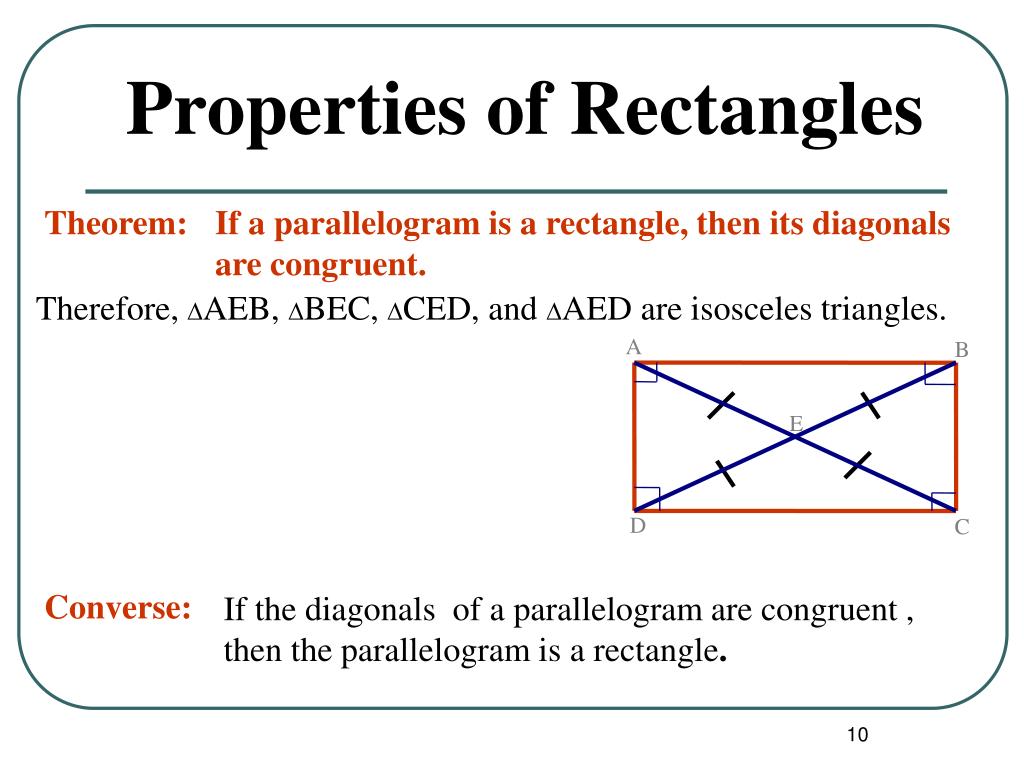

Properties of rectangles

A

B

E

D

C

Properties of Rectangles

Theorem:

If a parallelogram is a rectangle, then its diagonals are congruent.

Therefore, ∆AEB, ∆BEC, ∆CED, and ∆AED are isosceles triangles.

Converse:

If the diagonals of a parallelogram are congruent , then the parallelogram is a rectangle.

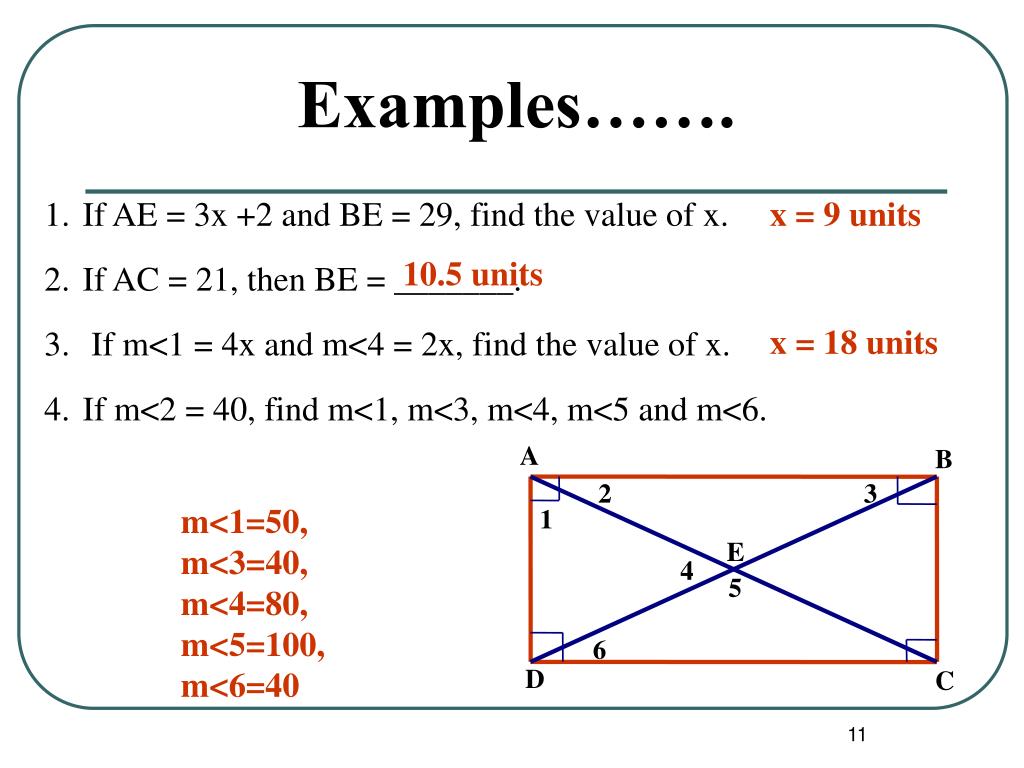

Examples

A

B

2

3

1

E

4

5

6

D

C

Examples…….

  • If AE = 3x +2 and BE = 29, find the value of x.

  • If AC = 21, then BE = _______.

  • If m<1 = 4x and m<4 = 2x, find the value of x.

  • If m<2 = 40, find m<1, m<3, m<4, m<5 and m<6.

x = 9 units

10.5 units

x = 18 units

m<1=50,

m<3=40,

m<4=80,

m<5=100,

m<6=40
