  1. Those Who Don't Learn From History Tom Bascom, President Greenfield Technologies

  2. “Those who do not learn from history are doomed to repeat it.”  George Santayana (1863-1952) Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  3. Overview • Types – Of monitoring activities • What – To monitor • How – Methods for gathering and presenting monitoring data • Why – Benefits of historical data Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  4. Types of Monitoring Activities • Baselining • Benchmarking • Interactive troubleshooting • Capacity management • Resource optimization • Historical record keeping Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  5. Baselining • Allows you to quantify changes in performance • Apply to: • Frequently executed tasks • Important tasks Time, Activity, Costs, Revenue, Resources Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  6. Benchmarking • Benchmarking is much like baselining but it generally seeks to find the limits of a configuration. • SpecINT • TPC • ATM • ReadProbe • 4glProbe Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  7. Interactive Troubleshooting • Confirm configuration (trust, but verify) • What is happening NOW? • You can “prove” anything with a single data point • How is NOW different from the baseline? Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  8. Capacity Management • Filesystem space • Database extent utilization • Memory consumption • Peak CPU utilization • Network utilization • IO throughput Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

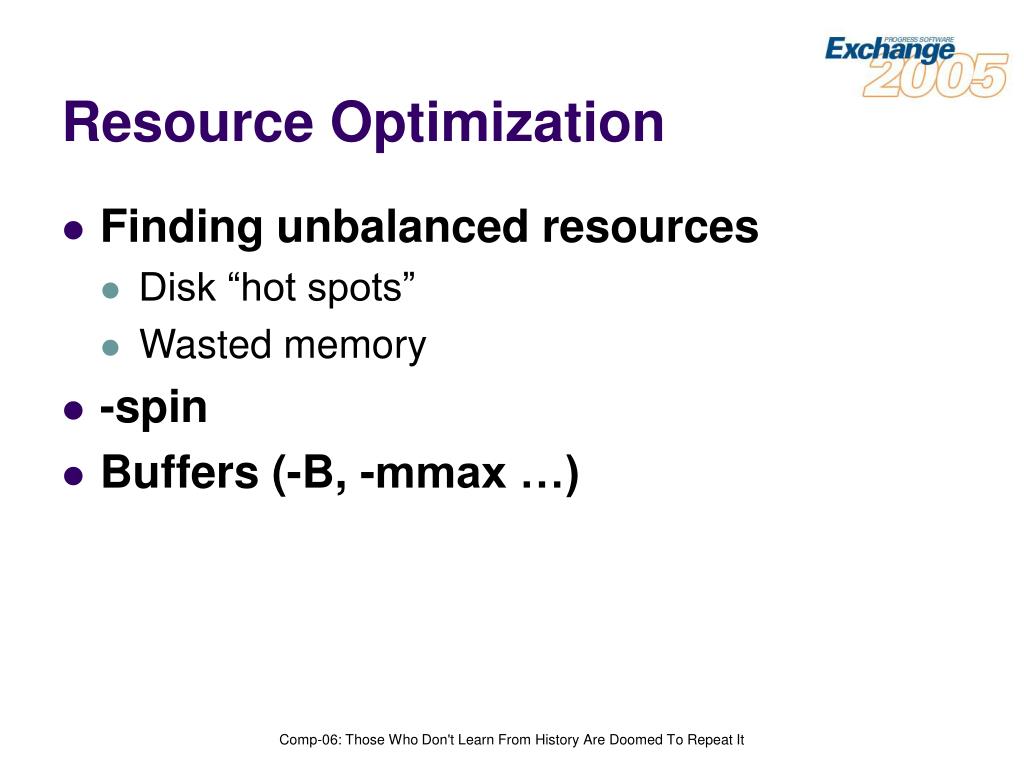

  9. Resource Optimization • Finding unbalanced resources • Disk “hot spots” • Wasted memory • -spin • Buffers (-B, -mmax …) Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

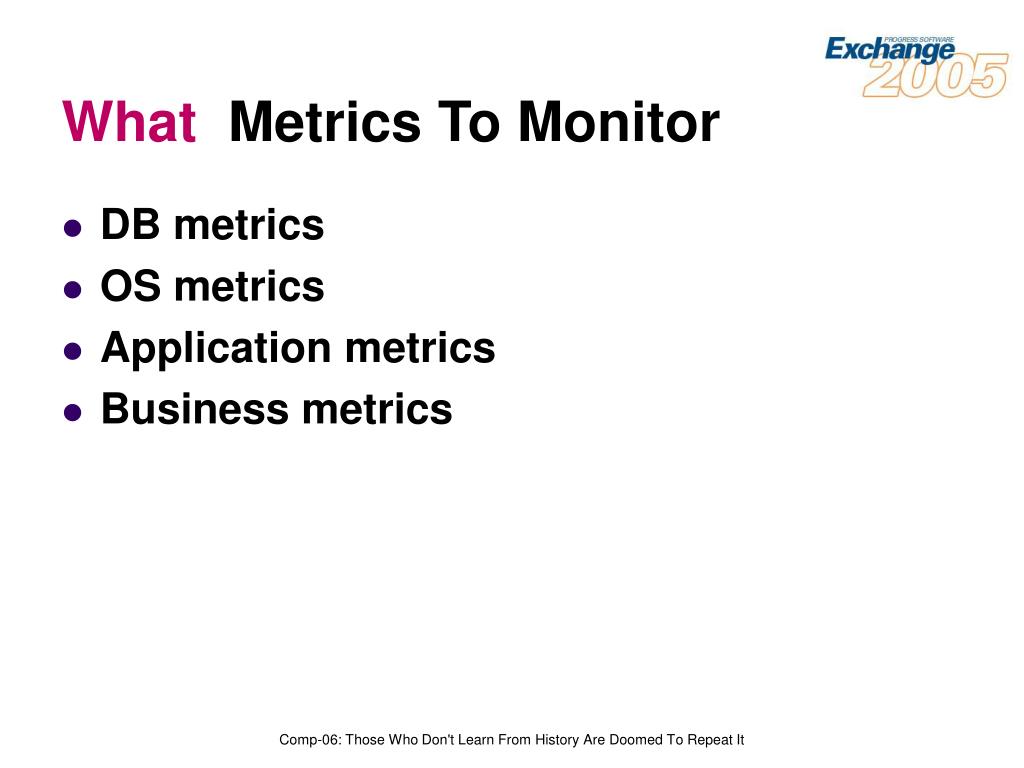

  10. What Metrics To Monitor • DB metrics • OS metrics • Application metrics • Business metrics Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

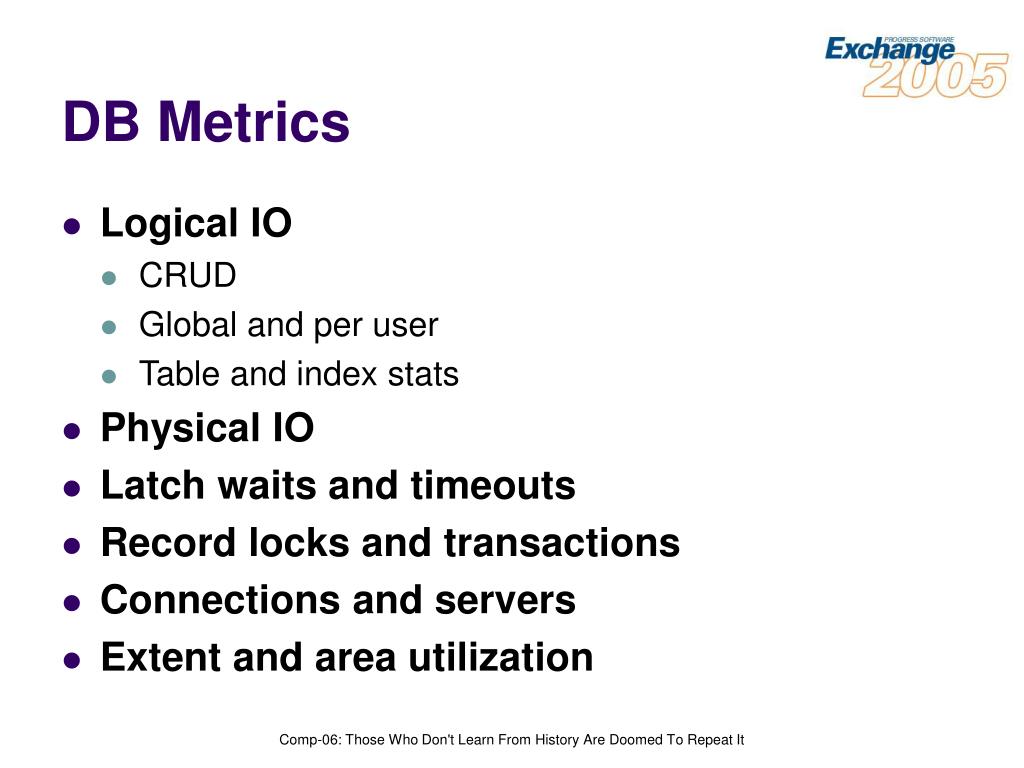

  11. DB Metrics • Logical IO • CRUD • Global and per user • Table and index stats • Physical IO • Latch waits and timeouts • Record locks and transactions • Connections and servers • Extent and area utilization Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

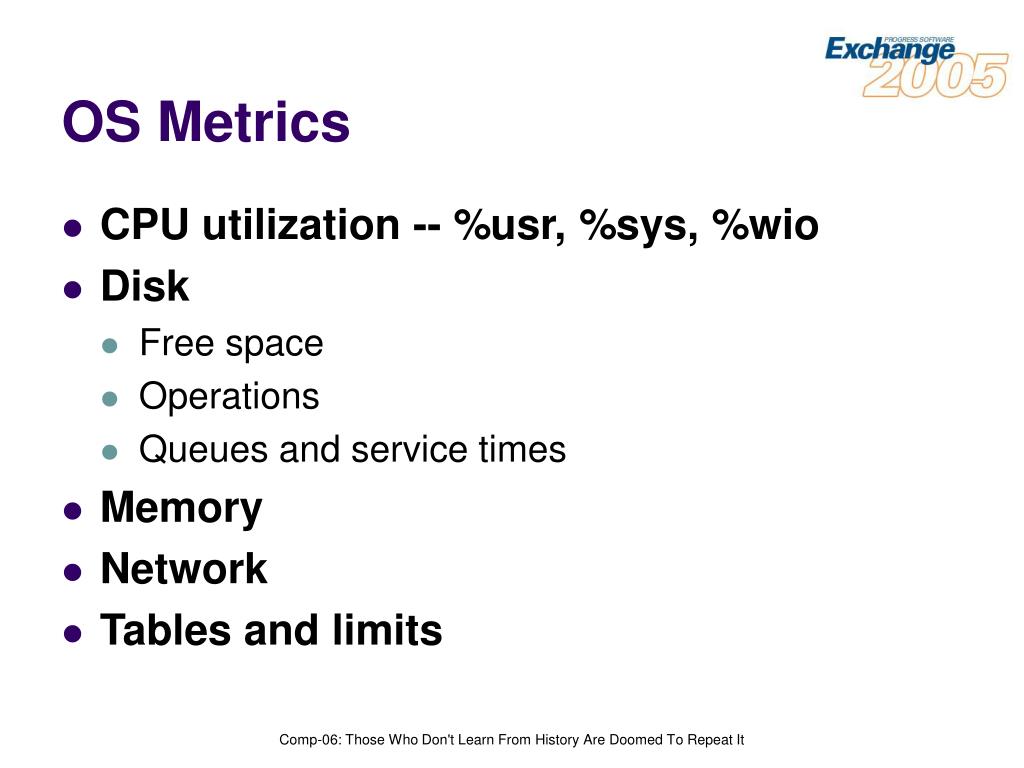

  12. OS Metrics • CPU utilization -- %usr, %sys, %wio • Disk • Free space • Operations • Queues and service times • Memory • Network • Tables and limits Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

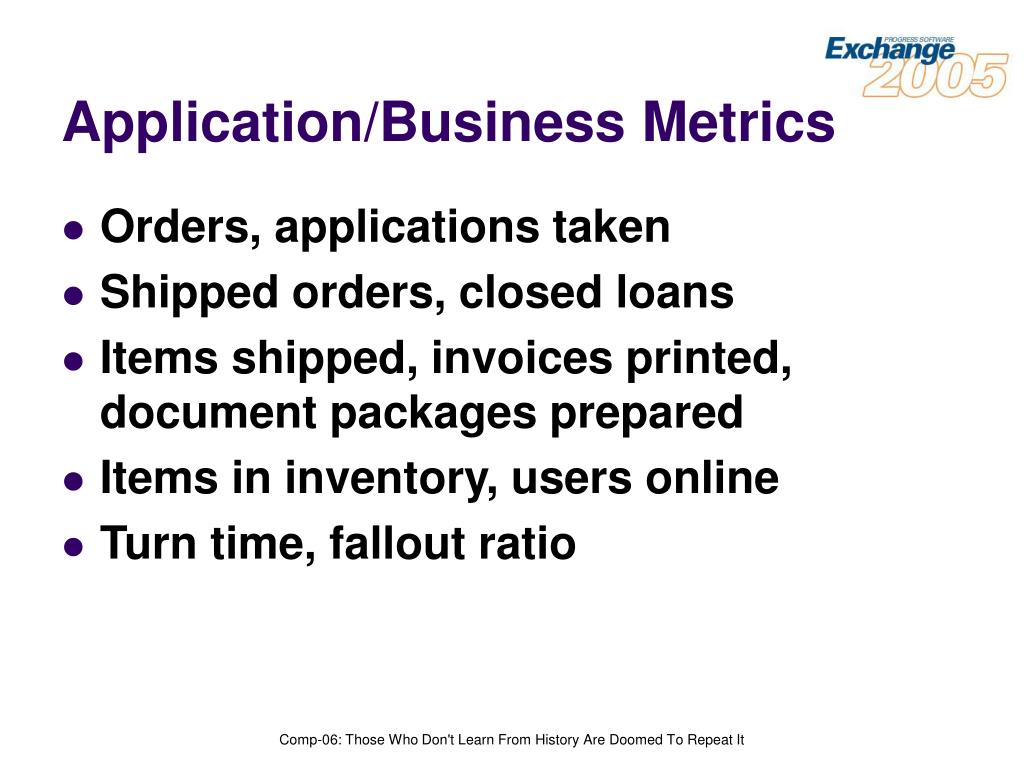

  13. Application/Business Metrics • Orders, applications taken • Shipped orders, closed loans • Items shipped, invoices printed, document packages prepared • Items in inventory, users online • Turn time, fallout ratio Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  14. Business Metrics • Closed loans • Shipped orders • Expenses • Revenue Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  15. How To Gather Data • Screen Scraping • PROMON • Scripts • VSTs • ProTop • ProMonitor • Low Level APIs • Fathom Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  16. PROMON 04/29/05 Activity: Summary 10:12 (10 sec) Event Total Per Sec |Event Total Per Sec Commits 354 35.4 |DB Reads 1724 172.4 Undos 0 0.0 |DB Writes 50 5.0 Record Reads 15091 1509.1 |BI Reads 0 0.0 Record Updates 64 6.4 |BI Writes 12 1.2 Record Creates 183 18.3 |AI Writes 7 0.7 Record Deletes 71 7.1 |Checkpoints 0 0.0 Record Locks 3776 377.6 |Flushed at chkpt 0 0.0 Record Waits 0 0.0 Rec Lock Waits 0 % BI Buf Waits 0 % AI Buf Waits 0 % Writes by APW 100 % Writes by BIW 17 % Writes by AIW 71 % DB Size: 26 GB BI Size: 249 MB AI Size: 87 MB Empty blocks:1268766 Free blocks: 84945 RM chain: 805939 Buffer Hits 96 % Active trans: 0 121 Servers, 513 Users (204 Local, 309 Remote, 10 Batch), 4 Apws Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

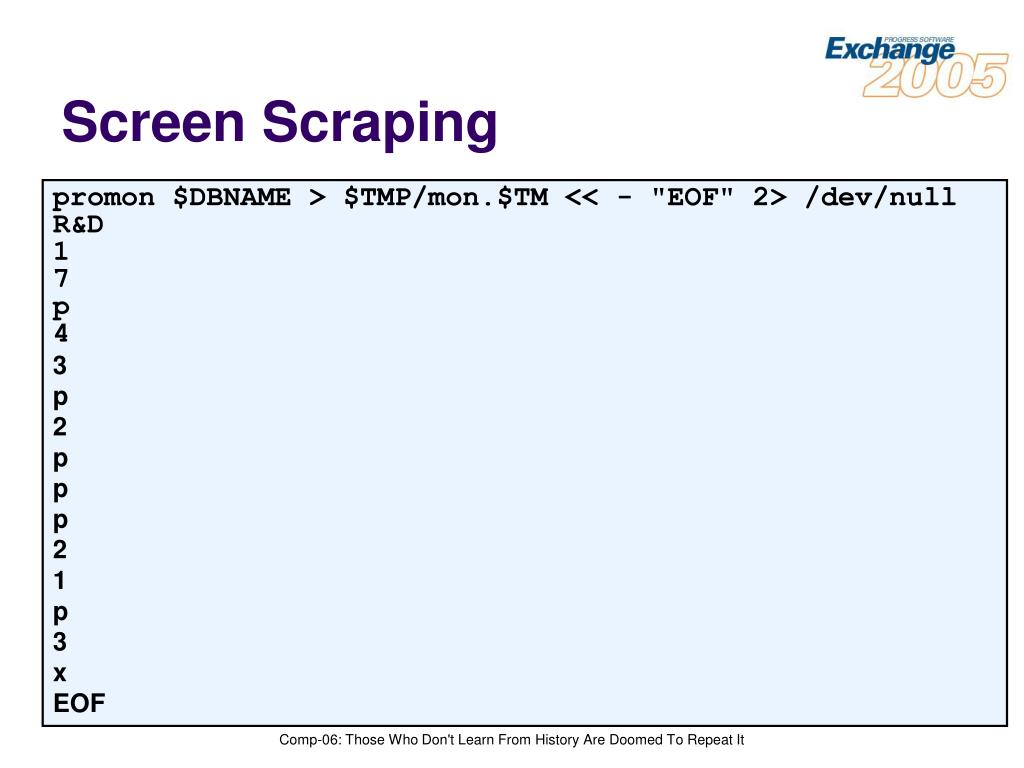

  17. Screen Scraping promon $DBNAME > $TMP/mon.$TM << - "EOF" 2> /dev/nullR&D17p4 3 p 2 p p p 2 1 p 3 x EOF Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  18. Screen Scraping ls -1 sample.??.?? | while read FILE do grep -i "^logical read" $FILE | cut -c46-56 >> $TMP/lr grep -i "^o/s read" $FILE | cut -c46-56 >> $TMP/osr grep -i "^hit ratio" $FILE | cut -c11-14 >> $TMP/hr grep -i "^commit " $FILE | cut -c46-56 >> $TMP/trx grep -i "^latch " $FILE | cut -c46-56 >> $TMP/lto done paste $TMP/lr $TMP/osr $TMP/hr $TMP/trx $TMP/lto Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  19. VSTs -- ProTop 16:06:50 ProTop xvi -- Progress Database Monitor 05/01/05 Sample sports2000 [/data/s2k/sports2000] Rate Hit Ratio: 63:1 148:1 Commits: 2 3 Sessions: 18 Miss% : 1.590% 0.676% Latch Waits: 232 234 Local: 17 Hit% : 98.410% 99.324% Tot/Mod Bufs: 170 25 Remote: 0 Log Reads: 4465 10498 Evict Bufs: 908 206 Batch: 16 OS Reads: 71 71 Lock Table: 8192 27 Server: 0 Rec Reads: 1141 1062 LkHWM|OldTrx: 67 00:03 Other: 1 Log/Rec: 3.9132 9.8851 Old/Curr BI: 1 1 TRX: 6 Area Full: 1 99.12% After Image: Disabled Blocked: 0 Resource Waits Id Resource Locks Waits Lock% --- -------------------- ---------- ---------- ------- 10 DB Buf S Lock 10497 0 100.00% 6 Record Get 1061 0 100.00% 7 DB Buf Read 71 0 100.00% 2 Record Lock 28 0 100.00% 11 DB Buf X Lock 14 0 100.00% 19 TXE Share Lock 14 0 100.00% Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

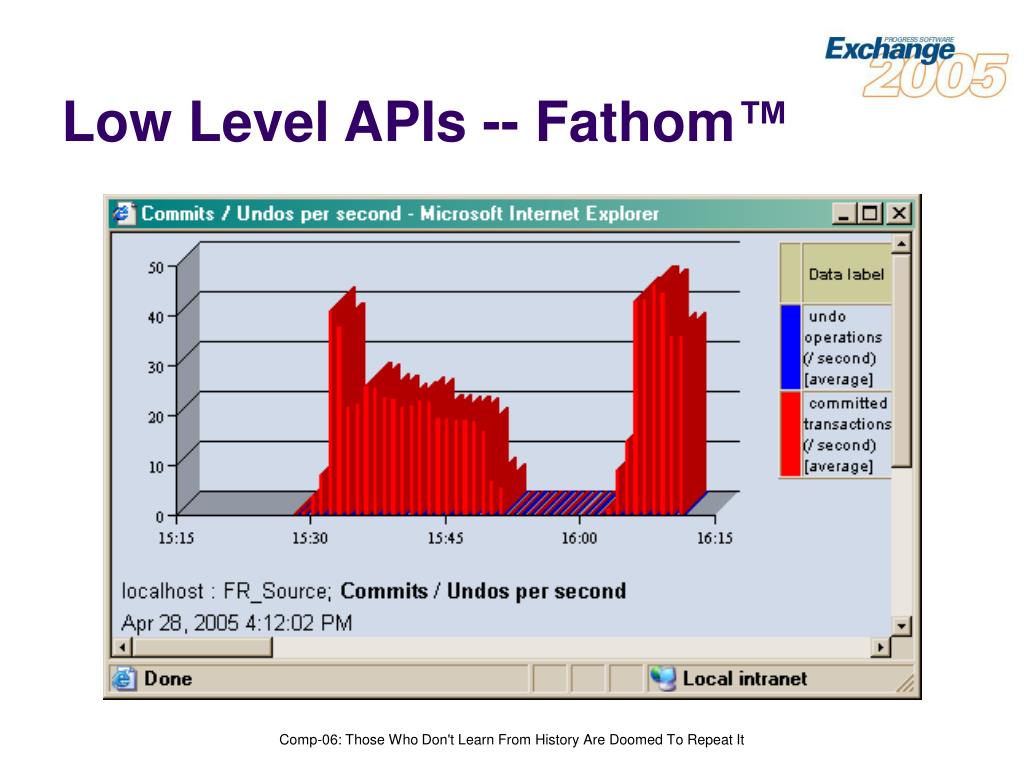

  20. Low Level APIs -- Fathom™ Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  21. Low Level APIs -- Fathom Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  22. Metrics Database • Multiple targets • Generic metrics • Individualized metric properties • Arbitrary grouping of metrics • Flexible reporting • Graphical output Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  23. Why? The Benefits of History • Spend your money wisely! • Be the first to know when something is wrong! • Better yet – know before it happens… and prevent it! Don’t be Doomed! Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  24. Why? • Spend your money wisely! • Be the first to know when something is wrong! • Better yet – know before it happens… and prevent it! Don’t be Doomed! Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  25. Effect of Changes EMC 8k Blocks Storage areas conv89 Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  26. Why? • Spend your money wisely! • Be the first to know when something is wrong! • Better yet – know before it happens… and prevent it! Don’t be Doomed! Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  27. Where’s the Problem? 04/29/05 Activity: Summary 10:12 (10 sec) Event Total Per Sec |Event Total Per Sec Commits 354 35.4 |DB Reads 1724 172.4 Undos 0 0.0 |DB Writes 50 5.0 Record Reads 15091 1509.1 |BI Reads 0 0.0 Record Updates 64 6.4 |BI Writes 12 1.2 Record Creates 183 18.3 |AI Writes 7 0.7 Record Deletes 71 7.1 |Checkpoints 0 0.0 Record Locks 3776 377.6 |Flushed at chkpt 0 0.0 Record Waits 0 0.0 Rec Lock Waits 0 % BI Buf Waits 0 % AI Buf Waits 0 % Writes by APW 100 % Writes by BIW 17 % Writes by AIW 71 % DB Size: 26 GB BI Size: 249 MB AI Size: 87 MB Empty blocks:1268766 Free blocks: 84945 RM chain: 805939 Buffer Hits 96 % Active trans: 0 121 Servers, 513 Users (204 Local, 309 Remote, 10 Batch), 4 Apws Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  28. TRX Rate Normal Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  29. TRX Rate Elevated Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

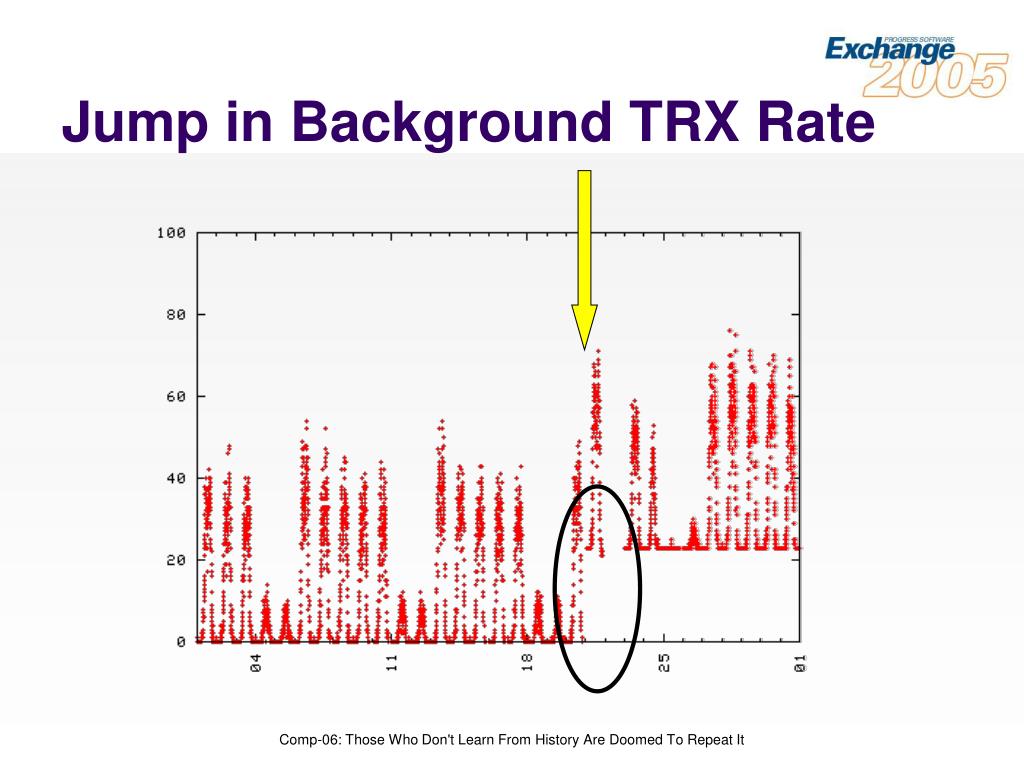

  30. Jump in Background TRX Rate Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  31. Why? • Spend your money wisely! • Be the first to know when something is wrong! • Better yet – know before it happens… and prevent it! Don’t be Doomed! Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  32. Business Surge 5x init volume Hiring lags… Again! Rates Drop! Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  33. Summary • Obtain a baseline • Consistently gather comprehensive data • Business • Application • Database • Operating System • Review, analyze, and publish Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  34. “Insanity is doing the same thing over and over again and expecting different results.” • Albert Einstein • (1879 - 1955) Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It

  35. Questions? ? Resources: http://www.greenfieldtech.com/exchange05.shtml Comp-06: Those Who Don't Learn From History Are Doomed To Repeat It
