  1. M/B framework

  2. Chipset • Intel • VIA • SiS • Ali • AMD

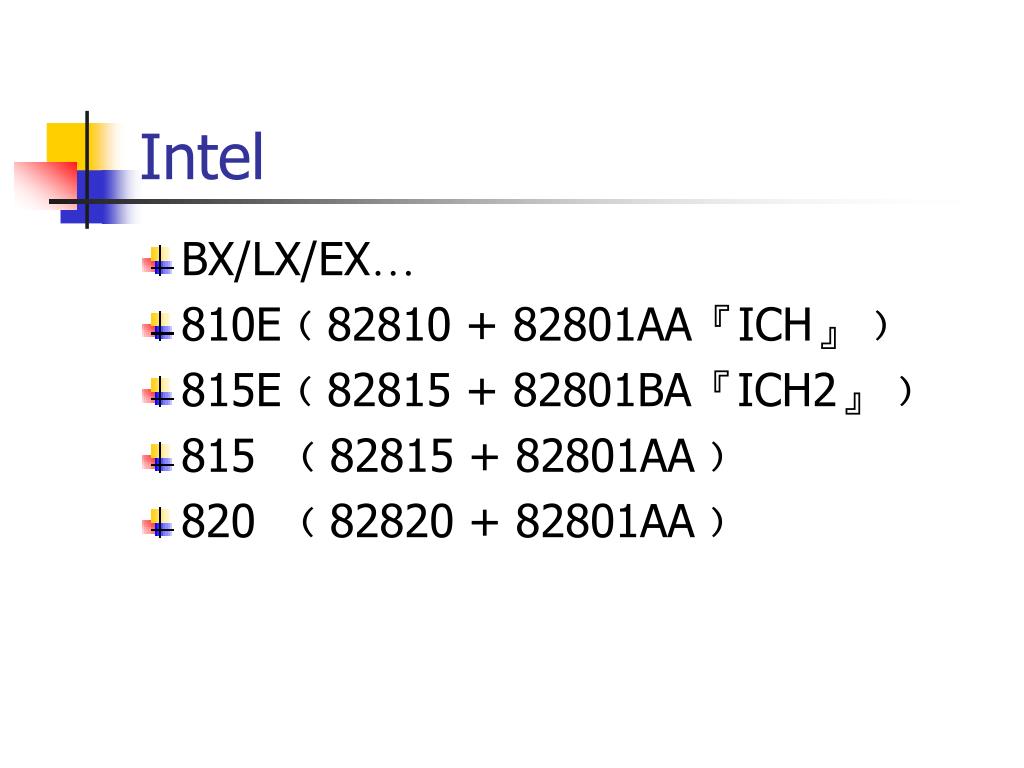

  3. Intel • BX/LX/EX… • 810E﹙82810 + 82801AA『ICH』﹚ • 815E﹙82815 + 82801BA『ICH2』﹚ • 815 ﹙82815 + 82801AA﹚ • 820 ﹙82820 + 82801AA﹚

  4. BX Serial

  5. Intel PIII or Intel Celeron System Bus (66/100 MHz) Digital Video Out 810 Chipset Encoder TV 82810 GMCH (Graphic & Memory Controller Hub) 64 Bit 100 MHzOnly System Memory Display Cache (4MB SDRAM 100MHz) Analog Display PCI Slots (ICH=6 Req / Gnt pairs) PCI Bus 82801AA ICH (I/O Controller Hub) LPC Super I/O ISA option 2 IDE Ports Ultra ATA/66 LAN option AC’97 2 USB Ports Audio Codec Modem Codec FWH (Firmware Hub) 810 Serial

  6. Intel PIII or Intel Celeron System Bus (66/100/133 MHz) Digital Video Out 810E Chipset Encoder TV 82810E GMCH (Graphic & Memory Controller Hub) 64 Bit 100 MHzOnly System Memory Display Cache (4MB SDRAM 100/133MMHz) Analog Display PCI Slots (ICH=6 Req / Gnt pairs) PCI Bus 82801AA ICH (I/O Controller Hub) LPC Super I/O ISA option 2 IDE Ports Ultra ATA/66 LAN option AC’97 2 USB Ports Audio Codec Modem Codec FWH (Firmware Hub) 810E Serial

  7. Intel PIII or Intel Celeron System Bus (66/100/133 MHz) Digital Display Solano Chipset Encoder Solano GMCH (Graphics & Memory Controller Hub) - Memory Controller - AGP Controller - Graphics Controller - 3D Engine - 2D Engine TV 64 Bit 100/133 MHz System Memory AGP 1X/2X/4X AGP Connector AGP graphics Analog Display PCI Slots (ICH=6 Req / Gnt pairs) - OR - Display Cache (4MB SDRAM 133MMHz) PCI Bus 82801AA ICH (I/O Controller Hub) LPC Super I/O ISA option 2 IDE Ports Ultra ATA/66 LAN option AC’97 2 USB Ports Audio Codec Modem Codec FWH (Firmware Hub) 815 Serial

  8. Intel PIII or Intel Celeron System Bus (66/100/133 MHz) Digital Display Solano Chipset Encoder Solano GMCH (Graphics & Memory Controller Hub) - Memory Controller - AGP Controller - Graphics Controller - 3D Engine - 2D Engine TV 64 Bit 100/133 MHz System Memory AGP Controller Analog Display AGP graphics PCI Slots (ICH=6 Req / Gnt pairs) Display Cache (4MB SDRAM 133MMHz) PCI Bus ICH2 (I/O Controller Hub) LPC Super I/O ISA option 2 IDE Ports ATA 100 AC’97 LAN option Audio Codec 4 USB Ports Modem Codec FWH (Firmware Hub) 815E

  9. Intel PIII or Intel Celeron Intel PIII or Intel Celeron System Bus (66/100 MHz) System Bus (66/100/133 MHz) 810 Chipset 810E Chipset 82810 GMCH (Graphic & Memory Controller Hub) 82810E GMCH (Graphic & Memory Controller Hub) 64 Bit 100 MHzOnly 64 Bit 100 MHzOnly System Memory System Memory Intel PIII or Intel Celeron System Bus (66/100/133 MHz) 815 Chipset Solano GMCH (Graphics & Memory Controller Hub) - Memory Controller - AGP Controller - Graphics Controller - 3D Engine - 2D Engine 64 Bit 100/133 MHz System Memory Chipset

  10. CPU slot-1 AGP Pro Slot Host Bus RIMM0 RIMM1 MCH 82820 AGP 2.0 Interface RDRAM Interface AMR Slot Hub Link PCI1 PCI2 PCI3 PCI4 PCI5 AC 97 CODEC ICH 82801 AC 97 Link PCI Bus Optional USB Port USB Interface Primary IDE Interface Slave Drive Master Drive Audio Controller YAMAHA YMF 744B SCSI Controller Adaptec AIC-7892 LAN Controller Intel 82559 PCI To ISA Bridge ITE IT8888F Secondary IDE Interface Slave Drive Master Drive LPC/FWH Interface ISA slot Floopy LPC ITE IT8703F FWH 82802 AC 97 CODEC AD1881 AIC 3860 Parallel port RJ-45 Serial port Legacy Wide Ultra 160/m PS2 KB/MS Legacy Narrow IR port 820 Serial

  11. VIA • KT133 For Socket A (VT8363 + VT82C686A) • KX133 For Slot A (VT8371 + 686A) • Apollo pro133A (694X + 596B) • Apollo pro133 (693A + 596B) • PM133 (8605 + 686A)

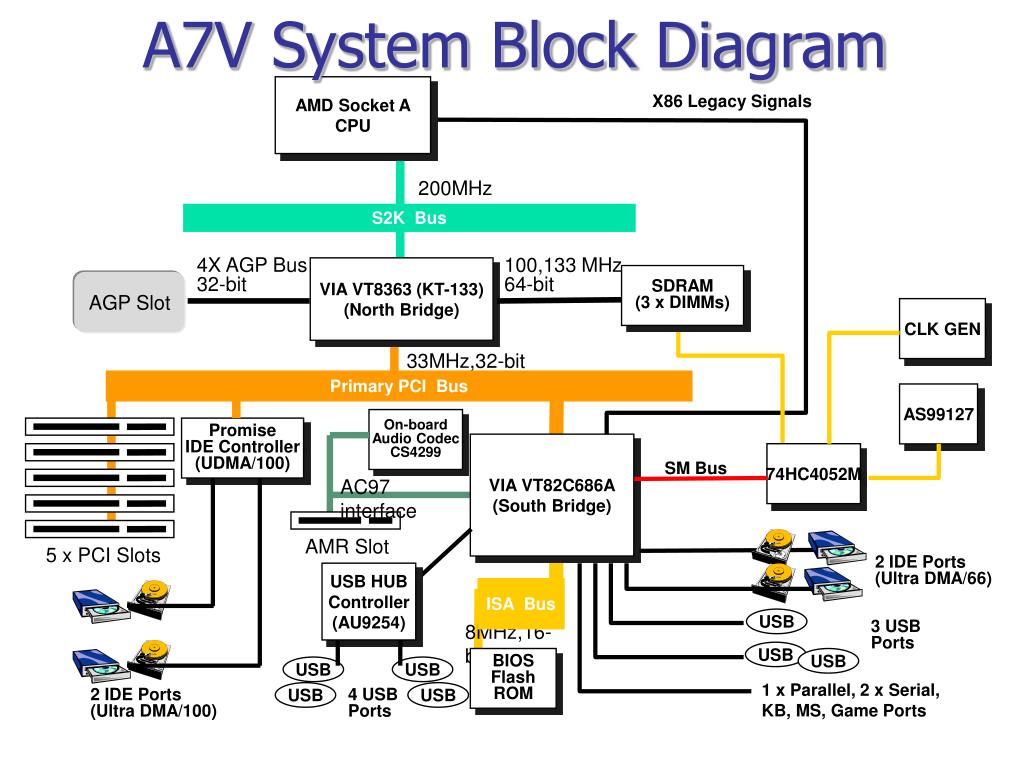

  12. A7V System Block Diagram AMD Socket A CPU X86 Legacy Signals 200MHz S2K Bus 4X AGP Bus 32-bit 100,133 MHz 64-bit VIA VT8363 (KT-133) (North Bridge) SDRAM (3 x DIMMs) AGP Slot CLK GEN 33MHz,32-bit Primary PCI Bus AS99127 On-board Audio Codec CS4299 Promise IDE Controller (UDMA/100) VIA VT82C686A (South Bridge) 74HC4052M SM Bus AC97 interface AMR Slot 5 x PCI Slots 2 IDE Ports (Ultra DMA/66) USB HUB Controller (AU9254) ISA Bus USB 8MHz,16-bit 3 USB Ports USB BIOS Flash ROM USB USB USB 1 x Parallel, 2 x Serial, KB, MS, Game Ports 2 IDE Ports (Ultra DMA/100) USB 4 USB Ports USB

  13. K7V System Block Diagram Athlon CPU L2 Cache PBSRAM X86 Legacy Signals 200MHz S2K Bus 4X AGP Bus 32-bit 100,133 MHz 64-bit VIA VT8371 (KX-133) (North Bridge) SDRAM (3 x DIMMs) AGP Slot CLK GEN 33MHz,32-bit Primary PCI Bus AS99127 VIA VT82C686A (South Bridge) On-board Audio Codec CS4299 74HC4052 SM Bus AC97 interface 2 IDE Ports (Ultra DMA/66) 8MHz,16-bit AMR Slot ISA Bus USB 5 x PCI Slots USB 4 USB Ports USB BIOS Flash ROM USB

  14. Celeron/ Coppermine CPU X86 Legacy Signals Socket 370 66/100/133 MHz Host AGTL+ Bus 4X AGP Bus 32-bit 100M/133MHz 64-bit VIA 82C694Z (North Bridge) SDRAM (3 x DIMMs) AGP Pro Slot SM Bus 33MHz,32-bit Primary PCI Bus On-board Audio Codec Crystal 4299 On-board PCI Audio Aureal AU8830 VIA VT82C686A (South Bridge) 2 IDE Ports (Ultra DMA/66) MIC-IN, LINE-IN, LINE-OUT USB USB 4 USB Ports AC97 interface USB USB 1 Floppy Ports 8MHz,16-bit 1xParallel, 2xSerial, KB,MS,Game Ports AMR Slot 5 x PCI Slots ISA Bus ASUS ASIC (Jumpless, Hareware Monitoring) BIOS Flash ROM 1 x ISA Slot P3V4X System Block Diagram

  15. PM 133

  16. SiS • SiS 630 • SiS 620 • SiS 530
