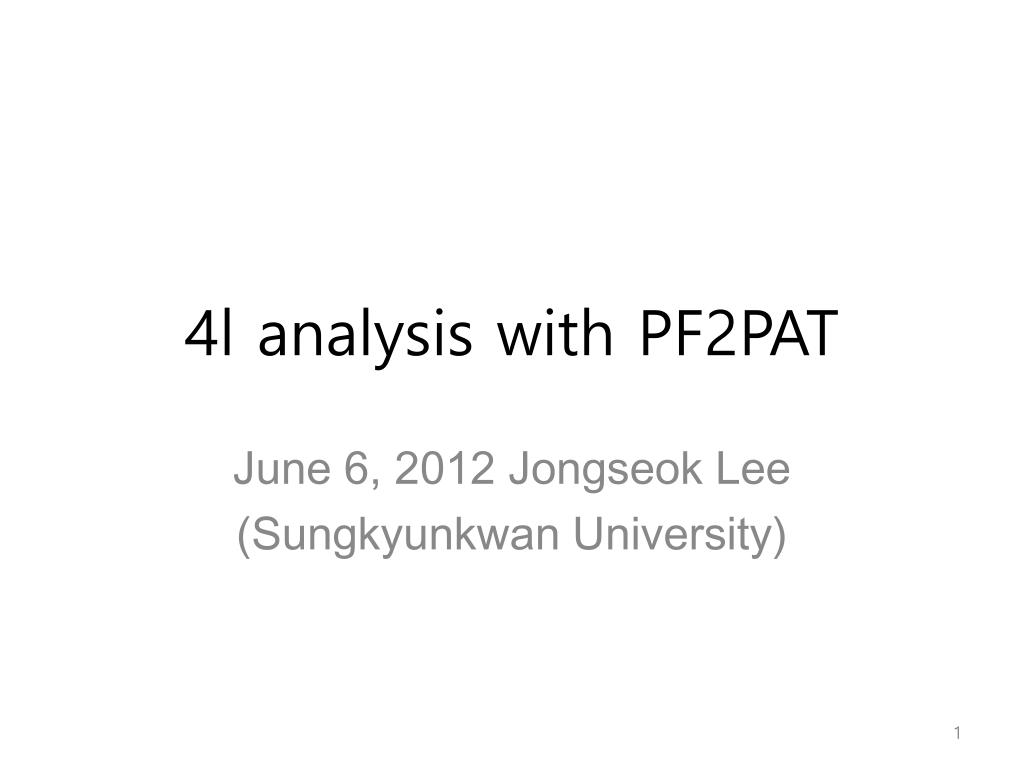

  1. 4l analysis with PF2PAT June 6, 2012 Jongseok Lee (Sungkyunkwan University)

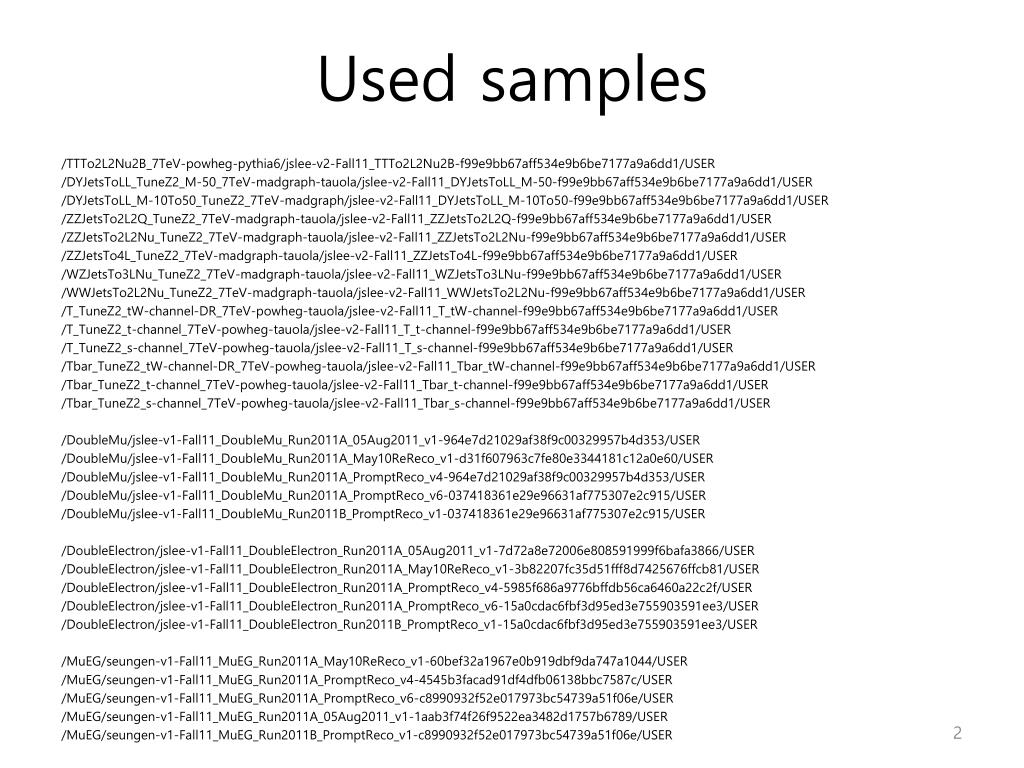

  2. Used samples /TTTo2L2Nu2B_7TeV-powheg-pythia6/jslee-v2-Fall11_TTTo2L2Nu2B-f99e9bb67aff534e9b6be7177a9a6dd1/USER /DYJetsToLL_TuneZ2_M-50_7TeV-madgraph-tauola/jslee-v2-Fall11_DYJetsToLL_M-50-f99e9bb67aff534e9b6be7177a9a6dd1/USER /DYJetsToLL_M-10To50_TuneZ2_7TeV-madgraph/jslee-v2-Fall11_DYJetsToLL_M-10To50-f99e9bb67aff534e9b6be7177a9a6dd1/USER /ZZJetsTo2L2Q_TuneZ2_7TeV-madgraph-tauola/jslee-v2-Fall11_ZZJetsTo2L2Q-f99e9bb67aff534e9b6be7177a9a6dd1/USER /ZZJetsTo2L2Nu_TuneZ2_7TeV-madgraph-tauola/jslee-v2-Fall11_ZZJetsTo2L2Nu-f99e9bb67aff534e9b6be7177a9a6dd1/USER /ZZJetsTo4L_TuneZ2_7TeV-madgraph-tauola/jslee-v2-Fall11_ZZJetsTo4L-f99e9bb67aff534e9b6be7177a9a6dd1/USER /WZJetsTo3LNu_TuneZ2_7TeV-madgraph-tauola/jslee-v2-Fall11_WZJetsTo3LNu-f99e9bb67aff534e9b6be7177a9a6dd1/USER /WWJetsTo2L2Nu_TuneZ2_7TeV-madgraph-tauola/jslee-v2-Fall11_WWJetsTo2L2Nu-f99e9bb67aff534e9b6be7177a9a6dd1/USER /T_TuneZ2_tW-channel-DR_7TeV-powheg-tauola/jslee-v2-Fall11_T_tW-channel-f99e9bb67aff534e9b6be7177a9a6dd1/USER /T_TuneZ2_t-channel_7TeV-powheg-tauola/jslee-v2-Fall11_T_t-channel-f99e9bb67aff534e9b6be7177a9a6dd1/USER /T_TuneZ2_s-channel_7TeV-powheg-tauola/jslee-v2-Fall11_T_s-channel-f99e9bb67aff534e9b6be7177a9a6dd1/USER /Tbar_TuneZ2_tW-channel-DR_7TeV-powheg-tauola/jslee-v2-Fall11_Tbar_tW-channel-f99e9bb67aff534e9b6be7177a9a6dd1/USER /Tbar_TuneZ2_t-channel_7TeV-powheg-tauola/jslee-v2-Fall11_Tbar_t-channel-f99e9bb67aff534e9b6be7177a9a6dd1/USER /Tbar_TuneZ2_s-channel_7TeV-powheg-tauola/jslee-v2-Fall11_Tbar_s-channel-f99e9bb67aff534e9b6be7177a9a6dd1/USER /DoubleMu/jslee-v1-Fall11_DoubleMu_Run2011A_05Aug2011_v1-964e7d21029af38f9c00329957b4d353/USER /DoubleMu/jslee-v1-Fall11_DoubleMu_Run2011A_May10ReReco_v1-d31f607963c7fe80e3344181c12a0e60/USER /DoubleMu/jslee-v1-Fall11_DoubleMu_Run2011A_PromptReco_v4-964e7d21029af38f9c00329957b4d353/USER /DoubleMu/jslee-v1-Fall11_DoubleMu_Run2011A_PromptReco_v6-037418361e29e96631af775307e2c915/USER /DoubleMu/jslee-v1-Fall11_DoubleMu_Run2011B_PromptReco_v1-037418361e29e96631af775307e2c915/USER /DoubleElectron/jslee-v1-Fall11_DoubleElectron_Run2011A_05Aug2011_v1-7d72a8e72006e808591999f6bafa3866/USER /DoubleElectron/jslee-v1-Fall11_DoubleElectron_Run2011A_May10ReReco_v1-3b82207fc35d51fff8d7425676ffcb81/USER /DoubleElectron/jslee-v1-Fall11_DoubleElectron_Run2011A_PromptReco_v4-5985f686a9776bffdb56ca6460a22c2f/USER /DoubleElectron/jslee-v1-Fall11_DoubleElectron_Run2011A_PromptReco_v6-15a0cdac6fbf3d95ed3e755903591ee3/USER /DoubleElectron/jslee-v1-Fall11_DoubleElectron_Run2011B_PromptReco_v1-15a0cdac6fbf3d95ed3e755903591ee3/USER /MuEG/seungen-v1-Fall11_MuEG_Run2011A_May10ReReco_v1-60bef32a1967e0b919dbf9da747a1044/USER /MuEG/seungen-v1-Fall11_MuEG_Run2011A_PromptReco_v4-4545b3facad91df4dfb06138bbc7587c/USER /MuEG/seungen-v1-Fall11_MuEG_Run2011A_PromptReco_v6-c8990932f52e017973bc54739a51f06e/USER /MuEG/seungen-v1-Fall11_MuEG_Run2011A_05Aug2011_v1-1aab3f74f26f9522ea3482d1757b6789/USER /MuEG/seungen-v1-Fall11_MuEG_Run2011B_PromptReco_v1-c8990932f52e017973bc54739a51f06e/USER

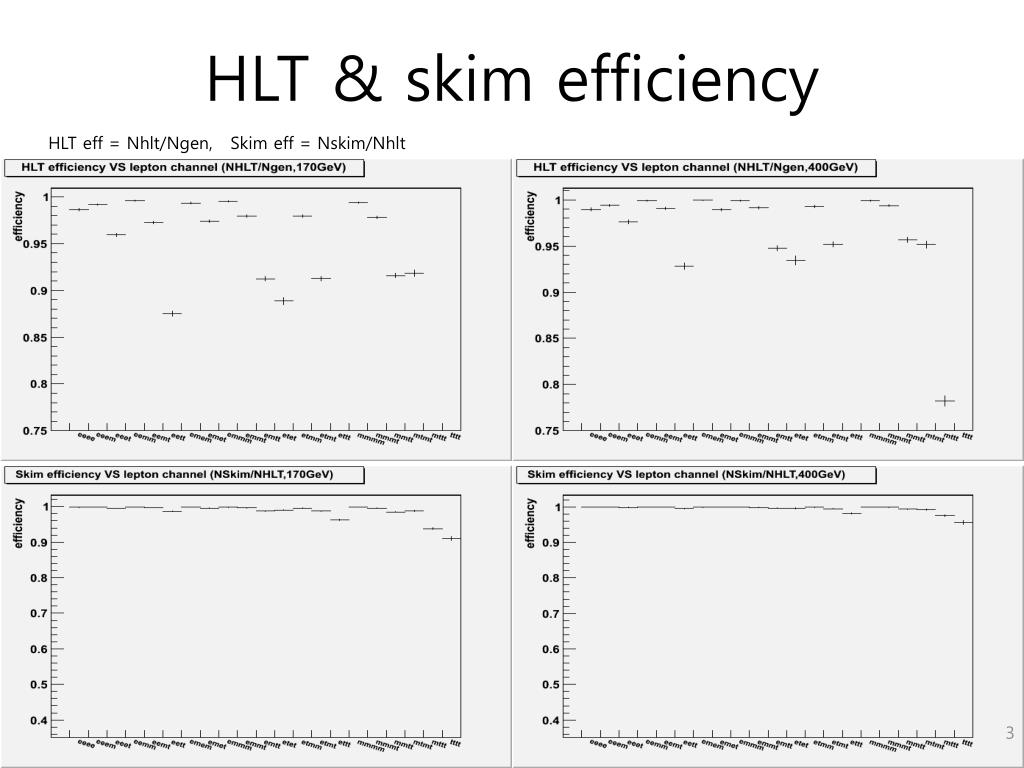

  3. HLT & skim efficiency HLT eff = Nhlt/Ngen, Skim eff = Nskim/Nhlt

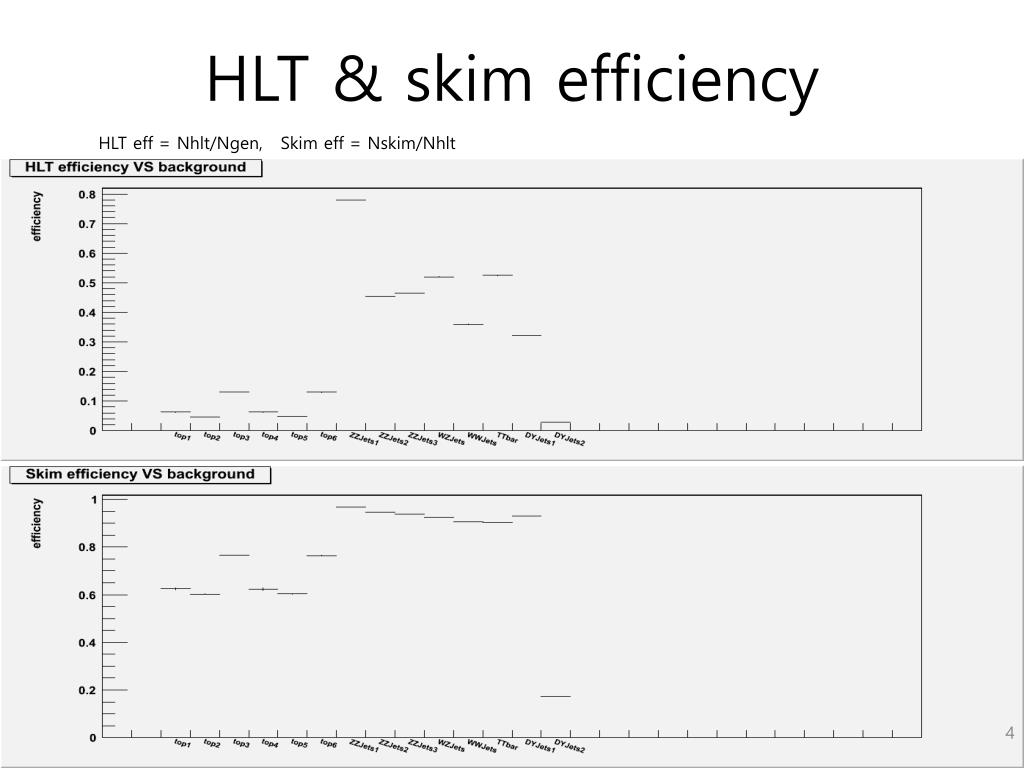

  4. HLT & skim efficiency HLT eff = Nhlt/Ngen, Skim eff = Nskim/Nhlt

  5. Lepton & event selection • Electron selection pT>10 GeV, |η|<2.5, |d0|<0.02, sip<4, nchi2<10, charge consistent, eidLoose • Muon selection pT>10 GeV, |η|<2.4, global muon, good muon, nchi2<10, hits_val>20, nstation>=1 • Preselection : nlep+>=2, nlep->=2 • Event selection - mass dependent cut m4 cut : |mp – mn|/(mp + mn) > cut value di-lepton pt cut : Max(pT(H++),pT(H--),pT(Z1),pT(Z2)) > cut value

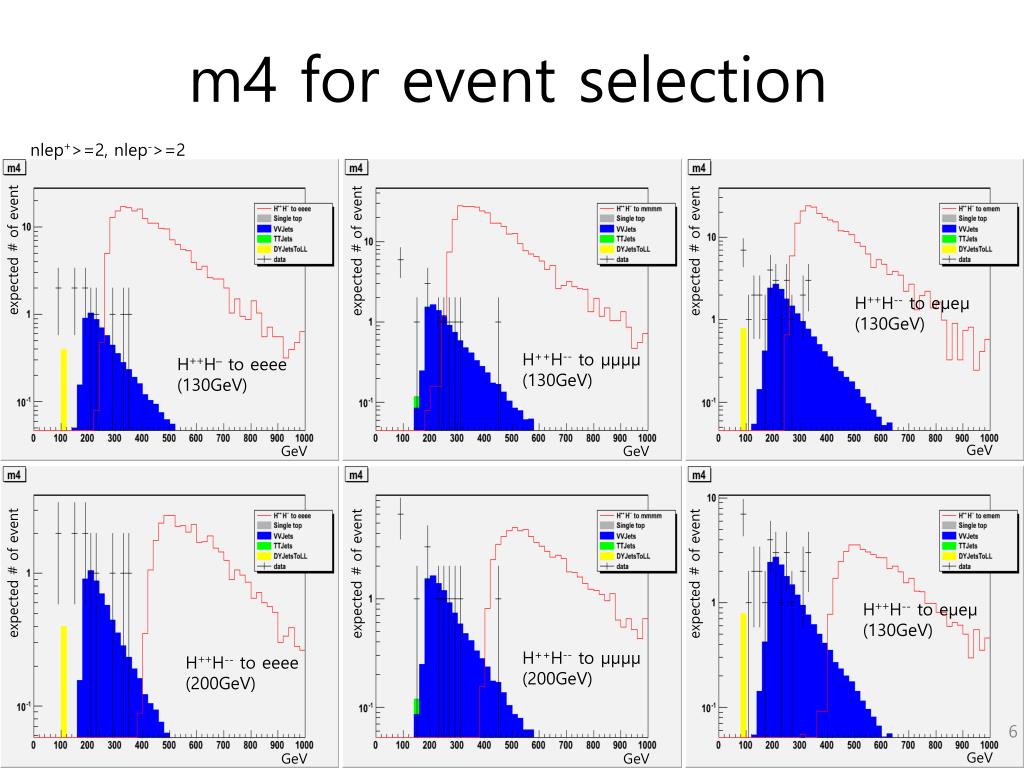

  6. m4 for event selection nlep+>=2, nlep->=2 expected # of event expected # of event expected # of event H++H--to eμeμ (130GeV) H++H-- to μμμμ (130GeV) H++H–to eeee (130GeV) GeV GeV GeV expected # of event expected # of event expected # of event H++H--to eμeμ (130GeV) H++H-- to μμμμ (200GeV) H++H-- to eeee (200GeV) GeV GeV GeV

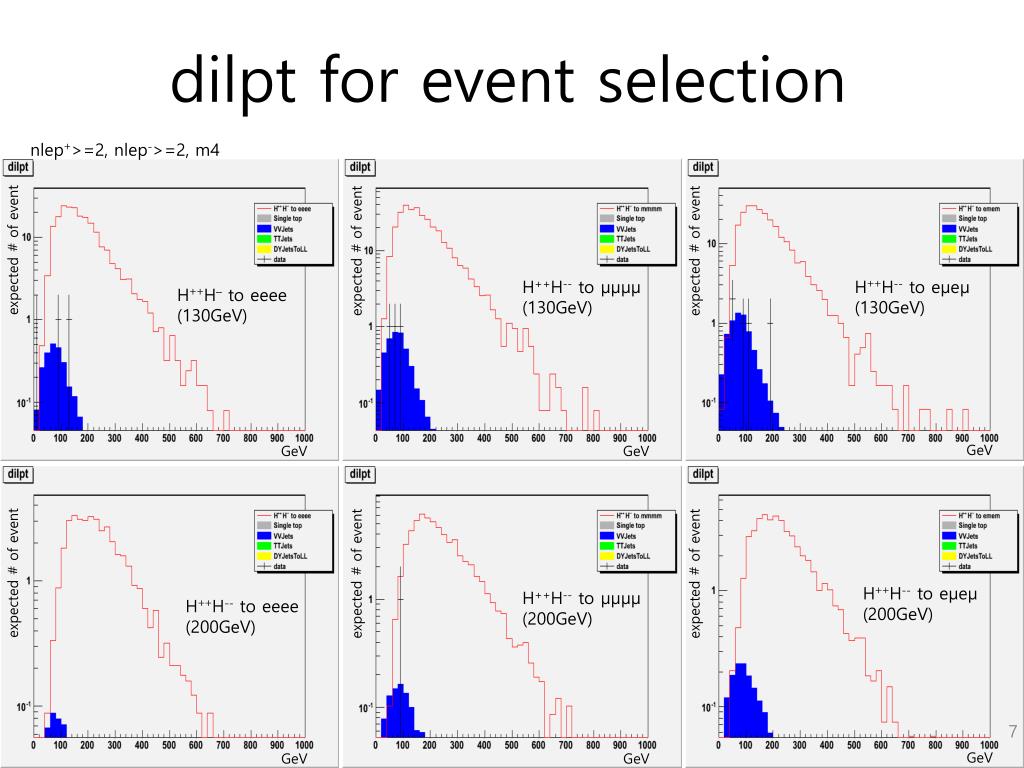

  7. dilptfor event selection nlep+>=2, nlep->=2, m4 expected # of event expected # of event expected # of event H++H-- to μμμμ (130GeV) H++H--to eμeμ (130GeV) H++H–to eeee (130GeV) GeV GeV GeV expected # of event expected # of event expected # of event H++H--to eμeμ (200GeV) H++H-- to μμμμ (200GeV) H++H-- to eeee (200GeV) GeV GeV GeV

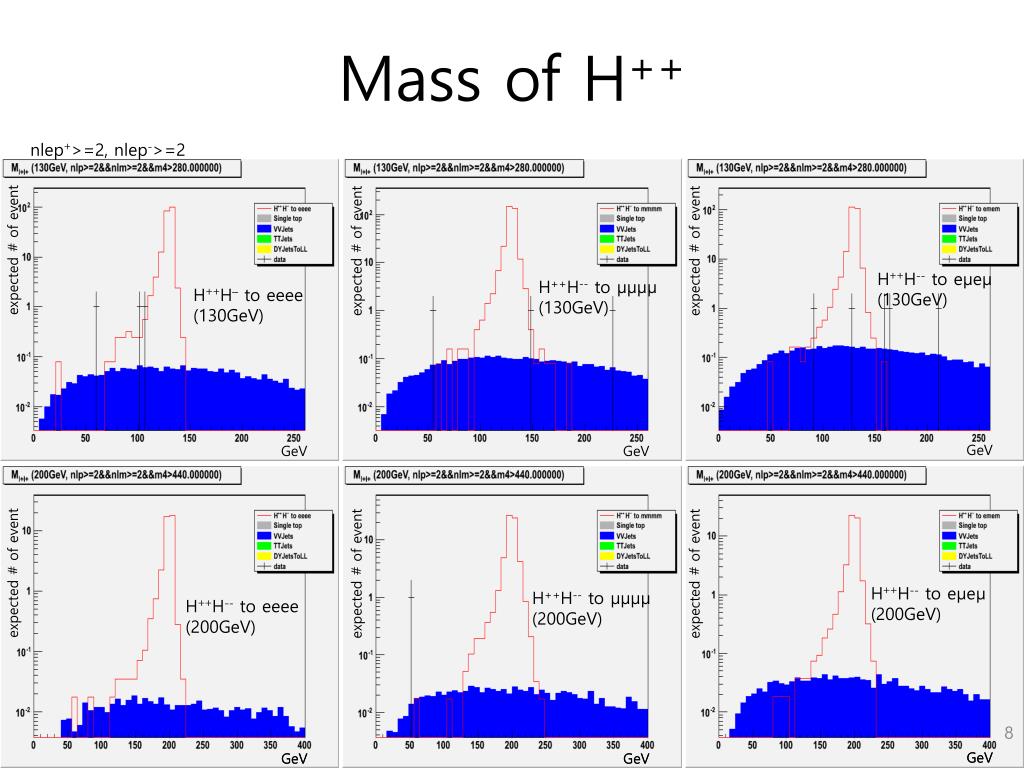

  8. Mass of H++ nlep+>=2, nlep->=2 expected # of event expected # of event expected # of event H++H--to eμeμ (130GeV) H++H-- to μμμμ (130GeV) H++H–to eeee (130GeV) GeV GeV GeV expected # of event expected # of event expected # of event H++H--to eμeμ (200GeV) H++H-- to μμμμ (200GeV) H++H-- to eeee (200GeV) GeV GeV GeV GeV GeV GeV

  9. Mass of H++ nlep+>=2, nlep->=2, m4 expected # of event expected # of event expected # of event H++H--to eμeμ (130GeV) H++H-- to μμμμ (130GeV) H++H–to eeee (130GeV) GeV GeV GeV expected # of event expected # of event expected # of event H++H--to eμeμ (200GeV) H++H-- to μμμμ (200GeV) H++H-- to eeee (200GeV) GeV GeV GeV GeV GeV GeV

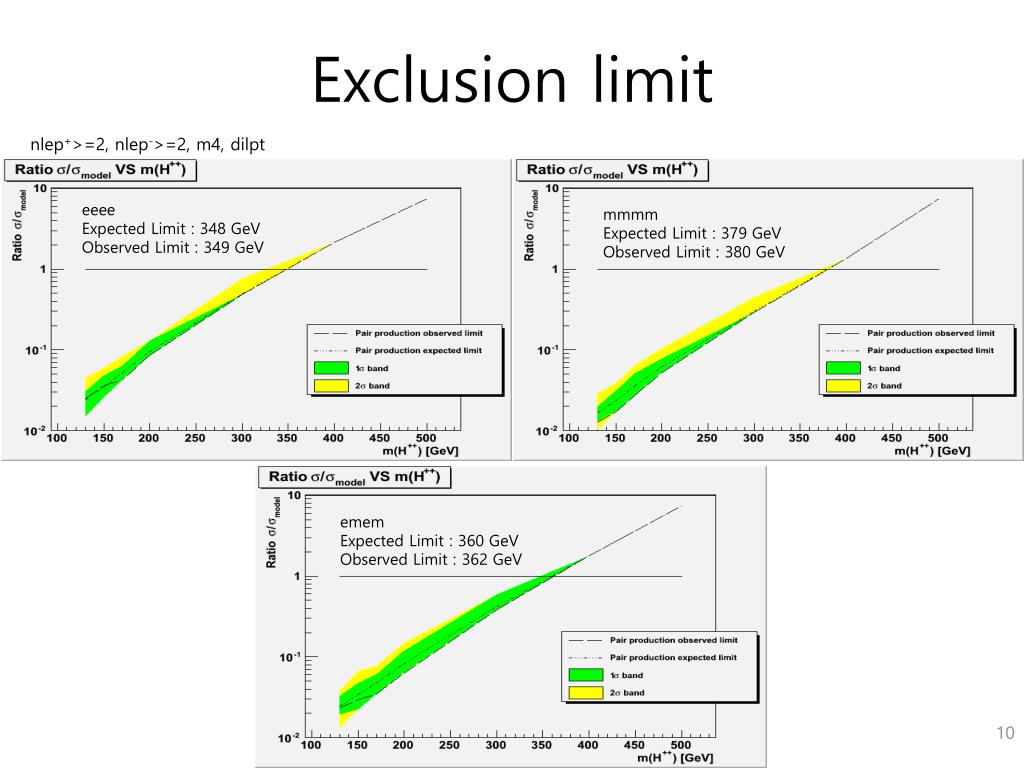

  10. Exclusion limit nlep+>=2, nlep->=2, m4, dilpt eeee Expected Limit : 348 GeV Observed Limit : 349 GeV mmmm Expected Limit : 379 GeV Observed Limit : 380 GeV emem Expected Limit : 360 GeV Observed Limit : 362 GeV

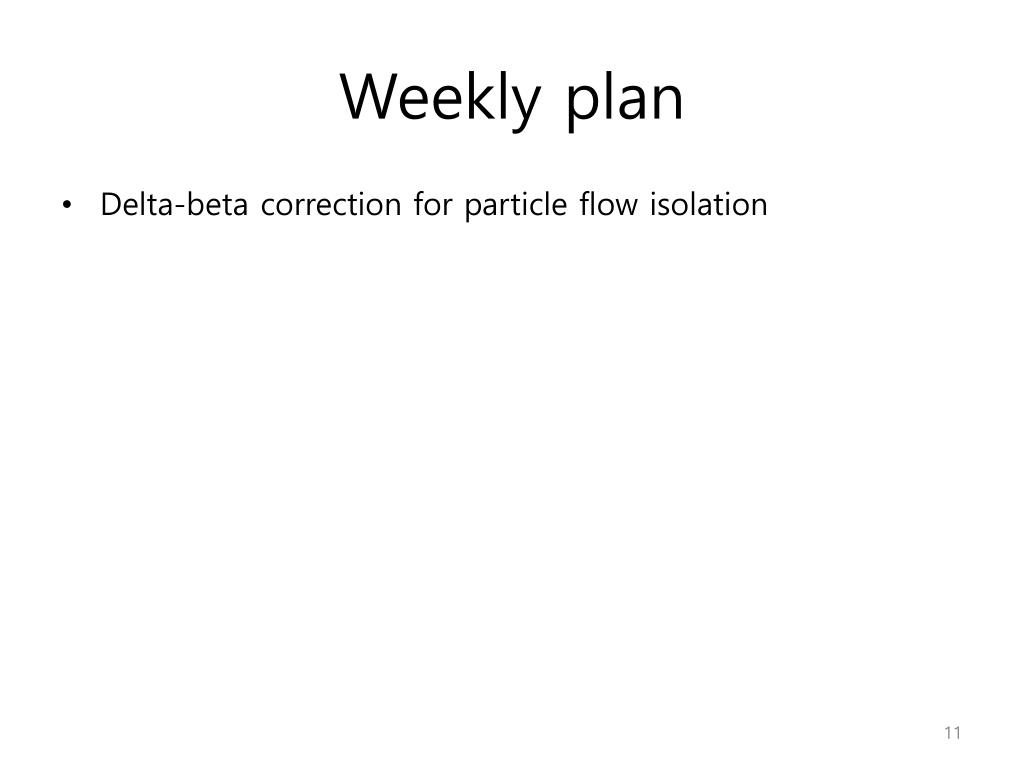

  11. Weekly plan • Delta-beta correction for particle flow isolation

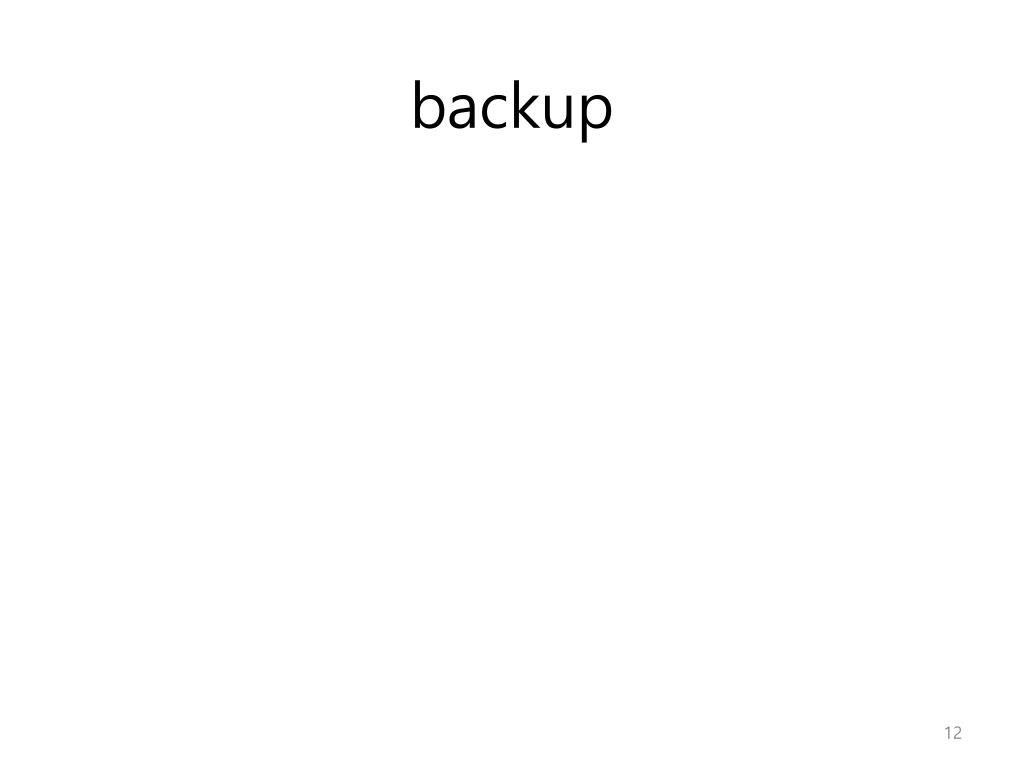

  12. backup

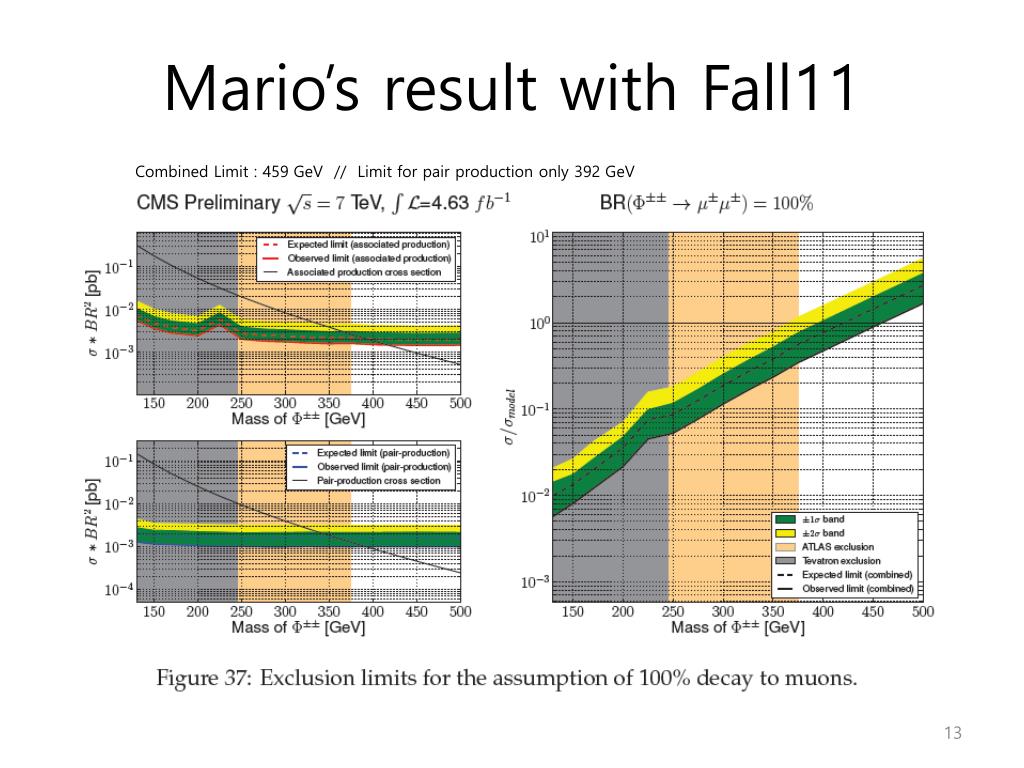

  13. Mario’s result with Fall11 Combined Limit : 459 GeV // Limit for pair production only 392 GeV
