MST: Red Rule, Blue Rule

MST: Red Rule, Blue Rule. 3. 2. 1. 6. 4. 5. 8. 7. MST Instance. Iteration 1: Blue Rule. 3. 2. 1. Cut = {1, 2}. 6. 4. 5. 8. 7. Iteration 1: Blue Rule. 3. 2. 1. Cut = {1, 2}. 6. 4. 5. 8. 7. Iteration 2: Blue Rule. 3. 2. Cut = {3}. 1. 6. 4. 5. 8. 7.

jennifer-lane
Download Presentation

MST: Red Rule, Blue Rule

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MST: Red Rule, Blue Rule

  2. 3 2 1 6 4 5 8 7 MST Instance

  3. Iteration 1: Blue Rule 3 2 1 Cut = {1, 2} 6 4 5 8 7

  4. Iteration 1: Blue Rule 3 2 1 Cut = {1, 2} 6 4 5 8 7

  5. Iteration 2: Blue Rule 3 2 Cut = {3} 1 6 4 5 8 7

  6. Iteration 2: Blue Rule 3 2 Cut = {3} 1 6 4 5 8 7

  7. Iteration 3: Red Rule 3 2 1 Cycle = {3, 4, 5} 6 4 5 8 7

  8. Iteration 3: Red Rule 3 2 1 Cycle = {3, 4, 5} 6 4 5 8 7

  9. Iteration 4: Red Rule 3 2 1 Cycle = 1-2-3-6 6 4 5 8 7

  10. Iteration 4: Red Rule 3 2 1 Cycle = 1-2-3-6 6 4 5 8 7

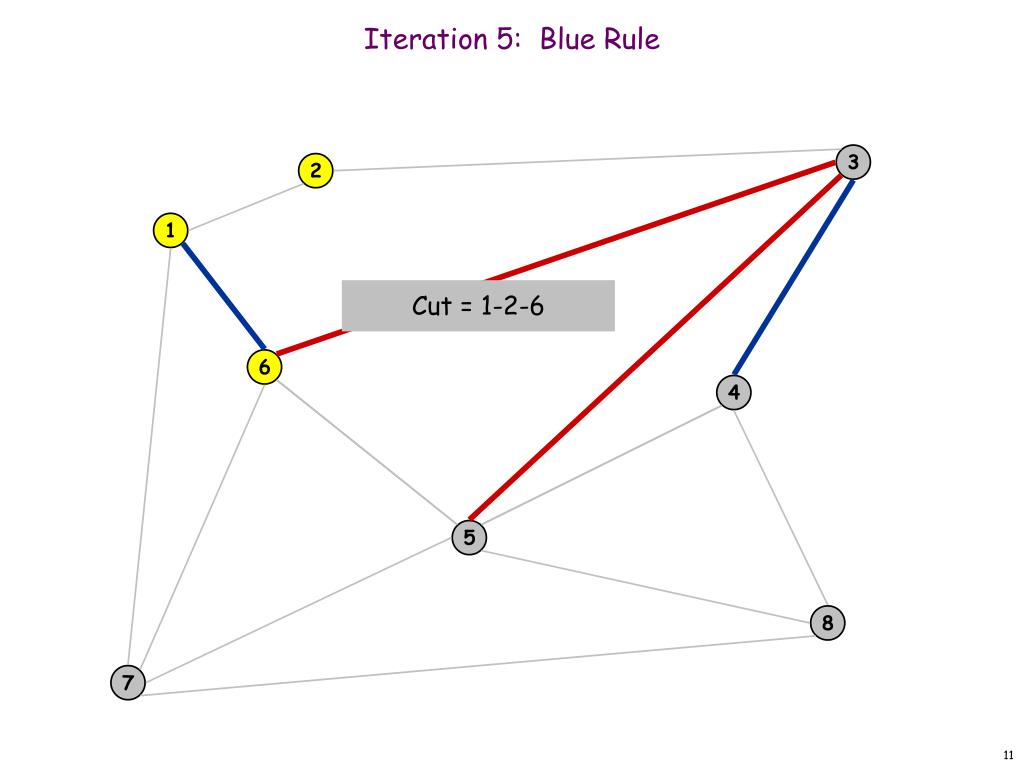

  11. Iteration 5: Blue Rule 3 2 1 Cut = 1-2-6 6 4 5 8 7

  12. Iteration 5: Blue Rule 3 2 1 Cut = 1-2-6 6 4 5 8 7

  13. Iteration 6: Blue Rule 3 2 1 Cut = 1-2-5-6-7 6 4 5 8 7

  14. Iteration 6: Blue Rule 3 2 1 Cut = 1-2-5-6-7 6 4 5 8 7

  15. Iteration 7: Red Rule 3 2 1 Cycle = 1-2-3-4-5-6-1 6 4 5 8 7

  16. Iteration 7: Red Rule 3 2 1 Cycle = 1-2-3-4-5-6-1 6 4 5 8 7

  17. Iteration 8: Blue Rule 3 2 1 Cut = {2, 7} 6 4 5 8 7

  18. Iteration 8: Blue Rule 3 2 1 Cut = {2, 7} 6 4 5 8 7

  19. After Iteration 14 3 2 1 6 4 5 8 7

  20. MST 3 2 1 6 4 5 8 7
