Prof. Mario Pavone Computazione Naturale CdL Magistrale in Informatica mpavone@dmi.unict.it

1. Teoria della Complessità:la classe NP Prof. Mario Pavone Computazione Naturale CdL Magistrale in Informatica mpavone@dmi.unict.it http://www.dmi.unict.it/mpavone/

2. Bibliography • Una descrizione delle classi NP-complete possono essere trovate in: • M. R. Garey and D. S. Johnson, Computers and Intractability: A Guide to the Theory of NP-Completness, W. H. Freeman, 1st ed. (1979) • Cormen, Leiserson, Rivest and Stein, Introduzione agli Algoritmi e Strutture Dati, McGraw-Hill (capitolo 34) • A compendium of NP optimization problems at the link: http://www.csc.kth.se/~viggo/problemlist/

3. Search Space • Given a combinatorial problem P, a search space associated to a mathematical formulation of P is defined by a couple (S,f ) • where S is a finite set of configurations (or nodes or points) and • f a cost function which associates a real number to each configurations of S. • For this structure two most common measures are the minimum and the maximum costs. In this case we have the combinatorial optimization problems.

4. Example: K-SAT • An instance of the K-SAT problem consists of a set V of variables, a collection C of clauses over V such that each clause c  C has |c|= K • The problem is to find a satisfying truth assignment for C • The search space for the 2-SAT with |V|=2 is (S,f ) where • S={ (T,T), (T,F), (F,T), (F,F) } and • the cost function for 2-SAT computes only the number of satisfied clauses fsat (s)= #SatisfiedClauses(F,s), s  S

5. Example: SEARCH SPACE of K-SAT Let we consider F = (A B)  ( A B)

6. Problem: the start point • PROBLEM: to refer to a question such as: "Is a given graph G=(V,E) K-colorable?" • INSTANCE of a problem is a list of arguments, one argument for each parameter of the problem • a problem is a binary relation on a set I of problem instances, and a set S of problem solutions: Q: I → S • decision problems: Q: I → {0, 1} • in general, if we can solve an optimization problem quickly, we can also solve its related decision problem quickly

7. Problem: the start point • a problem is UNDECIDABLE if there is no algorithm that takes as input an instance of the problem and determines whether the answer to that instance is "yes" or "no" • problems that are solvable by polinomial-time algorithms as being TRACTABLE; ones that require superpolynomial time as being INTRACTABLE

8. Problem: the start point • NP-complete problems are intractable • If any single NP-complete problem can be solved in polynomial time then every NP-complete problem has a polynomial-time algorithm • If you can establish a problem as NP-complete you provide good evidence for its intractability • You would then do better spending your time developing an approximation algorithm rather than searching for a fast algorithm that solves the problem exactly • Polynomial-time solvable problems are generally regarded as tractable

9. Complexity Class P • An algorithm solves a problem in time O(T(n)) if, when it is provided a problem instance i of length n=|i|, the algorithm can produce the solution in at most O(T(n)) time • A problem is polynomial-time solvable if there exists an algorithm to solve it in time O(nk) for some constant k • COMPLEXITY CLASS P: the set of decision problems that are solvable in polynomial time • A function f is polynomial-time computable if there exists a polynomial-time algorithm A that, given any input x  I, produces as output f(x)

10. Example: problem in P • Dato un grafo G=(V,E) e una funzione peso sugli archi w(u,v) che specifica il costo; determinare un sottoinsieme T  E di peso minimo è detto problema dell'albero di connessione minimo(Minimum Spanning Tree)

11. Example: problem in P • Minimum Weight Spanning Tree. • Input: Graph G, integer k. • Decision problem: Does G have a spanning tree of weight at most k? If you are provided with a tree with weight at most k as part of the solution, the answer can be verified in O(n2) time.

12. Complexity Class NP Some problems are intractable: as they grow large, we are unable to solve them in reasonable time What constitutes reasonable time? Standard working definition: polynomial time On an input of size n the worst-case running time is O(nk) for some constant k Polynomial time: O(n2), O(n3), O(1), O(n lg n) Not in polynomial time: O(2n), O(nn), O(n!)

13. Complexity Class NP A decision problem (yes/no question) is in the class NPif it has a nondeterministic polynomial time algorithm Informally, such an algorithm: Guesses a solution (nondeterministically). Checksdeterministically in polynomial time that the answer is correct. Or equivalently, when the answer is "yes", there is a certificate (a solution meeting the criteria) that can be verified in polynomial time (deterministically) The Complexity Class NP is the class of problems that can be verified by a polynomial-time algorithm If Q P then Q NP => P NP Open question is: P = NP

14. Nondeterminism • Think of a non-deterministic computer as a computer that magically “guesses” a solution, then has to verify that it is correct • If a solution exists, computer always guesses it • One way to imagine it: a parallel computer that can freely spawn an infinite number of processes • Have one processor work on each possible solution • All processors attempt to verify that their solution works • If a processor finds it has a working solution • So: NP = problems verifiable in polynomial time

15. Review: P and NP • Summary so far: • P = problems that can be solved in polynomial time • NP = problems for which a solution can be verified in polynomial time • Unknown whether P = NP (most suspect not) • Hamiltonian-cycle problem is in NP: • Cannot solve in polynomial time • Easy to verify solution in polynomial time

16. Hamiltonian Cycle Problem A hamiltonian cycle of an undirected graph G=(V,E) is a simple cycle that contains each vertex in V. A graph that contains a hamiltonian cycle is said to be hamiltonian NOT ALL GRAPHS ARE HAMILTONIAN Hamiltonian-cycle problem: “Does a graph G have a hamiltonian cycle?” What is the running time of this algorithm? There are m! possible permutations of the vertices

17. Hamiltonian Cycle Problem • Hamiltonian Cycle (input: a graph G) • Does G have a Hamiltonian cycle? Solution: 0, 1, 2, 11, 10, 9, 8, 7, 6, 5, 14, 15, 6, 17, 18, 19, 12, 13, 3, 4

18. Hamiltonian Cycle Problem algorithm: lists all permutations of the vertices and check each permutation to see if it is a hamiltonian path there are m! Possible permutations of the vertices CHECK if the provided cycle is hamiltonian: if it is a permutation of the vertices of V and each consecutive edges along the cycle exists in the graph This verification can be implemented to run in O(n2) time => a hamiltonian cycle exists in a graph can be verified in polynomial time n is the lenght of the econding of G

19. NP-Complete Problems The NP-Complete problems are an interesting class of problems whose status is unknown No polynomial-time algorithm has been discovered for an NP-Complete problem No suprapolynomial lower bound has been proved for any NP-Complete problem, either We call this the P = NP open question The biggest open problem in CS

20. NP Complete Problems • The class of problems in NP which are the “hardest” are called the NP-complete problems • A problem Q in NP class is NP-complete problem if the existence of a polynomial time algorithm for Q implies the existence of a polynomial time algorithm for all problems in NP • Steve Cook in 1971 proved that SAT is NP-complete. • Other problems: use reductions.

21. NP-Complete Problems NP-Complete problems are the “hardest” problems in NP: If any one NP-Complete problem can be solved in polynomial time… …then every NP-Complete problem can be solved in polynomial time… …and in fact every problem in NP can be solved in polynomial time (which would show P = NP) Thus: solve hamiltonian-cycle in O(n100) time, you’ve proved that P = NP. Retire rich & famous.

22. Reduction The crux of NP-Completeness is reducibility Informally, a problem P can be reduced to another problem Q if any instance of P can be “easily rephrased” as an instance of Q, the solution to which provides a solution to the instance of P What do you suppose “easily” means? This rephrasing is called transformation Intuitively: If P reduces to Q, P is “no harder to solve” than Q

23. Reducibility An example: P: Given a set of Booleans, is at least one TRUE? Q: Given a set of integers, is their sum positive? Transformation: (x1, x2, …, xn) = (y1, y2, …, yn) where yi = 1 if xi = TRUE, yi = 0 if xi = FALSE Another example: Solving linear equations is reducible to solving quadratic equations Given an instance ax+b=0, we transform it to 0x2+ax+b=0

24. Using Reductions If P is polynomial-time reducible to Q, we denote this P p Q Definition of NP-Complete: If P is NP-Complete, P NP and all problems R are reducible to P Formally: R p P R NP If P p Q and P is NP-Complete, Q is also NP-Complete Polynomial-time reductions provide a formal means for showing that one problem is at least as hard as another, to within a polynomial factor.

25. NP-Completeness If P p Q then P is not more than a polynomial factor harder than Q A problem P is NP-Complete if P  NP, and P' p P, for every P'  NP If all problems Q  NP are reducible to P, then we say thatP is NP-Hard A problem P is NP-Complete if it is in the NP class and is NP-Hard (P is NP-Hard and P  NP)

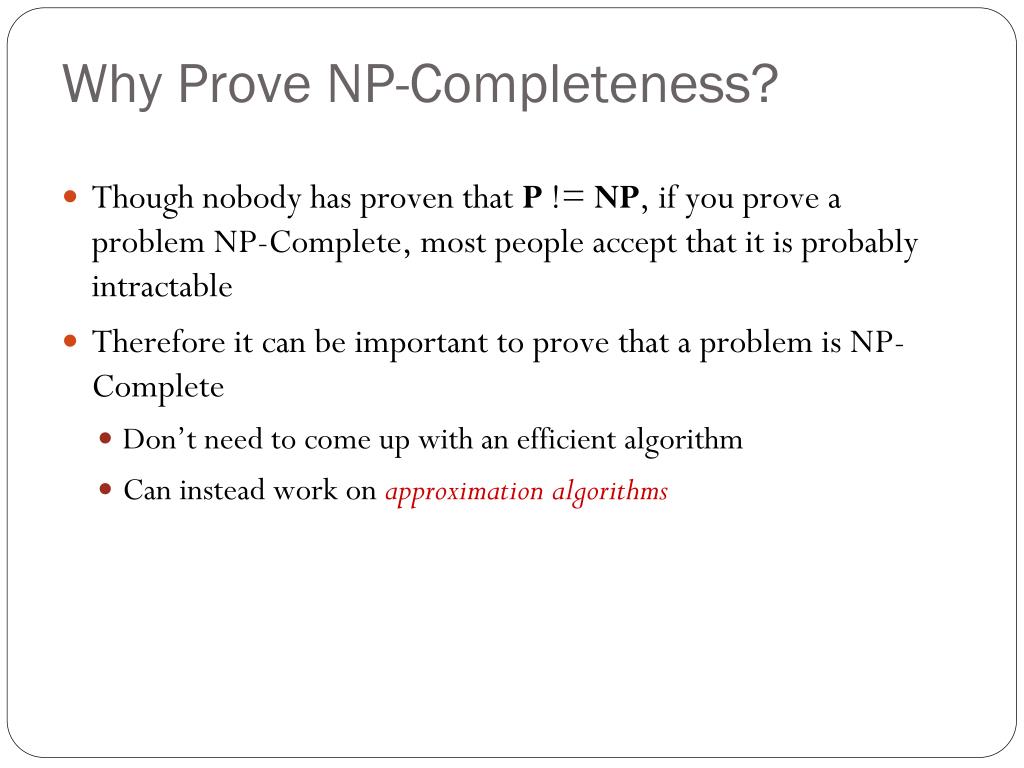

26. Why Prove NP-Completeness? Though nobody has proven that P != NP, if you prove a problem NP-Complete, most people accept that it is probably intractable Therefore it can be important to prove that a problem is NP-Complete Don’t need to come up with an efficient algorithm Can instead work on approximation algorithms

27. Proving NP-Completeness What steps do we have to take to prove a problem Pis NP-Complete? Pick a known NP-Complete problem Q Reduce Q to P Describe a transformation that maps instances of Q to instances of P, s.t. “yes” for P = “yes” for Q Prove the transformation works Prove it runs in polynomial time Oh yeah, prove P NP (What if you can’t?)

28. Teorema • Definizione • Un problema B é detto NP-completo se: • B  NP • ANP vale che A≤PB Teorema Se B é un problema NP-completo tale che B≤PC, per qualche problema C, allora C é NP-hard. Se poi C ∈ NP, allora vale anche che C é NP-completo.

29. SAT Problem • Definiamo: • Una variabile é un elemento di {x1, x2, . . . , xn} • Un letterale é una variabile xi o il suo negato • Una clausola é una disgiunzione di k letterali C = • Una formula booleana é una congiunzione di clausole cfn = forma normale congiunta PROBLEMA: Soddisfacibilità (SAT) ISTANZA: Una formula booleana  DOMANDA: Esiste una assegnazione di valori di verità alle variabili di  che rendono  vera?

30. ESEMPIO: • La formula é soddisfacibile, semplicemente ponendo x1=1, x2=0, e x3=0. • Infatti • La seguente formula, invece, non é soddisfacibile (provare tutte le 8 possibile assegnazioni di verità)

31. TEOREMA DI COOK-LEVIN SAT è NP-Completo Dimostrazione In breve, il teorema di Cook-Levin fa vedere che: – il problema SAT in NP può essere deciso da un opportuno modello di calcolo: la Macchina di Turing non Deterministica (NTM) – data la descrizione di una NTM ne un input wpern, si può costruire una espressione in forma normale congiuntiva w che è soddisfacibile se e solo se l'output di nsu input w è accettante – la lunghezza della formula w è polinomiale in |n| e in |w|

32. PRIMO ESEMPIO: 3SAT 3SAT é analogo al problema della soddisfacibilitá di formule booleane (SAT), con però la restrizione che ogni clausola della formula ha al piú 3 letterali. Teorema 3SAT é NP-completo Dimostrazione: Proveremo che 3SAT ∈ NP, successivamente proveremo che SAT ≤P 3SAT. Dal Teorema 1 discenderà che 3SAT é NP-completo. Per mostrare che 3SAT ∈ NP, osserviamo che un certificato (prova) consiste di una assegnazione di valori di verità alle variabili di una formula  può essere facilmente verificata in tempo polinomiale. La verifica infatti consiste nel sostituire i valori all’interno della formula  e controllare il risultato che vien fuori.

33. SECONDO ESEMPIO: CLIQUE ISTANZA: Un grafo G = (V, E) ed un intero k DOMANDA: G ha una clique di taglia k? (ovvero ∃ V’⊆ V, |V’| = k, tale che ∀u, v ∈ V’, u  v vale che (u, v) ∈ E) Teorema CLIQUE é NP-completo Dimostrazione Proveremo che CLIQUE ∈ NP, successivamente proveremo che 3SAT ≤P CLIQUE. Dal Teorema 1 discenderà che CLIQUE é NP-completo. Un algoritmo di verifica per il problema CLIQUE é il seguente: avendo in input la coppia (G, k) e come certificato un sottoinsieme X ⊆ V , con |X| = k (potenziale soluzione al problema CLIQUE), l’algoritmo controlla tutte le coppie di vertici (u, v), con u, v ∈ X, u  v, e produce in output SI se e solo se ciascuna di queste coppie é connessa da un arco di E. Il tempo di esecuzione dell’algoritmo é O(n2), se n = |V |.

34. 3SAT ≤P CLIQUE • Sia  = una istanza di 3SAT in una istanza (G , k) di Clique come segue: • Per ogni letterale scriviamo un nodo • Colleghiamo tutti i nodi ad eccezione: • Nodi nella medesima clausola • Nodi che rappresentano letterali opposti

35. ESEMPIO

36. TERZO ESEMPIO: VERTEX-COVER ISTANZA: Un grafo G = (V,E) ed un intero k DOMANDA: esiste V ′ ⊆ V , |V ′| = k, tale che ∀ (u, v) ∈ E o vale che u ∈ V ′ oppure v ∈ V ′? Teorema Vertex-Cover é NP-completo Dimostrazione Proveremo che Vertex-Cover ∈ NP, successivamente proveremo che 3SAT ≤P Vertex-Cover. Dal Teorema 1 discenderà che Vertex-Cover é NP-completo. Che il problema VERTEX COVER sia in NP é ovvio. Un algoritmo di verifica prende in input l’istanza di input (G, k) ed un certificato V ′ ⊆ V ,|V ′| = k, e controlla se ∀(u, v) ∈ E vale che u ∈ V ′ oppure che v ∈ V ′. Il controllo può essere fatto in tempo O(n2).

37. xi xi-1 xi+1 3SAT ≤P VERTEX-COVER Per ogni variabile xi associamo una coppia di nodi collegati da un arco Per ogni clausola associamo 3 nodi mutuamente legati da un arco Per ogni letterale identico tra clausola e coppia si metta un arco. Se  consta di m variabili e t clausole Gconsterà di 2m+3t nodi. Sia k=m+2t
