An array of fda efforts in pharmacogenomics

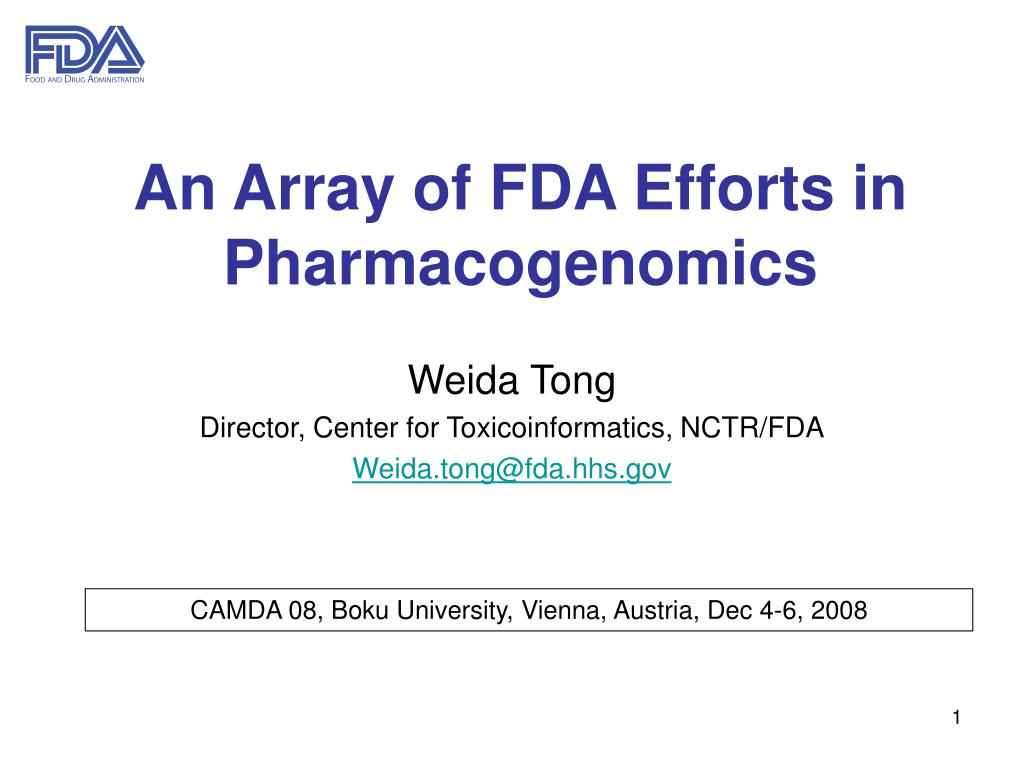

An Array of FDA Efforts in Pharmacogenomics

Weida Tong

Director, Center for Toxicoinformatics, NCTR/FDA

[email protected]

CAMDA 08, Boku University, Vienna, Austria, Dec 4-6, 2008

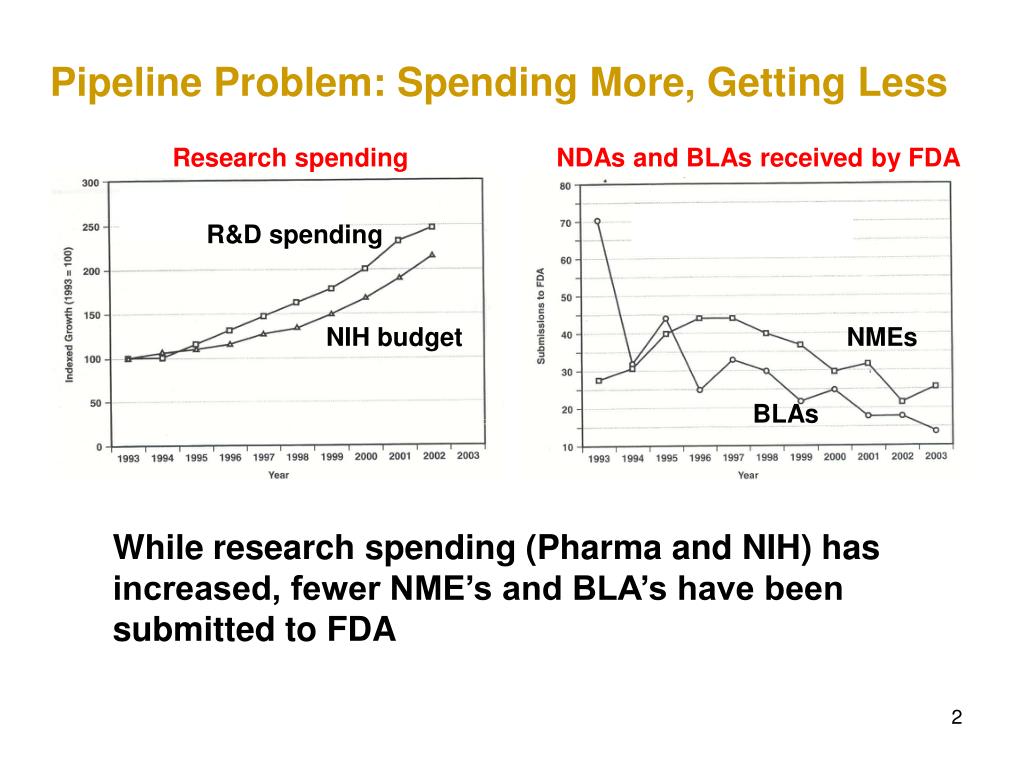

Pipeline problem spending more getting less

Research spending

NDAs and BLAs received by FDA

R&D spending

NIH budget

NMEs

BLAs

Pipeline Problem: Spending More, Getting Less

While research spending (Pharma and NIH) has increased, fewer NME’s and BLA’s have been submitted to FDA


The fda critical path to new medical products
The FDA Critical Path to New Medical Products

  • Pharmacogenomics and toxicogenomics have been identified as crucial in advancing

    • Medical product development

    • Personalized medicine

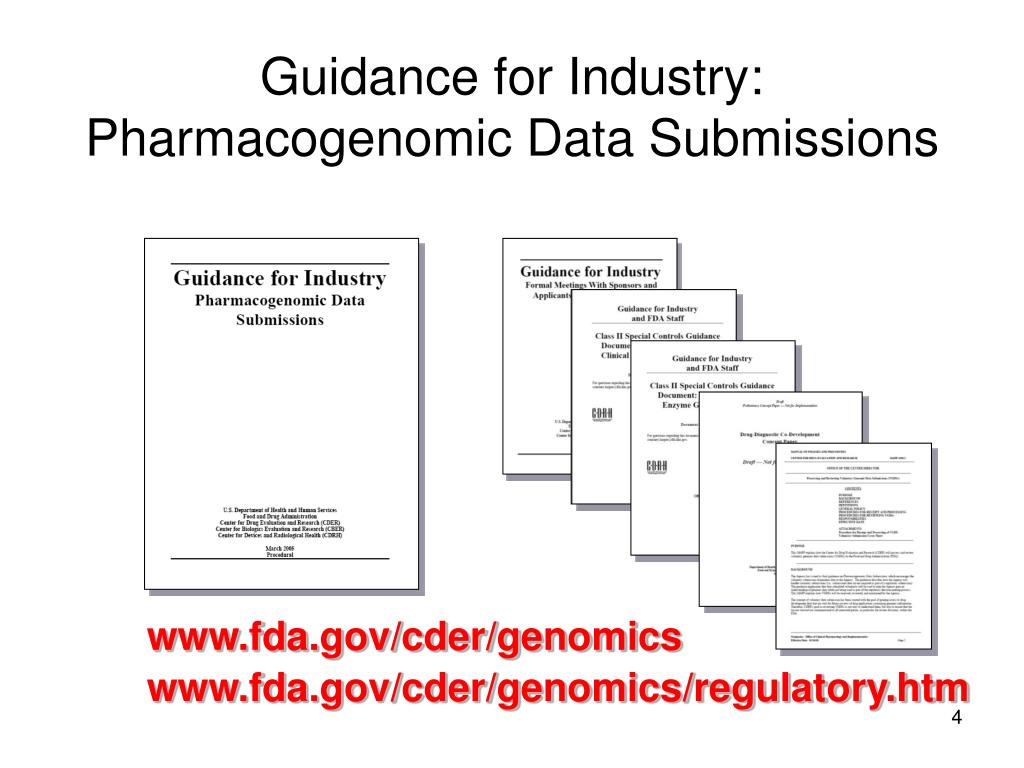

Guidance for industry pharmacogenomic data submissions
Guidance for Industry: Pharmacogenomic Data Submissions

www.fda.gov/cder/genomics

www.fda.gov/cder/genomics/regulatory.htm

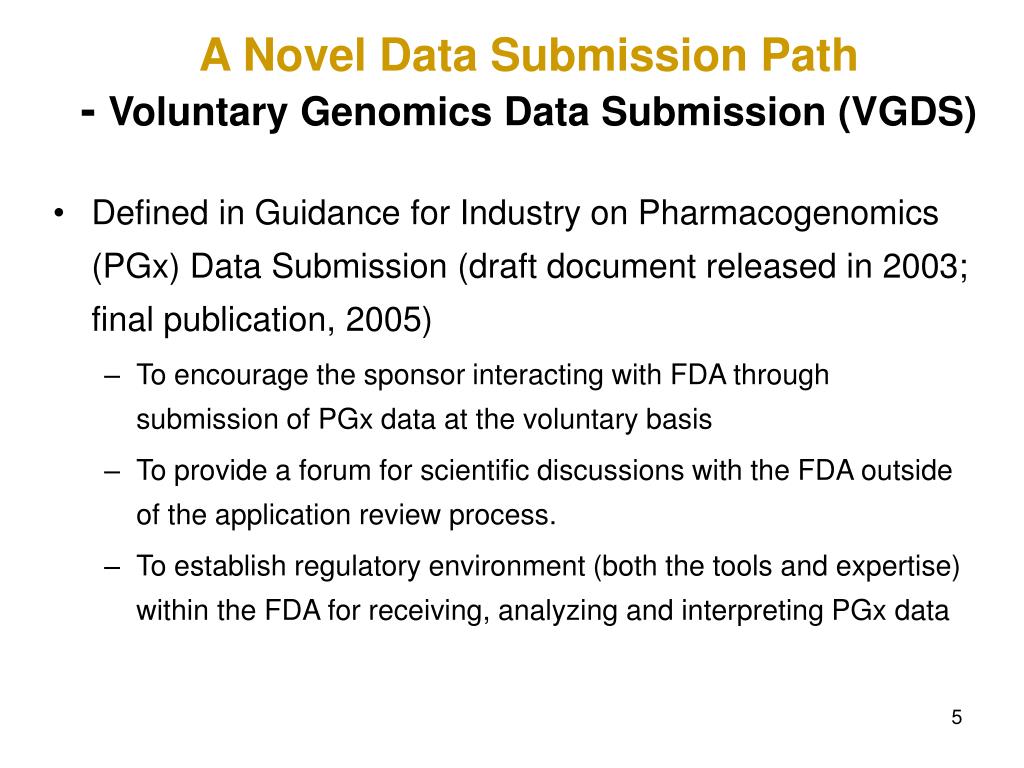

A novel data submission path voluntary genomics data submission vgds
A Novel Data Submission Path - Voluntary Genomics Data Submission (VGDS)

  • Defined in Guidance for Industry on Pharmacogenomics (PGx) Data Submission (draft document released in 2003; final publication, 2005)

    • To encourage the sponsor interacting with FDA through submission of PGx data at the voluntary basis

    • To provide a forum for scientific discussions with the FDA outside of the application review process.

    • To establish regulatory environment (both the tools and expertise) within the FDA for receiving, analyzing and interpreting PGx data


Vgds status
VGDS Status

  • Total of >40 submissions have been received

  • The submissions contain PGx data from

    • DNA Microarrays

    • Proteomics

    • Metabolomics

    • Genotyping including Genome wide association study (GWAS)

    • Others

  • Bioinformatics has played an essential role to accomplish:

    • Objective 1: Data repository

    • Objective 2: Reproduce the sponsor’s results

    • Objective 3: Conduct alternative analysis

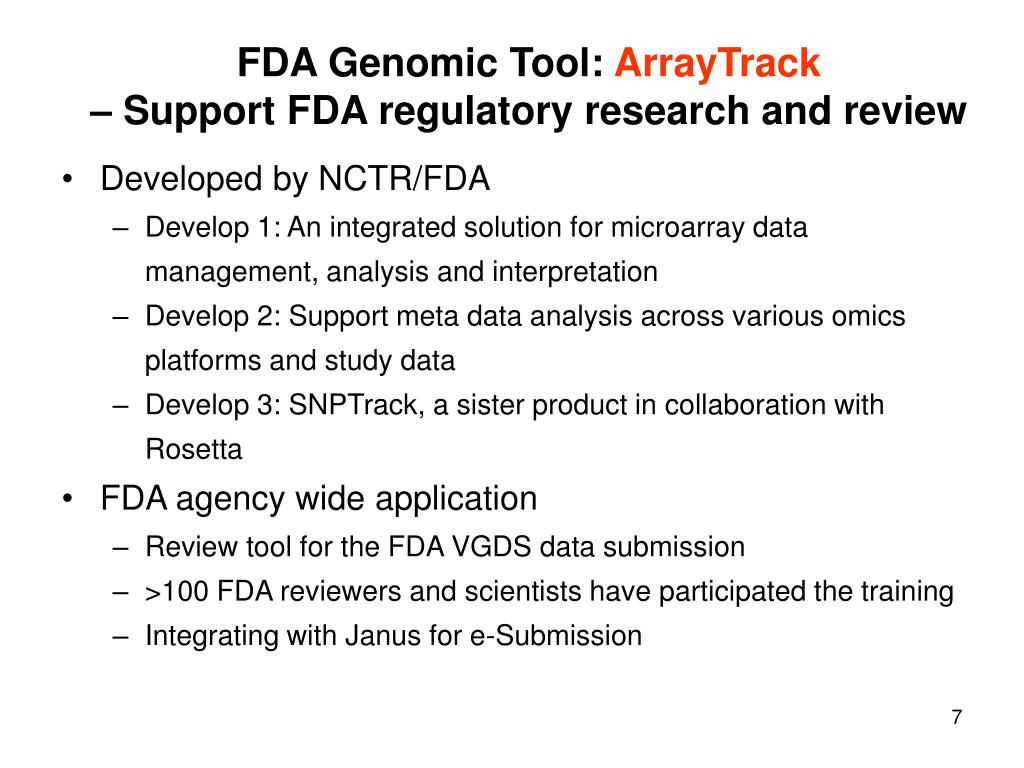

Fda genomic tool arraytrack support fda regulatory research and review
FDA Genomic Tool: ArrayTrack – Support FDA regulatory research and review

  • Developed by NCTR/FDA

    • Develop 1: An integrated solution for microarray data management, analysis and interpretation

    • Develop 2: Support meta data analysis across various omics platforms and study data

    • Develop 3: SNPTrack, a sister product in collaboration with Rosetta

  • FDA agency wide application

    • Review tool for the FDA VGDS data submission

    • >100 FDA reviewers and scientists have participated the training

    • Integrating with Janus for e-Submission


Microarray data

Proteomics data

Metabolomics data

Public data

ArrayTrack: An Integrated Solution for omics research

Clinical and non-clinical data

Chemical data

ArrayTrack


Protein

Gene

Metabolite

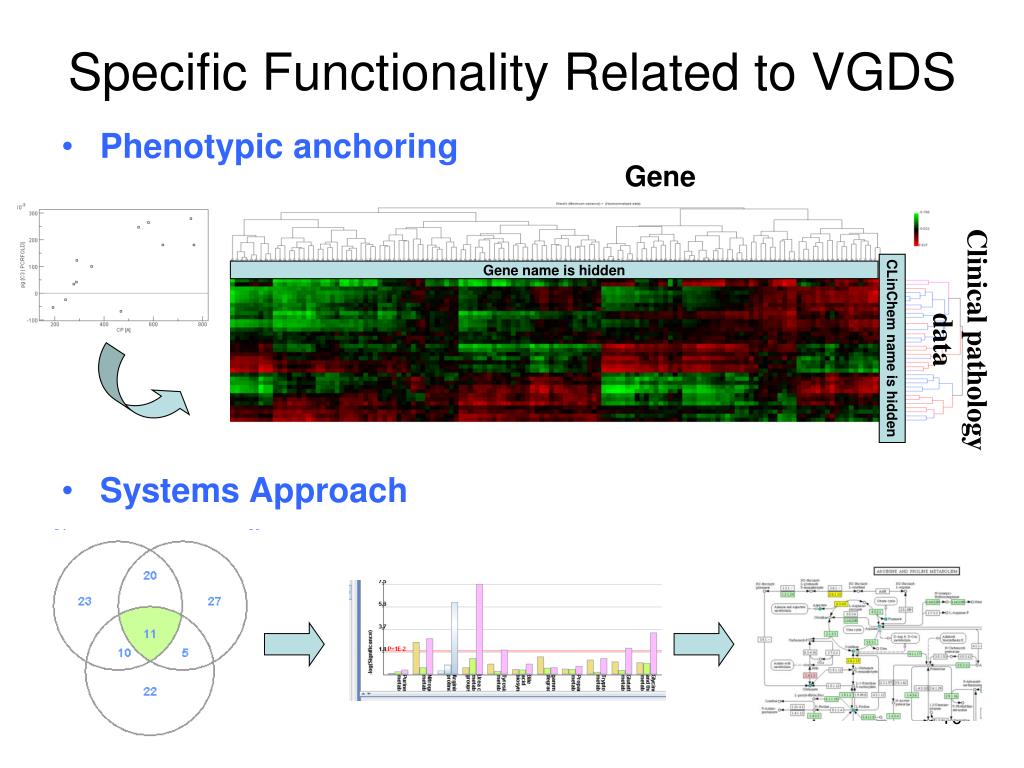

Specific functionality related to vgds
Specific Functionality Related to VGDS

Gene

  • Phenotypic anchoring

  • Systems Approach

Gene name is hidden

Clinical pathology data

CLinChem name is hidden

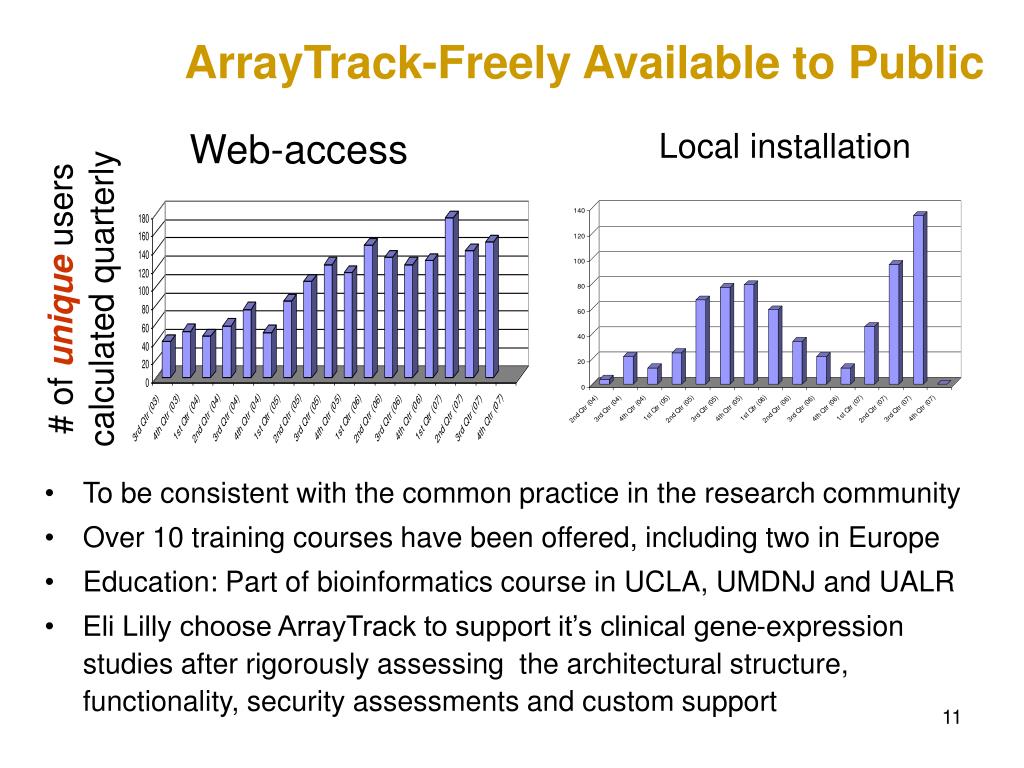

Arraytrack freely available to public
ArrayTrack-Freely Available to Public

Web-access

Local installation

# of unique users calculated quarterly

  • To be consistent with the common practice in the research community

  • Over 10 training courses have been offered, including two in Europe

  • Education: Part of bioinformatics course in UCLA, UMDNJ and UALR

  • Eli Lilly choose ArrayTrack to support it’s clinical gene-expression studies after rigorously assessing the architectural structure, functionality, security assessments and custom support

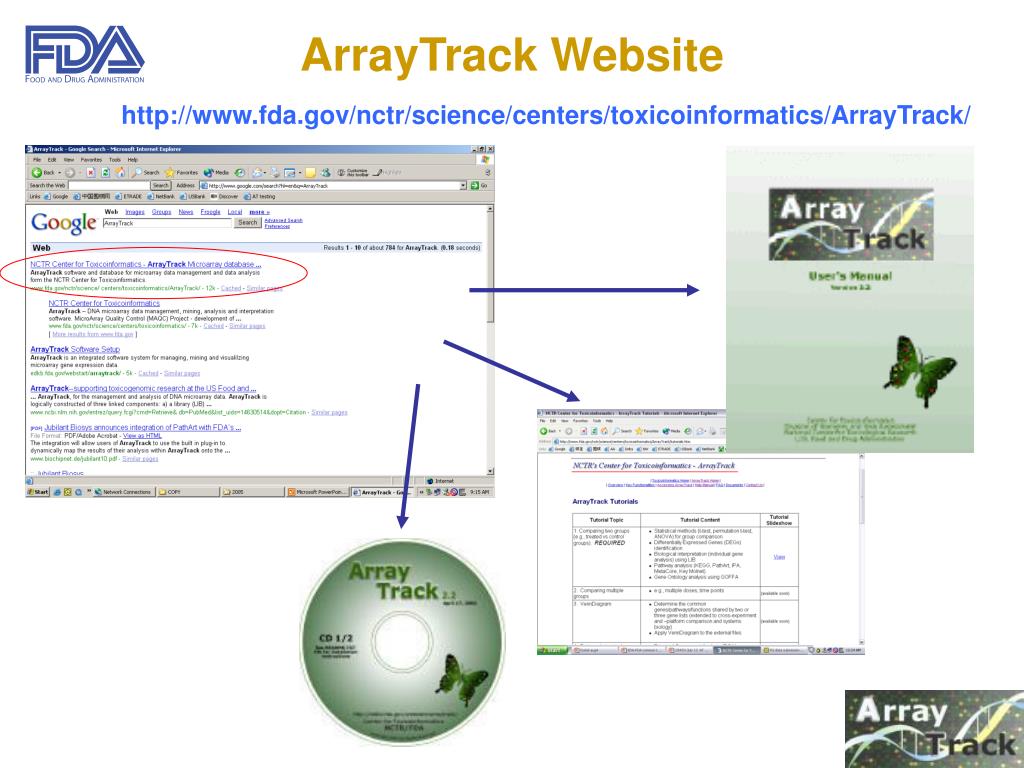

Arraytrack website
ArrayTrack Website

http://www.fda.gov/nctr/science/centers/toxicoinformatics/ArrayTrack/


MicroArray Quality Control (MAQC) - An FDA-Led Community Wide Effort to Address the Challenges and Issues Identified in VGDS

  • QC issue – How good is good enough?

    • Assessing the best achievable technical performance of microarray platforms (QC metrics and thresholds)

  • Analysis issue – Can we reach a consensus on analysis methods?

    • Assessing the advantages and disadvantages of various data analysis methods

  • Cross-platform issue – Do different platforms generate different results?

    • Assessing cross-platform consistency


MAQC Way of Working

Participants:

Everyone was welcome; however, cutoff dates had to be imposed.

Cost-sharing:

Every participant contributed, e.g., arrays, RNA samples, reagents, time and resources in generating and analyzing the MAQC data

Decision-making:

Face-to-face meetings (1st, 2nd, 3rd, and 4th)

Biweekly, regular MAQC teleconferences (>20 times)

Smaller-scale teleconferences on specific issues (many)

Outcome: Peer-reviewed publication:

Followed the normal journal-defined publication process

9 papers submitted to Nature Biotechnology

6 accepted and 3 rejected

Transparency

MAQC Data is freely available at GEO, ArrayExpress, and ArrayTrack

RNA samples are available from commercial vendors

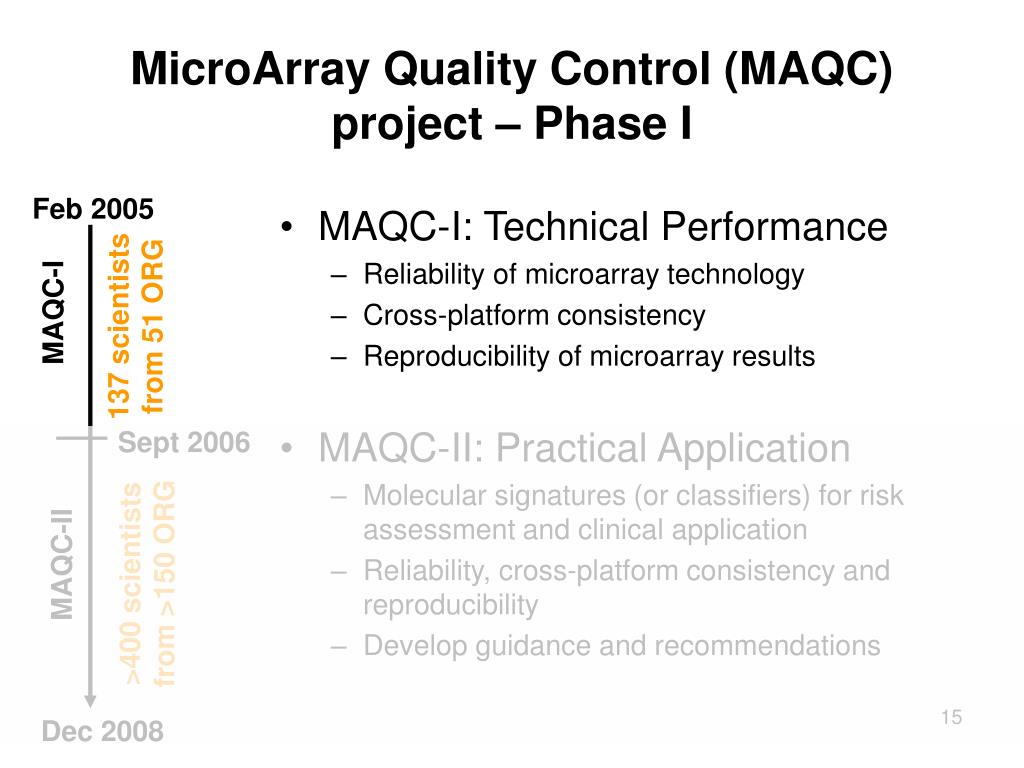

Microarray quality control maqc project phase i
MicroArray Quality Control (MAQC) project – Phase I

Feb 2005

  • MAQC-I: Technical Performance

    • Reliability of microarray technology

    • Cross-platform consistency

    • Reproducibility of microarray results

  • MAQC-II: Practical Application

    • Molecular signatures (or classifiers) for risk assessment and clinical application

    • Reliability, cross-platform consistency and reproducibility

    • Develop guidance and recommendations

137 scientists from 51 ORG

MAQC-I

Sept 2006

MAQC-II

>400 scientists from >150 ORG

Dec 2008


Results from the maqc i study published in nature biotechnology on sept oct 2006
Results from the MAQC-I Study Published in Nature Biotechnology on Sept/Oct 2006

  • Six research papers:

  • MAQC Main Paper

  • Validation of Microarray Results

  • RNA Sample Titrations

  • One-color vs. Two-color Microarrays

  • External RNA Controls

  • Rat Toxicogenomics Validation

Nat. Biotechnol. 24(9) and 24(10s), 2006

Plus:

EditorialNature Biotechnology

Foreword Casciano DA and Woodcock J

Stanford Commentary Ji H and Davis RW

FDA Commentary Frueh FW

EPA Commentary Dix DJ et al.


Key findings from the maqc i study

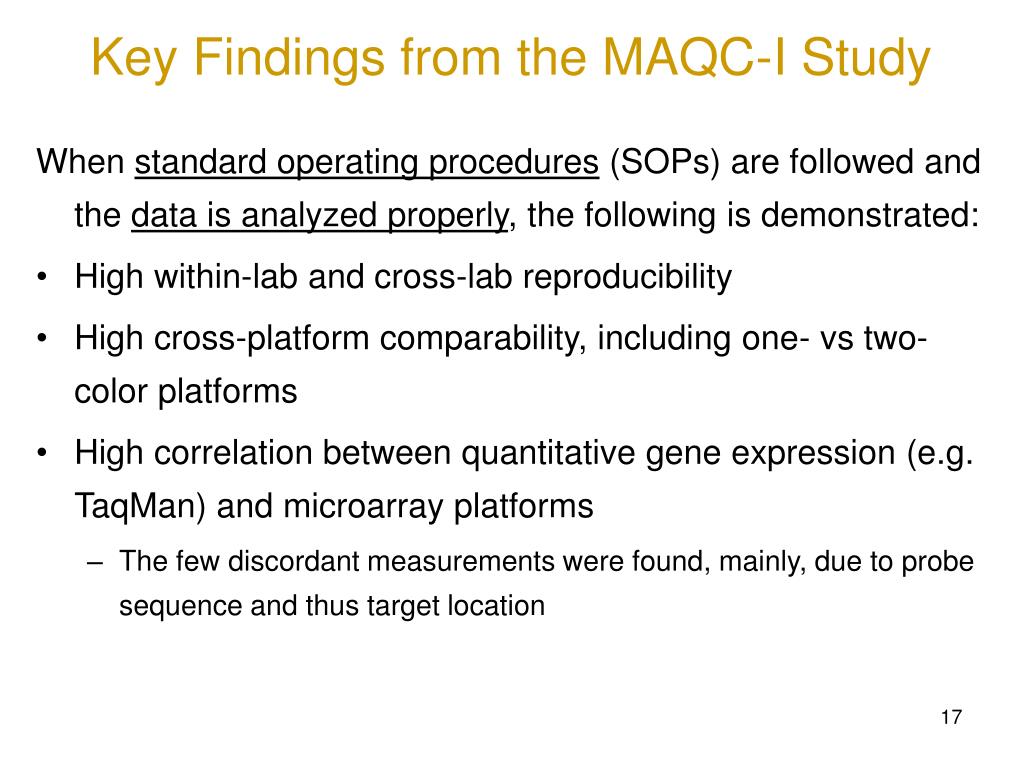

Key Findings from the MAQC-I Study

When standard operating procedures (SOPs) are followed and the data is analyzed properly, the following is demonstrated:

  • High within-lab and cross-lab reproducibility

  • High cross-platform comparability, including one- vs two-color platforms

  • High correlation between quantitative gene expression (e.g. TaqMan) and microarray platforms

    • The few discordant measurements were found, mainly, due to probe sequence and thus target location

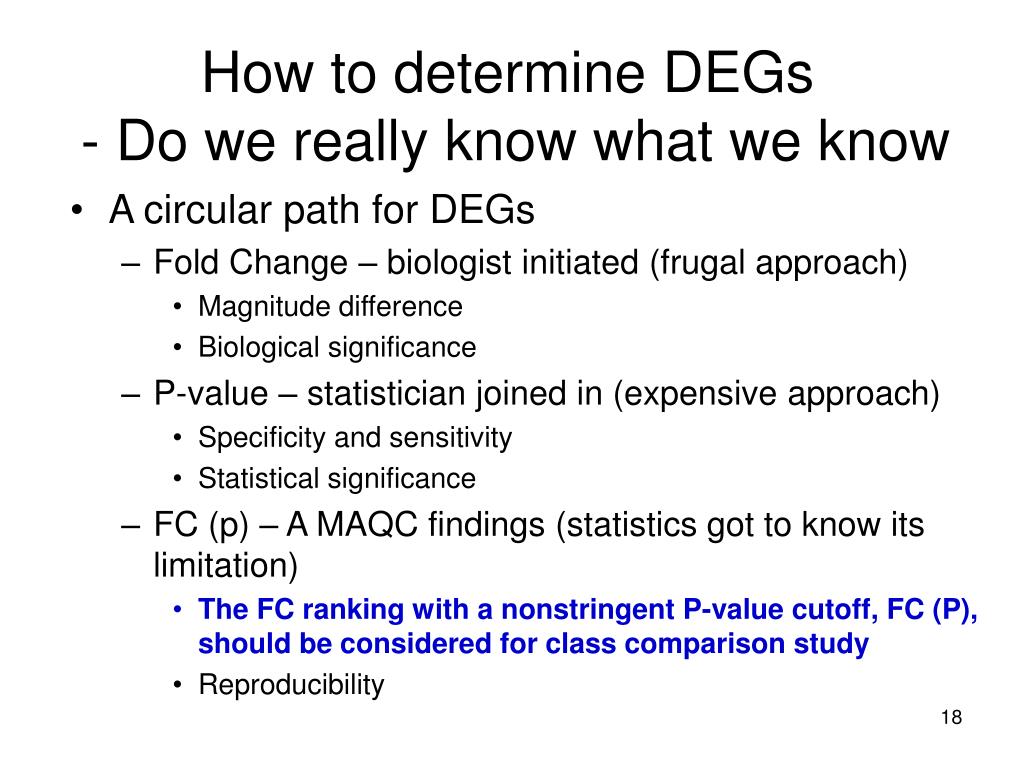

How to determine degs do we really know what we know
How to determine DEGs - Do we really know what we know

  • A circular path for DEGs

    • Fold Change – biologist initiated (frugal approach)

      • Magnitude difference

      • Biological significance

    • P-value – statistician joined in (expensive approach)

      • Specificity and sensitivity

      • Statistical significance

    • FC (p) – A MAQC findings (statistics got to know its limitation)

      • The FC ranking with a nonstringent P-value cutoff, FC (P), should be considered for class comparison study

      • Reproducibility


Nature

Science

Nature Method

Cell

Analytical Chemistry


Post maqc i study on reproducibility of degs a statistical simulation study

FC Sorting

Sensitivity

1-specificity

POG

Post-MAQC-I Study on Reproducibility of DEGs - A Statistical Simulation Study

Lab 1

Lab 2

P vs FC

POG

Reproducibility

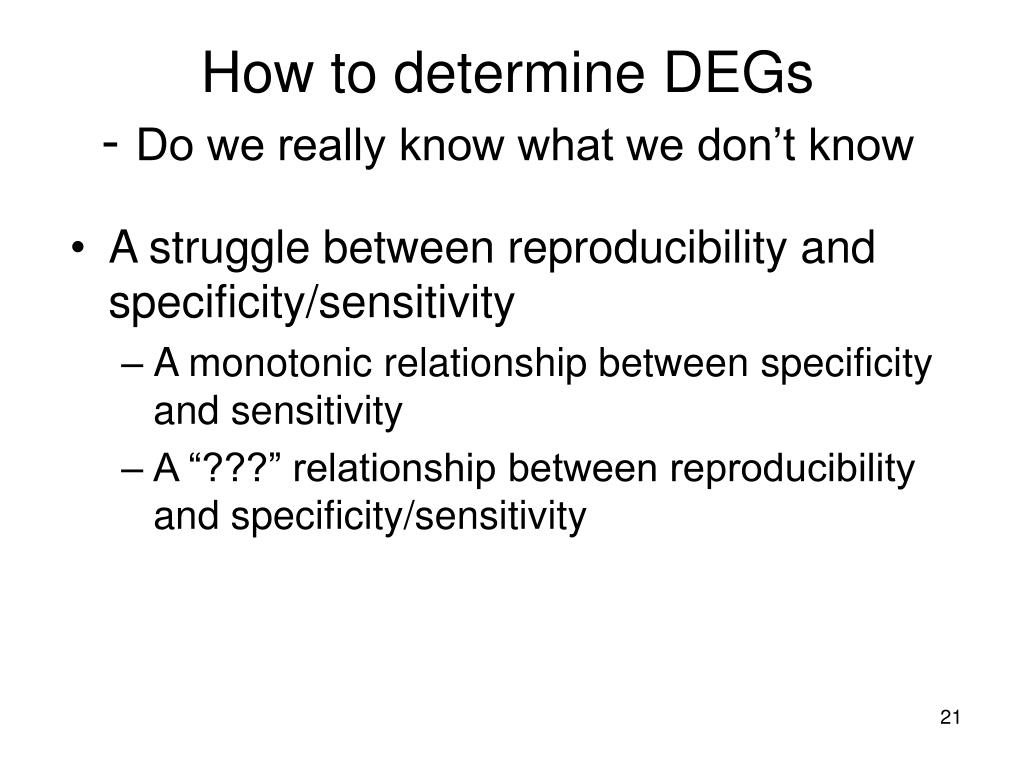

How to determine degs do we really know what we don t know
How to determine DEGs- Do we really know what we don’t know

  • A struggle between reproducibility and specificity/sensitivity

    • A monotonic relationship between specificity and sensitivity

    • A “???” relationship between reproducibility and specificity/sensitivity


More on reproducibility

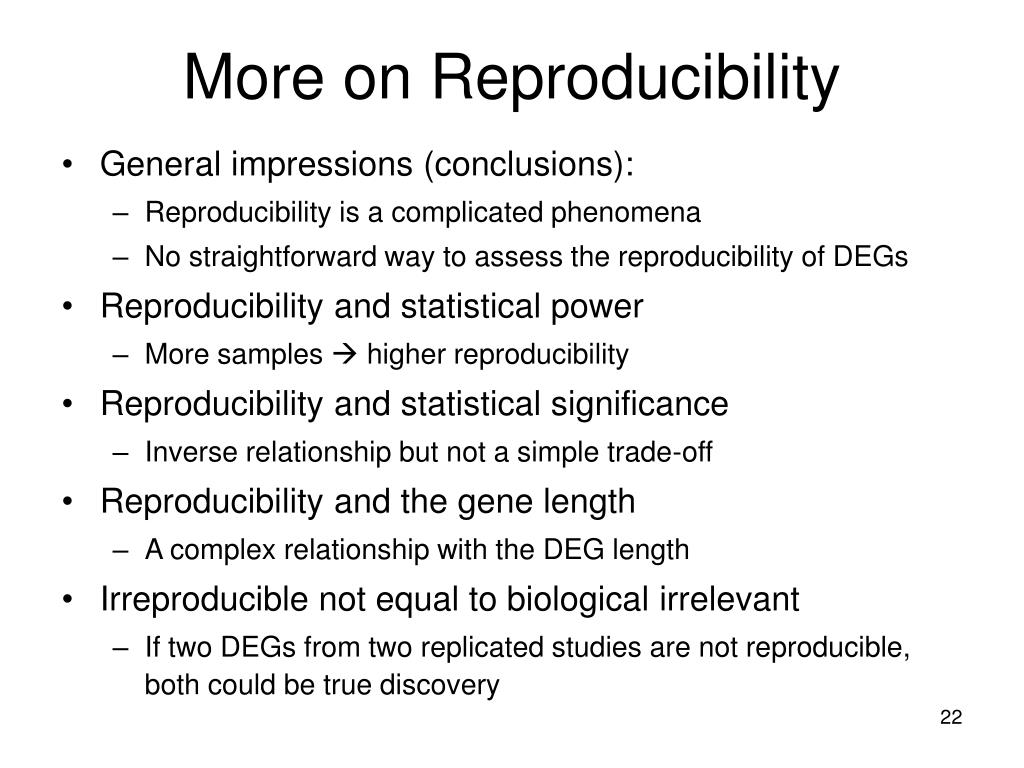

More on Reproducibility

  • General impressions (conclusions):

    • Reproducibility is a complicated phenomena

    • No straightforward way to assess the reproducibility of DEGs

  • Reproducibility and statistical power

    • More samples  higher reproducibility

  • Reproducibility and statistical significance

    • Inverse relationship but not a simple trade-off

  • Reproducibility and the gene length

    • A complex relationship with the DEG length

  • Irreproducible not equal to biological irrelevant

    • If two DEGs from two replicated studies are not reproducible, both could be true discovery

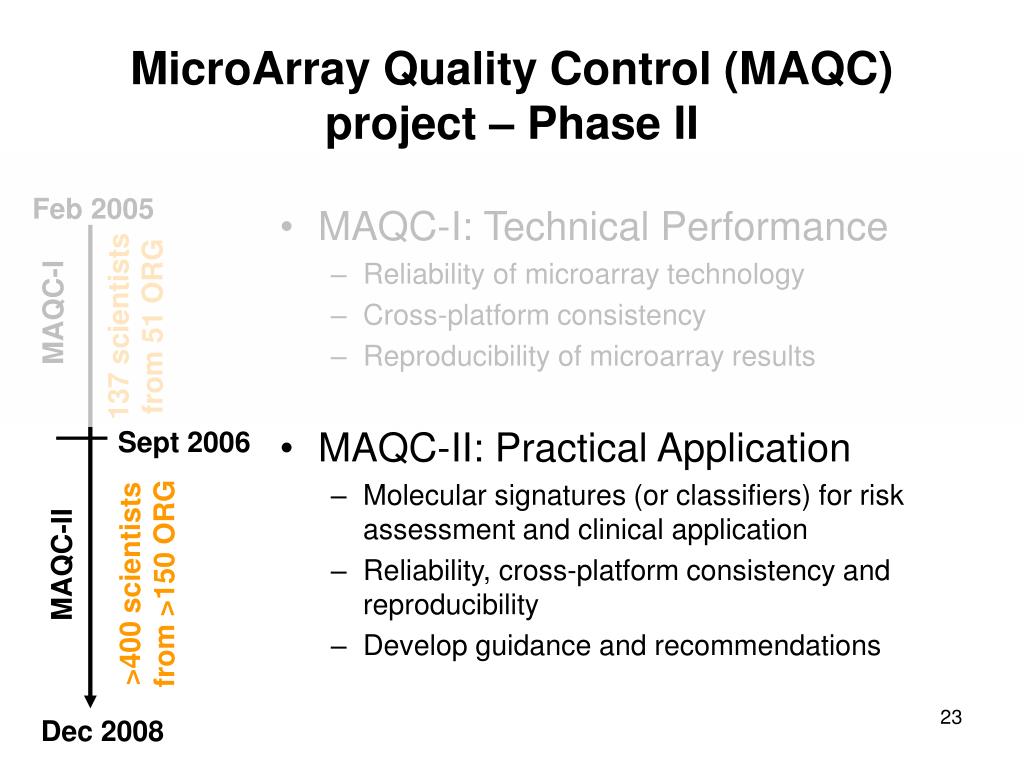

Microarray quality control maqc project phase ii
MicroArray Quality Control (MAQC) project – Phase II

Feb 2005

  • MAQC-I: Technical Performance

    • Reliability of microarray technology

    • Cross-platform consistency

    • Reproducibility of microarray results

  • MAQC-II: Practical Application

    • Molecular signatures (or classifiers) for risk assessment and clinical application

    • Reliability, cross-platform consistency and reproducibility

    • Develop guidance and recommendations

137 scientists from 51 ORG

MAQC-I

Sept 2006

MAQC-II

>400 scientists from >150 ORG

Dec 2008


Application of predictive signature
Application of Predictive Signature

Treatment

Long term effect

Clinical application

(Pharmacogenomics)

Treatment outcome

Prognosis

Diagnosis

Short term exposure

Long term effect

Safety Assessment (Toxicogenomics)

Prediction

Phenotypic anchoring


Challenge 1
Challenge 1

Batch effect

Data Set

QC

Which QC methods

Normalization

e.g.: Raw data, MAS5, RMA, dChip, Plier

Preprocessing

How to generate an initial gene pool for modeling

Feature Selection

P, FC, p(FC), FC(p) …

Classifier

Which methods: KNN, NC, SVM, DT, PLS …

  • How to assess the success

  • Chemical based prediction

  • Animal based prediction

Validation


Challenge 2 assessing the performance of a classifier
Challenge 2: Assessing the Performance of a Classifier

Prediction Accuracy:

Sensitivity, Specificity

1

Robustness:

Reproducibility of signatures

3

2

Mechanistic Relevance:

Biological understanding


Dataset Set

QC

A consensus approach (12 teams)

Normalization

Preprocessing

Freedom of choice (35 analysis teams)

Feature Selection

Classifier

Validation, validation and Validation!

Validation

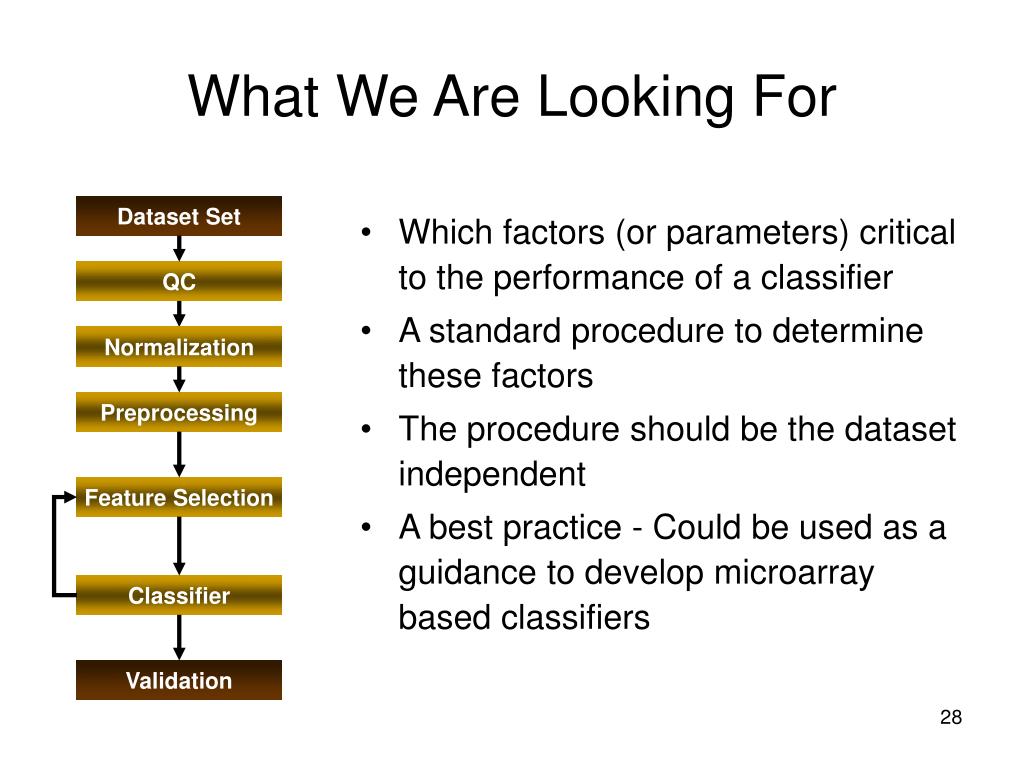

What we are looking for

Dataset Set

QC

Normalization

Preprocessing

Feature Selection

Classifier

Validation

What We Are Looking For

  • Which factors (or parameters) critical to the performance of a classifier

  • A standard procedure to determine these factors

  • The procedure should be the dataset independent

  • A best practice - Could be used as a guidance to develop microarray based classifiers

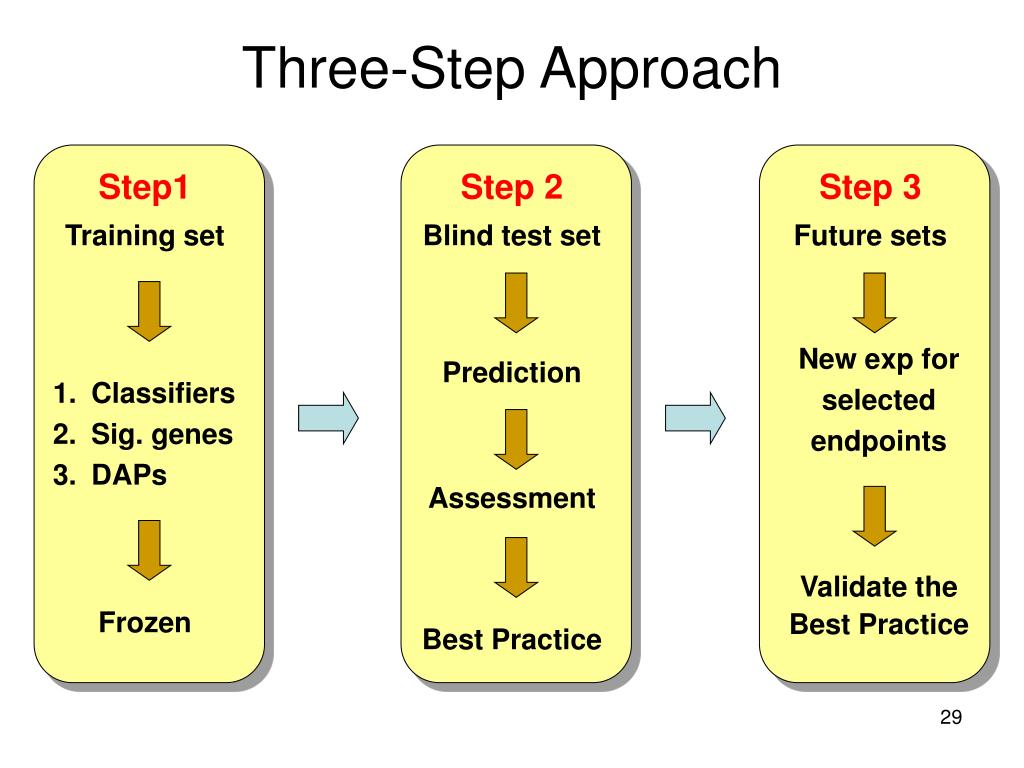

Three step approach
Three-Step Approach

Step1

Training set

Step 2

Blind test set

Step 3

Future sets

New exp for selected endpoints

Prediction

  • Classifiers

  • Sig. genes

  • DAPs

Assessment

Validate the Best Practice

Frozen

Best Practice


MAQC-II Data Sets

Clinical data

Toxicogenomics data


Where we are
Where We Are

Step1

Training set

Step 2

Blind test set

Step 3

Future sets

New exp for selected endpoints

Prediction

  • Classifiers

  • Sig. genes

  • DAPs

Assessment

Validate the Best Practice

Frozen

Best Practice


18 proposed manuscripts

Dataset Set

QC

Normalization

Preprocessing

Feature Selection

Prediction Accuracy

Classifier

Validation

Robustness

Mechanistic Relevance

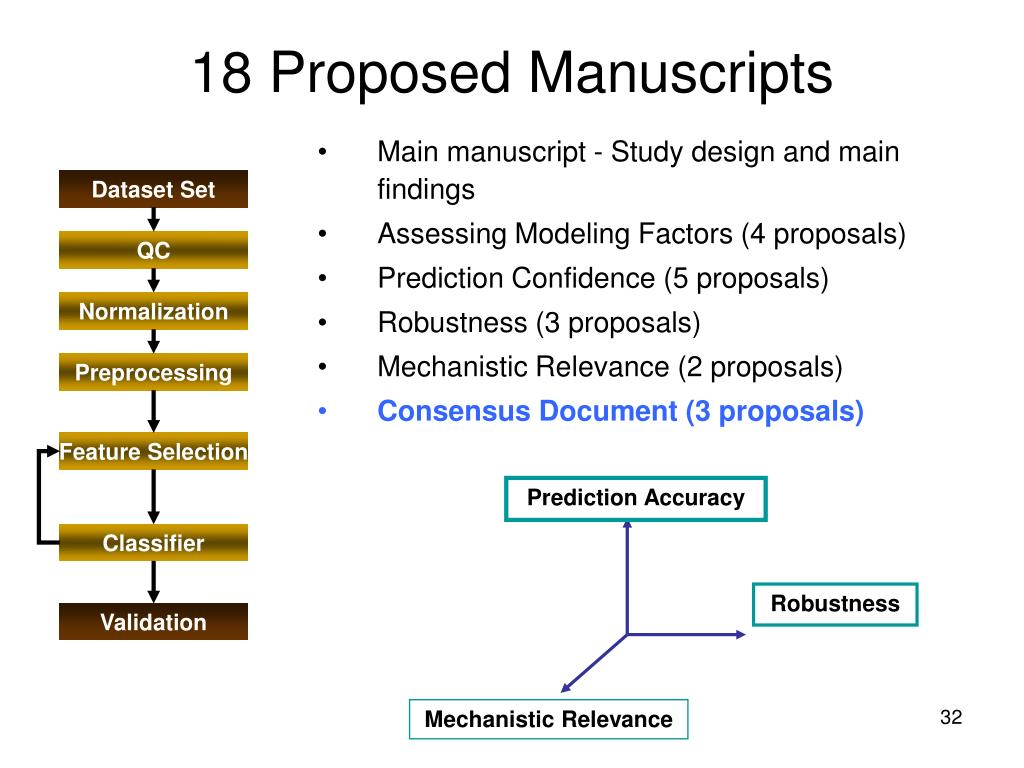

18 Proposed Manuscripts

  • Main manuscript - Study design and main findings

  • Assessing Modeling Factors (4 proposals)

  • Prediction Confidence (5 proposals)

  • Robustness (3 proposals)

  • Mechanistic Relevance (2 proposals)

  • Consensus Document (3 proposals)

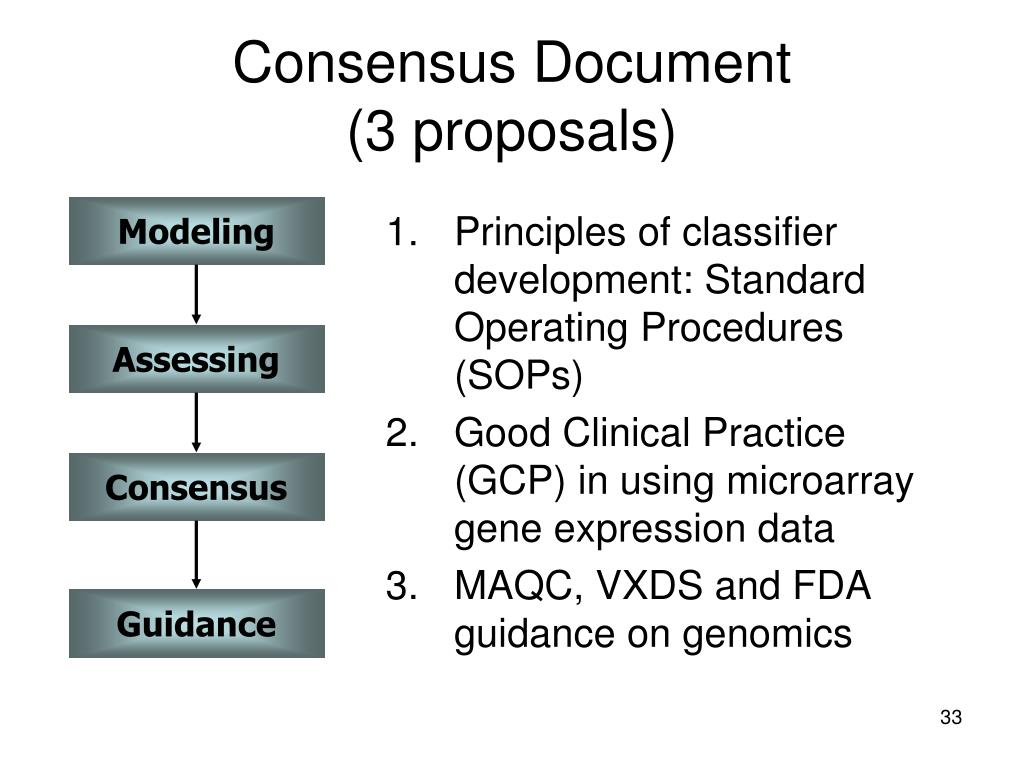

Consensus document 3 proposals
Consensus Document (3 proposals)

  • Principles of classifier development: Standard Operating Procedures (SOPs)

  • Good Clinical Practice (GCP) in using microarray gene expression data

  • MAQC, VXDS and FDA guidance on genomics

Modeling

Assessing

Consensus

Guidance


Best practice document

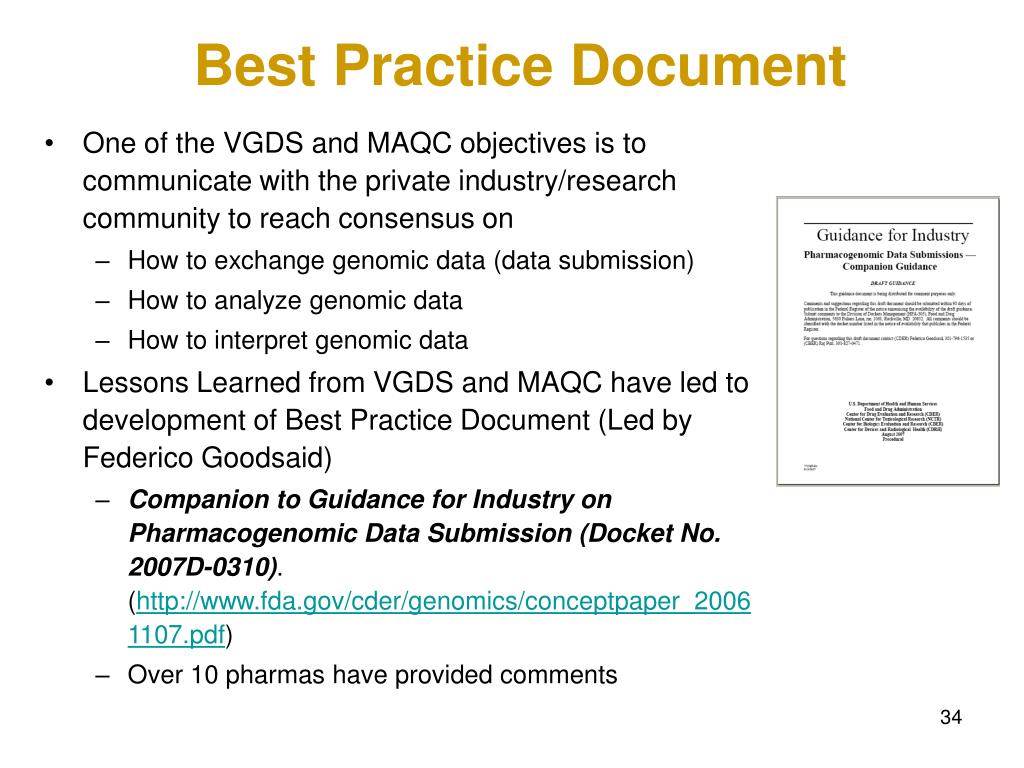

Best Practice Document

  • One of the VGDS and MAQC objectives is to communicate with the private industry/research community to reach consensus on

    • How to exchange genomic data (data submission)

    • How to analyze genomic data

    • How to interpret genomic data

  • Lessons Learned from VGDS and MAQC have led to development of Best Practice Document (Led by Federico Goodsaid)

    • Companion to Guidance for Industry on Pharmacogenomic Data Submission (Docket No. 2007D-0310). (http://www.fda.gov/cder/genomics/conceptpaper_20061107.pdf)

    • Over 10 pharmas have provided comments

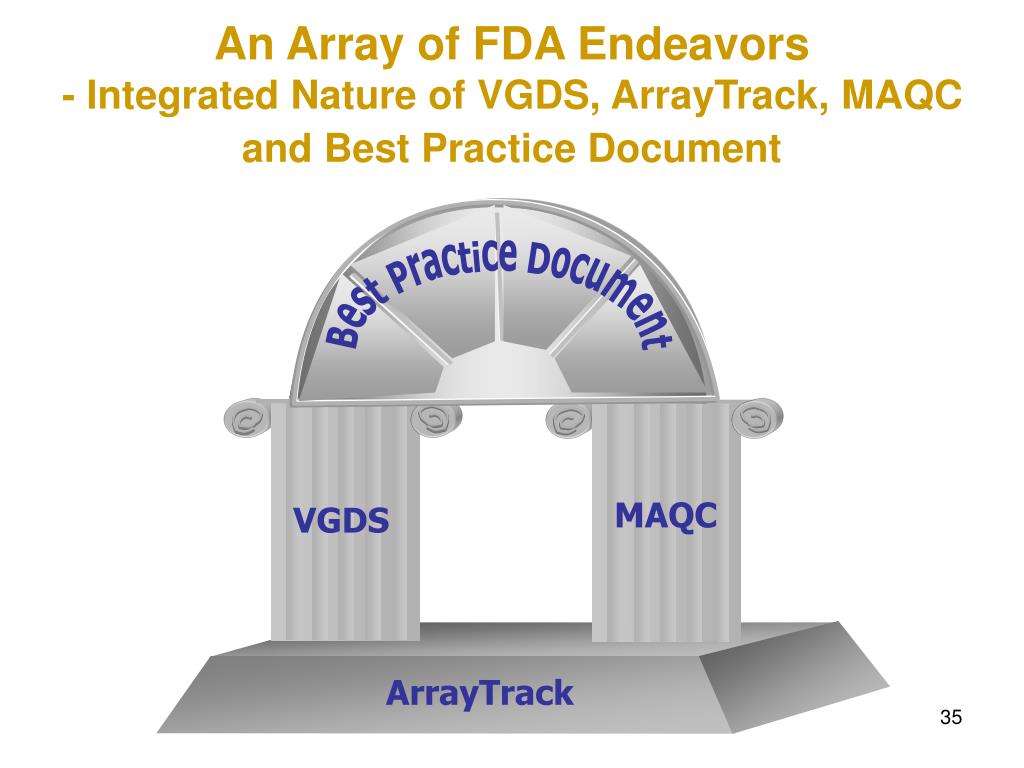

An array of fda endeavors integrated nature of vgds arraytrack maqc and best practice document
An Array of FDA Endeavors- Integrated Nature of VGDS, ArrayTrack, MAQC and Best Practice Document

Best Practice Document

MAQC

VGDS

ArrayTrack



ad
