OMNeT ++

1. OMNeT++

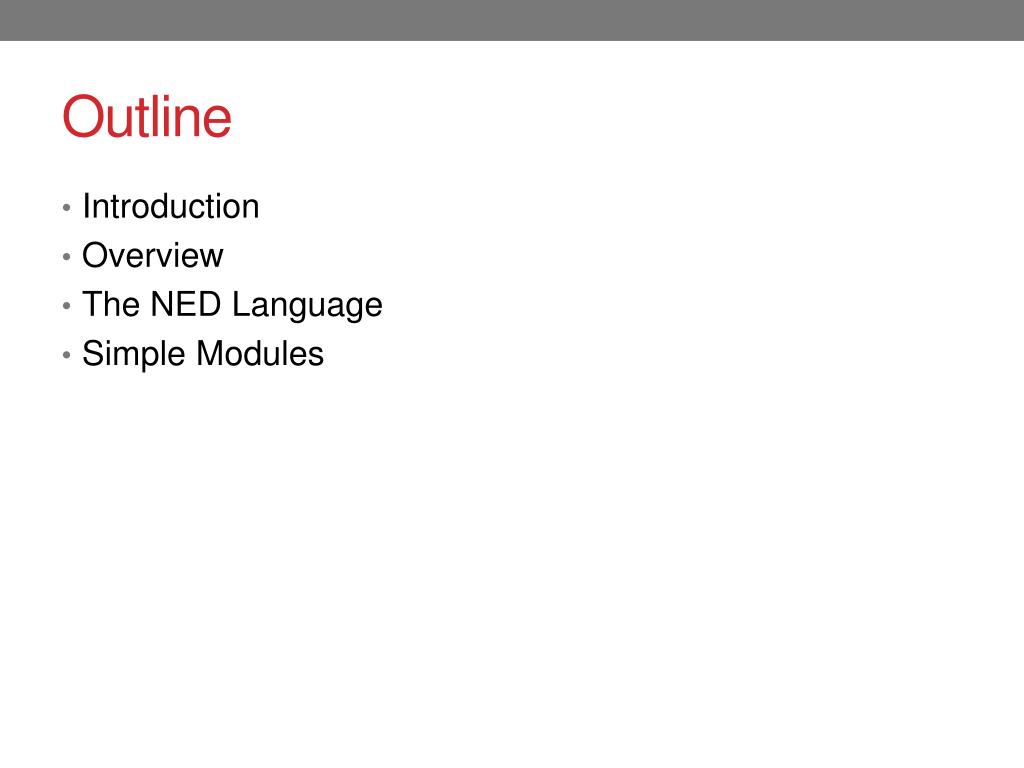

2. Outline • Introduction • Overview • The NED Language • Simple Modules

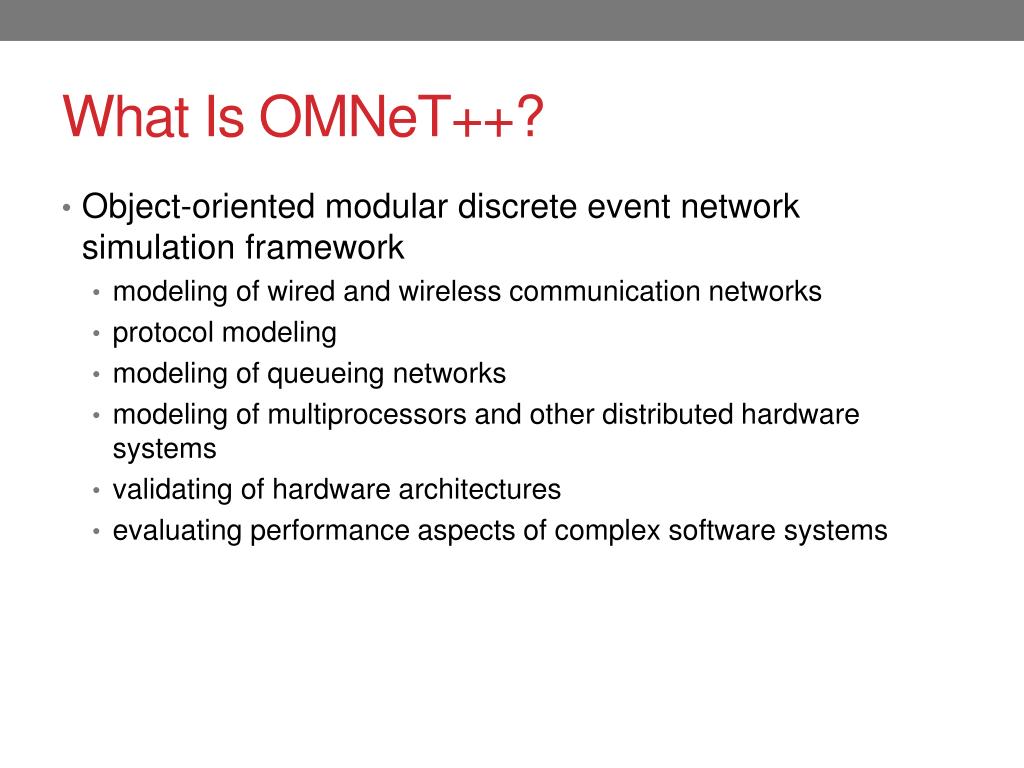

3. What Is OMNeT++? • Object-oriented modular discrete event network simulation framework • modeling of wired and wireless communication networks • protocol modeling • modeling of queueing networks • modeling of multiprocessors and other distributed hardware systems • validating of hardware architectures • evaluating performance aspects of complex software systems

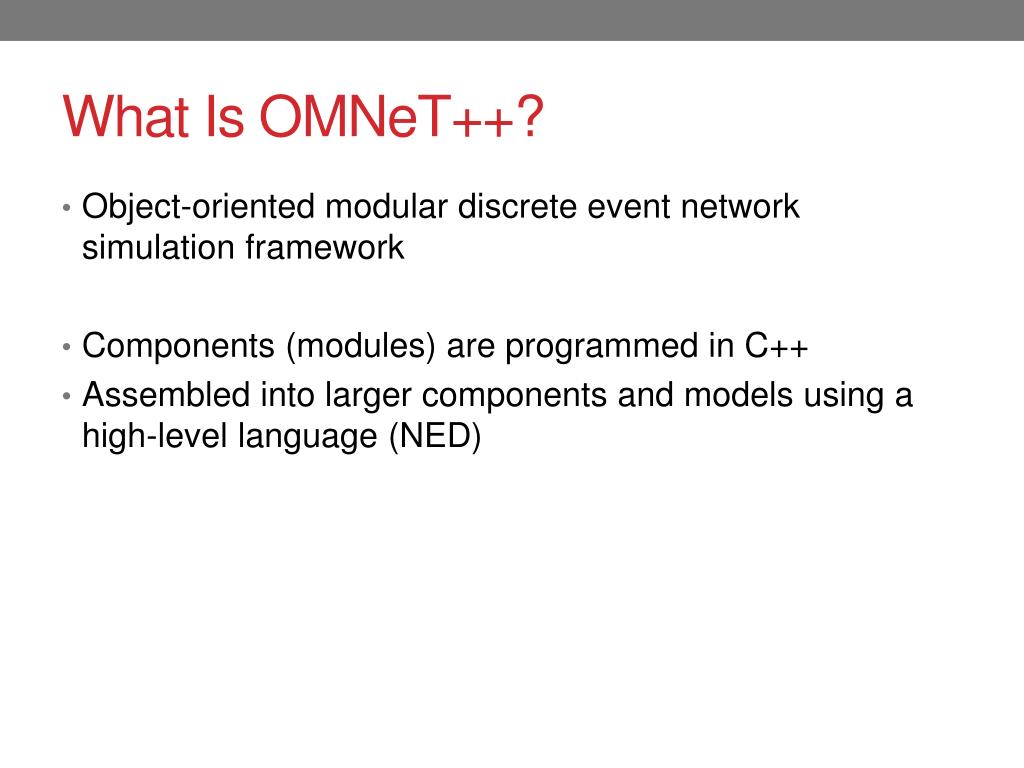

4. What Is OMNeT++? • Object-oriented modular discrete event network simulation framework • Components (modules) are programmed in C++ • Assembled into larger components and models using a high-level language (NED)

5. Modeling Concepts • Gates • Input and output interfaces • Connection • Spanning hierarchy levels are not permitted • Propagation delay, data rate and bit error rate, can be assigned

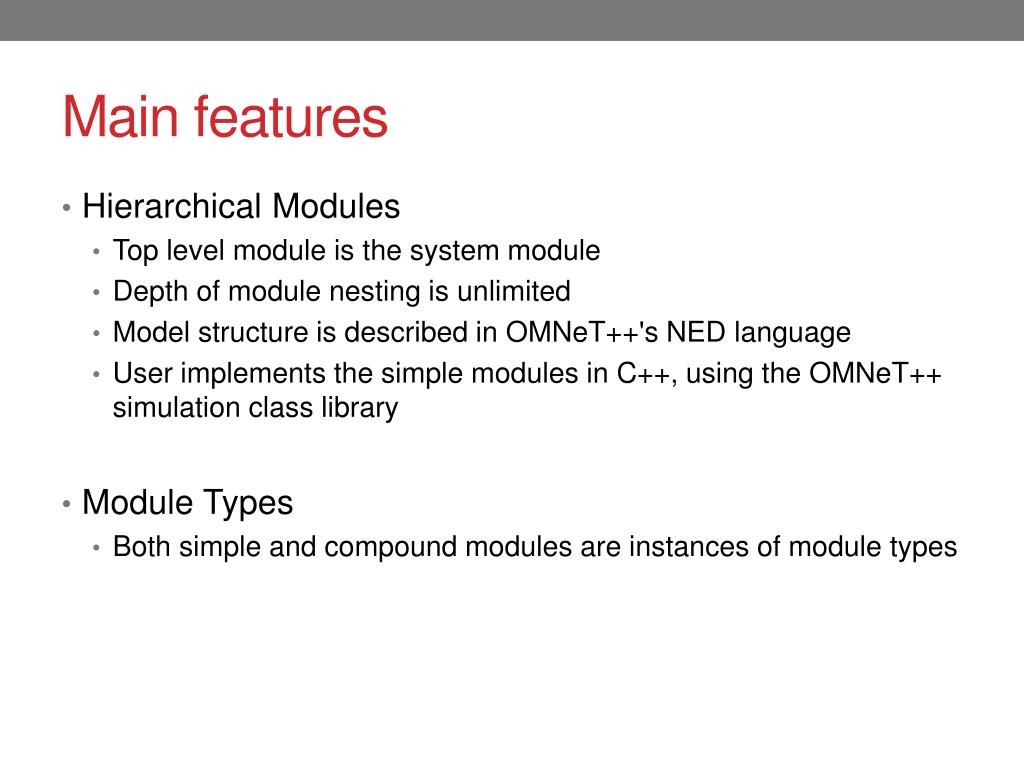

6. Main features • Hierarchical Modules • Top level module is the system module • Depth of module nesting is unlimited • Model structure is described in OMNeT++'s NED language • User implements the simple modules in C++, using the OMNeT++ simulation class library • Module Types • Both simple and compound modules are instances of module types

7. Main features • Messages • Modules communicate by exchanging messages • Frames or packets in a computer network • Jobs or customers in a queuing network • Gates • Input and output interfaces of modules • messages are sent out through output gates and arrive through input gates • Links (connection) • Created within a single level of the module hierarchy

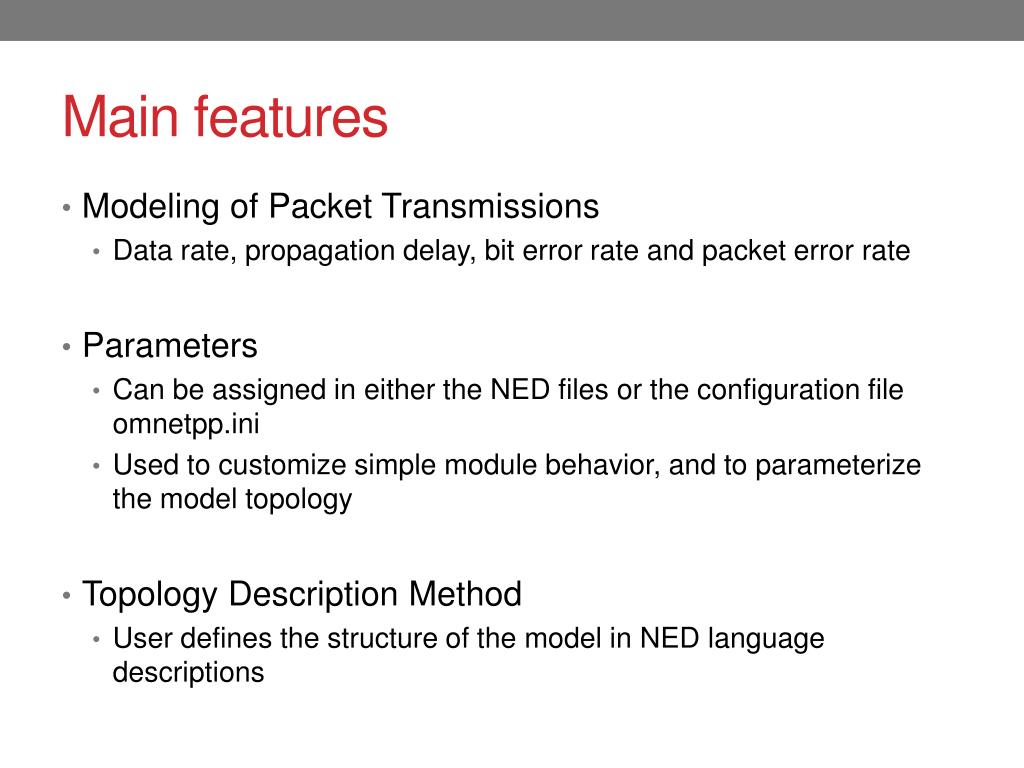

8. Main features • Modeling of Packet Transmissions • Data rate, propagation delay, bit error rate and packet error rate • Parameters • Can be assigned in either the NED files or the configuration file omnetpp.ini • Used to customize simple module behavior, and to parameterize the model topology • Topology Description Method • User defines the structure of the model in NED language descriptions

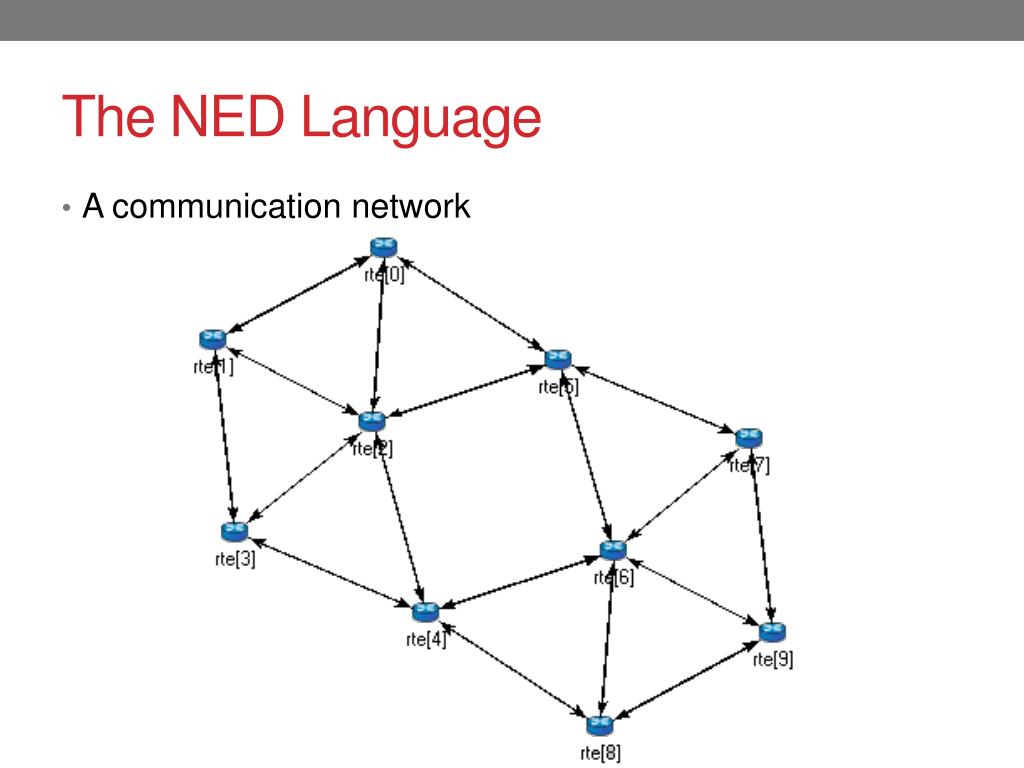

9. The NED Language • A communication network

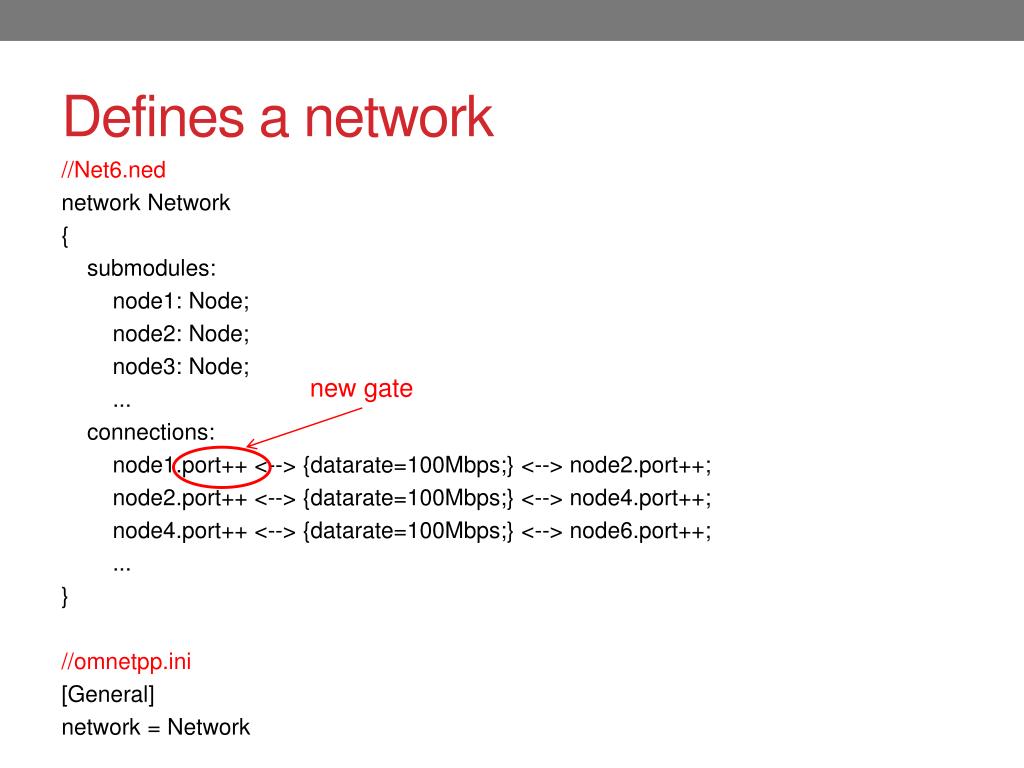

10. Defines a network //Net6.ned network Network { submodules: node1: Node; node2: Node; node3: Node; ... connections: node1.port++ <--> {datarate=100Mbps;} <--> node2.port++; node2.port++ <--> {datarate=100Mbps;} <--> node4.port++; node4.port++ <--> {datarate=100Mbps;} <--> node6.port++; ... } //omnetpp.ini [General] network = Network new gate

11. Introducing a Channel network Network { types: channel C extends ned.DatarateChannel { datarate = 100Mbps; } submodules: node1: Node; node2: Node; node3: Node; ... connections: node1.port++ <--> C <--> node2.port++; node2.port++ <--> C <--> node4.port++; node4.port++ <--> C <--> node6.port++; ... }

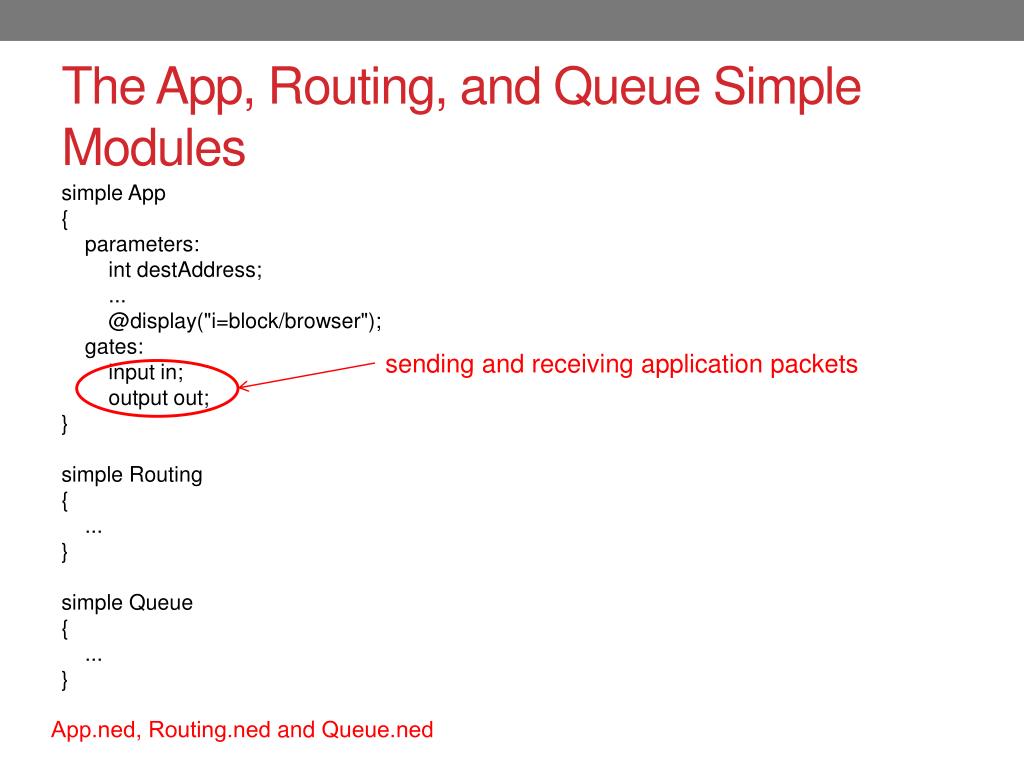

12. The App, Routing, and Queue Simple Modules simple App { parameters: intdestAddress; ... @display("i=block/browser"); gates: input in; output out; } simple Routing { ... } simple Queue { ... } sending and receiving application packets App.ned, Routing.ned and Queue.ned

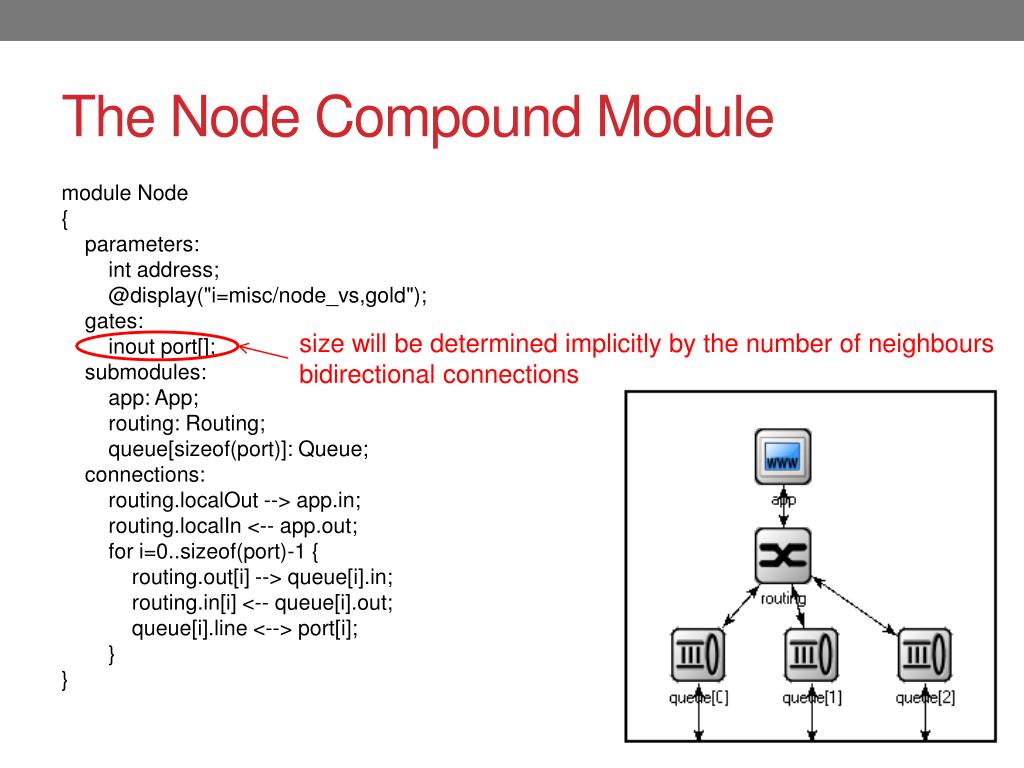

13. The Node Compound Module module Node { parameters: int address; @display("i=misc/node_vs,gold"); gates: inout port[]; submodules: app: App; routing: Routing; queue[sizeof(port)]: Queue; connections: routing.localOut --> app.in; routing.localIn <-- app.out; for i=0..sizeof(port)-1 { routing.out[i] --> queue[i].in; routing.in[i] <-- queue[i].out; queue[i].line <--> port[i]; } } size will be determined implicitly by the number of neighbours bidirectional connections

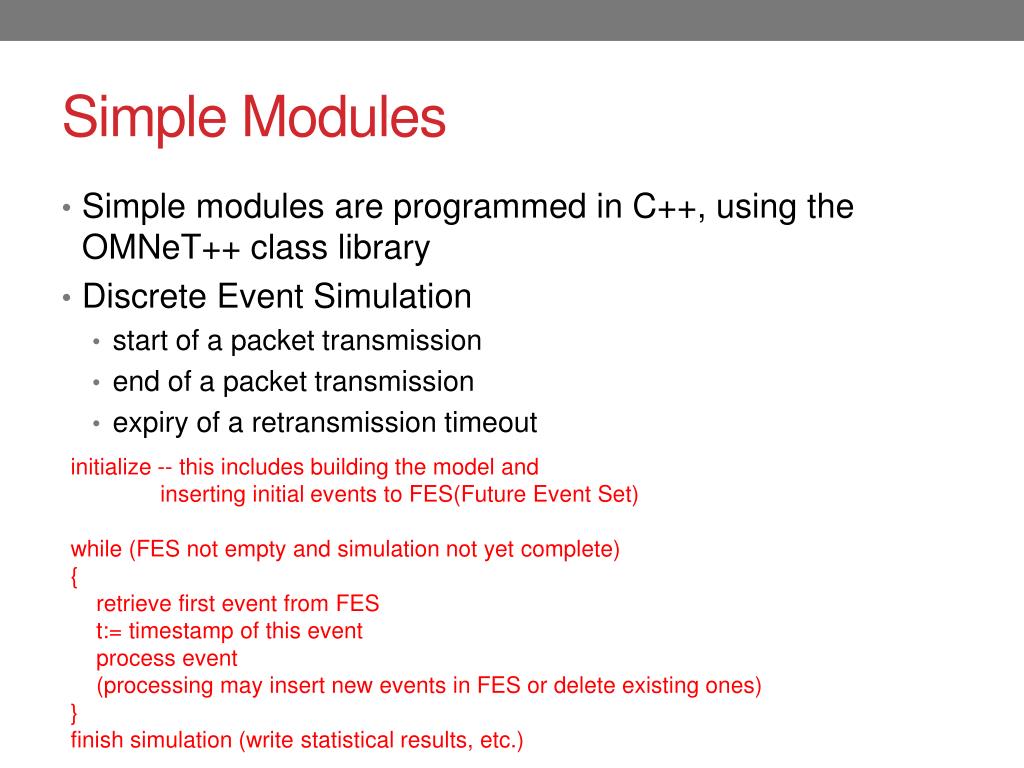

14. Simple Modules • Simple modules are programmed in C++, using the OMNeT++ class library • Discrete Event Simulation • start of a packet transmission • end of a packet transmission • expiry of a retransmission timeout initialize -- this includes building the model and inserting initial events to FES(Future Event Set) while (FES not empty and simulation not yet complete) { retrieve first event from FES t:= timestamp of this event process event (processing may insert new events in FES or delete existing ones) } finish simulation (write statistical results, etc.)

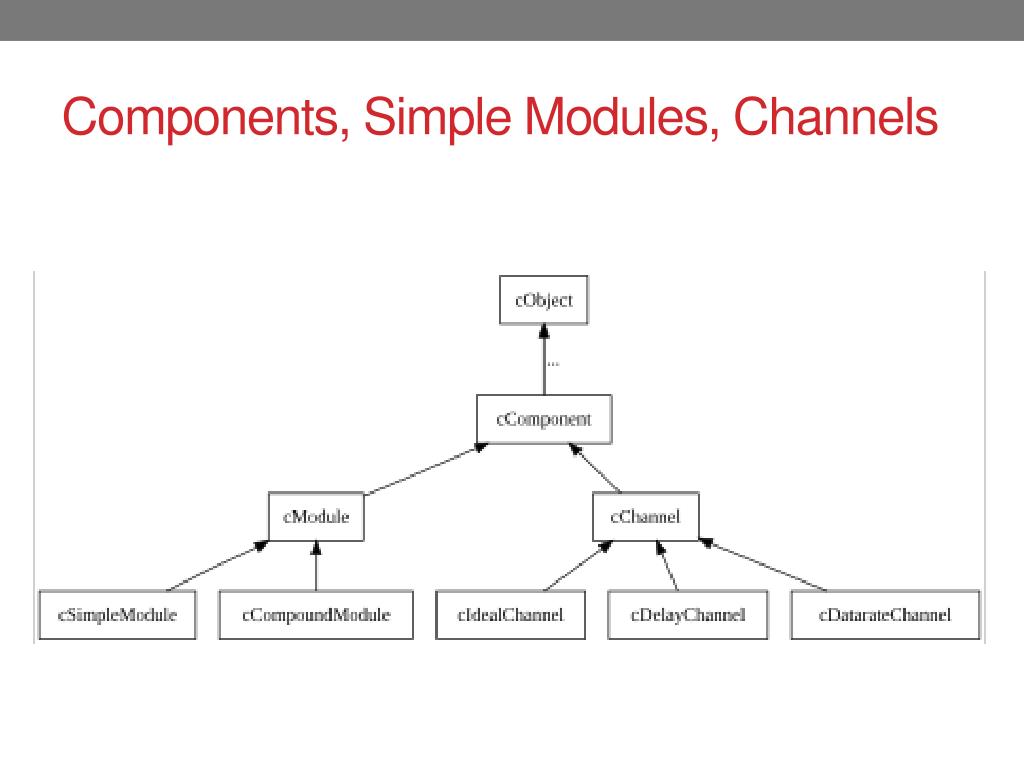

15. Components, Simple Modules, Channels

16. Defining Simple Module Types // file: HelloModule.cc #include <omnetpp.h> class HelloModule : public cSimpleModule { protected: virtual void initialize(); virtual void handleMessage(cMessage *msg); }; // register module class with `\opp` Define_Module(HelloModule); void HelloModule::initialize() { ev << "Hello World!\n"; } void HelloModule::handleMessage(cMessage *msg) { delete msg; // just discard everything we receive } // file: HelloModule.ned simple HelloModule { gates: input in; } called for every message that arrives at the module

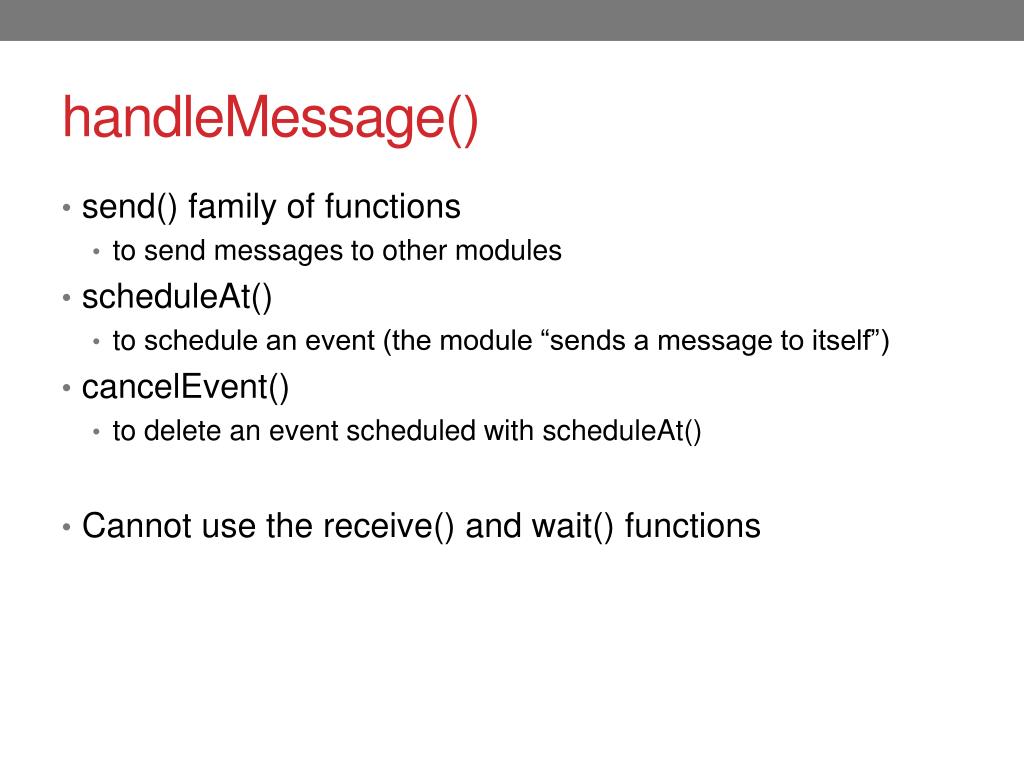

17. handleMessage() • send() family of functions • to send messages to other modules • scheduleAt() • to schedule an event (the module “sends a message to itself”) • cancelEvent() • to delete an event scheduled with scheduleAt() • Cannot use the receive() and wait() functions

18. Protocol Models class FooProtocol : public cSimpleModule { protected: // state variables // ... virtual void processMsgFromHigherLayer(cMessage *packet); virtual void processMsgFromLowerLayer(FooPacket *packet); virtual void processTimer(cMessage *timer); virtual void initialize(); virtual void handleMessage(cMessage *msg); }; // ... void FooProtocol::handleMessage(cMessage *msg) { if (msg->isSelfMessage()) processTimer(msg); else if (msg->arrivedOn("fromNetw")) processMsgFromLowerLayer(check_and_cast<FooPacket *>(msg)); else processMsgFromHigherLayer(msg); }

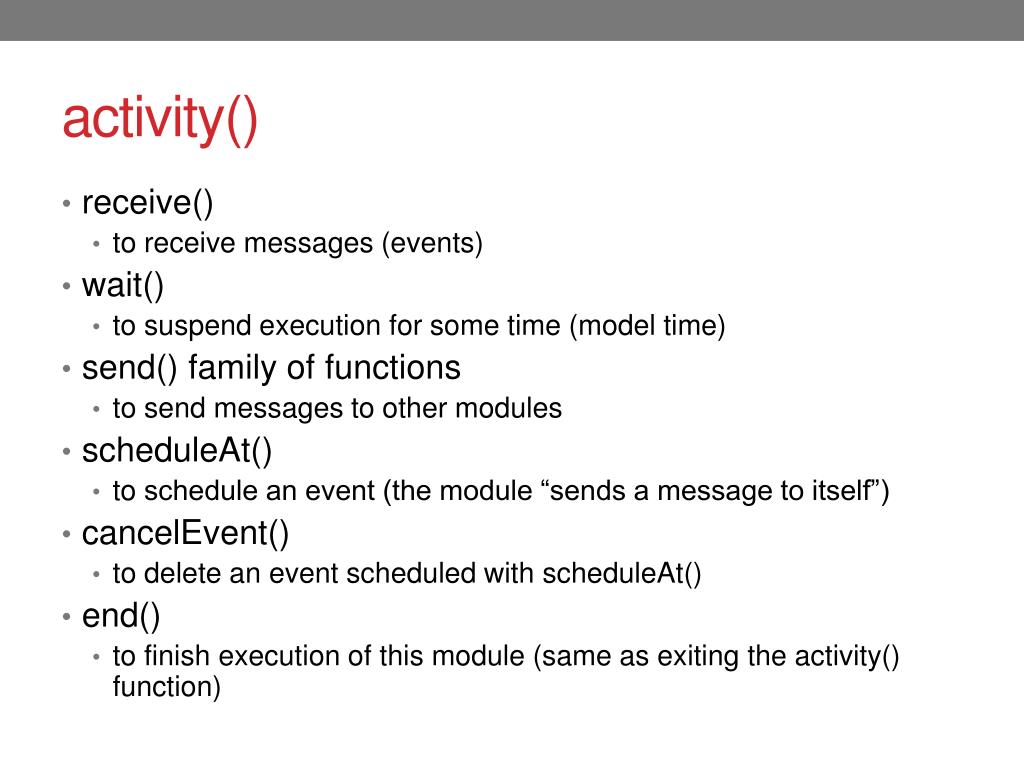

19. activity() • receive() • to receive messages (events) • wait() • to suspend execution for some time (model time) • send() family of functions • to send messages to other modules • scheduleAt() • to schedule an event (the module “sends a message to itself”) • cancelEvent() • to delete an event scheduled with scheduleAt() • end() • to finish execution of this module (same as exiting the activity() function)

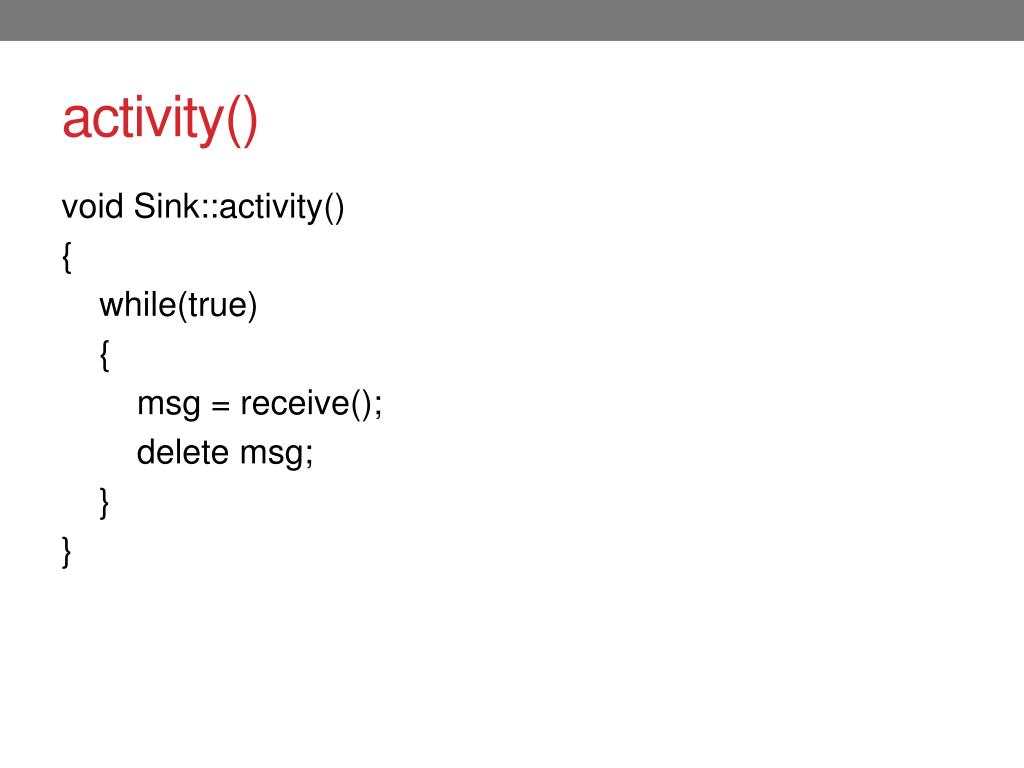

20. activity() void Sink::activity() { while(true) { msg = receive(); delete msg; } }
