Presentation Transcript

Makati medical center department of medicine medical grandrounds july 12 2007 8 15am ledesma hall

Makati Medical Center

Department of Medicine

Medical Grandrounds

July 12, 2007

8:15Am, Ledesma Hall

Marizen L. Lim, Md

Learning objectives

Learning Objectives

  • To present a case of SLE with lupus nephrtis

  • To present updates on the treatment of lupus nephritis

Idenifying data

Idenifying Data

  • ER

  • 43-y/0 female

  • Chief Complaint: Persistently elevated BP

History of the present illness

History of the Present Illness

  • 20 years PTA  malar rash

     photosensitivity

     polyarthralgia

     3x spontaneous abortions

  • 1 month PTA  severe throbbing headache, vomiting, dizziness, dyspnea on exertion

  • BP: 200/100  consult  u/a: +3 alb, 60 rbc, hyaline & coarse granular casts; crea 0.9

History of the present illness1

History of the Present Illness

  • Metoprolol 50mg OD & Felodipine 2.5mg OD

  • BP remained uncontrolled

  • Beta blocker  calcium channel blocker  ACE inhibitor  Angiotensin II receptor blocker

  • BP persistently elevated

History of the present illness2

History of the Present Illness

  • 1 week PTA  progressive dyspnea, periorbital, facial, pitting bipedal edema , noted ↓ urine output

  • Consult  Leukopenia w/ thrombocytopenia; +3 albumin, 12 wbc, fine granular casts; crea 1.2 from 0.9; K 5.7 Nephrology


Review of systems

Review of Systems

  • (-) fever

  • (+) headache

  • (+) nausea

  • (+) body malaise

  • (+) anorexia

  • (-) easy bruisability

  • (-) chest pain/palpitation

  • (-) pleurisy

  • (-) abdominal pain

  • (-) dysuria

  • (-) depression/mania

Past medical social and personal family history

Past Medical, Social and Personal, Family History

  • (-) DM

  • (-) BA

  • (-) allergies

  • Non smoker

  • Non alcoholic beverage drinker

  • Officer worker

  • (+) HPN

  • (-) DM

  • (-) connective tissue disease

Physical examination

Physical Examination

  • General Survey: conscious, coherent, oriented, not in cardiorespiratory distress

  • Vital Signs: BP: 160/100 CR: 68/min, regular RR: 18/min Temp: 36.2°C

  • HEENT: no alopecia, no head lesions, anicteric sclera, slightly pale palpebral conjunctivae, no abnormal discharges, no oral or nasopharyngeal ulcers, no tonsillopharyngeal wall congestion, no cervical lymphadenopathy, flat neck veins

  • Skin: no pallor, no jaundice, no rashes, (-) petechiae/hematoma

Physical examination1

Physical Examination

  • Cardiovascular: adynamicprecordium, distinct S1 and S2, normal rate, regular rhythm, no murmur

  • Respiratory: symmetrical chest expansion, no intercostals/subcostal retractions, clear breath sounds

  • Abdomen: flabby, normoactive bowel sounds, soft, no tenderness, no organomegaly, no palpable masses

  • Extremities: (+) grade 3 pitting bipedal edema, no cyanosis, full and equal pulses

Salient features

Salient Features

  • 43 y/o female

  • ↑ BP

  • History of malar rash, photosensitivity, arthralgia, 3x miscarriages

  • Decreased urine output

  • Pitting bipedal edema

  • Proteinuria, hematuria, casts

  • Increasing creatinine 0.9  1.2

Differential diagnoses

Differential Diagnoses



RenalRPGNImmune Complex GN

PostrenalLow C3 Normal C3

Post infectiousLupus nephritis


Admitting diagnosis

Admitting Diagnosis

  • Acute renal failure, probably rapidly progressive glomerulonephritis, probably immune-mediated

  • Hypertension, poorly controlled, probably secondary to a renal pathology

  • Connective tissue disease t/c systemic lupus erythematosus

Course in the wards

Course in the Wards

  • On admission

  • CBC: H 11.6, H 33.6, wbc 5990 (s 65, L 22, M 11, E2)

  • K: 6.6↑

  • Crea: 1.7 ↑

  • U/A: (protein +3, rbc 3.8, wbc 23.1, e.c. 20.3, bact 1784, fine granular casts 5-10/lpf)

  •  Meropenem 500mg IV q 12hrs

Course in the wards1

Course in the Wards

  • Elevated ESR: 74 (n.v. 0-20)

  • ANA and C3 beta complement

  • ABG: 100/7.36/34.1/18.8/97.5/+5.7/19.9

  • Hyperkalemia regimen: (Furosemide 40mg IV q8; Kalimate QID; Salbutamol neb q6; NaHCO3 drip)

  • Methylprednisolone (Solumedrol) 1gm in D5W 100cc slow IV push x 3 days

  • Crea: 1.7  1.8

  • K: 5.1  6.6

Course in the wards2

Course in the Wards

  • 2nd Hospital day:

  • Hyponatremia: 134

  • Crea: 1.3  1.7  1.8

  • BUN: 49↑

  • 24-hour urine protein: 864.5mg/24hrs ↑

  • 24-hour urine crea: 551.85mg/24°

    estimated crea clearance: 29.48 ml/min

  • 24 hour urine vol: 650 cc

Course in the wards3

Course in the Wards

  • 3rd Hospital Day: s/p utz-guided kidney biopsy

  • Result: Lupus Nephritis Class III

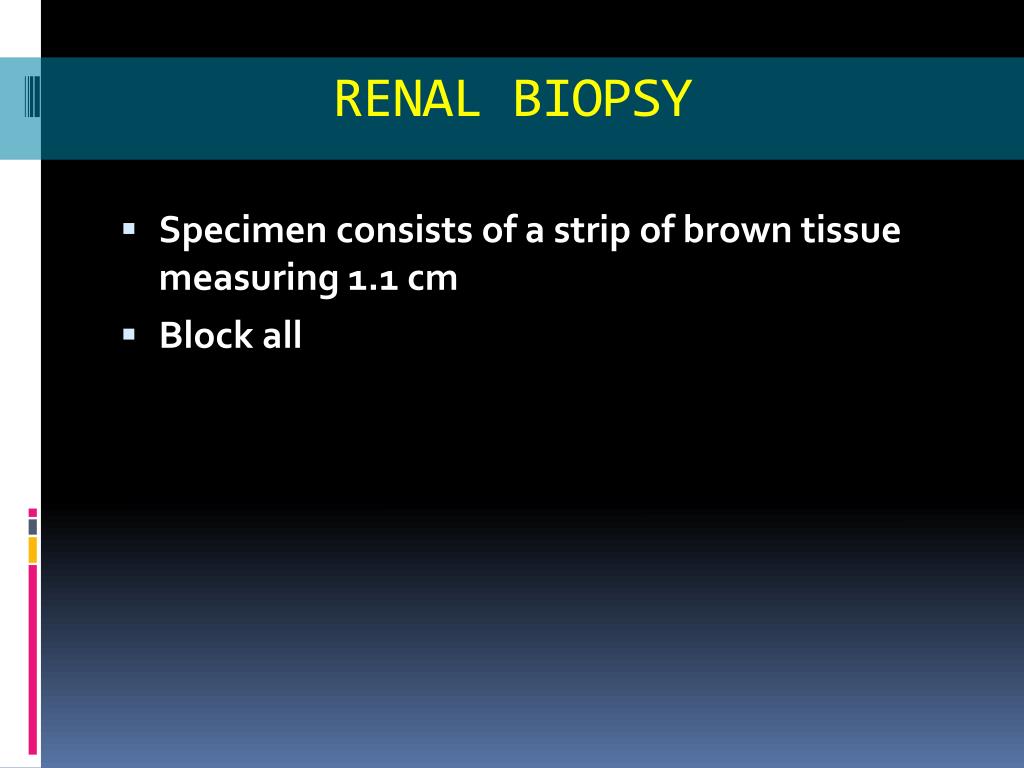

Renal biopsy


  • Specimen consists of a strip of brown tissue measuring 1.1 cm

  • Block all

Marizen l lim md

Scan X4

Marizen l lim md


Marizen l lim md


Marizen l lim md


Marizen l lim md


Marizen l lim md


Marizen l lim md



Marizen l lim md


Scan X4

Marizen l lim md


HPO X 40

Marizen l lim md


HPO X 40

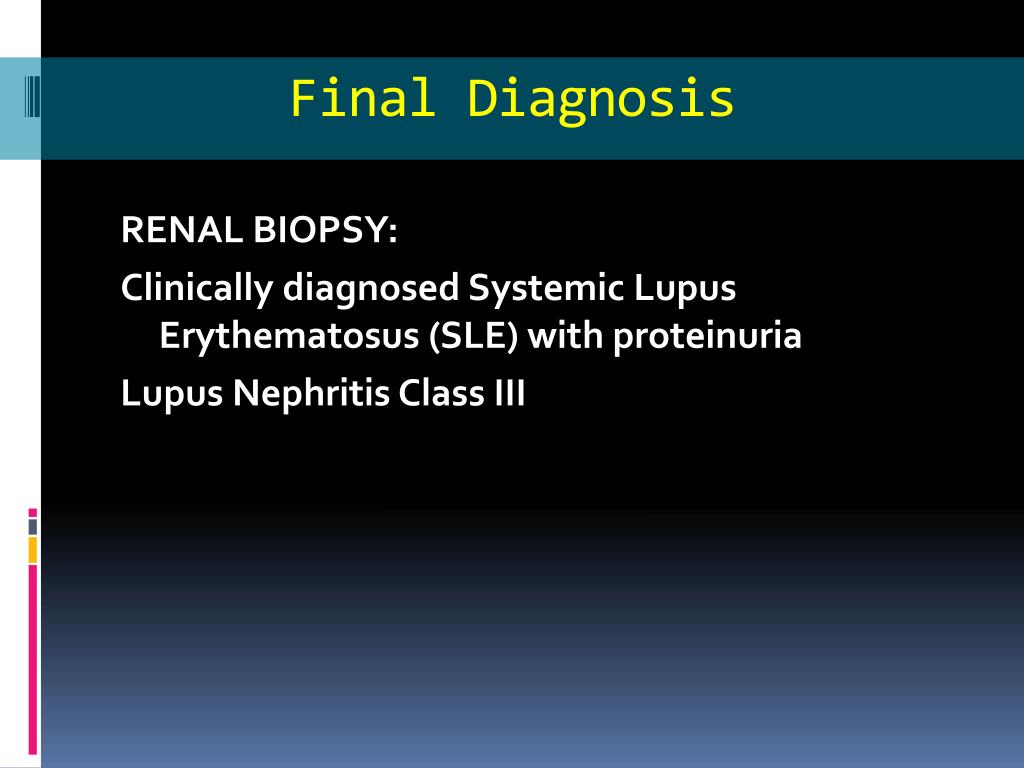

Final diagnosis

Final Diagnosis


Clinically diagnosed Systemic Lupus Erythematosus (SLE) with proteinuria

Lupus Nephritis Class III

Course in the wards4

Course in the Wards

  • Anemia  Hgb: 9.7 ↓

    Hct: 27.4 ↓

  • Kidney UTZ: no hematoma

  • 4th Hospital day:

  • ANA: positive up to 1:320 serum dilution; speckled pattern

  • C3 beta complement: 23.80mg% ↓(N.V. 79-152)

Course in the wards5

Course in the Wards

  • Rheumatology

  • Anti-cardiolipin Ab: 11 GPL (N.V. <15)

  • Full Lupus Panel:

  • ANA (+) up to 1:320 dilution, speckled pattern

    anti-DNA: (+)anti-SSA(Ro): (+)

    anti-Sm: (+)anti-SSB(La): (+)

    anti-RNP: (-)anti-Jo1: (-)

Course in the wards6

Course in the Wards

  • Progression of anemia: Hgb: 9.4  9.7

    Hct: 27.9

  • EPO (Renogen) 8000 u IV OD

  • Crea: 2  1.3

Course in the wards7

Course in the Wards

  • Prednisone 30mg PO AM, 20mg PO PM (on full stomach)

  • CaCO3 500mg OD

  • Urine CS: E.coli sensitive to Ertapenem & Cefuroxime: Meropenem  Cefuroxime 250mg PO BID

  • Losartan 50mg PO OD

Course in the wards8

Course in the Wards

  • 5th Hospital day:

  • Cyclophosphamide (CYC) IV pulsed therapy

    CYC 700mg in D5W 500cc x 2 hours

  • Crea: 1.4  2

  • Prednisone

Course in the wards9

Course in the Wards

  • 6th Hospital day:

  • Discharged stable and improved

  • THM:

  • EPO (Recormon) 5000U SC, T-Th-Sat

  • Esomeprazole 40mg OD

  • Clonidine 75mcg SL TID

  • Losartan 50mg OD

  • Cefuroxime 250mg BID x 7 days

  • Prednisone 5mg/tab, 30mg in AM, 20mg in PM w/ meals

  • CaCo3 500mg PO OD

Final diagnoses

Final Diagnoses

  • Systemic lupus erythematosus, lupus nephritis Class III, ARF 2°, s/p kidney biopsy

  • Hypertension stage II, secondary to lupus nephritis

  • Urinary tract infection, on treatment



Lupus nephritis

Lupus Nephritis

  • 50% of lupus patients will develop clinically relevant nephritis at some time in the course of their illness1

  • Varies from isolated abnormalities of the urinary sediment to full-blown nephritic or nephrotic syndrome or chronic renal failure

  • Formation of immune complexes w/in glomerular capillary wall

  • Diagnosed by renal biopsy


Isn rps 2003 classification of ln

ISN/RPS(2003)classification of LN



  • Mainstay of tx for any inflammatory life-threatening or organ-threatening manifestations of SLE (proliferative LN)

  • High dose IV glucocorticoid pulses given slowly over a 3-4 hour period, monthly for 6 months with 0.5 - 1mg of oral prednisone per kg between pulses, to control both renal and extrarenal manifestations

Marizen l lim md

Pulse steroids: How much is enough? Giovanni Franchin, and Betty Diamond Columbia University, Department of Medicine, Division of Rheumatology, 1130 St. Nicholas Ave., Audubon III Room 923, New York, NY 10032, USA Available online 29 August 2005.

  • High dose pulse intravenous steroids with 1 g of methylprednisolone (MEP) given daily, usually for three days, is an accepted practice to treat severe manifestations of systemic lupus erythematosus (SLE) or systemic vasculitides, despite the lack of definitive data.

Adverse effects of steroids

Adverse Effects of Steroids

  • Weight gain

  • Hirsutism

  • Acne

  • Infection

  • Glucose intolerance

  • Osteopenia/ osteonecrosis

  • Glaucoma

  • PUD

Cytotoxic drugs

Cytotoxic drugs

  • Used in severe corticosteroid-resistant disease or in the context of unacceptable steroid side effects

  • Cyclophosphamide has been shown to reduce progression of scarring in the kidney & reduce risk for end-stage renal failure



  • An alkylating agent; Cyclophosphamide given intravenously for prolonged periods is the current gold standard.

  • National Institution of Health Protocol:

    Cyclophosphamide 1gm/m2 every month for 6 months (Induction phase)

    Cyclophosphamide 1gm/m2 every 3 months for 2 years (Maintainance phase)

Adverse effects of cyclophosphamide

Adverse effects of Cyclophosphamide

  • Nausea and vomiting

  • Alopecia

  • Ovarian failure or azoospermia

  • Hemorrhagic cystitis, bladder fibrosis, bladder transitional or squamous CA

Monitoring for patients on ctx

Monitoring for patients on CTX

  • Regular and frequent lab evaluations to screen for:

  • bone marrow toxicity: CBC

  • monitor renal function: BUN, crea, electrolytes

  • avoid major drug-induced bladder complications: urinalysis

Other treatment options

Other treatment options

  • Azathioprine

    Long-term efficacy of azathioprine treatment for proliferative lupus nephritis

    H. C. NossentandW. Koldingsnes Department of Rheumatology, University Hospital Tromsø, Norway

  • Plasmapheresis

     The Lupus Nephritis Collaborative Study: A randomized, controlled, multicenter clinical trial (John M. Lachin, Sc.D.)

Mycophenolate mofetil


  • A new immunosuppressive drug

  • May be more effective in inducing remission than standard regimen of IV cyclophosphamide

  • Produces fewer complications than Cyclophosphamide like the loss of child-bearing ability



Marizen l lim md

Long-Term Study of MycophenolateMofetil as Continuous Induction and Maintenance Treatment for Diffuse Proliferative Lupus Nephritis (Tak-Mao Chan, et al; Feb. 23,2005)

  • Background: Mycophenolate mofetil (MMF) and the sequential use of cyclophosphamidefollowed by azathioprine (CTX-AZA) demonstrate similar short-termefficacy in the treatment of diffuse proliferative lupus nephritis(DPLN), but MMF is associated with less drug toxicity

  • Materials and Methods: Thirty-three patients wererandomized to receive MMF, and 31 were randomized to the CTX-AZAtreatment arm, both in combination with prednisolone.

Marizen l lim md

  • RESULTS: >90% in each group responded favorably (complete or partial remission)to induction treatment.

  • Serum creatinine in both groups remainedstable and comparable over time.

  • Creatinine clearance increasedsignificantly in the MMF group, but the between-group differencewas insignificant.

  • Improvements in serology and proteinuriawere comparable between the two groups.

  • A total of 6.3% in theMMF group and 10.0% of CTX-AZA–treated patients showeddoubling of baseline creatinine during follow-up (P = 0.667).

Marizen l lim md

  • Both the relapse-free survival and the hazard ratio for relapsewere similar between MMF- and CTX-AZA–treated patients(11 and nine patients relapsed, respectively) and between thosewith MMF treatment for 12 or 24 mo.

  • MMF treatment was associatedwith fewer infections and infections that required hospitalization(P = 0.013 and 0.014, respectively).

  • Four patients in the CTX-AZAgroup but none in the MMF group reached the composite end pointof end-stage renal failure or death (P = 0.062 by survival analysis).

Marizen l lim md

  • CONCLUSION: MMF and prednisolone constitute an effectivecontinuous induction-maintenance treatment for DPLN in Chinesepatients.

  • MMF-basedinduction-maintenance regimen has comparable long-term efficacyregarding renal preservation and the prevention of relapse asthe sequential CTX-AZA regimen but is associated with significantlyreduced unfavorable outcomes, in particular infection and amenorrhea

Prognosis of lupus nephritis

Prognosis of Lupus Nephritis

  • has dramatically increased over the last several decades (40% at five years in the 1950s to current survival rates of approx. 90% at 10 years)

Prognosis is good due to

Prognosis is Good due to:

  • earlier and better disease recognition with more sensitive diagnostic tests

  • earlier treatment

  • the inclusion of milder cases

  • increasingly judicious therapy and prompt treatment of complications



  • Many patients go into remission and require no treatment.

  • In one study of 667 patients, approx. 25% had remission lasting for at least a year. Remission occurred in 50% of those with disease over 18 years duration, and in 75 % of those with disease over 30 years duration

  • Remission was even seen in some patients who had had severe kidney disease

Thank you
