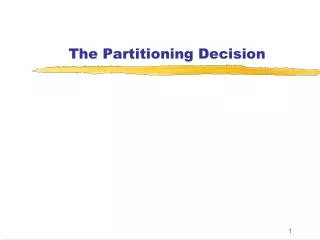

The partitioning decision

The Partitioning Decision


Partitioning hw and sw

Introduction to Embedded Systems

Partitioning HW and SW

  • Recall the beginning phase of the embedded lifecycle

  • A significant effort usually goes into partitioning the “algorithm” between the hardware components and the software components

  • Critical part of the design because mistakes made here can cause an inferior product to result

    • Software team usually tasked with picking up the pieces

  • Today, partitioning is becoming an almost seamless process

  • Tools can be used to create a generalized algorithmic solution (UML) and then partitioned into software and hardware components


Partitioning the duality of software and hardware

Introduction to Embedded Systems

Partitioning: The duality of software and hardware

  • The hardware and software in an embedded system work together to solve a problem ( algorithm )

  • The decision about how to partition the software components and the hardware components is usually dictated by speed and cost

    • Dedicated hardware is fast, inflexible and expensive

    • Reconfigurable hardware is fast, flexible and more expensive

    • Software is slower, more flexible and cheaper

ERROR

HANDLING

DATA

FORMATTING

LASER PRINTER ENGINE

ALGORITHM

DATA TO BE PRINTED

CARBON TONER ON PAPER

LASER CONTROL

MECHANICAL

CONTROL


Hw sw pro and con

Introduction to Embedded Systems

HW/SW – Pro and Con

  • Hardware solution: PRO

    • Can be factors of 10X, 100X or greater speed increase

    • Requires less processor complexity, so overall system is simpler

    • Less software design time required

    • Unless hardware bug is catastrophic, workarounds might be doable in software

  • Hardware solution: CON

    • Additional HW cost to the bill of materials

    • Additional circuit complexity (power, board space, RFI)

    • Large NRE charges (~$100K)

    • Potentially long development cycle (3 months)

    • Little or no margin for error

      • Only 50% of ASIC’s work the first time

    • IP Royalty charges

    • Hardware design tools can be very costly ($50K-$100K per seat)


Hw sw pro and con1

Introduction to Embedded Systems

HW/SW – Pro and Con

  • Software solution: PRO

    • No additional impact on materials costs, power requirements, circuit complexity

    • Bugs are easily dealt with, even in the field!

    • Software design tools are relatively inexpensive

    • Not sensitive to sales volumes

  • Software solutions: CON

    • Relative performance versus hardware is generally far inferior

    • Additional algorithmic requirements forces more processing power

      • Bigger, faster, processor(s)

      • More memory

      • Bigger power supply

    • RTOS may be necessary (royalties)

    • More uncertainty in software development schedule

    • Performance goals may not be achievable in the time available

    • Larger software development team adds to development costs


Hw sw cost analysis example

Introduction to Embedded Systems

HW/SW cost analysis example

  • Assume that we are considering the addition of an ASIC to our embedded system

  • Assume that the cost of developing the ASIC can be summarized as follows:


Hw sw cost analysis example 2

Introduction to Embedded Systems

HW/SW cost analysis example (2)

  • Development costs for a software solution

  • Summarizing the total costs


Hw sw cost analysis example 3

Introduction to Embedded Systems

HW/SW cost analysis example (3)

  • Let’s assume that the product is an ink jet printer and that we can judge the possible list price versus features

  • Question: What partitioning direction should we take?

    • Risk analysis:

      • 30% probability that ASIC will require a second pass through foundry

        • $200,000 + 2 months

      • Software teams have never come in on schedule

        • Averaged 3 month overrun for last 4 projects

      • Consumer Electronics Show is in 4 months


Partitioning hw and software

Introduction to Embedded Systems

Partitioning HW and Software

  • There has been a revolution in hardware design called Hardware Description Languages (HDL)

    • Commonly known as Verilog and VHDL

    • Like C, but includes extensions for real time and other hardware realities

    • Abstracts the design of hardware away from gates and wires to algorithms and state machines

  • Hardware design is described in HDL and then compiles to a recipe for the silicon FAB to build the circuit

    • Called Silicon Compilation

  • A single HW designer can now develop an IC that required entire teams several years ago

    • This has led to whole new concept of Systems-on-a-chip, or SOC


Asic example of hw sw duality

Introduction to Embedded Systems

ASIC - Example of HW/SW Duality

  • The HW and controlling software for an application specific integrated circuit ( ASIC ) are designed as if they were both software

  • Hardware source code ( HDL ) compiles to fabrication instructions for a silicon foundry

    • Software source code ( C, C++, JAVA, Ada, Pascal ) compilers to embedded control code ( firmware )

  • The partitioning decisions are engineering choices

  • Modern ASICs, called FPGA’s can be dynamically reconfigured


The partitioning decision

Introduction to Embedded Systems

C1

+5VDC

A1

C4

B1

A4

A

A2

B4

C

B2

A3

B

C2

B3

GND

C3

Another view of HW/SW Duality

1- LOGICAL AND STATEMENT: C is true if and only if A is true AND B is true

2- C Language Construct:

Boolean A, B, C;

C = A&&B;

3- Gate Level HW Design

7408 Device

4- Verilog Language Construct:

regC;

wireA,B;

assign C = A&B;


The partitioning decision

Introduction to Embedded Systems

Another view of HW/SW Duality(2)

2- C Language Construct:

Boolean A, B, C;

C = A&&B;

C Compiler/Assembler/Linker/Loader

Algorithm implements

the AND function

Software Implementation

4- Verilog Language Construct:

regC;

wireA,B;

assign C = A&B;

Verilog Compiler/IC Design Library/IC fabrication

Hardware created

To implement AND

Hardware Implementation


Asic a system on chip soc

Introduction to Embedded Systems

ASIC: a System-On-Chip ( SOC )

FIRMWARE

Embedded

Microprocessor

ASIC

Commercially

available

“devices” ( IP )

Analog I/O

User designed

elements

Digital I/O


Hardware design at the gate level

Introduction to Embedded Systems

Hardware design at the gate level


Hardware design in vhdl

Introduction to Embedded Systems

Hardware design in VHDL


New hw sw design flow

Introduction to Embedded Systems

New HW/SW design flow

Iterate Software

SW Process

Compile to

Object code

Design Algorithm

Write C/C++ Code

Write stub-code

to simulate HW

Integrate

Co-design

Phase

  • Define the IP

  • Partition IP between

  • HW and SW

Design Algorithm

Write HDL Code

( Dialect of C )

Write test vectors

Run Simulations

Compile to Si

foundry database

HW Process

Re-spin the ASIC

The differences between the process of designing hardware (ASIC )

and the process of designing software are disappearing

Key Point


What if

Introduction to Embedded Systems

What if…..?

  • Suppose it was possible to eliminate the distinction between designing embedded hardware and embedded software

  • Could focus on the algorithmic solution and let the partitioning be a natural consequence of the design

  • Many of the barriers to effective development would be eliminated

    • No more, Throw it over the wall!

  • Would design hardware and software at a higher level of abstraction

  • Let’s first define Abstraction Level


The partitioning decision

Introduction to Embedded Systems

Abstraction layers ( software )

User Interface ( Command )

Operating System ( RTOS )

Application

Software Driver ( Firmware or BIOS )

Physical Hardware


The future of embedded systems

Introduction to Embedded Systems

Processor plus ASIC

System-on-Chip

The Future of Embedded Systems

Embedded system on a board

0.35 u process technology > 106 gates

0.18 u process technology > 4x106 gates


Systems on slicon soc or sos

Introduction to Embedded Systems

Systems on Slicon ( SOC or SOS )

  • Natural evolution of embedded systems is towards higher level of integration

    • Increased functionality per $

    • More flexibility

    • All HW and SW stays as IP until physical device is fabricated

  • Size of SOC market was $6B in 1998, $16B in 2002

    System-level integration of software and hardware virtual components is the

    single biggest challenge engineers will face in the next decade. Pioneers in the

    automotive and digital communications industries are paving the way with their

    efforts to develop a competency in hardware and software co-design.

    Electronic system-level design, especially the task of hardware/software design

    and partitioning, has become the primary cause of schedule delays.

    -Gary Smith, Principal Analyst, Dataquest


Uml and co design

Introduction to Embedded Systems

UML and Co-design

  • Two new technologies have emerged that address this desire to focus on the algorithm and not the partition

    • Unified Modeling Language (UML)

      • iLogix, ObjecTime, Cadence, CoWare

    • HW/SW Codesign

      • Synopsys, Mentor Graphics, VAST

  • UML products, such as Statemate and Rhapsody (iLogix) and Co-design products, such as Seamless ( Mentor Graphics ) blur the distinction between hardware and software

  • Output of UML tool is C++ application code and/or VHDL code

    • Partition decisions are made by which code is generated

  • Objective: Design the algorithm in an implementation independent way

    • Let the automatic code generator do the grunt work


Unified modeling language

Introduction to Embedded Systems

Unified Modeling Language

  • UML is a way to represent the finite-state behavior of an embedded system:

    A finite state machine is an abstract machine that defines a

    set of conditions of existence ( called “states” ), a set of

    behaviors or actions performed in each of these states, and a

    set of events that cause changes in states according to a finite

    and well-defined rule set.

  • Consider some examples of a finite state machine

    • Vending machine

    • Gas pump

    • Flight control system


Vending machine example of a state machine

Introduction to Embedded Systems

Vending machine example of a state machine

  • UML would attempt to model the state machine behavior of the embedded system.

  • Automatic Code Generation (ACG) methods could generate HDL or C++ code for the actual design implementation


The partitioning decision

Introduction to Embedded Systems

UML State Chart representation

uP 1

uP 2

DMA

uP 3

uP 4

Actors

Shared

Memory

DMA Transaction

T1

T2

TIME

T3

Deposit message

T4

Interrupt req.

Interrupt Ack.

T5

T6

Retrieve Message

T7

T8

T9

T10

Bus request

Bus acknowledge

Denotes start or flow of an event. Color tracks thread ID.

Denotes the end of event.


Codevelopment design flow

Introduction to Embedded Systems

Codevelopment design flow

Iterate Software

SW Process

  • Design Algorithm

  • Write C/C++ Code

  • Compile to Object

  • code

  • Write stub-code

  • to simulate HW

  • System Design

  • Move partitions

  • What if….

  • Simulate bus loading

  • Co-verification

  • Exercise SW

  • Generate Vectors

  • Validate Interfaces

Co-design

Phase

Integrate

  • Define the IP

  • Partition IP between HW

  • and SW

  • Design Algorithm

  • Write HDL Code

  • ( Dialect of C )

  • Compile to Si

  • foundry database

  • Write test vectors

  • Run Simulations

Re-spin the ASIC

HW Process

The distinctions between the process of designing hardware

and the process of designing software are blurring

Key Point


Typical embedded system design cycle

Introduction to Embedded Systems

Typical Embedded System Design Cycle

  • Debuggers

  • Compilers

  • RTOS

  • Spreadsheets

  • C Models

  • Domain - Specific

  • ESDA Tools

  • Post-release support tools??

Software Development

Architect &

Specify

Maintenance

Integrate & Test

Protos

Enhancement

Hardware Development

  • In-Circuit Emulators

  • ROM Monitors

  • EDA SW Tools

  • ASIC Emulators


Hw sw co verification

Introduction to Embedded Systems

HW/SW Co-verification

  • After a design is partitioned and separate HW and SW development is proceeding, how do you know that you’ll get it right?

    • Re-spinning an ASIC is costly

    • Fixing a problem in software will reduce performance

  • HW/SW Co-verification focuses on validating the correctness of the design across the HW/SW interface


Where design time is spent

Introduction to Embedded Systems

Where design time is spent

System

Specification

& Design

HW & SW

Design/Debug

Prototype

Debug

System

Test

31%

37%

20%

12%

51% of Time

Source: Dataquest

Cost to fix

a problem

Maintenance

and upgrade


Virtual prototypes the big win

Introduction to Embedded Systems

Virtual prototypes - the big win

Integrating software and hardware before the

prototypes are built

FCS

Conventional

Design Cycle

Software Development

Specification

Protos

Integrate & Test

Hardware Development

Shortened

Design Cycle

With HW / SW

Co-design

Verification

Time

Savings

Software Development

Specification

Integrate & Test

Hardware Development

Protos

First Customer Shipments

(FCS)


Incremental hw sw integration

Introduction to Embedded Systems

Incremental HW/SW Integration

Specification

Early iterations

Partition

Develop Algorithms

HDL

Develop Algorithms

C or C++

Unit testing - Vectors

Unit testing - Stub code

Co-verification

HW System Simulate

“SW team is done”

Team builds object code

Synthesis/Layout/Fab

ASIC Spin

Fix it in SW

Integration

Maintenance & upgrade


Hdl simulation

Introduction to Embedded Systems

HDL Simulation

  • For each clock cycle

    • Read in state of all input pins

    • Recalculate the state of all internal nodes

      • Check for timing errors, race conditions, illegal connections

    • Output the new state of all output pins

    • Update the user’s display

  • Can be a very slow process for complex designs

    • 10s to 100s of clock cycles per second

  • Too slow for realtime software co-development

    • BRIGHT IDEA!: Let software run as fast as it can, independently of the HW simulation

      • Only slow it down when it needs to access the virtual HW

      • Create a “wrapper function” that converts software to a form that is compatible with the HW simulator


Convert bus cycles to vectors

Introduction to Embedded Systems

V1

V3

V7

V5

V2

V6

V4

CLK

ADDR ( 0..31)

0xFF7F00A6

ADDR_VALID*

DATA ( 0..31)

0x4567ABFF

DATA_VALID

WRITE*

Convert bus cycles to vectors

int *ptr;

ptr = (int *)0xFF7F00A6;

*ptr = 0x4567ABFF;

Or more obscure C:

*(unsigned int* ) 0xFF7F00A6

= 0x4567ABFF;

or assembly language:

MOVE.L #$4567ABFF,D0

MOVE.L D0,$FF7F00A6

HDL WRAPPER

V1, V2, V3, V4, V5, V6, V7

C Converter

To HDL Simulator

BUS FUNCTIONAL MODEL

ADDR = 0xFF7F00A6

DATA = 0x4567ABFF


The partitioning decision

Introduction to Embedded Systems

I/O Density: Key metric in determining throughput*

I/O Density ( percent )

Software type

RTOS 0.1 - 1.0

Application 1.0 - 5.0

Driver 1.0 - 10.0

Diagnostic 10.0 - 15.0

Initialization 10.0 - 25.0

* Courtesy of Mike Stanbro, Synopsys, Inc.


Calculating system throughput

Introduction to Embedded Systems

m

fSW

= average number of clock

cycles per instruction

= ISS or real CPU clock frequency

fHW

Ttr

= transit time from the SW execution environment

to the simulator and back

= HW simulator clock frequency

d

= I/o density, ie, average fraction of

instructions going to the HW simulation

n

= average # of ISS or CPU clock cycles per bus cycle

Calculating System Throughput

The average elapsed time per instruction, Ttp, is given by:

Ttp = mfHW ( 1 - d ) + fSWfHWdTtr+fSWnd

fHWfSW

The average throughput , or number of instructions

per second, Ftp, is given by Ftp = 1 /Ttp

where,


The partitioning decision

Introduction to Embedded Systems

Plotting the results in Excel


Design technologies

Introduction to Embedded Systems

Design Technologies

  • Automation: synthesis

  • Verification: hardware/software co-simulation

  • Reuse: intellectual property cores

  • Design process models


Introduction

Introduction to Embedded Systems

Introduction

  • Design task

    • Define system functionality

    • Convert functionality to physical implementation while

      • Satisfying constrained metrics

      • Optimizing other design metrics

  • Designing embedded systems is hard

    • Complex functionality

      • Millions of possible environment scenarios

      • Competing, tightly constrained metrics

    • Productivity gap

      • As low as 10 lines of code or 100 transistors produced per day


Improving productivity

Introduction to Embedded Systems

Specification

Automation

Verification

Reuse

Implementation

Improving productivity

  • Design technologies developed to improve productivity

  • We focus on technologies advancing hardware/software unified view

    • Automation

      • Program replaces manual design

      • Synthesis

    • Reuse

      • Predesigned components

      • Cores

      • General-purpose and single-purpose processors on single IC

    • Verification

      • Ensuring correctness/completeness of each design step

      • Hardware/software co-simulation


Automation synthesis

Introduction to Embedded Systems

The codesign ladder

Sequential program code (e.g., C, VHDL)

Behavioral synthesis

(1990s)

Compilers

(1960s,1970s)

Register transfers

RT synthesis

(1980s, 1990s)

Assembly instructions

Logic equations / FSM's

Assemblers, linkers

(1950s, 1960s)

Logic synthesis

(1970s, 1980s)

Machine instructions

Logic gates

Implementation

Microprocessor plus program bits

VLSI, ASIC, or PLD implementation

Automation: synthesis

  • Early design mostly hardware

  • Software complexity increased with advent of general-purpose processor

  • Different techniques for software design and hardware design

    • Caused division of the two fields

  • Design tools evolve for higher levels of abstraction

    • Different rate in each field

  • Hardware/software design fields rejoining

    • Both can start from behavioral description in sequential program model

    • 30 years longer for hardware design to reach this step in the ladder

      • Many more design dimensions

      • Optimization critical


Hardware software parallel evolution

Introduction to Embedded Systems

The codesign ladder

Sequential program code (e.g., C, VHDL)

Behavioral synthesis

(1990s)

Compilers

(1960s,1970s)

Register transfers

RT synthesis

(1980s, 1990s)

Assembly instructions

Logic equations / FSM's

Assemblers, linkers

(1950s, 1960s)

Logic synthesis

(1970s, 1980s)

Machine instructions

Logic gates

Implementation

Microprocessor plus program bits

VLSI, ASIC, or PLD implementation

Hardware/software parallel evolution

  • Software design evolution

    • Machine instructions

    • Assemblers

      • convert assembly programs into machine instructions

    • Compilers

      • translate sequential programs into assembly

  • Hardware design evolution

    • Interconnected logic gates

    • Logic synthesis

      • converts logic equations or FSMs into gates

    • Register-transfer (RT) synthesis

      • converts FSMDs into FSMs, logic equations, predesigned RT components (registers, adders, etc.)

    • Behavioral synthesis

      • converts sequential programs into FSMDs


Increasing abstraction level

Introduction to Embedded Systems

idea

idea

back-of-the-envelope

modeling cost increases

opportunities decrease

sequential program

register-transfers

logic

implementation

implementation

(b)

(a)

Increasing abstraction level

  • Higher abstraction level focus of hardware/software design evolution

    • Description smaller/easier to capture

      • E.g., Line of sequential program code can translate to 1000 gates

    • Many more possible implementations available

      • (a) Like flashlight, the higher above the ground, the more ground illuminated

        • Sequential program designs may differ in performance/transistor count by orders of magnitude

        • Logic-level designs may differ by only power of 2

      • (b) Design process proceeds to lower abstraction level, narrowing in on single implementation


Synthesis

Introduction to Embedded Systems

Synthesis

  • Automatically converting system’s behavioral description to a structural implementation

    • Complex whole formed by parts

    • Structural implementation must optimize design metrics

  • More expensive, complex than compilers

    • Cost = $100s to $10,000s

    • User controls 100s of synthesis options

    • Optimization critical

      • Otherwise could use software

    • Optimizations different for each user

    • Run time = hours, days


Gajski s y chart

Introduction to Embedded Systems

Behavior

Structural

Processors, memories

Sequential programs

Registers, FUs, MUXs

Register transfers

Gates, flip-flops

Logic equations/FSM

Transistors

Transfer functions

Cell Layout

Modules

Chips

Boards

Physical

Gajski’s Y-chart

  • Each axis represents type of description

    • Behavioral

      • Defines outputs as function of inputs

      • Algorithms but no implementation

    • Structural

      • Implements behavior by connecting components with known behavior

    • Physical

      • Gives size/locations of components and wires on chip/board

  • Synthesis converts behavior at given level to structure at same level or lower

    • E.g.,

      • FSM → gates, flip-flops (same level)

      • FSM → transistors (lower level)

      • FSM X registers, FUs (higher level)

      • FSM X processors, memories (higher level)


Logic synthesis

Introduction to Embedded Systems

Logic synthesis

  • Logic-level behavior to structural implementation

    • Logic equations and/or FSM to connected gates

  • Combinational logic synthesis

    • Two-level minimization (Sum of products/product of sums)

      • Best possible performance

        • Longest path = 2 gates (AND gate + OR gate/OR gate + AND gate)

      • Minimize size

        • Minimum cover

        • Minimum cover that is prime

        • Heuristics

    • Multilevel minimization

      • Trade performance for size

      • Pareto-optimal solution

        • Heuristics

  • FSM synthesis

    • State minimization

    • State encoding


Two level minimization

Introduction to Embedded Systems

Sum of products

F = abc'd' + a'b'cd + a'bcd + ab'cd

a

b

c

F

d

Direct implementation

4 4-input AND gates and

1 4-input OR gate

→40 transistors

Two-level minimization

  • Represent logic function as sum of products (or product of sums)

    • AND gate for each product

    • OR gate for each sum

  • Gives best possible performance

    • At most 2 gate delay

  • Goal: minimize size

    • Minimum cover

      • Minimum # of AND gates (sum of products)

    • Minimum cover that is prime

      • Minimum # of inputs to each AND gate (sum of products)


Minimum cover

Introduction to Embedded Systems

Minimum cover

  • Minimum # of AND gates (sum of products)

  • Literal: variable or its complement

    • a or a’, b or b’, etc.

  • Minterm: product of literals

    • Each literal appears exactly once

      • abc’d’, ab’cd, a’bcd, etc.

  • Implicant: product of literals

    • Each literal appears no more than once

      • abc’d’, a’cd, etc.

    • Covers 1 or more minterms

      • a’cd covers a’bcd and a’b’cd

  • Cover: set of implicants that covers all minterms of function

  • Minimum cover: cover with minimum # of implicants


Minimum cover k map approach

Introduction to Embedded Systems

cd

ab

00

01

11

10

0

0

1

0

00

0

0

1

0

01

1

0

0

0

11

0

0

1

0

10

cd

ab

00

01

11

10

0

0

1

0

00

0

0

1

0

01

1

0

0

0

11

0

0

1

0

10

a

b

F

c

d

Minimum cover: K-map approach

  • Karnaugh map (K-map)

    • 1 represents minterm

    • Circle represents implicant

  • Minimum cover

    • Covering all 1’s with min # of circles

    • Example: direct vs. min cover

      • Less gates

        • 4 vs. 5

      • Less transistors

        • 28 vs. 40

K-map: sum of products

K-map: minimum cover

Minimum cover

F=abc'd' + a'cd + ab'cd

Minimum cover implementation

2 4-input AND gate

1 3-input AND gates

1 4 input OR gate

→28 transistors


Minimum cover that is prime

Introduction to Embedded Systems

K-map: minimum cover that is prime

cd

ab

00

01

11

10

0

0

1

0

00

0

0

1

0

01

1

0

0

0

11

Minimum cover that is prime

0

0

1

0

10

F=abc'd' + a'cd + b'cd

a

b

F

c

Implementation

d

1 4-input AND gate

2 3-input AND gates

1 4 input OR gate

→26 transistors

Minimum cover that is prime

  • Minimum # of inputs to AND gates

  • Prime implicant

    • Implicant not covered by any other implicant

    • Max-sized circle in K-map

  • Minimum cover that is prime

    • Covering with min # of prime implicants

    • Min # of max-sized circles

    • Example: prime cover vs. min cover

      • Same # of gates

        • 4 vs. 4

      • Less transistors

        • 26 vs. 28


Minimum cover heuristics

Introduction to Embedded Systems

Minimum cover: heuristics

  • K-maps give optimal solution every time

    • Functions with > 6 inputs too complicated

    • Use computer-based tabular method

      • Finds all prime implicants

      • Finds min cover that is prime

      • Also optimal solution every time

      • Problem: 2n minterms for n inputs

        • 32 inputs = 4 billion minterms

        • Exponential complexity

  • Heuristic

    • Solution technique where optimal solution not guaranteed

    • Hopefully comes close


Heuristics iterative improvement

Introduction to Embedded Systems

Heuristics: iterative improvement

  • Start with initial solution

    • i.e., original logic equation

  • Repeatedly make modifications toward better solution

  • Common modifications

    • Expand

      • Replace each nonprime implicant with a prime implicant covering it

      • Delete all implicants covered by new prime implicant

    • Reduce

      • Opposite of expand

    • Reshape

      • Expands one implicant while reducing another

      • Maintains total # of implicants

    • Irredundant

      • Selects min # of implicants that cover from existing implicants

  • Synthesis tools differ in modifications used and the order they are used


Multilevel logic minimization

Introduction to Embedded Systems

Multilevel logic minimization

  • Trade performance for size

    • Increase delay for lower # of gates

    • Gray area represents all possible solutions

    • Circle with X represents ideal solution

      • Generally not possible

    • 2-level gives best performance

      • max delay = 2 gates

      • Solve for smallest size

    • Multilevel gives pareto-optimal solution

      • Minimum delay for a given size

      • Minimum size for a given delay

multi-level minim.

delay

2-level minim.

size


Example

Introduction to Embedded Systems

2-level minimized

a

d

b

e

F

c

f

g

h

multilevel minimized

a

b

c

d

e

f

F

g

h

Example

  • Minimized 2-level logic function:

    • F = adef + bdef + cdef + gh

    • Requires 5 gates with 18 total gate inputs

      • 4 ANDS and 1 OR

  • After algebraic manipulation:

    • F = (a + b + c)def + gh

    • Requires only 4 gates with 11 total gate inputs

      • 2 ANDS and 2 ORs

    • Less inputs per gate

    • Assume gate inputs = 2 transistors

      • Reduced by 14 transistors

        • 36 (18 * 2) down to 22 (11 * 2)

    • Sacrifices performance for size

      • Inputs a, b, and c now have 3-gate delay

  • Iterative improvement heuristic commonly used


Fsm synthesis

Introduction to Embedded Systems

FSM synthesis

  • FSM to gates

  • State minimization

    • Reduce # of states

      • Identify and merge equivalent states

        • Outputs, next states same for all possible inputs

        • Tabular method gives exact solution

          • Table of all possible state pairs

          • If n states, n2 table entries

          • Thus, heuristics used with large # of states

  • State encoding

    • Unique bit sequence for each state

    • If n states, log2(n) bits

    • n! possible encodings

    • Thus, heuristics common


Technology mapping

Introduction to Embedded Systems

Technology mapping

  • Library of gates available for implementation

    • Simple

      • only 2-input AND,OR gates

    • Complex

      • various-input AND,OR,NAND,NOR,etc. gates

      • Efficiently implemented meta-gates (i.e., AND-OR-INVERT,MUX)

  • Final structure consists of specified library’s components only

  • If technology mapping integrated with logic synthesis

    • More efficient circuit

    • More complex problem

    • Heuristics required


Complexity impact on user

Introduction to Embedded Systems

Complexity impact on user

  • As complexity grows, heuristics used

  • Heuristics differ tremendously among synthesis tools

    • Computationally expensive

      • Higher quality results

      • Variable optimization effort settings

      • Long run times (hours, days)

      • Requires huge amounts of memory

      • Typically needs to run on servers, workstations

    • Fast heuristics

      • Lower quality results

      • Shorter run times (minutes, hours)

      • Smaller amount of memory required

      • Could run on PC

  • Super-linear-time (i.e. n3) heuristics usually used

    • User can partition large systems to reduce run times/size

    • 1003 > 503 + 503 (1,000,000 > 250,000)


Integrating logic design and physical design

Introduction to Embedded Systems

Wire

Transistor

Delay

Reduced feature size

Integrating logic design and physical design

  • Past

    • Gate delay much greater than wire delay

    • Thus, performance evaluated as # of levels of gates only

  • Today

    • Gate delay shrinking as feature size shrinking

    • Wire delay increasing

      • Performance evaluation needs wire length

    • Transistor placement (needed for wire length) domain of physical design

    • Thus, simultaneous logic synthesis and physical design required for efficient circuits


Register transfer synthesis

Introduction to Embedded Systems

Register-transfer synthesis

  • Converts FSMD to custom single-purpose processor

    • Datapath

      • Register units to store variables

        • Complex data types

      • Functional units

        • Arithmetic operations

      • Connection units

        • Buses, MUXs

    • FSM controller

      • Controls datapath

    • Key sub problems:

      • Allocation

        • Instantiate storage, functional, connection units

      • Binding

        • Mapping FSMD operations to specific units


Behavioral synthesis

Introduction to Embedded Systems

Behavioral synthesis

  • High-level synthesis

  • Converts single sequential program to single-purpose processor

    • Does not require the program to schedule states

  • Key sub problems

    • Allocation

    • Binding

    • Scheduling

      • Assign sequential program’s operations to states

      • Conversion template given in Ch. 2

  • Optimizations important

    • Compiler

      • Constant propagation, dead-code elimination, loop unrolling

    • Advanced techniques for allocation, binding, scheduling


System synthesis

Introduction to Embedded Systems

System synthesis

  • Convert 1 or more processes into 1 or more processors (system)

    • For complex embedded systems

      • Multiple processes may provide better performance/power

      • May be better described using concurrent sequential programs

  • Tasks

    • Transformation

      • Can merge 2 exclusive processes into 1 process

      • Can break 1 large process into separate processes

      • Procedure inlining

      • Loop unrolling

    • Allocation

      • Essentially design of system architecture

        • Select processors to implement processes

        • Also select memories and busses


System synthesis1

Introduction to Embedded Systems

System synthesis

  • Tasks (cont.)

    • Partitioning

      • Mapping 1 or more processes to 1 or more processors

      • Variables among memories

      • Communications among buses

    • Scheduling

      • Multiple processes on a single processor

      • Memory accesses

      • Bus communications

    • Tasks performed in variety of orders

    • Iteration among tasks common


System synthesis2

Introduction to Embedded Systems

System synthesis

  • Synthesis driven by constraints

    • E.g.,

      • Meet performance requirements at minimum cost

        • Allocate as much behavior as possible to general-purpose processor

          • Low-cost/flexible implementation

        • Minimum # of SPPs used to meet performance

  • System synthesis for GPP only (software)

    • Common for decades

      • Multiprocessing

      • Parallel processing

      • Real-time scheduling

  • Hardware/software codesign

    • Simultaneous consideration of GPPs/SPPs during synthesis

    • Made possible by maturation of behavioral synthesis in 1990’s


Temporal vs spatial thinking

Introduction to Embedded Systems

Temporal vs. spatial thinking

  • Design thought process changed by evolution of synthesis

  • Before synthesis

    • Designers worked primarily in structural domain

      • Connecting simpler components to build more complex systems

        • Connecting logic gates to build controller

        • Connecting registers, MUXs, ALUs to build datapath

    • “capture and simulate” era

      • Capture using CAD tools

      • Simulate to verify correctness before fabricating

    • Spatial thinking

      • Structural diagrams

      • Data sheets


Temporal vs spatial thinking1

Introduction to Embedded Systems

Temporal vs. spatial thinking

  • After synthesis

    • “describe-and-synthesize” era

    • Designers work primarily in behavioral domain

    • “describe and synthesize” era

      • Describe FSMDs or sequential programs

      • Synthesize into structure

    • Temporal thinking

      • States or sequential statements have relationship over time

  • Strong understanding of hardware structure still important

    • Behavioral description must synthesize to efficient structural implementation


Verification

Introduction to Embedded Systems

Verification

  • Ensuring design is correct and complete

    • Correct

      • Implements specification accurately

    • Complete

      • Describes appropriate output to all relevant input

  • Formal verification

    • Hard

    • For small designs or verifying certain key properties only

  • Simulation

    • Most common verification method


Formal verification

Introduction to Embedded Systems

Formal verification

  • Analyze design to prove or disprove certain properties

  • Correctness example

    • Prove ALU structural implementation equivalent to behavioral description

      • Derive Boolean equations for outputs

      • Create truth table for equations

      • Compare to truth table from original behavior

  • Completeness example

    • Formally prove elevator door can never open while elevator is moving

      • Derive conditions for door being open

      • Show conditions conflict with conditions for elevator moving


Simulation

Introduction to Embedded Systems

Simulation

  • Create computer model of design

    • Provide sample input

    • Check for acceptable output

  • Correctness example

    • ALU

      • Provide all possible input combinations

      • Check outputs for correct results

  • Completeness example

    • Elevator door closed when moving

      • Provide all possible input sequences

      • Check door always closed when elevator moving


Increases confidence

Introduction to Embedded Systems

Increases confidence

  • Simulating all possible input sequences impossible for most systems

    • E.g., 32-bit ALU

      • 232 * 232 = 264 possible input combinations

      • At 1 million combinations/sec

      • ½ million years to simulate

      • Sequential circuits even worse

  • Can only simulate tiny subset of possible inputs

    • Typical values

    • Known boundary conditions

      • E.g., 32-bit ALU

        • Both operands all 0’s

        • Both operands all 1’s

  • Increases confidence of correctness/completeness

  • Does not prove


Advantages over physical implementation

Introduction to Embedded Systems

Advantages over physical implementation

  • Controllability

    • Control time

      • Stop/start simulation at any time

    • Control data values

      • Inputs or internal values

  • Observability

    • Examine system/environment values at any time

  • Debugging

    • Can stop simulation at any point and:

      • Observe internal values

      • Modify system/environment values before restarting

    • Can step through small intervals (i.e., 500 nanoseconds)


Disadvantages

Introduction to Embedded Systems

Disadvantages

  • Simulation setup time

    • Often has complex external environments

    • Could spend more time modeling environment than system

  • Models likely incomplete

    • Some environment behavior undocumented if complex environment

    • May not model behavior correctly

  • Simulation speed much slower than actual execution

    • Sequentializing parallel design

      • IC: gates operate in parallel

      • Simulation: analyze inputs, generate outputs for each gate 1 at time

    • Several programs added between simulated system and real hardware

      • 1 simulated operation:

        • = 10 to 100 simulator operations

        • = 100 to 10,000 operating system operations

        • = 1,000 to 100,000 hardware operations


Simulation speed

Introduction to Embedded Systems

1

IC

1 hour

10

FPGA

1 day

100

4 days

hardware emulation

1000

throughput model

1.4 months

10000

instruction-set simulation

1.2 years

100,000

cycle-accurate simulation

12 years

1,000,000

register-transfer-level HDL simulation

>1 lifetime

10,000,000

gate-level HDL simulation

1 millennium

Simulation speed

  • Relative speeds of different types of simulation/emulation

    • 1 hour actual execution of SOC

      • = 1.2 years instruction-set simulation

      • = 10,000,000 hours gate-level simulation


Overcoming long simulation time

Introduction to Embedded Systems

Overcoming long simulation time

  • Reduce amount of real time simulated

    • 1 msec execution instead of 1 hour

      • 0.001sec * 10,000,000 = 10,000 sec = 3 hours

    • Reduced confidence

      • 1 msec of cruise controller operation tells us little

  • Faster simulator

    • Emulators

      • Special hardware for simulations

    • Less precise/accurate simulators

      • Exchange speed for observability/controllability


Reducing precision accuracy

Introduction to Embedded Systems

Reducing precision/accuracy

  • Don’t need gate-level analysis for all simulations

    • E.g., cruise control

      • Don’t care what happens at every input/output of each logic gate

    • Simulating RT components ~10x faster

    • Cycle-based simulation ~100x faster

      • Accurate at clock boundaries only

      • No information on signal changes between boundaries

  • Faster simulator often combined with reduction in real time

    • If willing to simulate for 10 hours

      • Use instruction-set simulator

      • Real execution time simulated

        • 10 hours * 1 / 10,000

        • = 0.001 hour

        • = 3.6 seconds


Hardware software co simulation

Introduction to Embedded Systems

Hardware/software co-simulation

  • Variety of simulation approaches exist

    • From very detailed

      • E.g., gate-level model

    • To very abstract

      • E.g., instruction-level model

  • Simulation tools evolved separately for hardware/software

    • Recall separate design evolution

    • Software (GPP)

      • Typically with instruction-set simulator (ISS)

    • Hardware (SPP)

      • Typically with models in HDL environment

  • Integration of GPP/SPP on single IC creating need for merging simulation tools


Integrating gpp spp simulations

Introduction to Embedded Systems

Integrating GPP/SPP simulations

  • Simple/naïve way

    • HDL model of microprocessor

      • Runs system software

      • Much slower than ISS

      • Less observable/controllable than ISS

    • HDL models of SPPs

    • Integrate all models

  • Hardware-software co-simulator

    • ISS for microprocessor

    • HDL model for SPPs

    • Create communication between simulators

    • Simulators run separately except when transferring data

    • Faster

    • Though, frequent communication between ISS and HDL model slows it down


Minimizing communication

Introduction to Embedded Systems

Minimizing communication

  • Memory shared between GPP and SPPs

    • Where should memory go?

    • In ISS

      • HDL simulator must stall for memory access

    • In HDL?

      • ISS must stall when fetching each instruction

  • Model memory in both ISS and HDL

    • Most accesses by each model unrelated to other’s accesses

      • No need to communicate these between models

    • Co-simulator ensures consistency of shared data

    • Huge speedups (100x or more) reported with this technique


Emulators

Introduction to Embedded Systems

Emulators

  • General physical device system mapped to

    • Microprocessor emulator

      • Microprocessor IC with some monitoring, control circuitry

    • SPP emulator

      • FPGAs (10s to 100s)

    • Usually supports debugging tasks

  • Created to help solve simulation disadvantages

    • Mapped relatively quickly

      • Hours, days

    • Can be placed in real environment

      • No environment setup time

      • No incomplete environment

    • Typically faster than simulation

      • Hardware implementation


Disadvantages1

Introduction to Embedded Systems

Disadvantages

  • Still not as fast as real implementations

    • E.g., emulated cruise-control may not respond fast enough to keep control of car

  • Mapping still time consuming

    • E.g., mapping complex SOC to 10 FPGAs

      • Just partitioning into 10 parts could take weeks

  • Can be very expensive

    • Top-of-the-line FPGA-based emulator: $100,000 to $1mill

    • Leads to resource bottleneck

      • Can maybe only afford 1 emulator

      • Groups wait days, weeks for other group to finish using


Reuse intellectual property cores

Introduction to Embedded Systems

Reuse: intellectual property cores

  • Commercial off-the-shelf (COTS) components

    • Predesigned, prepackaged ICs

    • Implements GPP or SPP

    • Reduces design/debug time

    • Have always been available

  • System-on-a-chip (SOC)

    • All components of system implemented on single chip

    • Made possible by increasing IC capacities

    • Changing the way COTS components sold

      • As intellectual property (IP) rather than actual IC

        • Behavioral, structural, or physical descriptions

        • Processor-level components known as cores

      • SOC built by integrating multiple descriptions


Cores

Introduction to Embedded Systems

Behavior

Structural

Processors, memories

Sequential programs

Registers, FUs, MUXs

Register transfers

Gates, flip-flops

Logic equations/FSM

Transistors

Transfer functions

Cell Layout

Modules

Chips

Boards

Physical

Cores

  • Soft core

    • Synthesizable behavioral description

    • Typically written in HDL (VHDL/Verilog)

  • Firm core

    • Structural description

    • Typically provided in HDL

  • Hard core

    • Physical description

    • Provided in variety of physical layout file formats

Gajski’s Y-chart


Advantages disadvantages of hard core

Introduction to Embedded Systems

Advantages/disadvantages of hard core

  • Ease of use

    • Developer already designed and tested core

      • Can use right away

      • Can expect to work correctly

  • Predictability

    • Size, power, performance predicted accurately

  • Not easily mapped (retargeted) to different process

    • E.g., core available for vendor X’s 0.25 micrometer CMOS process

      • Can’t use with vendor X’s 0.18 micrometer process

      • Can’t use with vendor Y


Advantages disadvantages of soft firm cores

Introduction to Embedded Systems

Advantages/disadvantages of soft/firm cores

  • Soft cores

    • Can be synthesized to nearly any technology

    • Can optimize for particular use

      • E.g., delete unused portion of core

        • Lower power, smaller designs

    • Requires more design effort

    • May not work in technology not tested for

    • Not as optimized as hard core for same processor

  • Firm cores

    • Compromise between hard and soft cores

      • Some retargetability

      • Limited optimization

      • Better predictability/ease of use


New challenges to processor providers

Introduction to Embedded Systems

New challenges to processor providers

  • Cores have dramatically changed business model

    • Pricing models

      • Past

        • Vendors sold product as IC to designers

        • Designers must buy any additional copies

          • Could not (economically) copy from original

      • Today

        • Vendors can sell as IP

        • Designers can make as many copies as needed

      • Vendor can use different pricing models

        • Royalty-based model

          • Similar to old IC model

          • Designer pays for each additional model

        • Fixed price model

          • One price for IP and as many copies as needed

        • Many other models used


Ip protection

Introduction to Embedded Systems

IP protection

  • Past

    • Illegally copying IC very difficult

      • Reverse engineering required tremendous, deliberate effort

      • “Accidental” copying not possible

  • Today

    • Cores sold in electronic format

      • Deliberate/accidental unauthorized copying easier

      • Safeguards greatly increased

      • Contracts to ensure no copying/distributing

      • Encryption techniques

        • limit actual exposure to IP

      • Watermarking

        • determines if particular instance of processor was copied

        • whether copy authorized


New challenges to processor users

Introduction to Embedded Systems

New challenges to processor users

  • Licensing arrangements

    • Not as easy as purchasing IC

    • More contracts enforcing pricing model and IP protection

      • Possibly requiring legal assistance

  • Extra design effort

    • Especially for soft cores

      • Must still be synthesized and tested

      • Minor differences in synthesis tools can cause problems

  • Verification requirements more difficult

    • Extensive testing for synthesized soft cores and soft/firm cores mapped to particular technology

      • Ensure correct synthesis

      • Timing and power vary between implementations

    • Early verification critical

      • Cores buried within IC

      • Cannot simply replace bad core


Design process model

Introduction to Embedded Systems

Waterfall design model

Behavioral

Structural

Physical

Spiral design model

Structural

Behavioral

Physical

Design process model

  • Describes order that design steps are processed

    • Behavior description step

    • Behavior to structure conversion step

    • Mapping structure to physical implementation step

  • Waterfall model

    • Proceed to next step only after current step completed

  • Spiral model

    • Proceed through 3 steps in order but with less detail

    • Repeat 3 steps gradually increasing detail

    • Keep repeating until desired system obtained

    • Becoming extremely popular (hardware & software development)


Waterfall method

Introduction to Embedded Systems

Waterfall design model

Behavioral

Structural

Physical

Waterfall method

  • Not very realistic

    • Bugs often found in later steps that must be fixed in earlier step

      • E.g., forgot to handle certain input condition

    • Prototype often needed to know complete desired behavior

      • E.g, customer adds features after product demo

    • System specifications commonly change

      • E.g., to remain competitive by reducing power, size

        • Certain features dropped

  • Unexpected iterations back through 3 steps cause missed deadlines

    • Lost revenues

    • May never make it to market


Spiral method

Introduction to Embedded Systems

Spiral design model

Structural

Behavioral

Physical

Spiral method

  • First iteration of 3 steps incomplete

  • Much faster, though

    • End up with prototype

      • Use to test basic functions

      • Get idea of functions to add/remove

    • Original iteration experience helps in following iterations of 3 steps

  • Must come up with ways to obtain structure and physical implementations quickly

    • E.g., FPGAs for prototype

      • silicon for final product

    • May have to use more tools

      • Extra effort/cost

  • Could require more time than waterfall method

    • If correct implementation first time with waterfall


General purpose processor design models

Introduction to Embedded Systems

General-purpose processor design models

  • Previous slides focused on SPPs

  • Can apply equally to GPPs

    • Waterfall model

      • Structure developed by particular company

      • Acquired by embedded system designer

      • Designer develops software (behavior)

      • Designer maps application to architecture

        • Compilation

        • Manual design

    • Spiral-like model

      • Beginning to be applied by embedded system designers


Spiral like model

Introduction to Embedded Systems

Y-chart

Architecture

Application(s)

Mapping

Analysis

Spiral-like model

  • Designer develops or acquires architecture

  • Develops application(s)

  • Maps application to architecture

  • Analyzes design metrics

  • Now makes choice

    • Modify mapping

    • Modify application(s) to better suit architecture

    • Modify architecture to better suit application(s)

      • Not as difficult now

        • Maturation of synthesis/compilers

        • IPs can be tuned

  • Continue refining to lower abstraction level until particular implementation chosen


  • Login
