Measuring the mobility of organic thin films

Measuring the mobility of organic thin films. Johannes Vanpaemel. Outline. Introduction Theory Results Conclusion Planning. Introduction: Aim. Obtain the charge carrier mobility of organic films from their I-V characteristics Hole-only Electron-only

jemima
Download Presentation

Measuring the mobility of organic thin films

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Johannes Vanpaemel imec confidential 2009

  2. Measuring the mobility of organic thin films Johannes Vanpaemel

  3. Outline • Introduction • Theory • Results • Conclusion • Planning

  4. Introduction: Aim • Obtain the charge carrier mobility of organic films from their I-V characteristics • Hole-only • Electron-only • Sandwich organic layer between two electrodes • Choice of electrodes depends on their function • Inject/block a specific carrier Johannes Vanpaemel imec confidential 2010

  5. Introduction : Current density • By applying a voltage over an organic layer, an electric field is formed within • Current density J is induced in layer • Built-inpotential drop Vbiacrosslayerdue to differenceworkfunctions

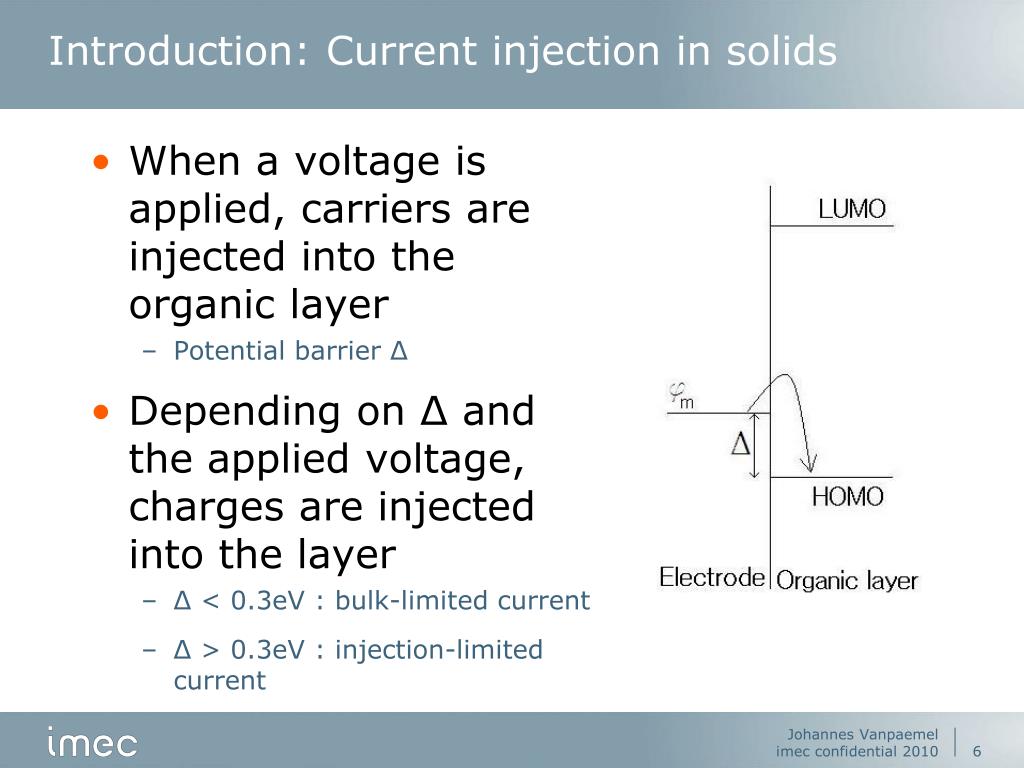

  6. Introduction: Current injection in solids • When a voltage is applied, carriers are injected into the organic layer • Potential barrier Δ • Depending on Δ and the applied voltage, charges are injected into the layer • Δ < 0.3eV : bulk-limited current • Δ > 0.3eV : injection-limited current Johannes Vanpaemel imec confidential 2010

  7. Theory: I-V Characteristics (Δ < 0.3eV) • Typically, two regimes are discerned • Linear @ low voltages (Regime 1) • Quadratic (Regime 2) • deviates @ higher voltages • Cross-over point Vx • Depends on built-in voltage, thickness layer, thermal free carriers Johannes Vanpaemel imec confidential 2010

  8. Theory: Equations • Due to the high electric field (thin films) only the drift current is considered: • μ : mobility • n(x) : charge carrier concentration • E(x) : electric field • The electric field obeys the Poisson’s equation • ε : dielectric constant Johannes Vanpaemel imec confidential 2010

  9. Theory: Ohmic Regime (at low voltage) • Injection charge negligible compared to thermal charge • Electric field is nearly uniform (Poisson) • Current continuity equation yields • J : current density [J/m2] • µ : the mobility [m2/Vs] • n0 : thermal charge density [m-3] • L : thickness organic layer [m] Johannes Vanpaemel imec confidential 2010

  10. Theory: Space-charge limited current (SCLC) • Above cross-over voltage Vx, ninj dominates n0 • Electric field alters due to space charge • Simultaneous solving Poisson’s equation and the current continuity equation yields • ε : dielectric constant [F/m] Johannes Vanpaemel imec confidential 2010

  11. Theory: Poole-Frenkel (PF) mobility • At high electric fields (E>104 V/cm), the mobility is field dependent • µ0 : zero-field mobility [m2/Vs] • γ : field activation parameter [(m/V)1/2] • E : electric field [V/m] • Exact solution by simultaneously solving Poisson, current continuity and PF equation • No analytical solution possible • Need for an approximation Johannes Vanpaemel imecconfidential 2010

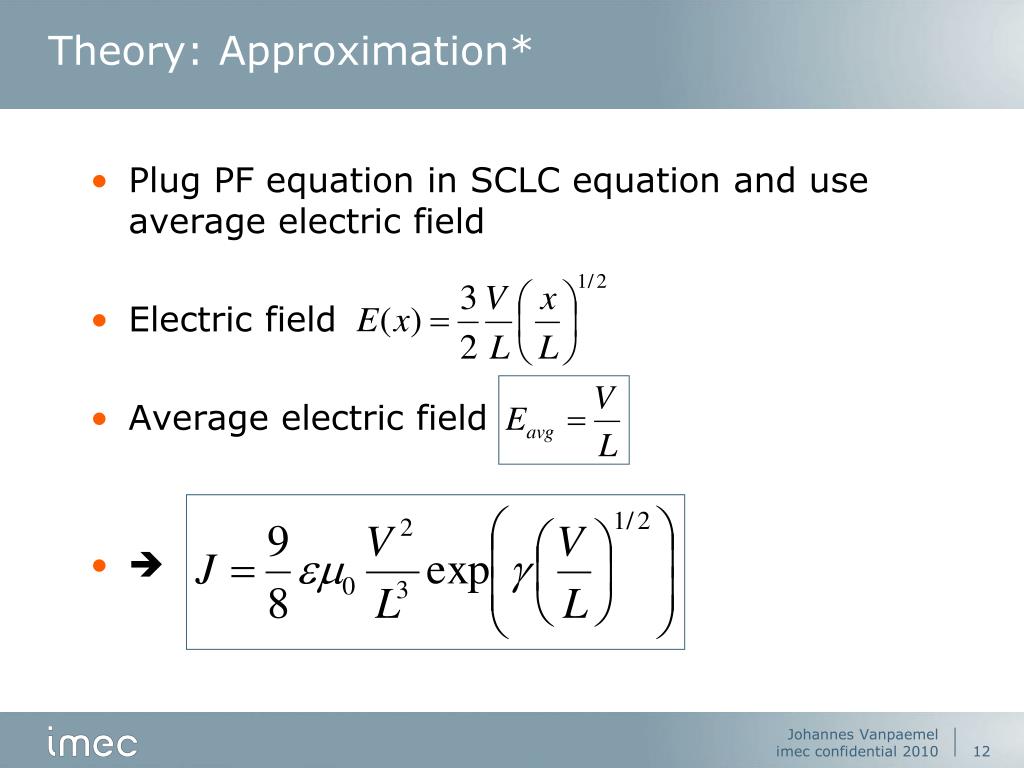

  12. Theory: Approximation* • Plug PF equation in SCLC equation and use average electric field • Electric field • Average electric field •  Johannes Vanpaemel imec confidential 2010

  13. Theory: Fitting • Goal: Obtainμ0 and γ • εr=ε/ε0 is set to 3 • Applied voltage needs to becorrectedbyVbi • Notpossible to determineexperimentally @ IMEC • Strategy: optimizearchitecture in order thatVbi = 0 V • Thickness is determinedbyquartzcrystal • Calibratedbymeans of ellipsometry

  14. c Johannes Vanpaemel imec confidential 2009

  15. c Johannes Vanpaemel imec confidential 2009

  16. x Johannes Vanpaemel imec confidential 2009

  17. Thickness dependent symmetry • c Johannes Vanpaemel imec confidential 2009

  18. ITO/PEDOT:PSS/MoOx(5nm)/CuPc(100nm)/MoOx(5nm)/Au(100nm) • c Johannes Vanpaemel imec confidential 2009

  19. Results: ITO(UV ozone)/CuPc/Au(100nm) • Vbi = 0.5V used to obtain I-V characteristics • Below 0.8V, measurements show a large fluctuation (not shown in graph) • Reverse bias shows injection limited current Johannes Vanpaemel imec confidential 2010

  20. Results: ITO(UV ozone)/CuPc/Au(100nm) • Thickness dependence corrected for PF factor • After correction, dependence shows L-3behaviour as expected from the formula for SCLC Johannes Vanpaemel imec confidential 2009

  21. Results: ITO(oxygen plasma)/CuPc/Au(100nm) • SCLC with Vbi= 0.5V • Φm(ITO UV ozone) = 4.73eV • Φm(ITO ox.pl.) = 4.79eV • Thickness dependence after correction not L-3 • Is it space charge limited? • Good fits and comparable results with ITO(UV ozone) Johannes Vanpaemel imec confidential 2010

  22. Results: AFM ITO(UV ozone)

  23. Resuls: Thickness issues • Quartz crystal in Lesker system gives an average value of the thickness • However, AFM measurements show a rough surface morphology • What is the correct electrical thickness and how can it be measured? • Strategy : introduce interlayer to reduce the surface roughness • e.g. PEDOT:PSS is smoother than ITO Johannes Vanpaemel imec confidential 2010

  24. Results: AFM picture PEDOT:PSS/CuPc

  25. Results: ITO/PEDOT:PSS/CuPc/.../Au(100nm) • I-V does not fit well with SCLC equation • Large variation in obtained μ0 and Vbi • PEDOT:PSS is not a good hole injector • Introduce injection layer on top of PEDOT:PSS Johannes Vanpaemel imec confidential 2010

  26. Results: ITO/MoOx(5nm)/CuPc/Au(100nm) • Comparable results as obtained with ITO • Vbi is equal to that with ITO on the bottom • MoOx injects as well as ITO • Reported work function 5.3-5.5 eV • Suitable candidate for injection interlayer Johannes Vanpaemel imec confidential 2010

  27. Results: ITO/PEDOT:PSS/MoOx(5nm)/CuPc/Au(100nm) • I-V characteristics are similar as without PEDOT:PSS layer • Rms of surface is 6.8nm • Roughness at bottom diminished by PEDOT:PSS • Crystalline growth of CuPc inevitably results in rough surface at the top Johannes Vanpaemel imec confidential 2010

  28. Results: ITO(UV ozone)/CuPc/MoOx(5nm)/Au(100nm) • No Vbi due to introduction of MoOx interlayer • Reduction of a fitting parameter • I-V curve shows quasi-antisymmetricbehaviour Johannes Vanpaemel imec confidential 2010

  29. Results: Comparison with literature • M

  30. Conclusion Johannes Vanpaemel imec confidential 2010

  31. Planning • Thickness dependence J-V • Investigate temperature dependence of parameters • Find a way to determine the electrical thickness • Influence of thickness can be relatively large (L3) • Electron-only devices Johannes Vanpaemel imec confidential 2010

  32. Johannes Vanpaemel imec confidential 2009

  33. Built-in voltage Vbi • Difference between the workfunction of the two electrodes • At metal/organic interface, surface dipoles are observed, which can alter the effective workfunction • Not able to determine experimentally @ IMEC • Applied voltage has to be corrected by Vbi • Strategy : optimize architecture to obtain Vbi = 0V Johannes Vanpaemel imec confidential 2010 33

  34. Measuring I-V characteristics Surface resistance ITO ~20 Ω/□ Voltage drop over ITO significant when J > 102 A/m2 Johannes Vanpaemel imec confidential 2010 34
