Presentation Transcript


Atv rendezvous mission 1 jules verne

ATV RendezvousMission 1: Jules Verne

Brian Rishikof

Odyssey Space Research

281-488-7953

March 24, 2004

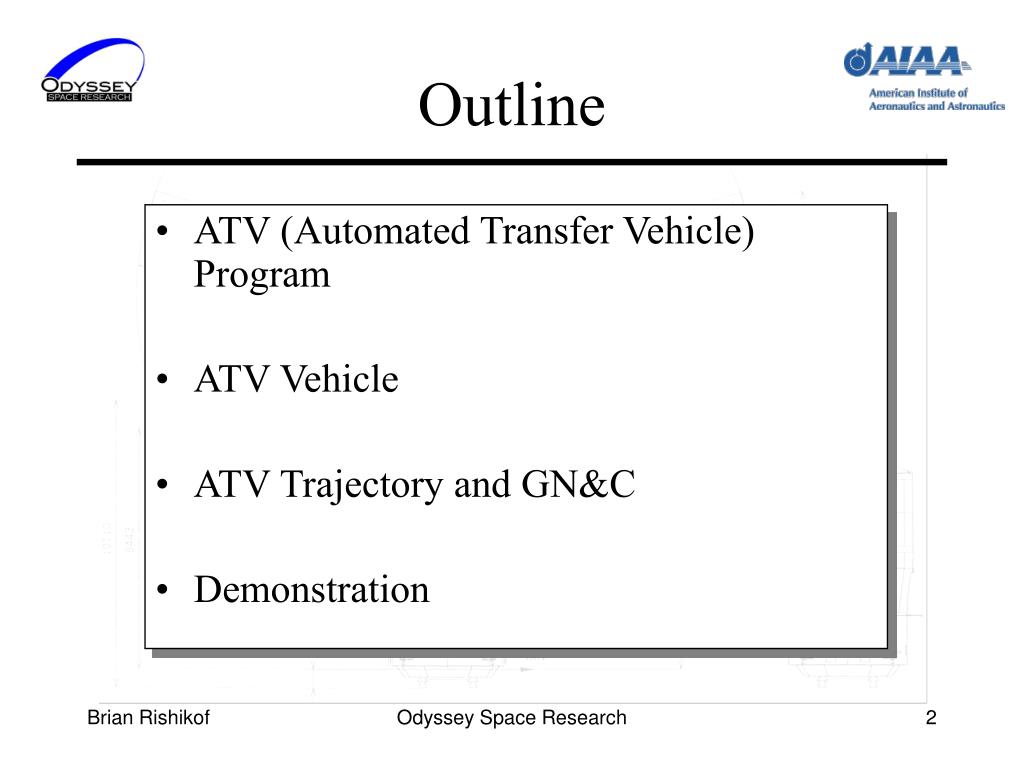

Outline

Outline

  • ATV (Automated Transfer Vehicle) Program

  • ATV Vehicle

  • ATV Trajectory and GN&C

  • Demonstration

Odyssey Space Research

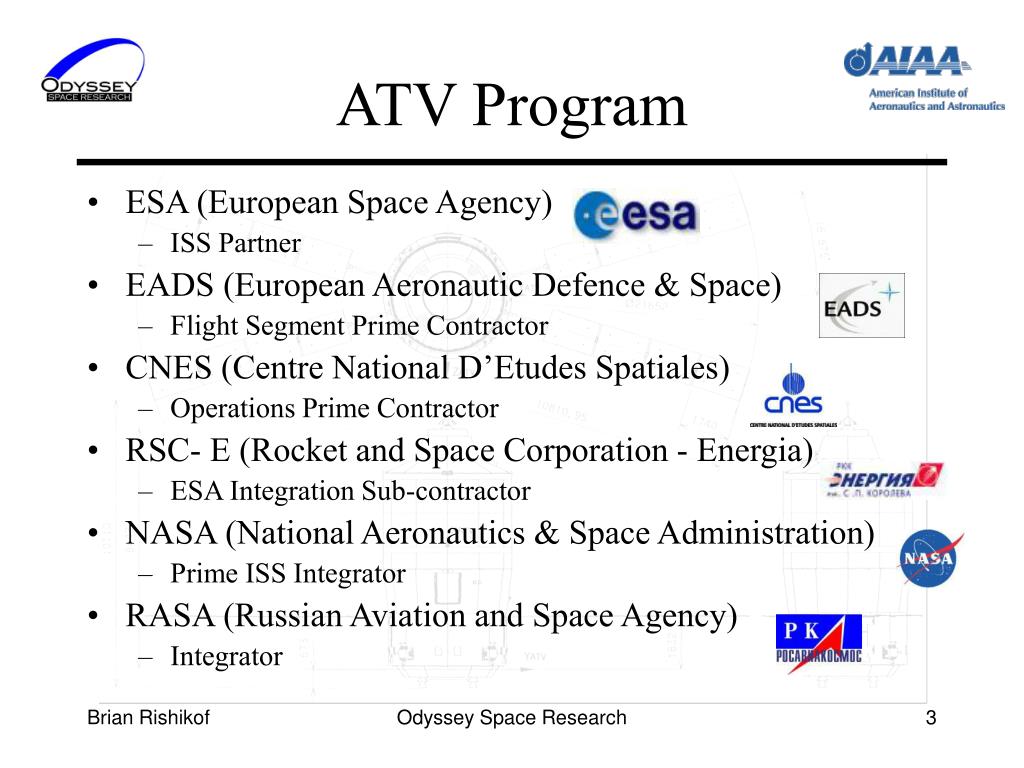

Atv program

ATV Program

  • ESA (European Space Agency)

    • ISS Partner

  • EADS (European Aeronautic Defence & Space)

    • Flight Segment Prime Contractor

  • CNES (Centre National D’Etudes Spatiales)

    • Operations Prime Contractor

  • RSC- E (Rocket and Space Corporation - Energia)

    • ESA Integration Sub-contractor

  • NASA (National Aeronautics & Space Administration)

    • Prime ISS Integrator

  • RASA (Russian Aviation and Space Agency)

    • Integrator

Odyssey Space Research


Atv international

ATV International

Korolev(Moscow)

MCC-HHouston

MCC-M

Moscow

ESTEC

Noordwijk(Amsterdam)

ATV-CC

Toulouse

Les Mureaux

(Paris)

Odyssey Space Research


Atv rendezvous mission 1 jules verne

ITAR

  • International Traffic in Arms Regulations

    • ATV has been designated as a “defense article”

    • Subject to Export Control restrictions

    • Complicates support

  • Perils of International cooperation

Odyssey Space Research


Atv mission

ATV Mission

  • Dock to ISS Service Module aft

  • Deliver Cargo

    • Russian Water

    • Fuel

    • Gases

    • Other

  • ISS Propulsion

    • Reboost

    • Attitude control

    • Debris avoidance

Odyssey Space Research

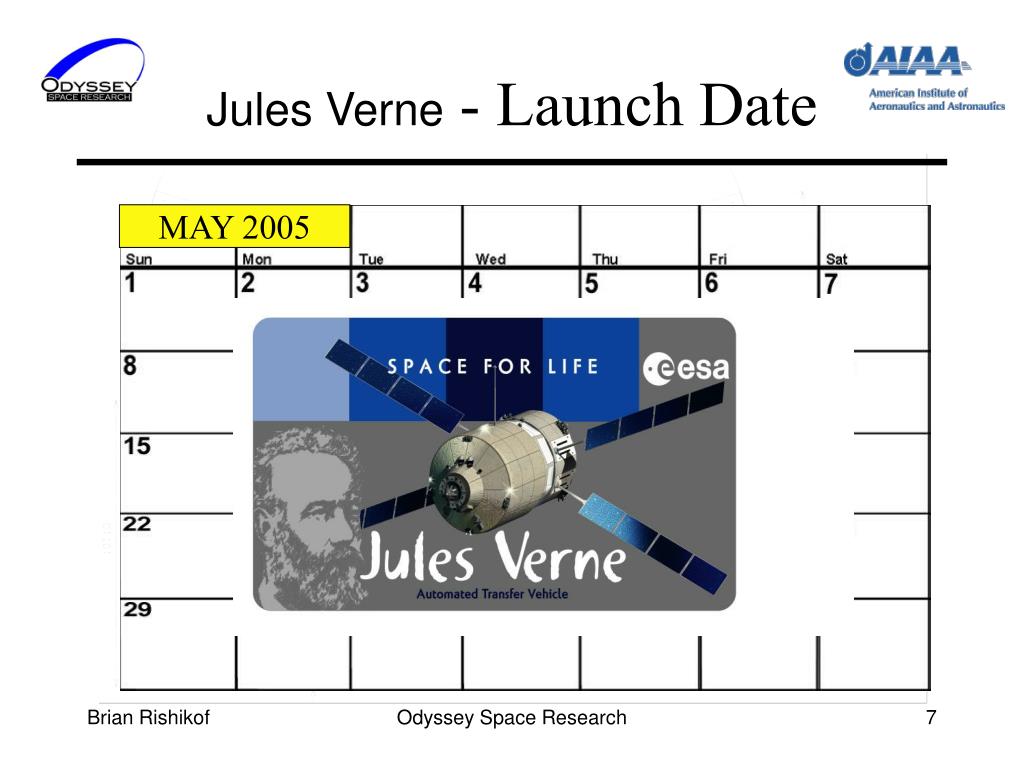

Jules verne launch date

MAY 2005

Jules Verne - Launch Date

Odyssey Space Research

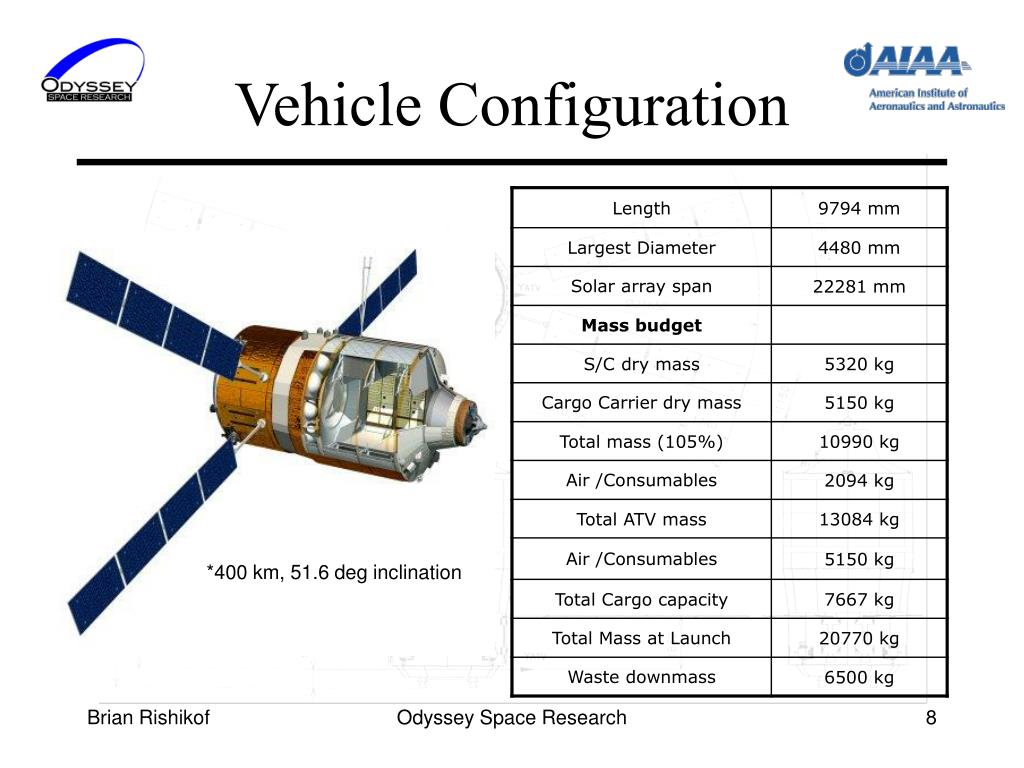

Vehicle configuration

Vehicle Configuration

*400 km, 51.6 deg inclination

Odyssey Space Research

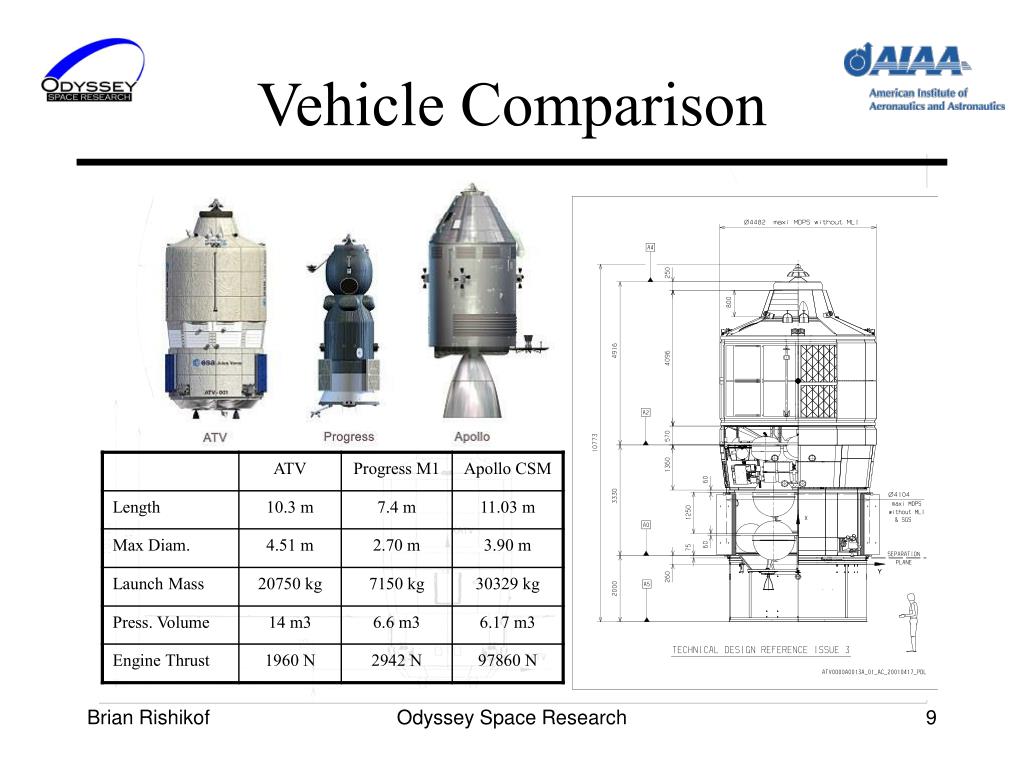

Vehicle comparison

Vehicle Comparison

Odyssey Space Research


Vehicle systems

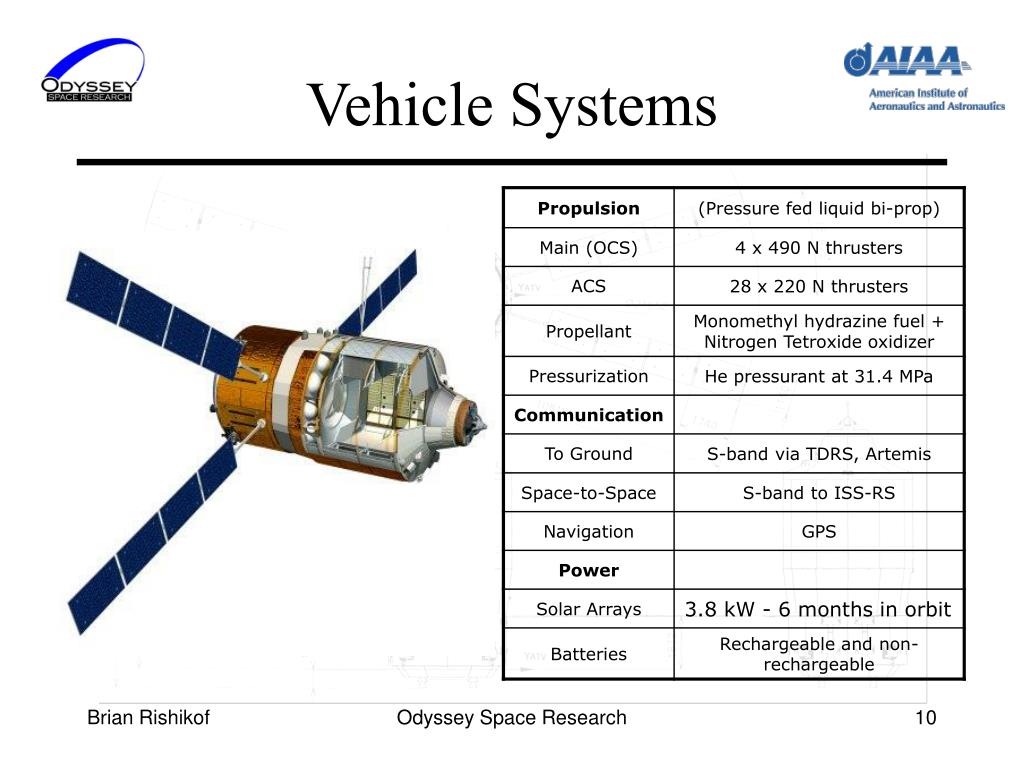

Vehicle Systems

Odyssey Space Research


Communication

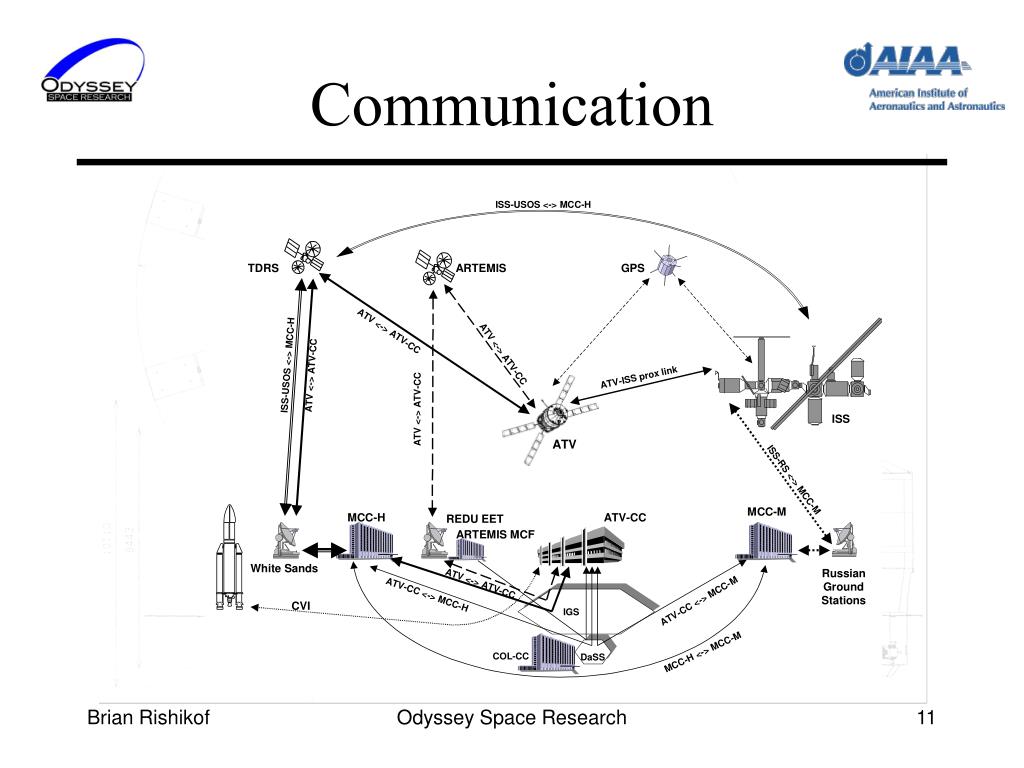

Communication

Odyssey Space Research


Rendezvous safety rqmnts

Rendezvous Safety Rqmnts

  • “1 Fail Op”

  • “2 Fail Safe”

  • 24 hour safe free-drift trajectory

  • Approach Ellipsoid

    • 2 km x 2 km x 4 km

  • Keep Out Sphere (KOS)

    • 200 m sphere

Odyssey Space Research


Rendezvous constraints

Rendezvous Constraints

  • Russian Ground Station Visibility

  • ISS attitude and array feathering limits

    • ATV/ISS: Communication

    • ATV/ISS: Common GPS satellites and visibility

    • ISS: Power

    • ISS configuration dependent

  • Lighting for visual monitoring

  • Lighting for sensors

  • Power

Odyssey Space Research


Atv trajectory 1 2

Fixed Phasing Duration

~ 7.3 hours

AI

3.5 km

Variable Phasing Duration

49 - 97 hours

Fixed Initial Drift

~ 3 hours

KOS

AE

V-Bar

S-S Comm

S2

Phase 6

Phase 5

Phase 4

Phase 3

Phase 2

Phase 1

S-1/2

S1

R-Bar

S0

dV6

0.5 rev

>20 min

>10 min

S-1

S-2

dV4

dV5

S-3

dVMC12

MC  ATV-CC computes Mid-Course transfers dVMC11 and dVMC12

S-4  ATV-CC computes dV3 and dV4

S-3  ground computes dV5 and dV6

S-2  reference point; half orbit after dV6

S-1  point where 1st correction (trim) maneuver is initiated; 1 orbit after S-2

S-1/2  phasing targeted point; 1 orbit after S-1

dV3

S-4

dV2

dVMC11

MC

dV1

CAM test 1

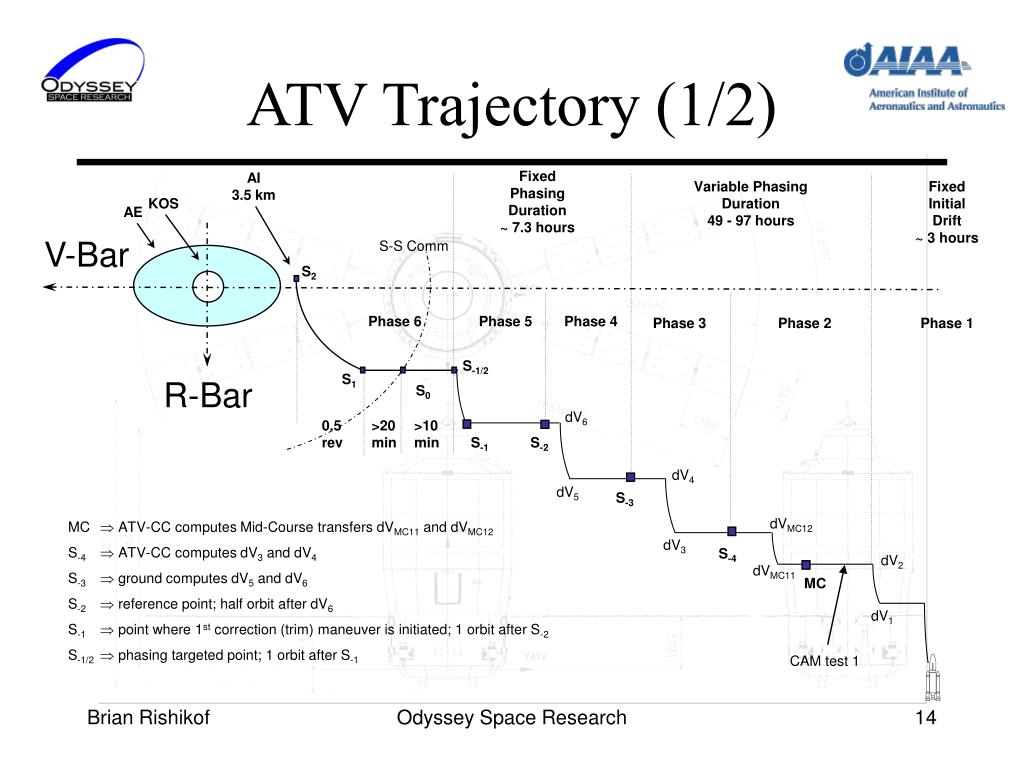

ATV Trajectory (1/2)

Odyssey Space Research


Atv trajectory 2 2

Omni-directional Space-to-Space

Comm Range (~3km)

Directional Space-to-Space

Comm Range (~30km)

250 m

KOS

AE

V-Bar

AI

3.5 km

S3

S2

40 min

~5 km

Decision Point

45 min

S0

S1

S-1/2

R-Bar

S41

12m

S4

20m

>10 min

>20 min

S3

Start RGPS Navigation

Transition to VDM

Transition to VDM Relative Attitude

Absolute GPS Navigation

Crew Visual Assessment

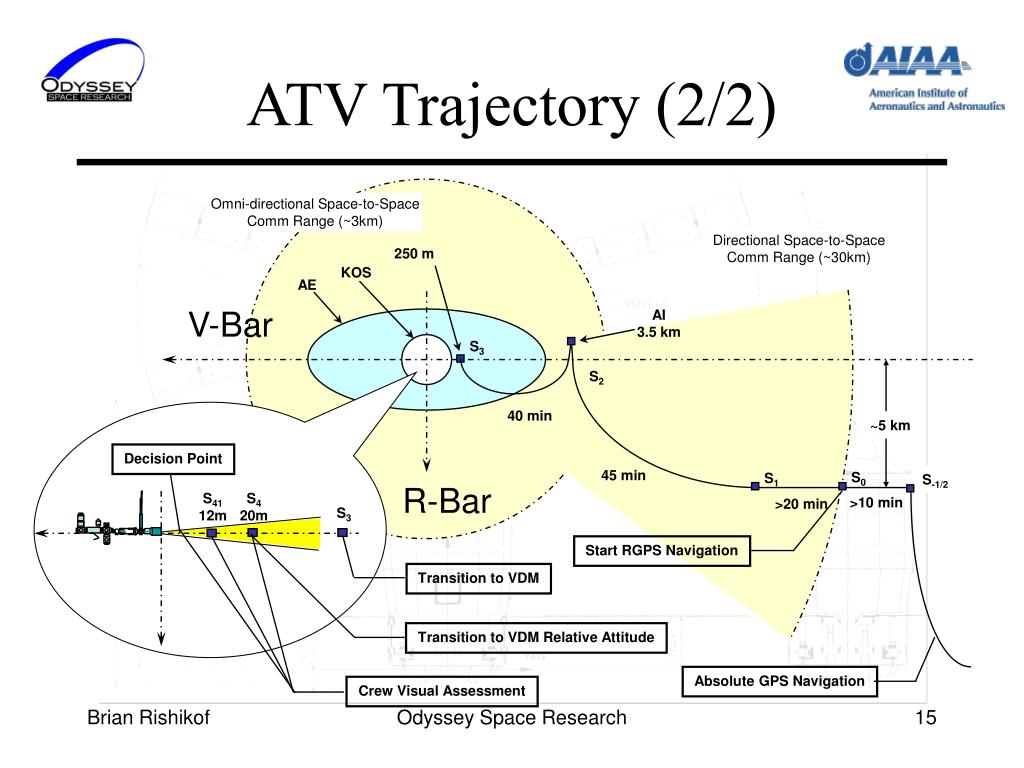

ATV Trajectory (2/2)

Odyssey Space Research


Atv navigation

2x GPS receivers/antennas

AGPS

RGPS

3x 2-axis accelerometers

4x 2-axis gyros

KURS

Range + range rate

2x Videometers

Range (range rate) & LOS

relative attitude

2x Telegoniometers

Range (range rate) & LOS

PRIME

MONITORING

SENSORS

AGPS

RGPS

KURS

TGM

VDM

VDM+ Rel Att

USOS Cameras

SM Camera

DOCKING

10 cm

1 m

10 m

100 m

1 km

10 km

100 km

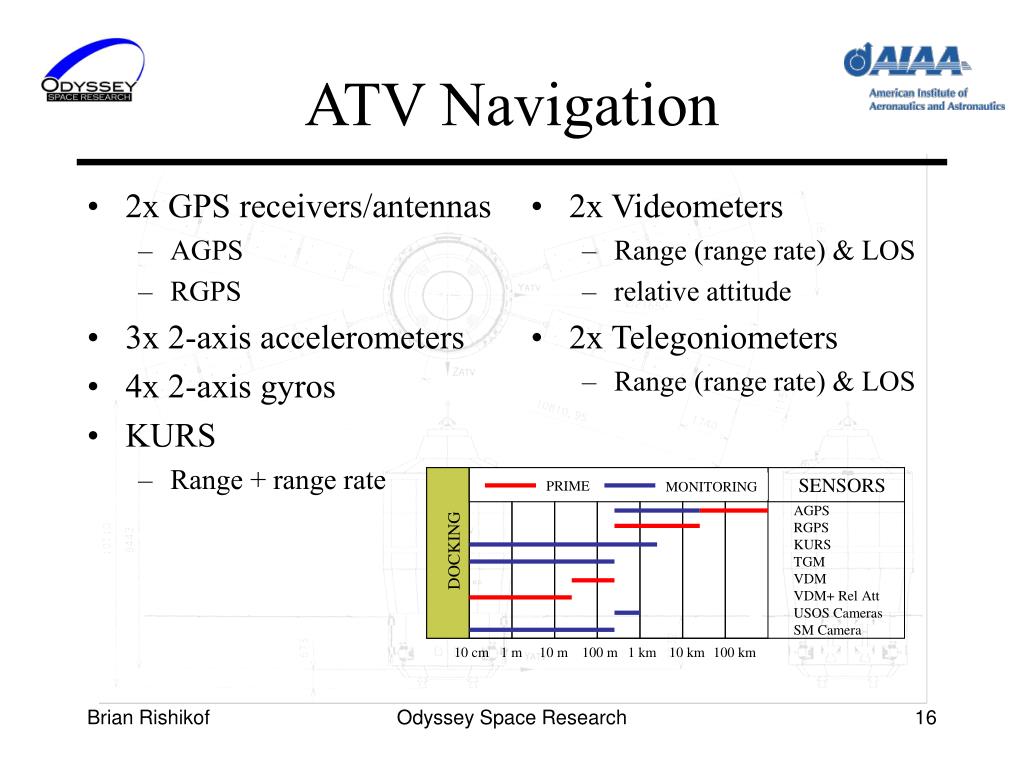

ATV Navigation

Odyssey Space Research


Atv control

S

4b

S

41

S

4a

V

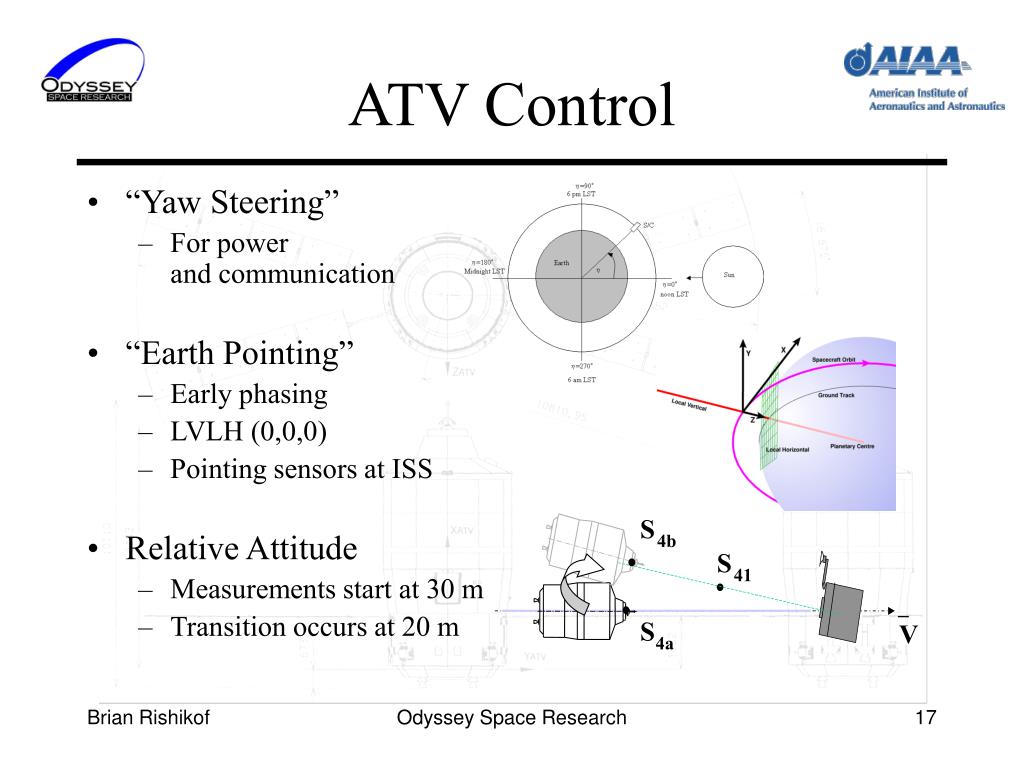

ATV Control

  • “Yaw Steering”

    • For power and communication

  • “Earth Pointing”

    • Early phasing

    • LVLH (0,0,0)

    • Pointing sensors at ISS

  • Relative Attitude

    • Measurements start at 30 m

    • Transition occurs at 20 m

Odyssey Space Research

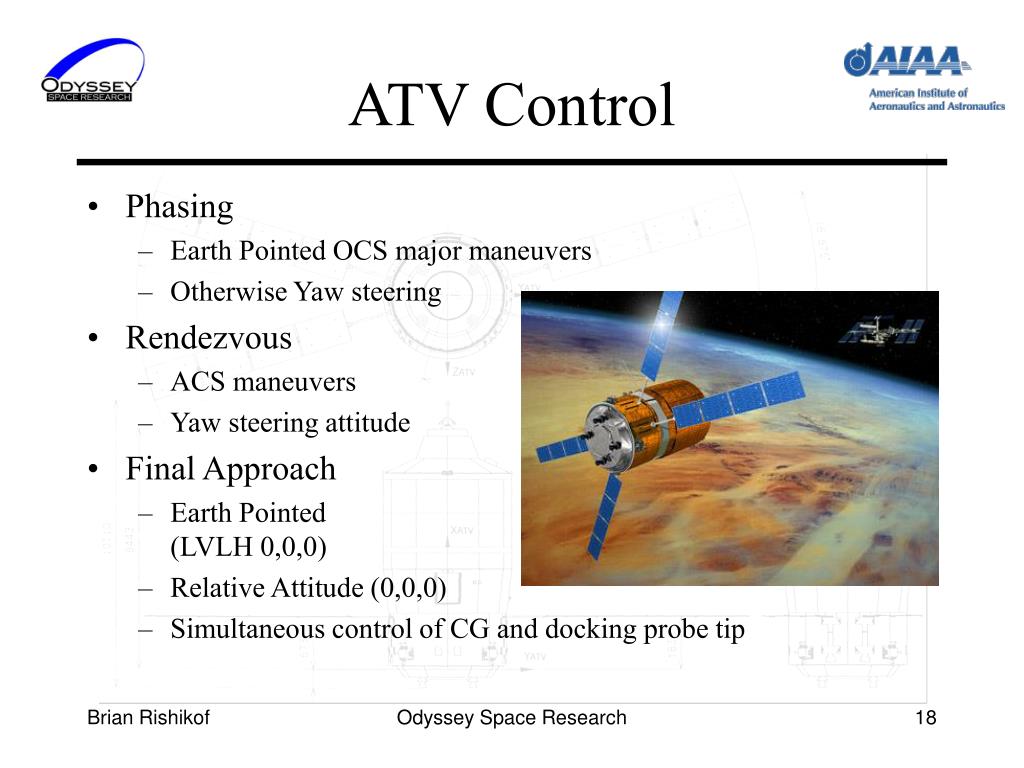

Atv control1

ATV Control

  • Phasing

    • Earth Pointed OCS major maneuvers

    • Otherwise Yaw steering

  • Rendezvous

    • ACS maneuvers

    • Yaw steering attitude

  • Final Approach

    • Earth Pointed (LVLH 0,0,0)

    • Relative Attitude (0,0,0)

    • Simultaneous control of CG and docking probe tip

Odyssey Space Research


Atv guidance

ATV Guidance

Odyssey Space Research


Safety

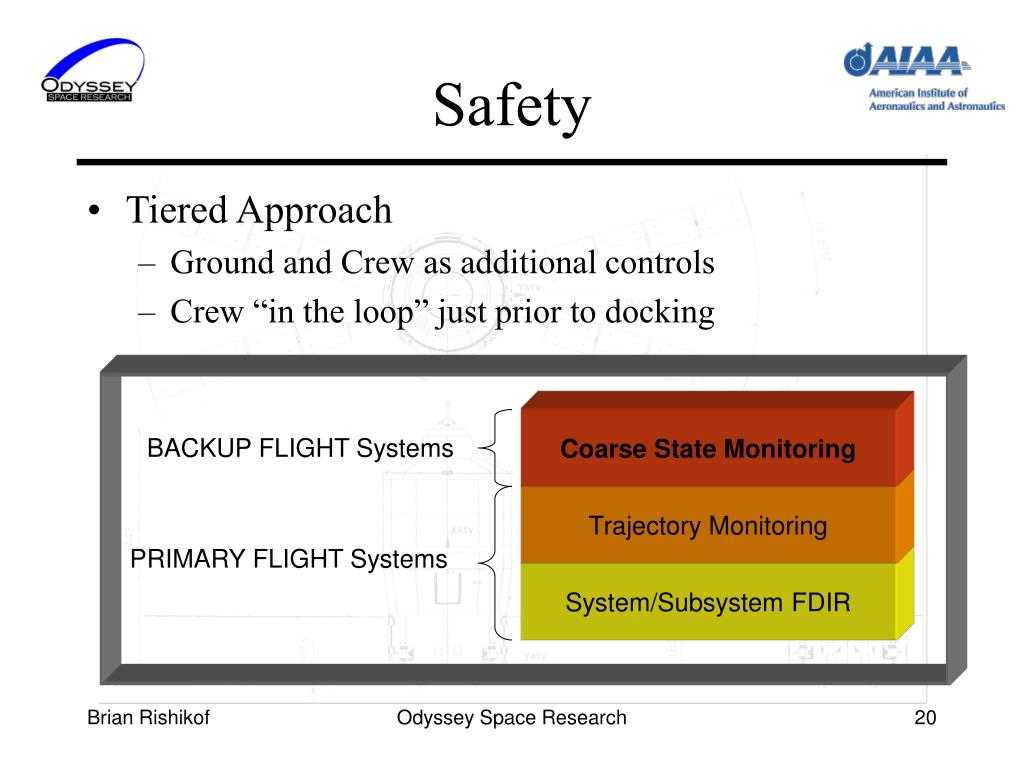

Safety

  • Tiered Approach

    • Ground and Crew as additional controls

    • Crew “in the loop” just prior to docking

Coarse State Monitoring

BACKUP FLIGHT Systems

Trajectory Monitoring

PRIMARY FLIGHT Systems

System/Subsystem FDIR

Odyssey Space Research


Contingencies

ABORT

?

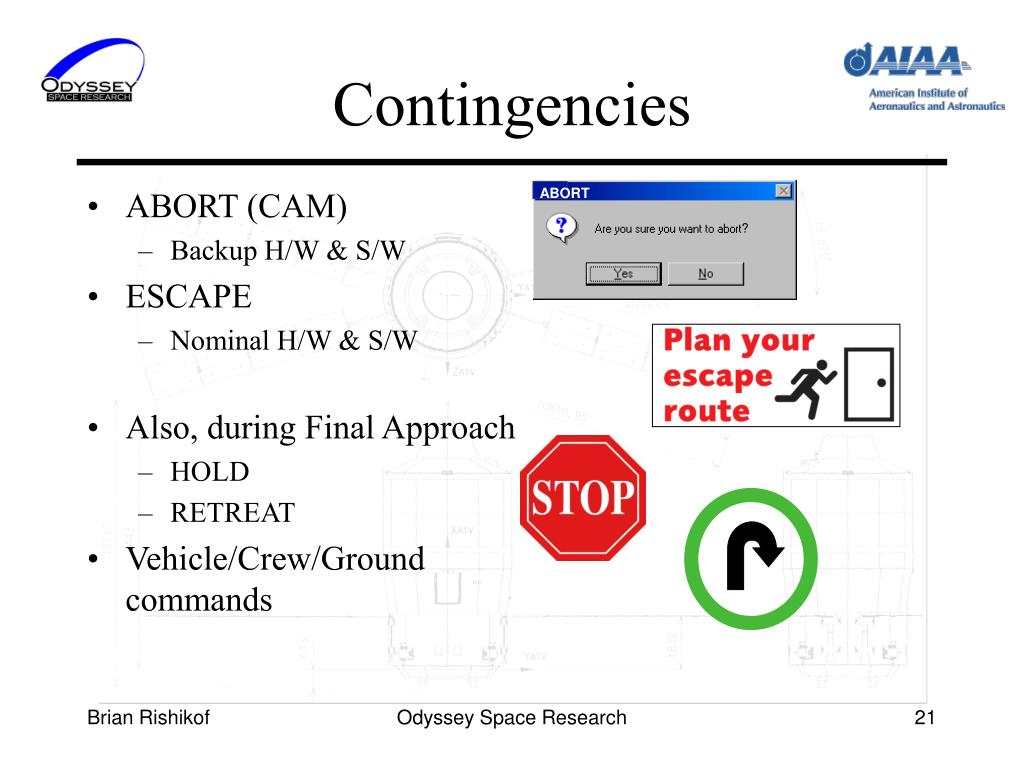

Contingencies

  • ABORT (CAM)

    • Backup H/W & S/W

  • ESCAPE

    • Nominal H/W & S/W

  • Also, during Final Approach

    • HOLD

    • RETREAT

  • Vehicle/Crew/Ground commands

ABORT

Odyssey Space Research

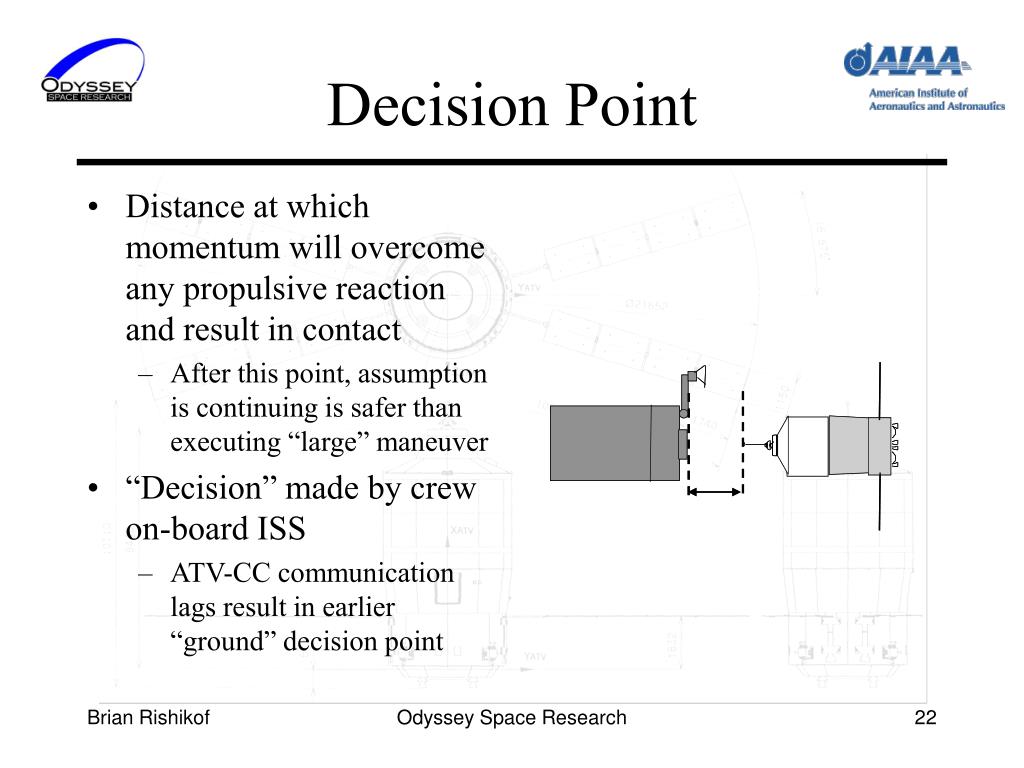

Decision point

Decision Point

  • Distance at which momentum will overcome any propulsive reaction and result in contact

    • After this point, assumption is continuing is safer than executing “large” maneuver

  • “Decision” made by crew on-board ISS

    • ATV-CC communication lags result in earlier “ground” decision point

Odyssey Space Research


Crew monitoring

No “Piloting”

Prescribed reactionon threshold detection by visual means

Single operator with all “critical” information and command access

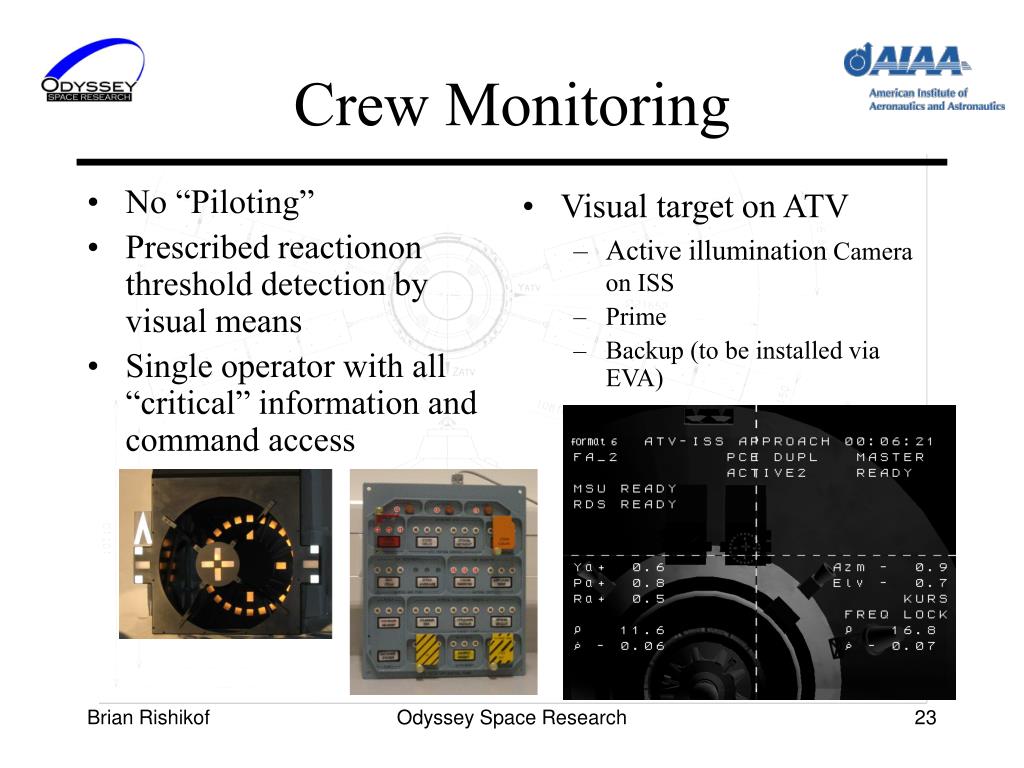

Crew Monitoring

  • Visual target on ATV

    • Active illumination Camera on ISS

    • Prime

    • Backup (to be installed via EVA)

Odyssey Space Research


Demonstration

Safe!

Show

ATV is

Demonstration

Odyssey Space Research


Demonstration mission

Demonstration Mission

  • Philosophy

    • Demonstrate safety critical elements that cannot be fully tested on ground

    • Demonstrate safety critical elements before they are relied upon during flight for safety

Odyssey Space Research


Demonstration plan

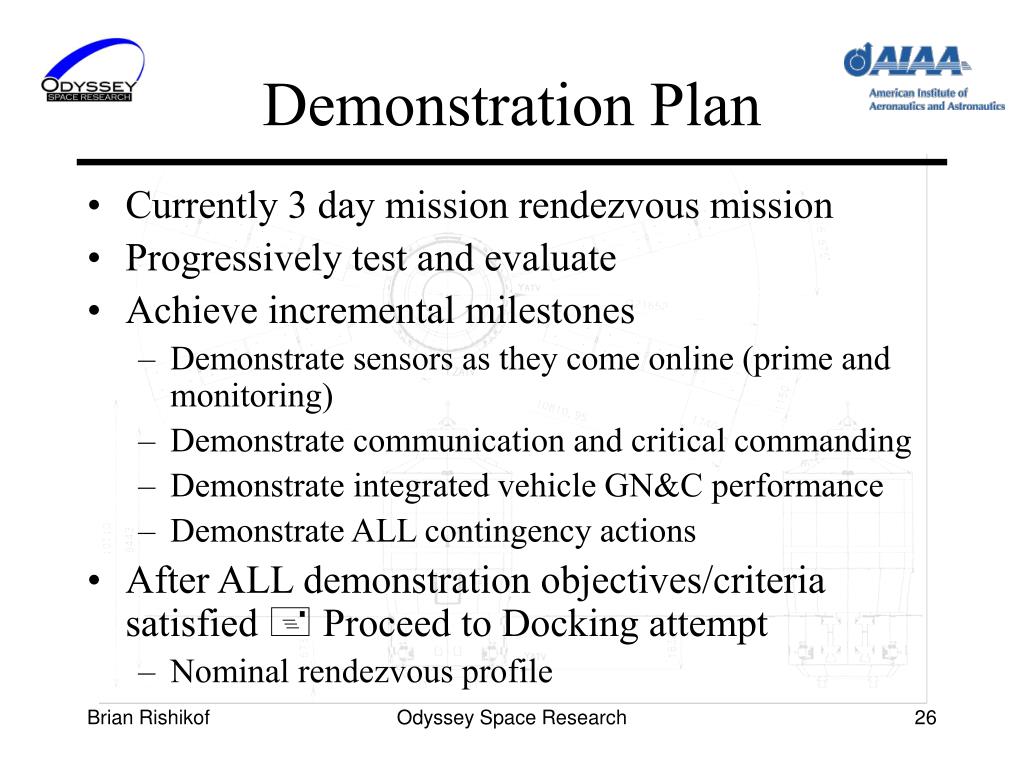

Demonstration Plan

  • Currently 3 day mission rendezvous mission

  • Progressively test and evaluate

  • Achieve incremental milestones

    • Demonstrate sensors as they come online (prime and monitoring)

    • Demonstrate communication and critical commanding

    • Demonstrate integrated vehicle GN&C performance

    • Demonstrate ALL contingency actions

  • After ALL demonstration objectives/criteria satisfied + Proceed to Docking attempt

    • Nominal rendezvous profile

Odyssey Space Research


Atv for fun

ATV: For Fun!

  • http://esamultimedia.esa.int/docs/atv_model/ATV_2002_Intro.htm

BUILD

YOUR

OWN!

Odyssey Space Research


Acknowledgments

Acknowledgments

  • Jean-François Clervoy/ESA

  • Douglas Yazell/Honeywell

  • AIAA Houston

  • NASA-JSC-EG

  • NASA ATV Team

  • Congratulationsto ATV Team

Odyssey Space Research


The end

The End

Odyssey Space Research
