  1. A Tutorial on Anasazi and Belos2011 Trilinos User Group Meeting November 1st, 2011Chris BakerDavid DayMike HerouxMark HoemmenRich LehoucqMike ParksHeidi Thornquist (Lead) 2011-8264P Sandia National Laboratories is a multi-program laboratory managed and operated by Sandia Corporation, a wholly owned subsidiary of Lockheed Martin Corporation, for the U.S. Department of Energy's National Nuclear Security Administration under contract DE-AC04-94AL85000.

  2. Outline • Belos and Anasazi Framework • Background / Motivation • Framework overview • Available solver components • Using Anasazi and Belos • Simple examples • Through Stratimikos (Belos) • Through LOCA (Anasazi) • Summary

  3. Background / Motivation • Several iterative linear solver / eigensolver libraries exist: • PETSc, SLAP, LINSOL, Aztec(OO), … • SLEPc, PRIMME, ARPACK, … • None of the linear solver libraries can efficiently deal with multiple right-hand sides or sequences of linear systems • Stopping criteria are predetermined for most libraries • The underlying linear algebra is static

  4. AztecOO • A C++ wrapper around Aztec library written in C • Algorithms: GMRES, CG, CGS, BiCGSTAB, TFQMR • Offers status testing capabilities • Output verbosity level can be determined by user • Interface requires Epetra objects • Double-precision arithmetic • Interface to matrix-vector product is defined by the user through the Epetra_Operator

  5. ARnoldiPACKage(ARPACK) Written in Fortran 77 Algorithms: Implicitly Restarted Arnoldi/Lanczos Static convergence tests Output formatting, verbosity level is determined by user Uses LAPACK/BLAS to perform underlying vector space operations Offers abstract interface to matrix-vector products through reverse communication

  6. Scalable Library for Eigenvalue Problem Computations (SLEPc) • Written in C (Campos, Román, Romero, and Thomás, 2011). • Provides some basic eigensolvers as well as wrappers around: • ARPACK(Lehoucq, Maschhoff, Sorensen, and Yang, 1998) • PRIMME (Stathopoulos, 2006) • BLOPEX (Knyazev, 2007) • BLZPACK (Marques, 1995) • TRLAN(Wu and Simon, 2001) • Native Algorithms: Power/Subspace Iteration, RQI, Arnoldi, KS • Wrapped Algorithms: IRAM/IRLM (ARPACK), Block Lanczos (BLZPACK), LOBPCG (BLOPEX), and Lanczos(TRLAN) • Static convergence tests • Uses PETSc to perform underlying vector space operations, matrix-vector products, and linear solves • Allows the creation / registration of new matrix-vector products

  7. Anasazi and Belos • Next generation linear solver (Belos) and eigensolver (Anasazi) libraries, written in templated C++. • Iterative methods for solving sparse, matrix-free systems • Provide a generic interface to a collection of algorithms for solving linear problems and eigenproblems. • Algorithms developed with generic programming techniques. • Algorithmic components: • Ease the implementation of complex algorithms • Operator/MultiVector interface (and Teuchos::ScalarTraits): • Allow the user to leverage their existing software investment • Multi-precision solver capability • Design offers: Interoperability, extensibility, and reusability • Includes block linear solvers and eigensolvers.

  8. Why are Block Solvers Useful? • In general, block solvers enable the use of faster computational kernels. • Block Eigensolvers ( Op(A)X = X ): • Reliably determine multiple and/or clustered eigenvalues. • Example applications: • Stability analysis / Modal analysis • Bifurcation analysis (LOCA) • Block Linear Solvers ( Op(A)X = B ): • Useful for when multiple solutions are required for the same system of equations. • Example applications: • Perturbation analysis • Optimization problems • Single right-hand sides where A has a handful of small eigenvalues • Inner-iteration of block eigensolvers

  9. BelosSolver Categories • Belos provides solvers for: • Single RHS: Ax = b • Multiple RHS (available simultaneously): AX = B • Multiple RHS (available sequentially): Axi = bi , i=1,…,k • Sequential Linear systems: Aixi = bi , i=1,…,k • Linear Least Squares: min || Ax – b ||2 • Leverage research advances of solver community: • Block methods: block GMRES [Vital], block CG/BICG [O’Leary] • “Seed” solvers: hybrid GMRES [Nachtigal, et al.] • “Recycling” solvers for sequences of linear systems [Parks, et al.] • Restarting, orthogonalizationtechniques

  10. Belos Solvers • Hermitian Systems (A = AH) • CG / Block CG • Pseudo-Block CG (Perform single-vector algorithm simultaneously) • RCG (Recycling Conjugate Gradients) • PCPG (Projected CG) • MINRES • Non-Hermitian System (A ≠ AH) • Block GMRES • Pseudo-Block GMRES (Perform single-vector algorithm simultaneously) • Block FGMRES (Variable preconditioner) • Hybrid GMRES • TFQMR • GCRODR / Block GCRODR (Recycling GMRES) • Linear Least Squares • LSQR

  11. AnasaziCategories & Solvers • Anasazi provides solvers for: • Standard eigenvalue problems: AX= X • Generalized eigenvalue problems: AX = BX • HermitianEigenproblems • Block Davidson • Locally-Optimal Block Preconditioned Conjugate Gradient (LOBPCG) • Implicit Riemannian Trust-Region (IRTR) • Non-HermitianEigenproblems • Block Krylov-Schur (BKS)

  12. Anasazi and Belos(Framework Overview) GMRES Example

  13. Anasazi and Belos(Framework Overview) Multivector Classes GMRES Example

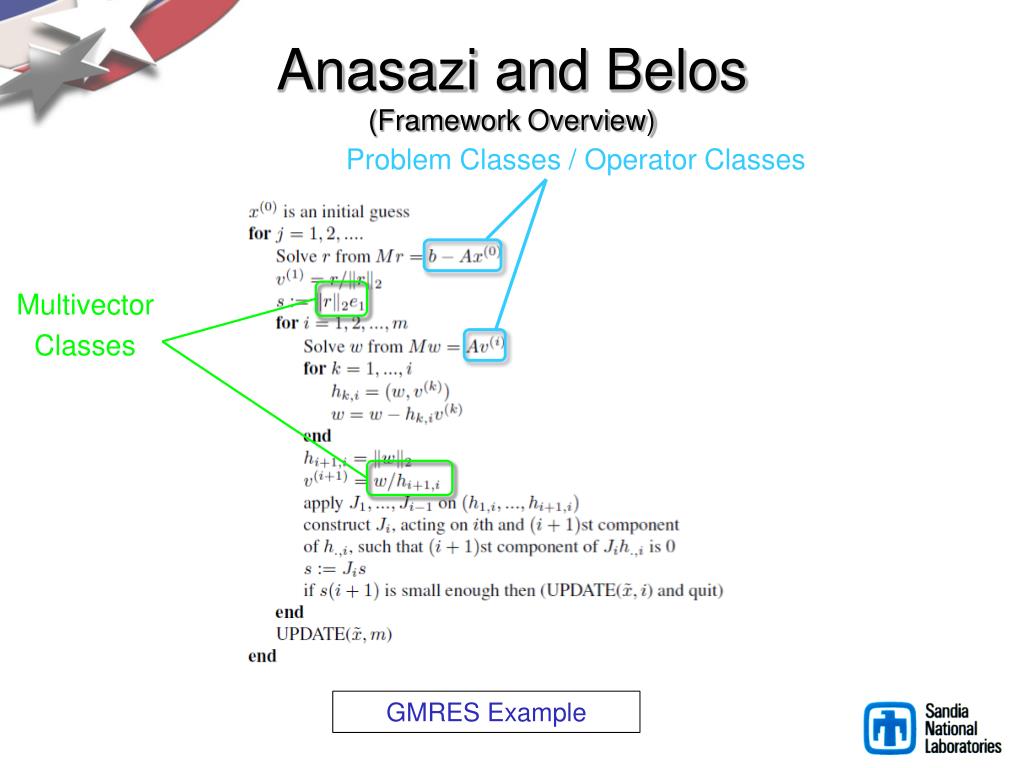

  14. Anasazi and Belos(Framework Overview) Problem Classes / Operator Classes Multivector Classes GMRES Example

  15. Anasazi and Belos(Framework Overview) Problem Classes / Operator Classes Multivector Classes [Mat]OrthoManagerClass (ICGS, IMGS, DGKS, SVQB, TSQR) GMRES Example

  16. Anasazi and Belos(Framework Overview) Problem Classes / Operator Classes Multivector Classes [Mat]OrthoManagerClass (ICGS, IMGS, DGKS, SVQB, TSQR) StatusTest Class GMRES Example

  17. Anasazi and Belos(Framework Overview) Problem Classes / Operator Classes Iteration Class Multivector Classes [Mat]OrthoManagerClass (ICGS, IMGS, DGKS, SVQB, TSQR) StatusTest Class GMRES Example

  18. Anasazi and Belos(Framework Overview) SolverManager Class Problem Classes / Operator Classes Iteration Class Multivector Classes [Mat]OrthoManagerClass (ICGS, IMGS, DGKS, SVQB, TSQR) StatusTest Class GMRES Example

  19. Anasazi and Belos(Framework Overview) SolverManager Class Problem Classes / Operator Classes Iteration Class Multivector Classes [Mat]OrthoManagerClass (ICGS, IMGS, DGKS, SVQB, TSQR) StatusTest Class OutputManager Class SortManager Class

  20. Available Solver Components

  21. Linear Algebra Interface • MultiVecTraits • Abstract interface to define the linear algebra required by most iterative solvers: • creational methods • dot products, norms • update methods • initialize / randomize • OperatorTraits • Abstract interface to enable the application of an operator to a multivector. • Allows user to leverage existing linear algebra software investment. • Implementations • MultiVecTraits<double,Epetra_MultiVector> • MultiVecTraits<ST,Thyra::MultiVectorBase<ST> > • MultiVecTraits<ST,Tpetra::MultiVector<ST,LO,GO,Node> >

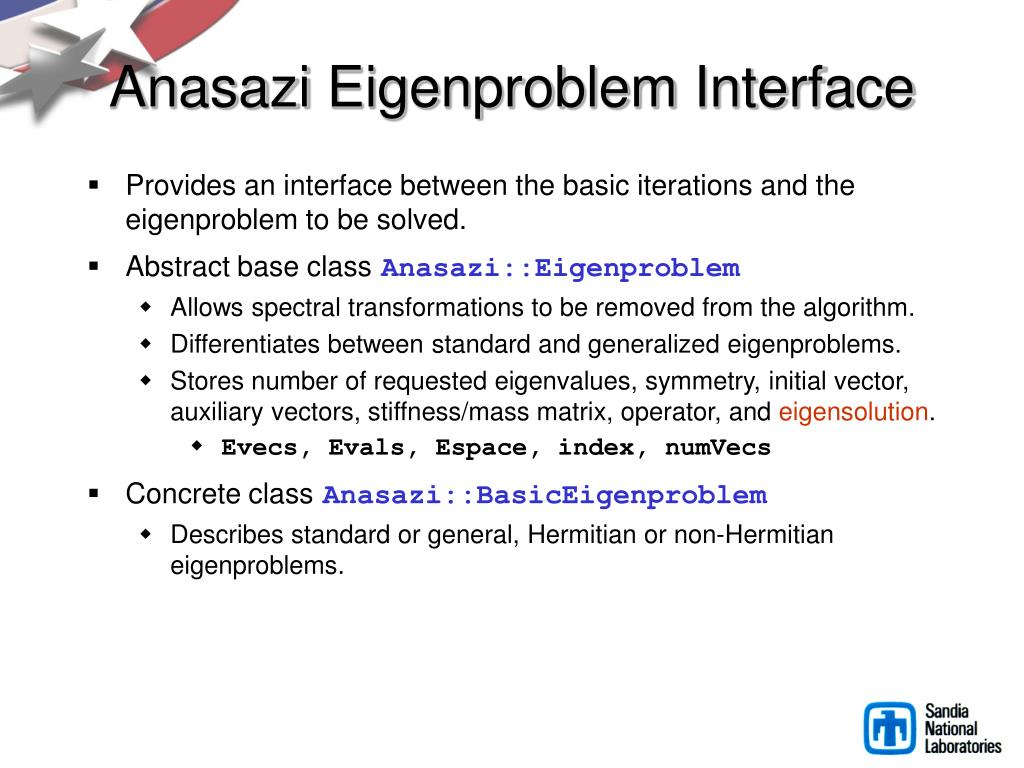

  22. Anasazi Eigenproblem Interface • Provides an interface between the basic iterations and the eigenproblem to be solved. • Abstract base classAnasazi::Eigenproblem • Allows spectral transformations to be removed from the algorithm. • Differentiates between standard and generalized eigenproblems. • Stores number of requested eigenvalues, symmetry, initial vector, auxiliary vectors, stiffness/mass matrix, operator, and eigensolution. • Evecs, Evals, Espace, index, numVecs • Concrete classAnasazi::BasicEigenproblem • Describes standard or general, Hermitian or non-Hermitianeigenproblems.

  23. BelosLinearProblemInterface • Provides an interface between the basic iterations and the linear problem to be solved. • Templated classBelos::LinearProblem<ST,MV,OP> • Allows preconditioning to be removed from the algorithm. • Behavior defined through traits mechanisms. • Methods: • setOperator(…) / getOperator() • setLHS(…) / getLHS() • setRHS(…) / getRHS() • setLeftPrec(…) / getLeftPrec() / isLeftPrec() • setRightPrec(…) / getRightPrec() / isRightPrec() • apply(…) / applyOp(…) / applyLeftPrec(…) / applyRightPrec(…) • setHermitian(…) / isHermitian() • setProblem(…)

  24. OrthogonalizationManager • Abstract interface to orthogonalization / orthonormalization routines for multivectors. • Abstract base class [Anasazi/Belos]::[Mat]OrthoManager • void innerProd(…) const; • void norm(…) const; • void project(…) const; • int normalize(…) const; • intprojectAndNormalize(…) const; • magnitudeTypeorthogError(…) const; • magnitudeTypeorthonormError(…) const; • Concrete classes: Anasazi:: BasicOrthoManager ICGSOrthoManager SVQBOrthoManager Belos:: DGKSOrthoManager ICGSOrthoManager IMGSOrthoManager TSQROrthoManager*

  25. StatusTestInterface • Informs solver iterate of change in state, as defined by user. • Similar to NOX / AztecOO. • Multiple criterion can be logically connected using StatusTestCombo • Abstract base class [Anasazi/Belos]::StatusTest • StatusTypecheckStatus( Iteration<…>* solver ); • StatusTypegetStatus() const; • void clearStatus(); • void reset(); • ostream& print( ostream& os, int indent = 0 ) const; • StatusType: Passed, Failed, Undefined • Iteration proceeds untilStatusTestreturnsPassed • Concrete classes: Anasazi:: StatusTestMaxIters StatusTestResNorm StatusTestOrderedResNorm StatusTestOutput Belos:: StatusTestMaxIters StatusTest[Imp/Gen]ResNorm StatusTestResNormOutput StatusTestGeneralOutput

  26. Output Manager Interface • Templated class that enables control of the linear solver output. • Behavior defined through traits mechanism • OutputManager<ST> • Get/Set Methods: • void setVerbosity( intvbLevel ); • intgetVerbosity( ); • ostream& stream( MsgType type ); • Query Methods: • boolisVerbosity( MsgType type ); • Print Methods: • void print( MsgType type, const string output ); • Message Types: • Errors, Warnings, IterationDetails, OrthoDetails, FinalSummary, TimingDetails, StatusTestDetails, Debug • Default is lowest verbosity (Errors), output on one processor.

  27. Anasazi Sort Manager • Abstract interface for managing the sorting of the eigenvalues computed by the eigensolver. • Important tool to complement spectral transformations. • Only two methods: • ReturnType sort(Eigensolver<ST,MV,OP>* solver, int n, ST *evals, std::vector<int> *perm=0); • ReturnType sort(Eigensolver<ST,MV,OP>* solver, int n, ST *r_evals, ST *i_evals,std::vector<int> *perm=0); • Concrete class Anasazi::BasicSort • Provides basic sorting methods: • largest/smallest magnitude • largest/smallest real part • largest/smallest imaginary part

  28. Anasazi Eigensolver Interface • Provides an abstract interface to Anasazi basic iterations. • Abstract base classAnasazi::Eigensolver • get / reset number of iterations • native residuals • current / maximum subspace size • set / get auxiliary vectors • eigenproblem • initialize / iterate • Concrete solvers (iterations): • Anasazi::BlockKrylovSchur • Anasazi::BlockDavidson • Anasazi::LOBPCG • Anasazi::IRTR

  29. Anasazi Eigensolver Manager • Provides an abstract interface to Anasazi solver managers (solver strategies) • Abstract base classAnasazi::SolverManager • Access to the eigenproblem • Solve the eigenproblem • Solvers are parameter list driven, take two arguments: • Anasazi::Eigenproblem • Teuchos::ParameterList • Concrete solver managers: • Anasazi::BlockKrylovSchurSolMgr • Anasazi::BlockDavidsonSolMgr • Anasazi::LOBPCGSolMgr • Anasazi::IRTRSolMgr

  30. Belos Iteration Interface • Provides an abstract interface to Belos basic iteration kernels. • Abstract base class Belos::Iteration<ST,MV,OP> • intgetNumIters() const; void resetNumIters(intiter); • Teuchos::RCP<const MV> getNativeResiduals( … ) const; • Teuchos::RCP<const MV> getCurrentUpdate() const; • intgetBlockSize() const; void setBlockSize(intblockSize); • constLinearProblem<ST,MV,OP>& getProblem() const; • void iterate(); void initialize(); • Iterations require these classes: • Belos::LinearProblem, Belos::OutputManager, Belos::StatusTest, Belos::OrthoManager • Implementations: • Belos::BlockGmresIter • Belos::BlockFGmresIter • Belos::PseudoBlock[CG/Gmres]Iter • Belos::[Block]GCRODRIter • Belos::[CG/BlockCG]Iter, • Belos::RCGIter • Belos::PCPGIter • Belos::TFQMRIter • Belos::LSQRIter • Belos::MinresIter

  31. Belos Solver Manager • Provides an abstract interface to Belos solver managers (solver strategies) • Abstract base class Belos::SolverManager • void setProblem(…); void setParameters(…); • constBelos::LinearProblem<ST,MV,OP>& getProblem() const; • Teuchos::RCP<constTeuchos::ParameterList> getValidParameters() const; • Teuchos::RCP<constTeuchos::ParameterList> getCurrentParameters() const; • Belos::ReturnType solve(); • intgetNumIters(); • Solvers are parameter list driven, take two arguments: • Belos::LinearProblem • Teuchos::ParameterList[validated] • Implementations: • Belos::BlockGmresSolMgr • Belos::PseudoBlock[CG/Gmres]SolMgr • Belos::[Block]GCRODRSolMgr • Belos::BlockCGSolMgr • Belos::RCGSolMgr • Belos::PCPGSolMgr • Belos::TFQMRSolMgr • Belos::LSQRSolMgr • Belos::MinresSolMgr

  32. Simple Examples

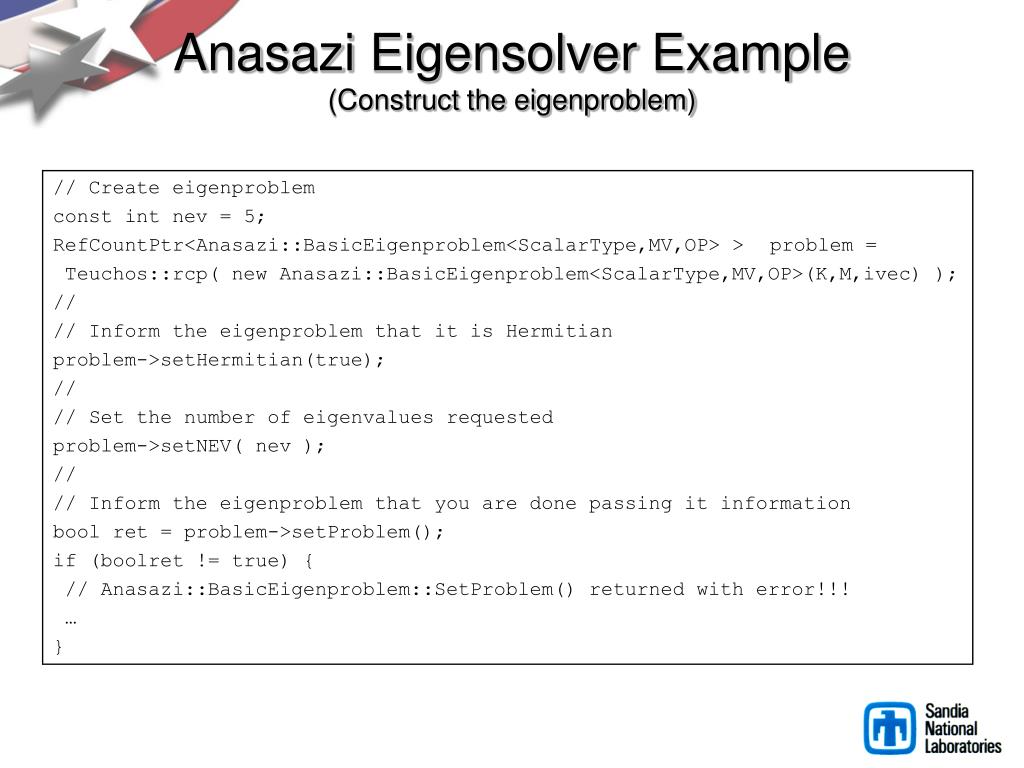

  33. Anasazi EigensolverExample(Construct the eigenproblem) // Create eigenproblem const int nev = 5; RefCountPtr<Anasazi::BasicEigenproblem<ScalarType,MV,OP> > problem = Teuchos::rcp( new Anasazi::BasicEigenproblem<ScalarType,MV,OP>(K,M,ivec) ); // // Inform the eigenproblem that it is Hermitian problem->setHermitian(true); // // Set the number of eigenvalues requested problem->setNEV( nev ); // // Inform the eigenproblem that you are done passing it information bool ret = problem->setProblem(); if (boolret != true) { // Anasazi::BasicEigenproblem::SetProblem() returned with error!!! … }

  34. Anasazi EigensolverExample(Construct and run the eigensolver) // Create parameter list to pass into the solver manager Teuchos::ParameterListMyPL; MyPL.set( "Verbosity", Anasazi::Errors + Anasazi::Warnings ); MyPL.set( "Which", "SM"); MyPL.set( "Block Size", 5 ); MyPL.set( "Num Blocks", 8 ); MyPL.set( "Maximum Restarts", 100 ); MyPL.set( "Convergence Tolerance", 1.0e-6 ); MyPL.set( "Use Locking", true ); MyPL.set( "Locking Tolerance", tol/10 ); // // Create the solver manager Anasazi::BlockDavidsonSolMgr<ScalarType,MV,OP> MySolverMan(problem, MyPL); // Solve the problem to the specified tolerances or length Anasazi::ReturnTypereturnCode = MySolverMan.solve(); if (returnCode != Anasazi::Converged) { // Solver failed!!! // But wait, we may still have some eigenpairs. }

  35. Anasazi EigensolverExample(Retrieve the eigenpairs) // Get the eigenvalues and eigenvectors from the eigenproblem Anasazi::Eigensolution<ScalarType,MV> sol = problem->getSolution(); std::vector<MagnitudeType> evals = sol.Evals; RefCountPtr<MV> evecs = sol.Evecs; int numev = sol.numVecs; // // Check to see if there are any computed eigenpairs if (numev > 0) { // Do something with computed eigenpairs … } …

  36. Belos Linear Solver Example(Construct the linear problem) int main(intargc, char *argv[]) { MPI_Init(&argc,&argv); Epetra_MpiCommComm(MPI_COMM_WORLD); intMyPID = Comm.MyPID(); typedef double ST; typedefTeuchos::ScalarTraits<ST> SCT; typedef SCT::magnitudeType MT; typedefEpetra_MultiVector MV; typedefEpetra_Operator OP; typedefBelos::MultiVecTraits<ST,MV> MVT; typedefBelos::OperatorTraits<ST,MV,OP> OPT; using Teuchos::ParameterList; using Teuchos::RCP; using Teuchos::rcp; // Get the problem std::string filename("orsirr1.hb"); RCP<Epetra_Map> Map; RCP<Epetra_CrsMatrix> A; RCP<Epetra_MultiVector> B, X; RCP<Epetra_Vector> vecB, vecX; EpetraExt::readEpetraLinearSystem(filename, Comm, &A, &Map, &vecX, &vecB); X = Teuchos::rcp_implicit_cast<Epetra_MultiVector>(vecX); B = Teuchos::rcp_implicit_cast<Epetra_MultiVector>(vecB); Parameters for Templates Get linear system from disk Trilinos/packages/belos/epetra/example/BlockGmres/BlockGmresEpetraExFile.cpp

  37. Belos Linear Solver Example(Set the solver parameters) bool verbose = false, debug = false, proc_verbose = false; int frequency = -1; // frequency of status test output. intblocksize = 1; // blocksize intnumrhs = 1; // number of right-hand sides to solve for intmaxiters = 100; // maximum number of iterations allowed intmaxsubspace = 50; // maximum number of blocks intmaxrestarts = 15; // number of restarts allowed MT tol = 1.0e-5; // relative residual tolerance const intNumGlobalElements = B->GlobalLength(); ParameterListbelosList; belosList.set( "Num Blocks", maxsubspace); // Maximum number of blocks in Krylov factorization belosList.set( "Block Size", blocksize ); // Blocksize to be used by iterative solver belosList.set( "Maximum Iterations", maxiters ); // Maximum number of iterations allowed belosList.set( "Maximum Restarts", maxrestarts ); // Maximum number of restarts allowed belosList.set( "Convergence Tolerance", tol ); // Relative convergence tolerance requested int verbosity = Belos::Errors + Belos::Warnings; if (verbose) { verbosity += Belos::TimingDetails + Belos::StatusTestDetails; if (frequency > 0) belosList.set( "Output Frequency", frequency ); } if (debug) { verbosity += Belos::Debug; } belosList.set( "Verbosity", verbosity ); Solver Parameters ParameterList for SolverManager Trilinos/packages/belos/epetra/example/BlockGmres/BlockGmresEpetraExFile.cpp

  38. Belos Linear Solver Example(Solve the linear problem) // Construct linear problem instance. Belos::LinearProblem<double,MV,OP> problem( A, X, B ); bool set = problem.setProblem(); if (set == false) { std::cout << std::endl << "ERROR: Belos::LinearProblem failed to set up correctly!" << std::endl; return -1; } // Start block GMRES iteration Belos::OutputManager<double> My_OM(); // Create solver manager. RCP< Belos::SolverManager<double,MV,OP> > newSolver = rcp( new Belos::BlockGmresSolMgr<double,MV,OP>(rcp(&problem,false), rcp(&belosList,false))); // Solve Belos::ReturnType ret = newSolver->solve(); if (ret!=Belos::Converged) { std::cout << std::endl << "ERROR: Belos did not converge!" << std::endl; return -1; } std::cout << std::endl << "SUCCESS: Belos converged!" << std::endl; return 0; LinearProblem Object Template Parameters SolverManager Object Trilinos/packages/belos/epetra/example/BlockGmres/BlockGmresEpetraExFile.cpp

  39. Other Interfaces to Anasazi / Belos

  40. Stratimikos-Belos Interface • Stratimikos: • Thyra-based linear solver and preconditioner strategy package • MultiVecTraits<ST,Thyra::MultiVectorBase<ST> > • OperatorTraits<ST,Thyra::MultiVectorBase<ST>,Thyra::LinearOpBase<ST> > • Stratimikos-Belos Interface • Intent: access current Belos solver managers using a factory interface • Implements Thyra::LinearOpWithSolveFactory / Thyra::LinearOpWithSolve • Stratimikos interface uses valid parameter list generated from Belos • Check out: stratimikos/adapters/belos/example/LOWSFactory/[Epetra/Tpetra]

  41. Linear Stability Analysis Through Anasazi and LOCA • LOCA provides parameter continuation and bifurcation tracking for large-scale codes • Changes in stability of steady-states indicated by eigenvalues of linearized system crossing imaginary axis • LOCA provides interface to Anasazi to compute eigenvalues • Interfaced through NOX/LOCA abstract layers • No additional work necessary once LOCA is supported • LOCA provides spectral transformations to emphasize eigenvalues near imaginary axis • Jacobian-inverse – • Shift-invert – • Cayley – stepperList.set("Compute Eigenvalues", true); Teuchos::ParameterList& aList = stepperList.sublist("Eigensolver"); aList.set("Method", "Anasazi"); aList.set("Block Size", 1) aList.set("Num Blocks", 50); aList.set("Num Eigenvalues", 3) aList.set("Step Size", 1); aList.set("Maximum Restarts",1); aList.set("Operator", "Cayley"); aList.set("Cayley Pole", 0.1); aList.set("Cayley Zero", -0.1); aList.set("Sorting Order", "CA");

  42. Summary • Belos and Anasazi are next-generation linear and eigensolver libraries • Designed for interoperability, extensibility, and reusability • Belos and Anasazi are readily available: • Can be used as standalone linear and eigensolvers • Belos available through Stratimikos • Anasazi available through LOCA • Check out the TrilinosTutorial http://trilinos.sandia.gov/Trilinos10.8Tutorial.pdf • See website for more: http://trilinos.sandia.gov/packages/belos http://trilinos.sandia.gov/packages/anasazi
