Tyco Electronics Supplier Guide to Material Disclosure

Tyco Electronics - Supplier Guide to Material Disclosure


Presentation overview l.jpg

Presentation Overview

In this presentation, we will:

  • Provide an introduction to the Tyco Electronics RoHS Initiative

  • Give a high level overview of the entire Material Disclosure process

  • Describe the Matrix Compliance Central tools that are used in the process

    • Compliance Connect (CC) Supplier Web Portal

    • Compliance Connect (CC) Spreadsheet

  • Present in depth coverage of how to provide Material Disclosure to Tyco Electronics using the MCC tools

    This presentation is intended for use by:

  • Suppliers who have been requested to provide Material Disclosure of products sold to Tyco Electronics

  • Any internal Tyco users who need to support suppliers using the MCC tools

Tyco Electronics - Supplier Guide to Material Disclosure


Purpose of tyco electronics material disclosure l.jpg

Purpose of Tyco Electronics Material Disclosure

Regulatory Requirements: Tyco Electronics, like other companies in the electronics industry, is following the European Union (EU) directive on Restriction of Hazardous Substances (RoHS) in products, and other similar environmental regulations.

Full Material Disclosure: Due to these environmental regulations, many customers are asking for full material disclosure (that is, to reveal all materials that are present in a Tyco Electronics product purchased by them, including restricted and reportable substances and recycled content). Tyco Electronics is fully committed to satisfying these mandates from our customers and OEMs. This means that Tyco Electronics must, in turn, collect full material disclosure from our suppliers on products we purchase. Providing such disclosures can also circumvent future requests if the threshold limits or substances in the regulations change (since we will know the composition of the products). Our mutual business success and sales growth depend on a cooperative effort across our entire Supply Chain.

Compliance Connect Tool: Tyco Electronics is using MatrixOne’s Compliance ConnectTM, reporting Tool (a Microsoft Excel-based data collection spreadsheet) to collect full material disclosure from our suppliers. Compliance ConnectTM is becoming a widely-used industry solution for collecting material disclosure information to meet this customer requirement.

Part data: It is imperative that each of our suppliers must provide all the information requested on the parts currently being sold to Tyco Electronics or pending sourcing decision. Your certification of and responsibility for the accuracy of the data you provide is critical.

Ensuring Accuracy: You will help ensure the accuracy of your data by adhering to the reporting structure of the Compliance ConnectTM Tool, which we will explain in this document.

Tyco Electronics - Supplier Guide to Material Disclosure


Overview of the material disclosure process l.jpg

Overview of the Material Disclosure Process

  • Access the CC Supplier Web Portal

  • Download a blank CC Spreadsheet

  • Download your customized CC Import File

  • Import your customized CC Import File into the CC Spreadsheet

  • Complete the CC Spreadsheet

  • Export your material disclosure information and upload it using the CC Supplier Web Portal

Tyco Electronics - Supplier Guide to Material Disclosure


Matrix compliance central system requirements l.jpg

Matrix Compliance Central System Requirements

CC Supplier Web Portal Requirements

  • Dial-Up or High-Speed Internet Connection

  • Microsoft Internet Explorer 5.5 or higher

    • Must have Active Scripting Enabled

    • Must have Cookies Enabled

    • Must disable any pop-up blocker software

  • Adobe Acrobat Reader 5.0 or higher

  • WinZip (or any compatible file compression tool)

    CC Spreadsheet Requirements

  • Microsoft Excel 97 (2000 or higher recommended)

    • Macros must be enabled when using the CC Spreadsheet

  • Microsoft Excel 2003 users must have Service Pack 2 for Office installed

  • Tyco Electronics - Supplier Guide to Material Disclosure


    Accessing the cc supplier web portal l.jpg

    Users can access the CC Supplier Web Portal through the Tyco Electronics Supplier Resources website seen here.

    Accessing the CC Supplier Web Portal

    Tyco Electronics - Supplier Guide to Material Disclosure


    Accessing the cc supplier web portal7 l.jpg

    The CC Supplier Web Portal is a secure application so you must log in to access it.

    Accessing the CC Supplier Web Portal

    Tyco Electronics - Supplier Guide to Material Disclosure


    Accessing the cc supplier web portal8 l.jpg

    Enter your User ID and Password in the text boxes provided and click the “Sign On” button

    Accessing the CC Supplier Web Portal

    Tyco Electronics - Supplier Guide to Material Disclosure


    Accessing the cc supplier web portal9 l.jpg

    If you are a new user to the Supplier Resources website or have not accessed the website in the last 6 months, you will be prompted to reset your password.

    Accessing the CC Supplier Web Portal

    Tyco Electronics - Supplier Guide to Material Disclosure


    Accessing the cc supplier web portal10 l.jpg

    The light blue menu expands to show secured applications that you have access to.

    Accessing the CC Supplier Web Portal

    Tyco Electronics - Supplier Guide to Material Disclosure


    Cc supplier web portal l.jpg

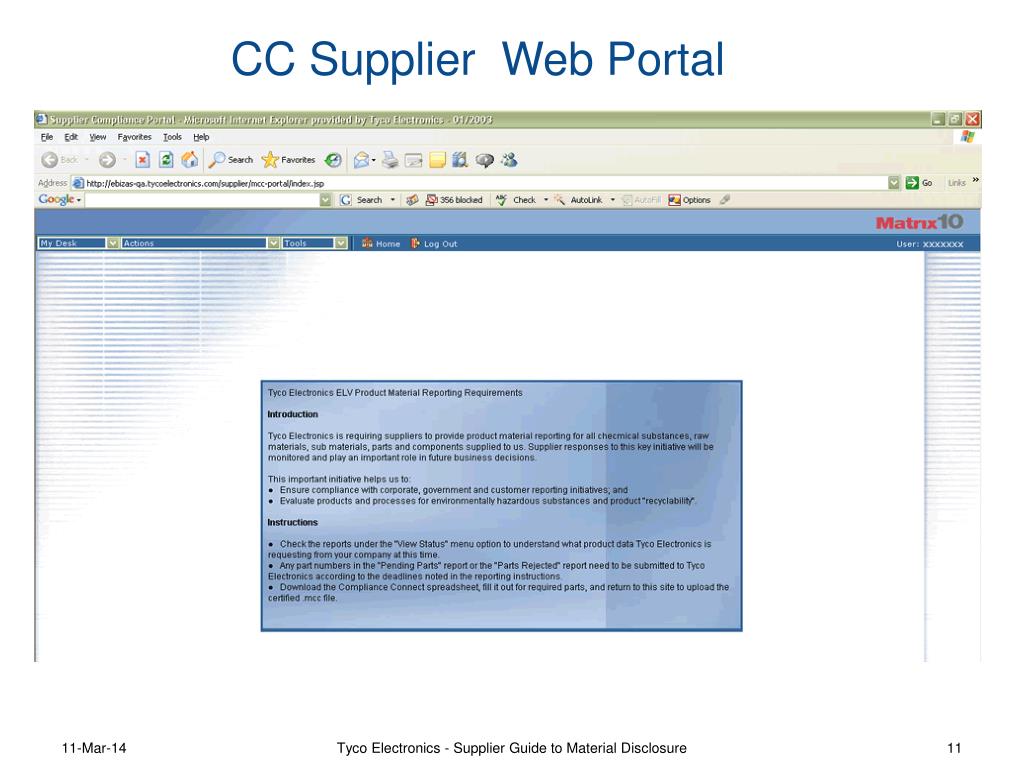

    CC Supplier Web Portal

    Tyco Electronics - Supplier Guide to Material Disclosure


    Downloading a blank cc spreadsheet l.jpg

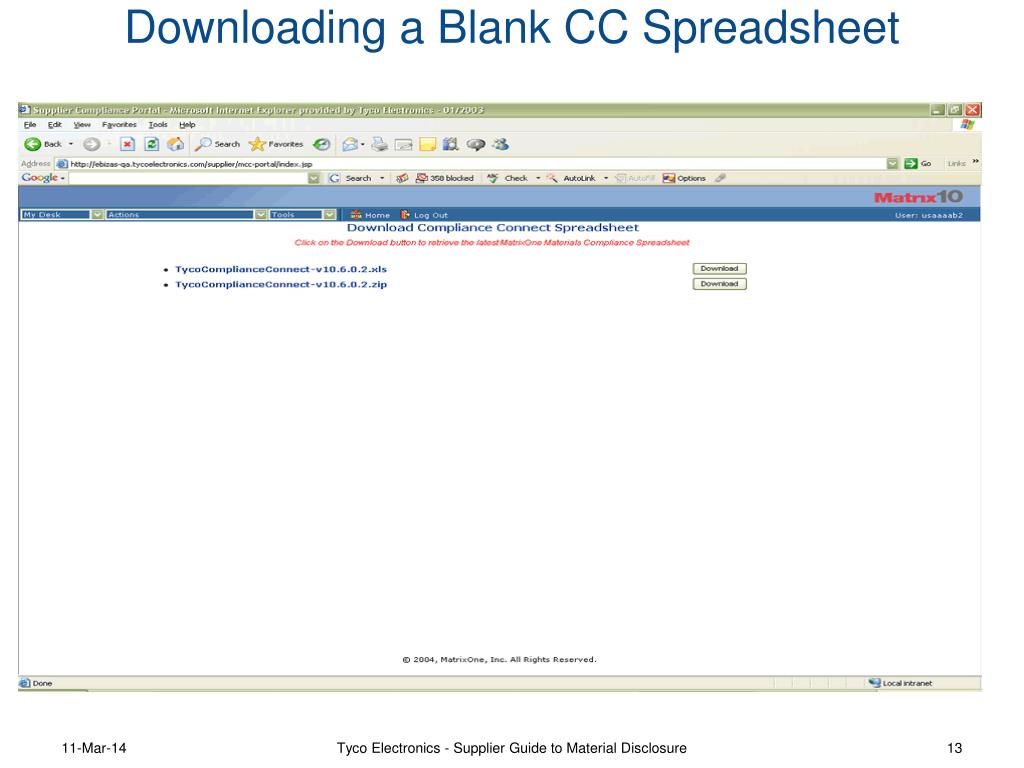

    Downloading a Blank CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Downloading a blank cc spreadsheet13 l.jpg

    Downloading a Blank CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Downloading a blank cc spreadsheet14 l.jpg

    Downloading a Blank CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Downloading your customized cc import file l.jpg

    Downloading Your Customized CC Import File

    Tyco Electronics - Supplier Guide to Material Disclosure


    Downloading your customized cc import file16 l.jpg

    Downloading Your Customized CC Import File

    Tyco Electronics - Supplier Guide to Material Disclosure


    Downloading your customized cc import file17 l.jpg

    Downloading Your Customized CC Import File

    Tyco Electronics - Supplier Guide to Material Disclosure


    Importing your customized cc import file into the cc spreadsheet l.jpg

    Importing your customized CC Import File into the CC Spreadsheet

    Scroll to the right

    Tyco Electronics - Supplier Guide to Material Disclosure


    Importing your customized cc import file into the cc spreadsheet19 l.jpg

    Importing your customized CC Import File into the CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Importing your customized cc import file into the cc spreadsheet20 l.jpg

    Importing your customized CC Import File into the CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Importing your customized cc import file into the cc spreadsheet21 l.jpg

    Importing your customized CC Import File into the CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Importing your customized cc import file into the cc spreadsheet22 l.jpg

    Importing your customized CC Import File into the CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Importing your customized cc import file into the cc spreadsheet23 l.jpg

    Importing your customized CC Import File into the CC Spreadsheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet l.jpg

    Completing the CC Spreadsheet

    Now that you have imported your part information into the CC Spreadsheet, we can now move towards completing it. As noted earlier, the CC Spreadsheet contains several tabs. You will only need to provide missing information for the Blue tabs pictured here.

    Complete These Tabs Only

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet general information sheet l.jpg

    Completing the CC Spreadsheet – General Information Sheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet general information sheet26 l.jpg

    Completing the CC Spreadsheet – General Information Sheet

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide27 l.jpg

    Completing the CC Spreadsheet – Part Tree Sheet

    Step 2c. Check the “Check Part Tree” button at any time to confirm that all part tree data entered so far is valid.

    Step 2a. Complete a row for each saleable part (i.e. each part you sell to Tyco).

    Step 2b. Add a sub-part row for each saleable part. Enter each part on its own line at the appropriate sub-part level.

    Step 2d. Repeat for all saleable parts.

    Note: If you have a saleable or sub-part with both materials and subpart(s), make a “container” subpart for the material(s). The suggested sub part name is the parent name plus an identifier, as in A-72 (paint).

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet part tree sheet l.jpg

    Completing the CC Spreadsheet – Part Tree Sheet

    Suppliers will fully define the part structure for the supplied parts to Tyco, showing the parts at each assembly level within a part tree or BOM structure.

    • Enter information for all top level parts in the Saleable Parts Field.

    • If the part is not an assembly, proceed to the Materials tab (Step #3).

    • Provide the complete BOM in the Sub-Part fields to the right on the spreadsheet. Part information should be staggered in the Part Tree Tab. Parts for each descending assembly level should begin beneath its parent assembly.

    • Parts for each descending assembly level should begin one row beneath its parent assembly.

    • Please, do not input data in grayed cells throughout the spreadsheet. It is recommend that you work from left to right across the spreadsheet.

    • Click the "Overall Help" button on the Part Tree tab for detailed instructions.

    • Use the "Check Part Tree Data" button to verify that all required information has been entered and in the proper format.

    • Correct and check data input until it passes the data check.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet the materials sheet l.jpg

    Completing the CC Spreadsheet – The Materials Sheet

    Step 3c. Check the “Check Materials Data” button to confirm that all data entered so far is valid.

    Step 3a. Add a row for each custom material you need to define.

    Step 3b. Add substance rows for each substance in each material. When you click in the name or CAS number cell, a list of substances will appear. Enter one substance per line.

    Step 3d. Repeat adding materials.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet the materials sheet30 l.jpg

    Completing the CC Spreadsheet – The Materials Sheet

    Here you will provide information about the materials used in the parts reported in the “Part Tree tab.” Materials here will be used during next step (Part Detail tab).

    • Begin by entering the name of each material you wish to create.

    • Complete the materials information by providing the name and concentration of substances found in the material.

    • In the “Substance” section select from the drop down list of substances and CAS numbers provided.

    • For any proprietary items, use the 'miscellaneous/system' selection from the CAS list. This should only include substances that are not on the 'list of concern’.

    • Columns O to U (“Substance” section) request specific information about restricted substances. Concentration of the restricted substances are entered there.

    • The sum of the substance concentrations reported for each material must equal 100% or 1 million parts per million. However, declarations allow up to 20% of the material to be undisclosed for proprietary considerations.

    • Alloy composition, substance content, post industrial and post-consumer recycled content should be verified with the material manufacturer.

    • Click the "Overall Help" button on the Material tab for detailed instructions.

    • Use the "Check Materials Data" button to verify that all required information has been entered correctly.

    • Correct and check data input until it passes the data check.

    • If at any time you make any changes to the data you will need to click on the “Check Materials Data” button again before proceeding to the next tab.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide31 l.jpg

    Completing the CC Spreadsheet – The Part Detail Sheet

    Step 4d. Check the “Check Part Detail Data” button to confirm that all data entered so far is valid.

    Step 4e. Click the “Certify and Export” button to perform final validation checks, answer the certification question and export file to be sent to Tyco.

    Step 4a. Add a Part row for each part. When you click in a Part Number, Revision, or Data cell, a list with the remaining leaf parts will appear. Enter one part per line.

    Step 4b. Add Material rows for each material in part. When you click in a material name, Tradename, or Manufacturer Name cell, a list of Custom/Standard Materials will appear. Enter one material per line.

    Step 4c. Repeat adding parts until all lowest level (leaf) parts on Part Tree tab are reported.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet the part detail sheet l.jpg

    Completing the CC Spreadsheet – The Part Detail Sheet

    The Part Detail tab requires suppliers to identify the material that each bottom level part is made from. This is where you correlate the “Part Tree tab” information to the actual materials that comprise the part. Thus, you are reporting which materials are in what parts. To recap:

    • Click on the first cell under Part Number and select a bottom level part from the list.

    • Enter the part attributes (column headings have red text) on the first line.

    • On subsequent lines, enter information regarding the material(s) comprising that part (green headings).

    • For each material in a part, click the cell under “Material Name” and select a material from the list.

    • The Material Name list is generated by material record entries created in the Material tab.

    • Click the "Overall Help" button on the Part Tree tab for detailed instructions.

    • Use the "Check Part Detail Data" button to verify that all required information has been entered and is in the proper format.

    • After the data has been verified in the Part Detail tab, the Certify and Export button will become enabled. Certify and Export the data only if there are no substances of concern as shown in the next tab.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide33 l.jpg

    Completing the CC Spreadsheet – Substance of Concern Sheet

    Step 5d. Check the “Check Substance of Concern Data” button to confirm that all data entered so far is valid.

    Step 5e. Click the “Certify and Export” button to perform final validation checks, answer the certification question and export file to be sent to Tyco.

    Step 5a. Add a Part row for each Saleable part that contains any substances of concern (SoC) in amounts exceeding the allowable thresholds. When you click in a Part Number, Revision, or Data cell, a list with the remaining SoC parts will appear. Enter one part per line.

    Step 5b. Add Compliant Part availability information.

    Step 5c. Repeat adding parts until all Substance of Concern parts are reported.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet substance of concern sheet l.jpg

    Completing the CC Spreadsheet – Substance of Concern Sheet

    This is where you provide Tyco information about parts that contain restricted substances and your roadmap to eliminate them or achieve RoHS compliance. If no RoHS substance of concern (SoC) is reported in the composition of the component, you do not need to complete this tab.

    If any of the parts contain materials that have substance concentrations exceeding:

    • 0.01% Cadmium

    • 0.1% Lead, Hexavalent Chromium, Mercury, PBBs or PBDEs

    they will automatically populate here.

    • Begin by clicking on the first cell under Part Number. It will pre-populate the spreadsheet with the parts that contain substances of concern.

    • Enter the data requested as shown in the SoC tab description table.

    • You are first asked for the date that a ROHS compliant sample, and then a full-scale compliant part, will be available. If the part is already compliant because it is exempt (i.e. high temperature lead, mercury in lamps below 0.005 g, etc.), then insert the date you completed the form. If you have an alternate part that is RoHS compliant, and it is currently available, then also insert the date you completed the form.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Completing the cc spreadsheet substance of concern sheet35 l.jpg

    Completing the CC Spreadsheet – Substance of Concern Sheet

    4. You are then asked whether there will be a part number change for the RoHS part. If the answer is “yes”, then you are asked for the new part number. If the answer is “no”, then you are asked what date the RoHS compliant part will be available.

    5. Click the "Overall Help" button on the Substance of Concern Detail tab for detailed instructions.

    6. Use the "Check Substance of Concern Detail Data" button to verify that all required information has been entered correctly.

    7. Correct and check data input until it passes the data check.

    8. After the data has been verified in Substance of Concern Detail tab, the Certify and Export button will become enabled.

    9. If at any time you make any changes to the data you will need to click on the “Check Substance of Concern Detail Data” button again before proceeding to the next action.

    10. Click on the Certify and Export button.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information37 l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information38 l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information39 l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information40 l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information41 l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information42 l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Exporting and uploading your material disclosure information43 l.jpg

    Exporting and Uploading Your Material Disclosure Information

    Tyco Electronics - Supplier Guide to Material Disclosure


    Material disclosure process diagram l.jpg

    Material Disclosure Process Diagram

    Download CC Import File (parts list file) and save to desktop

    Download Compliance Connect (CC) spreadsheet and save to desktop

    Log into the Supplier Portal

    Go back to the CC spreadsheet

    From the Utilities tab in the CC spreadsheet, import the CC Import File (also called delimited text file)

    Fully define materials for all lower level parts in the Materials tab

    Complete the General Information tab in the CC spreadsheet

    Complete Part Tree tab for each part supplied to Tyco

    Complete Part Detail tab by indicating materials used in fabrication of parts

    Are there non-RoHS compliant parts or components?

    No

    From the Substance of Concern file select Certify and Export button

    Yes

    Complete the Substance of Concern (SoC) tab

    From the actions drop down menu, select the Upload Completed CC File

    In the Part Detail tab select Certify and Export button

    Tyco Electronics - Supplier Guide to Material Disclosure


    Tyco electronics supplier guide to material disclosure45 l.jpg

    Tyco Electronics Supplier Guide to Material Disclosure

    Thank you for viewing the

    Please be sure to download the PDF or PowerPoint version, which includes Appendices and a Glossary of Terms at http://www.tycoelectronics.com/supplier/docs/rohs20_supplier_guide

    Tyco Electronics - Supplier Guide to Material Disclosure


    Appendix l.jpg

    Appendix

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide47 l.jpg

    Part Tree Tab Fields Description Con’d.

    Sub-Parts (level 2 through level 30)

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide48 l.jpg

    Table 3: Materials Tab Fields Description

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide49 l.jpg

    Materials Tab Fields Description Con’d.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide50 l.jpg

    Table 4: The Part Detail Tab Description

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide51 l.jpg

    The Part Detail Tab Description Con’d.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide52 l.jpg

    Table 5: The Substance of Concern Tab Description

    Tyco Electronics - Supplier Guide to Material Disclosure


    Glossary l.jpg

    Glossary

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide54 l.jpg

    Assembly Level – Assembly levels are used to identify the location of detail

    components within the parts structure in a bill of materials. Saleable parts are

    assembly level 1. The components (including subassemblies) comprising the

    saleable part are assembly level 2, and so forth.

    Basic Substances - these include the material’s main ingredients (e.g. basic polymer, filler material, etc.), and are not part of the substances identified as Declarable Substances.

    Bill of Materials - The BOM (Bill of Material) is that list of the components and/ or materials, further broken down to the Homogeneous Material level, that are present in the end product as delivered to the customer. The BOM, as used in this standard, includes the Engineering BOM (EBOM), also called a parts list, typically from a drawing or data base, and other materials that may be included in the end product as it is manufactured, e.g. contact lubricants, etc. If a material is used during the production of the product, but it is not in the product as it is delivered to the customer, that material is not a constituent of the BOM, e.g. a lubricant that is washed off during the Tyco Electronics manufacturing process. The BOM is for product only and does not include packaging.

    Bottom level part – A part that is not an assembly, that is, a single piece item that is not comprised of multiple parts. Bottom level parts are also referred to as lowest-level or leaf-level parts.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide55 l.jpg

    Chemical Abstractive Service (CAS) Numbers – CAS numbers are a unique identifier assigned to substances to eliminate the confusion and ambiguity of having more that one scientific or common name for a substance. Known organic and inorganic substances have CAS Numbers.

    Chlorofluorocarbons (CFCs) – Chemicals sometimes used as propellants in aerosol cans or as refrigerants.

    Component – A component is a complete assembly or a part within an assembly that builds a complete product. A system, assembly, sub-assembly, sub-component, semi-component or part are synonyms for a component.

    Confidential Substances - Confidential Substances are substances which are determined by the supplier to be proprietary to that supplier. Confidential Substances can not be more than 20% by weight of the homogeneous material. Confidential Substances can not be Declarable Substance.

    Declarable Substances - Substances at the homogeneous level which must be declared (including their CAS numbers) according to those shown on Tyco Electronics Form #5081-2. Those substances listed on Form #5081-2 are those noted in JIG Material Composition Declaration Guide, VDA List of Declarable Materials 232-101 and others deemed of interest by Tyco Electronics.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide56 l.jpg

    Homogeneous material - A material, in the form found in the end product, which cannot be mechanically disjointed into different materials: homogeneous materials are materials of uniform composition throughout. Ceramics, glass, metals, alloys, plating, board, resins, coatings are examples. The term “mechanically disjointed” means that the materials can be, in principle, separated by mechanical actions such as unscrewing, cutting, crushing, grinding and abrasive processes.

    Examples of Homogeneous Materials:

    A component that is overmolded would be considered two separate homogeneous materials and reported as such, e.g. plastic overmolding on a lead frame.

    A mixture, such as a base resin with glass, flame retardant and/ or colorant that is added to provide an integral function, performance and/ or appearance enhancement, shall be reported as one homogeneous material, provided that in the end product the material can not be “mechanically disjointed”. However, each substance must be reviewed and included in the disclosure for the “homogenous material”.

    An electrical component such as a resistor would consist of a variety of homogeneous materials that could include ceramic, the lead frame alloy, and the plating applied to the lead frame. Each of these must be treated as a homogeneous material and evaluated for controlled substances.

    An adhesive which may be purchased as two separate compounds will be reported as its final form in the end product, e.g. a cured system.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide57 l.jpg

    IMDS – The International Material Data System – an automotive industry part content data collection system used by many OEMs.

    Intentionally added - Deliberate use of a substance in the formulation of a material/ component where its continued presence is desired to provide a specific characteristic, appearance or quality. If a material is intentionally added at any point in the supply chain it must consistently be treated as intentionally added through the final product assembly. Also any catalysts or processing aids that are introduced during the manufacturing process and remain as part of product are always considered intentional additions.

    Macros – An action or set of actions you can use to automate tasks.

    Materials - Chemical compounds and formulated substances that are supplied for the production of components. Examples of materials are: plastics/ resins,

    metals, coatings, paint, adhesives, etc.

    Material Declaration - A material declaration is intended to disclose the substances that are present in a Tyco Electronics product. The requirements for which type of materials/ substances that are included in a Material Declaration are often dictated by a customer. Therefore, the actual Material Declaration may have various formats and threshold limits, as well as include all or sub-sets of the Substances found on Form #5081-2.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide58 l.jpg

    Pre-Consumer Recyclate– The portion of a material's weight that has been recovered from or otherwise diverted from the industrial waste stream for the purpose of recycling. Pre-consumer recyclate does not include home scrap. Pre-consumer recyclate is also referred to as rework, post-industrial materials, and post-process materials. Pre-consumer recyclate is material recovered from the waste stream of a manufacturing process for use in a different manufacturing process or has been recycled/recovered by a third party and returned to the manufacturing process.

    Post-Consumer Recyclate – The portion of a material's weight that comes from products or materials that have served their intended end uses and have been recovered from or otherwise diverted from the consumer waste stream for the purpose of recycling. An example is recycled beverage containers that are sources of material for auto parts.

    RDO/ECO (Responsible Design Owner/ Engineering Control Organization) –

    The engineering organization that has design control of a product, the RDO/ECO has the

    authority to maintain and change the engineering information, drawings, specifications,

    etc., controlling a specific product.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Slide59 l.jpg

    • Recording of Substance and Product Information in Systems –

    • Information in the Compliance Central system will be recorded for a material, specification and/ or components using an appropriate Tyco Electronics part number or specification number scheme.

    • The product’s BOM shall be used to identify the individual components and any materials, also substances that are included, and remain, during the manufacturing process. If alternate materials are permitted to manufacture the product, information for these materials is to be reported.

    • The mass of each component shall:

      • use SI units.

      • be within +/- 10% accuracy.

      • use the maximum plating thickness and area for plated parts.

      • use a calculated volume and density or actual measured weight.

  • Any change to the materials and/ or mass of a product’s components, e.g. as the result of an engineering change, requires that the information recorded previously in the Compliance Central system be updated to represent the current product. Suppliers of the material and/or components are responsible to notify Tyco Electronics of changes to the product that they provide, see Standard 230-702.

  • Data detailing a material’s substances will be recorded using the material’s trade/ industry name or industry specification, not a generic name. For example, use Valox 420 SE0, not Polyester PBT, 30% glass fiber reinforced. The suppliers name with the trade/ industry name and the generic material description shall be available to internal Tyco Electronics use. The trade/ industry name shall be reported by the supplier.

  • Tyco Electronics - Supplier Guide to Material Disclosure


    Slide60 l.jpg

    • F. Each substance shall be identified by a CAS number. Substance concentration shall be reported as parts per million (ppm). The formula for ppm is 1,000,000 x mass of the substance/ mass of the homogeneous material.

    • Substances are subdivided into three different substance types.

    • a. Basic Substances

    • b. Declarable Substances

      • 1) Intentionally added Declarable Substances shall be reported on at any level, regardless of the ppm (parts per million) or percent level.

      • 2) Unintentionally added Declarable Substances (e.g., trace elements) must be reported at the homogeneous level, if known or reasonably expected to be known, at any level. If the trace level values exceed the reportable limit, they must be reported.

      • c. Confidential Substances

      • 1) Confidential Substances are substances which are determined by the

  • supplier to be proprietary to that supplier. Confidential Substances can not be

  • more than 20% by weight of the homogeneous material. Confidential

  • Substances can not be Declarable Substances.

  • 2) All (100%) of the substances that are contained in a material shall be recorded

  • in the Tyco Electronics Compliance Central hazardous material system

  • regardless of the substance type (i.e., Basic/ Declarable/ Confidential).

  • The Declarable Substances in the material will be reported as a maximum

  • amount (worst case) that would be found in that material.

  • Tyco Electronics - Supplier Guide to Material Disclosure


    Slide61 l.jpg

    The Basic Substances in a material shall be recorded as the nominal concentration that w

    would be found in that material.

    The sum of the substances in a material must equal 100% of the weight of that material/

    component. To ensure all the substances add to 100%, the last substance to be recorded

    should be the Basic Substance which is the major constituent of the material. It should be

    calculated as 100 - All Other Substances = major constituent ofthe material. For

    example, a copper alloy has 40.05% of its composite derived from substances other than

    copper. Therefore 100- 40.05% (all the other substances) = 59.95% copper. The copper

    content of this material should be recorded as 59.95%.

    A substance should be declared as it exists in the final product, i.e. only those substances

    that are present in the final part should be recorded (e.g. lubricant solids, a hardened

    adhesive, etc).

    RSRC – The Regulated Substance and Recyclability Certification System – An Internet

    accessible program developed and used by DaimlerChrysler Corporation for collection of

    supplier part, material, and substance of concern data.

    Saleable part – The final, as shipped part supplied to Tyco.

    Specific Gravity – The ratio of the density of a material (g/cm³) to that of water (1.0 g/ cm³).

    Substance - Chemical elements and their compounds. A substance is either a material or a

    constituent of a material. A substance is not a constituent of a component or product. Each

    substance will have a unique CAS (Chemical Abstracts Service) number assigned to it.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Frequently asked questions faq s l.jpg

    Frequently Asked Questions (FAQ’s)

    Tyco Electronics - Supplier Guide to Material Disclosure


    Frequently asked questions faq s63 l.jpg

    Frequently Asked Questions (FAQ’s)

    The FAQ’s are broken up into the following categories:

    • General Questions

    • CC Spreadsheet Questions

    • Technical Questions

    Tyco Electronics - Supplier Guide to Material Disclosure


    General faq s l.jpg

    General FAQ’s

    Q: Who do I contact for technical support?

    A: If you cannot find the answer to your problem in the Technical FAQ’s section, please contact the Tyco Electronics’ Help desk by phone at 717-810-3656, 877-290-8414 [toll free], or +1-717-810-3656 [international] OR you may email your question to [email protected]

    Q: Who should I contact for non-technical RoHS-related support?

    A: Please contact your local Tyco Electronics purchasing representative.

    Q: Why am I assigned multiple user IDs to login into the Tyco E-Commerce system?

    A: This may have happened if you have completed surveys and provided different e-mail addresses or if we have multiple entries in our purchasing system for the company you represent. This should not happen often, but when it does, you will need to sign in using all supplied user id & password combinations. This will assure that you have completed the survey for all part numbers requested. In cases where parts are duplicated for the various accounts, you may find it helpful to copy and paste previously submitted response info.

    Q: Why am I presented with a drop down list of company names when I sign into the system?

    A: This situation occurs when you are a representative for a number of different companies or have data in our system with the company names that do no match exactly. For example: Acme Inc and Acme Incorporated may show up in the list. This is really a back-end system problem, so you don't need to worry too much as long as you are a representative for the companies in your list. However, you must sign into the system using each of the choices in the drop-down box to assure a complete response to the survey Responses are still needed for all parts in cases where duplications occur for the various accounts; you may find it helpful to copy and paste previously submitted response information.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Cc spreadsheet faq s l.jpg

    CC Spreadsheet FAQ’s

    Q: Is it possible to copy part data from one location to another?

    A: Yes. Data contained in part or material records can be copied within the same spreadsheet, or to another spreadsheet.

    Q: What if I don’t have the information that is requested in the Tyco Compliance

    Connect spreadsheet?

    A: You can find the information requested from your Bills of Materials (BOM), Material

    Safety Data Sheets (MSDS), and from reference guidebooks. You may also need to

    gather data from your suppliers for parts your company purchases.

    Q: How do I report a substance if it is not in the look up list?

    A: If a substance is present in your materials but not in the drop down list, report the

    substance as “miscellaneous”.

    Q: Why aren’t all of the bottom level parts in my Part Tree showing up in the Material and Part Detail tab?

    A: If you use a bottom level part in more than one assembly in the Part Tree, it will only appear once on the Material tab and the Part Detail tab because you only have to

    provide the information one time.

    Q: What do I do when I get an error that says that my weights do not add up to 100%?

    A: The weight of the materials that make up the part must add up to 100% or the exact weight of the part as listed in the “Part Weight Amount” column. Also, all of the “Weight Amount” columns in the substance section must add up to either 100% or the exact weight of the material.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Cc spreadsheet faq s66 l.jpg

    CC Spreadsheet FAQ’s

    Q: I cannot generate a .mcc file. What is wrong?

    A: Only when you have completed the entire Compliance Connect (CC) spreadsheet and it is free of errors can you generate a .mcc file.

    Q: What is the difference between the bold headings and the non-bold headings in the

    Compliance Connect spreadsheet?

    A: The bold headings are columns containing required information and the non-bold

    headings are columns for optional information.

    Q: Why are there grayed out rows on the Part Tree and Part Detail tabs?

    A: Information input into Part Tree and Part Detail tabs is to be staggered. Refer to

    examples in the Compliance Connect spreadsheet.

    Q: Why don’t all of the parts in Part Tree tab appear in Part Detail tab?

    A: Only lowest level parts (or non-assemblies, bottom level, or leaf level parts) will need material and substance information input into Part Detail. Assemblies cannot have material information. Material is defined as a constituent of a component.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Technical faq s l.jpg

    Technical FAQ’s

    • Q: How do I enable Cookies in my web browser?

    • A: For Microsoft Internet Explorer 6.x running on Windows

      • Click on the Tools-menu in Internet Explorer

      • Click on the Internet Options item in the menu - a new window opens

      • Click on the Privacy tab near the top of the window.

      • Move the slider so that is on one of the levels below Medium High (including Medium, Low, Accept All Cookies

      • Save changes by clicking OK

    • For Microsoft Internet Explorer 5.x running on Windows

      • Click on the Tools-menu in Internet Explorer

      • Click on the Internet Options item in the menu - a new window opens

      • Click on the Security tab near the top of the window

      • Click on the Custom Level... button near the bottom of the window

      • Scroll down to Cookies in the new dialog, and set both "Allow cookies that are stored on your computer" and "Allow per-session cookies” to Enable

      • Save changes by clicking Ok

    • Q: How do I enable Active Scripting in my web browser?

    • A: For Microsoft Internet Explorer 5.x and 6.x running on Windows

      • Click on the Tools-menu in Internet Explorer

      • Click on the Internet Options item in the menu - a new window opens

      • Click the Security tab.

      • Click Custom Level in Security Level for this Zone.

      • Scroll down to Scripting, near the bottom of the list.

      • Under Active Scripting, choose Enable.

      • Click OK to leave Security Settings. Click OK to leave Internet Options.

    Tyco Electronics - Supplier Guide to Material Disclosure


    Technical faq s68 l.jpg

    Technical FAQ’s

    • Q: Resetting the Macros SecurityA: To reset your macro security options in Excel 2000

      • Select Tools, then Macro, then Security from the Excel tool bar.

      • Select Medium on the Security Level tab, then click the OK button.

    • To reset your macro security options in Excel 97

      • Select Tools, then Options, then the General Tab from the Excel tool bar.

      • Remove the check from the box next to “Macro Virus Protection”.

    Tyco Electronics - Supplier Guide to Material Disclosure


  • Login
