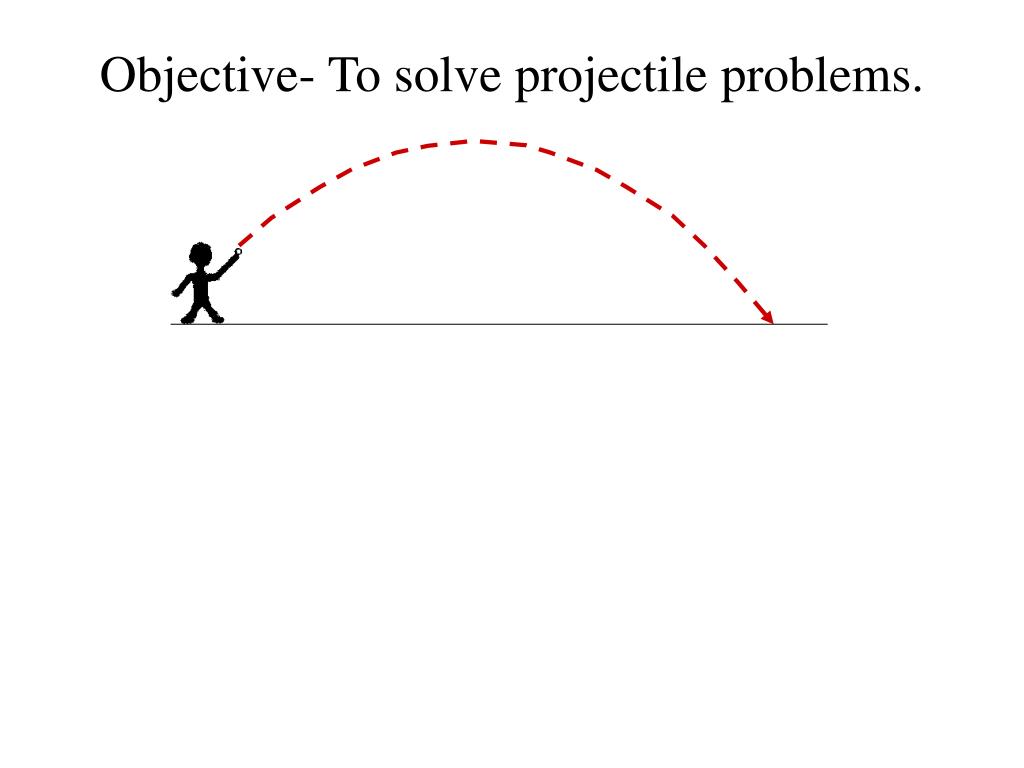

  1. Objective- To solve projectile problems.

  2. Objective- To solve projectile problems. Height Horizontal Distance

  3. Objective- To solve projectile problems. Height Time

  4. Objective- To solve projectile problems. Vertical Speed Time

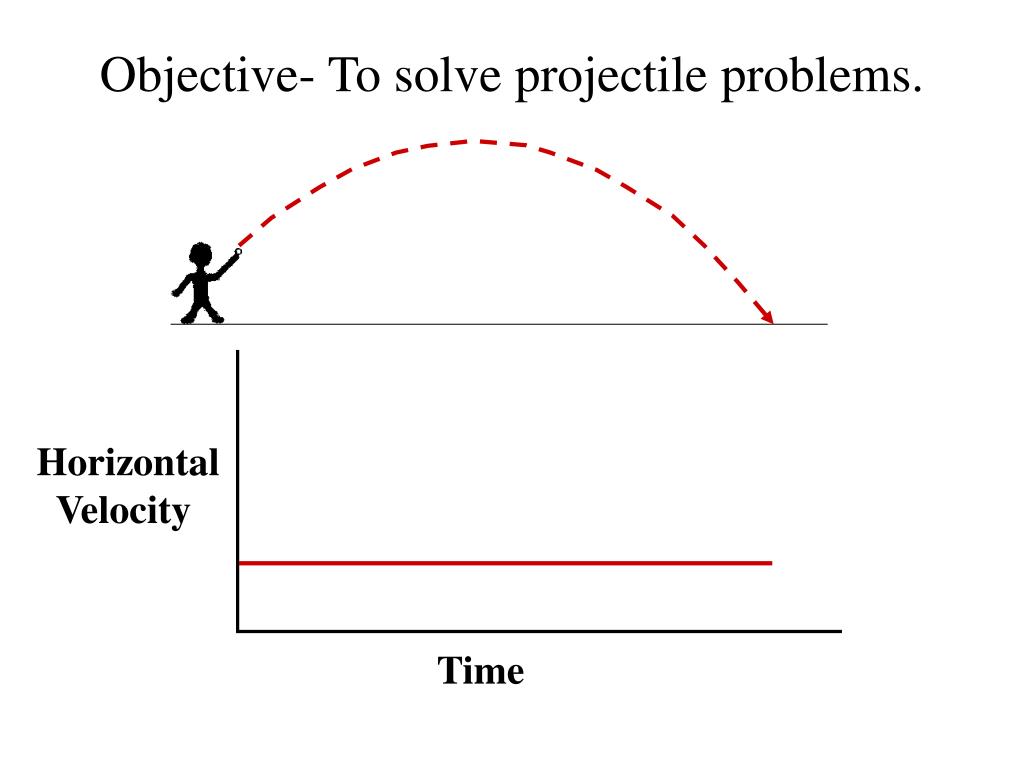

  5. Objective- To solve projectile problems. Horizontal Velocity Time

  6. Objective- To solve projectile problems. Horizontal Distance Time

  7. Height Time

  8. Height Time A rock is thrown from a cliff with an initial height of 25 feet and an initial upward velocity of 100 ft/sec. Acceleration due to gravity is 16 ft/sec. Write an equation that describes its height, h, over time, t. 2

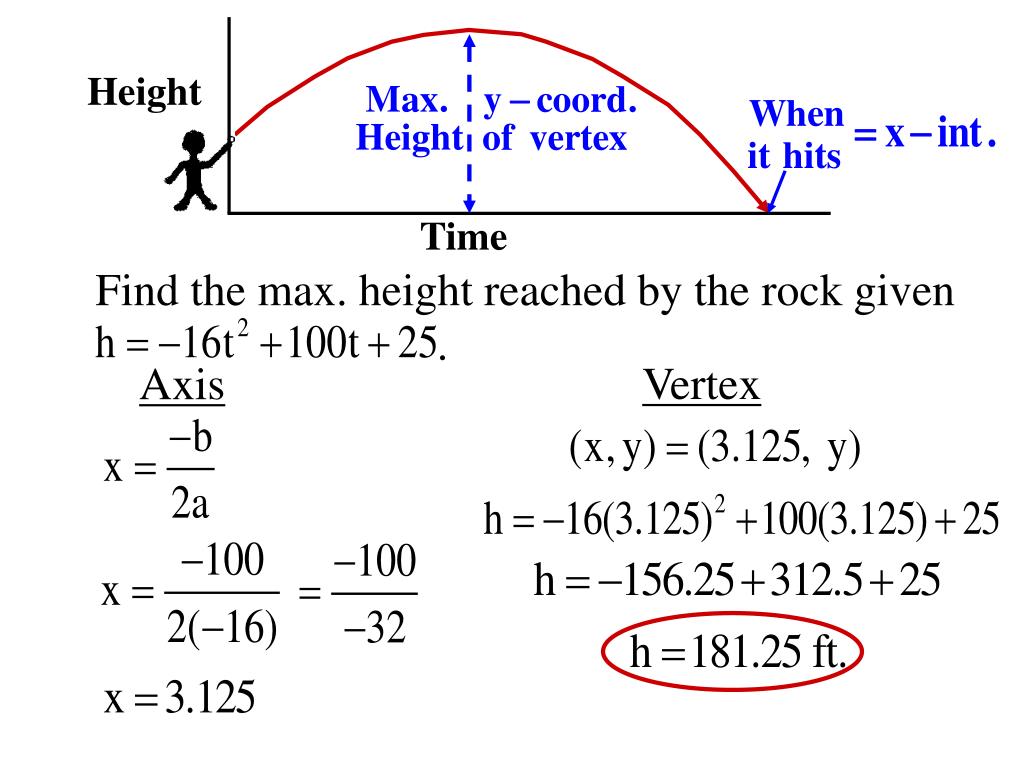

  9. Height Time Find the max. height reached by the rock given . Vertex Axis

  10. Height Time Find when the rock hits the ground given . (h=0) x-intercept

  11. A baseball is hit with an initial height of 1 meter and an initial upward velocity of 32 m/s. Acceleration due to gravity is 4.9 m/s. 2 a) Write an equation to describe its height, h, over time, t.

  12. b) Find the maximum height of the ball given . A baseball is hit with an initial height of 1 meter and an initial upward velocity of 32 m/s. Acceleration due to gravity is 4.9 m/s. 2 Vertex Axis

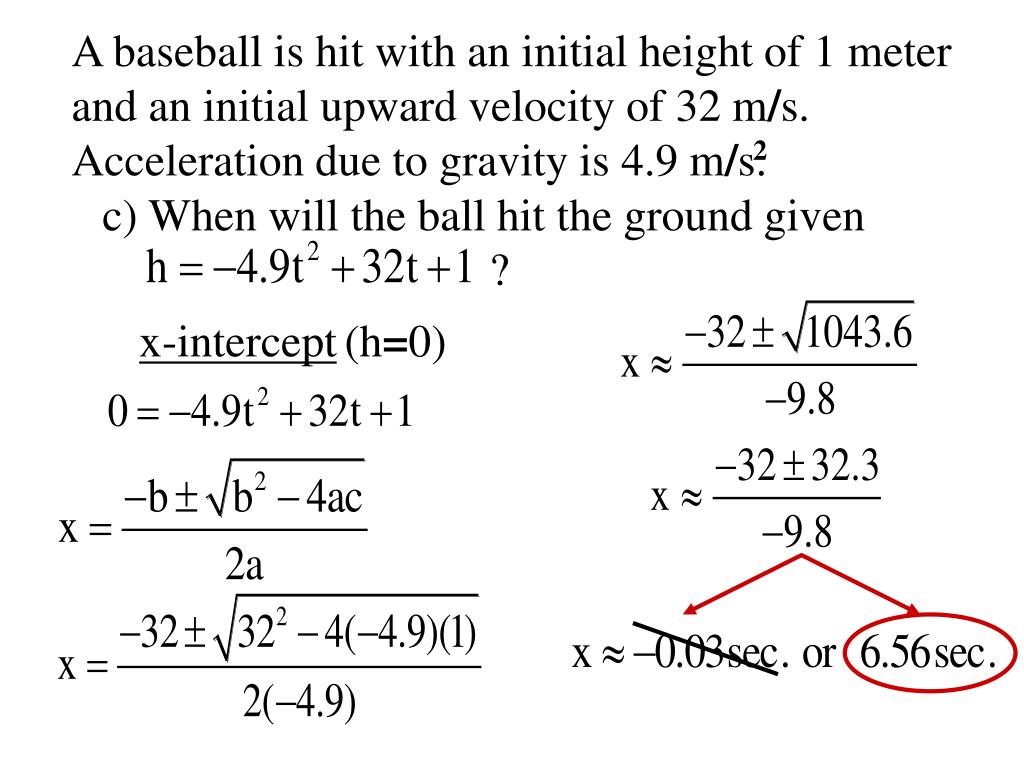

  13. c) When will the ball hit the ground given ? A baseball is hit with an initial height of 1 meter and an initial upward velocity of 32 m/s. Acceleration due to gravity is 4.9 m/s. 2 (h=0) x-intercept
