Winlink 2000 wl2k introduction

2006

Winlink 2000 (WL2K) Introduction

An Introduction and brief history of the Ham Radio Winlink 2000 system.

Presented by

Rick Muething, KN6KB

Winlink Development Team

2006 NATIONAL HURRICANE CONFERENCE

ORLANDO, FLORIDA

APRIL 11, 2006


Winlink 2000 wl2k introduction

2006

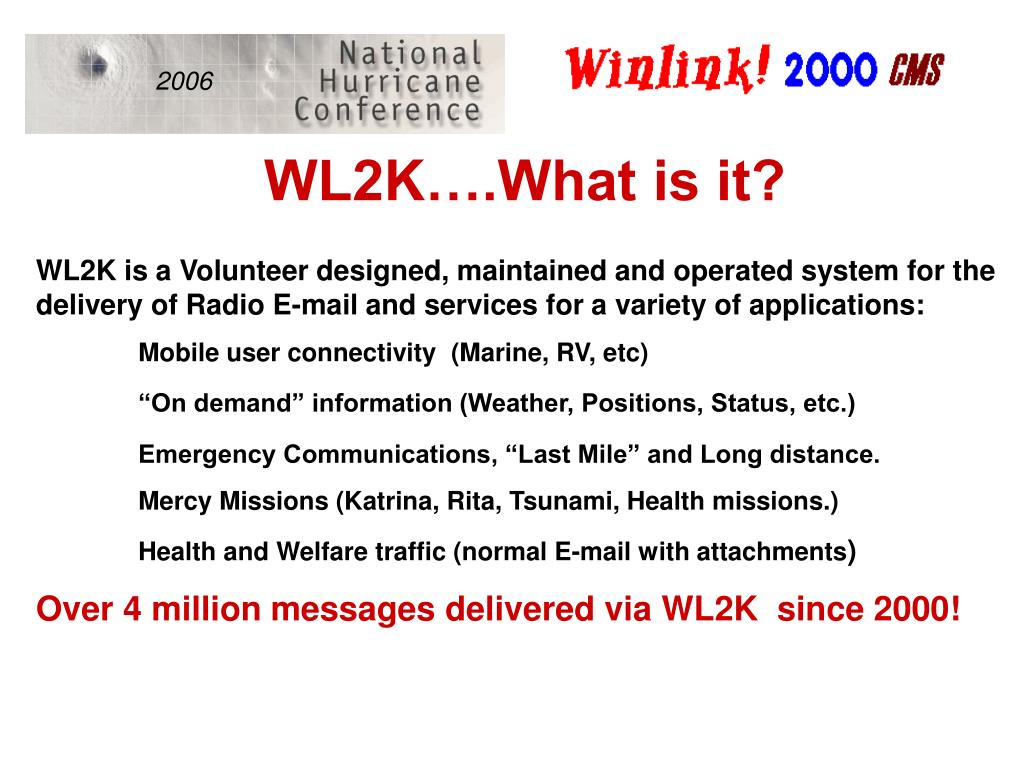

WL2K….What is it?

WL2K is a Volunteer designed, maintained and operated system for the delivery of Radio E-mail and services for a variety of applications:

Mobile user connectivity (Marine, RV, etc)

“On demand” information (Weather, Positions, Status, etc.)

Emergency Communications, “Last Mile” and Long distance.

Mercy Missions (Katrina, Rita, Tsunami, Health missions.)

Health and Welfare traffic (normal E-mail with attachments)

Over 4 million messages delivered via WL2K since 2000!


Winlink 2000 wl2k introduction

2006

WL2K….Brief History

Late 1980’s:DOS based APLink developed by Vic Poor, W5SMM, used HF Amtor to provided VHF Packet connectivity to marine mobiles.

1995: Renamed “Winlink” (now called “Winlink Classic”) with a small group of Radio stations (MBOs) eventually linked via RF to Internet E-mail (NEXUS).

1999: Testing began on Winlink 2000, an expanded and improved implementation based on a Central Hub (CMBO) and Radio station gateways (PMBOs) linked via Internet.

2006: Continual development from a growing Winlink development Team, now consisting of 8 members, all with specific duties to match their skills.


Winlink 2000 wl2k introduction

2006

WL2K Today… by the numbers

  • Demonstrated > 99% system availability since Nov, 1999.

  • 3 Full-time Redundant Common Message Servers (CMS) in Detroit, San Diego and Perth, all in hardened “caged” sites, provide excellent reliability, worldwide.

  • 81 total PMBOs, worldwide, in 4 Service Classes: Public, EmComm, Army MARS, UK Cadet Forces offer each separated service class their own operation.

  • Approximately 9,500 Radio users, 98,000 Email recipients, pushing an average of 150,000 messages monthly. Average monthly connection time of 280,000 minutes with an average duration of 3.3 Minutes and 3,600 bytes/per message.

  • Typical message latency sender to recipient delivery …1-2 minutes.

  • In the EmComm Service Class, there are 287 Active VHF/UHF “TelPac” Gateways.

  • Many agencies have proven that WL2K is a viable primary source for Point-to-Point and Point-to-Multi-point communications where accuracy, speed and a permanent record is required.

  • THE FIRST PRIORITY OF ANY SERVICE CLASS IS EMERGENCY COMMUNICATIONS.


Winlink 2000 wl2k introduction

2006

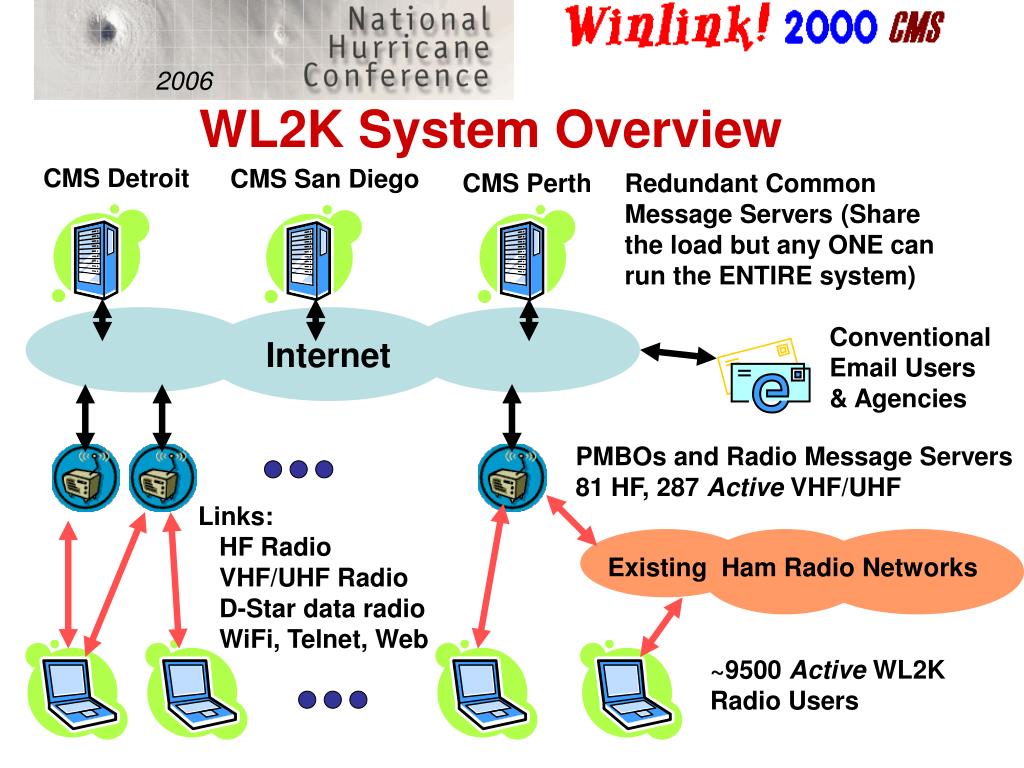

WL2K System Overview

CMS Detroit

CMS San Diego

CMS Perth

Redundant Common Message Servers (Share the load but any ONE can run the ENTIRE system)

Internet

Conventional

Email Users

& Agencies

PMBOs and Radio Message Servers

81 HF, 287 Active VHF/UHF

Links:

HF Radio

VHF/UHF Radio

D-Star data radio

WiFi, Telnet, Web

Existing Ham Radio Networks

~9500 Active WL2K

Radio Users


Winlink 2000 wl2k introduction

2006

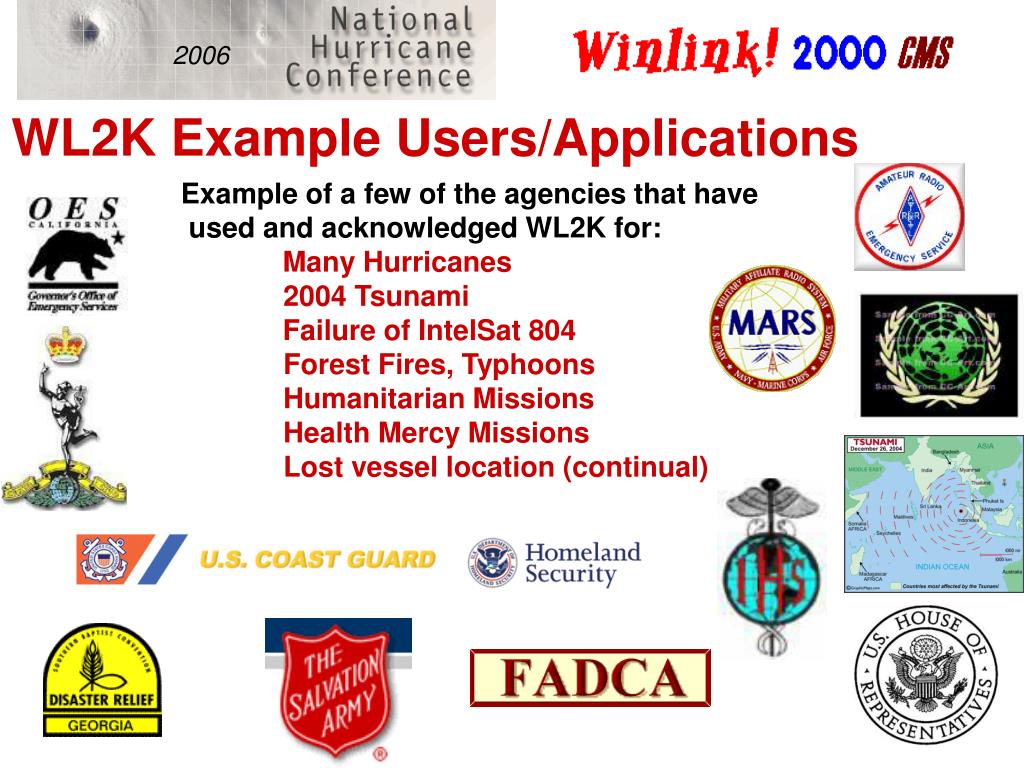

WL2K Example Users/Applications

Example of a few of the agencies that have

used and acknowledged WL2K for:

Many Hurricanes

2004 Tsunami

Failure of IntelSat 804

Forest Fires, Typhoons

Humanitarian Missions

Health Mercy Missions

Lost vessel location (continual)


Winlink 2000 wl2k introduction

2006

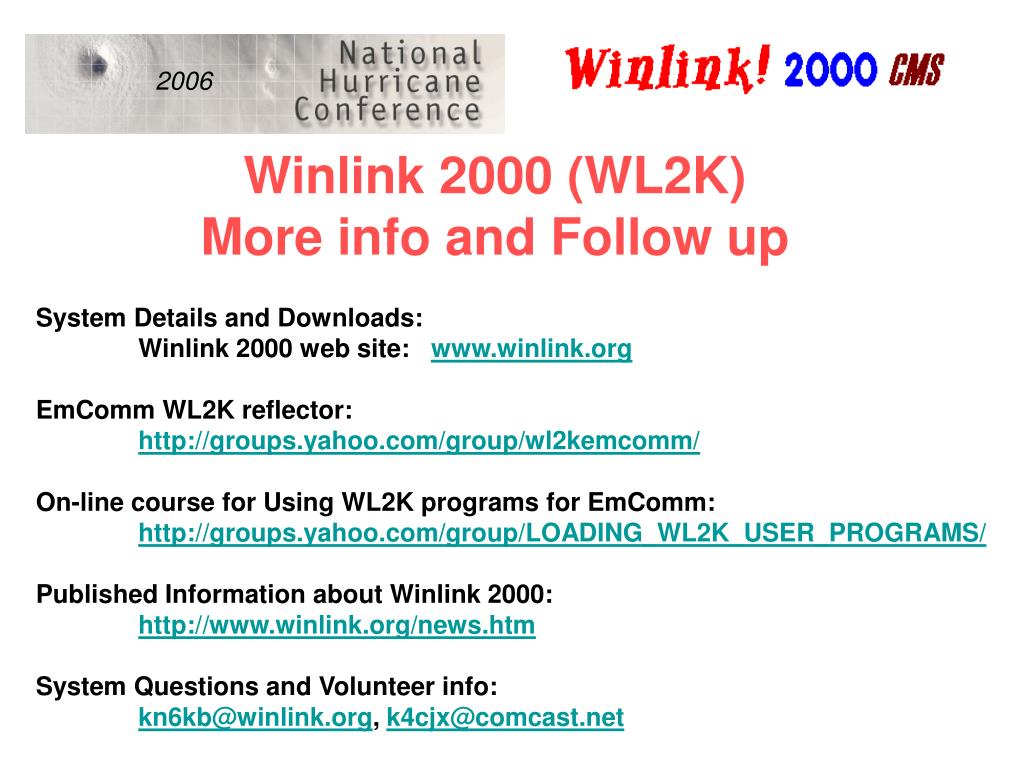

Winlink 2000 (WL2K) More info and Follow up

System Details and Downloads:

Winlink 2000 web site: www.winlink.org

EmComm WL2K reflector:

http://groups.yahoo.com/group/wl2kemcomm/

On-line course for Using WL2K programs for EmComm:

http://groups.yahoo.com/group/LOADING_WL2K_USER_PROGRAMS/

Published Information about Winlink 2000:

http://www.winlink.org/news.htm

System Questions and Volunteer info:

[email protected], [email protected]
