Presentation Transcript


E1 208

SlimDesktop

E1-208

Sunny Technologies Co., Ltd


Structure of e1 208 extra speaker saved design

StructureofE1-208Extra-Speaker-Saved Design

Removable & Screw less HDD Cage

Optional Speaker Amplifier

Fold Edge. For Safety installation.

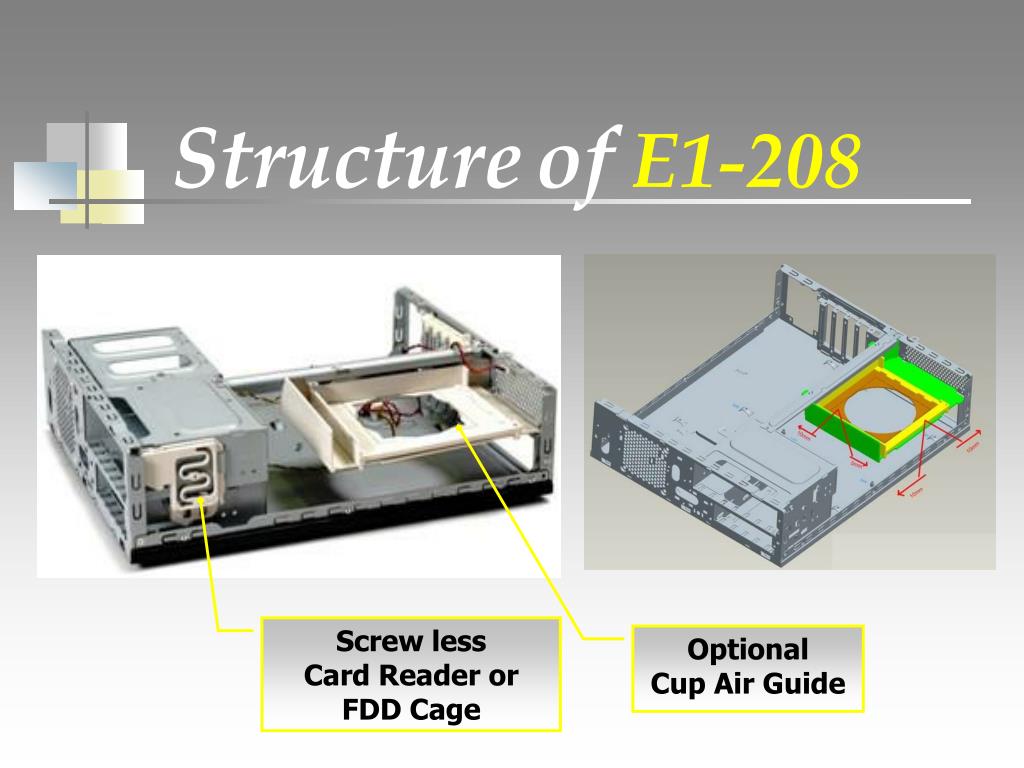

Structure of e1 208

StructureofE1-208

Screw less Card Reader or FDD Cage

Optional Cup Air Guide

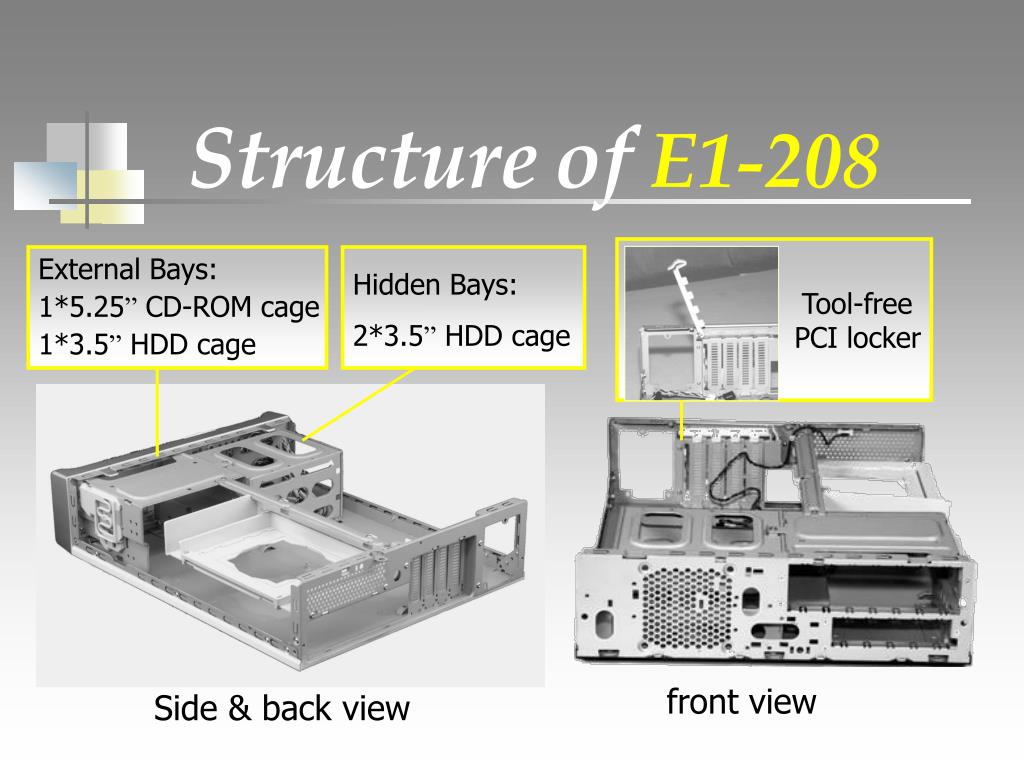

Structure of e1 2081

StructureofE1-208

Tool-free

PCI locker

External Bays:1*5.25” CD-ROM cage

1*3.5” HDD cage

Hidden Bays:2*3.5” HDD cage

front view

Side & back view

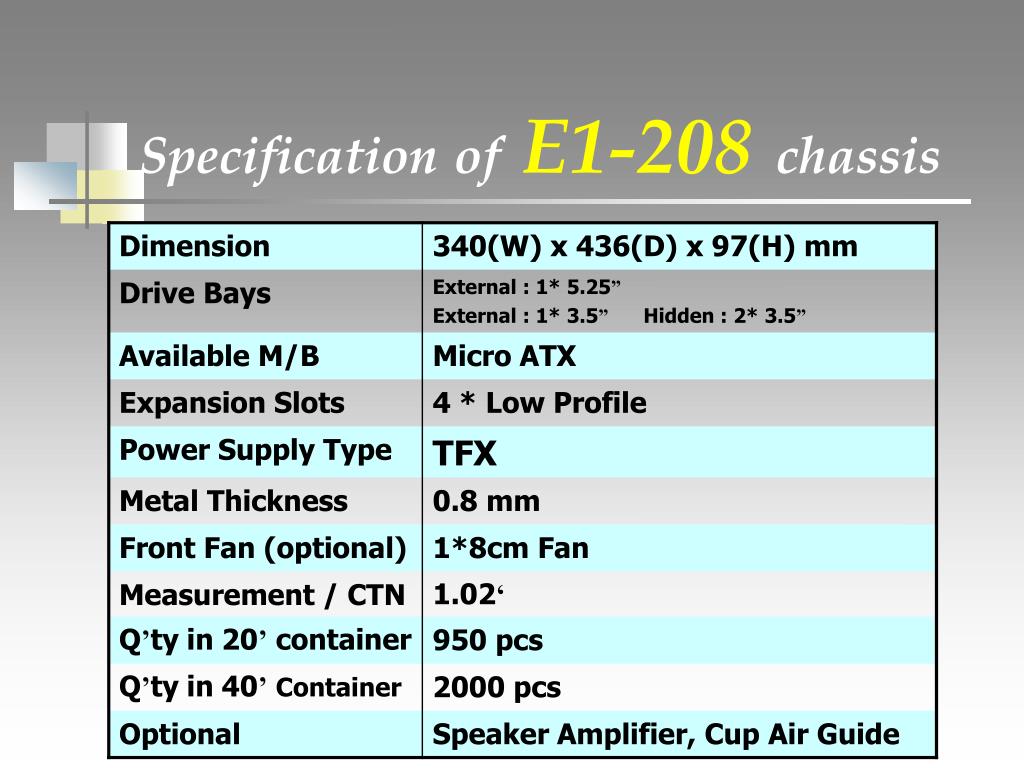

Specification of e1 208 chassis

SpecificationofE1-208chassis

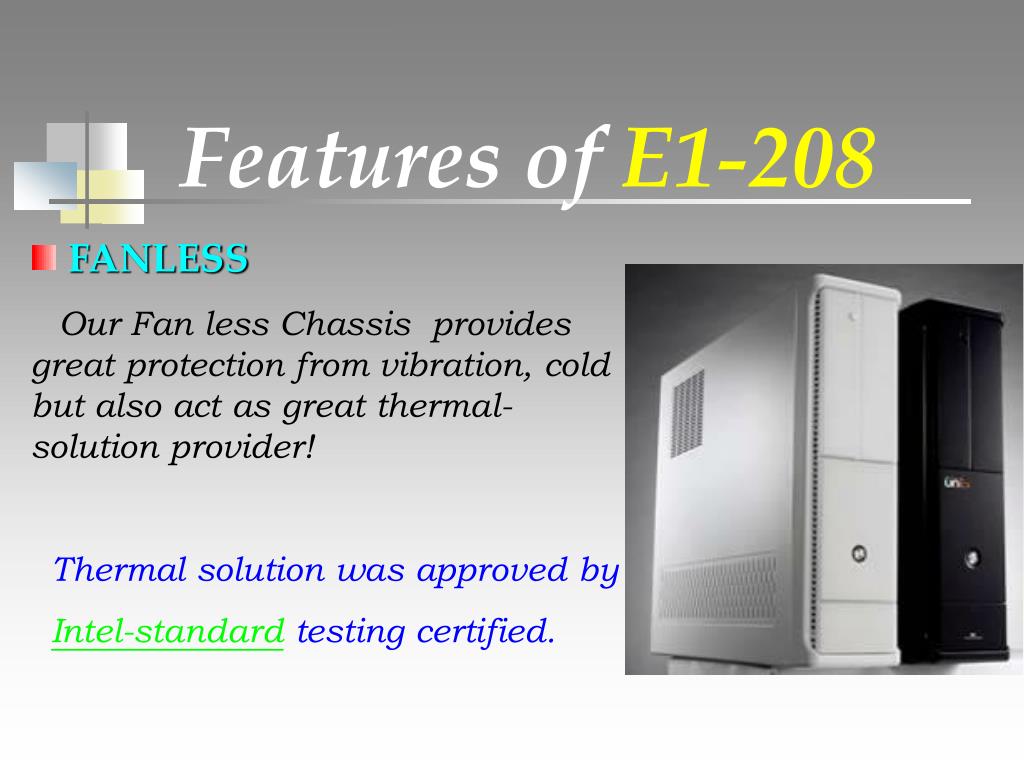

Features of e1 208

FeaturesofE1-208

FANLESS

Our Fan less Chassis provides great protection from vibration, cold but also act as great thermal-solution provider!

Thermal solution was approved by

Intel-standard testing certified.


Features of e1 208 top textured

FeaturesofE1-208Top-Textured

External HDD cover

can be opened.

External CD-ROM

cover on front panel.

High quality of ABS material

good-plated Power button

w/blue light.

USB/AUDIO at bottom

of the front panel.


T he en d

Slim Desktop

TheEnd

Sunny Technologies Co., Ltd

http://www.sunnytec.com
